TAO_Persistent_Context_Index Class Reference

This class facilitates implementation of Persistent Naming Service. It keeps track, centrally, of several pieces of info for each Persistent Naming Context, allowing to perform the initialization necessary for each Naming Context to restore the state of the Naming Service from persistent storage on server start-up. More...

#include <Persistent_Context_Index.h>

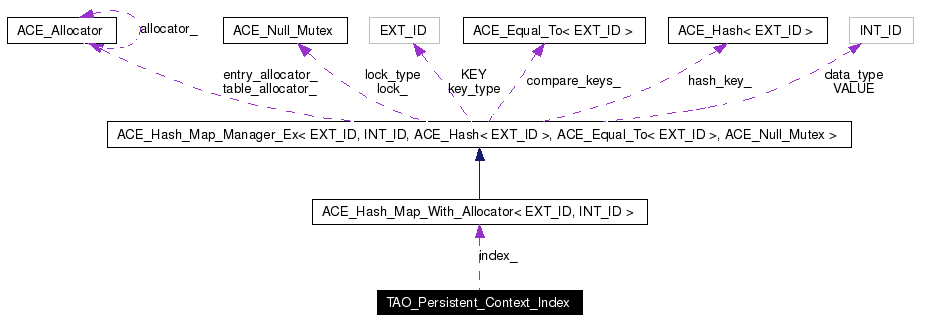

Collaboration diagram for TAO_Persistent_Context_Index:

Collaboration graph
[legend]
List of all members.

Public Types

typedef ACE_Hash_Map_With_Allocator<
TAO_Persistent_Index_ExtId,
TAO_Persistent_Index_IntId > 		CONTEXT_INDEX
 Hash map in which we will store info about each Persistent Naming Context.

typedef ACE_Hash_Map_With_Allocator<
TAO_Persistent_ExtId, TAO_Persistent_IntId > 		CONTEXT
 Hash map used by Persistent Naming Context to keep its state.

typedef ACE_Allocator_Adapter<
ACE_Malloc< ACE_MMAP_MEMORY_POOL,
TAO_SYNCH_MUTEX > > 		ALLOCATOR
 Allocator we will be using to make the Naming Service persistent.


Public Member Functions

 TAO_Persistent_Context_Index (CORBA::ORB_ptr orb, PortableServer::POA_ptr poa)
 Constructor.

int open (const ACE_TCHAR *file_name, void *base_address=TAO_NAMING_BASE_ADDR)
int init (size_t context_size)
 ~TAO_Persistent_Context_Index (void)
int bind (const char *poa_id, ACE_UINT32 *&counter, CONTEXT *hash_map)
int unbind (const char *poa_id)
ACE_Allocator * allocator (void)
 Return allocator.

CORBA::ORB_ptr orb (void)
 Return orb pointer.

CosNaming::NamingContext_ptr root_context (void)

Private Member Functions

int recreate_all (void)
int create_index (void)
 Helper for the method.

int create_index_helper (void *buffer)

Private Attributes

TAO_SYNCH_MUTEX lock_
ALLOCATOR * allocator_
CONTEXT_INDEX * index_
const ACE_TCHAR * index_file_
 Name of the memory-mapped file used by .

void * base_address_
 Base address for the memory-mapped file.

CORBA::ORB_var orb_
PortableServer::POA_var poa_
CosNaming::NamingContext_var root_context_
 The reference to the root Naming Context.

Detailed Description

This class facilitates implementation of Persistent Naming Service. It keeps track, centrally, of several pieces of info for each Persistent Naming Context, allowing to perform the initialization necessary for each Naming Context to restore the state of the Naming Service from persistent storage on server start-up.

This class creates a memory-mapped file, allocates a hash table from that file, and uses the hash table to store POA id, and table and counter pointers for each Persistent Naming Context. There are methods for adding and deleting entries from this hash table as new Persistent Naming Contexts are created and old ones are destroyed. This hash table facilitates Persistent Naming Context servant initialization upon Naming Server start-up.

Definition at line 47 of file Persistent_Context_Index.h.

Member Typedef Documentation

typedef ACE_Allocator_Adapter<ACE_Malloc <ACE_MMAP_MEMORY_POOL, TAO_SYNCH_MUTEX> > TAO_Persistent_Context_Index::ALLOCATOR


Allocator we will be using to make the Naming Service persistent.

Definition at line 62 of file Persistent_Context_Index.h.

typedef ACE_Hash_Map_With_Allocator<TAO_Persistent_ExtId, TAO_Persistent_IntId> TAO_Persistent_Context_Index::CONTEXT


Hash map used by Persistent Naming Context to keep its state.

Definition at line 58 of file Persistent_Context_Index.h.

Referenced by bind().

typedef ACE_Hash_Map_With_Allocator<TAO_Persistent_Index_ExtId, TAO_Persistent_Index_IntId> TAO_Persistent_Context_Index::CONTEXT_INDEX


Hash map in which we will store info about each Persistent Naming Context.

Definition at line 54 of file Persistent_Context_Index.h.

Referenced by create_index(), and create_index_helper().

Constructor & Destructor Documentation

TAO_Persistent_Context_Index::TAO_Persistent_Context_Index (  CORBA::ORB_ptr  orb,
PortableServer::POA_ptr  poa
)


Constructor.

Definition at line 82 of file Persistent_Context_Index.cpp.

00084   : allocator_ (0),
00085     index_ (0),
00086     index_file_ (0),
00087     base_address_ (0),
00088     orb_ (CORBA::ORB::_duplicate (orb)),
00089     poa_ (PortableServer::POA::_duplicate (poa))
00090 {
00091 }

TAO_Persistent_Context_Index::~TAO_Persistent_Context_Index (  void   )


Destructor. The memory mapped file that was opened/created is not deleted, since we want it to keep the state of the Naming Service until the next run.

Definition at line 93 of file Persistent_Context_Index.cpp.

References ACE_OS::free(), and index_file_.

00094 {
00095   delete allocator_;
00096   ACE_OS::free (reinterpret_cast<void *> (const_cast<ACE_TCHAR *> (index_file_)));
00097 }

Member Function Documentation

ACE_Allocator * TAO_Persistent_Context_Index::allocator (  void   )


Return allocator.

Definition at line 100 of file Persistent_Context_Index.cpp.

Referenced by TAO_Persistent_Naming_Context::init(), and TAO_Persistent_Naming_Context::TAO_Persistent_Naming_Context().

00101 {
00102   return allocator_;
00103 }

int TAO_Persistent_Context_Index::bind (  const char *  poa_id,
ACE_UINT32 *&  counter,
CONTEXT *  hash_map
)


Create an entry for a Persistent Naming Context in , i.e., a context with , and has just been created, and is registering with us.

Definition at line 31 of file Persistent_Context_Index.cpp.

References ACE_GUARD_RETURN, ACE_Hash_Map_With_Allocator< EXT_ID, INT_ID >::bind(), CONTEXT, ACE_OS::strcpy(), ACE_OS::strlen(), and TAO_SYNCH_MUTEX.

Referenced by TAO_Persistent_Naming_Context::make_new_context().

00034 {
00035   ACE_GUARD_RETURN (TAO_SYNCH_MUTEX, ace_mon, this->lock_, -1);
00036
00037   // Allocate memory for items to be stored in the table.
00038   size_t poa_id_len = ACE_OS::strlen (poa_id) + 1;
00039   size_t counter_len = sizeof (ACE_UINT32);
00040   char *ptr = (char *) this->allocator_->malloc (poa_id_len + counter_len);
00041
00042   if (ptr == 0)
00043     return -1;
00044   else
00045     {
00046       // Populate memory with data.
00047       counter = reinterpret_cast<ACE_UINT32 *> (ptr);
00048       *counter = 0;
00049       char * poa_id_ptr = ptr + counter_len;
00050       ACE_OS::strcpy (poa_id_ptr, poa_id);
00051
00052       TAO_Persistent_Index_ExtId name (poa_id_ptr);
00053       TAO_Persistent_Index_IntId entry (counter, hash_map);
00054       int result = -1;
00055
00056       // Do a normal bind.  This will fail if there's already an
00057       // entry with the same name.
00058       result = this->index_->bind (name, entry, this->allocator_);
00059
00060       if (result == 1)
00061         {
00062           // Entry already existed so bind failed. Free our dynamically
00063           // allocated memory.
00064           this->allocator_->free ((void *) ptr);
00065           return result;
00066         }
00067
00068       if (result == -1)
00069         // Free our dynamically allocated memory.
00070         this->allocator_->free ((void *) ptr);
00071       else
00072         // If bind() succeed, it will automatically sync
00073         // up the map manager entry.  However, we must sync up our
00074         // name/value memory.
00075         this->allocator_->sync (ptr, poa_id_len + counter_len);
00076
00077       return result;
00078     }
00079 }

int TAO_Persistent_Context_Index::create_index (  void   )  [private]


Helper for the method.

Definition at line 232 of file Persistent_Context_Index.cpp.

References ACE_OS::access(), ACE_ERROR, ACE_ERROR_RETURN, ACE_NEW_RETURN, CONTEXT_INDEX, create_index_helper(), F_OK, index_file_, LM_ERROR, MAXNAMELEN, MAXPATHLEN, ACE_OS::strlen(), and TAO_NAMING_CONTEXT_INDEX.

Referenced by open().

00233 {
00234   // Make sure that the file name is of the legal length.
00235   if (ACE_OS::strlen (index_file_) >= MAXNAMELEN + MAXPATHLEN)
00236     {
00237       errno = ENAMETOOLONG;
00238       return -1;
00239     }
00240
00241 #if !defined (CHORUS)
00242   ACE_MMAP_Memory_Pool::OPTIONS options (base_address_);
00243 #else
00244   // Use base address == 0, don't use a fixed address.
00245   ACE_MMAP_Memory_Pool::OPTIONS options (0,
00246                                          0,
00247                                          0,
00248                                          ACE_CHORUS_LOCAL_NAME_SPACE_T_SIZE);
00249 #endif /* CHORUS */
00250
00251   // Create the allocator with the appropriate options.  The name used
00252   // for  the lock is the same as one used for the file.
00253   ACE_NEW_RETURN (this->allocator_,
00254                   ALLOCATOR (this->index_file_,
00255                              this->index_file_,
00256                              &options),
00257                   -1);
00258
00259 #if !defined (ACE_LACKS_ACCESS)
00260   // Now check if the backing store has been created successfully.
00261   if (ACE_OS::access (this->index_file_, F_OK) != 0)
00262     ACE_ERROR_RETURN ((LM_ERROR,
00263                        "create_index\n"),
00264                       -1);
00265 #endif /* ACE_LACKS_ACCESS */
00266
00267   void *context_index = 0;
00268
00269   // This is the easy case since if we find hash table in the
00270   // memory-mapped file we know it's already initialized.
00271   if (this->allocator_->find (TAO_NAMING_CONTEXT_INDEX, context_index) == 0)
00272     this->index_ = (CONTEXT_INDEX *) context_index;
00273
00274   // Create a new <index_> (because we've just created a new
00275   // memory-mapped file).
00276   else
00277     {
00278       size_t index_size = sizeof (CONTEXT_INDEX);
00279       context_index = this->allocator_->malloc (index_size);
00280
00281       if (context_index == 0
00282           || create_index_helper (context_index) == -1
00283           || this->allocator_->bind (TAO_NAMING_CONTEXT_INDEX,
00284                                      context_index) == -1)
00285         {
00286           // Attempt to clean up.
00287           ACE_ERROR ((LM_ERROR,
00288                       "create_index\n"));
00289           this->allocator_->remove ();
00290           return -1;
00291         }
00292     }
00293   return 0;
00294 }

int TAO_Persistent_Context_Index::create_index_helper (  void *  buffer  )  [private]


Helper for method: places hash table into an allocated space.

Definition at line 297 of file Persistent_Context_Index.cpp.

References CONTEXT_INDEX.

Referenced by create_index().

00298 {
00299   this->index_ = new (buffer) CONTEXT_INDEX (this->allocator_);
00300   return 0;
00301 }

int TAO_Persistent_Context_Index::init (  size_t  context_size  )


If contains no entries (i.e., was just created), create a root Persistent Naming Context servant with table of size , and make an entry for it in the . If contains entries, create a Persistent Naming Context servant for each entry. Return 0 on success and -1 on failure.

Definition at line 131 of file Persistent_Context_Index.cpp.

References ACE_Hash_Map_Manager_Ex< EXT_ID, INT_ID, ACE_Hash< EXT_ID >, ACE_Equal_To< EXT_ID >, ACE_Null_Mutex >::current_size(), TAO_Persistent_Naming_Context::make_new_context(), recreate_all(), root_context_, and TAO_ROOT_NAMING_CONTEXT.

Referenced by TAO_Naming_Server::init_new_naming().

00132 {
00133   // Note: in case of an early exit from this (or helper) function due
00134   // to an error condition, we rely on POA to clean up all of the servants
00135   // already registered with it.
00136
00137   // Return value of this function (necessary to keep compilers quiet).
00138   int status = 0;
00139
00140   if (index_->current_size () == 0)
00141     // CASE 1:there are no Naming Contexts registered.  We need to create
00142     // one.
00143     {
00144
00145       this->root_context_ =
00146         TAO_Persistent_Naming_Context::make_new_context (poa_.in (),
00147                                                          TAO_ROOT_NAMING_CONTEXT,
00148                                                          context_size,
00149                                                          this);
00150     }
00151
00152   else
00153     // CASE 2:Recreate all Naming Contexts.
00154     status = recreate_all ();
00155
00156   return status;
00157 }

int TAO_Persistent_Context_Index::open (  const ACE_TCHAR *  file_name,
void *  base_address = TAO_NAMING_BASE_ADDR
)


Create ACE_Allocator, open/create memory-mapped file with the specified file name/base address. Find or allocate . Return 0 on success or -1 on failure.

Definition at line 118 of file Persistent_Context_Index.cpp.

References create_index(), index_file_, and ACE_OS::strdup().

Referenced by TAO_Naming_Server::init_new_naming().

00120 {
00121   this->base_address_ = base_address;
00122
00123   index_file_ = ACE_OS::strdup (file_name);
00124   if (index_file_ == 0)
00125     return -1;
00126
00127   return create_index ();
00128 }

CORBA::ORB_ptr TAO_Persistent_Context_Index::orb (  void   )


Return orb pointer.

Definition at line 112 of file Persistent_Context_Index.cpp.

Referenced by TAO_Persistent_Naming_Context::TAO_Persistent_Naming_Context().

00113 {
00114   return orb_.in ();
00115 }

int TAO_Persistent_Context_Index::recreate_all (  void   )  [private]


Helper for the method. Iterates over , and creates a servant for each entry.

Definition at line 160 of file Persistent_Context_Index.cpp.

References ACE_DEBUG, ACE_NEW_RETURN, LM_DEBUG, ACE_Auto_Basic_Ptr< X >::release(), root_context_, and TAO_debug_level.

Referenced by init().

00161 {
00162   CONTEXT_INDEX::ITERATOR *index_iter = 0;
00163
00164   ACE_NEW_RETURN (index_iter,
00165                   (CONTEXT_INDEX::ITERATOR) (*index_),
00166                   -1);
00167
00168   ACE_Auto_Basic_Ptr<CONTEXT_INDEX::ITERATOR> it (index_iter);
00169
00170   // Because of broken old g++!!!
00171   typedef ACE_Hash_Map_With_Allocator<TAO_Persistent_Index_ExtId,
00172     TAO_Persistent_Index_IntId>  IND_DEF;
00173
00174   IND_DEF::ENTRY *entry = 0;
00175
00176   if (TAO_debug_level > 0)
00177     ACE_DEBUG ((LM_DEBUG, "Starting to recreate Naming Contexts from the file... \n"));
00178
00179   // For each entry in <index_>, create a Naming Context servant.
00180   do
00181     {
00182       index_iter->next (entry);
00183
00184       // Put together a servant for the new Naming Context.
00185
00186       TAO_Persistent_Naming_Context *context_impl = 0;
00187       ACE_NEW_RETURN (context_impl,
00188                       TAO_Persistent_Naming_Context (poa_.in (),
00189                                                      entry->ext_id_.poa_id_,
00190                                                      this,
00191                                                      entry->int_id_.hash_map_,
00192                                                      entry->int_id_.counter_),
00193                   -1);
00194
00195
00196       // Put <context_impl> into the auto pointer temporarily, in case next
00197       // allocation fails.
00198       ACE_Auto_Basic_Ptr<TAO_Persistent_Naming_Context> temp (context_impl);
00199
00200       TAO_Naming_Context *context = 0;
00201       ACE_NEW_RETURN (context,
00202                       TAO_Naming_Context (context_impl),
00203                       -1);
00204
00205       // Let <implementation> know about it's <interface>.
00206       context_impl->interface (context);
00207
00208       // Release auto pointer and start using reference counting to
00209       // control our servant.
00210       temp.release ();
00211       PortableServer::ServantBase_var s = context;
00212
00213       // Register with the POA.
00214       PortableServer::ObjectId_var id =
00215         PortableServer::string_to_ObjectId (entry->ext_id_.poa_id_);
00216
00217       this->poa_->activate_object_with_id (id.in (),
00218                                            context);
00219
00220       CosNaming::NamingContext_var result = context->_this ();
00221
00222       // If this is the root Naming Context, take a note of it.
00223       if (context_impl->root ())
00224           this->root_context_= result._retn ();
00225
00226     } while (index_iter->advance ());
00227
00228   return 0;
00229 }

CosNaming::NamingContext_ptr TAO_Persistent_Context_Index::root_context (  void   )


Return a pointer to the root Naming Context (returns a copy - must be deallocated by the user).

Definition at line 106 of file Persistent_Context_Index.cpp.

References root_context_.

Referenced by TAO_Naming_Server::init_new_naming().

00107 {
00108   return CosNaming::NamingContext::_duplicate (root_context_.in ());
00109 }

TAO_BEGIN_VERSIONED_NAMESPACE_DECL int TAO_Persistent_Context_Index::unbind (  const char *  poa_id  )


Remove an entry for the Persistent Naming Context with from (i.e., this context has just been destroyed).

Definition at line 14 of file Persistent_Context_Index.cpp.

References ACE_GUARD_RETURN, TAO_Persistent_Index_IntId::counter_, TAO_SYNCH_MUTEX, and ACE_Hash_Map_With_Allocator< EXT_ID, INT_ID >::unbind().

Referenced by TAO_Persistent_Naming_Context::~TAO_Persistent_Naming_Context().

00015 {
00016   ACE_GUARD_RETURN (TAO_SYNCH_MUTEX, ace_mon, this->lock_, -1);
00017
00018   TAO_Persistent_Index_ExtId name (poa_id);
00019   TAO_Persistent_Index_IntId entry;
00020   if (this->index_->unbind (name, entry, this->allocator_) != 0)
00021     return -1;
00022   else
00023     {
00024       // Free up the memory we allocated in bind().
00025       this->allocator_->free ((void *) (entry.counter_));
00026       return 0;
00027     }
00028 }

Member Data Documentation

ALLOCATOR* TAO_Persistent_Context_Index::allocator_ [private]


Allocator that deals out memory from a memory-mapped file. We use it here, and in TAO_Persistent_Naming_Context, whenever we deal with data that should be kept in persistent store.

Definition at line 142 of file Persistent_Context_Index.h.

void* TAO_Persistent_Context_Index::base_address_ [private]


Base address for the memory-mapped file.

Definition at line 152 of file Persistent_Context_Index.h.

CONTEXT_INDEX* TAO_Persistent_Context_Index::index_ [private]


Hash map where we keep entries for all Persistent Naming Contexts.

Definition at line 146 of file Persistent_Context_Index.h.

const ACE_TCHAR* TAO_Persistent_Context_Index::index_file_ [private]


Name of the memory-mapped file used by .

Definition at line 149 of file Persistent_Context_Index.h.

Referenced by create_index(), open(), and ~TAO_Persistent_Context_Index().

TAO_SYNCH_MUTEX TAO_Persistent_Context_Index::lock_ [private]


Lock to prevent multiple threads from modifying entries in the simultanneously.

Definition at line 135 of file Persistent_Context_Index.h.

CORBA::ORB_var TAO_Persistent_Context_Index::orb_ [private]


ORB. We use it for several object_to_string conversions, and keep it around for Persistent Naming Contexts' use.

Definition at line 156 of file Persistent_Context_Index.h.

PortableServer::POA_var TAO_Persistent_Context_Index::poa_ [private]


POA under which to register Persistent Naming Context servants during start-up.

Definition at line 160 of file Persistent_Context_Index.h.

CosNaming::NamingContext_var TAO_Persistent_Context_Index::root_context_ [private]


The reference to the root Naming Context.

Definition at line 163 of file Persistent_Context_Index.h.

Referenced by init(), recreate_all(), and root_context().

The documentation for this class was generated from the following files:
Generated on Sun Jan 27 16:16:20 2008 for TAO_CosNaming by doxygen 1.3.6
