ACE_MMAP_Memory_Pool Class Reference

Make a memory pool that is based on mmap(2). This implementation allows memory to be shared between processes. More...

#include <MMAP_Memory_Pool.h>

Inheritance diagram for ACE_MMAP_Memory_Pool:

Inheritance graph
[legend]

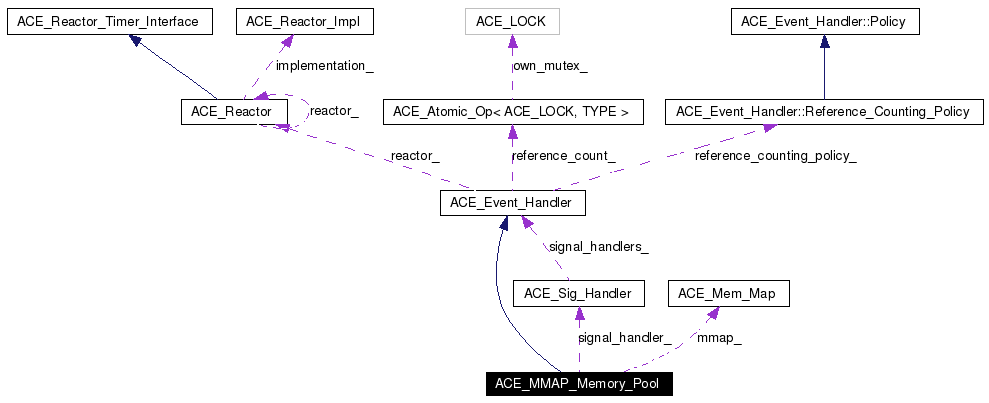

Collaboration diagram for ACE_MMAP_Memory_Pool:

Collaboration graph
[legend]
List of all members.

Public Types

typedef ACE_MMAP_Memory_Pool_Options OPTIONS

Public Member Functions

 ACE_MMAP_Memory_Pool (const ACE_TCHAR *backing_store_name=0, const OPTIONS *options=0)
 Initialize the pool.

virtual ~ACE_MMAP_Memory_Pool (void)
 Destructor.

virtual void * init_acquire (size_t nbytes, size_t &rounded_bytes, int &first_time)
 Ask system for initial chunk of shared memory.

virtual void * acquire (size_t nbytes, size_t &rounded_bytes)
virtual int release (int destroy=1)
 Instruct the memory pool to release all of its resources.

virtual int sync (size_t len, int flags=MS_SYNC)
virtual int sync (int flags=MS_SYNC)
virtual int sync (void *addr, size_t len, int flags=MS_SYNC)
 Sync the memory region to the backing store starting at addr.

virtual int protect (size_t len, int prot=PROT_RDWR)
virtual int protect (int prot=PROT_RDWR)
virtual int protect (void *addr, size_t len, int prot=PROT_RDWR)
virtual int seh_selector (void *)
virtual int remap (void *addr)
virtual void * base_addr (void) const
 Return the base address of this memory pool.

virtual void dump (void) const
 Dump the state of an object.

ACE_Mem_Map const & mmap (void) const
 Get reference to underlying ACE_Mem_Map object.

ACE_Mem_Mapmmap (void)
 Get reference to underlying ACE_Mem_Map object.


Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.


Protected Member Functions

virtual size_t round_up (size_t nbytes)
virtual int commit_backing_store_name (size_t rounded_bytes, size_t &map_size)
virtual int map_file (size_t map_size)
 Memory map the file up to map_size bytes.

virtual int handle_signal (int signum, siginfo_t *, ucontext_t *)

Protected Attributes

ACE_Sig_Handler signal_handler_
 Handles SIGSEGV.

ACE_Mem_Map mmap_
 Memory-mapping object.

void * base_addr_
int use_fixed_addr_
 Must we use the base_addr_ or can we let mmap(2) select it?

int flags_
 Flags passed into <ACE_OS::mmap>.

int write_each_page_
size_t minimum_bytes_
 What the minimum bytes of the initial segment should be.

ACE_TCHAR backing_store_name_ [MAXPATHLEN+1]
 Name of the backing store where the shared memory pool is kept.

bool guess_on_fault_
LPSECURITY_ATTRIBUTES sa_
 Security attributes object, only used on NT.

mode_t file_mode_
 Protection mode for mmaped file.


Detailed Description

Make a memory pool that is based on mmap(2). This implementation allows memory to be shared between processes.

Definition at line 132 of file MMAP_Memory_Pool.h.


Member Typedef Documentation

typedef ACE_MMAP_Memory_Pool_Options ACE_MMAP_Memory_Pool::OPTIONS


Definition at line 135 of file MMAP_Memory_Pool.h.


Constructor & Destructor Documentation

ACE_MMAP_Memory_Pool::ACE_MMAP_Memory_Pool const ACE_TCHAR backing_store_name = 0,
const OPTIONS options = 0


Initialize the pool.

Definition at line 116 of file MMAP_Memory_Pool.cpp.

References ACE_DEFAULT_FILE_PERMS, ACE_ERROR, ACE_SET_BITS, ACE_TCHAR, ACE_TEXT, ACE_TRACE, backing_store_name_, ACE::get_temp_dir(), LM_ERROR, MAP_FIXED, MAP_SHARED, MAXPATHLEN, ACE_OS::mktemp(), ACE_Sig_Handler::register_handler(), signal_handler_, SIGSEGV, ACE_OS::strcat(), ACE_OS::strcpy(), and ACE_OS::strsncpy().

00119   : base_addr_ (0),
00120     use_fixed_addr_(0),
00121     flags_ (MAP_SHARED),
00122     write_each_page_ (0),
00123     minimum_bytes_ (0),
00124     sa_ (0),
00125     file_mode_ (ACE_DEFAULT_FILE_PERMS)
00126 {
00127   ACE_TRACE ("ACE_MMAP_Memory_Pool::ACE_MMAP_Memory_Pool");
00128
00129 #if (defined (ACE_HAS_SIGINFO_T) && !defined (ACE_LACKS_SI_ADDR)) || defined (ACE_WIN32)
00130       // For plaforms that give the faulting address.
00131       guess_on_fault_ = false;
00132 #else
00133       // For plaforms that do NOT give the faulting address, let the
00134       // options decide whether to guess or not.
00135       if (options)
00136         guess_on_fault_ = options->guess_on_fault_;
00137       else
00138         // If no options are specified, default to true.
00139         guess_on_fault_ = true;
00140 #endif /* (defined (ACE_HAS_SIGINFO_T) && !defined (ACE_LACKS_SI_ADDR)) || defined (ACE_WIN32) */
00141
00142   // Only change the defaults if <options> != 0.
00143   if (options)
00144     {
00145       if (options->flags_ != 0)
00146         this->flags_ = options->flags_;
00147       use_fixed_addr_ = options->use_fixed_addr_;
00148
00149       if (use_fixed_addr_ == ACE_MMAP_Memory_Pool_Options::ALWAYS_FIXED)
00150         {
00151           this->base_addr_ = const_cast<void *> (options->base_addr_);
00152           ACE_SET_BITS (flags_, MAP_FIXED);
00153         }
00154       this->write_each_page_ = options->write_each_page_;
00155       this->minimum_bytes_ = options->minimum_bytes_;
00156       if (options->sa_ != 0)
00157         this->sa_ = options->sa_;
00158       this->file_mode_ = options->file_mode_;
00159     }
00160
00161   if (backing_store_name == 0)
00162     {
00163       // Only create a new unique filename for the backing store file
00164       // if the user didn't supply one...
00165 #if defined (ACE_DEFAULT_BACKING_STORE)
00166       // Create a temporary file.
00167       ACE_OS::strcpy (this->backing_store_name_,
00168                       ACE_DEFAULT_BACKING_STORE);
00169 #else /* ACE_DEFAULT_BACKING_STORE */
00170       if (ACE::get_temp_dir (this->backing_store_name_,
00171                              MAXPATHLEN - 17) == -1)
00172         // -17 for ace-malloc-XXXXXX
00173         {
00174           ACE_ERROR ((LM_ERROR,
00175                       ACE_TEXT ("Temporary path too long, ")
00176                       ACE_TEXT ("defaulting to current directory\n")));
00177           this->backing_store_name_[0] = 0;
00178         }
00179
00180       // Add the filename to the end
00181       ACE_OS::strcat (this->backing_store_name_,
00182                       ACE_TEXT ("ace-malloc-XXXXXX"));
00183
00184       // If requested an unique filename, use mktemp to get a random file.
00185       if (options && options->unique_)
00186         ACE_OS::mktemp(this->backing_store_name_);
00187 #endif /* ACE_DEFAULT_BACKING_STORE */
00188     }
00189   else
00190     ACE_OS::strsncpy (this->backing_store_name_,
00191                       backing_store_name,
00192                       (sizeof this->backing_store_name_ / sizeof (ACE_TCHAR)));
00193
00194 #if !defined (ACE_WIN32)
00195   if (this->signal_handler_.register_handler (SIGSEGV, this) == -1)
00196     ACE_ERROR ((LM_ERROR,
00197                 "%p\n", this->backing_store_name_));
00198 #endif /* ACE_WIN32 */
00199 }

ACE_MMAP_Memory_Pool::~ACE_MMAP_Memory_Pool void   )  [virtual]


Destructor.

Definition at line 201 of file MMAP_Memory_Pool.cpp.

00202 {
00203 }


Member Function Documentation

void * ACE_MMAP_Memory_Pool::acquire size_t  nbytes,
size_t &  rounded_bytes
[virtual]


Acquire at least nbytes from the memory pool. rounded_bytes is the actual number of bytes allocated. Also acquires an internal semaphore that ensures proper serialization of ACE_MMAP_Memory_Pool initialization across processes.

Definition at line 323 of file MMAP_Memory_Pool.cpp.

References ACE_TRACE, ACE_Mem_Map::addr(), commit_backing_store_name(), map_file(), round_up(), and ACE_Mem_Map::size().

Referenced by init_acquire().

00325 {
00326   ACE_TRACE ("ACE_MMAP_Memory_Pool::acquire");
00327   rounded_bytes = this->round_up (nbytes);
00328
00329   // ACE_DEBUG ((LM_DEBUG, "(%P|%t) acquiring more chunks, nbytes =
00330   // %B, rounded_bytes = %B\n", nbytes, rounded_bytes));
00331
00332   size_t map_size;
00333
00334   if (this->commit_backing_store_name (rounded_bytes,
00335                                        map_size) == -1)
00336     return 0;
00337   else if (this->map_file (map_size) == -1)
00338     return 0;
00339
00340   // ACE_DEBUG ((LM_DEBUG, "(%P|%t) acquired more chunks, nbytes = %B,
00341   // rounded_bytes = %B, map_size = %B\n", nbytes, rounded_bytes,
00342   // map_size));
00343
00344   return (void *) ((char *) this->mmap_.addr () + (this->mmap_.size () - rounded_bytes));
00345 }

void * ACE_MMAP_Memory_Pool::base_addr void   )  const [virtual]


Return the base address of this memory pool.

Definition at line 531 of file MMAP_Memory_Pool.cpp.

References ACE_TRACE.

00532 {
00533   ACE_TRACE ("ACE_MMAP_Memory_Pool::base_addr");
00534   return this->base_addr_;
00535 }

int ACE_MMAP_Memory_Pool::commit_backing_store_name size_t  rounded_bytes,
size_t &  map_size
[protected, virtual]


Compute the new map_size of the backing store and commit the memory.

Definition at line 208 of file MMAP_Memory_Pool.cpp.

References ACE_ERROR_RETURN, ACE_TEXT, ACE_TRACE, ACE_Mem_Map::handle(), LM_ERROR, ACE_OS::lseek(), round_up(), and ACE_OS::write().

Referenced by acquire().

00210 {
00211   ACE_TRACE ("ACE_MMAP_Memory_Pool::commit_backing_store_name");
00212
00213 #if defined (__Lynx__)
00214   map_size = rounded_bytes;
00215 #else
00216   size_t seek_len;
00217
00218   if (this->write_each_page_)
00219     // Write to the end of every block to ensure that we have enough
00220     // space in the backing store.
00221     seek_len = this->round_up (1); // round_up(1) is one page.
00222   else
00223     // We're willing to risk it all in the name of efficiency...
00224     seek_len = rounded_bytes;
00225
00226   // The following loop will execute multiple times (if
00227   // this->write_each_page == 1) or just once (if
00228   // this->write_each_page == 0).
00229
00230   for (size_t cur_block = 0;
00231        cur_block < rounded_bytes;
00232        cur_block += seek_len)
00233     {
00234       map_size =
00235         ACE_Utils::truncate_cast<size_t> (
00236           ACE_OS::lseek (this->mmap_.handle (),
00237                          static_cast<ACE_OFF_T> (seek_len - 1),
00238                          SEEK_END));
00239
00240       if (map_size == static_cast<size_t> (-1)
00241           || ACE_OS::write (this->mmap_.handle (),
00242                             "",
00243                             1) == -1)
00244         ACE_ERROR_RETURN ((LM_ERROR,
00245                            ACE_TEXT ("(%P|%t) %p\n"),
00246                            this->backing_store_name_),
00247                           -1);
00248     }
00249
00250 #if defined (ACE_OPENVMS)
00251   ::fsync(this->mmap_.handle());
00252 #endif
00253
00254   // Increment by one to put us at the beginning of the next chunk...
00255   ++map_size;
00256 #endif /* __Lynx__ */
00257   return 0;
00258 }

ACE_BEGIN_VERSIONED_NAMESPACE_DECL void ACE_MMAP_Memory_Pool::dump void   )  const [virtual]


Dump the state of an object.

Definition at line 30 of file MMAP_Memory_Pool.cpp.

References ACE_TRACE.

00031 {
00032 #if defined (ACE_HAS_DUMP)
00033   ACE_TRACE ("ACE_MMAP_Memory_Pool::dump");
00034 #endif /* ACE_HAS_DUMP */
00035 }

int ACE_MMAP_Memory_Pool::handle_signal int  signum,
siginfo_t ,
ucontext_t
[protected, virtual]


Handle SIGSEGV and SIGBUS signals to remap shared memory properly.

Reimplemented from ACE_Event_Handler.

Definition at line 475 of file MMAP_Memory_Pool.cpp.

References ACE_DEBUG, ACE_TEXT, ACE_OS::filesize(), LM_DEBUG, map_file(), remap(), ACE_Sig_Handler::remove_handler(), signal_handler_, SIGSEGV, ACE_Mem_Map::size(), and ucontext_t.

00476 {
00477   if (signum != SIGSEGV)
00478     return -1;
00479 #if 0
00480   else
00481     ACE_DEBUG ((LM_DEBUG,  ACE_TEXT ("(%P|%t) received %S\n"), signum));
00482 #endif
00483   // ACE_DEBUG ((LM_DEBUG,  ACE_TEXT ("(%P|%t) new mapping address = %@\n"), (char *) this->base_addr_ + current_map_size));
00484
00485 #if defined (ACE_HAS_SIGINFO_T) && !defined (ACE_LACKS_SI_ADDR)
00486   // Make sure that the pointer causing the problem is within the
00487   // range of the backing store.
00488
00489   if (siginfo != 0)
00490     {
00491       // ACE_DEBUG ((LM_DEBUG,  ACE_TEXT ("(%P|%t) si_signo = %d, si_code = %d, addr = %@\n"), siginfo->si_signo, siginfo->si_code, siginfo->si_addr));
00492       if (this->remap ((void *) siginfo->si_addr) == -1)
00493         return -1;
00494       // ACE_ERROR_RETURN ((LM_ERROR, "(%P|%t) address %@ out of range\n",
00495       // siginfo->si_addr), -1);
00496       return 0;
00497     }
00498 #else
00499   ACE_UNUSED_ARG(siginfo);
00500 #endif /* ACE_HAS_SIGINFO_T && !defined ACE_LACKS_SI_ADDR */
00501   // If guess_on_fault_ is true, then we want to try to remap without
00502   // knowing the faulting address.  guess_on_fault_ can only be true
00503   // on platforms that do not provide the faulting address through
00504   // signals or exceptions.  We check to see if the mapping is up to
00505   // date. If it is, then this fault isn't due to this mapping and we
00506   // pass it on.
00507   if (guess_on_fault_)
00508     {
00509       // Check if the current mapping is up to date.
00510       size_t const current_map_size =
00511         ACE_Utils::truncate_cast<size_t> (ACE_OS::filesize (this->mmap_.handle ()));
00512
00513       if (static_cast<size_t> (current_map_size) == this->mmap_.size ())
00514         {
00515           // The mapping is up to date so this really is a bad
00516           // address.  Thus, remove current signal handler so process
00517           // will fail with default action and core file will be
00518           // written.
00519           this->signal_handler_.remove_handler (SIGSEGV);
00520           return 0;
00521         }
00522
00523       // Extend the mapping to cover the size of the backing store.
00524       return this->map_file (current_map_size);
00525     }
00526   else
00527     return -1;
00528 }

void * ACE_MMAP_Memory_Pool::init_acquire size_t  nbytes,
size_t &  rounded_bytes,
int &  first_time
[virtual]


Ask system for initial chunk of shared memory.

Definition at line 350 of file MMAP_Memory_Pool.cpp.

References ACE_ERROR_RETURN, ACE_TEXT, ACE_TRACE, acquire(), ACE_Mem_Map::addr(), LM_ERROR, ACE_Mem_Map::map(), ACE_Mem_Map::open(), PROT_RDWR, and ACE_Mem_Map::size().

00353 {
00354   ACE_TRACE ("ACE_MMAP_Memory_Pool::init_acquire");
00355
00356   first_time = 0;
00357
00358   if (nbytes < static_cast <size_t> (this->minimum_bytes_))
00359     nbytes = static_cast <size_t> (this->minimum_bytes_);
00360
00361   if (this->mmap_.open (this->backing_store_name_,
00362                         O_RDWR | O_CREAT | O_TRUNC | O_EXCL,
00363                         this->file_mode_, this->sa_) != -1)
00364     {
00365       // First time in, so need to acquire memory.
00366       first_time = 1;
00367       return this->acquire (nbytes, rounded_bytes);
00368     }
00369   else if (errno == EEXIST)
00370     {
00371       errno = 0;
00372       // Reopen file *without* using O_EXCL...
00373       if (this->mmap_.map (this->backing_store_name_,
00374                            static_cast<size_t> (-1),
00375                            O_RDWR,
00376                            this->file_mode_,
00377                            PROT_RDWR,
00378                            this->flags_,
00379                            this->base_addr_,
00380                            0,
00381                            this->sa_) == -1)
00382         ACE_ERROR_RETURN ((LM_ERROR,
00383                            ACE_TEXT ("%p\n"),
00384                            ACE_TEXT ("MMAP_Memory_Pool::init_acquire, EEXIST")),
00385                           0);
00386
00387 #if (ACE_HAS_POSITION_INDEPENDENT_POINTERS == 1)
00388       // Update the mapped segment information
00389       ACE_BASED_POINTER_REPOSITORY::instance ()->bind (this->mmap_.addr(),
00390                                                        this->mmap_.size());
00391 #endif /* ACE_HAS_POSITION_INDEPENDENT_POINTERS == 1 */
00392
00393       return this->mmap_.addr ();
00394     }
00395   else
00396     ACE_ERROR_RETURN ((LM_ERROR,
00397                        ACE_TEXT ("%p\n"),
00398                        ACE_TEXT ("MMAP_Memory_Pool::init_acquire")),
00399                       0);
00400 }

int ACE_MMAP_Memory_Pool::map_file size_t  map_size  )  [protected, virtual]


Memory map the file up to map_size bytes.

Definition at line 263 of file MMAP_Memory_Pool.cpp.

References ACE_ERROR, ACE_TEXT, ACE_TRACE, ACE_Mem_Map::addr(), backing_store_name_, LM_ERROR, ACE_Mem_Map::map(), PROT_RDWR, and ACE_Mem_Map::unmap().

Referenced by acquire(), handle_signal(), and remap().

00264 {
00265   ACE_TRACE ("ACE_MMAP_Memory_Pool::map_file");
00266 #if (ACE_HAS_POSITION_INDEPENDENT_POINTERS == 1)
00267     void* obase_addr = this->base_addr_;
00268 #endif /* ACE_HAS_POSITION_INDEPENDENT_POINTERS == 1 */
00269
00270   // Unmap the existing mapping.
00271   this->mmap_.unmap ();
00272
00273 #if (ACE_HAS_POSITION_INDEPENDENT_POINTERS == 1)
00274   if (use_fixed_addr_ == ACE_MMAP_Memory_Pool_Options::NEVER_FIXED)
00275     this->base_addr_ = 0;
00276 #endif /* ACE_HAS_POSITION_INDEPENDENT_POINTERS == 1 */
00277
00278   // Remap the file; try to stay at the same location as a previous mapping
00279   // but do not force it with MAP_FIXED. Doing so will give the OS permission
00280   // to map locations currently holding other things (such as the heap, or
00281   // the C library) into the map file, producing very unexpected results.
00282   if (this->mmap_.map (map_size,
00283                        PROT_RDWR,
00284                        this->flags_,
00285                        this->base_addr_,
00286                        0,
00287                        this->sa_) == -1
00288       || this->base_addr_ != 0
00289 #ifdef ACE_HAS_WINCE
00290       && this->mmap_.addr () == 0)  // WinCE does not allow users to specify alloc addr.
00291 #else
00292       && this->mmap_.addr () != this->base_addr_)
00293 #endif  // ACE_HAS_WINCE
00294     {
00295 #if 0
00296       ACE_ERROR ((LM_ERROR,
00297                   ACE_TEXT ("(%P|%t) addr = %@, base_addr = %@, map_size = %B, %p\n"),
00298                   this->mmap_.addr (),
00299                   this->base_addr_,
00300                   map_size,
00301                   this->backing_store_name_));
00302 #endif /* 0 */
00303       return -1;
00304     }
00305   else
00306     {
00307 #if (ACE_HAS_POSITION_INDEPENDENT_POINTERS == 1)
00308       this->base_addr_ = this->mmap_.addr ();
00309       if(obase_addr && this->base_addr_ != obase_addr)
00310          ACE_BASED_POINTER_REPOSITORY::instance ()->unbind (obase_addr);
00311       ACE_BASED_POINTER_REPOSITORY::instance ()->bind (this->base_addr_,
00312                                                        map_size);
00313 #endif /* ACE_HAS_POSITION_INDEPENDENT_POINTERS == 1 */
00314       return 0;
00315     }
00316 }

ACE_INLINE ACE_Mem_Map & ACE_MMAP_Memory_Pool::mmap void   )


Get reference to underlying ACE_Mem_Map object.

Definition at line 16 of file MMAP_Memory_Pool.inl.

00017 {
00018   return mmap_;
00019 }

ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE ACE_Mem_Map const & ACE_MMAP_Memory_Pool::mmap void   )  const


Get reference to underlying ACE_Mem_Map object.

Definition at line 9 of file MMAP_Memory_Pool.inl.

00010 {
00011   return mmap_;
00012 }

int ACE_MMAP_Memory_Pool::protect void *  addr,
size_t  len,
int  prot = PROT_RDWR
[virtual]


Change the protection of the pages of the mapped region to prot starting at addr up to len bytes.

Definition at line 110 of file MMAP_Memory_Pool.cpp.

References ACE_TRACE, and ACE_OS::mprotect().

00111 {
00112   ACE_TRACE ("ACE_MMAP_Memory_Pool::protect");
00113   return ACE_OS::mprotect (addr, len, prot);
00114 }

int ACE_MMAP_Memory_Pool::protect int  prot = PROT_RDWR  )  [virtual]


Change the protection of all the pages of the mapped region to prot starting at <this->base_addr_>.

Definition at line 95 of file MMAP_Memory_Pool.cpp.

References ACE_TRACE, ACE_OS::lseek(), and ACE_Mem_Map::protect().

00096 {
00097   ACE_TRACE ("ACE_MMAP_Memory_Pool::protect");
00098
00099   size_t const len = ACE_Utils::truncate_cast<size_t> (
00100     ACE_OS::lseek (this->mmap_.handle (), 0, SEEK_END));
00101
00102   return this->mmap_.protect (len, prot);
00103 }

int ACE_MMAP_Memory_Pool::protect size_t  len,
int  prot = PROT_RDWR
[virtual]


Change the protection of the pages of the mapped region to prot starting at <this->base_addr_> up to len bytes. If len == -1 then change protection of all pages in the mapped region.

Definition at line 87 of file MMAP_Memory_Pool.cpp.

References ACE_TRACE, and ACE_Mem_Map::protect().

00088 {
00089   ACE_TRACE ("ACE_MMAP_Memory_Pool::protect");
00090
00091   return this->mmap_.protect (len, prot);
00092 }

int ACE_MMAP_Memory_Pool::release int  destroy = 1  )  [virtual]


Instruct the memory pool to release all of its resources.

Definition at line 38 of file MMAP_Memory_Pool.cpp.

References ACE_TRACE, ACE_Mem_Map::close(), and ACE_Mem_Map::remove().

00039 {
00040   ACE_TRACE ("ACE_MMAP_Memory_Pool::release");
00041
00042 #if (ACE_HAS_POSITION_INDEPENDENT_POINTERS == 1)
00043   ACE_BASED_POINTER_REPOSITORY::instance ()->unbind (this->mmap_.addr ());
00044 #endif /* ACE_HAS_POSITION_INDEPENDENT_POINTERS == 1 */
00045
00046   if (destroy)
00047   this->mmap_.remove ();
00048   else
00049     this->mmap_.close ();
00050   return 0;
00051 }

int ACE_MMAP_Memory_Pool::remap void *  addr  )  [virtual]


Try to extend the virtual address space so that addr is now covered by the address mapping. The method succeeds and returns 0 if the backing store has adequate memory to cover this address. Otherwise, it returns -1. This method is typically called by a UNIX signal handler for SIGSEGV or a Win32 structured exception when another process has grown the backing store (and its mapping) and our process now incurs a fault because our mapping isn't in range (yet).

Definition at line 422 of file MMAP_Memory_Pool.cpp.

References ACE_TRACE, ACE_Mem_Map::addr(), ACE_OS::filesize(), and map_file().

Referenced by handle_signal(), and seh_selector().

00423 {
00424   ACE_TRACE ("ACE_MMAP_Memory_Pool::remap");
00425   //  ACE_DEBUG ((LM_DEBUG,  ACE_TEXT ("Remapping with fault address at: %@\n"), addr));
00426   size_t const current_map_size =
00427     ACE_Utils::truncate_cast<size_t> (ACE_OS::filesize (this->mmap_.handle ()));
00428   // ACE_OS::lseek (this->mmap_.handle (), 0, SEEK_END);
00429
00430   if (!(addr < (void *) ((char *) this->mmap_.addr () + current_map_size)
00431         && addr >= this->mmap_.addr ()))
00432     return -1;
00433
00434   // Extend the mapping to cover the size of the backing store.
00435   return this->map_file (current_map_size);
00436 }

size_t ACE_MMAP_Memory_Pool::round_up size_t  nbytes  )  [protected, virtual]


Implement the algorithm for rounding up the request to an appropriate chunksize.

Definition at line 538 of file MMAP_Memory_Pool.cpp.

References ACE_TRACE, and ACE::round_to_pagesize().

Referenced by acquire(), and commit_backing_store_name().

00539 {
00540   ACE_TRACE ("ACE_MMAP_Memory_Pool::round_up");
00541   return ACE::round_to_pagesize (nbytes);
00542 }

int ACE_MMAP_Memory_Pool::seh_selector void *   )  [virtual]


Win32 Structural exception selector. The return value decides how to handle memory pool related structural exceptions. Returns 1, 0, or , -1.

Definition at line 404 of file MMAP_Memory_Pool.cpp.

References remap().

00405 {
00406   DWORD const ecode = ((EXCEPTION_POINTERS *) ep)->ExceptionRecord->ExceptionCode;
00407
00408   if (ecode == EXCEPTION_ACCESS_VIOLATION)
00409     {
00410       void * fault_addr = (void *)
00411         ((EXCEPTION_POINTERS *) ep)->ExceptionRecord->ExceptionInformation[1];
00412
00413       if (this->remap (fault_addr) == 0)
00414         return 1;
00415     }
00416
00417   return 0;
00418 }

int ACE_MMAP_Memory_Pool::sync void *  addr,
size_t  len,
int  flags = MS_SYNC
[virtual]


Sync the memory region to the backing store starting at addr.

Reimplemented in ACE_Lite_MMAP_Memory_Pool.

Definition at line 76 of file MMAP_Memory_Pool.cpp.

References ACE_TRACE, and ACE_OS::msync().

00077 {
00078   ACE_TRACE ("ACE_MMAP_Memory_Pool::sync");
00079   return ACE_OS::msync (addr, len, flags);
00080 }

int ACE_MMAP_Memory_Pool::sync int  flags = MS_SYNC  )  [virtual]


Sync the memory region to the backing store starting at this->base_addr_. Will sync as much as the backing file allows.

Reimplemented in ACE_Lite_MMAP_Memory_Pool.

Definition at line 62 of file MMAP_Memory_Pool.cpp.

References ACE_TRACE, ACE_OS::lseek(), and ACE_Mem_Map::sync().

00063 {
00064   ACE_TRACE ("ACE_MMAP_Memory_Pool::sync");
00065
00066   size_t const len = ACE_Utils::truncate_cast<size_t> (
00067     ACE_OS::lseek (this->mmap_.handle (), 0, SEEK_END));
00068
00069   return this->mmap_.sync (len, flags);
00070 }

int ACE_MMAP_Memory_Pool::sync size_t  len,
int  flags = MS_SYNC
[virtual]


Sync the memory region to the backing store starting at this->base_addr_.

Reimplemented in ACE_Lite_MMAP_Memory_Pool.

Definition at line 54 of file MMAP_Memory_Pool.cpp.

References ACE_TRACE, and ACE_Mem_Map::sync().

00055 {
00056   ACE_TRACE ("ACE_MMAP_Memory_Pool::sync");
00057
00058   return this->mmap_.sync (len, flags);
00059 }


Member Data Documentation

ACE_MMAP_Memory_Pool::ACE_ALLOC_HOOK_DECLARE


Declare the dynamic allocation hooks.

Definition at line 226 of file MMAP_Memory_Pool.h.

ACE_TCHAR ACE_MMAP_Memory_Pool::backing_store_name_[MAXPATHLEN + 1] [protected]


Name of the backing store where the shared memory pool is kept.

Definition at line 272 of file MMAP_Memory_Pool.h.

Referenced by ACE_MMAP_Memory_Pool(), and map_file().

void* ACE_MMAP_Memory_Pool::base_addr_ [protected]


Base of mapped region. If this has the value of 0 then the OS is free to select any address to map the file, otherwise this value is what the OS must try to use to mmap the file.

Definition at line 256 of file MMAP_Memory_Pool.h.

mode_t ACE_MMAP_Memory_Pool::file_mode_ [protected]


Protection mode for mmaped file.

Definition at line 285 of file MMAP_Memory_Pool.h.

int ACE_MMAP_Memory_Pool::flags_ [protected]


Flags passed into <ACE_OS::mmap>.

Definition at line 262 of file MMAP_Memory_Pool.h.

bool ACE_MMAP_Memory_Pool::guess_on_fault_ [protected]


Try to remap without knowing the faulting address. This parameter is ignored on platforms that know the faulting address (UNIX with SI_ADDR and Win32).

Definition at line 279 of file MMAP_Memory_Pool.h.

size_t ACE_MMAP_Memory_Pool::minimum_bytes_ [protected]


What the minimum bytes of the initial segment should be.

Definition at line 269 of file MMAP_Memory_Pool.h.

ACE_Mem_Map ACE_MMAP_Memory_Pool::mmap_ [protected]


Memory-mapping object.

Definition at line 249 of file MMAP_Memory_Pool.h.

LPSECURITY_ATTRIBUTES ACE_MMAP_Memory_Pool::sa_ [protected]


Security attributes object, only used on NT.

Definition at line 282 of file MMAP_Memory_Pool.h.

ACE_Sig_Handler ACE_MMAP_Memory_Pool::signal_handler_ [protected]


Handles SIGSEGV.

Definition at line 246 of file MMAP_Memory_Pool.h.

Referenced by ACE_MMAP_Memory_Pool(), and handle_signal().

int ACE_MMAP_Memory_Pool::use_fixed_addr_ [protected]


Must we use the base_addr_ or can we let mmap(2) select it?

Definition at line 259 of file MMAP_Memory_Pool.h.

int ACE_MMAP_Memory_Pool::write_each_page_ [protected]


Should we write a byte to each page to forceably allocate memory for this backing store?

Definition at line 266 of file MMAP_Memory_Pool.h.


The documentation for this class was generated from the following files:
Generated on Sun Jan 27 12:55:54 2008 for ACE by doxygen 1.3.6
