TAO_Persistent_Naming_Context Class Reference

This class plays a role of a 'ConcreteImplementor' in the Bridge pattern architecture of the CosNaming::NamingContext implementation. More...

#include <Persistent_Naming_Context.h>

Inheritance diagram for TAO_Persistent_Naming_Context:

Inheritance graph
[legend]

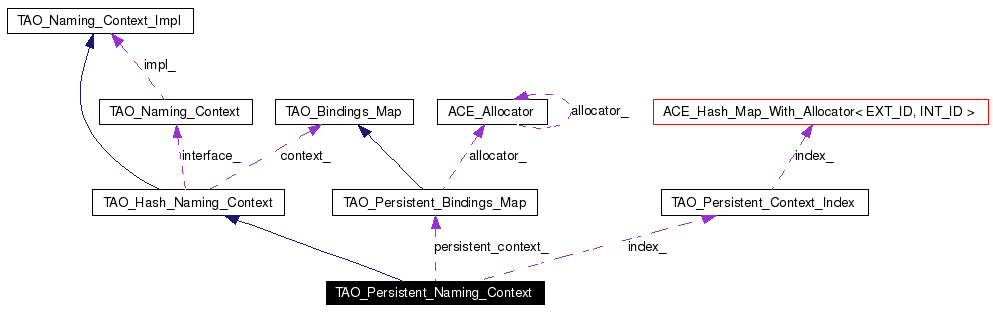

Collaboration diagram for TAO_Persistent_Naming_Context:

Collaboration graph
[legend]
List of all members.

Public Types

typedef TAO_Persistent_Bindings_Map::HASH_MAP HASH_MAP
 Underlying data structure - typedef for ease of use.


Public Member Functions

 TAO_Persistent_Naming_Context (PortableServer::POA_ptr poa, const char *poa_id, TAO_Persistent_Context_Index *context_index)
int init (size_t hash_table_size=ACE_DEFAULT_MAP_SIZE)
 TAO_Persistent_Naming_Context (PortableServer::POA_ptr poa, const char *poa_id, TAO_Persistent_Context_Index *context_index, HASH_MAP *map, ACE_UINT32 *counter)
virtual ~TAO_Persistent_Naming_Context (void)
 Destructor.

virtual CosNaming::NamingContext_ptr new_context (void)
virtual void list (CORBA::ULong how_many, CosNaming::BindingList_out &bl, CosNaming::BindingIterator_out &bi)

Static Public Member Functions

CosNaming::NamingContext_ptr make_new_context (PortableServer::POA_ptr poa, const char *poa_id, size_t context_size, TAO_Persistent_Context_Index *ind)

Protected Member Functions

void set_cleanup_level (int level)

Protected Attributes

ACE_UINT32 * counter_
TAO_Persistent_Bindings_Map * persistent_context_
TAO_Persistent_Context_Index * index_

Detailed Description

This class plays a role of a 'ConcreteImplementor' in the Bridge pattern architecture of the CosNaming::NamingContext implementation.

This class provides a persistent implementation of the NamingContext functionality, i.e., the state is preserved across process boundaries. Derives from TAO_Hash_Naming_Context and uses TAO_Persistent_Bindings_Map to store name to object bindings.

Definition at line 164 of file Persistent_Naming_Context.h.

Member Typedef Documentation

typedef TAO_Persistent_Bindings_Map::HASH_MAP TAO_Persistent_Naming_Context::HASH_MAP


Underlying data structure - typedef for ease of use.

Definition at line 168 of file Persistent_Naming_Context.h.

Constructor & Destructor Documentation

TAO_Persistent_Naming_Context::TAO_Persistent_Naming_Context (  PortableServer::POA_ptr  poa,
const char *  poa_id,
TAO_Persistent_Context_Index *  context_index
)


Constructor. MUST be followed up by to allocate the underlying data structure from persistent storage!

Definition at line 253 of file Persistent_Naming_Context.cpp.

References ACE_NEW, TAO_Persistent_Context_Index::orb(), and persistent_context_.

00257   : TAO_Hash_Naming_Context (poa,
00258                              poa_id),
00259     counter_ (0),
00260     persistent_context_ (0),
00261     index_ (context_index)
00262 {
00263   ACE_NEW (this->persistent_context_,
00264            TAO_Persistent_Bindings_Map (context_index->orb ()));
00265
00266   // Set the superclass pointer.
00267   context_ = persistent_context_;
00268 }

TAO_Persistent_Naming_Context::TAO_Persistent_Naming_Context (  PortableServer::POA_ptr  poa,
const char *  poa_id,
TAO_Persistent_Context_Index *  context_index,
HASH_MAP *  map,
ACE_UINT32 *  counter
)


Constructor that takes in preallocated data structure and takes ownership of it. This constructor is for 'recreating' servants from persistent state.

Definition at line 270 of file Persistent_Naming_Context.cpp.

References ACE_NEW, TAO_Persistent_Context_Index::allocator(), TAO_Persistent_Context_Index::orb(), persistent_context_, and TAO_Persistent_Bindings_Map::set().

00275   : TAO_Hash_Naming_Context (poa,
00276                              poa_id),
00277     counter_ (counter),
00278     persistent_context_ (0),
00279     index_ (context_index)
00280 {
00281   ACE_NEW (this->persistent_context_,
00282            TAO_Persistent_Bindings_Map (context_index->orb ()));
00283
00284   // Set the superclass pointer.
00285   context_ = persistent_context_;
00286
00287   persistent_context_->set (map, index_->allocator ());
00288 }

TAO_Persistent_Naming_Context::~TAO_Persistent_Naming_Context (  void   )  [virtual]


Destructor.

Definition at line 296 of file Persistent_Naming_Context.cpp.

References TAO_Persistent_Bindings_Map::destroy(), persistent_context_, and TAO_Persistent_Context_Index::unbind().

00297 {
00298   // Perform appropriate cleanup based on the destruction level specified.
00299
00300   if (this->destroyed_ > 1)
00301     {
00302       // Remove ourselves from context index.
00303       index_->unbind (poa_id_.c_str ());
00304       // Remove the underlying data structure from persistent storage.
00305       persistent_context_->destroy ();
00306     }
00307   else if (this->destroyed_ == 1)
00308     // Remove the underlying data structure from persistent storage.
00309     persistent_context_->destroy ();
00310 }

Member Function Documentation

int TAO_Persistent_Naming_Context::init (  size_t  hash_table_size = ACE_DEFAULT_MAP_SIZE  )


Allocate the underlying data structure from persistent storage. Returns 0 on success and -1 on failure.

Definition at line 291 of file Persistent_Naming_Context.cpp.

References TAO_Persistent_Context_Index::allocator(), TAO_Persistent_Bindings_Map::open(), and persistent_context_.

Referenced by make_new_context().

00292 {
00293   return persistent_context_->open (hash_table_size, index_->allocator ());
00294 }

void TAO_Persistent_Naming_Context::list (  CORBA::ULong  how_many,
CosNaming::BindingList_out &  bl,
CosNaming::BindingIterator_out &  bi
)  [virtual]


Returns at most the requested number of bindings in . If the naming context contains additional bindings, they are returned with a BindingIterator. In the naming context does not contain any additional bindings returned as null.

Implements TAO_Naming_Context_Impl.

Definition at line 413 of file Persistent_Naming_Context.cpp.

References ACE_GUARD_THROW_EX, ACE_NEW_THROW_EX, CosNaming::BindingList, TAO_Bindings_Map::current_size(), TAO_Persistent_Bindings_Map::map(), persistent_context_, ACE_Auto_Basic_Ptr< X >::release(), ACE_OS::sprintf(), and TAO_SYNCH_RECURSIVE_MUTEX.

00416 {
00417   // Allocate nil out parameters in case we won't be able to complete
00418   // the operation.
00419   bi = CosNaming::BindingIterator::_nil ();
00420   ACE_NEW_THROW_EX (bl,
00421                     CosNaming::BindingList (0),
00422                     CORBA::NO_MEMORY ());
00423
00424   // Obtain a lock before we proceed with the operation.
00425   ACE_GUARD_THROW_EX (TAO_SYNCH_RECURSIVE_MUTEX,
00426                       ace_mon,
00427                       this->lock_,
00428                       CORBA::INTERNAL ());
00429
00430   // Check to make sure this object didn't have <destroy> method
00431   // invoked on it.
00432   if (this->destroyed_)
00433     throw CORBA::OBJECT_NOT_EXIST ();
00434
00435   // Dynamically allocate hash map iterator.
00436   HASH_MAP::ITERATOR *hash_iter = 0;
00437   ACE_NEW_THROW_EX (hash_iter,
00438                     HASH_MAP::ITERATOR
00439                     (*persistent_context_->map ()),
00440                     CORBA::NO_MEMORY ());
00441
00442   // Store <hash_iter temporarily in auto pointer, in case we'll have
00443   // some failures and throw an exception.
00444   ACE_Auto_Basic_Ptr<HASH_MAP::ITERATOR> temp (hash_iter);
00445
00446   // Silliness below is required because of broken old g++!!!  E.g.,
00447   // without it, we could have just said HASH_MAP::ITERATOR everywhere we use ITER_DEF.
00448   typedef ACE_Hash_Map_With_Allocator<TAO_Persistent_ExtId, TAO_Persistent_IntId>::ITERATOR ITER_DEF;
00449   typedef ACE_Hash_Map_With_Allocator<TAO_Persistent_ExtId, TAO_Persistent_IntId>::ENTRY ENTRY_DEF;
00450
00451   // Typedef to the type of BindingIterator servant for ease of use.
00452   typedef TAO_Bindings_Iterator<ITER_DEF, ENTRY_DEF> ITER_SERVANT;
00453
00454   // A pointer to BindingIterator servant.
00455   ITER_SERVANT *bind_iter = 0;
00456
00457   // Number of bindings that will go into the BindingList.
00458   CORBA::ULong n;
00459
00460   // Calculate number of bindings that will go into bl.
00461   if (this->context_->current_size () > how_many)
00462     n = how_many;
00463   else
00464     n = static_cast<CORBA::ULong> (this->context_->current_size ());
00465
00466   // Use hash iterator to populate a BindingList with bindings.
00467   bl->length (n);
00468
00469   ENTRY_DEF *hash_entry = 0;
00470
00471   for (CORBA::ULong i = 0; i < n; i++)
00472     {
00473       hash_iter->next (hash_entry);
00474       hash_iter->advance ();
00475
00476       if (ITER_SERVANT::populate_binding (hash_entry, bl[i]) == 0)
00477           throw CORBA::NO_MEMORY();
00478     }
00479
00480   // Now we are done with the BindingsList, and we can follow up on
00481   // the iterator business.
00482
00483   // If we do not need to pass back BindingIterator.
00484   if (this->context_->current_size () <= how_many)
00485     return;
00486   else
00487     {
00488       // Create a BindingIterator for return.
00489       ACE_NEW_THROW_EX (bind_iter,
00490                         ITER_SERVANT (this, hash_iter, this->poa_.in (), this->lock_),
00491                         CORBA::NO_MEMORY ());
00492
00493       // Release <hash_iter> from auto pointer, and start using the
00494       // reference counting to control our servant.
00495       temp.release ();
00496       PortableServer::ServantBase_var iter = bind_iter;
00497
00498       // Increment reference count on this Naming Context, so it doesn't get
00499       // deleted before the BindingIterator servant gets deleted.
00500       interface_->_add_ref ();
00501
00502       // Register with the POA.
00503       char poa_id[BUFSIZ];
00504       ACE_OS::sprintf (poa_id,
00505                        "%s_%d",
00506                        this->poa_id_.c_str (),
00507                        (*this->counter_)++);
00508       PortableServer::ObjectId_var id =
00509         PortableServer::string_to_ObjectId (poa_id);
00510
00511       this->poa_->activate_object_with_id (id.in (),
00512                                            bind_iter);
00513
00514       bi = bind_iter->_this ();
00515     }
00516 }

CosNaming::NamingContext_ptr TAO_Persistent_Naming_Context::make_new_context (  PortableServer::POA_ptr  poa,
const char *  poa_id,
size_t  context_size,
TAO_Persistent_Context_Index *  ind
)  [static]


This utility method factors out the code needed to create a new Persistent Naming Context servant and activate it under the specified POA with the specified id. This function is static so that the code can be used, both from inside the class (e.g., ), and from outside (e.g., Naming_Utils.cpp).

Definition at line 319 of file Persistent_Naming_Context.cpp.

References ACE_NEW_THROW_EX, TAO_Persistent_Context_Index::bind(), counter_, init(), TAO_Persistent_Bindings_Map::map(), persistent_context_, TAO_Hash_Naming_Context::poa_id_, ACE_Auto_Basic_Ptr< X >::release(), and set_cleanup_level().

Referenced by TAO_Persistent_Context_Index::init(), and new_context().

00323 {
00324   // Store the stub we will return here.
00325   CosNaming::NamingContext_var result;
00326
00327   // Put together a servant for the new Naming Context.
00328
00329   TAO_Persistent_Naming_Context *context_impl = 0;
00330   ACE_NEW_THROW_EX (context_impl,
00331                     TAO_Persistent_Naming_Context (poa,
00332                                                    poa_id,
00333                                                    ind),
00334                     CORBA::NO_MEMORY ());
00335
00336   // Put <context_impl> into the auto pointer temporarily, in case next
00337   // allocation fails.
00338   ACE_Auto_Basic_Ptr<TAO_Persistent_Naming_Context> temp (context_impl);
00339
00340   if (context_impl->init (context_size) == -1)
00341     throw CORBA::NO_MEMORY ();
00342
00343   // Insure appropriate cleanup in case of exception conditions ahead.
00344   context_impl->set_cleanup_level (1);
00345
00346   // Register with the index of Naming Contexts.
00347   if (ind->bind (context_impl->poa_id_.c_str (),
00348                  context_impl->counter_,
00349                  context_impl->persistent_context_->map ()) == -1)
00350     throw CORBA::INTERNAL ();
00351
00352   // Insure appropriate cleanup in case of exception conditions ahead.
00353   context_impl->set_cleanup_level (2);
00354
00355   TAO_Naming_Context *context = 0;
00356   ACE_NEW_THROW_EX (context,
00357                     TAO_Naming_Context (context_impl),
00358                     CORBA::NO_MEMORY ());
00359
00360   // Let <implementation> know about it's <interface>.
00361   context_impl->interface (context);
00362
00363   // Release auto pointer, and start using reference counting to
00364   // control our servant.
00365   temp.release ();
00366   PortableServer::ServantBase_var s = context;
00367
00368   // Register the new context with the POA.
00369   PortableServer::ObjectId_var id =
00370     PortableServer::string_to_ObjectId (poa_id);
00371
00372   poa->activate_object_with_id (id.in (),
00373                                 context);
00374
00375   result = context->_this ();
00376
00377   // Everything went smoothly, without errors - we don't need any cleanup.
00378   context_impl->set_cleanup_level (0);
00379
00380   return result._retn ();
00381 }

CosNaming::NamingContext_ptr TAO_Persistent_Naming_Context::new_context (  void   )  [virtual]


This operation returns a new naming context implemented by the same naming server in which the operation was invoked. The context is not bound.

Implements TAO_Naming_Context_Impl.

Definition at line 384 of file Persistent_Naming_Context.cpp.

References ACE_GUARD_THROW_EX, make_new_context(), persistent_context_, ACE_OS::sprintf(), TAO_SYNCH_RECURSIVE_MUTEX, and TAO_Persistent_Bindings_Map::total_size().

00385 {
00386   ACE_GUARD_THROW_EX (TAO_SYNCH_RECURSIVE_MUTEX,
00387                       ace_mon,
00388                       this->lock_,
00389                       CORBA::INTERNAL ());
00390
00391   // Check to make sure this object didn't have <destroy> method
00392   // invoked on it.
00393   if (this->destroyed_)
00394     throw CORBA::OBJECT_NOT_EXIST ();
00395
00396   // Generate a POA id for the new context.
00397   char poa_id[BUFSIZ];
00398   ACE_OS::sprintf (poa_id,
00399                    "%s_%d",
00400                    this->poa_id_.c_str (),
00401                    (*this->counter_)++);
00402
00403   CosNaming::NamingContext_var result =
00404     make_new_context (this->poa_.in (),
00405                       poa_id,
00406                       this->persistent_context_->total_size (),
00407                       this->index_);
00408
00409   return result._retn ();
00410 }

void TAO_Persistent_Naming_Context::set_cleanup_level (  int  level  )  [protected]


Set flag (inherited from TAO_Hash_Naming_Context) to . Legal values for are 0, 1, and 2. The values specify the extent of cleanup that should take place in the context's destructor: '0' - no cleanup (e.g., if the context goes out of scope, but it's state is to remain in persistent storage); '1' - free up the underlying data structure in persistent storage (e.g., if the initialization of this context was only partially completed due to some failures, and we need to roll back); '2' - free up the underlying data structure, and deregister this naming context from its (e.g., if the context had method invoked and needs to be completely removed from existence).

Definition at line 313 of file Persistent_Naming_Context.cpp.

Referenced by make_new_context().

00314 {
00315   this->destroyed_ = level;
00316 }

Member Data Documentation

ACE_UINT32* TAO_Persistent_Naming_Context::counter_ [protected]


Counter used for generation of POA ids for children Naming Contexts.

Definition at line 248 of file Persistent_Naming_Context.h.

Referenced by make_new_context().

TAO_Persistent_Context_Index* TAO_Persistent_Naming_Context::index_ [protected]


A pointer to the index object of this naming service: it keeps track of all the naming contexts created. Every time we make a new context or destroy one, we need to make an entry there. Also, we get the allocator needed to initialize us from this guy.

Definition at line 265 of file Persistent_Naming_Context.h.

TAO_Persistent_Bindings_Map* TAO_Persistent_Naming_Context::persistent_context_ [protected]


A pointer to the underlying data structure used to store name bindings. While our superclass (TAO_Hash_Naming_Context) also maintains a pointer to the data structure, keeping this pointer around saves us from the need to downcast when invoking non-virtual methods.

Definition at line 257 of file Persistent_Naming_Context.h.

Referenced by init(), list(), make_new_context(), new_context(), TAO_Persistent_Naming_Context(), and ~TAO_Persistent_Naming_Context().

The documentation for this class was generated from the following files:
Generated on Sun Jan 27 16:16:22 2008 for TAO_CosNaming by doxygen 1.3.6
