#include <GIOP_Message_Base.h>

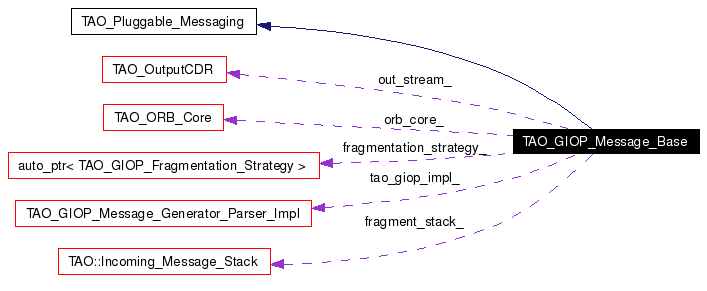

Inheritance diagram for TAO_GIOP_Message_Base:
This class will hold the specific details common to all the GIOP versions. Some of them which are here may be shifted if things start changing between versions.
Definition at line 51 of file GIOP_Message_Base.h.
|
||||||||||||||||
|
Constructor.
Definition at line 28 of file GIOP_Message_Base.cpp. References TAO_DEF_GIOP_MAJOR, TAO_DEF_GIOP_MINOR, and TAO_ENCAP_BYTE_ORDER.
00031 : orb_core_ (orb_core) 00032 , fragmentation_strategy_ (orb_core->fragmentation_strategy (transport)) 00033 , out_stream_ (0, 00034 input_cdr_size, 00035 TAO_ENCAP_BYTE_ORDER, 00036 orb_core->output_cdr_buffer_allocator (), 00037 orb_core->output_cdr_dblock_allocator (), 00038 orb_core->output_cdr_msgblock_allocator (), 00039 orb_core->orb_params ()->cdr_memcpy_tradeoff (), 00040 fragmentation_strategy_.get (), 00041 TAO_DEF_GIOP_MAJOR, 00042 TAO_DEF_GIOP_MINOR) 00043 { 00044 } |
|
|
Dtor.
Definition at line 47 of file GIOP_Message_Base.cpp.
00048 {
00049 }
|
|
||||||||||||
|
Consolidate fragmented message with associated fragments, being stored withi this class. If reliable transport is used (like TCP) fragments are partialy ordered on stack, last fragment on top. Otherwise If un-reliable transport is used (like UDP) fragments may be dis-ordered, and must be ordered before consolidation.
Implements TAO_Pluggable_Messaging. Definition at line 1703 of file GIOP_Message_Base.cpp. References TAO_Queued_Data::consolidate(), ACE_Message_Block::cont(), fragment_header_length(), fragment_stack_, TAO_Queued_Data::giop_version(), header_length(), ACE_Message_Block::length(), TAO_GIOP_Message_Version::major, TAO_GIOP_Message_Version::major_version(), TAO_GIOP_Message_Version::minor, TAO_GIOP_Message_Version::minor_version(), TAO_Queued_Data::more_fragments(), TAO_Queued_Data::msg_block(), parse_request_id(), TAO::Incoming_Message_Stack::pop(), TAO::Incoming_Message_Stack::push(), ACE_Message_Block::rd_ptr(), and TAO_Queued_Data::release().
01706 {
01707 TAO::Incoming_Message_Stack reverse_stack;
01708
01709 TAO_Queued_Data *tail = 0;
01710 TAO_Queued_Data *head = 0;
01711
01712 //
01713 // CONSOLIDATE FRAGMENTED MESSAGE
01714 //
01715
01716 // check for error-condition
01717 if (qd == 0)
01718 {
01719 return -1;
01720 }
01721
01722 if (qd->giop_version ().major == 1 && qd->giop_version ().minor == 0)
01723 {
01724 TAO_Queued_Data::release (qd);
01725 return -1; // error: GIOP-1.0 does not support fragments
01726 }
01727
01728 // If this is not the last fragment, push it onto stack for later processing
01729 if (qd->more_fragments ())
01730 {
01731 this->fragment_stack_.push (qd);
01732
01733 msg = 0; // no consolidated message available yet
01734 return 1; // status: more messages expected.
01735 }
01736
01737 tail = qd; // init
01738
01739 // Add the current message block to the end of the chain
01740 // after adjusting the read pointer to skip the header(s)
01741 size_t const header_adjustment =
01742 this->header_length () +
01743 this->fragment_header_length (tail->giop_version ().major_version ());
01744
01745 if (tail->msg_block ()->length () < header_adjustment)
01746 {
01747 // buffer length not sufficient
01748 TAO_Queued_Data::release (qd);
01749 return -1;
01750 }
01751
01752 // duplicate code to speed up both processes, for GIOP-1.1 and GIOP-1.2
01753 if (tail->giop_version ().major_version () == 1 && tail->giop_version ().minor_version () == 1)
01754 {
01755 // GIOP-1.1
01756
01757 while (this->fragment_stack_.pop (head) != -1)
01758 {
01759 if (head->more_fragments () &&
01760 head->giop_version ().major_version () == 1 &&
01761 head->giop_version ().minor_version () == 1 &&
01762 head->msg_block ()->length () >= header_adjustment)
01763 {
01764 // adjust the read-pointer, skip the fragment header
01765 tail->msg_block ()->rd_ptr(header_adjustment);
01766
01767 head->msg_block ()->cont (tail->msg_block ());
01768
01769 tail->msg_block (0);
01770
01771 TAO_Queued_Data::release (tail);
01772
01773 tail = head;
01774 }
01775 else
01776 {
01777 reverse_stack.push (head);
01778 }
01779 }
01780 }
01781 else
01782 {
01783 // > GIOP-1.2
01784
01785 CORBA::ULong tmp_request_id = 0;
01786 if (this->parse_request_id (tail, tmp_request_id) == -1)
01787 {
01788 return -1;
01789 }
01790
01791 const CORBA::ULong request_id = tmp_request_id;
01792
01793 while (this->fragment_stack_.pop (head) != -1)
01794 {
01795 CORBA::ULong head_request_id = 0;
01796 int parse_status = 0;
01797
01798 if (head->more_fragments () &&
01799 head->giop_version ().major_version () >= 1 &&
01800 head->giop_version ().minor_version () >= 2 &&
01801 head->msg_block ()->length () >= header_adjustment &&
01802 (parse_status = this->parse_request_id (head, head_request_id)) != -1 &&
01803 request_id == head_request_id)
01804 {
01805 // adjust the read-pointer, skip the fragment header
01806 tail->msg_block ()->rd_ptr(header_adjustment);
01807
01808 head->msg_block ()->cont (tail->msg_block ());
01809
01810 tail->msg_block (0);
01811
01812 TAO_Queued_Data::release (tail);
01813
01814 tail = head;
01815 }
01816 else
01817 {
01818 if (parse_status == -1)
01819 {
01820 TAO_Queued_Data::release (head);
01821 return -1;
01822 }
01823
01824 reverse_stack.push (head);
01825 }
01826 }
01827 }
01828
01829 // restore stack
01830 while (reverse_stack.pop (head) != -1)
01831 {
01832 this->fragment_stack_.push (head);
01833 }
01834
01835 if (tail->consolidate () == -1)
01836 {
01837 // memory allocation failed
01838 TAO_Queued_Data::release (tail);
01839 return -1;
01840 }
01841
01842 // set out value
01843 msg = tail;
01844
01845 return 0;
01846 }
|
|
||||||||||||
|
Check whether the node qd needs consolidation from incoming.
Implements TAO_Pluggable_Messaging. Definition at line 420 of file GIOP_Message_Base.cpp. References ACE_ERROR, ace_min(), ACE_TEXT, ACE_Message_Block::copy(), ACE_CDR::grow(), ACE_Message_Block::length(), LM_ERROR, TAO_GIOP_Message_State::message_size(), TAO_Queued_Data::missing_data(), TAO_Queued_Data::msg_block(), TAO_GIOP_Message_State::parse_message_header(), TAO_GIOP_Message_State::payload_size(), ACE_Message_Block::rd_ptr(), TAO_Queued_Data::set_state(), TAO_debug_level, and TAO_MISSING_DATA_UNDEFINED.
00422 {
00423 // Look to see whether we had atleast parsed the GIOP header ...
00424 if (qd->missing_data () == TAO_MISSING_DATA_UNDEFINED)
00425 {
00426 // The data length that has been stuck in there during the last
00427 // read ....
00428 size_t const len = qd->msg_block ()->length ();
00429
00430 // paranoid check
00431 if (len >= TAO_GIOP_MESSAGE_HEADER_LEN)
00432 {
00433 // inconsistency - this code should have parsed the header
00434 // so far
00435 return -1;
00436 }
00437
00438 // We know that we would have space for
00439 // TAO_GIOP_MESSAGE_HEADER_LEN here. So copy that much of data
00440 // from the <incoming> into the message block in <qd>
00441 size_t const available = incoming.length ();
00442 size_t const desired = TAO_GIOP_MESSAGE_HEADER_LEN - len;
00443 size_t const n_copy = ace_min (available, desired);
00444
00445 // paranoid check, but would cause endless looping
00446 if (n_copy == 0)
00447 {
00448 return -1;
00449 }
00450
00451 if (qd->msg_block ()->copy (incoming.rd_ptr (), n_copy) == -1)
00452 {
00453 return -1;
00454 }
00455
00456 // Move the rd_ptr () in the incoming message block..
00457 incoming.rd_ptr (n_copy);
00458
00459 // verify sufficient data to parse GIOP header
00460 if (qd->msg_block ()->length () < TAO_GIOP_MESSAGE_HEADER_LEN)
00461 {
00462 return 0; /* continue */
00463 }
00464
00465 TAO_GIOP_Message_State state;
00466
00467 // Parse the message header now...
00468 if (state.parse_message_header (*qd->msg_block ()) == -1)
00469 {
00470 if (TAO_debug_level > 0)
00471 {
00472 ACE_ERROR ((LM_ERROR,
00473 ACE_TEXT ("TAO (%P|%t) - TAO_GIOP_Message_Base::consolidate_node, ")
00474 ACE_TEXT ("error parsing header\n") ));
00475 }
00476 return -1;
00477 }
00478 // Now grow the message block so that we can copy the rest of
00479 // the data, the message_block must be able to hold complete message
00480 if (ACE_CDR::grow (qd->msg_block (),
00481 state.message_size ()) == -1) /* GIOP_Header + Payload */
00482 {
00483 // on mem-error get rid of context silently, try to avoid
00484 // system calls that might allocate additional memory
00485 return -1;
00486 }
00487
00488 // Copy the pay load..
00489 // Calculate the bytes that needs to be copied in the queue...
00490 size_t copy_len = state.payload_size ();
00491
00492 // If the data that needs to be copied is more than that is
00493 // available to us ..
00494 if (copy_len > incoming.length ())
00495 {
00496 // Calculate the missing data..
00497 qd->missing_data (copy_len - incoming.length ());
00498
00499 // Set the actual possible copy_len that is available...
00500 copy_len = incoming.length ();
00501 }
00502 else
00503 {
00504 qd->missing_data (0);
00505 }
00506
00507 // ..now we are set to copy the right amount of data to the
00508 // node..
00509 if (qd->msg_block ()->copy (incoming.rd_ptr (), copy_len) == -1)
00510 {
00511 return -1;
00512 }
00513
00514 // Set the <rd_ptr> of the <incoming>..
00515 incoming.rd_ptr (copy_len);
00516
00517 // Get the other details...
00518 qd->set_state (state);
00519 }
00520 else
00521 {
00522 // @todo: Need to abstract this out to a seperate method...
00523 size_t copy_len = qd->missing_data ();
00524
00525 if (copy_len > incoming.length ())
00526 {
00527 // Calculate the missing data..
00528 qd->missing_data (copy_len - incoming.length ());
00529
00530 // Set the actual possible copy_len that is available...
00531 copy_len = incoming.length ();
00532 }
00533
00534 // paranoid check for endless-event-looping
00535 if (copy_len == 0)
00536 {
00537 return -1;
00538 }
00539
00540 // Copy the right amount of data in to the node...
00541 if (qd->msg_block ()->copy (incoming.rd_ptr (), copy_len) == -1)
00542 {
00543 return -1;
00544 }
00545
00546 // Set the <rd_ptr> of the <incoming>..
00547 qd->msg_block ()->rd_ptr (copy_len);
00548
00549 }
00550
00551 return 0;
00552 }
|
|
|
Discard all fragments associated to request-id encoded in cancel_request. This operation will never be called concurrently by multiplpe threads nor concurrently to consolidate_fragmented_message
Implements TAO_Pluggable_Messaging. Definition at line 1850 of file GIOP_Message_Base.cpp. References fragment_stack_, TAO_Queued_Data::giop_version(), TAO_GIOP_Message_Version::major_version(), TAO_GIOP_Message_Version::minor_version(), TAO_Queued_Data::msg_type(), parse_request_id(), TAO::Incoming_Message_Stack::pop(), TAO::Incoming_Message_Stack::push(), TAO_Queued_Data::release(), and TAO_PLUGGABLE_MESSAGE_FRAGMENT.
01851 {
01852 // We must extract the specific request-id from message-buffer
01853 // and remove all fragments from stack that match this request-id.
01854
01855 TAO::Incoming_Message_Stack reverse_stack;
01856
01857 CORBA::ULong cancel_request_id;
01858
01859 if (this->parse_request_id (cancel_request, cancel_request_id) == -1)
01860 {
01861 return -1;
01862 }
01863
01864 TAO_Queued_Data *head = 0;
01865
01866 // Revert stack
01867 while (this->fragment_stack_.pop (head) != -1)
01868 {
01869 reverse_stack.push (head);
01870 }
01871
01872 bool discard_all_GIOP11_messages = false;
01873
01874 // Now we are able to process message in order they have arrived.
01875 // If the cancel_request_id matches to GIOP-1.1 message, all succeeding
01876 // fragments belong to this message and must be discarded.
01877 // Note: GIOP-1.1 fragment header dont have any request-id encoded. If the
01878 // cancel_request_id matches GIOP-1.2 messages, all GIOP-1.2 fragments
01879 // having encoded the request id will be discarded.
01880 while (reverse_stack.pop (head) != -1)
01881 {
01882 CORBA::ULong head_request_id;
01883
01884 if (head->giop_version ().major_version () == 1 &&
01885 head->giop_version ().minor_version () <= 1 &&
01886 head->msg_type () != TAO_PLUGGABLE_MESSAGE_FRAGMENT && // GIOP11 fragment does not provide request id
01887 this->parse_request_id (head, head_request_id) >= 0 &&
01888 cancel_request_id == head_request_id)
01889 {
01890 TAO_Queued_Data::release (head);
01891 discard_all_GIOP11_messages = true;
01892 }
01893 else if (head->giop_version ().major_version () == 1 &&
01894 head->giop_version ().minor_version () <= 1 &&
01895 discard_all_GIOP11_messages)
01896 {
01897 TAO_Queued_Data::release (head);
01898 }
01899 else if (head->giop_version ().major_version () >= 1 &&
01900 head->giop_version ().minor_version () >= 2 &&
01901 this->parse_request_id (head, head_request_id) >= 0 &&
01902 cancel_request_id == head_request_id)
01903 {
01904 TAO_Queued_Data::release (head);
01905 }
01906 else
01907 {
01908 this->fragment_stack_.push (head);
01909 }
01910 }
01911
01912 return 0;
01913 }
|
|
||||||||||||||||
|
Print out a debug messages..
Definition at line 1422 of file GIOP_Message_Base.cpp. References ACE_DEBUG, ACE_HEX_DUMP, ACE_TEXT, ACE_TEXT_CHAR_TO_TCHAR, LM_DEBUG, ACE_CDR::swap_4(), TAO_debug_level, TAO_ENCAP_BYTE_ORDER, TAO_GIOP_FRAGMENT, TAO_GIOP_REPLY, and TAO_GIOP_REQUEST. Referenced by format_message(), process_reply_message(), process_request_message(), send_close_connection(), and send_error().
01425 {
01426
01427 if (TAO_debug_level >= 5)
01428 {
01429 static const char digits[] = "0123456789ABCD";
01430 static const char *names[] =
01431 {
01432 "Request",
01433 "Reply",
01434 "CancelRequest",
01435 "LocateRequest",
01436 "LocateReply",
01437 "CloseConnection",
01438 "MessageError",
01439 "Fragment"
01440 };
01441
01442 // Message name.
01443 const char *message_name = "UNKNOWN MESSAGE";
01444 u_long slot = ptr[TAO_GIOP_MESSAGE_TYPE_OFFSET];
01445 if (slot < sizeof (names) / sizeof (names[0]))
01446 message_name = names[slot];
01447
01448 // Byte order.
01449 int byte_order = ptr[TAO_GIOP_MESSAGE_FLAGS_OFFSET] & 0x01;
01450
01451 // Get the version info
01452 CORBA::Octet major = ptr[TAO_GIOP_VERSION_MAJOR_OFFSET];
01453 CORBA::Octet minor = ptr[TAO_GIOP_VERSION_MINOR_OFFSET];
01454
01455 // request/reply id.
01456 CORBA::ULong tmp = 0;
01457 CORBA::ULong *id = &tmp;
01458 char *tmp_id = 0;
01459
01460 if (ptr[TAO_GIOP_MESSAGE_TYPE_OFFSET] == TAO_GIOP_REQUEST ||
01461 ptr[TAO_GIOP_MESSAGE_TYPE_OFFSET] == TAO_GIOP_REPLY ||
01462 ptr[TAO_GIOP_MESSAGE_TYPE_OFFSET] == TAO_GIOP_FRAGMENT)
01463 {
01464 if (major == 1 && minor < 2)
01465 {
01466 // @@ Only works if ServiceContextList is empty....
01467 tmp_id = (char * ) (ptr + TAO_GIOP_MESSAGE_HEADER_LEN + 4);
01468 }
01469 else
01470 {
01471 tmp_id = (char * ) (ptr + TAO_GIOP_MESSAGE_HEADER_LEN);
01472 }
01473 #if !defined (ACE_DISABLE_SWAP_ON_READ)
01474 if (byte_order == TAO_ENCAP_BYTE_ORDER)
01475 {
01476 id = reinterpret_cast <ACE_CDR::ULong*> (tmp_id);
01477 }
01478 else
01479 {
01480 ACE_CDR::swap_4 (tmp_id, reinterpret_cast <char*> (id));
01481 }
01482 #else
01483 id = reinterpret_cast <ACE_CDR::ULong*> (tmp_id);
01484 #endif /* ACE_DISABLE_SWAP_ON_READ */
01485
01486 }
01487
01488 // Print.
01489 ACE_DEBUG ((LM_DEBUG,
01490 "TAO (%P|%t) - GIOP_Message_Base::dump_msg, "
01491 "%s GIOP v%c.%c msg, %d data bytes, %s endian, "
01492 "Type %s[%u]\n",
01493 ACE_TEXT_CHAR_TO_TCHAR (label),
01494 digits[ptr[TAO_GIOP_VERSION_MAJOR_OFFSET]],
01495 digits[ptr[TAO_GIOP_VERSION_MINOR_OFFSET]],
01496 len - TAO_GIOP_MESSAGE_HEADER_LEN ,
01497 (byte_order == TAO_ENCAP_BYTE_ORDER) ? ACE_TEXT("my") : ACE_TEXT("other"),
01498 ACE_TEXT_CHAR_TO_TCHAR(message_name),
01499 *id));
01500
01501 if (TAO_debug_level >= 10)
01502 ACE_HEX_DUMP ((LM_DEBUG,
01503 (const char *) ptr,
01504 len,
01505 ACE_TEXT ("GIOP message")));
01506 }
01507 }
|
|
||||||||||||
|
Extract the details of the next message from the incoming through qd. Returns 0 if the message header could not be parsed completely, returns a 1 if the message header could be parsed completely and returns -1 on error. Implements TAO_Pluggable_Messaging. Definition at line 332 of file GIOP_Message_Base.cpp. References ACE_ERROR, ace_max(), ACE_TEXT, ACE_Message_Block::copy(), ACE_Message_Block::length(), LM_ERROR, make_queued_data(), TAO_GIOP_Message_State::message_size(), TAO_Queued_Data::missing_data(), TAO_Queued_Data::msg_block(), TAO_GIOP_Message_State::parse_message_header(), ACE_Message_Block::rd_ptr(), TAO_Queued_Data::set_state(), TAO_debug_level, and TAO_MISSING_DATA_UNDEFINED.
00334 {
00335 if (incoming.length () < TAO_GIOP_MESSAGE_HEADER_LEN)
00336 {
00337 if (incoming.length () > 0)
00338 {
00339 // Optimize memory usage, we dont know actual message size
00340 // so far, but allocate enough space to hold small GIOP
00341 // messages. This way we avoid expensive "grow" operation
00342 // for small messages.
00343 size_t const default_buf_size = ACE_CDR::DEFAULT_BUFSIZE;
00344
00345 // Make a node which has at least message block of the size
00346 // of MESSAGE_HEADER_LEN.
00347 size_t const buf_size = ace_max (TAO_GIOP_MESSAGE_HEADER_LEN,
00348 default_buf_size);
00349
00350 // POST: buf_size >= TAO_GIOP_MESSAGE_HEADER_LEN
00351
00352 qd = this->make_queued_data (buf_size);
00353
00354 if (qd == 0)
00355 {
00356 if (TAO_debug_level > 0)
00357 {
00358 ACE_ERROR((LM_ERROR,
00359 ACE_TEXT ("TAO (%P|%t) - TAO_GIOP_Message_Base::extract_next_message, ")
00360 ACE_TEXT ("out of memory\n")));
00361 }
00362 return -1;
00363 }
00364
00365 qd->msg_block ()->copy (incoming.rd_ptr (), incoming.length ());
00366
00367 incoming.rd_ptr (incoming.length ()); // consume all available data
00368
00369 qd->missing_data (TAO_MISSING_DATA_UNDEFINED);
00370 }
00371 else
00372 {
00373 // handle not initialized variables
00374 qd = 0; // reset
00375 }
00376
00377 return 0;
00378 }
00379
00380 TAO_GIOP_Message_State state;
00381 if (state.parse_message_header (incoming) == -1)
00382 {
00383 return -1;
00384 }
00385
00386 size_t copying_len = state.message_size ();
00387
00388 qd = this->make_queued_data (copying_len);
00389
00390 if (qd == 0)
00391 {
00392 if (TAO_debug_level > 0)
00393 {
00394 ACE_ERROR ((LM_ERROR,
00395 ACE_TEXT ("TAO (%P|%t) - TAO_GIOP_Message_Base::extract_next_message, ")
00396 ACE_TEXT ("out of memory\n")));
00397 }
00398 return -1;
00399 }
00400
00401 if (copying_len > incoming.length ())
00402 {
00403 qd->missing_data (copying_len - incoming.length ());
00404 copying_len = incoming.length ();
00405 }
00406 else
00407 {
00408 qd->missing_data (0);
00409 }
00410
00411 qd->msg_block ()->copy (incoming.rd_ptr (), copying_len);
00412
00413 incoming.rd_ptr (copying_len);
00414 qd->set_state (state);
00415
00416 return 1;
00417 }
|
|
|
Format the message. As we have not written the message length in the header, we make use of this oppurtunity to insert and format the message. Implements TAO_Pluggable_Messaging. Definition at line 237 of file GIOP_Message_Base.cpp. References ACE_NEW_RETURN, ACE_OutputCDR::begin(), ACE_OutputCDR::buffer(), ACE_CDR::consolidate(), ACE_Message_Block::cont(), ACE_OutputCDR::do_byte_swap(), dump_msg(), ACE_Message_Block::rd_ptr(), set_giop_flags(), ACE_CDR::swap_4(), TAO_debug_level, and ACE_OutputCDR::total_length().
00238 {
00239 // Ptr to first buffer.
00240 char * buf = (char *) stream.buffer ();
00241
00242 this->set_giop_flags (stream);
00243
00244 // Length of all buffers.
00245 size_t const total_len = stream.total_length ();
00246
00247 // NOTE: Here would also be a fine place to calculate a digital
00248 // signature for the message and place it into a preallocated slot
00249 // in the "ServiceContext". Similarly, this is a good spot to
00250 // encrypt messages (or just the message bodies) if that's needed in
00251 // this particular environment and that isn't handled by the
00252 // networking infrastructure (e.g., IPSEC).
00253
00254 CORBA::ULong bodylen = static_cast <CORBA::ULong>
00255 (total_len - TAO_GIOP_MESSAGE_HEADER_LEN);
00256
00257 #if !defined (ACE_ENABLE_SWAP_ON_WRITE)
00258 *(reinterpret_cast <CORBA::ULong *> (buf +
00259 TAO_GIOP_MESSAGE_SIZE_OFFSET)) = bodylen;
00260 #else
00261 if (!stream.do_byte_swap ())
00262 *(reinterpret_cast <CORBA::ULong *>
00263 (buf + TAO_GIOP_MESSAGE_SIZE_OFFSET)) = bodylen;
00264 else
00265 ACE_CDR::swap_4 (reinterpret_cast <char *> (&bodylen),
00266 buf + TAO_GIOP_MESSAGE_SIZE_OFFSET);
00267 #endif /* ACE_ENABLE_SWAP_ON_WRITE */
00268
00269 if (TAO_debug_level > 2)
00270 {
00271 // Check whether the output cdr stream is build up of multiple
00272 // messageblocks. If so, consolidate them to one block that can be
00273 // dumped
00274 ACE_Message_Block* consolidated_block = 0;
00275 if (stream.begin()->cont () != 0)
00276 {
00277 ACE_NEW_RETURN (consolidated_block, ACE_Message_Block, 0);
00278 ACE_CDR::consolidate (consolidated_block, stream.begin ());
00279 buf = (char *) (consolidated_block->rd_ptr ());
00280 }
00281 ///
00282 this->dump_msg ("send", reinterpret_cast <u_char *> (buf), total_len);
00283
00284 //
00285 delete consolidated_block;
00286 consolidated_block = 0;
00287 //
00288 }
00289
00290 return 0;
00291 }
|
|
|
The header length of a fragment.
Implements TAO_Pluggable_Messaging. Definition at line 1577 of file GIOP_Message_Base.cpp. References TAO_GIOP_Message_Generator_Parser::fragment_header_length(), and set_state(). Referenced by consolidate_fragmented_message().
01579 {
01580 TAO_GIOP_Message_Generator_Parser *generator_parser = 0;
01581
01582 // Get the state information that we need to use
01583 this->set_state (giop_version, generator_parser);
01584
01585 return generator_parser->fragment_header_length ();
01586 }
|
|
|
Outgoing GIOP message fragmentation strategy.
Implements TAO_Pluggable_Messaging. Definition at line 1916 of file GIOP_Message_Base.cpp. References ACE_Auto_Basic_Ptr< X >::get().
01917 {
01918 return this->fragmentation_strategy_.get ();
01919 }
|
|
||||||||||||||||
|
Generate a reply message with the exception ex.
Implements TAO_Pluggable_Messaging. Definition at line 760 of file GIOP_Message_Base.cpp. References CORBA::Exception::_tao_encode(), ACE_DEBUG, ACE_TEXT, generate_reply_header(), LM_DEBUG, and TAO_debug_level. Referenced by send_reply_exception().
00764 {
00765 // A new try/catch block, but if something goes wrong now we have no
00766 // hope, just abort.
00767
00768 try
00769 {
00770 // Make the GIOP & reply header.
00771 this->generate_reply_header (cdr, params);
00772 x._tao_encode (cdr);
00773 }
00774 catch (const ::CORBA::Exception&)
00775 {
00776 // Now we know that while handling the error an other error
00777 // happened -> no hope, close connection.
00778
00779 // Close the handle.
00780 if (TAO_debug_level > 0)
00781 ACE_DEBUG ((LM_DEBUG,
00782 ACE_TEXT ("(%P|%t|%N|%l) cannot marshal exception, ")
00783 ACE_TEXT ("generate_exception_reply ()\n")));
00784 return -1;
00785 }
00786
00787 return 0;
00788 }
|
|
||||||||||||
|
Implements TAO_Pluggable_Messaging. Definition at line 204 of file GIOP_Message_Base.cpp. References ACE_ERROR, ACE_TEXT, TAO_OutputCDR::get_version(), LM_ERROR, TAO_GIOP_Message_Version::major, TAO_GIOP_Message_Version::minor, set_state(), TAO_debug_level, TAO_GIOP_FRAGMENT, TAO_GIOP_Message_Generator_Parser::write_fragment_header(), and write_protocol_header().
00206 {
00207 // Get a parser for us
00208 TAO_GIOP_Message_Generator_Parser *generator_parser = 0;
00209 TAO_GIOP_Message_Version giop_version;
00210
00211 cdr.get_version (giop_version);
00212
00213 // GIOP fragments are supported in GIOP 1.1 and better, but TAO only
00214 // supports them in 1.2 or better since GIOP 1.1 fragments do not
00215 // have a fragment message header.
00216 if (giop_version.major == 1 && giop_version.minor < 2)
00217 return -1;
00218
00219 // Get the state information that we need to use
00220 this->set_state (giop_version, generator_parser);
00221
00222 // Write the GIOP header first
00223 if (!this->write_protocol_header (TAO_GIOP_FRAGMENT, cdr)
00224 || !generator_parser->write_fragment_header (cdr, request_id))
00225 {
00226 if (TAO_debug_level)
00227 ACE_ERROR ((LM_ERROR,
00228 ACE_TEXT ("(%P|%t) Error in writing GIOP header \n")));
00229
00230 return -1;
00231 }
00232
00233 return 0;
00234 }
|
|
||||||||||||
|
Write the locate reply header.
Implements TAO_Pluggable_Messaging. Definition at line 1510 of file GIOP_Message_Base.cpp.
01513 {
01514 return 0;
01515 }
|
|
||||||||||||||||
|
Write the RequestHeader in to the cdr stream.
Implements TAO_Pluggable_Messaging. Definition at line 111 of file GIOP_Message_Base.cpp. References ACE_ERROR, ACE_TEXT, TAO_OutputCDR::get_version(), LM_ERROR, TAO_Operation_Details::request_id(), set_state(), TAO_debug_level, TAO_GIOP_LOCATEREQUEST, TAO_GIOP_Message_Generator_Parser::write_locate_request_header(), and write_protocol_header().
00115 {
00116 // Get a parser for us
00117 TAO_GIOP_Message_Generator_Parser *generator_parser = 0;
00118 TAO_GIOP_Message_Version giop_version;
00119
00120 cdr.get_version (giop_version);
00121
00122 // Get the state information that we need to use
00123 this->set_state (giop_version, generator_parser);
00124
00125 // Write the GIOP header first
00126 if (!this->write_protocol_header (TAO_GIOP_LOCATEREQUEST, cdr))
00127 {
00128 if (TAO_debug_level)
00129 ACE_ERROR ((LM_ERROR,
00130 ACE_TEXT ("(%P|%t) Error in writing GIOP header \n")));
00131
00132 return -1;
00133 }
00134
00135 // Now call the implementation for the rest of the header
00136 if (!generator_parser->write_locate_request_header
00137 (op.request_id (), spec, cdr))
00138 {
00139 if (TAO_debug_level)
00140 ACE_ERROR ((LM_ERROR,
00141 ACE_TEXT ("(%P|%t) Error in writing locate request header \n")));
00142
00143
00144 return -1;
00145
00146 }
00147
00148 return 0;
00149 }
|
|
||||||||||||
|
Write the reply header.
Implements TAO_Pluggable_Messaging. Definition at line 152 of file GIOP_Message_Base.cpp. References ACE_ERROR, ACE_TEXT, TAO_OutputCDR::get_version(), LM_ERROR, set_state(), TAO_debug_level, TAO_GIOP_REPLY, write_protocol_header(), and TAO_GIOP_Message_Generator_Parser::write_reply_header(). Referenced by generate_exception_reply(), and process_request().
00155 {
00156 // Get a parser for us
00157 TAO_GIOP_Message_Generator_Parser *generator_parser = 0;
00158 TAO_GIOP_Message_Version giop_version;
00159
00160 cdr.get_version (giop_version);
00161
00162 // Get the state information that we need to use
00163 this->set_state (giop_version, generator_parser);
00164
00165 // Write the GIOP header first
00166 if (!this->write_protocol_header (TAO_GIOP_REPLY, cdr))
00167 {
00168 if (TAO_debug_level)
00169 ACE_ERROR ((LM_ERROR,
00170 ACE_TEXT ("(%P|%t) Error in writing GIOP header \n")));
00171
00172 return -1;
00173 }
00174
00175 try
00176 {
00177 // Now call the implementation for the rest of the header
00178 int const result =
00179 generator_parser->write_reply_header (cdr, params);
00180
00181 if (!result)
00182 {
00183 if (TAO_debug_level > 4)
00184 ACE_ERROR ((LM_ERROR,
00185 ACE_TEXT ("(%P|%t) Error in writing reply ")
00186 ACE_TEXT ("header\n")));
00187
00188 return -1;
00189 }
00190 }
00191 catch (const ::CORBA::Exception& ex)
00192 {
00193 if (TAO_debug_level > 4)
00194 ex._tao_print_exception (
00195 ACE_TEXT ("TAO_GIOP_Message_Base::generate_reply_header"));
00196
00197 return -1;
00198 }
00199
00200 return 0;
00201 }
|
|
||||||||||||||||
|
Write the RequestHeader in to the cdr stream. The underlying implementation of the mesaging should do the right thing. Implements TAO_Pluggable_Messaging. Definition at line 71 of file GIOP_Message_Base.cpp. References ACE_ERROR, ACE_TEXT, TAO_OutputCDR::get_version(), LM_ERROR, set_state(), TAO_debug_level, TAO_GIOP_REQUEST, write_protocol_header(), and TAO_GIOP_Message_Generator_Parser::write_request_header().
00075 {
00076 // Get a parser for us
00077 TAO_GIOP_Message_Generator_Parser *generator_parser = 0;
00078 TAO_GIOP_Message_Version giop_version;
00079
00080 cdr.get_version (giop_version);
00081
00082 // Get the state information that we need to use
00083 this->set_state (giop_version, generator_parser);
00084
00085 // Write the GIOP header first
00086 if (!this->write_protocol_header (TAO_GIOP_REQUEST, cdr))
00087 {
00088 if (TAO_debug_level)
00089 {
00090 ACE_ERROR ((LM_ERROR,
00091 ACE_TEXT ("(%P|%t) Error in writing GIOP header \n")));
00092 }
00093
00094 return -1;
00095 }
00096
00097 // Now call the implementation for the rest of the header
00098 if (!generator_parser->write_request_header (op, spec, cdr))
00099 {
00100 if (TAO_debug_level)
00101 ACE_ERROR ((LM_ERROR,
00102 ACE_TEXT ("(%P|%t) Error in writing request header \n")));
00103
00104 return -1;
00105 }
00106
00107 return 0;
00108 }
|
|
|
Header length.
Implements TAO_Pluggable_Messaging. Definition at line 1571 of file GIOP_Message_Base.cpp. Referenced by consolidate_fragmented_message().
01572 {
01573 return TAO_GIOP_MESSAGE_HEADER_LEN;
01574 }
|
|
||||||||||||
|
Initialize the underlying state object based on the major and minor revision numbers Implements TAO_Pluggable_Messaging. Definition at line 52 of file GIOP_Message_Base.cpp. References out_stream_, and ACE_OutputCDR::set_version().
00053 {
00054 // Set the giop version of the out stream
00055 this->out_stream_.set_version (major, minor);
00056 }
|
|
|
Is the messaging object ready for processing BiDirectional request/response? Implements TAO_Pluggable_Messaging. Definition at line 1518 of file GIOP_Message_Base.cpp. References TAO_OutputCDR::get_version(), TAO_GIOP_Message_Generator_Parser::is_ready_for_bidirectional(), and set_state().
01519 {
01520 // Get a parser for us
01521 TAO_GIOP_Message_Generator_Parser *parser = 0;
01522 TAO_GIOP_Message_Version giop_version;
01523
01524 msg.get_version (giop_version);
01525
01526 // Get the state information that we need to use
01527 this->set_state (giop_version, parser);
01528
01529 // We dont really know.. So ask the generator and parser objects that
01530 // we know.
01531 // @@ TODO: Need to make this faster, instead of making virtual
01532 // call, try todo the check within this class
01533 return parser->is_ready_for_bidirectional ();
01534 }
|
|
|
Creates a new node for the queue with a message block in the node of size sz. Definition at line 1538 of file GIOP_Message_Base.cpp. References ACE_ERROR, ACE_TEXT, TAO_ORB_Core::create_input_cdr_data_block(), TAO_ORB_Core::input_cdr_msgblock_allocator(), LM_ERROR, TAO_Queued_Data::make_queued_data(), ACE_Data_Block::release(), and TAO_debug_level. Referenced by extract_next_message().
01539 {
01540 // Make a datablock for the size requested + something. The
01541 // "something" is required because we are going to align the data
01542 // block in the message block. During alignment we could loose some
01543 // bytes. As we may not know how many bytes will be lost, we will
01544 // allocate ACE_CDR::MAX_ALIGNMENT extra.
01545 ACE_Data_Block *db =
01546 this->orb_core_->create_input_cdr_data_block (sz +
01547 ACE_CDR::MAX_ALIGNMENT);
01548
01549 TAO_Queued_Data *qd =
01550 TAO_Queued_Data::make_queued_data (
01551 this->orb_core_->transport_message_buffer_allocator (),
01552 this->orb_core_->input_cdr_msgblock_allocator (),
01553 db);
01554
01555 if (qd == 0)
01556 {
01557 if (TAO_debug_level > 0)
01558 {
01559 ACE_ERROR ((LM_ERROR,
01560 ACE_TEXT ("TAO (%P|%t) - TAO_GIOP_Message_Base::make_queued_data, ")
01561 ACE_TEXT ("out of memory, failed to allocate queued data object\n")));
01562 }
01563 db->release ();
01564 return 0; // NULL pointer
01565 }
01566
01567 return qd;
01568 }
|
|
||||||||||||||||||||||||
|
Make a GIOP_LOCATEREPLY and hand that over to the transport so that it can be sent over the connection.
Definition at line 1168 of file GIOP_Message_Base.cpp. References ACE_ERROR, ACE_TEXT, LM_ERROR, TAO_OutputCDR::more_fragments(), TAO_GIOP_Locate_Request_Header::request_id(), TAO_Transport::send_message(), TAO_debug_level, TAO_GIOP_LOCATEREPLY, TAO_GIOP_Message_Generator_Parser::write_locate_reply_mesg(), and write_protocol_header(). Referenced by process_locate_request().
01173 {
01174 // Note here we are making the Locate reply header which is *QUITE*
01175 // different from the reply header made by the make_reply () call..
01176 // Make the GIOP message header
01177 this->write_protocol_header (TAO_GIOP_LOCATEREPLY, output);
01178
01179 // This writes the header & body
01180 parser->write_locate_reply_mesg (output,
01181 request.request_id (),
01182 status_info);
01183
01184 output.more_fragments (false);
01185
01186 // Send the message
01187 int const result = transport->send_message (output,
01188 0,
01189 TAO_Transport::TAO_REPLY);
01190
01191 // Print out message if there is an error
01192 if (result == -1)
01193 {
01194 if (TAO_debug_level > 0)
01195 {
01196 ACE_ERROR ((LM_ERROR,
01197 ACE_TEXT ("TAO: (%P|%t) %p: cannot send reply\n"),
01198 ACE_TEXT ("TAO_GIOP_Message_Base::make_send_locate_reply")));
01199 }
01200 }
01201
01202 return result;
01203 }
|
|
|
Accessor for the output CDR stream.
Implements TAO_Pluggable_Messaging. Definition at line 59 of file GIOP_Message_Base.cpp. References out_stream_.
00060 {
00061 return this->out_stream_;
00062 }
|
|
||||||||||||
|
Parse the details of the next message from the incoming and initializes attributes of qd.
Implements TAO_Pluggable_Messaging. Definition at line 294 of file GIOP_Message_Base.cpp. References ACE_Message_Block::length(), TAO_GIOP_Message_State::message_size(), TAO_Queued_Data::missing_data(), TAO_Queued_Data::msg_block(), TAO_GIOP_Message_State::parse_message_header(), TAO_Queued_Data::set_state(), and TAO_MISSING_DATA_UNDEFINED.
00296 {
00297 if (qd.msg_block ()->length () < TAO_GIOP_MESSAGE_HEADER_LEN)
00298 {
00299 qd.missing_data (TAO_MISSING_DATA_UNDEFINED);
00300
00301 return 0; /* incomplete header */
00302 }
00303 else
00304 {
00305 TAO_GIOP_Message_State state;
00306
00307 if (state.parse_message_header (*(qd.msg_block ())) == -1)
00308 {
00309 return -1;
00310 }
00311
00312 size_t const message_size = state.message_size (); /* Header + Payload */
00313
00314 if (message_size > qd.msg_block ()->length ())
00315 {
00316 qd.missing_data (message_size - qd.msg_block ()->length ());
00317 }
00318 else
00319 {
00320 qd.missing_data (0);
00321 }
00322
00323 /* init out-parameters */
00324 qd.set_state (state);
00325 mesg_length = message_size;
00326
00327 return 1; /* complete header */
00328 }
00329 }
|
|
||||||||||||
|
Parse GIOP request-id of TAO_InputCDR cdr.
|
|
||||||||||||
|
Parse GIOP request-id of TAO_Queued_Data qd
Definition at line 1589 of file GIOP_Message_Base.cpp. References ACE_BIT_ENABLED, ACE_Message_Block::base(), TAO_Queued_Data::byte_order(), ACE_Message_Block::data_block(), ACE_Data_Block::duplicate(), TAO_Queued_Data::giop_version(), TAO_GIOP_Message_Version::major, TAO_GIOP_Message_Version::major_version(), TAO_GIOP_Message_Version::minor, TAO_GIOP_Message_Version::minor_version(), TAO_Queued_Data::msg_block(), TAO_Queued_Data::msg_type(), ACE_Message_Block::rd_ptr(), ACE_Message_Block::self_flags(), IOP::ServiceContextList, set_state(), TAO_PLUGGABLE_MESSAGE_CANCELREQUEST, TAO_PLUGGABLE_MESSAGE_FRAGMENT, TAO_PLUGGABLE_MESSAGE_LOCATEREPLY, TAO_PLUGGABLE_MESSAGE_LOCATEREQUEST, TAO_PLUGGABLE_MESSAGE_REPLY, TAO_PLUGGABLE_MESSAGE_REQUEST, and ACE_Message_Block::wr_ptr(). Referenced by consolidate_fragmented_message(), and discard_fragmented_message().
01591 {
01592 // Get a parser for us
01593 TAO_GIOP_Message_Generator_Parser *generator_parser = 0;
01594
01595 // Get the state information that we need to use
01596 this->set_state (qd->giop_version (), generator_parser);
01597
01598 // Get the read and write positions before we steal data.
01599 size_t rd_pos = qd->msg_block ()->rd_ptr () - qd->msg_block ()->base ();
01600 size_t wr_pos = qd->msg_block ()->wr_ptr () - qd->msg_block ()->base ();
01601 rd_pos += TAO_GIOP_MESSAGE_HEADER_LEN;
01602
01603 // Create a input CDR stream. We do the following
01604 // 1 - If the incoming message block has a data block with a flag
01605 // DONT_DELETE (for the data block) we create an input CDR
01606 // stream the same way.
01607 // 2 - If the incoming message block had a datablock from heap just
01608 // use it by duplicating it and make the flag 0.
01609 // NOTE: We use the same data block in which we read the message and
01610 // we pass it on to the higher layers of the ORB. So we dont to any
01611 // copies at all here. The same is also done in the higher layers.
01612
01613 ACE_Message_Block::Message_Flags flg = 0;
01614 ACE_Data_Block *db = 0;
01615
01616 // Get the flag in the message block
01617 flg = qd->msg_block ()->self_flags ();
01618
01619 if (ACE_BIT_ENABLED (flg,
01620 ACE_Message_Block::DONT_DELETE))
01621 {
01622 // Use the same datablock
01623 db = qd->msg_block ()->data_block ();
01624 }
01625 else
01626 {
01627 // Use a duplicated datablock as the datablock has come off the
01628 // heap.
01629 db = qd->msg_block ()->data_block ()->duplicate ();
01630 }
01631
01632 TAO_InputCDR input_cdr (db,
01633 flg,
01634 rd_pos,
01635 wr_pos,
01636 qd->byte_order (),
01637 qd->giop_version ().major_version (),
01638 qd->giop_version ().minor_version (),
01639 this->orb_core_);
01640
01641 if (qd->giop_version ().major == 1 &&
01642 (qd->giop_version ().minor == 0 || qd->giop_version ().minor == 1))
01643 {
01644 switch (qd->msg_type ())
01645 {
01646 case TAO_PLUGGABLE_MESSAGE_REQUEST:
01647 case TAO_PLUGGABLE_MESSAGE_REPLY:
01648 {
01649 IOP::ServiceContextList service_context;
01650
01651 if ((input_cdr >> service_context)
01652 && (input_cdr >> request_id))
01653 {
01654 return 0;
01655 }
01656 }
01657 break;
01658 case TAO_PLUGGABLE_MESSAGE_CANCELREQUEST:
01659 case TAO_PLUGGABLE_MESSAGE_LOCATEREQUEST:
01660 case TAO_PLUGGABLE_MESSAGE_LOCATEREPLY:
01661 {
01662 if ((input_cdr >> request_id))
01663 {
01664 return 0;
01665 }
01666 }
01667 break;
01668 default:
01669 break;
01670 }
01671 }
01672 else
01673 {
01674 switch (qd->msg_type ())
01675 {
01676 case TAO_PLUGGABLE_MESSAGE_REQUEST:
01677 case TAO_PLUGGABLE_MESSAGE_REPLY:
01678 case TAO_PLUGGABLE_MESSAGE_FRAGMENT:
01679 case TAO_PLUGGABLE_MESSAGE_CANCELREQUEST:
01680 case TAO_PLUGGABLE_MESSAGE_LOCATEREQUEST:
01681 case TAO_PLUGGABLE_MESSAGE_LOCATEREPLY:
01682 {
01683 // Dealing with GIOP-1.2, the request-id is located directly
01684 // behind the GIOP-Header. This is true for all message
01685 // types that might be sent in form of fragments or
01686 // cancel-requests.
01687 if ((input_cdr >> request_id))
01688 {
01689 return 0;
01690 }
01691 }
01692 break;
01693 default:
01694 break;
01695 }
01696 }
01697
01698 return -1;
01699 }
|
|
||||||||||||||||||||
|
Processes the GIOP_LOCATE_REQUEST messages.
Definition at line 1041 of file GIOP_Message_Base.cpp. References ACE_DEBUG, ACE_TEXT, TAO_Request_Dispatcher::dispatch(), TAO_ServerRequest::exception_type(), TAO_ServerRequest::forward_location(), TAO_GIOP_Locate_Status_Msg::forward_location_var, TAO::unbounded_value_sequence< T >::get_buffer(), TAO_Pseudo_Var_T< T >::in(), CORBA::is_nil(), TAO::unbounded_value_sequence< T >::length(), LM_DEBUG, make_send_locate_reply(), TAO_GIOP_Locate_Request_Header::object_key(), CORBA::Object_var, TAO_Transport::orb_core_, TAO_InputCDR::orb_core_, TAO_GIOP_Message_Generator_Parser::parse_locate_header(), TAO_ORB_Core::request_dispatcher(), TAO_GIOP_Locate_Request_Header::request_id(), TAO_GIOP_Locate_Status_Msg::status, TAO_debug_level, TAO_GIOP_NO_EXCEPTION, TAO_GIOP_OBJECT_FORWARD, TAO_GIOP_OBJECT_HERE, and TAO_GIOP_UNKNOWN_OBJECT. Referenced by process_request_message().
01045 {
01046 // This will extract the request header, set <response_required> as
01047 // appropriate.
01048 TAO_GIOP_Locate_Request_Header locate_request (input, this->orb_core_);
01049
01050 TAO_GIOP_Locate_Status_Msg status_info;
01051
01052 // Defaulting.
01053 status_info.status = TAO_GIOP_UNKNOWN_OBJECT;
01054
01055 CORBA::Boolean response_required = true;
01056
01057 try
01058 {
01059 int parse_error = parser->parse_locate_header (locate_request);
01060
01061 if (parse_error != 0)
01062 {
01063 throw ::CORBA::MARSHAL (0, CORBA::COMPLETED_NO);
01064 }
01065
01066 TAO::ObjectKey tmp_key (locate_request.object_key ().length (),
01067 locate_request.object_key ().length (),
01068 locate_request.object_key ().get_buffer (),
01069 0);
01070
01071 // Set it to an error state
01072 parse_error = 1;
01073 CORBA::ULong req_id = locate_request.request_id ();
01074
01075 // We will send the reply. The ServerRequest class need not send
01076 // the reply
01077 CORBA::Boolean deferred_reply = true;
01078 TAO_ServerRequest server_request (this,
01079 req_id,
01080 response_required,
01081 deferred_reply,
01082 tmp_key,
01083 "_non_existent",
01084 output,
01085 transport,
01086 this->orb_core_,
01087 parse_error);
01088
01089 if (parse_error != 0)
01090 {
01091 throw ::CORBA::MARSHAL (0, CORBA::COMPLETED_NO);
01092 }
01093
01094 CORBA::Object_var forward_to;
01095
01096 this->orb_core_->request_dispatcher ()->dispatch (
01097 this->orb_core_,
01098 server_request,
01099 forward_to);
01100
01101 if (!CORBA::is_nil (forward_to.in ()))
01102 {
01103 status_info.status = TAO_GIOP_OBJECT_FORWARD;
01104 status_info.forward_location_var = forward_to;
01105 if (TAO_debug_level > 0)
01106 ACE_DEBUG ((LM_DEBUG,
01107 ACE_TEXT ("TAO (%P|%t) - TAO_GIOP_Message_Base::process_locate_request, ")
01108 ACE_TEXT ("called: forwarding\n")));
01109 }
01110 else if (server_request.exception_type () == TAO_GIOP_NO_EXCEPTION)
01111 {
01112 // We got no exception, so the object is here.
01113 status_info.status = TAO_GIOP_OBJECT_HERE;
01114 if (TAO_debug_level > 0)
01115 ACE_DEBUG ((LM_DEBUG,
01116 ACE_TEXT ("TAO (%P|%t) - TAO_GIOP_Message_Base::process_locate_request, ")
01117 ACE_TEXT ("found\n")));
01118 }
01119 else
01120 {
01121 status_info.forward_location_var = server_request.forward_location ();
01122
01123 if (!CORBA::is_nil (status_info.forward_location_var.in ()))
01124 {
01125 status_info.status = TAO_GIOP_OBJECT_FORWARD;
01126 ACE_DEBUG ((LM_DEBUG,
01127 ACE_TEXT ("TAO (%P|%t) - TAO_GIOP_Message_Base::process_locate_request, ")
01128 ACE_TEXT ("forwarding\n")));
01129 }
01130 else
01131 {
01132 // Normal exception, so the object is not here
01133 status_info.status = TAO_GIOP_UNKNOWN_OBJECT;
01134 ACE_DEBUG ((LM_DEBUG,
01135 ACE_TEXT ("TAO (%P|%t) - TAO_GIOP_Message_Base::process_locate_request, ")
01136 ACE_TEXT ("not here\n")));
01137 }
01138 }
01139 }
01140
01141 catch (const ::CORBA::Exception&)
01142 {
01143 // Normal exception, so the object is not here
01144 status_info.status = TAO_GIOP_UNKNOWN_OBJECT;
01145 if (TAO_debug_level > 0)
01146 ACE_DEBUG ((LM_DEBUG,
01147 ACE_TEXT ("TAO (%P|%t) - TAO_GIOP_Message_Base::process_locate_request, ")
01148 ACE_TEXT ("CORBA exception raised\n")));
01149 }
01150 catch (...)
01151 {
01152 // Normal exception, so the object is not here
01153 status_info.status = TAO_GIOP_UNKNOWN_OBJECT;
01154 if (TAO_debug_level > 0)
01155 ACE_DEBUG ((LM_DEBUG,
01156 ACE_TEXT ("TAO (%P|%t) TAO_GIOP_Message_Base::process_locate_request - ")
01157 ACE_TEXT ("C++ exception raised\n")));
01158 }
01159
01160 return this->make_send_locate_reply (transport,
01161 locate_request,
01162 status_info,
01163 output,
01164 parser);
01165 }
|
|
||||||||||||
|
Parse the reply message that we received and return the reply information through reply_info Implements TAO_Pluggable_Messaging. Definition at line 681 of file GIOP_Message_Base.cpp. References ACE_ERROR, ACE_TEXT, TAO_Transport::assign_translators(), ACE_Message_Block::base(), TAO_Queued_Data::byte_order(), ACE_Message_Block::data_block(), TAO_Transport_Mux_Strategy::dispatch_reply(), dump_msg(), TAO_Queued_Data::giop_version(), TAO_Transport::id(), TAO_Pluggable_Reply_Params::input_cdr_, ACE_Message_Block::length(), LM_ERROR, TAO_GIOP_Message_Version::major_version(), TAO_GIOP_Message_Version::minor_version(), TAO_Queued_Data::msg_block(), TAO_Queued_Data::msg_type(), TAO_GIOP_Message_Generator_Parser::parse_locate_reply(), TAO_GIOP_Message_Generator_Parser::parse_reply(), ACE_Message_Block::rd_ptr(), set_state(), TAO_debug_level, TAO_PLUGGABLE_MESSAGE_LOCATEREPLY, TAO_PLUGGABLE_MESSAGE_REPLY, TAO_Transport::tms(), TAO_Pluggable_Reply_Params::transport_, and ACE_Message_Block::wr_ptr().
00684 {
00685 // Get a parser for us
00686 TAO_GIOP_Message_Generator_Parser *generator_parser = 0;
00687
00688 // Get the state information that we need to use
00689 this->set_state (qd->giop_version (), generator_parser);
00690
00691 // Get the read and write positions before we steal data.
00692 size_t rd_pos = qd->msg_block ()->rd_ptr () - qd->msg_block ()->base ();
00693 size_t const wr_pos = qd->msg_block ()->wr_ptr () - qd->msg_block ()->base ();
00694 rd_pos += TAO_GIOP_MESSAGE_HEADER_LEN;
00695
00696 if (TAO_debug_level > 0)
00697 this->dump_msg ("recv",
00698 reinterpret_cast <u_char *> (qd->msg_block ()->rd_ptr ()),
00699 qd->msg_block ()->length ());
00700
00701
00702 // Create a empty buffer on stack
00703 // NOTE: We use the same data block in which we read the message and
00704 // we pass it on to the higher layers of the ORB. So we dont to any
00705 // copies at all here.
00706 TAO_InputCDR input_cdr (qd->msg_block ()->data_block (),
00707 ACE_Message_Block::DONT_DELETE,
00708 rd_pos,
00709 wr_pos,
00710 qd->byte_order (),
00711 qd->giop_version ().major_version (),
00712 qd->giop_version ().minor_version (),
00713 this->orb_core_);
00714
00715 // We know we have some reply message. Check whether it is a
00716 // GIOP_REPLY or GIOP_LOCATE_REPLY to take action.
00717
00718 // Once we send the InputCDR stream we need to just forget about
00719 // the stream and never touch that again for anything. We basically
00720 // loose ownership of the data_block.
00721 int retval = 0;
00722
00723 switch (qd->msg_type ())
00724 {
00725 case TAO_PLUGGABLE_MESSAGE_REPLY:
00726 // Should be taken care by the state specific parsing
00727 retval = generator_parser->parse_reply (input_cdr, params);
00728
00729 break;
00730 case TAO_PLUGGABLE_MESSAGE_LOCATEREPLY:
00731 retval = generator_parser->parse_locate_reply (input_cdr, params);
00732 break;
00733 default:
00734 retval = -1;
00735 }
00736
00737 if (retval == -1)
00738 return retval;
00739
00740 params.input_cdr_ = &input_cdr;
00741 params.transport_->assign_translators (params.input_cdr_, 0);
00742
00743 retval = params.transport_->tms ()->dispatch_reply (params);
00744
00745 if (retval == -1)
00746 {
00747 // Something really critical happened, we will forget about
00748 // every reply on this connection.
00749 if (TAO_debug_level > 0)
00750 ACE_ERROR ((LM_ERROR,
00751 ACE_TEXT ("TAO (%P|%t) - GIOP_Message_Base[%d]::process_reply_message, ")
00752 ACE_TEXT ("dispatch reply failed\n"),
00753 params.transport_->id ()));
00754 }
00755
00756 return retval;
00757 }
|
|
||||||||||||||||||||
|
Processes the GIOP_REQUEST messages.
Definition at line 831 of file GIOP_Message_Base.cpp. References ACE_ERROR, ACE_TEXT, TAO_Transport::assign_translators(), TAO_ORB_Core::codeset_manager(), TAO_Request_Dispatcher::dispatch(), generate_reply_header(), TAO_Pseudo_Var_T< T >::in(), CORBA::is_nil(), TAO_ORB_Core::is_permanent_forward_condition(), LM_ERROR, TAO_OutputCDR::message_attributes(), TAO_OutputCDR::more_fragments(), CORBA::Object_var, TAO_ServerRequest::orb_core(), TAO_Transport::orb_core_, TAO_GIOP_Message_Generator_Parser::parse_request_header(), TAO_Codeset_Manager::process_service_context(), TAO_ServerRequest::reply_service_info(), TAO_Pluggable_Reply_Params_Base::reply_status_, TAO_ORB_Core::request_dispatcher(), TAO_ServerRequest::request_id(), TAO_Pluggable_Reply_Params_Base::request_id_, TAO_ServerRequest::request_service_context(), TAO_ServerRequest::response_expected(), TAO_Transport::send_message(), send_reply_exception(), TAO_Pluggable_Reply_Params_Base::service_context_notowned(), TAO_Pluggable_Reply_Params_Base::svc_ctx_, TAO_debug_level, TAO_GIOP_LOCATION_FORWARD, TAO_GIOP_LOCATION_FORWARD_PERM, and TAO_UNHANDLED_SERVER_CXX_EXCEPTION. Referenced by process_request_message().
00836 {
00837 // This will extract the request header, set <response_required>
00838 // and <sync_with_server> as appropriate.
00839 TAO_ServerRequest request (this,
00840 cdr,
00841 output,
00842 transport,
00843 this->orb_core_);
00844
00845 CORBA::ULong request_id = 0;
00846 CORBA::Boolean response_required = false;
00847 int parse_error = 0;
00848
00849 try
00850 {
00851 parse_error = parser->parse_request_header (request);
00852
00853 // Throw an exception if the
00854 if (parse_error != 0)
00855 throw ::CORBA::MARSHAL (0, CORBA::COMPLETED_NO);
00856
00857 TAO_Codeset_Manager *csm = request.orb_core ()->codeset_manager ();
00858 if (csm)
00859 {
00860 csm->process_service_context (request);
00861 transport->assign_translators (&cdr, &output);
00862 }
00863
00864 request_id = request.request_id ();
00865
00866 response_required = request.response_expected ();
00867
00868 CORBA::Object_var forward_to;
00869
00870 /*
00871 * Hook to specialize request processing within TAO
00872 * This hook will be replaced by specialized request
00873 * processing implementation.
00874 */
00875 //@@ TAO_DISPATCH_RESOLUTION_OPT_COMMENT_HOOK_START
00876
00877 // Do this before the reply is sent.
00878 this->orb_core_->request_dispatcher ()->dispatch (
00879 this->orb_core_,
00880 request,
00881 forward_to);
00882
00883 //@@ TAO_DISPATCH_RESOLUTION_OPT_COMMENT_HOOK_END
00884
00885 if (!CORBA::is_nil (forward_to.in ()))
00886 {
00887 CORBA::Boolean const permanent_forward_condition =
00888 this->orb_core_->is_permanent_forward_condition
00889 (forward_to.in (),
00890 request.request_service_context ());
00891
00892 // We should forward to another object...
00893 TAO_Pluggable_Reply_Params_Base reply_params;
00894 reply_params.request_id_ = request_id;
00895 reply_params.reply_status_ =
00896 permanent_forward_condition
00897 ? TAO_GIOP_LOCATION_FORWARD_PERM
00898 : TAO_GIOP_LOCATION_FORWARD;
00899 reply_params.svc_ctx_.length (0);
00900
00901 // Send back the reply service context.
00902 reply_params.service_context_notowned (
00903 &request.reply_service_info ());
00904
00905 output.message_attributes (request_id,
00906 0,
00907 TAO_Transport::TAO_REPLY,
00908 0);
00909
00910 // Make the GIOP header and Reply header
00911 this->generate_reply_header (output, reply_params);
00912
00913 if (!(output << forward_to.in ()))
00914 {
00915 if (TAO_debug_level > 0)
00916 ACE_ERROR ((LM_ERROR,
00917 ACE_TEXT ("TAO (%P|%t) ERROR: Unable to marshal ")
00918 ACE_TEXT ("forward reference.\n")));
00919
00920 return -1;
00921 }
00922
00923 output.more_fragments (false);
00924
00925 int result = transport->send_message (output,
00926 0,
00927 TAO_Transport::TAO_REPLY);
00928 if (result == -1)
00929 {
00930 if (TAO_debug_level > 0)
00931 {
00932 // No exception but some kind of error, yet a
00933 // response is required.
00934 ACE_ERROR ((LM_ERROR,
00935 ACE_TEXT ("TAO: (%P|%t|%N|%l) %p: ")
00936 ACE_TEXT ("cannot send reply\n"),
00937 ACE_TEXT ("TAO_GIOP_Message_Base::process_request")));
00938 }
00939 }
00940 return result;
00941 }
00942 }
00943 // Only CORBA exceptions are caught here.
00944 catch ( ::CORBA::Exception& ex)
00945 {
00946 int result = 0;
00947
00948 if (response_required)
00949 {
00950 result = this->send_reply_exception (transport,
00951 output,
00952 request_id,
00953 &request.reply_service_info (),
00954 &ex);
00955 if (result == -1)
00956 {
00957 if (TAO_debug_level > 0)
00958 {
00959 ACE_ERROR ((LM_ERROR,
00960 ACE_TEXT ("TAO: (%P|%t|%N|%l) %p: ")
00961 ACE_TEXT ("cannot send exception\n"),
00962 ACE_TEXT ("process_connector_request ()")));
00963
00964 ex._tao_print_exception (
00965 "TAO_GIOP_Message_Base::process_request[1]");
00966 }
00967 }
00968
00969 }
00970 else if (TAO_debug_level > 0)
00971 {
00972 // It is unfortunate that an exception (probably a system
00973 // exception) was thrown by the upcall code (even by the
00974 // user) when the client was not expecting a response.
00975 // However, in this case, we cannot close the connection
00976 // down, since it really isn't the client's fault.
00977
00978 ACE_ERROR ((LM_ERROR,
00979 ACE_TEXT ("(%P|%t) exception thrown ")
00980 ACE_TEXT ("but client is not waiting a response\n")));
00981
00982 ex._tao_print_exception (
00983 "TAO_GIOP_Message_Base::process_request[2]");
00984 }
00985
00986 return result;
00987 }
00988 catch (...)
00989 {
00990 // @@ TODO some c++ exception or another, but what do we do with
00991 // it?
00992 // We are supposed to map it into a CORBA::UNKNOWN exception.
00993 // BTW, this cannot be detected if using the <env> mapping. If
00994 // we have native exceptions but no support for them in the ORB
00995 // we should still be able to catch it. If we don't have native
00996 // exceptions it couldn't have been raised in the first place!
00997 int result = 0;
00998
00999 if (response_required)
01000 {
01001 CORBA::UNKNOWN exception (CORBA::SystemException::_tao_minor_code
01002 (TAO_UNHANDLED_SERVER_CXX_EXCEPTION, 0),
01003 CORBA::COMPLETED_MAYBE);
01004
01005 if (this->send_reply_exception (transport,
01006 output,
01007 request_id,
01008 &request.reply_service_info (),
01009 &exception) == -1
01010 && TAO_debug_level > 0)
01011 {
01012 ACE_ERROR ((LM_ERROR,
01013 ACE_TEXT ("TAO (%P|%t) - TAO_GIOP_Message_Base::process_request[3], ")
01014 ACE_TEXT ("%p: ")
01015 ACE_TEXT ("cannot send exception\n"),
01016 ACE_TEXT ("process_request ()")));
01017 exception._tao_print_exception (
01018 "TAO_GIOP_Message_Base::process_request[3]");
01019 }
01020 }
01021 else if (TAO_debug_level > 0)
01022 {
01023 // It is unfotunate that an exception (probably a system
01024 // exception) was thrown by the upcall code (even by the
01025 // user) when the client was not expecting a response.
01026 // However, in this case, we cannot close the connection
01027 // down, since it really isn't the client's fault.
01028 ACE_ERROR ((LM_ERROR,
01029 ACE_TEXT ("TAO (%P|%t) exception thrown ")
01030 ACE_TEXT ("but client is not waiting a response\n")));
01031 }
01032
01033 return result;
01034 }
01035
01036 return 0;
01037 }
|
|
||||||||||||
|
Process the request message that we have received on the connection Implements TAO_Pluggable_Messaging. Definition at line 555 of file GIOP_Message_Base.cpp. References ACE_BIT_ENABLED, TAO_Transport::assign_translators(), ACE_Message_Block::base(), TAO_Queued_Data::byte_order(), TAO_ORB_Parameters::cdr_memcpy_tradeoff(), ACE_Message_Block::data_block(), dump_msg(), ACE_Data_Block::duplicate(), ACE_Auto_Basic_Ptr< X >::get(), TAO_Queued_Data::giop_version(), TAO_ORB_Core::input_cdr_dblock_allocator(), ACE_Message_Block::length(), TAO_ORB_Core::lf_strategy(), TAO_GIOP_Message_Version::major_version(), TAO_GIOP_Message_Version::minor_version(), TAO_Queued_Data::msg_block(), TAO_Queued_Data::msg_type(), TAO_ORB_Core::orb_params(), process_locate_request(), process_request(), ACE_Message_Block::rd_ptr(), ACE_Message_Block::self_flags(), set_state(), TAO_LF_Strategy::set_upcall_thread(), TAO_debug_level, TAO_ENCAP_BYTE_ORDER, TAO_PLUGGABLE_MESSAGE_LOCATEREQUEST, TAO_PLUGGABLE_MESSAGE_REQUEST, and ACE_Message_Block::wr_ptr().
00557 {
00558 // Set the upcall thread
00559 this->orb_core_->lf_strategy ().set_upcall_thread (this->orb_core_->leader_follower ());
00560
00561 // Get a parser for us
00562 TAO_GIOP_Message_Generator_Parser *generator_parser = 0;
00563
00564 // Get the state information that we need to use
00565 this->set_state (qd->giop_version (), generator_parser);
00566
00567 // A buffer that we will use to initialise the CDR stream. Since we're
00568 // allocating the buffer on the stack, we may as well allocate the data
00569 // block on the stack too and avoid an allocation inside the message
00570 // block of the CDR.
00571 #if defined (ACE_INITIALIZE_MEMORY_BEFORE_USE)
00572 char repbuf[ACE_CDR::DEFAULT_BUFSIZE] = { 0 };
00573 #else
00574 char repbuf[ACE_CDR::DEFAULT_BUFSIZE];
00575 #endif /* ACE_INITIALIZE_MEMORY_BEFORE_USE */
00576 ACE_Data_Block out_db (sizeof (repbuf),
00577 ACE_Message_Block::MB_DATA,
00578 repbuf,
00579 this->orb_core_->input_cdr_buffer_allocator (),
00580 0,
00581 ACE_Message_Block::DONT_DELETE,
00582 this->orb_core_->input_cdr_dblock_allocator ());
00583
00584 // Initialize an output CDR on the stack
00585 // NOTE: Don't jump to a conclusion as to why we are using the
00586 // input_cdr and hence the global pool here. These pools will move
00587 // to the lanes anyway at some point of time. Further, it would have
00588 // been awesome to have this in TSS. But for some reason the cloning
00589 // that happens when the ORB gets flow controlled while writing a
00590 // reply is messing things up. We crash horribly. Doing this adds a
00591 // lock, we need to set things like this -- put stuff in TSS here
00592 // and transfer to global memory when we get flow controlled. We
00593 // need to work on the message block to get it right!
00594 TAO_OutputCDR output (&out_db,
00595 TAO_ENCAP_BYTE_ORDER,
00596 this->orb_core_->input_cdr_msgblock_allocator (),
00597 this->orb_core_->orb_params ()->cdr_memcpy_tradeoff (),
00598 this->fragmentation_strategy_.get (),
00599 qd->giop_version ().major_version (),
00600 qd->giop_version ().minor_version ());
00601
00602 // Get the read and write positions before we steal data.
00603 size_t rd_pos = qd->msg_block ()->rd_ptr () - qd->msg_block ()->base ();
00604 size_t const wr_pos = qd->msg_block ()->wr_ptr () - qd->msg_block ()->base ();
00605 rd_pos += TAO_GIOP_MESSAGE_HEADER_LEN;
00606
00607 if (TAO_debug_level > 0)
00608 this->dump_msg ("recv",
00609 reinterpret_cast <u_char *> (qd->msg_block ()->rd_ptr ()),
00610 qd->msg_block ()->length ());
00611
00612
00613 // Create a input CDR stream. We do the following
00614 // 1 - If the incoming message block has a data block with a flag
00615 // DONT_DELETE (for the data block) we create an input CDR
00616 // stream the same way.
00617 // 2 - If the incoming message block had a datablock from heap just
00618 // use it by duplicating it and make the flag 0.
00619 // NOTE: We use the same data block in which we read the message and
00620 // we pass it on to the higher layers of the ORB. So we dont to any
00621 // copies at all here. The same is also done in the higher layers.
00622
00623 ACE_Message_Block::Message_Flags flg = 0;
00624 ACE_Data_Block *db = 0;
00625
00626 // Get the flag in the message block
00627 flg = qd->msg_block ()->self_flags ();
00628
00629 if (ACE_BIT_ENABLED (flg, ACE_Message_Block::DONT_DELETE))
00630 {
00631 // Use the same datablock
00632 db = qd->msg_block ()->data_block ();
00633 }
00634 else
00635 {
00636 // Use a duplicated datablock as the datablock has come off the
00637 // heap.
00638 db = qd->msg_block ()->data_block ()->duplicate ();
00639 }
00640
00641 TAO_InputCDR input_cdr (db,
00642 flg,
00643 rd_pos,
00644 wr_pos,
00645 qd->byte_order (),
00646 qd->giop_version ().major_version (),
00647 qd->giop_version ().minor_version (),
00648 this->orb_core_);
00649
00650 transport->assign_translators(&input_cdr,&output);
00651
00652 // We know we have some request message. Check whether it is a
00653 // GIOP_REQUEST or GIOP_LOCATE_REQUEST to take action.
00654
00655 // Once we send the InputCDR stream we need to just forget about
00656 // the stream and never touch that again for anything. We basically
00657 // loose ownership of the data_block.
00658
00659 switch (qd->msg_type ())
00660 {
00661 case TAO_PLUGGABLE_MESSAGE_REQUEST:
00662 // Should be taken care by the state specific invocations. They
00663 // could raise an exception or write things in the output CDR
00664 // stream
00665 return this->process_request (transport,
00666 input_cdr,
00667 output,
00668 generator_parser);
00669
00670 case TAO_PLUGGABLE_MESSAGE_LOCATEREQUEST:
00671 return this->process_locate_request (transport,
00672 input_cdr,
00673 output,
00674 generator_parser);
00675 default:
00676 return -1;
00677 }
00678 }
|
|
|
Reset the messaging the object.
Implements TAO_Pluggable_Messaging. Definition at line 65 of file GIOP_Message_Base.cpp.
00066 {
00067 // no-op
00068 }
|
|
||||||||||||||||
|
Close a connection, first sending GIOP::CloseConnection.
Definition at line 1308 of file GIOP_Message_Base.cpp. References ACE_DEBUG, ACE_ERROR, ACE_TEXT, TAO_Transport::close_connection(), dump_msg(), TAO_Transport::id(), LM_DEBUG, LM_ERROR, TAO_GIOP_Message_Version::major, TAO_GIOP_Message_Version::minor, TAO_Transport::send_message_block_chain(), TAO_debug_level, TAO_ENCAP_BYTE_ORDER, TAO_GIOP_CLOSECONNECTION, and ACE_Message_Block::wr_ptr().
01311 {
01312 // static CORBA::Octet
01313 // I hate this in every method. Till the time I figure out a way
01314 // around I will have them here hanging around.
01315 const char close_message [TAO_GIOP_MESSAGE_HEADER_LEN] =
01316 {
01317 // The following works on non-ASCII platforms, such as MVS (which
01318 // uses EBCDIC).
01319 0x47, // 'G'
01320 0x49, // 'I'
01321 0x4f, // 'O'
01322 0x50, // 'P'
01323 version.major,
01324 version.minor,
01325 TAO_ENCAP_BYTE_ORDER,
01326 TAO_GIOP_CLOSECONNECTION,
01327 0, 0, 0, 0
01328 };
01329
01330 // It's important that we use a reliable shutdown after we send this
01331 // message, so we know it's received.
01332 //
01333 // @@ should recv and discard queued data for portability; note
01334 // that this won't block (long) since we never set SO_LINGER
01335
01336 this->dump_msg ("send_close_connection",
01337 (const u_char *) close_message,
01338 TAO_GIOP_MESSAGE_HEADER_LEN);
01339
01340 #if 0
01341 // @@CJC I don't think we need this check b/c the transport's send()
01342 // will simply return -1. However, I guess we could create something
01343 // like TAO_Tranport::is_closed() that returns whether the connection
01344 // is already closed. The problem with that, however, is that it's
01345 // entirely possible that is_closed() could return TRUE, and then the
01346 // transport could get closed down btw. the time it gets called and the
01347 // time that the send actually occurs.
01348 ACE_HANDLE which = transport->handle ();
01349 if (which == ACE_INVALID_HANDLE)
01350 {
01351 if (TAO_debug_level > 0)
01352 ACE_DEBUG ((LM_DEBUG,
01353 ACE_TEXT ("TAO (%P|%t) TAO_GIOP_Message_Base::send_close_connection -")
01354 ACE_TEXT (" connection already closed\n")));
01355 return;
01356 }
01357 #endif
01358
01359 ACE_Data_Block data_block (TAO_GIOP_MESSAGE_HEADER_LEN,
01360 ACE_Message_Block::MB_DATA,
01361 close_message,
01362 0,
01363 0,
01364 ACE_Message_Block::DONT_DELETE,
01365 0);
01366 ACE_Message_Block message_block(&data_block);
01367 message_block.wr_ptr (TAO_GIOP_MESSAGE_HEADER_LEN);
01368
01369 size_t bt;
01370 int const result = transport->send_message_block_chain (&message_block, bt);
01371 if (result == -1)
01372 {
01373 if (TAO_debug_level > 0)
01374 ACE_ERROR ((LM_ERROR,
01375 ACE_TEXT ("(%P|%t) error closing connection %u, errno = %d\n"),
01376 transport->id (), errno));
01377 }
01378
01379 transport->close_connection ();
01380 ACE_DEBUG ((LM_DEBUG,
01381 ACE_TEXT ("(%P|%t) shut down transport, handle %d\n"),
01382 transport-> id ()));
01383 }
|
|
|
Send error messages.
Definition at line 1211 of file GIOP_Message_Base.cpp. References ACE_DEBUG, ACE_TEXT, dump_msg(), TAO_Transport::id(), LM_DEBUG, TAO_Transport::send_message_block_chain(), TAO_debug_level, TAO_ENCAP_BYTE_ORDER, TAO_GIOP_MESSAGERROR, and ACE_Message_Block::wr_ptr().
01212 {
01213 const char error_message [TAO_GIOP_MESSAGE_HEADER_LEN] =
01214 {
01215 // The following works on non-ASCII platforms, such as MVS (which
01216 // uses EBCDIC).
01217 0x47, // 'G'
01218 0x49, // 'I'
01219 0x4f, // 'O'
01220 0x50, // 'P'
01221 (CORBA::Octet) 1, // Use the lowest GIOP version
01222 (CORBA::Octet) 0,
01223 TAO_ENCAP_BYTE_ORDER,
01224 TAO_GIOP_MESSAGERROR,
01225 0, 0, 0, 0
01226 };
01227
01228 this->dump_msg ("send_error",
01229 (const u_char *) error_message,
01230 TAO_GIOP_MESSAGE_HEADER_LEN);
01231
01232 ACE_Data_Block data_block (TAO_GIOP_MESSAGE_HEADER_LEN,
01233 ACE_Message_Block::MB_DATA,
01234 error_message,
01235 0,
01236 0,
01237 ACE_Message_Block::DONT_DELETE,
01238 0);
01239 ACE_Message_Block message_block(&data_block,
01240 ACE_Message_Block::DONT_DELETE);
01241 message_block.wr_ptr (TAO_GIOP_MESSAGE_HEADER_LEN);
01242
01243 size_t bt;
01244 int const result = transport->send_message_block_chain (&message_block, bt);
01245 if (result == -1)
01246 {
01247 if (TAO_debug_level > 0)
01248 ACE_DEBUG ((LM_DEBUG,
01249 ACE_TEXT ("TAO (%N|%l|%P|%t) error sending error to transport %u\n"),
01250 transport->id ()));
01251 }
01252
01253 return result;
01254 }
|
|
||||||||||||||||||||||||
|
We must send a LocateReply through transport, this request resulted in some kind of exception. Definition at line 1387 of file GIOP_Message_Base.cpp. References CORBA::SystemException::_downcast(), TAO_Pluggable_Reply_Params_Base::argument_flag_, generate_exception_reply(), TAO_OutputCDR::more_fragments(), TAO_Pluggable_Reply_Params_Base::reply_status_, TAO_Pluggable_Reply_Params_Base::request_id_, TAO_Transport::send_message(), TAO_Pluggable_Reply_Params_Base::service_context_notowned(), IOP::ServiceContextList, TAO_Pluggable_Reply_Params_Base::svc_ctx_, TAO_GIOP_SYSTEM_EXCEPTION, and TAO_GIOP_USER_EXCEPTION. Referenced by process_request().
01394 {
01395 TAO_Pluggable_Reply_Params_Base reply_params;
01396 reply_params.request_id_ = request_id;
01397 reply_params.svc_ctx_.length (0);
01398
01399 // We are going to send some data
01400 reply_params.argument_flag_ = true;
01401
01402 // Send back the service context we received. (RTCORBA relies on
01403 // this).
01404 reply_params.service_context_notowned (svc_info);
01405
01406 reply_params.reply_status_ = TAO_GIOP_USER_EXCEPTION;
01407
01408 if (CORBA::SystemException::_downcast (x) != 0)
01409 {
01410 reply_params.reply_status_ = TAO_GIOP_SYSTEM_EXCEPTION;
01411 }
01412
01413 if (this->generate_exception_reply (output, reply_params, *x) == -1)
01414 return -1;
01415
01416 output.more_fragments (false);
01417
01418 return transport->send_message (output, 0, TAO_Transport::TAO_REPLY);
01419 }
|
|
|
Definition at line 1922 of file GIOP_Message_Base.cpp. References ACE_SET_BITS, ACE_OutputCDR::buffer(), ACE_OutputCDR::do_byte_swap(), TAO_OutputCDR::more_fragments(), and TAO_ENCAP_BYTE_ORDER. Referenced by format_message().
01923 {
01924 CORBA::Octet * const buf =
01925 reinterpret_cast<CORBA::Octet *> (const_cast<char *> (msg.buffer ()));
01926
01927 CORBA::Octet const & major = buf[TAO_GIOP_VERSION_MAJOR_OFFSET];
01928 CORBA::Octet const & minor = buf[TAO_GIOP_VERSION_MINOR_OFFSET];
01929
01930 // Flags for the GIOP protocol header "flags" field.
01931 CORBA::Octet & flags = buf[TAO_GIOP_MESSAGE_FLAGS_OFFSET];
01932
01933 // Least significant bit: Byte order
01934 ACE_SET_BITS (flags, TAO_ENCAP_BYTE_ORDER ^ msg.do_byte_swap ());
01935
01936 // Second least significant bit: More fragments
01937 //
01938 // Only supported in GIOP 1.1 or better.
01939 if (!(major <= 1 && minor == 0))
01940 ACE_SET_BITS (flags, msg.more_fragments () << 1);
01941 }
|
|
||||||||||||
|
Set the state.
Definition at line 1257 of file GIOP_Message_Base.cpp. References TAO_GIOP_Message_Version::major, TAO_GIOP_Message_Version::minor, TAO_GIOP_Message_Generator_Parser_Impl::tao_giop_10, TAO_GIOP_Message_Generator_Parser_Impl::tao_giop_11, TAO_GIOP_Message_Generator_Parser_Impl::tao_giop_12, and tao_giop_impl_. Referenced by fragment_header_length(), generate_fragment_header(), generate_locate_request_header(), generate_reply_header(), generate_request_header(), is_ready_for_bidirectional(), parse_request_id(), process_reply_message(), and process_request_message().
01260 {
01261 switch (version.major)
01262 {
01263 case 1:
01264 switch (version.minor)
01265 {
01266 case 0:
01267 gen_parser =
01268 const_cast<TAO_GIOP_Message_Generator_Parser_10 *> (
01269 &this->tao_giop_impl_.tao_giop_10);
01270 break;
01271 case 1:
01272 gen_parser =
01273 const_cast<TAO_GIOP_Message_Generator_Parser_11 *> (
01274 &this->tao_giop_impl_.tao_giop_11);
01275 break;
01276 case 2:
01277 gen_parser =
01278 const_cast<TAO_GIOP_Message_Generator_Parser_12 *> (
01279 &this->tao_giop_impl_.tao_giop_12);
01280 break;
01281 default:
01282 break;
01283 }
01284 break;
01285 default:
01286 break;
01287 }
01288 }
|
|
||||||||||||
|
Writes the GIOP header in to msg
Definition at line 791 of file GIOP_Message_Base.cpp. References TAO_OutputCDR::get_version(), ACE_OutputCDR::good_bit(), TAO_GIOP_Message_Version::major, TAO_GIOP_Message_Version::minor, CORBA::Octet, ACE_OutputCDR::reset(), TAO_GIOP_Message_Type, CORBA::ULong, and ACE_OutputCDR::write_octet_array(). Referenced by generate_fragment_header(), generate_locate_request_header(), generate_reply_header(), generate_request_header(), and make_send_locate_reply().
00793 {
00794 // Reset the message type
00795 msg.reset ();
00796
00797 CORBA::Octet header[12] =
00798 {
00799 // The following works on non-ASCII platforms, such as MVS (which
00800 // uses EBCDIC).
00801 0x47, // 'G'
00802 0x49, // 'I'
00803 0x4f, // 'O'
00804 0x50 // 'P'
00805 };
00806
00807 TAO_GIOP_Message_Version giop_version;
00808
00809 msg.get_version (giop_version);
00810
00811 header[4] = giop_version.major;
00812 header[5] = giop_version.minor;
00813
00814 // "flags" octet, i.e. header[6] will be set up later when message
00815 // is formatted by the transport.
00816
00817 header[7] = CORBA::Octet (type); // Message type
00818
00819 static ACE_CDR::ULong const header_size =
00820 sizeof (header) / sizeof (header[0]);
00821
00822 // Fragmentation should not occur at this point since there are only
00823 // 12 bytes in the stream, and fragmentation may only occur when
00824 // the stream length >= 16.
00825 msg.write_octet_array (header, header_size);
00826
00827 return msg.good_bit ();
00828 }
|
|
|
All Fragments being received are stored on stack in reverse order, last top Definition at line 256 of file GIOP_Message_Base.h. Referenced by consolidate_fragmented_message(), and discard_fragmented_message(). |
|
|
Strategy that sends data currently marshaled into this TAO_OutputCDR stream if necessary. Definition at line 268 of file GIOP_Message_Base.h. |
|
|
Cached ORB_Core pointer...
Definition at line 249 of file GIOP_Message_Base.h. |
|
|
Buffer where the request is placed.
Definition at line 271 of file GIOP_Message_Base.h. Referenced by init(), and out_stream(). |
|
|
All the implementations of GIOP message generator and parsers.
Definition at line 252 of file GIOP_Message_Base.h. Referenced by set_state(). |
1.3.6
