ACE_Message_Block Class Reference

Stores messages for use throughout ACE (particularly in an ACE_Message_Queue). More...

#include <Message_Block.h>

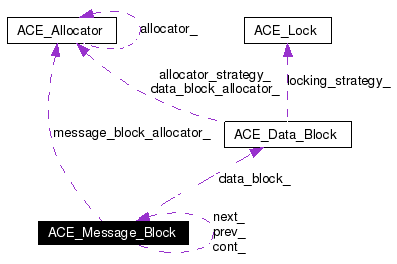

Collaboration diagram for ACE_Message_Block:


Public Types
typedef int	ACE_Message_Type
typedef unsigned long	Message_Flags
enum	{ MB_DATA = 0x01, MB_PROTO = 0x02, MB_BREAK = 0x03, MB_PASSFP = 0x04, MB_EVENT = 0x05, MB_SIG = 0x06, MB_IOCTL = 0x07, MB_SETOPTS = 0x08, MB_IOCACK = 0x81, MB_IOCNAK = 0x82, MB_PCPROTO = 0x83, MB_PCSIG = 0x84, MB_READ = 0x85, MB_FLUSH = 0x86, MB_STOP = 0x87, MB_START = 0x88, MB_HANGUP = 0x89, MB_ERROR = 0x8a, MB_PCEVENT = 0x8b, MB_NORMAL = 0x00, MB_PRIORITY = 0x80, MB_USER = 0x200 }
enum	{ DONT_DELETE = 01, USER_FLAGS = 0x1000 }
Public Member Functions
	ACE_Message_Block (ACE_Allocator *message_block_allocator=0)
	Create an empty message.
	ACE_Message_Block (ACE_Data_Block , Message_Flags flags=0, ACE_Allocator message_block_allocator=0)
	ACE_Message_Block (const char *data, size_t size=0, unsigned long priority=ACE_DEFAULT_MESSAGE_BLOCK_PRIORITY)
	ACE_Message_Block (size_t size, ACE_Message_Type type=MB_DATA, ACE_Message_Block cont=0, const char data=0, ACE_Allocator allocator_strategy=0, ACE_Lock locking_strategy=0, unsigned long priority=ACE_DEFAULT_MESSAGE_BLOCK_PRIORITY, const ACE_Time_Value &execution_time=ACE_Time_Value::zero, const ACE_Time_Value &deadline_time=ACE_Time_Value::max_time, ACE_Allocator data_block_allocator=0, ACE_Allocator message_block_allocator=0)
	ACE_Message_Block (const ACE_Message_Block &mb, size_t align)
int	init (const char *data, size_t size=0)
int	init (size_t size, ACE_Message_Type type=MB_DATA, ACE_Message_Block cont=0, const char data=0, ACE_Allocator allocator_strategy=0, ACE_Lock locking_strategy=0, unsigned long priority=ACE_DEFAULT_MESSAGE_BLOCK_PRIORITY, const ACE_Time_Value &execution_time=ACE_Time_Value::zero, const ACE_Time_Value &deadline_time=ACE_Time_Value::max_time, ACE_Allocator data_block_allocator=0, ACE_Allocator message_block_allocator=0)
virtual	~ACE_Message_Block (void)
ACE_Message_Type	msg_type (void) const
	Get type of the message.
void	msg_type (ACE_Message_Type type)
	Set type of the message.
int	is_data_msg (void) const
	Find out what type of message this is.
ACE_Message_Type	msg_class (void) const
Message_Flags	set_flags (Message_Flags more_flags)
Message_Flags	clr_flags (Message_Flags less_flags)
Message_Flags	flags (void) const
	Get the current message flags.
Message_Flags	set_self_flags (ACE_Message_Block::Message_Flags more_flags)
Message_Flags	clr_self_flags (ACE_Message_Block::Message_Flags less_flags)
Message_Flags	self_flags (void) const
	Get the current message flags.
unsigned long	msg_priority (void) const
	Get priority of the message.
void	msg_priority (unsigned long priority)
	Set priority of the message.
const ACE_Time_Value &	msg_execution_time (void) const
	Get execution time associated with the message.
void	msg_execution_time (const ACE_Time_Value &et)
	Set execution time associated with the message.
const ACE_Time_Value &	msg_deadline_time (void) const
	Get absolute time of deadline associated with the message.
void	msg_deadline_time (const ACE_Time_Value &dt)
	Set absolute time of deadline associated with the message.
virtual ACE_Message_Block *	clone (Message_Flags mask=0) const
virtual ACE_Message_Block *	duplicate (void) const
	Return a "shallow" copy that increments our reference count by 1.
virtual ACE_Message_Block *	release (void)
int	copy (const char *buf, size_t n)
int	copy (const char *buf)
int	crunch (void)
void	reset (void)
void	access_allocators (ACE_Allocator &allocator_strategy, ACE_Allocator &data_block_allocator, ACE_Allocator *&message_block_allocator)
void	reset_allocators (ACE_Allocator allocator_strategy=0, ACE_Allocator data_block_allocator=0, ACE_Allocator *message_block_allocator=0)
char *	base (void) const
	Get message data.
void	base (char *data, size_t size, Message_Flags=DONT_DELETE)
	Set message data (doesn't reallocate).
char *	end (void) const
	Return a pointer to 1 past the end of the allocated data in a message.
char *	mark (void) const
char *	rd_ptr (void) const
	Get the read pointer.
void	rd_ptr (char *ptr)
	Set the read pointer to ptr.
void	rd_ptr (size_t n)
	Set the read pointer ahead n bytes.
char *	wr_ptr (void) const
	Get the write pointer.
void	wr_ptr (char *ptr)
	Set the write pointer to ptr.
void	wr_ptr (size_t n)
ACE_Data_Block *	data_block (void) const
void	data_block (ACE_Data_Block *)
ACE_Data_Block *	replace_data_block (ACE_Data_Block *)
ACE_Message_Block *	cont (void) const
	Get the continuation field.
void	cont (ACE_Message_Block *)
	Set the continuation field.
ACE_Message_Block *	next (void) const
	Get link to next message.
void	next (ACE_Message_Block *)
	Set link to next message.
ACE_Message_Block *	prev (void) const
	Get link to prev message.
void	prev (ACE_Message_Block *)
	Set link to prev message.
ACE_Lock *	locking_strategy (void)
	Get the locking strategy.
ACE_Lock *	locking_strategy (ACE_Lock *)
	Set a new locking strategy and return the hold one.
int	reference_count (void) const
	Get the current reference count.
void	dump (void) const
	Dump the state of an object.
Message length and size operations
Message length is (wr_ptr - rd_ptr). Message size is capacity of the message, including data outside the [rd_ptr,wr_ptr] range.
size_t	length (void) const
	Get the length of the message.
void	length (size_t n)
	Set the length of the message.
size_t	total_length (void) const
size_t	total_size (void) const
void	total_size_and_length (size_t &mb_size, size_t &mb_length) const
size_t	size (void) const
int	size (size_t length)
size_t	total_capacity (void) const
size_t	capacity (void) const
	Get the number of allocated bytes in the top-level .
size_t	space (void) const
Static Public Member Functions
ACE_Message_Block *	duplicate (const ACE_Message_Block *mb)
ACE_Message_Block *	release (ACE_Message_Block *mb)
Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
Protected Member Functions
	ACE_Message_Block (size_t size, ACE_Message_Type type, ACE_Message_Block cont, const char data, ACE_Allocator allocator_strategy, ACE_Lock locking_strategy, Message_Flags flags, unsigned long priority, const ACE_Time_Value &execution_time, const ACE_Time_Value &deadline_time, ACE_Data_Block db, ACE_Allocator data_block_allocator, ACE_Allocator *message_block_allocator)
	Perform the actual initialization.
int	release_i (ACE_Lock *lock)
int	init_i (size_t size, ACE_Message_Type type, ACE_Message_Block cont, const char data, ACE_Allocator allocator_strategy, ACE_Lock locking_strategy, Message_Flags flags, unsigned long priority, const ACE_Time_Value &execution_time, const ACE_Time_Value &deadline_time, ACE_Data_Block db, ACE_Allocator data_block_allocator, ACE_Allocator *message_block_allocator)
	Perform the actual initialization.
Protected Attributes
size_t	rd_ptr_
	Pointer to beginning of next read.
size_t	wr_ptr_
	Pointer to beginning of next write.
unsigned long	priority_
	Priority of message.
ACE_Message_Block *	cont_
	Pointer to next message block in the chain.
ACE_Message_Block *	next_
	Pointer to next message in the list.
ACE_Message_Block *	prev_
	Pointer to previous message in the list.
ACE_Message_Block::Message_Flags	flags_
	Misc flags (e.g., DONT_DELETE and USER_FLAGS).
ACE_Data_Block *	data_block_
ACE_Allocator *	message_block_allocator_
Private Member Functions
ACE_Message_Block &	operator= (const ACE_Message_Block &)
	ACE_Message_Block (const ACE_Message_Block &)
Friends
class	ACE_Data_Block

Detailed Description

Stores messages for use throughout ACE (particularly in an ACE_Message_Queue).

An ACE_Message_Block is modeled after the message data structures used in System V STREAMS. Its purpose is to enable efficient manipulation of arbitrarily large messages without incurring much memory copying overhead. Here are the main characteristics of an ACE_Message_Block:

Contains a pointer to a reference-counted ACE_Data_Block, which in turn points to the actual data buffer. This allows very flexible and efficient sharing of data by multiple ACE_Message_Block objects.
One or more ACE_Message_Blocks can be linked to form a ``fragment chain.''
ACE_Message_Blocks can be linked together in a doubly linked fashion to form a queue of messages (this is how ACE_Message_Queue works).

See also:: C++NPv1, section 4.2; APG, section 12.3.2.

Definition at line 59 of file Message_Block.h.

Member Typedef Documentation

typedef int ACE_Message_Block::ACE_Message_Type

Definition at line 119 of file Message_Block.h.
Referenced by ACE_Data_Block::ACE_Data_Block(), ACE_Locked_Data_Block< ACE_LOCK >::ACE_Locked_Data_Block(), ACE_Message_Block(), clone(), duplicate(), init(), init_i(), is_data_msg(), msg_type(), and ACE_Data_Block::msg_type().

typedef unsigned long ACE_Message_Block::Message_Flags

Definition at line 120 of file Message_Block.h.
Referenced by ACE_Data_Block::ACE_Data_Block(), ACE_InputCDR::ACE_InputCDR(), ACE_Locked_Data_Block< ACE_LOCK >::ACE_Locked_Data_Block(), ACE_Message_Block(), base(), ACE_Data_Block::base(), clone(), ACE_Data_Block::clone(), ACE_Locked_Data_Block< ACE_LOCK >::clone_nocopy(), ACE_Data_Block::clone_nocopy(), clr_flags(), ACE_Data_Block::clr_flags(), clr_self_flags(), ACE_InputCDR::exchange_data_blocks(), init_i(), set_flags(), ACE_Data_Block::set_flags(), and set_self_flags().

Member Enumeration Documentation

anonymous enum

Enumeration values:

MB_DATA Undifferentiated data message.

MB_PROTO Undifferentiated protocol control.

MB_BREAK Line break (regular and priority).

MB_PASSFP Pass file pointer.

MB_EVENT Post an event to an event queue.

MB_SIG Generate process signal.

MB_IOCTL ioctl; set/get params

MB_SETOPTS Set various stream head options.

MB_IOCACK Acknowledge ioctl (high priority; go to head of queue).

MB_IOCNAK Negative ioctl acknowledge.

MB_PCPROTO Priority proto message.

MB_PCSIG Generate process signal.

MB_READ Generate read notification.

MB_FLUSH Flush your queues.

MB_STOP Stop transmission immediately.

MB_START Restart transmission after stop.

MB_HANGUP Line disconnect.

MB_ERROR Fatal error used to set u.u_error.

MB_PCEVENT Post an event to an event queue.

MB_NORMAL Normal priority message mask.

MB_PRIORITY High priority control message mask.

MB_USER User-defined message mask.

Definition at line 64 of file Message_Block.h.

00065 { 00066 // = Data and proto 00067 /// Undifferentiated data message 00068 MB_DATA = 0x01, 00069 /// Undifferentiated protocol control 00070 MB_PROTO = 0x02, 00071 00072 // = Control messages 00073 /// Line break (regular and priority) 00074 MB_BREAK = 0x03, 00075 /// Pass file pointer 00076 MB_PASSFP = 0x04, 00077 /// Post an event to an event queue 00078 MB_EVENT = 0x05, 00079 /// Generate process signal 00080 MB_SIG = 0x06, 00081 /// ioctl; set/get params 00082 MB_IOCTL = 0x07, 00083 /// Set various stream head options 00084 MB_SETOPTS = 0x08, 00085 00086 // = Control messages 00087 /// Acknowledge ioctl (high priority; go to head of queue) 00088 MB_IOCACK = 0x81, 00089 /// Negative ioctl acknowledge 00090 MB_IOCNAK = 0x82, 00091 /// Priority proto message 00092 MB_PCPROTO = 0x83, 00093 /// Generate process signal 00094 MB_PCSIG = 0x84, 00095 /// Generate read notification 00096 MB_READ = 0x85, 00097 /// Flush your queues 00098 MB_FLUSH = 0x86, 00099 /// Stop transmission immediately 00100 MB_STOP = 0x87, 00101 /// Restart transmission after stop 00102 MB_START = 0x88, 00103 /// Line disconnect 00104 MB_HANGUP = 0x89, 00105 /// Fatal error used to set u.u_error 00106 MB_ERROR = 0x8a, 00107 /// Post an event to an event queue 00108 MB_PCEVENT = 0x8b, 00109 00110 // = Message class masks 00111 /// Normal priority message mask 00112 MB_NORMAL = 0x00, 00113 /// High priority control message mask 00114 MB_PRIORITY = 0x80, 00115 /// User-defined message mask 00116 MB_USER = 0x200 00117 };

anonymous enum

Enumeration values:

DONT_DELETE Don't delete the data on exit since we don't own it.

USER_FLAGS user defined flags start here

Definition at line 122 of file Message_Block.h.

00123 { 00124 /// Don't delete the data on exit since we don't own it. 00125 DONT_DELETE = 01, 00126 /// user defined flags start here 00127 USER_FLAGS = 0x1000 00128 };

Constructor & Destructor Documentation

ACE_Message_Block::ACE_Message_Block ( ACE_Allocator * message_block_allocator = 0 )

Create an empty message.

Definition at line 414 of file Message_Block.cpp.
References ACE_ERROR, ACE_TEXT, ACE_TRACE, DONT_DELETE, init_i(), LM_ERROR, and MB_DATA.
Referenced by clone(), and duplicate().

00415 : flags_ (0), 00416 data_block_ (0) 00417 { 00418 ACE_TRACE ("ACE_Message_Block::ACE_Message_Block"); 00419 00420 if (this->init_i (0, // size 00421 MB_DATA, // type 00422 0, // cont 00423 0, // data 00424 0, // allocator 00425 0, // locking strategy 00426 ACE_Message_Block::DONT_DELETE, // flags 00427 0, // priority 00428 ACE_Time_Value::zero, // execution time 00429 ACE_Time_Value::max_time, // absolute time of deadline 00430 0, // data block 00431 0, // data_block allocator 00432 message_block_allocator) == -1) // message_block allocator 00433 ACE_ERROR ((LM_ERROR, 00434 ACE_TEXT ("ACE_Message_Block"))); 00435 }

ACE_Message_Block::ACE_Message_Block ( ACE_Data_Block * ,

Message_Flags flags = 0,

ACE_Allocator * message_block_allocator = 0

)

Create an ACE_Message_Block that owns the specified ACE_Data_Block without copying it. If the flags is set to DONT_DELETE we don't delete the ACE_Data_Block. It is left to the client's responsibility to take care of the memory allocated for the data_block
Definition at line 557 of file Message_Block.cpp.
References ACE_ERROR, ACE_TEXT, ACE_TRACE, ACE_Data_Block::data_block_allocator(), init_i(), LM_ERROR, MB_NORMAL, and Message_Flags.

00560 : flags_ (flags), 00561 data_block_ (0) 00562 { 00563 ACE_TRACE ("ACE_Message_Block::ACE_Message_Block"); 00564 00565 if (this->init_i (0, // size 00566 MB_NORMAL, // type 00567 0, // cont 00568 0, // data 00569 0, // allocator 00570 0, // locking strategy 00571 0, // flags 00572 0, // priority 00573 ACE_Time_Value::zero, // execution time 00574 ACE_Time_Value::max_time, // absolute time of deadline 00575 data_block, // data block 00576 data_block->data_block_allocator (), 00577 message_block_allocator) == -1) 00578 ACE_ERROR ((LM_ERROR, 00579 ACE_TEXT ("ACE_Message_Block"))); 00580 }

ACE_Message_Block::ACE_Message_Block ( const char * data,

size_t size = 0,

unsigned long priority = ACE_DEFAULT_MESSAGE_BLOCK_PRIORITY

)

Create an ACE_Message_Block that refers to data without copying it. The data memory will not be freed when this block is destroyed; memory management of data is left to the caller. Note that the size of the new ACE_Message_Block will be size, but the length will be 0 until the write pointer is changed.
Definition at line 389 of file Message_Block.cpp.
References ACE_ERROR, ACE_TEXT, ACE_TRACE, DONT_DELETE, init_i(), LM_ERROR, and MB_DATA.

00392 : flags_ (0), 00393 data_block_ (0) 00394 { 00395 ACE_TRACE ("ACE_Message_Block::ACE_Message_Block"); 00396 00397 if (this->init_i (size, // size 00398 MB_DATA, // type 00399 0, // cont 00400 data, // data 00401 0, // allocator 00402 0, // locking strategy 00403 ACE_Message_Block::DONT_DELETE, // flags 00404 priority, // priority 00405 ACE_Time_Value::zero, // execution time 00406 ACE_Time_Value::max_time, // absolute time of deadline 00407 0, // data block 00408 0, // data_block allocator 00409 0) == -1) // message_block allocator 00410 ACE_ERROR ((LM_ERROR, 00411 ACE_TEXT ("ACE_Message_Block"))); 00412 }

ACE_Message_Block::ACE_Message_Block ( size_t size,

ACE_Message_Type type = MB_DATA,

ACE_Message_Block * cont = 0,

const char * data = 0,

ACE_Allocator * allocator_strategy = 0,

ACE_Lock * locking_strategy = 0,

unsigned long priority = ACE_DEFAULT_MESSAGE_BLOCK_PRIORITY,

const ACE_Time_Value & execution_time = ACE_Time_Value::zero,

const ACE_Time_Value & deadline_time = ACE_Time_Value::max_time,

ACE_Allocator * data_block_allocator = 0,

ACE_Allocator * message_block_allocator = 0

)

Create an initialized message of type type containing size bytes. The cont argument initializes the continuation field in the ACE_Message_Block. If data == 0 then this block allocates and owns the block's memory, using allocator to get the data if it's non-0. If data != 0 then this block refers to that memory until this this block ceases to exist; this object will not free data on destruction. If locking_strategy is non-0 then this is used to protect regions of code that access shared state (e.g., reference counting) from race conditions. Note that the size of the ACE_Message_Block will be size, but the length will be 0 until the write pointer is set. The data_block_allocator is used to allocate the data blocks while the allocator_strategy is used to allocate the buffers contained by those. The message_block_allocator is used to allocate new ACE_Message_Block objects when the duplicate() method is called. If a message_block_allocator is given, this ACE_Message_Block and future ACE_Message_Block objects created by duplicate() will be freed using this allocator when they are released.
Note:
If you use this allocator, the ACE_Message_Block you created should have been created using this allocator because it will be released to the same allocator.

Definition at line 437 of file Message_Block.cpp.
References ACE_ERROR, ACE_Message_Type, ACE_TEXT, ACE_TRACE, DONT_DELETE, init_i(), and LM_ERROR.

00448 :flags_ (0), 00449 data_block_ (0) 00450 { 00451 ACE_TRACE ("ACE_Message_Block::ACE_Message_Block"); 00452 00453 if (this->init_i (size, 00454 msg_type, 00455 msg_cont, 00456 msg_data, 00457 allocator_strategy, 00458 locking_strategy, 00459 msg_data ? ACE_Message_Block::DONT_DELETE : 0, 00460 priority, 00461 execution_time, 00462 deadline_time, 00463 0, // data block 00464 data_block_allocator, 00465 message_block_allocator) == -1) 00466 ACE_ERROR ((LM_ERROR, 00467 ACE_TEXT ("ACE_Message_Block"))); 00468 }

ACE_Message_Block::ACE_Message_Block ( const ACE_Message_Block & mb,

size_t align

)

A copy constructor. This constructor is a bit different. If the incoming Message Block has a data block from the stack this constructor does a deep copy ie. allocates a new data block on the heap and does a copy of the data from the incoming message block. As a final note, the alignment information is used to align the data block if it is created afresh. If the incoming mb has a data block has a data block allocated from the heap, then this constructor just duplicates (ie. a shallow copy) the data block of the incoming mb.
Definition at line 582 of file Message_Block.cpp.
References ACE_BIT_DISABLED, ACE_ERROR, ACE_ptr_align_binary(), ACE_TEXT, ACE_TRACE, base(), ACE_Data_Block::clone_nocopy(), data_block(), ACE_Data_Block::data_block_allocator(), DONT_DELETE, ACE_Data_Block::duplicate(), flags_, init_i(), LM_ERROR, MB_NORMAL, ACE_OS::memcpy(), message_block_allocator_, rd_ptr(), wr_ptr(), and wr_ptr_.

00584 :flags_ (0), 00585 data_block_ (0) 00586 { 00587 ACE_TRACE ("ACE_Message_Block::ACE_Message_Block"); 00588 00589 if (ACE_BIT_DISABLED (mb.flags_, 00590 ACE_Message_Block::DONT_DELETE)) 00591 { 00592 if (this->init_i (0, // size 00593 MB_NORMAL, // type 00594 0, // cont 00595 0, // data 00596 0, // allocator 00597 0, // locking strategy 00598 0, // flags 00599 0, // priority 00600 ACE_Time_Value::zero, // execution time 00601 ACE_Time_Value::max_time, // absolute time of deadline 00602 mb.data_block ()->duplicate (), // data block 00603 mb.data_block ()->data_block_allocator (), 00604 mb.message_block_allocator_) == -1) 00605 ACE_ERROR ((LM_ERROR, 00606 ACE_TEXT ("ACE_Message_Block"))); 00607 #if !defined (ACE_LACKS_CDR_ALIGNMENT) 00608 // Align ourselves 00609 char *start = ACE_ptr_align_binary (this->base (), 00610 align); 00611 #else 00612 char *start = this->base (); 00613 #endif /* ACE_LACKS_CDR_ALIGNMENT */ 00614 00615 // Set our rd & wr pointers 00616 this->rd_ptr (start); 00617 this->wr_ptr (start); 00618 00619 } 00620 else 00621 { 00622 if (this->init_i (0, // size 00623 MB_NORMAL, // type 00624 0, // cont 00625 0, // data 00626 0, // allocator 00627 0, // locking strategy 00628 0, // flags 00629 0, // priority 00630 ACE_Time_Value::zero, // execution time 00631 ACE_Time_Value::max_time, // absolute time of deadline 00632 mb.data_block ()->clone_nocopy (),// data block 00633 mb.data_block ()->data_block_allocator (), 00634 mb.message_block_allocator_) == -1) 00635 ACE_ERROR ((LM_ERROR, 00636 ACE_TEXT ("ACE_Message_Block"))); 00637 00638 #if !defined (ACE_LACKS_CDR_ALIGNMENT) 00639 // Align ourselves 00640 char *start = ACE_ptr_align_binary (this->base (), 00641 align); 00642 #else 00643 char *start = this->base (); 00644 #endif /* ACE_LACKS_CDR_ALIGNMENT */ 00645 00646 // Set our rd & wr pointers 00647 this->rd_ptr (start); 00648 this->wr_ptr (start); 00649 00650 #if !defined (ACE_LACKS_CDR_ALIGNMENT) 00651 // Get the alignment offset of the incoming ACE_Message_Block 00652 start = ACE_ptr_align_binary (mb.base (), 00653 align); 00654 #else 00655 start = mb.base (); 00656 #endif /* ACE_LACKS_CDR_ALIGNMENT */ 00657 00658 // Actual offset for the incoming message block assuming that it 00659 // is also aligned to the same "align" byte 00660 size_t const wr_offset = mb.wr_ptr_ - (start - mb.base ()); 00661 00662 // Copy wr_offset amount of data in to <this->data_block> 00663 (void) ACE_OS::memcpy (this->wr_ptr (), 00664 start, 00665 wr_offset); 00666 00667 // Dont move the write pointer, just leave it to the application 00668 // to do what it wants 00669 00670 } 00671 #if defined (ACE_LACKS_CDR_ALIGNMENT) 00672 ACE_UNUSED_ARG (align); 00673 #endif /* ACE_LACKS_CDR_ALIGNMENT */ 00674 }

ACE_Message_Block::~ACE_Message_Block ( void ) [virtual]

Delete all the resources held in the message.
Note that <release()> is designed to release the continuation chain; the destructor is not. See <release()> for details.
Definition at line 972 of file Message_Block.cpp.
References ACE_BIT_DISABLED, ACE_TRACE, data_block(), DONT_DELETE, and ACE_Data_Block::release().

00973 { 00974 ACE_TRACE ("ACE_Message_Block::~ACE_Message_Block"); 00975 00976 if (ACE_BIT_DISABLED (this->flags_, 00977 ACE_Message_Block::DONT_DELETE)&& 00978 this->data_block ()) 00979 this->data_block ()->release (); 00980 00981 this->prev_ = 0; 00982 this->next_ = 0; 00983 }

ACE_Message_Block::ACE_Message_Block ( size_t size,

ACE_Message_Type type,

ACE_Message_Block * cont,

const char * data,

ACE_Allocator * allocator_strategy,

ACE_Lock * locking_strategy,

Message_Flags flags,

unsigned long priority,

const ACE_Time_Value & execution_time,

const ACE_Time_Value & deadline_time,

ACE_Data_Block * db,

ACE_Allocator * data_block_allocator,

ACE_Allocator * message_block_allocator

) [protected]

Perform the actual initialization.

Definition at line 522 of file Message_Block.cpp.
References ACE_ERROR, ACE_Message_Type, ACE_TEXT, ACE_TRACE, init_i(), LM_ERROR, and Message_Flags.

00535 : flags_ (0), 00536 data_block_ (0) 00537 { 00538 ACE_TRACE ("ACE_Message_Block::ACE_Message_Block"); 00539 00540 if (this->init_i (size, 00541 msg_type, 00542 msg_cont, 00543 msg_data, 00544 allocator_strategy, 00545 locking_strategy, 00546 flags, 00547 priority, 00548 execution_time, 00549 deadline_time, 00550 db, 00551 data_block_allocator, 00552 message_block_allocator) == -1) 00553 ACE_ERROR ((LM_ERROR, 00554 ACE_TEXT ("ACE_Message_Block"))); 00555 }

ACE_Message_Block::ACE_Message_Block ( const ACE_Message_Block & ) [private]

Member Function Documentation

ACE_INLINE void ACE_Message_Block::access_allocators ( ACE_Allocator *& allocator_strategy,

ACE_Allocator *& data_block_allocator,

ACE_Allocator *& message_block_allocator

)

This method returns the allocators only from the first message block in the chain.

Parameters:

allocator_strategy Strategy used to allocate the underlying buffer

data_block_allocator Strategy used to allocate the underlying data block

message_block_allocator Strategy used to allocate the message block

Definition at line 272 of file Message_Block.inl.
References ACE_Data_Block::allocator_strategy_, data_block_, ACE_Data_Block::data_block_allocator_, and message_block_allocator_.

00275 { 00276 allocator_strategy = 00277 this->data_block_->allocator_strategy_; 00278 data_block_allocator = 00279 this->data_block_->data_block_allocator_; 00280 message_block_allocator = 00281 this->message_block_allocator_; 00282 }

ACE_INLINE void ACE_Message_Block::base ( char * data,

size_t size,

Message_Flags = DONT_DELETE

)

Set message data (doesn't reallocate).

Definition at line 292 of file Message_Block.inl.
References ACE_TRACE, ACE_Data_Block::base(), data_block(), Message_Flags, rd_ptr_, and wr_ptr_.

00295 { 00296 ACE_TRACE ("ACE_Message_Block::base"); 00297 this->rd_ptr_ = 0; 00298 this->wr_ptr_ = 0; 00299 this->data_block ()->base (msg_data, msg_length, msg_flags); 00300 }

ACE_INLINE char * ACE_Message_Block::base ( void ) const

Get message data.

Definition at line 285 of file Message_Block.inl.
References ACE_TRACE, ACE_Data_Block::base(), and data_block().
Referenced by ACE_InputCDR::ACE_InputCDR(), ACE_Message_Block(), ACE_Activation_Queue::dequeue(), ACE_Message_Queue_Ex< ACE_MESSAGE_TYPE, ACE_SYNCH_USE >::dequeue_deadline(), ACE_Message_Queue_Ex< ACE_MESSAGE_TYPE, ACE_SYNCH_USE >::dequeue_head(), ACE_Message_Queue_Ex< ACE_MESSAGE_TYPE, ACE_SYNCH_USE >::dequeue_prio(), ACE_Message_Queue_Ex< ACE_MESSAGE_TYPE, ACE_SYNCH_USE >::dequeue_tail(), ACE_InputCDR::exchange_data_blocks(), ACE_CDR::mb_align(), ACE_Future_Set< T >::next_readable(), ACE_Message_Queue_Ex< ACE_MESSAGE_TYPE, ACE_SYNCH_USE >::peek_dequeue_head(), rd_ptr(), and wr_ptr().

00286 { 00287 ACE_TRACE ("ACE_Message_Block::base"); 00288 return this->data_block ()->base (); 00289 }

ACE_INLINE size_t ACE_Message_Block::capacity ( void ) const

Get the number of allocated bytes in the top-level .

Definition at line 154 of file Message_Block.inl.
References ACE_TRACE, ACE_Data_Block::capacity(), and data_block().
Referenced by total_capacity().

00155 { 00156 ACE_TRACE ("ACE_Message_Block::capacity"); 00157 return this->data_block ()->capacity (); 00158 }

ACE_Message_Block * ACE_Message_Block::clone ( Message_Flags mask = 0 ) const [virtual]

Return an exact "deep copy" of the message, i.e., create fresh new copies of all the Data_Blocks and continuations.
Definition at line 1170 of file Message_Block.cpp.
References ACE_DEADLINE_TIME, ACE_EXECUTION_TIME, ACE_Message_Block(), ACE_Message_Type, ACE_NEW_RETURN, ACE_TRACE, ACE_Data_Block::clone(), cont(), cont_, data_block(), ACE_Data_Block::data_block_allocator(), ACE_Allocator::malloc(), message_block_allocator_, Message_Flags, rd_ptr(), release(), ACE_Data_Block::release(), and wr_ptr().
Referenced by ACE_InputCDR::steal_contents().

01171 { 01172 ACE_TRACE ("ACE_Message_Block::clone"); 01173 01174 // Get a pointer to a "cloned" <ACE_Data_Block> (will copy the 01175 // values rather than increment the reference count). 01176 ACE_Data_Block *db = this->data_block ()->clone (mask); 01177 01178 if (db == 0) 01179 return 0; 01180 01181 ACE_Message_Block *nb = 0; 01182 01183 if(message_block_allocator_ == 0) 01184 { 01185 ACE_NEW_RETURN (nb, 01186 ACE_Message_Block (0, // size 01187 ACE_Message_Type (0), // type 01188 0, // cont 01189 0, // data 01190 0, // allocator 01191 0, // locking strategy 01192 0, // flags 01193 this->priority_, // priority 01194 ACE_EXECUTION_TIME, // execution time 01195 ACE_DEADLINE_TIME, // absolute time to deadline 01196 // Get a pointer to a 01197 // "duplicated" <ACE_Data_Block> 01198 // (will simply increment the 01199 // reference count). 01200 db, 01201 db->data_block_allocator (), 01202 this->message_block_allocator_), 01203 0); 01204 } 01205 else 01206 { 01207 // This is the ACE_NEW_MALLOC macro with the return check removed. 01208 // We need to do it this way because if it fails we need to release 01209 // the cloned data block that was created above. If we used 01210 // ACE_NEW_MALLOC_RETURN, there would be a memory leak because the 01211 // above db pointer would be left dangling. 01212 nb = static_cast<ACE_Message_Block*> (message_block_allocator_->malloc (sizeof (ACE_Message_Block))); 01213 if(nb != 0) 01214 new (nb) ACE_Message_Block (0, // size 01215 ACE_Message_Type (0), // type 01216 0, // cont 01217 0, // data 01218 0, // allocator 01219 0, // locking strategy 01220 0, // flags 01221 this->priority_, // priority 01222 ACE_EXECUTION_TIME, // execution time 01223 ACE_DEADLINE_TIME, // absolute time to deadline 01224 db, 01225 db->data_block_allocator (), 01226 this->message_block_allocator_); 01227 } 01228 01229 if (nb == 0) 01230 { 01231 db->release (); 01232 return 0; 01233 } 01234 01235 // Set the read and write pointers in the new <Message_Block> to the 01236 // same relative offset as in the existing <Message_Block>. 01237 nb->rd_ptr (this->rd_ptr_); 01238 nb->wr_ptr (this->wr_ptr_); 01239 01240 // Clone all the continuation messages if necessary. 01241 if (this->cont () != 0 01242 && (nb->cont_ = this->cont ()->clone (mask)) == 0) 01243 { 01244 nb->release (); 01245 return 0; 01246 } 01247 return nb; 01248 }

ACE_INLINE ACE_Message_Block::Message_Flags ACE_Message_Block::clr_flags ( Message_Flags less_flags )

Clear the message flag bits specified in less_flags and return the new value.
Definition at line 112 of file Message_Block.inl.
References ACE_TRACE, ACE_Data_Block::clr_flags(), data_block(), and Message_Flags.

00113 { 00114 ACE_TRACE ("ACE_Message_Block::clr_flags"); 00115 return this->data_block ()->clr_flags (less_flags); 00116 }

ACE_INLINE ACE_Message_Block::Message_Flags ACE_Message_Block::clr_self_flags ( ACE_Message_Block::Message_Flags less_flags )

Clear the message flag bits specified in less_flags and return the new value.
Definition at line 24 of file Message_Block.inl.
References ACE_CLR_BITS, ACE_TRACE, and Message_Flags.
Referenced by ACE_InputCDR::clone_from(), ACE_InputCDR::exchange_data_blocks(), ACE_CDR::grow(), ACE_InputCDR::reset_contents(), ACE_InputCDR::steal_contents(), and ACE_InputCDR::steal_from().

00025 { 00026 ACE_TRACE ("ACE_Message_Block::clr_self_flags"); 00027 // Later we might mask more_flags so that user can't change internal 00028 // ones: less_flags &= ~(USER_FLAGS -1). 00029 return ACE_CLR_BITS (this->flags_, less_flags); 00030 }

ACE_INLINE void ACE_Message_Block::cont ( ACE_Message_Block * )

Set the continuation field.

Definition at line 409 of file Message_Block.inl.
References ACE_TRACE, and cont_.

00410 { 00411 ACE_TRACE ("ACE_Message_Block::cont"); 00412 this->cont_ = cont_msg; 00413 }

ACE_INLINE ACE_Message_Block * ACE_Message_Block::cont ( void ) const

Get the continuation field.

Definition at line 416 of file Message_Block.inl.
References ACE_TRACE, and cont_.
Referenced by ACE_InputCDR::ACE_InputCDR(), clone(), ACE_OutputCDR::consolidate(), ACE_CDR::consolidate(), ACE_Stream_Tail<>::control(), ACE_Stream_Head<>::control(), ACE_OutputCDR::end(), ACE_OutputCDR::find(), ACE_OutputCDR::grow_and_adjust(), ACE::recv_n(), reset_allocators(), ACE::send_n(), total_capacity(), total_length(), ACE_CDR::total_length(), total_size(), total_size_and_length(), ACE::write_n(), ACE_OutputCDR::write_octet_array_mb(), and ACE_OutputCDR::~ACE_OutputCDR().

00417 { 00418 ACE_TRACE ("ACE_Message_Block::cont"); 00419 return this->cont_; 00420 }

int ACE_Message_Block::copy ( const char * buf )

Copies a 0-terminated character string into this ACE_Message_Block. The string is copied into the block starting at the current write pointer. The 0-terminator is included in the copied data.

Parameters:

buf Pointer to the character string to copy from.

Return values:

0 on success; the write pointer is advanced by the string's length, including the 0 terminator.

-1 if the amount of free space following the write pointer in the block is less than required to hold the entire string. Free space can be checked by calling space().

Definition at line 102 of file Message_Block.cpp.
References ACE_TRACE, ACE_OS::memcpy(), space(), ACE_OS::strlen(), and wr_ptr().

00103 { 00104 ACE_TRACE ("ACE_Message_Block::copy"); 00105 00106 /* size_t len = static_cast<size_t> (this->end () - this->wr_ptr ()); */ 00107 // Note that for this to work correct, end() *must* be >= wr_ptr(). 00108 size_t len = this->space (); 00109 00110 size_t buflen = ACE_OS::strlen (buf) + 1; 00111 00112 if (len < buflen) 00113 { 00114 errno = ENOSPC; 00115 return -1; 00116 } 00117 else 00118 { 00119 (void) ACE_OS::memcpy (this->wr_ptr (), 00120 buf, 00121 buflen); 00122 this->wr_ptr (buflen); 00123 return 0; 00124 } 00125 }

int ACE_Message_Block::copy ( const char * buf,

size_t n

)

Copies data into this ACE_Message_Block. Data is copied into the block starting at the current write pointer.

Parameters:

buf Pointer to the buffer to copy from.

n The number of bytes to copy.

Return values:

0 on success; the write pointer is advanced by

n.

-1 if the amount of free space following the write pointer in the block is less than

n. Free space can be checked by calling space().

Definition at line 78 of file Message_Block.cpp.
References ACE_TRACE, ACE_OS::memcpy(), space(), and wr_ptr().
Referenced by ACE_InputCDR::ACE_InputCDR(), ACE_OutputCDR::consolidate(), ACE_CDR::consolidate(), and ACE_UPIPE_Stream::send().

00079 { 00080 ACE_TRACE ("ACE_Message_Block::copy"); 00081 00082 /*size_t len = static_cast<size_t> (this->end () - this->wr_ptr ());*/ 00083 // Note that for this to work correct, end () *must* be >= mark (). 00084 size_t len = this->space (); 00085 00086 if (len < n) 00087 { 00088 errno = ENOSPC; 00089 return -1; 00090 } 00091 else 00092 { 00093 (void) ACE_OS::memcpy (this->wr_ptr (), 00094 buf, 00095 n); 00096 this->wr_ptr (n); 00097 return 0; 00098 } 00099 }

int ACE_Message_Block::crunch ( void )

Normalizes data in the top-level to align with the base, i.e., it "shifts" the data pointed to by down to the and then readjusts to point to and to point to + the length of the moved data. Returns -1 and does nothing if the is > , else 0 on success.
Definition at line 128 of file Message_Block.cpp.
References length(), ACE_OS::memmove(), rd_ptr(), rd_ptr_, wr_ptr(), and wr_ptr_.

00129 { 00130 if (this->rd_ptr_ != 0) 00131 { 00132 if (this->rd_ptr_ > this->wr_ptr_) 00133 return -1; 00134 00135 size_t const len = this->length (); 00136 (void) ACE_OS::memmove (this->base (), 00137 this->rd_ptr (), 00138 len); 00139 this->rd_ptr (this->base ()); 00140 this->wr_ptr (this->base () + len); 00141 } 00142 return 0; 00143 }

ACE_BEGIN_VERSIONED_NAMESPACE_DECL void ACE_Message_Block::data_block ( ACE_Data_Block * )

Set a new data block pointer. The original ACE_Data_Block is released as a result of this call. If you need to keep the original block, call instead. Upon return, this ACE_Message_Block holds a pointer to the new ACE_Data_Block, taking over the reference you held on it prior to the call.
Definition at line 61 of file Message_Block.cpp.
References ACE_BIT_DISABLED, ACE_TRACE, data_block_, DONT_DELETE, rd_ptr(), ACE_Data_Block::release(), and wr_ptr().

00062 { 00063 ACE_TRACE ("ACE_Message_Block::data_block"); 00064 if (ACE_BIT_DISABLED (this->flags_, 00065 ACE_Message_Block::DONT_DELETE) 00066 && this->data_block_ != 0) 00067 this->data_block_->release (); 00068 00069 this->data_block_ = db; 00070 00071 // Set the read and write pointers in the <Message_Block> to point 00072 // to the buffer in the <ACE_Data_Block>. 00073 this->rd_ptr (this->data_block ()->base ()); 00074 this->wr_ptr (this->data_block ()->base ()); 00075 }

ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE ACE_Data_Block * ACE_Message_Block::data_block ( void ) const

Get a pointer to the data block. Note that the ACE_Message_Block still references the block; this call does not change the reference count.
Definition at line 8 of file Message_Block.inl.
References ACE_TRACE, and data_block_.
Referenced by ACE_InputCDR::ACE_InputCDR(), ACE_Message_Block(), base(), capacity(), clone(), ACE_InputCDR::clone_from(), clr_flags(), dump(), duplicate(), end(), ACE_InputCDR::exchange_data_blocks(), flags(), ACE_CDR::grow(), ACE_OutputCDR::grow_and_adjust(), init_i(), locking_strategy(), mark(), msg_type(), ACE_InputCDR::operator=(), reference_count(), release(), release_i(), ACE_InputCDR::reset_contents(), set_flags(), size(), ACE_InputCDR::steal_contents(), ACE_InputCDR::steal_from(), ACE_OutputCDR::write_octet_array_mb(), and ~ACE_Message_Block().

00009 { 00010 ACE_TRACE ("ACE_Message_Block::data_block"); 00011 return this->data_block_; 00012 }

void ACE_Message_Block::dump ( void ) const

Dump the state of an object.

Definition at line 174 of file Message_Block.cpp.
References ACE_BEGIN_DUMP, ACE_DEBUG, ACE_END_DUMP, ACE_TEXT, ACE_TRACE, data_block(), ACE_Data_Block::dump(), and LM_DEBUG.

00175 { 00176 #if defined (ACE_HAS_DUMP) 00177 ACE_TRACE ("ACE_Message_Block::dump"); 00178 ACE_DEBUG ((LM_DEBUG, ACE_BEGIN_DUMP, this)); 00179 ACE_DEBUG ((LM_DEBUG, 00180 ACE_TEXT ("-----( Message Block )-----\n") 00181 ACE_TEXT ("priority_ = %d\n") 00182 ACE_TEXT ("next_ = %u\n") 00183 ACE_TEXT ("prev_ = %u\n") 00184 ACE_TEXT ("cont_ = %u\n") 00185 ACE_TEXT ("rd_ptr_ = %u\n") 00186 ACE_TEXT ("wr_ptr_ = %u\n") 00187 ACE_TEXT ("---------------------------\n"), 00188 this->priority_, 00189 this->next_, 00190 this->prev_, 00191 this->cont_, 00192 this->rd_ptr_, 00193 this->wr_ptr_)); 00194 this->data_block ()->dump (); 00195 ACE_DEBUG ((LM_DEBUG, ACE_END_DUMP)); 00196 #endif /* ACE_HAS_DUMP */ 00197 }

ACE_Message_Block * ACE_Message_Block::duplicate ( const ACE_Message_Block * mb ) [static]

Return a "shallow" copy that increments our reference count by 1. This is similar to CORBA's method, which is useful if you want to eliminate lots of checks for NULL mb pointers before calling on them.
Definition at line 1092 of file Message_Block.cpp.
References ACE_TRACE, and duplicate().

01093 { 01094 ACE_TRACE ("ACE_Message_Block::duplicate"); 01095 if (mb == 0) 01096 return 0; 01097 else 01098 return mb->duplicate (); 01099 }

ACE_Message_Block * ACE_Message_Block::duplicate ( void ) const [virtual]

Return a "shallow" copy that increments our reference count by 1.

Definition at line 1013 of file Message_Block.cpp.
References ACE_DEADLINE_TIME, ACE_EXECUTION_TIME, ACE_Message_Block(), ACE_Message_Type, ACE_NEW_MALLOC_RETURN, ACE_NEW_RETURN, ACE_TRACE, cont_, data_block(), ACE_Data_Block::data_block_allocator(), ACE_Allocator::malloc(), message_block_allocator_, rd_ptr(), release(), and wr_ptr().
Referenced by duplicate().

01014 { 01015 ACE_TRACE ("ACE_Message_Block::duplicate"); 01016 01017 ACE_Message_Block *nb = 0; 01018 01019 // Create a new <ACE_Message_Block> that contains unique copies of 01020 // the message block fields, but a reference counted duplicate of 01021 // the <ACE_Data_Block>. 01022 01023 // If there is no allocator, use the standard new and delete calls. 01024 if (this->message_block_allocator_ == 0) 01025 ACE_NEW_RETURN (nb, 01026 ACE_Message_Block (0, // size 01027 ACE_Message_Type (0), // type 01028 0, // cont 01029 0, // data 01030 0, // allocator 01031 0, // locking strategy 01032 0, // flags 01033 this->priority_, // priority 01034 ACE_EXECUTION_TIME, 01035 ACE_DEADLINE_TIME, 01036 // Get a pointer to a 01037 // "duplicated" <ACE_Data_Block> 01038 // (will simply increment the 01039 // reference count). 01040 this->data_block ()->duplicate (), 01041 this->data_block ()->data_block_allocator (), 01042 this->message_block_allocator_), 01043 0); 01044 else // Otherwise, use the message_block_allocator passed in. 01045 ACE_NEW_MALLOC_RETURN (nb, 01046 static_cast<ACE_Message_Block*> ( 01047 message_block_allocator_->malloc (sizeof (ACE_Message_Block))), 01048 ACE_Message_Block (0, // size 01049 ACE_Message_Type (0), // type 01050 0, // cont 01051 0, // data 01052 0, // allocator 01053 0, // locking strategy 01054 0, // flags 01055 this->priority_, // priority 01056 ACE_EXECUTION_TIME, 01057 ACE_DEADLINE_TIME, 01058 // Get a pointer to a 01059 // "duplicated" <ACE_Data_Block> 01060 // (will simply increment the 01061 // reference count). 01062 this->data_block ()->duplicate (), 01063 this->data_block ()->data_block_allocator (), 01064 this->message_block_allocator_), 01065 0); 01066 01067 // Set the read and write pointers in the new <Message_Block> to the 01068 // same relative offset as in the existing <Message_Block>. Note 01069 // that we are assuming that the data_block()->base() pointer 01070 // doesn't change when it's duplicated. 01071 nb->rd_ptr (this->rd_ptr_); 01072 nb->wr_ptr (this->wr_ptr_); 01073 01074 // Increment the reference counts of all the continuation messages. 01075 if (this->cont_) 01076 { 01077 nb->cont_ = this->cont_->duplicate (); 01078 01079 // If things go wrong, release all of our resources and return 01080 // 0. 01081 if (nb->cont_ == 0) 01082 { 01083 nb->release (); 01084 nb = 0; 01085 } 01086 } 01087 01088 return nb; 01089 }

ACE_INLINE char * ACE_Message_Block::end ( void ) const

Return a pointer to 1 past the end of the allocated data in a message.

Definition at line 340 of file Message_Block.inl.
References ACE_TRACE, data_block(), and ACE_Data_Block::end().
Referenced by ACE_InputCDR::ACE_InputCDR(), ACE_OutputCDR::adjust(), ACE_InputCDR::end(), and ACE_OutputCDR::write_octet_array_mb().

00341 { 00342 ACE_TRACE ("ACE_Message_Block::end"); 00343 return this->data_block ()->end (); 00344 }

ACE_INLINE ACE_Message_Block::Message_Flags ACE_Message_Block::flags ( void ) const

Get the current message flags.

Definition at line 119 of file Message_Block.inl.
References ACE_TRACE, data_block(), and ACE_Data_Block::flags().
Referenced by ACE_OutputCDR::write_octet_array_mb().

00120 { 00121 ACE_TRACE ("ACE_Message_Block::flags"); 00122 return this->data_block ()->flags (); 00123 }

int ACE_Message_Block::init ( size_t size,

ACE_Message_Type type = MB_DATA,

ACE_Message_Block * cont = 0,

const char * data = 0,

ACE_Allocator * allocator_strategy = 0,

ACE_Lock * locking_strategy = 0,

unsigned long priority = ACE_DEFAULT_MESSAGE_BLOCK_PRIORITY,

const ACE_Time_Value & execution_time = ACE_Time_Value::zero,

const ACE_Time_Value & deadline_time = ACE_Time_Value::max_time,

ACE_Allocator * data_block_allocator = 0,

ACE_Allocator * message_block_allocator = 0

)

Create an initialized message of type type containing size bytes. The cont argument initializes the continuation field in the . If data == 0 then we create and own the data, using allocator_strategy to get the data if it's non-0. If data != 0 we assume that we have ownership of the data till this object ceases to exist (and don't delete it during destruction). If locking_strategy is non-0 then this is used to protect regions of code that access shared state (e.g., reference counting) from race conditions. Note that the size of the will be size, but the length will be 0 until is set. The data_block_allocator is use to allocate the data blocks while the allocator_strategy is used to allocate the buffers contained by those.
Definition at line 471 of file Message_Block.cpp.
References ACE_Message_Type, ACE_TRACE, DONT_DELETE, and init_i().

00482 { 00483 ACE_TRACE ("ACE_Message_Block::init"); 00484 00485 return this->init_i (size, 00486 msg_type, 00487 msg_cont, 00488 msg_data, 00489 allocator_strategy, 00490 locking_strategy, 00491 msg_data ? ACE_Message_Block::DONT_DELETE : 0, 00492 priority, 00493 execution_time, 00494 deadline_time, 00495 0, // data block 00496 data_block_allocator, 00497 message_block_allocator); 00498 }

int ACE_Message_Block::init ( const char * data,

size_t size = 0

)

Create a Message Block that assumes it has ownership of data, but in reality it doesnt (i.e., cannot delete it since it didn't malloc it!). Note that the size of the Message_Block will be size, but the length will be 0 until is set.
Definition at line 501 of file Message_Block.cpp.
References ACE_TRACE, DONT_DELETE, init_i(), and MB_DATA.

00503 { 00504 ACE_TRACE ("ACE_Message_Block::init"); 00505 // Should we also initialize all the other fields, as well? 00506 00507 return this->init_i (size, // size 00508 MB_DATA, // type 00509 0, // cont 00510 data, // data 00511 0, // allocator 00512 0, // locking strategy 00513 ACE_Message_Block::DONT_DELETE, // flags 00514 0, // priority 00515 ACE_Time_Value::zero, // execution time 00516 ACE_Time_Value::max_time, // absolute time of deadline 00517 0, // data block 00518 0, // data_block allocator 00519 0); // message_block allocator 00520 }

int ACE_Message_Block::init_i ( size_t size,

ACE_Message_Type type,

ACE_Message_Block * cont,

const char * data,

ACE_Allocator * allocator_strategy,

ACE_Lock * locking_strategy,

Message_Flags flags,

unsigned long priority,

const ACE_Time_Value & execution_time,

const ACE_Time_Value & deadline_time,

ACE_Data_Block * db,

ACE_Allocator * data_block_allocator,

ACE_Allocator * message_block_allocator

) [protected]

Perform the actual initialization.

Definition at line 677 of file Message_Block.cpp.
References ACE_ALLOCATOR_RETURN, ACE_Data_Block, ACE_FUNCTION_TIMEPROBE, ACE_Message_Type, ACE_NEW_MALLOC_RETURN, ACE_TIMEPROBE, ACE_TRACE, cont_, data_block(), data_block_, ACE_Allocator::free(), ACE_Allocator::malloc(), message_block_allocator_, Message_Flags, rd_ptr_, ACE_Data_Block::release(), ACE_Data_Block::size(), and wr_ptr_.
Referenced by ACE_Message_Block(), and init().

00690 { 00691 ACE_TRACE ("ACE_Message_Block::init_i"); 00692 ACE_FUNCTION_TIMEPROBE (ACE_MESSAGE_BLOCK_INIT_I_ENTER); 00693 00694 this->rd_ptr_ = 0; 00695 this->wr_ptr_ = 0; 00696 this->priority_ = priority; 00697 #if defined (ACE_HAS_TIMED_MESSAGE_BLOCKS) 00698 this->execution_time_ = execution_time; 00699 this->deadline_time_ = deadline_time; 00700 #else 00701 ACE_UNUSED_ARG (execution_time); 00702 ACE_UNUSED_ARG (deadline_time); 00703 #endif /* ACE_HAS_TIMED_MESSAGE_BLOCKS */ 00704 this->cont_ = msg_cont; 00705 this->next_ = 0; 00706 this->prev_ = 0; 00707 00708 this->message_block_allocator_ = message_block_allocator; 00709 00710 if (this->data_block_ != 0) 00711 { 00712 this->data_block_->release (); 00713 this->data_block_ = 0; 00714 } 00715 00716 if (db == 0) 00717 { 00718 if (data_block_allocator == 0) 00719 ACE_ALLOCATOR_RETURN (data_block_allocator, 00720 ACE_Allocator::instance (), 00721 -1); 00722 00723 ACE_TIMEPROBE (ACE_MESSAGE_BLOCK_INIT_I_DB_ALLOC); 00724 00725 // Allocate the <ACE_Data_Block> portion, which is reference 00726 // counted. 00727 ACE_NEW_MALLOC_RETURN (db, 00728 static_cast<ACE_Data_Block *> ( 00729 data_block_allocator->malloc (sizeof (ACE_Data_Block))), 00730 ACE_Data_Block (size, 00731 msg_type, 00732 msg_data, 00733 allocator_strategy, 00734 locking_strategy, 00735 flags, 00736 data_block_allocator), 00737 -1); 00738 ACE_TIMEPROBE (ACE_MESSAGE_BLOCK_INIT_I_DB_CTOR); 00739 00740 // Message block initialization may fail, while the construction 00741 // succeds. Since ACE may throw no exceptions, we have to do a 00742 // separate check and clean up, like this: 00743 if (db != 0 && db->size () < size) 00744 { 00745 db->ACE_Data_Block::~ACE_Data_Block(); // placement destructor ... 00746 data_block_allocator->free (db); // free ... 00747 errno = ENOMEM; 00748 return -1; 00749 } 00750 } 00751 00752 // Reset the data_block_ pointer. 00753 this->data_block (db); 00754 00755 return 0; 00756 }

ACE_INLINE int ACE_Message_Block::is_data_msg ( void ) const

Find out what type of message this is.

Definition at line 202 of file Message_Block.inl.
References ACE_Message_Type, ACE_TRACE, MB_DATA, MB_PCPROTO, MB_PROTO, and msg_type().

00203 { 00204 ACE_TRACE ("ACE_Message_Block::is_data_msg"); 00205 ACE_Message_Type mt = this->msg_type (); 00206 return 00207 mt == ACE_Message_Block::MB_DATA 00208 || mt == ACE_Message_Block::MB_PROTO 00209 || mt == ACE_Message_Block::MB_PCPROTO; 00210 }

ACE_INLINE void ACE_Message_Block::length ( size_t n )

Set the length of the message.

Definition at line 138 of file Message_Block.inl.
References ACE_TRACE, rd_ptr_, and wr_ptr_.

00139 { 00140 ACE_TRACE ("ACE_Message_Block::length"); 00141 this->wr_ptr_ = this->rd_ptr_ + len; 00142 }

ACE_INLINE size_t ACE_Message_Block::length ( void ) const

Get the length of the message.

Definition at line 128 of file Message_Block.inl.
References ACE_TRACE, rd_ptr_, and wr_ptr_.
Referenced by ACE_InputCDR::ACE_InputCDR(), ACE_OutputCDR::consolidate(), ACE_CDR::consolidate(), crunch(), ACE_CDR::grow(), ACE_InputCDR::length(), ACE_OutputCDR::length(), ACE_UPIPE_Stream::recv(), ACE::recv_n(), ACE::send_n(), total_length(), ACE_CDR::total_length(), total_size_and_length(), ACE::write_n(), and ACE_OutputCDR::write_octet_array_mb().

00129 { 00130 ACE_TRACE ("ACE_Message_Block::length"); 00131 return this->wr_ptr_ - this->rd_ptr_; 00132 }

ACE_INLINE ACE_Lock * ACE_Message_Block::locking_strategy ( ACE_Lock * )

Set a new locking strategy and return the hold one.

Definition at line 500 of file Message_Block.inl.
References ACE_TRACE, data_block(), and ACE_Data_Block::locking_strategy().

00501 { 00502 ACE_TRACE ("ACE_Message_Block::locking_strategy"); 00503 ACE_Lock *ols = this->data_block ()->locking_strategy (); 00504 this->data_block ()->locking_strategy (nls); 00505 return ols; 00506 }

ACE_INLINE ACE_Lock * ACE_Message_Block::locking_strategy ( void )

Get the locking strategy.

Definition at line 493 of file Message_Block.inl.
References ACE_TRACE, data_block(), and ACE_Data_Block::locking_strategy().

00494 { 00495 ACE_TRACE ("ACE_Message_Block::locking_strategy"); 00496 return this->data_block ()->locking_strategy (); 00497 }

ACE_INLINE char * ACE_Message_Block::mark ( void ) const

Return a pointer to 1 past the end of the allotted data in a message. Allotted data may be less than allocated data if a value smaller than capacity() to is passed to size().
Definition at line 326 of file Message_Block.inl.
References ACE_TRACE, data_block(), and ACE_Data_Block::mark().
Referenced by space().

00327 { 00328 ACE_TRACE ("ACE_Message_Block::mark"); 00329 return this->data_block ()->mark (); 00330 }

ACE_INLINE ACE_Message_Block::ACE_Message_Type ACE_Message_Block::msg_class ( void ) const

Find out what class of message this is (there are two classes, normal messages and high-priority messages).
Definition at line 189 of file Message_Block.inl.
References ACE_TRACE, MB_NORMAL, MB_PRIORITY, MB_USER, and msg_type().

00190 { 00191 ACE_TRACE ("ACE_Message_Block::msg_class"); 00192 00193 if (this->msg_type () < ACE_Message_Block::MB_PRIORITY) 00194 return ACE_Message_Block::MB_NORMAL; 00195 else if (this->msg_type () < ACE_Message_Block::MB_USER) 00196 return ACE_Message_Block::MB_PRIORITY; 00197 else 00198 return ACE_Message_Block::MB_USER; 00199 }

ACE_INLINE void ACE_Message_Block::msg_deadline_time ( const ACE_Time_Value & dt )

Set absolute time of deadline associated with the message.

Definition at line 261 of file Message_Block.inl.
References ACE_TRACE.

00262 { 00263 ACE_TRACE ("ACE_Message_Block::msg_deadline_time (const ACE_Time_Value & et)"); 00264 #if defined (ACE_HAS_TIMED_MESSAGE_BLOCKS) 00265 this->deadline_time_ = dt; 00266 #else 00267 ACE_UNUSED_ARG (dt); 00268 #endif /* ACE_HAS_TIMED_MESSAGE_BLOCKS */ 00269 }

ACE_INLINE const ACE_Time_Value & ACE_Message_Block::msg_deadline_time ( void ) const

Get absolute time of deadline associated with the message.

Definition at line 249 of file Message_Block.inl.
References ACE_TRACE.
Referenced by ACE_Laxity_Message_Strategy::convert_priority(), ACE_Deadline_Message_Strategy::convert_priority(), ACE_Message_Queue< ACE_SYNCH_USE >::dequeue_deadline_i(), and ACE_Message_Queue< ACE_SYNCH_USE >::enqueue_deadline_i().

00250 { 00251 ACE_TRACE ("ACE_Message_Block::msg_deadline_time (void)"); 00252 00253 #if defined (ACE_HAS_TIMED_MESSAGE_BLOCKS) 00254 return this->deadline_time_; 00255 #else 00256 return ACE_Time_Value::max_time; // absolute time of deadline 00257 #endif /* ACE_HAS_TIMED_MESSAGE_BLOCKS */ 00258 }

ACE_INLINE void ACE_Message_Block::msg_execution_time ( const ACE_Time_Value & et )

Set execution time associated with the message.

Definition at line 238 of file Message_Block.inl.
References ACE_TRACE.

00239 { 00240 ACE_TRACE ("ACE_Message_Block::msg_execution_time (const ACE_Time_Value & et)"); 00241 #if defined (ACE_HAS_TIMED_MESSAGE_BLOCKS) 00242 this->execution_time_ = et; 00243 #else 00244 ACE_UNUSED_ARG (et); 00245 #endif /* ACE_HAS_TIMED_MESSAGE_BLOCKS */ 00246 }

ACE_INLINE const ACE_Time_Value & ACE_Message_Block::msg_execution_time ( void ) const

Get execution time associated with the message.

Definition at line 227 of file Message_Block.inl.
References ACE_TRACE.
Referenced by ACE_Laxity_Message_Strategy::convert_priority().

00228 { 00229 ACE_TRACE ("ACE_Message_Block::msg_execution_time (void)"); 00230 #if defined (ACE_HAS_TIMED_MESSAGE_BLOCKS) 00231 return this->execution_time_; 00232 #else 00233 return ACE_Time_Value::zero; 00234 #endif /* ACE_HAS_TIMED_MESSAGE_BLOCKS */ 00235 }

ACE_INLINE void ACE_Message_Block::msg_priority ( unsigned long priority )

Set priority of the message.

Definition at line 220 of file Message_Block.inl.
References ACE_TRACE.

00221 { 00222 ACE_TRACE ("ACE_Message_Block::msg_priority"); 00223 this->priority_ = pri; 00224 }

ACE_INLINE unsigned long ACE_Message_Block::msg_priority ( void ) const

Get priority of the message.

Definition at line 213 of file Message_Block.inl.
References ACE_TRACE.
Referenced by ACE_Message_Queue< ACE_SYNCH_USE >::dequeue_prio_i(), ACE_Message_Queue< ACE_SYNCH_USE >::enqueue_i(), ACE_Dynamic_Message_Strategy::priority_status(), and ACE_Dynamic_Message_Queue<>::sublist_enqueue_i().

00214 { 00215 ACE_TRACE ("ACE_Message_Block::msg_priority"); 00216 return this->priority_; 00217 }

ACE_INLINE void ACE_Message_Block::msg_type ( ACE_Message_Type type )

Set type of the message.

Definition at line 182 of file Message_Block.inl.
References ACE_Message_Type, ACE_TRACE, data_block(), and ACE_Data_Block::msg_type().

00183 { 00184 ACE_TRACE ("ACE_Message_Block::msg_type"); 00185 this->data_block ()->msg_type (t); 00186 }

ACE_INLINE ACE_Message_Block::ACE_Message_Type ACE_Message_Block::msg_type ( void ) const

Get type of the message.

Definition at line 175 of file Message_Block.inl.
References ACE_TRACE, data_block(), and ACE_Data_Block::msg_type().
Referenced by ACE_Stream_Tail<>::control(), is_data_msg(), msg_class(), ACE_Stream_Tail<>::put(), and ACE_Stream_Head<>::put().

00176 { 00177 ACE_TRACE ("ACE_Message_Block::msg_type"); 00178 return this->data_block ()->msg_type (); 00179 }

ACE_INLINE void ACE_Message_Block::next ( ACE_Message_Block * )

Set link to next message.

Definition at line 441 of file Message_Block.inl.
References ACE_TRACE.

00442 { 00443 ACE_TRACE ("ACE_Message_Block::next"); 00444 this->next_ = next_msg; 00445 }

ACE_Message_Block & ACE_Message_Block::operator= ( const ACE_Message_Block & ) [private]

Definition at line 1252 of file Message_Block.cpp.
References ACE_TRACE.

01253 { 01254 ACE_TRACE ("ACE_Message_Block::operator="); 01255 return *this; 01256 }

ACE_INLINE void ACE_Message_Block::prev ( ACE_Message_Block * )

Set link to prev message.

Definition at line 455 of file Message_Block.inl.
References ACE_TRACE.

00456 { 00457 ACE_TRACE ("ACE_Message_Block::prev"); 00458 this->prev_ = next_msg; 00459 }

ACE_INLINE void ACE_Message_Block::rd_ptr ( size_t n )

Set the read pointer ahead n bytes.

Definition at line 355 of file Message_Block.inl.
References ACE_TRACE, and rd_ptr_.

00356 { 00357 ACE_TRACE ("ACE_Message_Block::rd_ptr"); 00358 this->rd_ptr_ += n; 00359 }

ACE_INLINE void ACE_Message_Block::rd_ptr ( char * ptr )

Set the read pointer to ptr.

Definition at line 348 of file Message_Block.inl.
References ACE_TRACE, base(), and rd_ptr_.

00349 { 00350 ACE_TRACE ("ACE_Message_Block::rd_ptr"); 00351 this->rd_ptr_ = new_ptr - this->base (); 00352 }

ACE_INLINE char * ACE_Message_Block::rd_ptr ( void ) const

Get the read pointer.

Definition at line 303 of file Message_Block.inl.
References ACE_TRACE, base(), and rd_ptr_.
Referenced by ACE_InputCDR::ACE_InputCDR(), ACE_Message_Block(), ACE_InputCDR::adjust(), ACE_InputCDR::align_read_ptr(), ACE_OutputCDR::buffer(), ACE_Stream_Tail<>::canonical_flush(), ACE_Stream_Head<>::canonical_flush(), clone(), ACE_InputCDR::clone_from(), ACE_OutputCDR::consolidate(), ACE_CDR::consolidate(), ACE_Stream_Tail<>::control(), ACE_Stream_Head<>::control(), ACE_Stream<>::control(), crunch(), data_block(), duplicate(), ACE_InputCDR::exchange_data_blocks(), ACE_OutputCDR::find(), ACE_CDR::grow(), ACE_OutputCDR::grow_and_adjust(), ACE_Log_Msg_IPC::log(), ACE_CDR::mb_align(), ACE_InputCDR::operator=(), ACE_InputCDR::rd_ptr(), ACE_InputCDR::read_1(), ACE_UPIPE_Stream::recv(), ACE::recv_n(), replace_data_block(), ACE::send_n(), ACE_InputCDR::steal_from(), ACE::write_n(), and ACE_OutputCDR::write_octet_array_mb().

00304 { 00305 ACE_TRACE ("ACE_Message_Block::rd_ptr"); 00306 return this->base () + this->rd_ptr_; 00307 }

ACE_INLINE int ACE_Message_Block::reference_count ( void ) const

Get the current reference count.

Definition at line 46 of file Message_Block.inl.
References data_block(), and ACE_Data_Block::reference_count().

00047 { 00048 return data_block () ? data_block ()->reference_count () : 0; 00049 }

ACE_Message_Block * ACE_Message_Block::release ( ACE_Message_Block * mb ) [static]

This behaves like the non-static method , except that it checks if mb is 0. This is similar to <CORBA::release>, which is useful if you want to eliminate lots of checks for NULL pointers before calling on them. Returns mb.
Definition at line 962 of file Message_Block.cpp.
References ACE_TRACE, and release().

00963 { 00964 ACE_TRACE ("ACE_Message_Block::release"); 00965 00966 if (mb != 0) 00967 return mb->release (); 00968 else 00969 return 0; 00970 }

ACE_Message_Block * ACE_Message_Block::release ( void ) [virtual]

Decrease the shared ACE_Data_Block's reference count by 1. If the ACE_Data_Block's reference count goes to 0, it is deleted. In all cases, this ACE_Message_Block is deleted - it must have come from the heap, or there will be trouble.
release() is designed to release the continuation chain; the destructor is not. If we make the destructor release the continuation chain by calling release() or delete on the message blocks in the continuation chain, the following code will not work since the message block in the continuation chain is not off the heap:
ACE_Message_Block mb1 (1024); ACE_Message_Block mb2 (1024);
mb1.cont (&mb2);
And hence, call release() on a dynamically allocated message block. This will release all the message blocks in the continuation chain. If you call delete or let the message block fall off the stack, cleanup of the message blocks in the continuation chain becomes the responsibility of the user.

Return values:

0,always,and the object this method was invoked on is no longer valid.

Definition at line 855 of file Message_Block.cpp.
References ACE_DES_FREE, ACE_GUARD_RETURN, ACE_TRACE, data_block(), ACE_Data_Block::data_block_allocator(), ACE_Allocator::free(), ACE_Data_Block::locking_strategy(), and release_i().
Referenced by ACE_Stream_Tail<>::canonical_flush(), ACE_Stream_Head<>::canonical_flush(), clone(), ACE_OutputCDR::consolidate(), ACE_Stream<>::control(), ACE_Activation_Queue::dequeue(), ACE_Message_Queue_Ex< ACE_MESSAGE_TYPE, ACE_SYNCH_USE >::dequeue_deadline(), ACE_Message_Queue_Ex< ACE_MESSAGE_TYPE, ACE_SYNCH_USE >::dequeue_head(), ACE_Message_Queue_Ex< ACE_MESSAGE_TYPE, ACE_SYNCH_USE >::dequeue_prio(), ACE_Message_Queue_Ex< ACE_MESSAGE_TYPE, ACE_SYNCH_USE >::dequeue_tail(), duplicate(), ACE_Message_Queue_Ex< ACE_MESSAGE_TYPE, ACE_SYNCH_USE >::enqueue_deadline(), ACE_Message_Queue_Ex_N< ACE_MESSAGE_TYPE, >::enqueue_head(), ACE_Message_Queue_Ex< ACE_MESSAGE_TYPE, ACE_SYNCH_USE >::enqueue_head(), ACE_Message_Queue_Ex< ACE_MESSAGE_TYPE, ACE_SYNCH_USE >::enqueue_prio(), ACE_Message_Queue_Ex_N< ACE_MESSAGE_TYPE, >::enqueue_tail(), ACE_Message_Queue_Ex< ACE_MESSAGE_TYPE, ACE_SYNCH_USE >::enqueue_tail(), ACE_Message_Queue< ACE_SYNCH_USE >::flush_i(), ACE_Future_Set< T >::next_readable(), ACE_Stream_Tail<>::put(), ACE_UPIPE_Stream::recv(), release(), ACE_OutputCDR::reset(), ACE_Message_Queue_Ex_N< ACE_MESSAGE_TYPE, >::wrap_with_mbs_i(), ACE_OutputCDR::write_octet_array_mb(), ACE_OutputCDR::~ACE_OutputCDR(), and ACE_UPIPE_Stream::~ACE_UPIPE_Stream().

00856 { 00857 ACE_TRACE ("ACE_Message_Block::release"); 00858 00859 // We want to hold the data block in a temporary variable because we 00860 // invoked "delete this;" at some point, so using this->data_block_ 00861 // could be a bad idea. 00862 ACE_Data_Block *tmp = this->data_block (); 00863 00864 // This flag is set to 1 when we have to destroy the data_block 00865 int destroy_dblock = 0; 00866 00867 ACE_Lock *lock = 0; 00868 00869 // Do we have a valid data block 00870 if (this->data_block ()) 00871 { 00872 // Grab the lock that belongs to my data block 00873 lock = this->data_block ()->locking_strategy (); 00874 00875 // if we have a lock 00876 if (lock != 0) 00877 { 00878 // One guard for all 00879 ACE_GUARD_RETURN (ACE_Lock, ace_mon, *lock, 0); 00880 00881 // Call non-guarded release with <lock> 00882 destroy_dblock = this->release_i (lock); 00883 } 00884 // This is the case when we have a valid data block but no lock 00885 else 00886 // Call non-guarded release with no lock 00887 destroy_dblock = this->release_i (0); 00888 } 00889 else 00890 // This is the case when we don't even have a valid data block 00891 destroy_dblock = this->release_i (0); 00892 00893 if (destroy_dblock != 0) 00894 { 00895 ACE_Allocator *allocator = tmp->data_block_allocator (); 00896 ACE_DES_FREE (tmp, 00897 allocator->free, 00898 ACE_Data_Block); 00899 } 00900 00901 return 0; 00902 }

int ACE_Message_Block::release_i ( ACE_Lock * lock ) [protected]

Internal release implementation Returns 1 if the data block has to be destroyed.
Definition at line 905 of file Message_Block.cpp.
References ACE_BIT_DISABLED, ACE_DES_FREE, ACE_TRACE, cont_, data_block(), data_block_, ACE_Data_Block::data_block_allocator(), DONT_DELETE, ACE_Allocator::free(), message_block_allocator_, and ACE_Data_Block::release_no_delete().
Referenced by release().

00906 { 00907 ACE_TRACE ("ACE_Message_Block::release_i"); 00908 00909 // Free up all the continuation messages. 00910 if (this->cont_) 00911 { 00912 ACE_Message_Block *mb = this->cont_; 00913 ACE_Message_Block *tmp = 0; 00914 00915 do 00916 { 00917 tmp = mb; 00918 mb = mb->cont_; 00919 tmp->cont_ = 0; 00920 00921 ACE_Data_Block *db = tmp->data_block (); 00922 if (tmp->release_i (lock) != 0) 00923 { 00924 ACE_Allocator *allocator = db->data_block_allocator (); 00925 ACE_DES_FREE (db, 00926 allocator->free, 00927 ACE_Data_Block); 00928 } 00929 } 00930 while (mb); 00931 00932 this->cont_ = 0; 00933 } 00934 00935 int result = 0; 00936 00937 if (ACE_BIT_DISABLED (this->flags_, 00938 ACE_Message_Block::DONT_DELETE) && 00939 this->data_block ()) 00940 { 00941 if (this->data_block ()->release_no_delete (lock) == 0) 00942 result = 1; 00943 this->data_block_ = 0; 00944 } 00945 00946 // We will now commit suicide: this object *must* have come from the 00947 // allocator given. 00948 if (this->message_block_allocator_ == 0) 00949 delete this; 00950 else 00951 { 00952 ACE_Allocator *allocator = this->message_block_allocator_; 00953 ACE_DES_FREE (this, 00954 allocator->free, 00955 ACE_Message_Block); 00956 } 00957 00958 return result; 00959 }

ACE_INLINE ACE_Data_Block * ACE_Message_Block::replace_data_block ( ACE_Data_Block * )

Set a new data block pointer. A pointer to the original ACE_Data_Block is returned, and not released (as it is with ).
Definition at line 391 of file Message_Block.inl.
References ACE_TRACE, data_block_, rd_ptr(), and wr_ptr().
Referenced by ACE_InputCDR::ACE_InputCDR(), ACE_InputCDR::clone_from(), and ACE_InputCDR::exchange_data_blocks().

00392 { 00393 ACE_TRACE ("ACE_Message_Block::replace_data_block"); 00394 ACE_Data_Block *old = this->data_block_; 00395 this->data_block_ = db; 00396 00397 if (db != 0) 00398 { 00399 // Set the read and write pointers in the <Message_Block> to point 00400 // to the buffer in the <ACE_Data_Block>. 00401 this->rd_ptr (this->data_block ()->base ()); 00402 this->wr_ptr (this->data_block ()->base ()); 00403 } 00404 00405 return old; 00406 }

ACE_INLINE void ACE_Message_Block::reset ( void )

Resets the Message Block data to contain nothing, i.e., sets the read and write pointers to align with the base.
Definition at line 376 of file Message_Block.inl.
References ACE_TRACE, rd_ptr_, and wr_ptr_.
Referenced by ACE_InputCDR::clone_from(), and ACE_InputCDR::exchange_data_blocks().

00377 { 00378 ACE_TRACE ("ACE_Message_Block::reset"); 00379 this->rd_ptr_ = 0; 00380 this->wr_ptr_ = 0; 00381 }

ACE_INLINE void ACE_Message_Block::reset_allocators ( ACE_Allocator * allocator_strategy = 0,

ACE_Allocator * data_block_allocator = 0,

ACE_Allocator * message_block_allocator = 0

)

This method resets the allocators in all the message blocks in the chain.
Definition at line 423 of file Message_Block.inl.
References ACE_Data_Block::allocator_strategy_, cont(), data_block_, ACE_Data_Block::data_block_allocator_, and message_block_allocator_.

00426 { 00427 this->data_block_->allocator_strategy_ = 00428 allocator_strategy; 00429 this->data_block_->data_block_allocator_ = 00430 data_block_allocator; 00431 this->message_block_allocator_ = 00432 message_block_allocator; 00433 00434 if (this->cont () != 0) 00435 this->cont ()->reset_allocators (allocator_strategy, 00436 data_block_allocator, 00437 message_block_allocator); 00438 }

ACE_INLINE ACE_Message_Block::Message_Flags ACE_Message_Block::self_flags ( void ) const

Get the current message flags.

Definition at line 33 of file Message_Block.inl.
References ACE_TRACE.
Referenced by ACE_InputCDR::exchange_data_blocks().

00034 { 00035 ACE_TRACE ("ACE_Message_Block::self_flags"); 00036 return this->flags_; 00037 }

ACE_INLINE ACE_Message_Block::Message_Flags ACE_Message_Block::set_flags ( Message_Flags more_flags )

Bitwise-or the more_flags into the existing message flags and return the new value.
Definition at line 105 of file Message_Block.inl.
References ACE_TRACE, data_block(), Message_Flags, and ACE_Data_Block::set_flags().

00106 { 00107 ACE_TRACE ("ACE_Message_Block::set_flags"); 00108 return this->data_block ()->set_flags (more_flags); 00109 }

ACE_INLINE ACE_Message_Block::Message_Flags ACE_Message_Block::set_self_flags ( ACE_Message_Block::Message_Flags more_flags )

Bitwise-or the into the existing message flags and return the new value.
Definition at line 15 of file Message_Block.inl.
References ACE_SET_BITS, ACE_TRACE, and Message_Flags.
Referenced by ACE_InputCDR::exchange_data_blocks().

00016 { 00017 ACE_TRACE ("ACE_Message_Block::set_self_flags"); 00018 // Later we might mask more_glags so that user can't change internal 00019 // ones: more_flags &= ~(USER_FLAGS -1). 00020 return ACE_SET_BITS (this->flags_, more_flags); 00021 }

int ACE_Message_Block::size ( size_t length )

Set the number of bytes in the top-level , reallocating space if necessary. However, the and remain at the original offsets into the buffer, even if it is reallocated. Returns 0 if successful, else -1.
Definition at line 246 of file Message_Block.cpp.
References ACE_TRACE, data_block(), and ACE_Data_Block::size().

00247 { 00248 ACE_TRACE ("ACE_Message_Block::size"); 00249 00250 // Resize the underlying <ACE_Data_Block>. 00251 if (this->data_block ()->size (length) == -1) 00252 return -1; 00253 00254 return 0; 00255 }

ACE_INLINE size_t ACE_Message_Block::size ( void ) const

Get the number of bytes in the top-level (i.e., does not consider the bytes in chained s).
Definition at line 147 of file Message_Block.inl.
References ACE_TRACE, data_block(), and ACE_Data_Block::size().
Referenced by ACE_InputCDR::clone_from(), ACE_OutputCDR::consolidate(), ACE_CDR::consolidate(), ACE_InputCDR::exchange_data_blocks(), ACE_CDR::grow(), ACE_OutputCDR::grow_and_adjust(), total_size(), and total_size_and_length().

00148 { 00149 ACE_TRACE ("ACE_Message_Block::size"); 00150 return this->data_block ()->size (); 00151 }

ACE_INLINE size_t ACE_Message_Block::space ( void ) const

Get the number of bytes available after the in the top-level .
Definition at line 384 of file Message_Block.inl.
References ACE_TRACE, mark(), and wr_ptr().
Referenced by ACE_InputCDR::ACE_InputCDR(), and copy().

00385 { 00386 ACE_TRACE ("ACE_Message_Block::space"); 00387 return this->mark () - this->wr_ptr (); 00388 }

size_t ACE_Message_Block::total_capacity ( void ) const

Get the number of allocated bytes in all , including chained s.
Definition at line 301 of file Message_Block.cpp.
References ACE_TRACE, capacity(), and cont().

00302 { 00303 ACE_TRACE ("ACE_Message_Block::total_capacity"); 00304 00305 size_t size = 0; 00306 00307 for (const ACE_Message_Block *i = this; 00308 i != 0; 00309 i = i->cont ()) 00310 size += i->capacity (); 00311 00312 return size; 00313 }

size_t ACE_Message_Block::total_length ( void ) const

Get the length of the s, including chained s.
Definition at line 287 of file Message_Block.cpp.
References ACE_TRACE, cont(), and length().

00288 { 00289 ACE_TRACE ("ACE_Message_Block::total_length"); 00290 00291 size_t length = 0; 00292 for (const ACE_Message_Block *i = this; 00293 i != 0; 00294 i = i->cont ()) 00295 length += i->length (); 00296 00297 return length; 00298 }

size_t ACE_Message_Block::total_size ( void ) const

Get the total number of bytes in all s, including chained s.
Definition at line 273 of file Message_Block.cpp.
References ACE_TRACE, cont(), and size().
Referenced by ACE_Buffered_Svc_Handler<, >::put().

00274 { 00275 ACE_TRACE ("ACE_Message_Block::total_size"); 00276 00277 size_t size = 0; 00278 for (const ACE_Message_Block *i = this; 00279 i != 0; 00280 i = i->cont ()) 00281 size += i->size (); 00282 00283 return size; 00284 }

ACE_INLINE void ACE_Message_Block::wr_ptr ( size_t n )

Set the write pointer ahead n bytes. This is used to compute the of a message.
Definition at line 369 of file Message_Block.inl.
References ACE_TRACE, and wr_ptr_.

00370 { 00371 ACE_TRACE ("ACE_Message_Block::wr_ptr"); 00372 this->wr_ptr_ += n; 00373 }

ACE_INLINE void ACE_Message_Block::wr_ptr ( char * ptr )

Set the write pointer to ptr.

Definition at line 310 of file Message_Block.inl.
References ACE_TRACE, base(), and wr_ptr_.

00311 { 00312 ACE_TRACE ("ACE_Message_Block::wr_ptr"); 00313 this->wr_ptr_ = new_ptr - this->base (); 00314 }

ACE_INLINE char * ACE_Message_Block::wr_ptr ( void ) const

Get the write pointer.

Definition at line 362 of file Message_Block.inl.
References ACE_TRACE, base(), and wr_ptr_.
Referenced by ACE_InputCDR::ACE_InputCDR(), ACE_Message_Block(), ACE_OutputCDR::adjust(), clone(), ACE_InputCDR::clone_from(), ACE_CDR::consolidate(), copy(), crunch(), data_block(), duplicate(), ACE_InputCDR::exchange_data_blocks(), ACE_OutputCDR::find(), ACE_InputCDR::grow(), ACE_CDR::grow(), ACE_OutputCDR::grow_and_adjust(), ACE_CDR::mb_align(), ACE_InputCDR::operator=(), replace_data_block(), space(), ACE_InputCDR::steal_from(), ACE_InputCDR::wr_ptr(), and ACE_OutputCDR::write_octet_array_mb().

00363 { 00364 ACE_TRACE ("ACE_Message_Block::wr_ptr"); 00365 return this->base () + this->wr_ptr_; 00366 }

Friends And Related Function Documentation

friend class ACE_Data_Block [friend]

Definition at line 62 of file Message_Block.h.
Referenced by init_i().

Member Data Documentation

ACE_Message_Block::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

Definition at line 583 of file Message_Block.h.

ACE_Message_Block* ACE_Message_Block::cont_ [protected]

Pointer to next message block in the chain.

Definition at line 640 of file Message_Block.h.
Referenced by clone(), cont(), duplicate(), init_i(), and release_i().

ACE_Data_Block* ACE_Message_Block::data_block_ [protected]

Pointer to the reference counted data structure that contains the actual memory buffer.
Definition at line 653 of file Message_Block.h.
Referenced by access_allocators(), data_block(), init_i(), release_i(), replace_data_block(), and reset_allocators().

ACE_Message_Block::Message_Flags ACE_Message_Block::flags_ [protected]

Misc flags (e.g., DONT_DELETE and USER_FLAGS).

Definition at line 649 of file Message_Block.h.
Referenced by ACE_Message_Block().

ACE_Allocator* ACE_Message_Block::message_block_allocator_ [protected]

The allocator used to destroy ourselves when release is called and create new message blocks on duplicate.
Definition at line 657 of file Message_Block.h.
Referenced by access_allocators(), ACE_Message_Block(), clone(), duplicate(), init_i(), release_i(), and reset_allocators().

ACE_Message_Block* ACE_Message_Block::next_ [protected]

Pointer to next message in the list.

Definition at line 643 of file Message_Block.h.

ACE_Message_Block* ACE_Message_Block::prev_ [protected]

Pointer to previous message in the list.

Definition at line 646 of file Message_Block.h.

unsigned long ACE_Message_Block::priority_ [protected]

Priority of message.

Definition at line 628 of file Message_Block.h.

size_t ACE_Message_Block::rd_ptr_ [protected]

Pointer to beginning of next read.

Definition at line 622 of file Message_Block.h.
Referenced by base(), crunch(), init_i(), length(), rd_ptr(), and reset().

size_t ACE_Message_Block::wr_ptr_ [protected]

Pointer to beginning of next write.

Definition at line 625 of file Message_Block.h.
Referenced by ACE_Message_Block(), base(), crunch(), init_i(), length(), reset(), and wr_ptr().

The documentation for this class was generated from the following files:

Generated on Sun Jan 27 12:55:49 2008 for ACE by

1.3.6

ACE_Message_Block Class Reference

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Private Member Functions
