ACE_Data_Block Class Reference

Stores the data payload that is accessed via one or more ACE_Message_Block's. More...

#include <Message_Block.h>

Inheritance diagram for ACE_Data_Block:

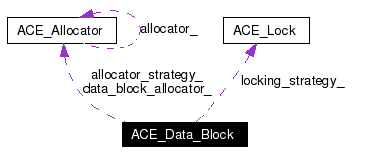

[legend]Collaboration diagram for ACE_Data_Block:

[legend]List of all members.

Public Member Functions
	ACE_Data_Block (void)
	Default "do-nothing" constructor.
	ACE_Data_Block (size_t size, ACE_Message_Block::ACE_Message_Type msg_type, const char *msg_data, ACE_Allocator *allocator_strategy, ACE_Lock *locking_strategy, ACE_Message_Block::Message_Flags flags, ACE_Allocator *data_block_allocator)
	Initialize.
virtual	~ACE_Data_Block (void)
	Delete all the resources held in the message.
ACE_Message_Block::ACE_Message_Type	msg_type (void) const
	Get type of the message.
void	msg_type (ACE_Message_Block::ACE_Message_Type type)
	Set type of the message.
char *	base (void) const
	Get message data pointer.
void	base (char *data, size_t size, ACE_Message_Block::Message_Flags mflags=ACE_Message_Block::DONT_DELETE)
	Set message data pointer (doesn't reallocate).
char *	end (void) const
	Return a pointer to 1 past the end of the allocated data in a message.
char *	mark (void) const
size_t	size (void) const
int	size (size_t length)
size_t	capacity (void) const
	Get the total amount of allocated space.
virtual ACE_Data_Block *	clone (ACE_Message_Block::Message_Flags mask=0) const
virtual ACE_Data_Block *	clone_nocopy (ACE_Message_Block::Message_Flags mask=0, size_t max_size=0) const
ACE_Data_Block *	duplicate (void)
	Return a "shallow" copy that increments our reference count by 1.
ACE_Data_Block *	release (ACE_Lock *lock=0)
ACE_Message_Block::Message_Flags	set_flags (ACE_Message_Block::Message_Flags more_flags)
ACE_Message_Block::Message_Flags	clr_flags (ACE_Message_Block::Message_Flags less_flags)
ACE_Message_Block::Message_Flags	flags (void) const
	Get the current message flags.
ACE_Allocator *	allocator_strategy (void) const
	Obtain the allocator strategy.
ACE_Lock *	locking_strategy (void)
	Get the locking strategy.
ACE_Lock *	locking_strategy (ACE_Lock *)
	Set a new locking strategy and return the hold one.
void	dump (void) const
	Dump the state of an object.
int	reference_count (void) const
	Get the current reference count.
ACE_Allocator *	data_block_allocator (void) const
	Get the allocator used to create this object.
Protected Member Functions
virtual ACE_Data_Block *	release_i (void)
	Internal release implementation.
int	reference_count_i (void) const
	Internal get the current reference count.
ACE_Data_Block *	release_no_delete (ACE_Lock *lock)
Protected Attributes
ACE_Message_Block::ACE_Message_Type	type_
	Type of message.
size_t	cur_size_
	Current size of message block.
size_t	max_size_
	Total size of buffer.
ACE_Message_Block::Message_Flags	flags_
	Misc flags (e.g., DONT_DELETE and USER_FLAGS).
char *	base_
	Pointer To beginning of message payload.
ACE_Allocator *	allocator_strategy_
ACE_Lock *	locking_strategy_
int	reference_count_
ACE_Allocator *	data_block_allocator_
	The allocator use to destroy ourselves.
Private Member Functions
ACE_Data_Block &	operator= (const ACE_Data_Block &)
	ACE_Data_Block (const ACE_Data_Block &)
Friends
class	ACE_Message_Block

---

Detailed Description

Stores the data payload that is accessed via one or more ACE_Message_Block's.

This data structure is reference counted to maximize sharing. It also contains the (which protects the reference count from race conditions in concurrent programs) and the (which determines what memory pool is used to allocate the memory).

Definition at line 677 of file Message_Block.h.

---

Constructor & Destructor Documentation

ACE_Data_Block::ACE_Data_Block (  void   )

Default "do-nothing" constructor. Definition at line 315 of file Message_Block.cpp. References ACE_ALLOCATOR, ACE_FUNCTION_TIMEPROBE, and ACE_TRACE. Referenced by clone_nocopy(). : type_ (ACE_Message_Block::MB_DATA), cur_size_ (0), max_size_ (0), flags_ (ACE_Message_Block::DONT_DELETE), base_ (0), allocator_strategy_ (0), locking_strategy_ (0), reference_count_ (1), data_block_allocator_ (0) { ACE_TRACE ("ACE_Data_Block::ACE_Data_Block"); ACE_FUNCTION_TIMEPROBE (ACE_DATA_BLOCK_CTOR1_ENTER); ACE_ALLOCATOR (this->allocator_strategy_, ACE_Allocator::instance ()); ACE_ALLOCATOR (this->data_block_allocator_, ACE_Allocator::instance ()); }

ACE_Data_Block::ACE_Data_Block (  size_t  size, ACE_Message_Block::ACE_Message_Type  msg_type, const char *  msg_data, ACE_Allocator *  allocator_strategy, ACE_Lock *  locking_strategy, ACE_Message_Block::Message_Flags  flags, ACE_Allocator *  data_block_allocator )

Initialize. Definition at line 336 of file Message_Block.cpp. References ACE_ALLOCATOR, ACE_FUNCTION_TIMEPROBE, ACE_Message_Block::ACE_Message_Type, ACE_TRACE, allocator_strategy_, ACE_OS::memset(), and ACE_Message_Block::Message_Flags. : type_ (msg_type), cur_size_ (0), // Reset later if memory alloc'd ok max_size_ (0), flags_ (flags), base_ (const_cast <char *> (msg_data)), allocator_strategy_ (allocator_strategy), locking_strategy_ (locking_strategy), reference_count_ (1), data_block_allocator_ (data_block_allocator) { ACE_TRACE ("ACE_Data_Block::ACE_Data_Block"); ACE_FUNCTION_TIMEPROBE (ACE_DATA_BLOCK_CTOR2_ENTER); // If the user didn't pass one in, let's use the // <ACE_Allocator::instance>. if (this->allocator_strategy_ == 0) ACE_ALLOCATOR (this->allocator_strategy_, ACE_Allocator::instance ()); if (this->data_block_allocator_ == 0) ACE_ALLOCATOR (this->data_block_allocator_, ACE_Allocator::instance ()); if (msg_data == 0) { ACE_ALLOCATOR (this->base_, (char *) this->allocator_strategy_->malloc (size)); #if defined (ACE_INITIALIZE_MEMORY_BEFORE_USE) (void) ACE_OS::memset (this->base_, '\0', size); #endif /* ACE_INITIALIZE_MEMORY_BEFORE_USE */ } // ACE_ALLOCATOR returns on alloc failure but we cant throw, so setting // the size to 0 (i.e. "bad bit") ... if (this->base_ == 0) { size = 0; } // The memory is legit, whether passed in or allocated, so set // the size. this->cur_size_ = this->max_size_ = size; }

ACE_Data_Block::~ACE_Data_Block (  void   )  [virtual]

Delete all the resources held in the message. Definition at line 758 of file Message_Block.cpp. References ACE_ASSERT, ACE_BIT_DISABLED, allocator_strategy_, and ACE_Allocator::free(). { // Sanity check... ACE_ASSERT (this->reference_count_ <= 1); // Just to be safe... this->reference_count_ = 0; if (ACE_BIT_DISABLED (this->flags_, ACE_Message_Block::DONT_DELETE)) { this->allocator_strategy_->free ((void *) this->base_); this->base_ = 0; } }

ACE_Data_Block::ACE_Data_Block (  const ACE_Data_Block &   )  [private]

---

Member Function Documentation

ACE_INLINE ACE_Allocator * ACE_Data_Block::allocator_strategy (  void   )  const

Obtain the allocator strategy. Definition at line 469 of file Message_Block.inl. References ACE_TRACE, and allocator_strategy_. Referenced by ACE_Locked_Data_Block< ACE_LOCK >::clone_nocopy(). { ACE_TRACE ("ACE_Data_Block::allocator_strategy"); return this->allocator_strategy_; }

void ACE_Data_Block::base (  char *  data, size_t  size, ACE_Message_Block::Message_Flags  mflags = ACE_Message_Block::DONT_DELETE )

Set message data pointer (doesn't reallocate). Definition at line 1259 of file Message_Block.cpp. References ACE_BIT_DISABLED, allocator_strategy_, ACE_Allocator::free(), and ACE_Message_Block::Message_Flags. { if (ACE_BIT_DISABLED (this->flags_, ACE_Message_Block::DONT_DELETE)) this->allocator_strategy_->free (this->base_); this->max_size_ = msg_length; this->cur_size_ = msg_length; this->base_ = msg_data; this->flags_ = msg_flags; }

ACE_INLINE char * ACE_Data_Block::base (  void   )  const

Get message data pointer. Definition at line 52 of file Message_Block.inl. References ACE_TRACE. Referenced by ACE_Message_Block::base(), and ACE_CDR::grow(). { ACE_TRACE ("ACE_Data_Block::base"); return this->base_; }

ACE_INLINE size_t ACE_Data_Block::capacity (  void   )  const

Get the total amount of allocated space. Definition at line 66 of file Message_Block.inl. References ACE_TRACE. Referenced by ACE_Message_Block::capacity(). { ACE_TRACE ("ACE_Data_Block::capacity"); return this->max_size_; }

ACE_Data_Block * ACE_Data_Block::clone (  ACE_Message_Block::Message_Flags  mask = 0  )  const [virtual]

Return an exact "deep copy" of the message, i.e., create fresh new copies of all the Data_Blocks and continuations. Notice that Data_Blocks can act as "Prototypes", i.e. derived classes can override this method and create instances of themselves. Definition at line 1102 of file Message_Block.cpp. References ACE_TRACE, base_, clone_nocopy(), ACE_OS::memcpy(), and ACE_Message_Block::Message_Flags. Referenced by ACE_Message_Block::clone(), and ACE_InputCDR::steal_contents(). { ACE_TRACE ("ACE_Data_Block::clone"); ACE_Data_Block *nb = this->clone_nocopy (mask); // Copy all of the payload memory into the new object. The new block // was allocated with max_size_ (and, thus, it's cur_size_ is the same // as max_size_). Maintain the same "has been written" boundary in the // new block by only copying cur_size_ bytes. if (nb != 0) { ACE_OS::memcpy (nb->base_, this->base_, this->cur_size_); } return nb; }

ACE_Data_Block * ACE_Data_Block::clone_nocopy (  ACE_Message_Block::Message_Flags  mask = 0, size_t  max_size = 0 )  const [virtual]

As clone above, but it does not copy the contents of the buffer, i.e., create a new Data_Block of the same dynamic type, with the same allocator, locking_strategy, and with the same amount of storage available (if max_size is zero) but the buffer is unitialized. If max_size is specified other than zero, it will be used when creating the new data block. Reimplemented in ACE_Locked_Data_Block< ACE_LOCK >. Definition at line 1123 of file Message_Block.cpp. References ACE_Data_Block(), ACE_FUNCTION_TIMEPROBE, ACE_NEW_MALLOC_RETURN, ACE_TRACE, clr_flags(), ACE_Allocator::free(), ACE_Message_Block::Message_Flags, and size(). Referenced by ACE_InputCDR::ACE_InputCDR(), ACE_Message_Block::ACE_Message_Block(), clone(), ACE_InputCDR::clone_from(), and ACE_CDR::grow(). { ACE_FUNCTION_TIMEPROBE(ACE_DATA_BLOCK_CLONE_ENTER); ACE_TRACE ("ACE_Data_Block::clone_nocopy"); // You always want to clear this one to prevent memory leaks but you // might add some others later. const ACE_Message_Block::Message_Flags always_clear = ACE_Message_Block::DONT_DELETE; const size_t newsize = max_size == 0 ? this->max_size_ : max_size; ACE_Data_Block *nb = 0; ACE_NEW_MALLOC_RETURN (nb, static_cast<ACE_Data_Block*> ( this->data_block_allocator_->malloc (sizeof (ACE_Data_Block))), ACE_Data_Block (newsize, // size this->type_, // type 0, // data this->allocator_strategy_, // allocator this->locking_strategy_, // locking strategy this->flags_, // flags this->data_block_allocator_), 0); // Message block initialization may fail while the construction // succeds. Since as a matter of policy, ACE may throw no // exceptions, we have to do a separate check like this. if (nb != 0 && nb->size () < newsize) { nb->ACE_Data_Block::~ACE_Data_Block(); // placement destructor ... this->data_block_allocator_->free (nb); // free ... errno = ENOMEM; return 0; } // Set new flags minus the mask... nb->clr_flags (mask | always_clear); return nb; }

ACE_INLINE ACE_Message_Block::Message_Flags ACE_Data_Block::clr_flags (  ACE_Message_Block::Message_Flags  less_flags  )

Clear the message flag bits specified in and return the new value. Definition at line 82 of file Message_Block.inl. References ACE_CLR_BITS, ACE_TRACE, and ACE_Message_Block::Message_Flags. Referenced by ACE_Locked_Data_Block< ACE_LOCK >::clone_nocopy(), clone_nocopy(), and ACE_Message_Block::clr_flags(). { ACE_TRACE ("ACE_Data_Block::clr_flags"); // Later we might mask more_flags so that user can't change internal // ones: less_flags &= ~(USER_FLAGS -1). return ACE_CLR_BITS (this->flags_, less_flags); }

ACE_INLINE ACE_Allocator * ACE_Data_Block::data_block_allocator (  void   )  const

Get the allocator used to create this object. Definition at line 98 of file Message_Block.inl. References ACE_TRACE. Referenced by ACE_Message_Block::ACE_Message_Block(), ACE_Message_Block::clone(), ACE_Locked_Data_Block< ACE_LOCK >::clone_nocopy(), ACE_Message_Block::duplicate(), ACE_OutputCDR::grow_and_adjust(), ACE_Message_Block::release(), and ACE_Message_Block::release_i(). { ACE_TRACE ("ACE_Data_Block::data_block_allocator"); return this->data_block_allocator_; }

void ACE_Data_Block::dump (  void   )  const

Dump the state of an object. Definition at line 146 of file Message_Block.cpp. References ACE_BEGIN_DUMP, ACE_DEBUG, ACE_END_DUMP, ACE_TEXT, ACE_TRACE, allocator_strategy_, ACE_Allocator::dump(), and LM_DEBUG. Referenced by ACE_Message_Block::dump(). { #if defined (ACE_HAS_DUMP) ACE_TRACE ("ACE_Data_Block::dump"); ACE_DEBUG ((LM_DEBUG, ACE_BEGIN_DUMP, this)); ACE_DEBUG ((LM_DEBUG, ACE_TEXT ("-----( Data Block )-----\n") ACE_TEXT ("type_ = %d\n") ACE_TEXT ("cur_size_ = %u\n") ACE_TEXT ("max_size_ = %u\n") ACE_TEXT ("flags_ = %u\n") ACE_TEXT ("base_ = %u\n") ACE_TEXT ("locking_strategy_ = %u\n") ACE_TEXT ("reference_count_ = %u\n") ACE_TEXT ("---------------------------\n"), this->type_, this->cur_size_, this->max_size_, this->flags_, this->base_, this->locking_strategy_, this->reference_count_)); this->allocator_strategy_->dump (); ACE_DEBUG ((LM_DEBUG, ACE_END_DUMP)); #endif /* ACE_HAS_DUMP */ }

ACE_Data_Block * ACE_Data_Block::duplicate (  void   )

Return a "shallow" copy that increments our reference count by 1. Definition at line 986 of file Message_Block.cpp. References ACE_GUARD_RETURN, ACE_TRACE, and locking_strategy_. Referenced by ACE_Message_Block::ACE_Message_Block(), ACE_InputCDR::operator=(), ACE_InputCDR::steal_from(), and ACE_OutputCDR::write_octet_array_mb(). { ACE_TRACE ("ACE_Data_Block::duplicate"); // Create a new <ACE_Message_Block>, but share the <base_> pointer // data (i.e., don't copy that). if (this->locking_strategy_) { // We need to acquire the lock before incrementing the count. ACE_GUARD_RETURN (ACE_Lock, ace_mon, *this->locking_strategy_, 0); ++this->reference_count_; } else ++this->reference_count_; return this; }

ACE_INLINE char * ACE_Data_Block::end (  void   )  const

Return a pointer to 1 past the end of the allocated data in a message. Definition at line 333 of file Message_Block.inl. References ACE_TRACE. Referenced by ACE_Message_Block::end(). { ACE_TRACE ("ACE_Data_Block::end"); return this->base_ + this->max_size_; }

ACE_INLINE ACE_Message_Block::Message_Flags ACE_Data_Block::flags (  void   )  const

Get the current message flags. Definition at line 91 of file Message_Block.inl. References ACE_TRACE. Referenced by ACE_Locked_Data_Block< ACE_LOCK >::clone_nocopy(), and ACE_Message_Block::flags(). { ACE_TRACE ("ACE_Data_Block::flags"); return this->flags_; }

ACE_INLINE ACE_Lock * ACE_Data_Block::locking_strategy (  ACE_Lock *   )

Set a new locking strategy and return the hold one. Definition at line 483 of file Message_Block.inl. References ACE_TRACE, and locking_strategy_. { ACE_TRACE ("ACE_Data_Block::locking_strategy"); ACE_Lock *ols = this->locking_strategy_; this->locking_strategy_ = nls; return ols; }

ACE_INLINE ACE_Lock * ACE_Data_Block::locking_strategy (  void   )

Get the locking strategy. Definition at line 476 of file Message_Block.inl. References ACE_TRACE, and locking_strategy_. Referenced by ACE_Message_Block::locking_strategy(), and ACE_Message_Block::release(). { ACE_TRACE ("ACE_Data_Block::locking_strategy"); return this->locking_strategy_; }

ACE_INLINE char * ACE_Data_Block::mark (  void   )  const

Return a pointer to 1 past the end of the allotted data in a message. The allotted data may be less than allocated data if <size()> is passed an argument less than <capacity()>. Definition at line 319 of file Message_Block.inl. References ACE_TRACE. Referenced by ACE_Message_Block::mark(). { ACE_TRACE ("ACE_Data_Block::mark"); return this->base_ + this->cur_size_; }

ACE_INLINE void ACE_Data_Block::msg_type (  ACE_Message_Block::ACE_Message_Type  type  )

Set type of the message. Definition at line 168 of file Message_Block.inl. References ACE_Message_Block::ACE_Message_Type, and ACE_TRACE. { ACE_TRACE ("ACE_Data_Block::msg_type"); this->type_ = t; }

ACE_INLINE ACE_Message_Block::ACE_Message_Type ACE_Data_Block::msg_type (  void   )  const

Get type of the message. Definition at line 161 of file Message_Block.inl. References ACE_TRACE. Referenced by ACE_Locked_Data_Block< ACE_LOCK >::clone_nocopy(), and ACE_Message_Block::msg_type(). { ACE_TRACE ("ACE_Data_Block::msg_type"); return this->type_; }

ACE_Data_Block& ACE_Data_Block::operator= (  const ACE_Data_Block &   )  [private]

int ACE_Data_Block::reference_count (  void   )  const

Get the current reference count. Definition at line 200 of file Message_Block.cpp. References ACE_GUARD_RETURN, locking_strategy_, and reference_count_i(). Referenced by ACE_Message_Block::reference_count(). { if (this->locking_strategy_) { // We need to acquire the lock before retrieving the count ACE_GUARD_RETURN (ACE_Lock, ace_mon, *this->locking_strategy_, 0); return this->reference_count_i (); } return this->reference_count_i (); }

ACE_INLINE int ACE_Data_Block::reference_count_i (  void   )  const [protected]

Internal get the current reference count. Definition at line 40 of file Message_Block.inl. Referenced by reference_count(). { return reference_count_; }

ACE_Data_Block * ACE_Data_Block::release (  ACE_Lock *  lock = 0  )

Decrease the shared reference count by 1. If the reference count is > 0 then return this; else if reference count == 0 then delete this and mb and return 0. Behavior is undefined if reference count < 0. Definition at line 836 of file Message_Block.cpp. References ACE_DES_FREE, ACE_TRACE, ACE_Allocator::free(), and release_no_delete(). Referenced by ACE_Message_Block::clone(), ACE_Message_Block::data_block(), ACE_Message_Block::init_i(), and ACE_Message_Block::~ACE_Message_Block(). { ACE_TRACE ("ACE_Data_Block::release"); ACE_Allocator *allocator = this->data_block_allocator_; ACE_Data_Block *result = this->release_no_delete (lock); // We must delete this outside the scope of the locking_strategy_ // since otherwise we'd be trying to "release" through a deleted // pointer! if (result == 0) ACE_DES_FREE (this, allocator->free, ACE_Data_Block); return result; }

ACE_Data_Block * ACE_Data_Block::release_i (  void   )  [protected, virtual]

Internal release implementation. Definition at line 775 of file Message_Block.cpp. References ACE_ASSERT, and ACE_TRACE. Referenced by release_no_delete(). { ACE_TRACE ("ACE_Data_Block::release_i"); ACE_ASSERT (this->reference_count_ > 0); ACE_Data_Block *result = 0; // decrement reference count --this->reference_count_; if (this->reference_count_ == 0) // this will cause deletion of this result = 0; else result = this; return result; }

ACE_Data_Block * ACE_Data_Block::release_no_delete (  ACE_Lock *  lock  )  [protected]

Definition at line 796 of file Message_Block.cpp. References ACE_GUARD_RETURN, ACE_TRACE, locking_strategy_, and release_i(). Referenced by release(), and ACE_Message_Block::release_i(). { ACE_TRACE ("ACE_Data_Block::release_no_delete"); ACE_Data_Block *result = 0; ACE_Lock *lock_to_be_used = 0; // Check if we were passed in a lock if (lock != 0) { // Make sure that the lock passed in and our lock are the same if (lock == this->locking_strategy_) // In this case no locking is required. lock_to_be_used = 0; // The lock passed in does not match our lock else // Lock to be used is our lock lock_to_be_used = this->locking_strategy_; } // This is the case when no lock was passed in else // Lock to be used is our lock lock_to_be_used = this->locking_strategy_; // If there's a locking strategy then we need to acquire the lock // before decrementing the count. if (lock_to_be_used != 0) { ACE_GUARD_RETURN (ACE_Lock, ace_mon, *lock_to_be_used, 0); result = this->release_i (); } else result = this->release_i (); return result; }

ACE_INLINE ACE_Message_Block::Message_Flags ACE_Data_Block::set_flags (  ACE_Message_Block::Message_Flags  more_flags  )

Bitwise-or the into the existing message flags and return the new value. Definition at line 73 of file Message_Block.inl. References ACE_SET_BITS, ACE_TRACE, and ACE_Message_Block::Message_Flags. Referenced by ACE_Message_Block::set_flags(). { ACE_TRACE ("ACE_Data_Block::set_flags"); // Later we might mask more_glags so that user can't change internal // ones: more_flags &= ~(USER_FLAGS -1). return ACE_SET_BITS (this->flags_, more_flags); }

int ACE_Data_Block::size (  size_t  length  )

Set the total amount of space in the message. Returns 0 if successful, else -1. Definition at line 214 of file Message_Block.cpp. References ACE_ALLOCATOR_RETURN, ACE_BIT_DISABLED, ACE_CLR_BITS, ACE_TRACE, allocator_strategy_, ACE_Allocator::free(), and ACE_OS::memcpy(). { ACE_TRACE ("ACE_Data_Block::size"); if (length <= this->max_size_) this->cur_size_ = length; else { // We need to resize! char *buf = 0; ACE_ALLOCATOR_RETURN (buf, (char *) this->allocator_strategy_->malloc (length), -1); ACE_OS::memcpy (buf, this->base_, this->cur_size_); if (ACE_BIT_DISABLED (this->flags_, ACE_Message_Block::DONT_DELETE)) this->allocator_strategy_->free ((void *) this->base_); else // We now assume ownership. ACE_CLR_BITS (this->flags_, ACE_Message_Block::DONT_DELETE); this->max_size_ = length; this->cur_size_ = length; this->base_ = buf; } return 0; }

ACE_INLINE size_t ACE_Data_Block::size (  void   )  const

Get the total amount of allotted space in the message. The amount of allotted space may be less than allocated space. Definition at line 59 of file Message_Block.inl. References ACE_TRACE. Referenced by ACE_InputCDR::clone_from(), ACE_Locked_Data_Block< ACE_LOCK >::clone_nocopy(), clone_nocopy(), ACE_Message_Block::init_i(), and ACE_Message_Block::size(). { ACE_TRACE ("ACE_Data_Block::size"); return this->cur_size_; }

---

Friends And Related Function Documentation

friend class ACE_Message_Block [friend]

Decrease the reference count, but don't delete the object. Returns 0 if the object should be removed. If is equal to the locking strategy then we assume that the lock is beign held by the current thread; this is used to release all the data blocks in a chain while holding a single lock. Definition at line 810 of file Message_Block.h.

---

Member Data Documentation

ACE_Allocator* ACE_Data_Block::allocator_strategy_ [protected]

Pointer to the allocator defined for this ACE_Data_Block. Note that this pointer is shared by all owners of this ACE_Data_Block. Definition at line 834 of file Message_Block.h. Referenced by ACE_Message_Block::access_allocators(), ACE_Data_Block(), allocator_strategy(), base(), dump(), ACE_Message_Block::reset_allocators(), size(), and ~ACE_Data_Block().

char* ACE_Data_Block::base_ [protected]

Pointer To beginning of message payload. Definition at line 826 of file Message_Block.h. Referenced by clone().

size_t ACE_Data_Block::cur_size_ [protected]

Current size of message block. Definition at line 817 of file Message_Block.h.

ACE_Allocator* ACE_Data_Block::data_block_allocator_ [protected]

The allocator use to destroy ourselves. Definition at line 853 of file Message_Block.h. Referenced by ACE_Message_Block::access_allocators(), and ACE_Message_Block::reset_allocators().

ACE_Message_Block::Message_Flags ACE_Data_Block::flags_ [protected]

Misc flags (e.g., DONT_DELETE and USER_FLAGS). Definition at line 823 of file Message_Block.h.

ACE_Lock* ACE_Data_Block::locking_strategy_ [protected]

Pointer to the locking strategy defined for this ACE_Data_Block. This is used to protect regions of code that access shared ACE_Data_Block state. Note that this lock is shared by all owners of the ACE_Data_Block's data. Definition at line 842 of file Message_Block.h. Referenced by duplicate(), locking_strategy(), reference_count(), and release_no_delete().

size_t ACE_Data_Block::max_size_ [protected]

Total size of buffer. Definition at line 820 of file Message_Block.h.

int ACE_Data_Block::reference_count_ [protected]

Reference count for this ACE_Data_Block, which is used to avoid deep copies (i.e., ). Note that this pointer value is shared by all owners of the 's data, i.e., all the ACE_Message_Blocks. Definition at line 850 of file Message_Block.h.

ACE_Message_Block::ACE_Message_Type ACE_Data_Block::type_ [protected]

Type of message. Definition at line 814 of file Message_Block.h.

---

The documentation for this class was generated from the following files:

• Message_Block.h
• Message_Block.cpp
• Message_Block.inl

---
