TAO_Queued_Data Class Reference

Represents a node in the queue of incoming messages. More...

#include <Queued_Data.h>

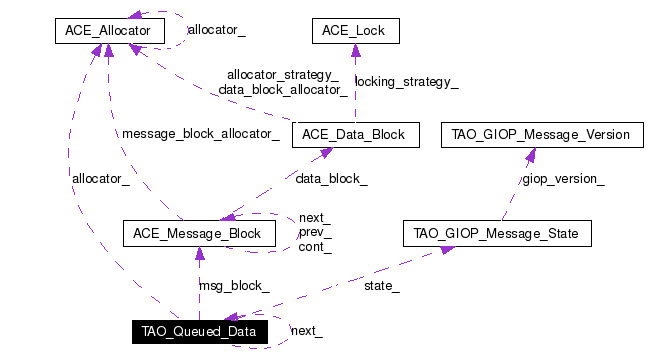

Collaboration diagram for TAO_Queued_Data:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 TAO_Queued_Data (ACE_Allocator *alloc=0)
 Default Constructor.

 TAO_Queued_Data (ACE_Message_Block *mb, ACE_Allocator *alloc=0)
 Constructor.

 TAO_Queued_Data (const TAO_Queued_Data &qd)
 Copy constructor.

int consolidate (void)
size_t missing_data (void) const
 Get missing data.

void missing_data (size_t data)
 Set missing data.

TAO_GIOP_Message_Version const & giop_version (void) const
 Get the GIOP version.

CORBA::Octet byte_order (void) const
 Get byte_order.

CORBA::Octet more_fragments (void) const
 Get more fragments.

TAO_Pluggable_Message_Type msg_type (void) const
 Get message type.

TAO_Queued_Data * next (void) const
 Get next.

void next (TAO_Queued_Data *qd)
 Set next.

ACE_Message_Block * msg_block (void) const
 Get message block.

void msg_block (ACE_Message_Block *mb)
 Set message block.

void set_state (const TAO_GIOP_Message_State &state)
 Set the state.


Static Public Member Functions

TAO_Queued_Data * make_queued_data (ACE_Allocator *message_buffer_alloc=0, ACE_Allocator *input_cdr_alloc=0, ACE_Data_Block *db=0)
 Creation of a node in the queue.

void release (TAO_Queued_Data *qd)
 Deletion of a node from the queue.

TAO_Queued_Data * duplicate (TAO_Queued_Data &qd)

Static Private Member Functions

void replace_data_block (ACE_Message_Block &mb)

Private Attributes

ACE_Message_Block * msg_block_
 The message block that contains the message.

TAO_GIOP_Message_State state_
 State of this queued data.

TAO_Queued_Data * next_
 Pounter to the next element in the queue.

ACE_Allocator * allocator_
 The allocator used to allocate this class.

Missing Data details
The missing_data_ member contains the number of bytes of data missing from msg_block_.

size_t missing_data_

Detailed Description

Represents a node in the queue of incoming messages.

This class contains necessary information about a message that is stored in the queue. Such a node can be used by the incoming thread from the reactor to dequeue and process the message by sending it to the higher layers of the ORB.

The ACE_Message_Block contained within this class may contain a chain of message blocks (usually when GIOP fragments are involved). In that case consolidate () needs to be called prior to being sent to higher layers of the ORB when the GIOP fragment chain is complete.

Definition at line 47 of file Queued_Data.h.

Constructor & Destructor Documentation

ACE_INLINE TAO_Queued_Data::TAO_Queued_Data (  ACE_Allocator *  alloc = 0  )


Default Constructor.

Definition at line 34 of file Queued_Data.inl.

Referenced by duplicate(), and make_queued_data().

00035   : msg_block_ (0),
00036     missing_data_ (0),
00037     state_ (),
00038     next_ (0),
00039     allocator_ (alloc)
00040 {
00041 }

ACE_INLINE TAO_Queued_Data::TAO_Queued_Data (  ACE_Message_Block *  mb,
ACE_Allocator *  alloc = 0
)


Constructor.

Definition at line 44 of file Queued_Data.inl.

00046   : msg_block_ (mb),
00047     missing_data_ (0),
00048     state_ (),
00049     next_ (0),
00050     allocator_ (alloc)
00051 {
00052 }

ACE_INLINE TAO_Queued_Data::TAO_Queued_Data (  const TAO_Queued_Data &  qd  )


Copy constructor.

Definition at line 55 of file Queued_Data.inl.

00056   : msg_block_ (qd.msg_block_->duplicate ()),
00057     missing_data_ (qd.missing_data_),
00058     state_ (qd.state_),
00059     next_ (0),
00060     allocator_ (qd.allocator_)
00061 {
00062 }

Member Function Documentation

ACE_INLINE CORBA::Octet TAO_Queued_Data::byte_order (  void   )  const


Get byte_order.

Definition at line 84 of file Queued_Data.inl.

References TAO_GIOP_Message_State::byte_order().

Referenced by TAO_GIOP_Message_Base::parse_request_id(), TAO_GIOP_Message_Base::process_reply_message(), and TAO_GIOP_Message_Base::process_request_message().

00085 {
00086   return this->state_.byte_order ();
00087 }

int TAO_Queued_Data::consolidate (  void   )


Consolidate this fragments chained message blocks into one.

Returns:
-1 if consolidation failed, eg out or memory, otherwise 0

Definition at line 207 of file Queued_Data.cpp.

References clone_mb_nocopy_size(), ACE_CDR::consolidate(), ACE_Message_Block::cont(), TAO_GIOP_Message_State::more_fragments(), msg_block_, and ACE_Message_Block::release().

Referenced by TAO_GIOP_Message_Base::consolidate_fragmented_message().

00208 {
00209   // Is this a chain of fragments?
00210   if (this->state_.more_fragments () && this->msg_block_->cont () != 0)
00211     {
00212       // Create a message block big enough to hold the entire chain
00213       ACE_Message_Block *dest = clone_mb_nocopy_size (
00214                                       this->msg_block_,
00215                                       this->msg_block_->total_length ());
00216
00217       if (0 == dest)
00218         {
00219           // out of memory
00220           return -1;
00221         }
00222       // Memory allocation succeeded, the new message block can hold the consolidated
00223       // message. The following code just copies all the data into this new message block.
00224       // No further memory allocation will take place.
00225
00226       // Reset the cont() parameter.  We have cloned the message
00227       // block but not the chain as we will no longer have chain.
00228       dest->cont (0);
00229
00230       // Use ACE_CDR to consolidate the chain for us
00231       ACE_CDR::consolidate (dest, this->msg_block_);
00232
00233       // free the original message block chain
00234       this->msg_block_->release ();
00235
00236       // Set the message block to the new consolidated message block
00237       this->msg_block_ = dest;
00238       this->state_.more_fragments (0);
00239     }
00240
00241   return 0;
00242 }

TAO_Queued_Data * TAO_Queued_Data::duplicate (  TAO_Queued_Data &  qd  )  [static]


Duplicate ourselves. This creates a copy of ourselves on the heap and returns a pointer to the duplicated node.

Definition at line 160 of file Queued_Data.cpp.

References ACE_BIT_ENABLED, ACE_DEBUG, ACE_NEW_MALLOC_RETURN, ACE_NEW_RETURN, allocator_, LM_DEBUG, ACE_Allocator::malloc(), msg_block_, replace_data_block(), ACE_Message_Block::self_flags(), TAO_debug_level, and TAO_Queued_Data().

Referenced by TAO_Transport::handle_input_parse_data().

00161 {
00162   // Check to see if the underlying block is on the stack. If not it
00163   // is fine. If the datablock is on stack, try to make a copy of that
00164   // before doing a duplicate.
00165   // @@ todo: Theoretically this should be within the Message Block,
00166   // but we dont have much scope to do this in that mess. Probably in
00167   // the next stage of MB rewrite we should be okay
00168   ACE_Message_Block::Message_Flags fl =
00169     sqd.msg_block_->self_flags ();
00170
00171   if (ACE_BIT_ENABLED (fl,
00172                        ACE_Message_Block::DONT_DELETE))
00173     (void) TAO_Queued_Data::replace_data_block (*sqd.msg_block_);
00174
00175
00176   TAO_Queued_Data *qd = 0;
00177
00178   if (sqd.allocator_)
00179     {
00180       ACE_NEW_MALLOC_RETURN (qd,
00181                              static_cast<TAO_Queued_Data *> (
00182                                sqd.allocator_->malloc (sizeof (TAO_Queued_Data))),
00183                              TAO_Queued_Data (sqd),
00184                              0);
00185
00186       return qd;
00187     }
00188
00189   // No allocator, so use the global pool!
00190   // @@ TODO: We should be removing this at some point of time!
00191   if (TAO_debug_level == 4)
00192     {
00193       // This debug is for testing purposes!
00194       ACE_DEBUG ((LM_DEBUG,
00195                   "TAO (%P|%t) - Queued_Data[%d]::duplicate\n",
00196                   "Using global pool for allocation \n"));
00197     }
00198
00199   ACE_NEW_RETURN (qd,
00200                   TAO_Queued_Data (sqd),
00201                   0);
00202
00203   return qd;
00204 }

ACE_INLINE TAO_GIOP_Message_Version const & TAO_Queued_Data::giop_version (  void   )  const


Get the GIOP version.

Definition at line 78 of file Queued_Data.inl.

References TAO_GIOP_Message_State::giop_version().

Referenced by TAO_GIOP_Message_Base::consolidate_fragmented_message(), TAO_GIOP_Message_Base::discard_fragmented_message(), TAO_GIOP_Message_Base::parse_request_id(), TAO_GIOP_Message_Base::process_reply_message(), and TAO_GIOP_Message_Base::process_request_message().

00079 {
00080   return this->state_.giop_version ();
00081 }

TAO_Queued_Data * TAO_Queued_Data::make_queued_data (  ACE_Allocator *  message_buffer_alloc = 0,
ACE_Allocator *  input_cdr_alloc = 0,
ACE_Data_Block *  db = 0
)  [static]


Creation of a node in the queue.

Definition at line 80 of file Queued_Data.cpp.

References ACE_Message_Block, ACE_NEW_MALLOC_RETURN, ACE_NEW_RETURN, ACE_Allocator::malloc(), ACE_CDR::mb_align(), msg_block_, and TAO_Queued_Data().

Referenced by TAO_GIOP_Message_Base::make_queued_data().

00083 {
00084   // Get a node for the queue..
00085   TAO_Queued_Data *qd = 0;
00086
00087   if (message_buffer_alloc)
00088     {
00089       ACE_NEW_MALLOC_RETURN (qd,
00090                              static_cast<TAO_Queued_Data *> (
00091                                message_buffer_alloc->malloc (sizeof (TAO_Queued_Data))),
00092                              TAO_Queued_Data (message_buffer_alloc),
00093                              0);
00094
00095     }
00096   else
00097     {
00098       // No allocator, so use the global pool!
00099       ACE_NEW_RETURN (qd,
00100                       TAO_Queued_Data,
00101                       0);
00102     }
00103
00104   // Providing an ACE_Data_Block indicates that the caller wants
00105   // an aligned ACE_Message_Block added to the TAO_Queued_Data.
00106   if (db != 0)
00107     {
00108       // If this allocation fails, the TAO_Queued_Data will be leaked.
00109       if (input_cdr_alloc == 0)
00110         ACE_NEW_RETURN (qd->msg_block_,
00111                         ACE_Message_Block (db,
00112                                            0,
00113                                            input_cdr_alloc),
00114                         0);
00115       else
00116         ACE_NEW_MALLOC_RETURN (qd->msg_block_,
00117                                static_cast<ACE_Message_Block*> (
00118                                  input_cdr_alloc->malloc (sizeof (ACE_Message_Block))),
00119                                ACE_Message_Block (db,
00120                                                   0,
00121                                                   input_cdr_alloc),
00122                                0);
00123
00124       ACE_CDR::mb_align (qd->msg_block_);
00125     }
00126
00127   return qd;
00128 }

ACE_INLINE void TAO_Queued_Data::missing_data (  size_t  data  )


Set missing data.

Definition at line 72 of file Queued_Data.inl.

References missing_data_.

00073 {
00074   this->missing_data_ = data;
00075 }

ACE_INLINE size_t TAO_Queued_Data::missing_data (  void   )  const


Get missing data.

Definition at line 66 of file Queued_Data.inl.

References missing_data_.

Referenced by TAO_Transport::consolidate_enqueue_message(), TAO_GIOP_Message_Base::consolidate_node(), TAO_Transport::consolidate_process_message(), TAO_GIOP_Message_Base::extract_next_message(), TAO_Transport::handle_input(), TAO_Transport::handle_input_missing_data(), TAO_Transport::handle_input_parse_data(), TAO_Transport::handle_input_parse_extra_messages(), TAO_GIOP_Message_Base::parse_next_message(), and TAO_Transport::process_parsed_messages().

00067 {
00068   return this->missing_data_;
00069 }

ACE_INLINE CORBA::Octet TAO_Queued_Data::more_fragments (  void   )  const


Get more fragments.

Definition at line 90 of file Queued_Data.inl.

References TAO_GIOP_Message_State::more_fragments().

Referenced by TAO_Transport::consolidate_enqueue_message(), TAO_GIOP_Message_Base::consolidate_fragmented_message(), TAO_Transport::consolidate_process_message(), and TAO_Transport::handle_input_parse_data().

00091 {
00092   return this->state_.more_fragments ();
00093 }

ACE_INLINE void TAO_Queued_Data::msg_block (  ACE_Message_Block *  mb  )


Set message block.

Definition at line 120 of file Queued_Data.inl.

References msg_block_.

00121 {
00122   this->msg_block_ = mb;
00123 }

ACE_INLINE ACE_Message_Block * TAO_Queued_Data::msg_block (  void   )  const


Get message block.

Definition at line 114 of file Queued_Data.inl.

References msg_block_.

Referenced by TAO_GIOP_Message_Base::consolidate_fragmented_message(), TAO_GIOP_Message_Base::consolidate_node(), TAO_GIOP_Message_Base::extract_next_message(), TAO_Transport::handle_input_missing_data(), TAO_Transport::handle_input_parse_data(), TAO_GIOP_Message_Base::parse_next_message(), TAO_GIOP_Message_Base::parse_request_id(), TAO_Transport::process_parsed_messages(), TAO_GIOP_Message_Base::process_reply_message(), and TAO_GIOP_Message_Base::process_request_message().

00115 {
00116   return this->msg_block_;
00117 }

ACE_INLINE TAO_Pluggable_Message_Type TAO_Queued_Data::msg_type (  void   )  const


Get message type.

Definition at line 96 of file Queued_Data.inl.

References TAO_GIOP_Message_State::message_type().

Referenced by TAO_Transport::consolidate_enqueue_message(), TAO_Transport::consolidate_process_message(), TAO_GIOP_Message_Base::discard_fragmented_message(), TAO_Transport::handle_input_parse_data(), TAO_GIOP_Message_Base::parse_request_id(), TAO_Transport::process_parsed_messages(), TAO_GIOP_Message_Base::process_reply_message(), and TAO_GIOP_Message_Base::process_request_message().

00097 {
00098   return this->state_.message_type ();
00099 }

ACE_INLINE void TAO_Queued_Data::next (  TAO_Queued_Data *  qd  )


Set next.

Definition at line 108 of file Queued_Data.inl.

00109 {
00110   this->next_ = qd;
00111 }

ACE_INLINE TAO_Queued_Data * TAO_Queued_Data::next (  void   )  const


Get next.

Definition at line 102 of file Queued_Data.inl.

Referenced by TAO_Incoming_Message_Queue::dequeue_head(), TAO_Incoming_Message_Queue::dequeue_tail(), TAO_Incoming_Message_Queue::enqueue_tail(), TAO::Incoming_Message_Stack::pop(), and TAO::Incoming_Message_Stack::push().

00103 {
00104   return this->next_;
00105 }

void TAO_Queued_Data::release (  TAO_Queued_Data *  qd  )  [static]


Deletion of a node from the queue.

Definition at line 132 of file Queued_Data.cpp.

References ACE_DEBUG, ACE_DES_FREE, allocator_, ACE_Allocator::free(), LM_DEBUG, msg_block_, ACE_Message_Block::release(), and TAO_debug_level.

Referenced by TAO_Transport::consolidate_enqueue_message(), TAO_GIOP_Message_Base::consolidate_fragmented_message(), TAO_Transport::consolidate_process_message(), TAO_GIOP_Message_Base::discard_fragmented_message(), TAO_Transport::process_queue_head(), TAO::Incoming_Message_Stack::~Incoming_Message_Stack(), and TAO_Incoming_Message_Queue::~TAO_Incoming_Message_Queue().

00133 {
00134   //// TODO
00135   ACE_Message_Block::release (qd->msg_block_);
00136
00137   if (qd->allocator_)
00138     {
00139       ACE_DES_FREE (qd,
00140                     qd->allocator_->free,
00141                     TAO_Queued_Data);
00142
00143       return;
00144     }
00145
00146   // @todo: Need to be removed at some point of time!
00147   if (TAO_debug_level == 4)
00148     {
00149       // This debug is for testing purposes!
00150       ACE_DEBUG ((LM_DEBUG,
00151                   "TAO (%P|%t) - Queued_Data[%d]::release\n",
00152                   "Using global pool for releasing \n"));
00153     }
00154   delete qd;
00155
00156 }

TAO_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE void TAO_Queued_Data::replace_data_block (  ACE_Message_Block &  mb  )  [static, private]


Replace the datablock with a one allocated on the heap or allocator

Definition at line 9 of file Queued_Data.inl.

References ACE_Data_Block::clone_nocopy(), ACE_Message_Block::clr_self_flags(), ACE_Message_Block::copy(), ACE_Message_Block::data_block(), ACE_Data_Block::duplicate(), ACE_Message_Block::length(), ACE_CDR::mb_align(), ACE_Message_Block::rd_ptr(), ACE_Data_Block::size(), ACE_CDR::total_length(), and ACE_Message_Block::wr_ptr().

Referenced by duplicate().

00010 {
00011   size_t const newsize =
00012     ACE_CDR::total_length (&mb, 0) + ACE_CDR::MAX_ALIGNMENT;
00013
00014   ACE_Data_Block *db =
00015     mb.data_block ()->clone_nocopy ();
00016
00017   if (db->size (newsize) == -1)
00018     return;
00019
00020   ACE_Message_Block tmp (db);
00021   ACE_CDR::mb_align (&tmp);
00022
00023   tmp.copy (mb.rd_ptr (), mb.length());
00024   mb.data_block (tmp.data_block ()->duplicate ());
00025
00026   mb.rd_ptr (tmp.rd_ptr ());
00027   mb.wr_ptr (tmp.wr_ptr ());
00028
00029   // Remove the DONT_DELETE flags from mb
00030   mb.clr_self_flags (ACE_Message_Block::DONT_DELETE);
00031 }

ACE_INLINE void TAO_Queued_Data::set_state (  const TAO_GIOP_Message_State &  state  )


Set the state.

Definition at line 126 of file Queued_Data.inl.

Referenced by TAO_GIOP_Message_Base::consolidate_node(), TAO_GIOP_Message_Base::extract_next_message(), and TAO_GIOP_Message_Base::parse_next_message().

00127 {
00128   this->state_ = state;
00129 }

Member Data Documentation

ACE_Allocator* TAO_Queued_Data::allocator_ [private]


The allocator used to allocate this class.

Definition at line 138 of file Queued_Data.h.

Referenced by duplicate(), and release().

size_t TAO_Queued_Data::missing_data_ [private]


Data missing in the above message that hasn't been read or processed yet, the value TAO_MISSING_DATA_UNDEFINED indicates it hasn't been processed yet, otherwise greater or equal zero.

Definition at line 124 of file Queued_Data.h.

Referenced by missing_data().

ACE_Message_Block* TAO_Queued_Data::msg_block_ [private]


The message block that contains the message.

Definition at line 112 of file Queued_Data.h.

Referenced by consolidate(), duplicate(), make_queued_data(), msg_block(), and release().

TAO_Queued_Data* TAO_Queued_Data::next_ [private]


Pounter to the next element in the queue.

Definition at line 131 of file Queued_Data.h.

TAO_GIOP_Message_State TAO_Queued_Data::state_ [private]


State of this queued data.

Definition at line 128 of file Queued_Data.h.

The documentation for this class was generated from the following files:
Generated on Sun Jan 27 13:16:05 2008 for TAO by doxygen 1.3.6
