ACE_Proactor_Impl Class Reference

A manager for asynchronous event demultiplexing. This class is the base class for all the concrete implementation classes. More...

#include <Proactor_Impl.h>

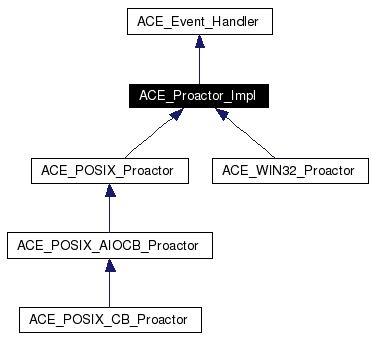

Inheritance diagram for ACE_Proactor_Impl:

Inheritance graph
[legend]

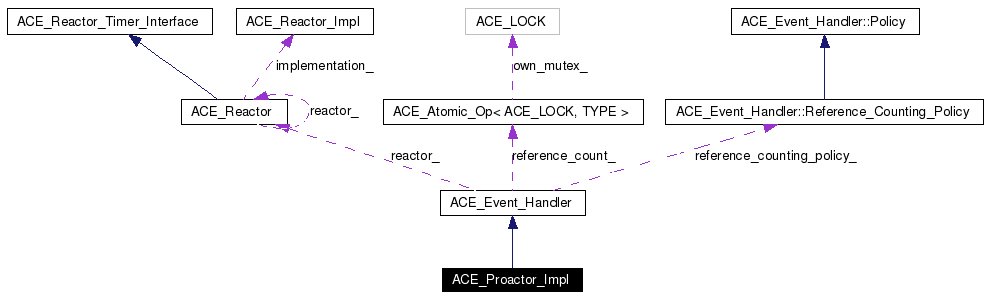

Collaboration diagram for ACE_Proactor_Impl:

Collaboration graph
[legend]
List of all members.

Public Member Functions

virtual ~ACE_Proactor_Impl (void)
 Virtual destruction.

virtual int close (void)=0
 Close the IO completion port.

virtual int register_handle (ACE_HANDLE handle, const void *completion_key)=0
virtual int handle_events (ACE_Time_Value &wait_time)=0
virtual int handle_events (void)=0
virtual int wake_up_dispatch_threads (void)=0
 Add wakeup dispatch threads (reinit).

virtual int close_dispatch_threads (int wait)=0
 Close all dispatch threads.

virtual size_t number_of_threads (void) const=0
 Get number of thread used as a parameter to CreatIoCompletionPort.

virtual void number_of_threads (size_t threads)=0
 Set number of thread used as a parameter to CreatIoCompletionPort.

virtual ACE_HANDLE get_handle (void) const=0
 Get the event handle.

virtual ACE_Asynch_Read_Stream_Impl * create_asynch_read_stream (void)=0
 Create the correct implementation class for doing Asynch_Read_Stream.

virtual ACE_Asynch_Write_Stream_Impl * create_asynch_write_stream (void)=0
 Create the correct implementation class for doing Asynch_Write_Stream.

virtual ACE_Asynch_Read_File_Impl * create_asynch_read_file (void)=0
 Create the correct implementation class for doing Asynch_Read_File.

virtual ACE_Asynch_Write_File_Impl * create_asynch_write_file (void)=0
 Create the correct implementation class for doing Asynch_Write_File.

virtual ACE_Asynch_Accept_Impl * create_asynch_accept (void)=0
 Create the correct implementation class for doing Asynch_Accept.

virtual ACE_Asynch_Connect_Impl * create_asynch_connect (void)=0
 Create the correct implementation class for doing Asynch_Connect.

virtual ACE_Asynch_Transmit_File_Impl * create_asynch_transmit_file (void)=0
 Create the correct implementation class for doing Asynch_Transmit_File.

virtual ACE_Asynch_Read_Dgram_Impl * create_asynch_read_dgram (void)=0
virtual ACE_Asynch_Write_Dgram_Impl * create_asynch_write_dgram (void)=0
virtual ACE_Asynch_Read_Stream_Result_Impl * create_asynch_read_stream_result (const ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE handle, ACE_Message_Block &message_block, size_t bytes_to_read, const void *act, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)=0
 Create the correct implementation class for ACE_Asynch_Read_Stream::Result class.

virtual ACE_Asynch_Write_Stream_Result_Impl * create_asynch_write_stream_result (const ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE handle, ACE_Message_Block &message_block, size_t bytes_to_write, const void *act, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)=0
 Create the correct implementation class for ACE_Asynch_Write_Stream::Result.

virtual ACE_Asynch_Read_File_Result_Impl * create_asynch_read_file_result (const ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE handle, ACE_Message_Block &message_block, size_t bytes_to_read, const void *act, u_long offset, u_long offset_high, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)=0
 Create the correct implementation class for ACE_Asynch_Read_File::Result.

virtual ACE_Asynch_Write_File_Result_Impl * create_asynch_write_file_result (const ACE_Handler::Proxy_Ptr &handler, ACE_HANDLE handle, ACE_Message_Block &message_block, size_t bytes_to_write, const void *act, u_long offset, u_long offset_high, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)=0
 Create the correct implementation class for ACE_Asynch_Write_File::Result.

virtual ACE_Asynch_Read_Dgram_Result_Impl * create_asynch_read_dgram_result (const ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE handle, ACE_Message_Block *message_block, size_t bytes_to_read, int flags, int protocol_family, const void *act, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)=0
 Create the correct implementation class for ACE_Asynch_Read_Dgram::Result.

virtual ACE_Asynch_Write_Dgram_Result_Impl * create_asynch_write_dgram_result (const ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE handle, ACE_Message_Block *message_block, size_t bytes_to_write, int flags, const void *act, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)=0
 Create the correct implementation class for ACE_Asynch_Write_Dgram::Result.

virtual ACE_Asynch_Accept_Result_Impl * create_asynch_accept_result (const ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE listen_handle, ACE_HANDLE accept_handle, ACE_Message_Block &message_block, size_t bytes_to_read, const void *act, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)=0
 Create the correct implementation class for ACE_Asynch_Accept::Result.

virtual ACE_Asynch_Connect_Result_Impl * create_asynch_connect_result (const ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE connect_handle, const void *act, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)=0
 Create the correct implementation class for ACE_Asynch_Connect::Result.

virtual ACE_Asynch_Transmit_File_Result_Impl * create_asynch_transmit_file_result (const ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE socket, ACE_HANDLE file, ACE_Asynch_Transmit_File::Header_And_Trailer *header_and_trailer, size_t bytes_to_write, u_long offset, u_long offset_high, size_t bytes_per_send, u_long flags, const void *act, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=ACE_SIGRTMIN)=0
 Create the correct implementation class for ACE_Asynch_Transmit_File::Result.

virtual ACE_Asynch_Result_Impl * create_asynch_timer (const ACE_Handler::Proxy_Ptr &handler_proxy, const void *act, const ACE_Time_Value &tv, ACE_HANDLE event=ACE_INVALID_HANDLE, int priority=0, int signal_number=0)=0
virtual int post_wakeup_completions (int how_many)=0

Detailed Description

A manager for asynchronous event demultiplexing. This class is the base class for all the concrete implementation classes.

See the Proactor pattern description at http://www.cs.wustl.edu/~schmidt/proactor.ps.gz for more details.

Definition at line 42 of file Proactor_Impl.h.

Constructor & Destructor Documentation

ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_Proactor_Impl::~ACE_Proactor_Impl (  void   )  [virtual]


Virtual destruction.

Definition at line 15 of file Proactor_Impl.cpp.

00016 {
00017 }

Member Function Documentation

virtual int ACE_Proactor_Impl::close (  void   )  [pure virtual]


Close the IO completion port.

Implemented in ACE_POSIX_Proactor, ACE_POSIX_AIOCB_Proactor, and ACE_WIN32_Proactor.

Referenced by ACE_Proactor::close().

virtual int ACE_Proactor_Impl::close_dispatch_threads (  int  wait  )  [pure virtual]


Close all dispatch threads.

Implemented in ACE_POSIX_Proactor, and ACE_WIN32_Proactor.

virtual ACE_Asynch_Accept_Impl* ACE_Proactor_Impl::create_asynch_accept (  void   )  [pure virtual]


Create the correct implementation class for doing Asynch_Accept.

Implemented in ACE_POSIX_Proactor, and ACE_WIN32_Proactor.

Referenced by ACE_Proactor::create_asynch_accept().

virtual ACE_Asynch_Accept_Result_Impl* ACE_Proactor_Impl::create_asynch_accept_result (  const ACE_Handler::Proxy_Ptr &  handler_proxy,
ACE_HANDLE  listen_handle,
ACE_HANDLE  accept_handle,
ACE_Message_Block &  message_block,
size_t  bytes_to_read,
const void *  act,
ACE_HANDLE  event = ACE_INVALID_HANDLE,
int  priority = 0,
int  signal_number = ACE_SIGRTMIN
)  [pure virtual]


Create the correct implementation class for ACE_Asynch_Accept::Result.

Implemented in ACE_POSIX_Proactor, and ACE_WIN32_Proactor.

virtual ACE_Asynch_Connect_Impl* ACE_Proactor_Impl::create_asynch_connect (  void   )  [pure virtual]


Create the correct implementation class for doing Asynch_Connect.

Implemented in ACE_POSIX_Proactor, and ACE_WIN32_Proactor.

Referenced by ACE_Proactor::create_asynch_connect().

virtual ACE_Asynch_Connect_Result_Impl* ACE_Proactor_Impl::create_asynch_connect_result (  const ACE_Handler::Proxy_Ptr &  handler_proxy,
ACE_HANDLE  connect_handle,
const void *  act,
ACE_HANDLE  event = ACE_INVALID_HANDLE,
int  priority = 0,
int  signal_number = ACE_SIGRTMIN
)  [pure virtual]


Create the correct implementation class for ACE_Asynch_Connect::Result.

Implemented in ACE_POSIX_Proactor, and ACE_WIN32_Proactor.

virtual ACE_Asynch_Read_Dgram_Impl* ACE_Proactor_Impl::create_asynch_read_dgram (  void   )  [pure virtual]


Create the correct implementation class for doing Asynch_Read_Dgram.

Implemented in ACE_POSIX_Proactor, and ACE_WIN32_Proactor.

Referenced by ACE_Proactor::create_asynch_read_dgram().

virtual ACE_Asynch_Read_Dgram_Result_Impl* ACE_Proactor_Impl::create_asynch_read_dgram_result (  const ACE_Handler::Proxy_Ptr &  handler_proxy,
ACE_HANDLE  handle,
ACE_Message_Block *  message_block,
size_t  bytes_to_read,
int  flags,
int  protocol_family,
const void *  act,
ACE_HANDLE  event = ACE_INVALID_HANDLE,
int  priority = 0,
int  signal_number = ACE_SIGRTMIN
)  [pure virtual]


Create the correct implementation class for ACE_Asynch_Read_Dgram::Result.

Implemented in ACE_POSIX_Proactor, and ACE_WIN32_Proactor.

virtual ACE_Asynch_Read_File_Impl* ACE_Proactor_Impl::create_asynch_read_file (  void   )  [pure virtual]


Create the correct implementation class for doing Asynch_Read_File.

Implemented in ACE_POSIX_Proactor, and ACE_WIN32_Proactor.

Referenced by ACE_Proactor::create_asynch_read_file().

virtual ACE_Asynch_Read_File_Result_Impl* ACE_Proactor_Impl::create_asynch_read_file_result (  const ACE_Handler::Proxy_Ptr &  handler_proxy,
ACE_HANDLE  handle,
ACE_Message_Block &  message_block,
size_t  bytes_to_read,
const void *  act,
u_long  offset,
u_long  offset_high,
ACE_HANDLE  event = ACE_INVALID_HANDLE,
int  priority = 0,
int  signal_number = ACE_SIGRTMIN
)  [pure virtual]


Create the correct implementation class for ACE_Asynch_Read_File::Result.

Implemented in ACE_POSIX_Proactor, and ACE_WIN32_Proactor.

virtual ACE_Asynch_Read_Stream_Impl* ACE_Proactor_Impl::create_asynch_read_stream (  void   )  [pure virtual]


Create the correct implementation class for doing Asynch_Read_Stream.

Implemented in ACE_POSIX_Proactor, and ACE_WIN32_Proactor.

Referenced by ACE_Proactor::create_asynch_read_stream().

virtual ACE_Asynch_Read_Stream_Result_Impl* ACE_Proactor_Impl::create_asynch_read_stream_result (  const ACE_Handler::Proxy_Ptr &  handler_proxy,
ACE_HANDLE  handle,
ACE_Message_Block &  message_block,
size_t  bytes_to_read,
const void *  act,
ACE_HANDLE  event = ACE_INVALID_HANDLE,
int  priority = 0,
int  signal_number = ACE_SIGRTMIN
)  [pure virtual]


Create the correct implementation class for ACE_Asynch_Read_Stream::Result class.

Implemented in ACE_POSIX_Proactor, and ACE_WIN32_Proactor.

virtual ACE_Asynch_Result_Impl* ACE_Proactor_Impl::create_asynch_timer (  const ACE_Handler::Proxy_Ptr &  handler_proxy,
const void *  act,
const ACE_Time_Value &  tv,
ACE_HANDLE  event = ACE_INVALID_HANDLE,
int  priority = 0,
int  signal_number = 0
)  [pure virtual]


Create the correct implementation object for the Timer result. POSIX_SIG_Proactor will create a Timer object with a meaningful signal number, if you leave the signal number as 0.

Implemented in ACE_POSIX_Proactor, and ACE_WIN32_Proactor.

virtual ACE_Asynch_Transmit_File_Impl* ACE_Proactor_Impl::create_asynch_transmit_file (  void   )  [pure virtual]


Create the correct implementation class for doing Asynch_Transmit_File.

Implemented in ACE_POSIX_Proactor, and ACE_WIN32_Proactor.

Referenced by ACE_Proactor::create_asynch_transmit_file().

virtual ACE_Asynch_Transmit_File_Result_Impl* ACE_Proactor_Impl::create_asynch_transmit_file_result (  const ACE_Handler::Proxy_Ptr &  handler_proxy,
ACE_HANDLE  socket,
ACE_HANDLE  file,
ACE_Asynch_Transmit_File::Header_And_Trailer *  header_and_trailer,
size_t  bytes_to_write,
u_long  offset,
u_long  offset_high,
size_t  bytes_per_send,
u_long  flags,
const void *  act,
ACE_HANDLE  event = ACE_INVALID_HANDLE,
int  priority = 0,
int  signal_number = ACE_SIGRTMIN
)  [pure virtual]


Create the correct implementation class for ACE_Asynch_Transmit_File::Result.

Implemented in ACE_POSIX_Proactor, and ACE_WIN32_Proactor.

virtual ACE_Asynch_Write_Dgram_Impl* ACE_Proactor_Impl::create_asynch_write_dgram (  void   )  [pure virtual]


Create the correct implementation class for doing Asynch_Write_Dgram.

Implemented in ACE_POSIX_Proactor, and ACE_WIN32_Proactor.

Referenced by ACE_Proactor::create_asynch_write_dgram().

virtual ACE_Asynch_Write_Dgram_Result_Impl* ACE_Proactor_Impl::create_asynch_write_dgram_result (  const ACE_Handler::Proxy_Ptr &  handler_proxy,
ACE_HANDLE  handle,
ACE_Message_Block *  message_block,
size_t  bytes_to_write,
int  flags,
const void *  act,
ACE_HANDLE  event = ACE_INVALID_HANDLE,
int  priority = 0,
int  signal_number = ACE_SIGRTMIN
)  [pure virtual]


Create the correct implementation class for ACE_Asynch_Write_Dgram::Result.

Implemented in ACE_POSIX_Proactor, and ACE_WIN32_Proactor.

virtual ACE_Asynch_Write_File_Impl* ACE_Proactor_Impl::create_asynch_write_file (  void   )  [pure virtual]


Create the correct implementation class for doing Asynch_Write_File.

Implemented in ACE_POSIX_Proactor, and ACE_WIN32_Proactor.

Referenced by ACE_Proactor::create_asynch_write_file().

virtual ACE_Asynch_Write_File_Result_Impl* ACE_Proactor_Impl::create_asynch_write_file_result (  const ACE_Handler::Proxy_Ptr &  handler,
ACE_HANDLE  handle,
ACE_Message_Block &  message_block,
size_t  bytes_to_write,
const void *  act,
u_long  offset,
u_long  offset_high,
ACE_HANDLE  event = ACE_INVALID_HANDLE,
int  priority = 0,
int  signal_number = ACE_SIGRTMIN
)  [pure virtual]


Create the correct implementation class for ACE_Asynch_Write_File::Result.

Implemented in ACE_POSIX_Proactor, and ACE_WIN32_Proactor.

virtual ACE_Asynch_Write_Stream_Impl* ACE_Proactor_Impl::create_asynch_write_stream (  void   )  [pure virtual]


Create the correct implementation class for doing Asynch_Write_Stream.

Implemented in ACE_POSIX_Proactor, and ACE_WIN32_Proactor.

Referenced by ACE_Proactor::create_asynch_write_stream().

virtual ACE_Asynch_Write_Stream_Result_Impl* ACE_Proactor_Impl::create_asynch_write_stream_result (  const ACE_Handler::Proxy_Ptr &  handler_proxy,
ACE_HANDLE  handle,
ACE_Message_Block &  message_block,
size_t  bytes_to_write,
const void *  act,
ACE_HANDLE  event = ACE_INVALID_HANDLE,
int  priority = 0,
int  signal_number = ACE_SIGRTMIN
)  [pure virtual]


Create the correct implementation class for ACE_Asynch_Write_Stream::Result.

Implemented in ACE_POSIX_Proactor, and ACE_WIN32_Proactor.

virtual ACE_HANDLE ACE_Proactor_Impl::get_handle (  void   )  const [pure virtual]


Get the event handle.

Reimplemented from ACE_Event_Handler.

Implemented in ACE_POSIX_Proactor, and ACE_WIN32_Proactor.

Referenced by ACE_Proactor::get_handle().

virtual int ACE_Proactor_Impl::handle_events (  void   )  [pure virtual]


Block indefinitely until at least one event is dispatched. Dispatch a single set of events. If elapses before any events occur, return 0. Return 1 on success i.e., when a completion is dispatched, non-zero (-1) on errors and errno is set accordingly.

Implemented in ACE_POSIX_CB_Proactor, ACE_POSIX_Proactor, ACE_POSIX_AIOCB_Proactor, and ACE_WIN32_Proactor.

virtual int ACE_Proactor_Impl::handle_events (  ACE_Time_Value &  wait_time  )  [pure virtual]


Dispatch a single set of events. If wait_time elapses before any events occur, return 0. Return 1 on success i.e., when a completion is dispatched, non-zero (-1) on errors and errno is set accordingly.

Implemented in ACE_POSIX_CB_Proactor, ACE_POSIX_Proactor, ACE_POSIX_AIOCB_Proactor, and ACE_WIN32_Proactor.

Referenced by ACE_Proactor::handle_events().

virtual void ACE_Proactor_Impl::number_of_threads (  size_t  threads  )  [pure virtual]


Set number of thread used as a parameter to CreatIoCompletionPort.

Implemented in ACE_POSIX_Proactor, and ACE_WIN32_Proactor.

virtual size_t ACE_Proactor_Impl::number_of_threads (  void   )  const [pure virtual]


Get number of thread used as a parameter to CreatIoCompletionPort.

Implemented in ACE_POSIX_Proactor, and ACE_WIN32_Proactor.

Referenced by ACE_Proactor::number_of_threads().

virtual int ACE_Proactor_Impl::post_wakeup_completions (  int  how_many  )  [pure virtual]


Post how_many completions to the completion port so that all threads can wake up. This is used in conjunction with the .

Implemented in ACE_POSIX_Proactor, and ACE_WIN32_Proactor.

Referenced by ACE_Proactor::proactor_post_wakeup_completions().

virtual int ACE_Proactor_Impl::register_handle (  ACE_HANDLE  handle,
const void *  completion_key
)  [pure virtual]


This method adds the handle to the I/O completion port. This function is a no-op function for Unix systems.

Implemented in ACE_POSIX_Proactor, and ACE_WIN32_Proactor.

Referenced by ACE_Proactor::register_handle().

virtual int ACE_Proactor_Impl::wake_up_dispatch_threads (  void   )  [pure virtual]


Add wakeup dispatch threads (reinit).

Implemented in ACE_POSIX_Proactor, and ACE_WIN32_Proactor.

The documentation for this class was generated from the following files:
Generated on Thu Nov 9 11:27:17 2006 for ACE by doxygen 1.3.6
