ACE_Asynch_Write_Dgram_Impl Class Reference

Abstract base class for all the concrete implementation classes that provide different implementations for the ACE_Asynch_Write_Dgram class. More...

#include <Asynch_IO_Impl.h>

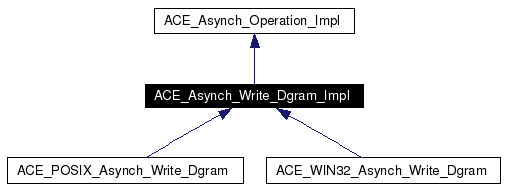

Inheritance diagram for ACE_Asynch_Write_Dgram_Impl:

[legend]Collaboration diagram for ACE_Asynch_Write_Dgram_Impl:

[legend]List of all members.

Public Member Functions
virtual	~ACE_Asynch_Write_Dgram_Impl (void)
virtual ssize_t	send (ACE_Message_Block *message_block, size_t &number_of_bytes_sent, int flags, const ACE_Addr &addr, const void *act, int priority, int signal_number)=0
Protected Member Functions
	ACE_Asynch_Write_Dgram_Impl (void)
	Do-nothing constructor.

---

Detailed Description

Abstract base class for all the concrete implementation classes that provide different implementations for the ACE_Asynch_Write_Dgram class.

Definition at line 733 of file Asynch_IO_Impl.h.

---

Constructor & Destructor Documentation

ACE_Asynch_Write_Dgram_Impl::~ACE_Asynch_Write_Dgram_Impl (  void   )  [virtual]

Definition at line 87 of file Asynch_IO_Impl.cpp. { }

ACE_Asynch_Write_Dgram_Impl::ACE_Asynch_Write_Dgram_Impl (  void   )  [protected]

Do-nothing constructor. Definition at line 91 of file Asynch_IO_Impl.cpp. { }

---

Member Function Documentation

virtual ssize_t ACE_Asynch_Write_Dgram_Impl::send (  ACE_Message_Block *  message_block, size_t &  number_of_bytes_sent, int  flags, const ACE_Addr &  addr, const void *  act, int  priority, int  signal_number )  [pure virtual]

This starts off an asynchronous send. Upto <message_block->total_length()> will be sent. 's will be updated to reflect the sent bytes if the send operation is successful completed. Return code of 1 means immediate success and is updated to number of bytes sent. The <ACE_Handler::handle_write_dgram> method will still be called. Return code of 0 means the IO will complete proactively. Return code of -1 means there was an error, use errno to get the error code. Scatter/gather is supported on WIN32 by using the <message_block->cont()> method. Up to ACE_IOV_MAX 's are supported. Upto <message_block->length()> bytes will be sent from each for a total of <message_block->total_length()> bytes. All 's 's will be updated to reflect the bytes sent from each . Priority of the operation is specified by . On POSIX4-Unix, this is supported. Works like in Unix. Negative values are not allowed. 0 means priority of the operation same as the process priority. 1 means priority of the operation is one less than process. And so forth. On Win32, this argument is a no-op. is the POSIX4 real-time signal number to be used for the operation. ranges from ACE_SIGRTMIN to ACE_SIGRTMAX. This argument is a no-op on non-POSIX4 systems. Implemented in ACE_POSIX_Asynch_Write_Dgram, and ACE_WIN32_Asynch_Write_Dgram. Referenced by ACE_Asynch_Write_Dgram::send().

---

The documentation for this class was generated from the following files:

• Asynch_IO_Impl.h
• Asynch_IO_Impl.cpp

---
