ACE_Asynch_Read_Dgram::Result Class Reference

This is the class which will be passed back to the {handler} when the asynchronous read completes. This class forwards all the methods to the implementation classes. More...

#include <Asynch_IO.h>

Inheritance diagram for ACE_Asynch_Read_Dgram::Result:

Inheritance graph
[legend]

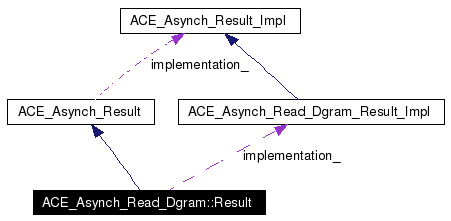

Collaboration diagram for ACE_Asynch_Read_Dgram::Result:

Collaboration graph
[legend]
List of all members.

Public Member Functions

size_t bytes_to_read (void) const
ACE_Message_Blockmessage_block (void) const
 Message block which contains the read data.

int flags (void) const
 The flags used in the read.

int remote_address (ACE_Addr &addr) const
 The address of where the packet came from.

ACE_HANDLE handle (void) const
 I/O handle used for reading.

ACE_Asynch_Read_Dgram_Result_Implimplementation (void) const
 Get the implementation class.


Protected Member Functions

 Result (ACE_Asynch_Read_Dgram_Result_Impl *implementation)
 Constructor.

virtual ~Result (void)
 Destructor.


Protected Attributes

ACE_Asynch_Read_Dgram_Result_Implimplementation_
 The implementation class.


Friends

class ACE_POSIX_Asynch_Read_Dgram_Result
class ACE_WIN32_Asynch_Read_Dgram_Result

Detailed Description

This is the class which will be passed back to the {handler} when the asynchronous read completes. This class forwards all the methods to the implementation classes.

This class has all the information necessary for the {handler} to uniquiely identify the completion of the asynchronous read.

Definition at line 1333 of file Asynch_IO.h.


Constructor & Destructor Documentation

ACE_Asynch_Read_Dgram::Result::Result ACE_Asynch_Read_Dgram_Result_Impl implementation  )  [protected]


Constructor.

Definition at line 1216 of file Asynch_IO.cpp.

01217 : ACE_Asynch_Result (implementation),
01218   implementation_ (implementation)
01219 {
01220 }

ACE_Asynch_Read_Dgram::Result::~Result void   )  [protected, virtual]


Destructor.

Definition at line 1222 of file Asynch_IO.cpp.

01223 {
01224 }


Member Function Documentation

size_t ACE_Asynch_Read_Dgram::Result::bytes_to_read void   )  const


The number of bytes which were requested at the start of the asynchronous read.

Definition at line 1205 of file Asynch_IO.cpp.

References ACE_Asynch_Read_Dgram_Result_Impl::bytes_to_read(), and implementation().

01206 {
01207   return this->implementation ()->bytes_to_read ();
01208 }

int ACE_Asynch_Read_Dgram::Result::flags void   )  const


The flags used in the read.

Definition at line 1199 of file Asynch_IO.cpp.

References ACE_Asynch_Read_Dgram_Result_Impl::flags(), and implementation().

01200 {
01201   return this->implementation ()->flags ();
01202 }

ACE_HANDLE ACE_Asynch_Read_Dgram::Result::handle void   )  const


I/O handle used for reading.

Definition at line 1211 of file Asynch_IO.cpp.

References ACE_Asynch_Read_Dgram_Result_Impl::handle(), and implementation().

01212 {
01213   return this->implementation ()->handle();
01214 }

ACE_Asynch_Read_Dgram_Result_Impl * ACE_Asynch_Read_Dgram::Result::implementation void   )  const


Get the implementation class.

Reimplemented from ACE_Asynch_Result.

Definition at line 1227 of file Asynch_IO.cpp.

Referenced by bytes_to_read(), flags(), handle(), message_block(), and remote_address().

01228 {
01229   return this->implementation_;
01230 }

ACE_Message_Block * ACE_Asynch_Read_Dgram::Result::message_block void   )  const


Message block which contains the read data.

Definition at line 1193 of file Asynch_IO.cpp.

References implementation(), and ACE_Asynch_Read_Dgram_Result_Impl::message_block().

01194 {
01195   return this->implementation ()->message_block ();
01196 }

int ACE_Asynch_Read_Dgram::Result::remote_address ACE_Addr addr  )  const


The address of where the packet came from.

Definition at line 1187 of file Asynch_IO.cpp.

References implementation(), and ACE_Asynch_Read_Dgram_Result_Impl::remote_address().

01188 {
01189   return this->implementation ()->remote_address (addr);
01190 }


Friends And Related Function Documentation

friend class ACE_POSIX_Asynch_Read_Dgram_Result [friend]


The concrete implementation result classes only construct this class.

Definition at line 1338 of file Asynch_IO.h.

friend class ACE_WIN32_Asynch_Read_Dgram_Result [friend]


Definition at line 1339 of file Asynch_IO.h.


Member Data Documentation

ACE_Asynch_Read_Dgram_Result_Impl* ACE_Asynch_Read_Dgram::Result::implementation_ [protected]


The implementation class.

Reimplemented from ACE_Asynch_Result.

Definition at line 1370 of file Asynch_IO.h.


The documentation for this class was generated from the following files:
