ACE_Asynch_Transmit_File_Result_Impl Class Reference

Abstract base class for all the concrete implementation classes that provide different implementations for the ACE_Asynch_Transmit_File::Result. More...

#include <Asynch_IO_Impl.h>

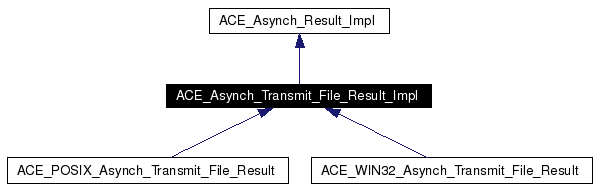

Inheritance diagram for ACE_Asynch_Transmit_File_Result_Impl:

Inheritance graph
[legend]
Collaboration diagram for ACE_Asynch_Transmit_File_Result_Impl:

Collaboration graph
[legend]
List of all members.

Public Member Functions

virtual ~ACE_Asynch_Transmit_File_Result_Impl (void)
virtual ACE_HANDLE socket (void) const=0
 Socket used for transmitting the file.

virtual ACE_HANDLE file (void) const=0
 File from which the data is read.

virtual ACE_Asynch_Transmit_File::Header_And_Trailer * header_and_trailer (void) const=0
 Header and trailer data associated with this transmit file.

virtual size_t bytes_to_write (void) const=0
virtual size_t bytes_per_send (void) const=0
virtual u_long flags (void) const=0
 Flags which were passed into transmit file.


Protected Member Functions

 ACE_Asynch_Transmit_File_Result_Impl (void)
 Do-nothing constructor.

Detailed Description

Abstract base class for all the concrete implementation classes that provide different implementations for the ACE_Asynch_Transmit_File::Result.

Definition at line 608 of file Asynch_IO_Impl.h.

Constructor & Destructor Documentation

ACE_Asynch_Transmit_File_Result_Impl::~ACE_Asynch_Transmit_File_Result_Impl (  void   )  [virtual]


Definition at line 75 of file Asynch_IO_Impl.cpp.

00076 {
00077 }

ACE_INLINE ACE_Asynch_Transmit_File_Result_Impl::ACE_Asynch_Transmit_File_Result_Impl (  void   )  [protected]


Do-nothing constructor.

Definition at line 101 of file Asynch_IO_Impl.inl.

00102   : ACE_Asynch_Result_Impl ()
00103 {
00104 }

Member Function Documentation

virtual size_t ACE_Asynch_Transmit_File_Result_Impl::bytes_per_send (  void   )  const [pure virtual]


Number of bytes per send requested at the start of the transmit file.

Implemented in ACE_POSIX_Asynch_Transmit_File_Result, and ACE_WIN32_Asynch_Transmit_File_Result.

Referenced by ACE_Asynch_Transmit_File::Result::bytes_per_send().

virtual size_t ACE_Asynch_Transmit_File_Result_Impl::bytes_to_write (  void   )  const [pure virtual]


The number of bytes which were requested at the start of the asynchronous transmit file.

Implemented in ACE_POSIX_Asynch_Transmit_File_Result, and ACE_WIN32_Asynch_Transmit_File_Result.

Referenced by ACE_Asynch_Transmit_File::Result::bytes_to_write().

virtual ACE_HANDLE ACE_Asynch_Transmit_File_Result_Impl::file (  void   )  const [pure virtual]


File from which the data is read.

Implemented in ACE_POSIX_Asynch_Transmit_File_Result, and ACE_WIN32_Asynch_Transmit_File_Result.

Referenced by ACE_Asynch_Transmit_File::Result::file().

virtual u_long ACE_Asynch_Transmit_File_Result_Impl::flags (  void   )  const [pure virtual]


Flags which were passed into transmit file.

Implemented in ACE_POSIX_Asynch_Transmit_File_Result, and ACE_WIN32_Asynch_Transmit_File_Result.

Referenced by ACE_Asynch_Transmit_File::Result::flags().

virtual ACE_Asynch_Transmit_File::Header_And_Trailer* ACE_Asynch_Transmit_File_Result_Impl::header_and_trailer (  void   )  const [pure virtual]


Header and trailer data associated with this transmit file.

Implemented in ACE_POSIX_Asynch_Transmit_File_Result, and ACE_WIN32_Asynch_Transmit_File_Result.

Referenced by ACE_Asynch_Transmit_File::Result::header_and_trailer().

virtual ACE_HANDLE ACE_Asynch_Transmit_File_Result_Impl::socket (  void   )  const [pure virtual]


Socket used for transmitting the file.

Implemented in ACE_POSIX_Asynch_Transmit_File_Result, and ACE_WIN32_Asynch_Transmit_File_Result.

Referenced by ACE_Asynch_Transmit_File::Result::socket().

The documentation for this class was generated from the following files:
