TAO::Remote_Invocation Class Reference

Base class for remote invocations. More...

#include <Remote_Invocation.h>

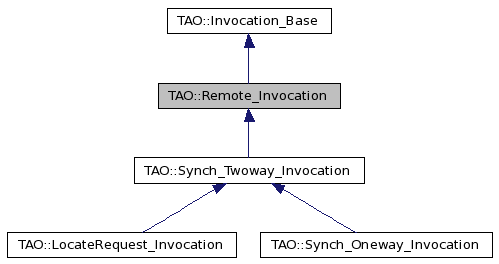

Inheritance diagram for TAO::Remote_Invocation:

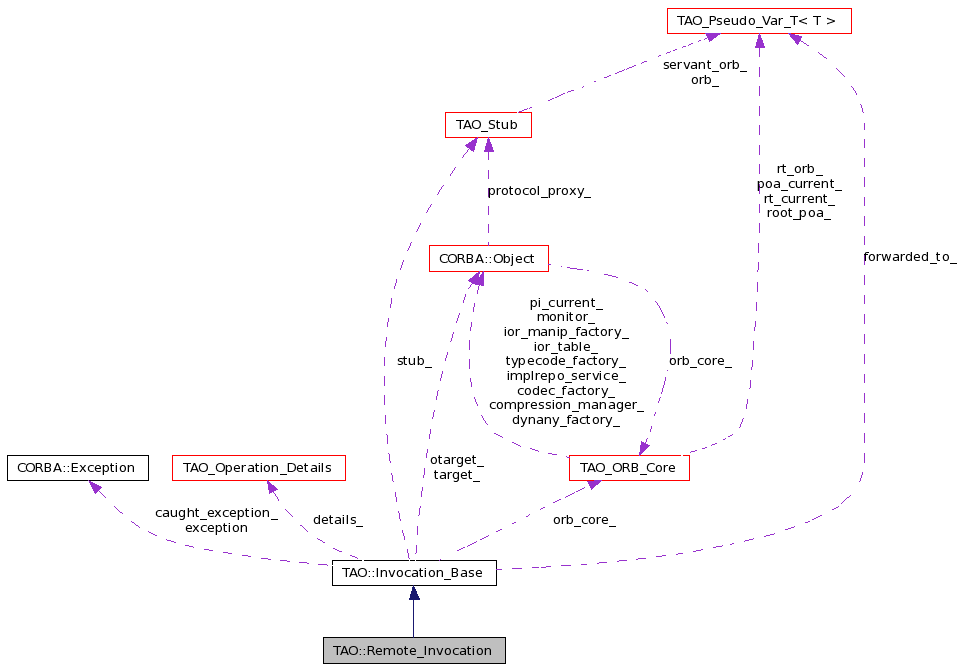

[legend]Collaboration diagram for TAO::Remote_Invocation:

[legend]List of all members.

Public Member Functions
	Remote_Invocation (CORBA::Object_ptr otarget, Profile_Transport_Resolver &resolver, TAO_Operation_Details &detail, bool response_expected)
Protected Member Functions
void	init_target_spec (TAO_Target_Specification &spec)
	Initialize the spec.
void	write_header (TAO_OutputCDR &out_stream)
	Write the GIOP header into the stream.
void	marshal_data (TAO_OutputCDR &cdr)
	Marshal the arguments into the stream.
Invocation_Status	send_message (TAO_OutputCDR &cdr, TAO_Transport::TAO_Message_Semantics message_semantics, ACE_Time_Value *max_wait_time)
	Write the message onto the socket.
Protected Attributes
Profile_Transport_Resolver &	resolver_
	Our resolver.

---

Detailed Description

Base class for remote invocations.

This class encapulates some of the common functionalities used by synchronous, asynchronous, DII and DSI invocations.

Definition at line 46 of file Remote_Invocation.h.

---

Constructor & Destructor Documentation

TAO::Remote_Invocation::Remote_Invocation	(	CORBA::Object_ptr	otarget,
		Profile_Transport_Resolver &	resolver,
		TAO_Operation_Details &	detail,
		bool	response_expected
	)

Parameters:

	otarget	The original target on which this invocation was started. This is there to be passed up to its parent class.
	resolver	The profile and transport holder.
	detail	Pperation details of the invocation on the target
	response_expected	Flag to indicate whether the operation encapsulated by op returns a response or not.

Definition at line 23 of file Remote_Invocation.cpp.

    : Invocation_Base (otarget,
                       resolver.object (),
                       resolver.stub (),
                       detail,
                       response_expected,
                       true /* request_is_remote */ )
    , resolver_ (resolver)
  {
  }

---

Member Function Documentation

void TAO::Remote_Invocation::init_target_spec

(

TAO_Target_Specification &

spec

)

[protected]

Initialize the spec.

Mega hack for RTCORBA start. I don't think that PortableInterceptor would work here esp. for RTCORBA. PI needs to be improved to help our cause.

Mega hack for RTCORBA END

Definition at line 39 of file Remote_Invocation.cpp.

References ACE_ERROR, ACE_TEXT, TAO_Profile::addressing_mode(), TAO_Profile::create_tagged_profile(), TAO_Target_Specification::Key_Addr, LM_ERROR, TAO_Profile::object_key(), TAO_Stub::orb_core(), TAO::Profile_Transport_Resolver::profile(), TAO_Target_Specification::Profile_Addr, TAO_Target_Specification::Reference_Addr, TAO_Operation_Details::request_service_context(), resolver_, TAO_ORB_Core::service_context_list(), TAO::Profile_Transport_Resolver::stub(), TAO_debug_level, and TAO_Target_Specification::target_specifier().

Referenced by write_header().

  {
    /**
     * Mega hack for RTCORBA start. I don't think that
     * PortableInterceptor  would work here esp. for RTCORBA. PI needs
     * to be improved to  help our cause.
     */
    this->resolver_.stub ()->orb_core ()->service_context_list (
      this->resolver_.stub (),
      this->details_.request_service_context (),
      0);
    /**
     * Mega hack for RTCORBA END
     */

    TAO_Profile *pfile = this->resolver_.profile ();

    // Set the target specification mode
    switch (pfile->addressing_mode ())
      {
      case TAO_Target_Specification::Key_Addr:
        target_spec.target_specifier (pfile->object_key ());
        break;
      case TAO_Target_Specification::Profile_Addr:
        {
          IOP::TaggedProfile *tp =
            pfile->create_tagged_profile ();

          if (tp)
            {
              target_spec.target_specifier (*tp);
            }
        }
        break;

    case TAO_Target_Specification::Reference_Addr:
      // We need to call the method seperately. If there is no
      // IOP::IOR info, the call would create the info and return the
      // index that we need.
      CORBA::ULong index = 0;
      IOP::IOR *ior_info = 0;

      if (this->resolver_.stub ()->create_ior_info (ior_info, index) == -1)
        {
          if (TAO_debug_level > 0)
            {
              ACE_ERROR ((LM_ERROR,
                          ACE_TEXT ("TAO (%P|%t) - ")
                          ACE_TEXT ("Remote_Invocation::init_target_spec, ")
                          ACE_TEXT ("Error in finding index for ")
                          ACE_TEXT ("IOP::IOR \n")));
            }

          return;
        }

      target_spec.target_specifier (*ior_info, index);
      break;
    }
  }

void TAO::Remote_Invocation::marshal_data

(

TAO_OutputCDR &

cdr

)

[protected]

Marshal the arguments into the stream.

Definition at line 120 of file Remote_Invocation.cpp.

  {
    if (this->details_.marshal_args (out_stream) == false)
      {
        throw ::CORBA::MARSHAL ();
      }
  }

Invocation_Status TAO::Remote_Invocation::send_message	(	TAO_OutputCDR &	cdr,
		TAO_Transport::TAO_Message_Semantics	message_semantics,
		ACE_Time_Value *	max_wait_time
	)			[protected]

Write the message onto the socket.

Definition at line 129 of file Remote_Invocation.cpp.

References CORBA::SystemException::_tao_minor_code(), ACE_DEBUG, ACE_TEXT, TAO_Transport::close_connection(), CORBA::COMPLETED_MAYBE, TAO_Transport::connection_handler(), TAO_Network_Priority_Protocols_Hooks::get_dscp_codepoint(), TAO_ORB_Core::get_protocols_hooks(), LM_DEBUG, TAO::Profile_Transport_Resolver::object(), TAO_Stub::orb_core(), TAO_Stub::reset_profiles(), resolver_, TAO_Transport::send_request(), TAO_Protocols_Hooks::set_client_network_priority(), TAO_Connection_Handler::set_dscp_codepoint(), TAO_Stub::set_valid_profile(), TAO::Profile_Transport_Resolver::stub(), TAO_debug_level, TAO::TAO_INVOKE_RESTART, TAO::TAO_INVOKE_SUCCESS, TAO_TIMEOUT_SEND_MINOR_CODE, and TAO::Profile_Transport_Resolver::transport().

  {
    TAO_Protocols_Hooks *tph =
      this->resolver_.stub ()->orb_core ()->get_protocols_hooks ();

    TAO_Network_Priority_Protocols_Hooks *nph =
      this->resolver_.stub ()->orb_core ()->
        get_network_priority_protocols_hooks ();

    TAO_Connection_Handler *connection_handler =
      this->resolver_.transport ()->connection_handler ();

    if (nph != 0)
      {
        // nph = 0, means DiffServ library is not used
        // nph = 0, means DiffServ library is used, and
        // request DSCP and reply DSCP are set.
        // Note that the application could still be using
        // RTCORBA, but still setting DIffServ codepoints
        // using the DiffServ library takes precedence.
        //
        CORBA::Long const dscp = nph->get_dscp_codepoint (this->resolver_.stub (),
          this->resolver_.object ());
        connection_handler->set_dscp_codepoint (dscp);
      }
    else if (tph != 0)
      {
        // If we execute this code, DiffServ library is not used,
        // but RTCORBA could be used.
        // Which means that using the enable_network_priority flag,
        // the application might want to set DiffServ codepoints.
        // Check if that is the case.
        //
        CORBA::Boolean const set_client_network_priority =
          tph->set_client_network_priority (
            this->resolver_.transport ()->tag (),
            this->resolver_.stub ());
        connection_handler->set_dscp_codepoint (set_client_network_priority);
      }

    // Note that if noth nph and tph are 0, then we do not make any
    // virtual calls any more, because we have removed the default
    // implementations.

    int const retval =
      this->resolver_.transport ()->send_request (
        this->resolver_.stub (),
        this->resolver_.stub ()->orb_core (),
        cdr,
        message_semantics,
        max_wait_time);

    if (retval == -1)
      {
        if (errno == ETIME)
          {
            // We sent a message already and we haven't gotten a
            // reply.  Just throw TIMEOUT with *COMPLETED_MAYBE*.
            throw ::CORBA::TIMEOUT (
              CORBA::SystemException::_tao_minor_code (
                TAO_TIMEOUT_SEND_MINOR_CODE,
                errno),
              CORBA::COMPLETED_MAYBE);
          }

        if (TAO_debug_level > 2)
          {
            ACE_DEBUG ((LM_DEBUG,
                        ACE_TEXT ("TAO (%P|%t) - ")
                        ACE_TEXT ("Remote_Invocation::send_message, ")
                        ACE_TEXT ("failure while sending message \n")));
          }

        // Close the transport and all the associated stuff along with
        // it.
        this->resolver_.transport ()->close_connection ();
        this->resolver_.stub ()->reset_profiles ();
        return TAO_INVOKE_RESTART;
      }

    this->resolver_.stub ()->set_valid_profile ();
    return TAO_INVOKE_SUCCESS;
  }

void TAO::Remote_Invocation::write_header

(

TAO_OutputCDR &

out_stream

)

[protected]

Write the GIOP header into the stream.

Definition at line 101 of file Remote_Invocation.cpp.

References TAO_Transport::assign_translators(), TAO_Transport::clear_translators(), init_target_spec(), resolver_, and TAO::Profile_Transport_Resolver::transport().

  {
    TAO_Target_Specification spec;
    this->init_target_spec (spec);

    this->resolver_.transport ()->clear_translators (0, &out_stream);

    // Send the request for the header
    if (this->resolver_.transport ()->generate_request_header (this->details_,
                                                               spec,
                                                               out_stream) == -1)
      {
        throw ::CORBA::MARSHAL ();
      }

    this->resolver_.transport ()->assign_translators (0, &out_stream);
  }

---

Member Data Documentation

Profile_Transport_Resolver& TAO::Remote_Invocation::resolver_ [protected]

Our resolver.

Definition at line 84 of file Remote_Invocation.h.

Referenced by init_target_spec(), send_message(), and write_header().

---

The documentation for this class was generated from the following files:

• Remote_Invocation.h
• Remote_Invocation.cpp

---
