TAO::Invocation_Base

TAO::Invocation_Base Class Reference

The base class for the invocation object. More...

#include <Invocation_Base.h>

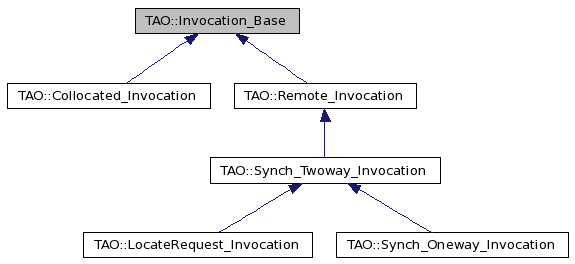

Inheritance diagram for TAO::Invocation_Base:

Inheritance graph
[legend]

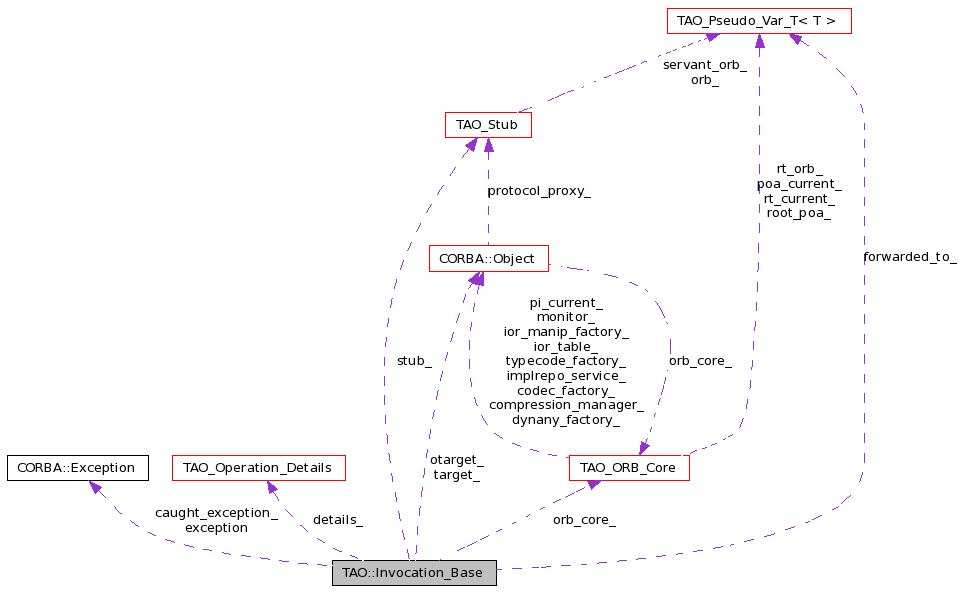

Collaboration diagram for TAO::Invocation_Base:

Collaboration graph
[legend]
List of all members.
size_t & stack_size (void)
CORBA::Exception * caught_exception (void)
TAO::Invocation_Status invoke_status (void) const
 Invocation status.
void invoke_status (Invocation_Status s)
 Mutator to set the invocation status.
PortableInterceptor::ReplyStatus pi_reply_status (void) const
bool is_remote_request () const
void exception CORBA::Exception * exception
 Change the exception status.
Invocation_Status send_request_interception (void)
Invocation_Status receive_reply_interception (void)
Invocation_Status receive_other_interception (void)
PortableInterceptor::ReplyStatus handle_any_exception (CORBA::Exception *e)
PortableInterceptor::ReplyStatus handle_all_exception (void)
ClientRequestInterceptor_Adapter * adapter_
 The client requestor adapter.
size_t stack_size_
TAO::Invocation_Status invoke_status_
CORBA::Exception * caught_exception_
 Pointer to the caught exception.
bool is_remote_request_

Public Member Functions

virtual ~Invocation_Base (void)
TAO_ORB_Core * orb_core (void) const
 Accessor and mutator methods.
TAO_Stub * stub (void) const
 Accessor and mutator methods.
CORBA::Object_ptr forwarded_reference (void)
void forwarded_reference (CORBA::Object_ptr o)
 Accessor and mutator methods.
TAO_Service_Context & request_service_context (void)
 Accessors for the service context list.
TAO_Service_Context & reply_service_context (void)
 Accessor and mutator methods.
CORBA::Object_ptr steal_forwarded_reference (void)
 Return the forwarded object location by loosing ownership.
CORBA::Object_ptr effective_target (void) const
 Return the effective target of the invocation.
CORBA::Object_ptr target (void) const
 Return the target object.
CORBA::Boolean response_expected (void) const
 Does this invocation return a response?
GIOP::ReplyStatusType reply_status (void) const
 Accessor and mutator of reply_status of the invocation.
void reply_status (GIOP::ReplyStatusType s)
 Accessor and mutator methods.
TAO_Operation_Details & operation_details (void)
 The operaton details of the invocation.

Protected Member Functions

 Invocation_Base (CORBA::Object_ptr otarget, CORBA::Object_ptr target, TAO_Stub *stub, TAO_Operation_Details &op, bool response_expected, bool request_is_remote)

Protected Attributes

TAO_Operation_Details & details_
 The operation details on which we are operating on.
CORBA::Object_var forwarded_to_
 Forwarded object reference.
bool response_expected_
 Is response expected?
GIOP::ReplyStatusType reply_status_
 A GIOP reply status of the invocation.

Private Member Functions

 Invocation_Base (const Invocation_Base &)
Invocation_Base & operator= (const Invocation_Base &)

Private Attributes

CORBA::Object_ptr otarget_
 The original target on which the invocation was started.
CORBA::Object_ptr target_
 The effective target on which the invocation is on.
TAO_ORB_Core * orb_core_
 Cache the ORB_Core.
TAO_Stub * stub_
 The original target on which the invocation was started.

Detailed Description

The base class for the invocation object.

This class is the base of the invocation object hiererachy. This hierarchy is classified based on the type of invocation and the mode of invocation. One of the objects from the hierarchy is created on the stack for every invocation.

In addition this class encapsulates the essential details that are required for PortableInterceptors to function correctly. Further this class also provides some helper and accessor methods that are used by clients.

Definition at line 59 of file Invocation_Base.h.

Constructor & Destructor Documentation

TAO::Invocation_Base::~Invocation_Base ( void   )  [virtual]

Definition at line 60 of file Invocation_Base.cpp.

References adapter_, and TAO_INTERCEPTOR.

00061   {
00062     TAO_INTERCEPTOR (adapter_ = 0);
00063   }

TAO::Invocation_Base::Invocation_Base ( CORBA::Object_ptr  otarget,
CORBA::Object_ptr  target,
TAO_Stub *  stub,
TAO_Operation_Details &  op,
bool  response_expected,
bool  request_is_remote
) [protected]

Parameters:
otarget The original target on which this invocation was started.
target the target on which this invocation is flowing ie. the effective target
op operation details of the invocation on target
response_expected flag to indicate whether the operation encapsulated by op returns a response or not.

TAO::Invocation_Base::Invocation_Base ( const Invocation_Base &   )  [private]

Member Function Documentation

CORBA::Exception* TAO::Invocation_Base::caught_exception ( void   )

Note:
It is a reference since the Portable Interceptor flow stack code must be able to modify this value and use that value at a later time without being forced to use TSS.

ACE_INLINE CORBA::Object_ptr TAO::Invocation_Base::effective_target ( void   )  const

Return the effective target of the invocation.

Please see the PortableInterceptor specification in the CORBA spec to understand what effective target means.

Definition at line 66 of file Invocation_Base.inl.

References target_.

00067   {
00068     return this->target_;
00069   }

ACE_INLINE void TAO::Invocation_Base::forwarded_reference ( CORBA::Object_ptr  o  )

Accessor and mutator methods.

Definition at line 22 of file Invocation_Base.inl.

References CORBA::Object::_duplicate(), forwarded_to_, and reply_status_.

00023   {
00024     this->forwarded_to_ = CORBA::Object::_duplicate (o);
00025     this->reply_status_ = GIOP::LOCATION_FORWARD;
00026   }

ACE_INLINE CORBA::Object_ptr TAO::Invocation_Base::forwarded_reference ( void   )

These access methods have to be public so that the PortableInterceptor can use them

Definition at line 29 of file Invocation_Base.inl.

References CORBA::Object::_duplicate().

00030   {
00031     return CORBA::Object::_duplicate (this->forwarded_to_.in ());
00032   }

PortableInterceptor::ReplyStatus TAO::Invocation_Base::handle_all_exception ( void   )  [protected]

Note:
It is a reference since the Portable Interceptor flow stack code must be able to modify this value and use that value at a later time without being forced to use TSS.

Definition at line 188 of file Invocation_Base.cpp.

References adapter_, exception, TAO::ClientRequestInterceptor_Adapter::pi_reply_status(), TAO::ClientRequestInterceptor_Adapter::receive_exception(), CORBA::SYSTEM_EXCEPTION, and TAO_BEGIN_VERSIONED_NAMESPACE_DECL::unknown_exception.

00189   {
00190     this->exception (&unknown_exception);
00191
00192     PortableInterceptor::ReplyStatus status =
00193       PortableInterceptor::SYSTEM_EXCEPTION;
00194
00195     if (adapter_ != 0)
00196       {
00197         this->adapter_->receive_exception (*this);
00198
00199         status = this->adapter_->pi_reply_status (*this);
00200       }
00201
00202     return status;
00203   }

PortableInterceptor::ReplyStatus TAO::Invocation_Base::handle_any_exception ( CORBA::Exception *  e  )  [protected]

Helper methods to handle interception calls when exceptions are thrown by the PortableInterceptor.

Definition at line 163 of file Invocation_Base.cpp.

References adapter_, exception, TAO::ClientRequestInterceptor_Adapter::pi_reply_status(), TAO::ClientRequestInterceptor_Adapter::receive_exception(), and CORBA::SYSTEM_EXCEPTION.

00164   {
00165     this->exception (ex);
00166
00167     PortableInterceptor::ReplyStatus status =
00168       PortableInterceptor::SYSTEM_EXCEPTION;
00169
00170     if (adapter_ != 0)
00171       {
00172         this->adapter_->receive_exception (*this);
00173
00174         if (this->reply_status_ == GIOP::LOCATION_FORWARD)
00175           {
00176             status = PortableInterceptor::LOCATION_FORWARD;
00177           }
00178         else
00179           {
00180             status = this->adapter_->pi_reply_status (*this);
00181           }
00182       }
00183
00184     return status;
00185   }

void TAO::Invocation_Base::invoke_status ( Invocation_Status  s  )

Mutator to set the invocation status.

TAO::Invocation_Status TAO::Invocation_Base::invoke_status ( void   )  const

Invocation status.

Referenced by TAO::Reply_Guard::~Reply_Guard().

bool TAO::Invocation_Base::is_remote_request (  )  const

Accessor used to determine if the current invocation is part of a remote request, and if not, it will be considered to be part of a collocated request.

ACE_INLINE TAO_Operation_Details & TAO::Invocation_Base::operation_details ( void   )

The operaton details of the invocation.

Definition at line 72 of file Invocation_Base.inl.

References details_.

00073   {
00074     return this->details_;
00075   }

Invocation_Base& TAO::Invocation_Base::operator= ( const Invocation_Base &   )  [private]

ACE_INLINE TAO_ORB_Core * TAO::Invocation_Base::orb_core ( void   )  const

Accessor and mutator methods.

Definition at line 10 of file Invocation_Base.inl.

References orb_core_.

00011   {
00012     return this->orb_core_;
00013   }

PortableInterceptor::ReplyStatus TAO::Invocation_Base::pi_reply_status ( void   )  const

Note:
It is a reference since the Portable Interceptor flow stack code must be able to modify this value and use that value at a later time without being forced to use TSS.

Definition at line 219 of file Invocation_Base.cpp.

References adapter_, and TAO::ClientRequestInterceptor_Adapter::pi_reply_status().

00220   {
00221     if (adapter_ != 0)
00222       {
00223         return this->adapter_->pi_reply_status (*this);
00224       }
00225     else
00226       {
00227         return -1;
00228       }
00229   }

Invocation_Status TAO::Invocation_Base::receive_other_interception ( void   )  [protected]

Helper method to invoke receive_other interception call to all the registered interceptors.

Definition at line 136 of file Invocation_Base.cpp.

References adapter_, TAO::ClientRequestInterceptor_Adapter::receive_other(), TAO::TAO_INVOKE_RESTART, and TAO::TAO_INVOKE_SUCCESS.

00137   {
00138     if (adapter_ != 0)
00139       {
00140         try
00141           {
00142             this->adapter_->receive_other (*this);
00143           }
00144         catch ( ::CORBA::Exception& ex)
00145           {
00146             (void) this->handle_any_exception (&ex);
00147             throw;
00148           }
00149         catch (...)
00150           {
00151             (void) this->handle_all_exception ();
00152             throw;
00153           }
00154
00155         if (this->reply_status_ == GIOP::LOCATION_FORWARD)
00156           return TAO_INVOKE_RESTART;
00157       }
00158
00159     return TAO_INVOKE_SUCCESS;
00160   }

Invocation_Status TAO::Invocation_Base::receive_reply_interception ( void   )  [protected]

Helper method to invoke receive_reply interception call to all the registered interceptors.

Definition at line 109 of file Invocation_Base.cpp.

References adapter_, TAO::ClientRequestInterceptor_Adapter::receive_reply(), TAO::TAO_INVOKE_RESTART, and TAO::TAO_INVOKE_SUCCESS.

00110   {
00111     if (adapter_ != 0)
00112       {
00113         try
00114           {
00115             this->adapter_->receive_reply (*this);
00116           }
00117         catch ( ::CORBA::Exception& ex)
00118           {
00119             (void) this->handle_any_exception (&ex);
00120             throw;
00121           }
00122         catch (...)
00123           {
00124             (void) this->handle_all_exception ();
00125             throw;
00126           }
00127
00128         if (this->reply_status_ == GIOP::LOCATION_FORWARD)
00129           return TAO_INVOKE_RESTART;
00130       }
00131
00132     return TAO_INVOKE_SUCCESS;
00133   }

TAO_Service_Context & TAO::Invocation_Base::reply_service_context ( void   )

Accessor and mutator methods.

Definition at line 72 of file Invocation_Base.cpp.

References details_, and TAO_Operation_Details::reply_service_context().

00073   {
00074     return this->details_.reply_service_context ();
00075   }

ACE_INLINE void TAO::Invocation_Base::reply_status ( GIOP::ReplyStatusType  s  )

Accessor and mutator methods.

Definition at line 54 of file Invocation_Base.inl.

References reply_status_.

00055   {
00056     this->reply_status_ = s;
00057   }

ACE_INLINE GIOP::ReplyStatusType TAO::Invocation_Base::reply_status ( void   )  const

Accessor and mutator of reply_status of the invocation.

Definition at line 48 of file Invocation_Base.inl.

References reply_status_.

00049   {
00050     return this->reply_status_;
00051   }

TAO_Service_Context & TAO::Invocation_Base::request_service_context ( void   )

Accessors for the service context list.

The service context lists are actually cached elsewhere. Providing this accessor helps the PI to access this list in both remote and collocated mode.

Definition at line 66 of file Invocation_Base.cpp.

References details_, and TAO_Operation_Details::request_service_context().

00067   {
00068     return this->details_.request_service_context ();
00069   }

ACE_INLINE CORBA::Boolean TAO::Invocation_Base::response_expected ( void   )  const

Does this invocation return a response?

Definition at line 42 of file Invocation_Base.inl.

References response_expected_.

00043   {
00044     return this->response_expected_;
00045   }

Invocation_Status TAO::Invocation_Base::send_request_interception ( void   )  [protected]

Helper method to invoke send_request interception call to all the registered interceptors.

Definition at line 80 of file Invocation_Base.cpp.

References adapter_, TAO::ClientRequestInterceptor_Adapter::send_request(), TAO::TAO_INVOKE_RESTART, and TAO::TAO_INVOKE_SUCCESS.

00081   {
00082     if (adapter_ != 0)
00083       {
00084         try
00085           {
00086             // This is a begin interception point
00087             this->adapter_->send_request (*this);
00088           }
00089         catch ( ::CORBA::Exception& ex)
00090           {
00091             (void) this->handle_any_exception (&ex);
00092             throw;
00093           }
00094         catch (...)
00095           {
00096             (void) this->handle_all_exception ();
00097             throw;
00098           }
00099
00100         if (this->reply_status_ == GIOP::LOCATION_FORWARD)
00101           return TAO_INVOKE_RESTART;
00102       }
00103
00104     // What are the other cases??
00105     return TAO_INVOKE_SUCCESS;
00106   }

size_t& TAO::Invocation_Base::stack_size ( void   )

Note:
It is a reference since the Portable Interceptor flow stack code must be able to modify this value and use that value at a later time without being forced to use TSS.

ACE_INLINE CORBA::Object_ptr TAO::Invocation_Base::steal_forwarded_reference ( void   )

Return the forwarded object location by loosing ownership.

Definition at line 35 of file Invocation_Base.inl.

References TAO_Pseudo_Var_T< T >::_retn(), forwarded_to_, CORBA::NO_EXCEPTION, and reply_status_.

00036   {
00037     this->reply_status_ = GIOP::NO_EXCEPTION;
00038     return this->forwarded_to_._retn ();
00039   }

ACE_INLINE TAO_Stub * TAO::Invocation_Base::stub ( void   )  const

Accessor and mutator methods.

Definition at line 16 of file Invocation_Base.inl.

References stub_.

00017   {
00018     return this->stub_;
00019   }

ACE_INLINE CORBA::Object_ptr TAO::Invocation_Base::target ( void   )  const

Return the target object.

Definition at line 60 of file Invocation_Base.inl.

References otarget_.

00061   {
00062     return this->otarget_;
00063   }

Member Data Documentation

ClientRequestInterceptor_Adapter* TAO::Invocation_Base::adapter_ [protected]

The client requestor adapter.

Definition at line 224 of file Invocation_Base.h.

Referenced by handle_all_exception(), handle_any_exception(), pi_reply_status(), receive_other_interception(), receive_reply_interception(), send_request_interception(), and ~Invocation_Base().

CORBA::Exception* TAO::Invocation_Base::caught_exception_ [private]

Pointer to the caught exception.

Definition at line 232 of file Invocation_Base.h.

TAO_Operation_Details& TAO::Invocation_Base::details_ [protected]

The operation details on which we are operating on.

Definition at line 134 of file Invocation_Base.h.

Referenced by operation_details(), reply_service_context(), and request_service_context().

void TAO::Invocation_Base::exception

Change the exception status.

Definition at line 188 of file Invocation_Base.h.

Referenced by handle_all_exception(), and handle_any_exception().

CORBA::Object_var TAO::Invocation_Base::forwarded_to_ [protected]

Forwarded object reference.

Definition at line 137 of file Invocation_Base.h.

Referenced by forwarded_reference(), and steal_forwarded_reference().

TAO::Invocation_Status TAO::Invocation_Base::invoke_status_ [protected]

Note:
It is a reference since the Portable Interceptor flow stack code must be able to modify this value and use that value at a later time without being forced to use TSS.

Definition at line 228 of file Invocation_Base.h.

bool TAO::Invocation_Base::is_remote_request_ [private]

Flag used to distinguish a remote invocation versus a collocated (thru-poa) invocation.

Definition at line 236 of file Invocation_Base.h.

TAO_ORB_Core* TAO::Invocation_Base::orb_core_ [private]

Cache the ORB_Core.

Definition at line 165 of file Invocation_Base.h.

Referenced by orb_core().

CORBA::Object_ptr TAO::Invocation_Base::otarget_ [private]

The original target on which the invocation was started.

The following object reference pointers are *not* duplicated. They are cached for portable interceptors, and they just live for the lifetime of the request. Hence there is no point in duplicating the pointers.

Definition at line 159 of file Invocation_Base.h.

Referenced by target().

GIOP::ReplyStatusType TAO::Invocation_Base::reply_status_ [protected]

A GIOP reply status of the invocation.

Definition at line 143 of file Invocation_Base.h.

Referenced by forwarded_reference(), reply_status(), and steal_forwarded_reference().

bool TAO::Invocation_Base::response_expected_ [protected]

Is response expected?

Definition at line 140 of file Invocation_Base.h.

Referenced by response_expected().

size_t TAO::Invocation_Base::stack_size_ [protected]

Note:
It is a reference since the Portable Interceptor flow stack code must be able to modify this value and use that value at a later time without being forced to use TSS.

Definition at line 226 of file Invocation_Base.h.

TAO_Stub* TAO::Invocation_Base::stub_ [private]

The original target on which the invocation was started.

The following object reference pointers are *not* duplicated. They are cached for portable interceptors, and they just live for the lifetime of the request. Hence there is no point in duplicating the pointers.

Definition at line 167 of file Invocation_Base.h.

Referenced by stub().

CORBA::Object_ptr TAO::Invocation_Base::target_ [private]

The effective target on which the invocation is on.

Definition at line 162 of file Invocation_Base.h.

Referenced by effective_target().

The documentation for this class was generated from the following files:
Generated on Tue Feb 2 17:39:14 2010 for TAO by  doxygen 1.4.7
