TAO_Connection_Handler Class Reference

TAO_Connection_Handler. More...

#include <Connection_Handler.h>

Inheritance diagram for TAO_Connection_Handler:

Inheritance graph
[legend]

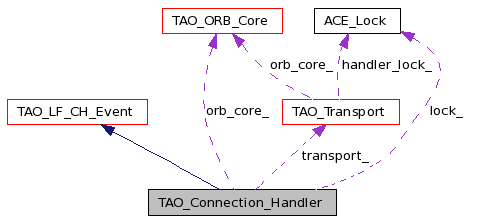

Collaboration diagram for TAO_Connection_Handler:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 TAO_Connection_Handler (void)
 Constructor.
 TAO_Connection_Handler (TAO_ORB_Core *orb_core)
 Constructor.
virtual ~TAO_Connection_Handler (void)
 Destructor.
TAO_Transporttransport (void)
 Return the underlying transport object.
void transport (TAO_Transport *transport)
 Set the underlying transport object.
bool is_closed (void) const
 Is the handler closed or timed out?
bool is_open (void) const
 Is the handler open?
bool is_timeout (void) const
 Closed due to timeout?
bool is_connecting (void) const
 Is the handler in the process of being connected?
virtual int close_connection (void)=0
 Close the underlying connection.
virtual int handle_input (ACE_HANDLE fd)=0
int svc_i (void)
virtual int open_handler (void *)=0
 A open () hook.
virtual int close_handler (void)
void connection_pending (void)
void cancel_pending_connection (void)
virtual int set_dscp_codepoint (CORBA::Boolean set_network_priority)
virtual int set_dscp_codepoint (CORBA::Long dscp_codepoint)
virtual int release_os_resources (void)
 Release the OS resources related to this handler.

Protected Member Functions

TAO_ORB_Coreorb_core (void)
 Return our TAO_ORB_Core pointer.
int shared_open (void)
int set_socket_option (ACE_SOCK &sock, int snd_size, int rcv_size)
 Set options on the socket.
Helper methods for Event_Handler-based derived classes.
Many (actually all so far) implementations of TAO_Connection_Handler are a mixin of TAO_Connection_Handler and some form of ACE_Event_Handler. The following methods simplify such implementations by capturing the common code in a single place.

int handle_output_eh (ACE_HANDLE h, ACE_Event_Handler *eh)
 Implement the handle_output() callback.
int handle_input_eh (ACE_HANDLE h, ACE_Event_Handler *eh)
 Implement the handle_input() callback.
int handle_input_internal (ACE_HANDLE h, ACE_Event_Handler *eh)
 Implement the handle_output() callback.
int close_connection_eh (ACE_Event_Handler *eh)
virtual void pre_io_hook (int &return_value)
virtual void pos_io_hook (int &return_value)

Private Attributes

TAO_ORB_Core *const orb_core_
 Pointer to the TAO_ORB_Core.
TAO_Transporttransport_
 Transport object reference.
ACE_Locklock_
bool connection_pending_
 Stores the connection pending state.

Detailed Description

TAO_Connection_Handler.

This class is an abstraction for the connection handlers. The connections handler in every protocol can derive from this class as well as the ACE_Svc_Handler specialised for the right protocol. This way, most of the common code for the different protocols would be in this implementation.

Definition at line 56 of file Connection_Handler.h.


Constructor & Destructor Documentation

TAO_Connection_Handler::TAO_Connection_Handler ( void   )

Constructor.

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_Connection_Handler::TAO_Connection_Handler ( TAO_ORB_Core orb_core  )

Constructor.

Definition at line 26 of file Connection_Handler.cpp.

References TAO_LF_Event::LFS_CONNECTION_WAIT.

00027   : orb_core_ (orb_core),
00028     transport_ (0),
00029     connection_pending_ (false)
00030 {
00031   // @todo: We need to have a distinct option/ method in the resource
00032   // factory for this and TAO_Transport.
00033   this->lock_ =
00034     this->orb_core_->resource_factory ()->create_cached_connection_lock ();
00035
00036   // Put ourselves in the connection wait state as soon as we get
00037   // created
00038   this->state_changed (TAO_LF_Event::LFS_CONNECTION_WAIT,
00039                        this->orb_core_->leader_follower ());
00040 }

TAO_Connection_Handler::~TAO_Connection_Handler ( void   )  [virtual]

Destructor.

Definition at line 42 of file Connection_Handler.cpp.

References lock_.

00043 {
00044   // @@ TODO Use auto_ptr<>
00045   delete this->lock_;
00046
00047   //@@ CONNECTION_HANDLER_DESTRUCTOR_ADD_HOOK
00048 }


Member Function Documentation

ACE_INLINE void TAO_Connection_Handler::cancel_pending_connection ( void   )

A pending connection may be canceled due to an error detected while the initiating thread is still in the Connector.

Definition at line 58 of file Connection_Handler.inl.

References connection_pending_, TAO_Transport::remove_reference(), and transport().

Referenced by TAO_IIOP_Connector::complete_connection(), and shared_open().

00059 {
00060   if (this->connection_pending_)
00061     {
00062       this->connection_pending_ = false;
00063       this->transport()->remove_reference();
00064     }
00065 }

virtual int TAO_Connection_Handler::close_connection ( void   )  [pure virtual]

Close the underlying connection.

Used by the ORB to actively close connections that are idle, stale or somehow are determined to be broken before the Reactor does.

Returns:
Return 0 if the connection was already closed, non-zero otherwise.

Implemented in TAO_IIOP_Connection_Handler.

Referenced by TAO_Transport::close_connection(), handle_input_eh(), and TAO_Thread_Per_Connection_Handler::~TAO_Thread_Per_Connection_Handler().

int TAO_Connection_Handler::close_connection_eh ( ACE_Event_Handler eh  )  [protected]

Implement close_connection() for Connection_Handlers that are also Event_Handlers.

Definition at line 296 of file Connection_Handler.cpp.

References ACE_ASSERT, ACE_DEBUG, ACE_Event_Handler::ALL_EVENTS_MASK, ACE_Event_Handler::DONT_CALL, ACE_Event_Handler::get_handle(), TAO_Transport::id(), TAO_Wait_Strategy::is_registered(), TAO_LF_Event::LFS_CONNECTION_CLOSED, LM_DEBUG, TAO_Transport::orb_core(), TAO_Transport::pre_close(), TAO_ORB_Core::reactor(), ACE_Event_Handler::reactor(), TAO_Transport::send_connection_closed_notifications(), TAO_LF_Event::state_changed(), TAO_debug_level, transport(), and TAO_Transport::wait_strategy().

Referenced by TAO_IIOP_Connection_Handler::close_connection().

00297 {
00298   // Save the ID for debugging messages
00299   ACE_HANDLE handle = eh->get_handle ();
00300
00301   size_t const id = this->transport ()->id ();
00302   if (TAO_debug_level)
00303     {
00304       ACE_DEBUG  ((LM_DEBUG,
00305                    "TAO (%P|%t) - Connection_Handler[%d]::"
00306                    "close_connection_eh, purging entry from cache\n",
00307                    handle));
00308     }
00309
00310   this->transport ()->pre_close ();
00311
00312   // @@ This seems silly, but if we have no reason to be in the
00313   // reactor, then we dont remove ourselves.
00314   if (this->transport ()->wait_strategy ()->is_registered ())
00315     {
00316       ACE_Reactor *eh_reactor = eh->reactor ();
00317
00318       if (this->orb_core_->has_shutdown () == 0)
00319         {
00320           // If the ORB is nil, get the reactor from orb_core which gets it
00321           // from LF.
00322           if (eh_reactor == 0)
00323             eh_reactor = this->transport()->orb_core()->reactor ();
00324         }
00325
00326       // The Reactor must not be null, otherwise something else is
00327       // horribly broken.
00328       ACE_ASSERT (eh_reactor != 0);
00329
00330       if (TAO_debug_level)
00331         {
00332           ACE_DEBUG  ((LM_DEBUG,
00333                        "TAO (%P|%t) - Connection_Handler[%d]::"
00334                        "close_connection_eh, removing from the reactor\n",
00335                        handle));
00336         }
00337
00338       // Use id instead of handle. Why? "handle" may be invalid for RW
00339       // cases  when drop_reply_on_shutdown is on, and when the
00340       // orb_core is shutting down. This means that the handler will
00341       // be left behind in the reactor which would create problems
00342       // later. Just forcefully remove them. If none exists reactor
00343       // will make things safer.
00344       ACE_HANDLE tmp_handle = handle;
00345       if (this->orb_core_->has_shutdown ())
00346         tmp_handle = (ACE_HANDLE) id;
00347
00348       eh_reactor->remove_handler (tmp_handle,
00349                                   ACE_Event_Handler::ALL_EVENTS_MASK |
00350                                   ACE_Event_Handler::DONT_CALL);
00351
00352       // Also cancel any timers, we may create those for time-limited
00353       // buffering
00354       if (TAO_debug_level)
00355         {
00356           ACE_DEBUG  ((LM_DEBUG,
00357                        "TAO (%P|%t) - Connection_Handler[%d]::"
00358                        "close_connection_eh, cancel all timers\n",
00359                        handle));
00360         }
00361
00362       eh_reactor->cancel_timer (eh);
00363
00364       // @@ This seems silly, the reactor is a much better authority to
00365       //    find out if a handle is registered...
00366       this->transport ()->wait_strategy ()->is_registered (false);
00367     }
00368
00369   // This call should be made only after the cache and reactor are
00370   // cleaned up. This call can make upcalls to the application which
00371   // in turn can make remote calls (Bug 1551 and Bug 1482). The remote
00372   // calls from the application can try to use this handler from the
00373   // cache or from the reactor. So clean them up before this is
00374   // called.
00375   this->transport ()->send_connection_closed_notifications ();
00376   this->state_changed (TAO_LF_Event::LFS_CONNECTION_CLOSED,
00377                        this->orb_core_->leader_follower ());
00378
00379   if (TAO_debug_level)
00380     {
00381       ACE_DEBUG  ((LM_DEBUG,
00382                    "TAO (%P|%t) - Connection_Handler[%d]::"
00383                    "close_connection_eh\n",
00384                    id));
00385     }
00386
00387   return 1;
00388 }

int TAO_Connection_Handler::close_handler ( void   )  [virtual]

A close() hook, called by the Transport Connector when they want to close this handler

Definition at line 430 of file Connection_Handler.cpp.

References TAO_LF_Event::LFS_CONNECTION_CLOSED, TAO_Transport::purge_entry(), TAO_Transport::remove_reference(), TAO_LF_Event::state_changed(), and transport().

Referenced by TAO_IIOP_Connection_Handler::close().

00431 {
00432   this->state_changed (TAO_LF_Event::LFS_CONNECTION_CLOSED,
00433                        this->orb_core_->leader_follower ());
00434   this->transport ()->purge_entry();
00435   this->transport ()->remove_reference ();
00436
00437   // @@ I think that if the connection_pending state is true
00438   // when close_handler is calld, we should probably release
00439   // another reference so that the connector doesn't have to
00440   // worry about it.
00441
00442   return 0;
00443 }

ACE_INLINE void TAO_Connection_Handler::connection_pending ( void   )

When waiting for an asynchronous connection to complete an additional reference must be maintained, related to bugzilla #2417. However once the connection is successfully established, this reference must be removed. Using connection_pending allows the connection handler to know that it is opening as a result of a delayed asynch connection rather than an immediate synch connection, which has no additional reference needs.

Definition at line 48 of file Connection_Handler.inl.

References TAO_Transport::add_reference(), connection_pending_, and transport().

Referenced by TAO_IIOP_Connector::complete_connection().

00049 {
00050   if (!this->connection_pending_)
00051     {
00052       this->connection_pending_ = true;
00053       this->transport()->add_reference();
00054     }
00055 }

virtual int TAO_Connection_Handler::handle_input ( ACE_HANDLE  fd  )  [pure virtual]

The event handler calls, here so that other objects who hold a reference to this object can call the event handler methods.

Implemented in TAO_IIOP_Connection_Handler.

int TAO_Connection_Handler::handle_input_eh ( ACE_HANDLE  h,
ACE_Event_Handler eh
) [protected]

Implement the handle_input() callback.

Definition at line 217 of file Connection_Handler.cpp.

References ACE_DEBUG, close_connection(), handle_input_internal(), LM_DEBUG, and TAO_debug_level.

Referenced by TAO_IIOP_Connection_Handler::handle_input().

00219 {
00220   // If we can't process upcalls just return
00221   if (!this->transport ()->wait_strategy ()->can_process_upcalls ())
00222     {
00223       if (TAO_debug_level > 6)
00224         ACE_DEBUG ((LM_DEBUG,
00225                     "TAO (%P|%t) - Connection_Handler[%d]::handle_input_eh, "
00226                     "not going to handle_input on transport "
00227                     "because upcalls temporarily suspended on this thread\n",
00228                     this->transport()->id()));
00229       return 0;
00230     }
00231
00232   int const result = this->handle_input_internal (h, eh);
00233
00234   if (result == -1)
00235     {
00236       this->close_connection ();
00237       return 0;
00238     }
00239
00240   return result;
00241 }

int TAO_Connection_Handler::handle_input_internal ( ACE_HANDLE  h,
ACE_Event_Handler eh
) [protected]

Implement the handle_output() callback.

Definition at line 244 of file Connection_Handler.cpp.

References ACE_DEBUG, ACE_Event_Handler::get_handle(), TAO_Transport::handle_input(), TAO_Transport::id(), LM_DEBUG, pos_io_hook(), pre_io_hook(), TAO_debug_level, TAO_Resume_Handle::TAO_HANDLE_LEAVE_SUSPENDED, and transport().

Referenced by handle_input_eh().

00246 {
00247   // Let the transport know that it is used
00248   (void) this->transport ()->update_transport ();
00249
00250   // Grab the transport id now and use the cached value for printing
00251   // since the  transport could dissappear by the time the thread
00252   // returns.
00253   size_t const t_id =
00254     this->transport ()->id ();
00255
00256   if (TAO_debug_level > 6)
00257     {
00258       ACE_HANDLE handle = eh->get_handle();
00259       ACE_DEBUG ((LM_DEBUG,
00260                   "TAO (%P|%t) - Connection_Handler[%d]::handle_input, "
00261                   "handle = %d/%d\n",
00262                   t_id, handle, h));
00263     }
00264
00265   TAO_Resume_Handle resume_handle (this->orb_core (), eh->get_handle ());
00266
00267   int return_value = 0;
00268
00269   this->pre_io_hook (return_value);
00270   if (return_value != 0)
00271     return return_value;
00272
00273   return_value = this->transport ()->handle_input (resume_handle);
00274
00275   this->pos_io_hook (return_value);
00276
00277   // Bug 1647; might need to change resume_handle's flag or
00278   // change handle_input return value.
00279   resume_handle.handle_input_return_value_hook(return_value);
00280
00281   if (TAO_debug_level > 6)
00282     {
00283       ACE_HANDLE handle = eh->get_handle ();
00284       ACE_DEBUG ((LM_DEBUG,
00285                   "TAO (%P|%t) - Connection_Handler[%d]::handle_input, "
00286                   "handle = %d/%d, retval = %d\n",
00287                   t_id, handle, h, return_value));
00288     }
00289
00290   if (return_value == -1)
00291     resume_handle.set_flag (TAO_Resume_Handle::TAO_HANDLE_LEAVE_SUSPENDED);
00292   return return_value;
00293 }

int TAO_Connection_Handler::handle_output_eh ( ACE_HANDLE  h,
ACE_Event_Handler eh
) [protected]

Implement the handle_output() callback.

Definition at line 185 of file Connection_Handler.cpp.

References ACE_Event_Handler::get_handle(), TAO_Transport::handle_output(), pos_io_hook(), pre_io_hook(), TAO_Resume_Handle::TAO_HANDLE_LEAVE_SUSPENDED, and transport().

Referenced by TAO_IIOP_Connection_Handler::handle_output().

00187 {
00188   // Let the transport that it is going to be used
00189   (void) this->transport ()->update_transport ();
00190
00191   // Instantiate the resume handle here.. This will automatically
00192   // resume the handle once data is written..
00193   TAO_Resume_Handle resume_handle (this->orb_core (),
00194                                    eh->get_handle ());
00195
00196   int return_value = 0;
00197   this->pre_io_hook (return_value);
00198   if (return_value != 0)
00199     {
00200       resume_handle.set_flag (TAO_Resume_Handle::TAO_HANDLE_LEAVE_SUSPENDED);
00201       return return_value;
00202     }
00203
00204   return_value = this->transport ()->handle_output (0);
00205
00206   this->pos_io_hook (return_value);
00207
00208   if (return_value != 0)
00209     {
00210       resume_handle.set_flag (TAO_Resume_Handle::TAO_HANDLE_LEAVE_SUSPENDED);
00211     }
00212
00213   return return_value;
00214 }

ACE_INLINE bool TAO_Connection_Handler::is_closed ( void   )  const

Is the handler closed or timed out?

Definition at line 22 of file Connection_Handler.inl.

References TAO_LF_Event::LFS_CONNECTION_CLOSED, and TAO_LF_Event::LFS_TIMEOUT.

Referenced by TAO_Connector::check_connection_closure(), and TAO_Connector::wait_for_connection_completion().

00023 {
00024   return (this->state_ == TAO_LF_Event::LFS_CONNECTION_CLOSED ||
00025           this->state_ == TAO_LF_Event::LFS_TIMEOUT);
00026 }

ACE_INLINE bool TAO_Connection_Handler::is_connecting ( void   )  const

Is the handler in the process of being connected?

Definition at line 41 of file Connection_Handler.inl.

References TAO_LF_Event::LFS_CONNECTION_WAIT, and TAO_LF_Event::state_.

00042 {
00043   return this->state_ == TAO_LF_Event::LFS_CONNECTION_WAIT;
00044 }

ACE_INLINE bool TAO_Connection_Handler::is_open ( void   )  const

Is the handler open?

Definition at line 35 of file Connection_Handler.inl.

References TAO_LF_Event::LFS_SUCCESS, and TAO_LF_Event::state_.

Referenced by TAO_Connector::wait_for_connection_completion().

00036 {
00037   return this->state_ == TAO_LF_Event::LFS_SUCCESS;
00038 }

ACE_INLINE bool TAO_Connection_Handler::is_timeout ( void   )  const

Closed due to timeout?

Definition at line 29 of file Connection_Handler.inl.

References TAO_LF_Event::LFS_TIMEOUT.

Referenced by TAO_Connector::wait_for_connection_completion().

00030 {
00031   return (this->state_ == TAO_LF_Event::LFS_TIMEOUT);
00032 }

virtual int TAO_Connection_Handler::open_handler ( void *   )  [pure virtual]

A open () hook.

See Thread_Per_Connection_Handler for a use case

Implemented in TAO_IIOP_Connection_Handler.

Referenced by TAO_Thread_Per_Connection_Handler::open().

TAO_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE TAO_ORB_Core * TAO_Connection_Handler::orb_core ( void   )  [protected]

Return our TAO_ORB_Core pointer.

Definition at line 10 of file Connection_Handler.inl.

References orb_core_.

Referenced by TAO_IIOP_Connection_Handler::add_transport_to_cache(), TAO_IIOP_Connection_Handler::close_connection(), TAO_IIOP_Connection_Handler::open(), TAO_IIOP_Connection_Handler::set_dscp_codepoint(), and TAO_IIOP_Connection_Handler::TAO_IIOP_Connection_Handler().

00011 {
00012   return this->orb_core_;
00013 }

void TAO_Connection_Handler::pos_io_hook ( int &  return_value  )  [protected, virtual]

See the SSLIOP protocol for an interesting use-case

Definition at line 425 of file Connection_Handler.cpp.

Referenced by handle_input_internal(), and handle_output_eh().

00426 {
00427 }

void TAO_Connection_Handler::pre_io_hook ( int &  return_value  )  [protected, virtual]

See the SSLIOP protocol for an interesting use-case

Definition at line 420 of file Connection_Handler.cpp.

Referenced by handle_input_internal(), and handle_output_eh().

00421 {
00422 }

int TAO_Connection_Handler::release_os_resources ( void   )  [virtual]

Release the OS resources related to this handler.

Reimplemented in TAO_IIOP_Connection_Handler.

Definition at line 412 of file Connection_Handler.cpp.

00413 {
00414   return 0;
00415 }

int TAO_Connection_Handler::set_dscp_codepoint ( CORBA::Long  dscp_codepoint  )  [virtual]

Reimplemented in TAO_IIOP_Connection_Handler.

Definition at line 406 of file Connection_Handler.cpp.

00407 {
00408   return 0;
00409 }

int TAO_Connection_Handler::set_dscp_codepoint ( CORBA::Boolean  set_network_priority  )  [virtual]

Set the Diff-Serv codepoint on outgoing packets. Only has effect for remote protocols (e.g., IIOP); no effect for local protocols (UIOP). Default implementation is for local protocols. Remote protocols must overwrite implementation.

Reimplemented in TAO_IIOP_Connection_Handler.

Definition at line 400 of file Connection_Handler.cpp.

Referenced by TAO::Remote_Invocation::send_message().

00401 {
00402   return 0;
00403 }

int TAO_Connection_Handler::set_socket_option ( ACE_SOCK sock,
int  snd_size,
int  rcv_size
) [protected]

Set options on the socket.

Definition at line 64 of file Connection_Handler.cpp.

References ACE_CLOEXEC, ACE_IPC_SAP::enable(), ENOTSUP, ACE_SOCK::set_option(), SO_RCVBUF, SO_SNDBUF, and SOL_SOCKET.

00067 {
00068 #if !defined (ACE_LACKS_SOCKET_BUFSIZ)
00069
00070   if (snd_size != 0
00071       && sock.set_option (SOL_SOCKET,
00072                           SO_SNDBUF,
00073                           (void *) &snd_size,
00074                           sizeof (snd_size)) == -1
00075       && errno != ENOTSUP)
00076   {
00077     return -1;
00078   }
00079
00080   if (rcv_size != 0
00081       && sock.set_option (SOL_SOCKET,
00082                           SO_RCVBUF,
00083                           (void *) &rcv_size,
00084                           sizeof (int)) == -1
00085       && errno != ENOTSUP)
00086   {
00087     return -1;
00088   }
00089 #else
00090    ACE_UNUSED_ARG (snd_size);
00091    ACE_UNUSED_ARG (rcv_size);
00092 #endif /* !ACE_LACKS_SOCKET_BUFSIZ */
00093
00094   // Set the close-on-exec flag for that file descriptor. If the
00095   // operation fails we are out of luck (some platforms do not support
00096   // it and return -1).
00097   (void) sock.enable (ACE_CLOEXEC);
00098
00099   return 0;
00100 }

int TAO_Connection_Handler::shared_open ( void   )  [protected]

A common function called at the start of any protocol-specific open. Returns -1 on a failure (although no failure mode is currently defined).

Definition at line 51 of file Connection_Handler.cpp.

References cancel_pending_connection().

00052 {
00053   // This reference counting is related to asynch connections.  It
00054   // should probably be managed by the ACE_Strategy_Connector, since
00055   // that's really the reference being managed here.  also, whether
00056   // open ultimately succeeds or fails, the connection attempted is
00057   // ending, so the reference must be removed in any case.
00058   this->cancel_pending_connection();
00059
00060   return 0;
00061 }

int TAO_Connection_Handler::svc_i ( void   )

This method is invoked from the svc () method of the Svc_Handler Object.

Definition at line 103 of file Connection_Handler.cpp.

References ACE_DEBUG, ACE_TEXT, TAO_Transport::handle_input(), LM_DEBUG, ACE_Time_Value::msec(), TAO_debug_level, transport(), and TAO_Transport::update_transport().

Referenced by TAO_Thread_Per_Connection_Handler::svc().

00104 {
00105   int result = 0;
00106
00107   if (TAO_debug_level > 0)
00108     ACE_DEBUG ((LM_DEBUG,
00109                 ACE_TEXT ("TAO (%P|%t) - Connection_Handler::svc_i begin\n")));
00110
00111   // Here we simply synthesize the "typical" event loop one might find
00112   // in a reactive handler, except that this can simply block waiting
00113   // for input.
00114
00115   ACE_Time_Value *max_wait_time = 0;
00116   ACE_Time_Value timeout;
00117   ACE_Time_Value current_timeout;
00118
00119   if (this->orb_core_->thread_per_connection_timeout (timeout))
00120     {
00121       current_timeout = timeout;
00122       max_wait_time = &current_timeout;
00123     }
00124
00125   TAO_Resume_Handle rh (this->orb_core_,
00126                         ACE_INVALID_HANDLE);
00127
00128   // We exit of the loop if
00129   // - If the ORB core is shutdown by another thread
00130   // - Or if the transport is null. This could happen if an error
00131   // occured.
00132   // - Or if during processing a return value of -1 is received.
00133   while (!this->orb_core_->has_shutdown ()
00134          && result >= 0)
00135     {
00136       // Let the transport know that it is used
00137       (void) this->transport ()->update_transport ();
00138
00139       result = this->transport ()->handle_input (rh, max_wait_time);
00140
00141       if (result == -1 && errno == ETIME)
00142         {
00143           // Ignore timeouts, they are only used to wake up and
00144           // shutdown.
00145           result = 0;
00146
00147           // Reset errno to make sure we don't trip over an old value
00148           // of errno in case it is not reset when the recv() call
00149           // fails if the socket has been closed.
00150           errno = 0;
00151         }
00152       else if (result == -1)
00153         {
00154           // Something went wrong with the socket. Just quit
00155           return result;
00156         }
00157
00158       current_timeout = timeout;
00159
00160       if (TAO_debug_level > 0)
00161         ACE_DEBUG ((LM_DEBUG,
00162                     "TAO (%P|%t) - Connection_Handler::svc_i - "
00163                     "loop <%d>\n", current_timeout.msec ()));
00164     }
00165
00166   if (TAO_debug_level > 0)
00167     ACE_DEBUG  ((LM_DEBUG,
00168                  "TAO (%P|%t) - Connection_Handler::svc_i end\n"));
00169
00170   return result;
00171 }

void TAO_Connection_Handler::transport ( TAO_Transport transport  )

Set the underlying transport object.

Definition at line 174 of file Connection_Handler.cpp.

References ACE_Event_Handler::Reference_Counting_Policy::ENABLED, TAO_Transport::event_handler_i(), ACE_Event_Handler::reference_counting_policy(), transport(), and transport_.

00175 {
00176   this->transport_ = transport;
00177
00178   // Enable reference counting on the event handler.
00179   this->transport_->event_handler_i ()->reference_counting_policy ().value (
00180       ACE_Event_Handler::Reference_Counting_Policy::ENABLED
00181     );
00182 }

ACE_INLINE TAO_Transport * TAO_Connection_Handler::transport ( void   )

Return the underlying transport object.

Definition at line 16 of file Connection_Handler.inl.

References transport_.

Referenced by TAO_LF_Multi_Event::base_transport(), cancel_pending_connection(), close_connection_eh(), close_handler(), connection_pending(), handle_input_internal(), handle_output_eh(), TAO_IIOP_Connection_Handler::open(), TAO_IIOP_Connection_Handler::process_listen_point_list(), svc_i(), TAO_IIOP_Connection_Handler::TAO_IIOP_Connection_Handler(), transport(), TAO_Connect_Strategy::wait(), TAO_Connector::wait_for_connection_completion(), TAO_IIOP_Connection_Handler::~TAO_IIOP_Connection_Handler(), and TAO_Thread_Per_Connection_Handler::~TAO_Thread_Per_Connection_Handler().

00017 {
00018   return this->transport_;
00019 }


Member Data Documentation

bool TAO_Connection_Handler::connection_pending_ [private]

Stores the connection pending state.

Definition at line 212 of file Connection_Handler.h.

Referenced by cancel_pending_connection(), and connection_pending().

ACE_Lock* TAO_Connection_Handler::lock_ [private]

Internal state lock, needs to be separate from the reference count / pending upcalls lock because they interleave.

Definition at line 209 of file Connection_Handler.h.

Referenced by ~TAO_Connection_Handler().

TAO_ORB_Core* const TAO_Connection_Handler::orb_core_ [private]

Pointer to the TAO_ORB_Core.

Definition at line 202 of file Connection_Handler.h.

Referenced by orb_core().

TAO_Transport* TAO_Connection_Handler::transport_ [private]

Transport object reference.

Definition at line 205 of file Connection_Handler.h.

Referenced by transport().


The documentation for this class was generated from the following files:
Generated on Tue Feb 2 17:39:25 2010 for TAO by  doxygen 1.4.7
