TAO::Profile_Transport_Resolver

TAO::Profile_Transport_Resolver Class Reference

Chooses the profile and a transport for a target object on which an invocation can be made. More...

#include <Profile_Transport_Resolver.h>

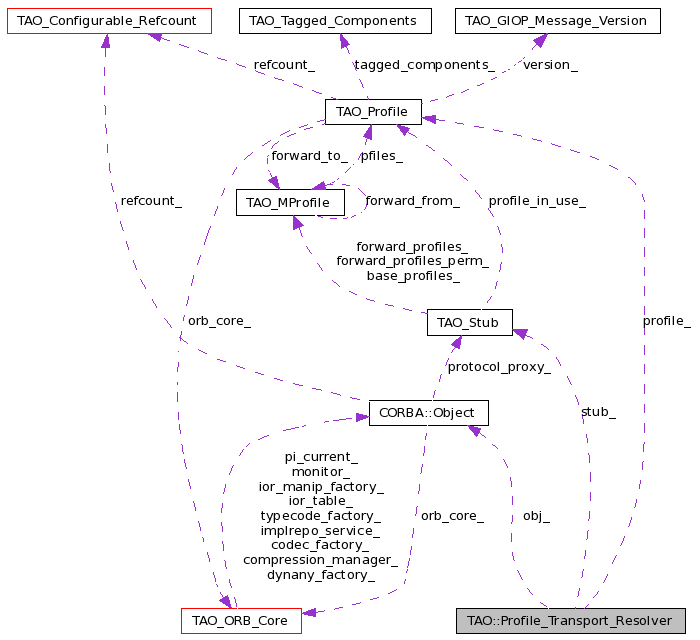

Collaboration diagram for TAO::Profile_Transport_Resolver:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 Profile_Transport_Resolver (CORBA::Object *p, TAO_Stub *stub, bool block=true)
 Constructor.
 ~Profile_Transport_Resolver (void)
void resolve (ACE_Time_Value *val)
 Method where the bunch of the action takes place.
void transport_released (void) const
bool try_connect (TAO_Transport_Descriptor_Interface *desc, ACE_Time_Value *val)
bool try_parallel_connect (TAO_Transport_Descriptor_Interface *desc, ACE_Time_Value *val)
bool use_parallel_connect (void) const
void init_inconsistent_policies (void)
CORBA::PolicyList * inconsistent_policies (void) const
CORBA::PolicyList * steal_inconsistent_policies (void)
Accessors and mutators for this class. The following methods
are used by the clients of this class to access strategies and other internal workings.

void profile (TAO_Profile *pfile)
 Mutator for profile.
TAO_Profile * profile (void) const
 Accessor for profile.
TAO_Stub * stub (void) const
 Accessor for TAO_Stub.
CORBA::Object * object (void) const
 Accessor for the target in use.
TAO_Transport * transport (void) const
 Accessor for the transport reserved for this invocation.
int find_transport (TAO_Transport_Descriptor_Interface *)
bool blocked_connect (void) const

Private Member Functions

bool get_connection_timeout (ACE_Time_Value &max_wait_time)
bool try_connect_i (TAO_Transport_Descriptor_Interface *desc, ACE_Time_Value *val, bool parallel)

Private Attributes

CORBA::Object * obj_
 Target object.
TAO_Stub * stub_
 Stub object for the target object.
TAO::Transport_Selection_Guard transport_
 The transport selected for this invocation.
TAO_Profile * profile_
 The profile that has been selected for this invocation.
CORBA::PolicyList * inconsistent_policies_
 List of inconsistent policies.
bool is_released_
 Has the transport been idle?
bool const blocked_
 Should we block while trying to make a connection.

Detailed Description

Chooses the profile and a transport for a target object on which an invocation can be made.

A target object is represented by multiple profiles, which theoretically provides multiple paths to the same target object. This class helps in choosing the right profile, and pick a transport from cache (or create a new transport if needed) that represents the profile.

Definition at line 63 of file Profile_Transport_Resolver.h.

Constructor & Destructor Documentation

ACE_INLINE TAO::Profile_Transport_Resolver::Profile_Transport_Resolver ( CORBA::Object *  p,
TAO_Stub *  stub,
bool  block = true
)

Constructor.

With block we tell whether this resolved should always deliver a connection by blocking or unblock before the connection is completely established. Please note that this has *nothing* to do with the synchronous or asynch connect strategy used for making connections. This is a local flag used by the clients of this to dictate some local behavior.

Definition at line 11 of file Profile_Transport_Resolver.inl.

00015     : obj_ (p)
00016     , stub_ (stub)
00017     , transport_ (0)
00018     , profile_ (0)
00019     , inconsistent_policies_ (0)
00020     , is_released_ (false)
00021     , blocked_ (block)
00022   {
00023   }

TAO::Profile_Transport_Resolver::~Profile_Transport_Resolver ( void   )

Definition at line 36 of file Profile_Transport_Resolver.cpp.

References TAO_Profile::_decr_refcnt(), inconsistent_policies_, profile_, and transport_.

00037   {
00038     if (this->profile_)
00039       {
00040         this->profile_->_decr_refcnt ();
00041       }
00042
00043     if (this->transport_.get ())
00044       {
00045         if (this->is_released_ == false)
00046           {
00047             this->transport_->make_idle ();
00048           }
00049
00050         this->transport_->remove_reference ();
00051       }
00052
00053     delete this->inconsistent_policies_;
00054   }

Member Function Documentation

ACE_INLINE bool TAO::Profile_Transport_Resolver::blocked_connect ( void   )  const

Accessor to indicate whether we should block while establishing a connection.

Definition at line 50 of file Profile_Transport_Resolver.inl.

References blocked_.

00051   {
00052     return this->blocked_;
00053   }

int TAO::Profile_Transport_Resolver::find_transport ( TAO_Transport_Descriptor_Interface *   )

See if the transport cache has an available transport and use that one rather than trying to connect via the connector. Separating this functionality enables the look up of many endpoints before trying the more time-consuming trip through the actual connector.

Definition at line 241 of file Profile_Transport_Resolver.cpp.

References TAO_ORB_Core::lane_resources(), TAO_Profile::orb_core(), profile_, transport_, and TAO_Thread_Lane_Resources::transport_cache().

00242   {
00243     TAO::Transport_Cache_Manager & cache =
00244       this->profile_->orb_core()->lane_resources ().transport_cache();
00245
00246     // the cache increments the reference count on the transport if
00247     // the find is successful. Cache.find_transport returns 0 on success.
00248     // but we want to return a "boolean" of 0 for failure, 1 for success.
00249     TAO_Transport* tmp = this->transport_.get ();
00250     if (cache.find_transport(desc, tmp) != 0)
00251       return 0;
00252
00253     this->transport_.set (tmp);
00254     return 1;
00255   }

bool TAO::Profile_Transport_Resolver::get_connection_timeout ( ACE_Time_Value &  max_wait_time  )  [private]

Helper method to access get the connection timeout from the ORB.

Definition at line 213 of file Profile_Transport_Resolver.cpp.

References TAO_ORB_Core::connection_timeout(), TAO_Stub::orb_core(), and stub_.

Referenced by try_connect_i().

00215   {
00216     bool is_conn_timeout = false;
00217
00218     // Check for the connection timout policy in the ORB
00219     this->stub_->orb_core ()->connection_timeout (this->stub_,
00220                                                   is_conn_timeout,
00221                                                   max_wait_time);
00222
00223     return is_conn_timeout;
00224   }

ACE_INLINE CORBA::PolicyList * TAO::Profile_Transport_Resolver::inconsistent_policies ( void   )  const

Definition at line 62 of file Profile_Transport_Resolver.inl.

References inconsistent_policies_.

00063   {
00064     return this->inconsistent_policies_;
00065   }

void TAO::Profile_Transport_Resolver::init_inconsistent_policies ( void   )

Initialize the inconsistent policy list that this object has cached.

Definition at line 228 of file Profile_Transport_Resolver.cpp.

References CORBA::SystemException::_tao_minor_code(), ACE_NEW_THROW_EX, and CORBA::COMPLETED_NO.

00229   {
00230     ACE_NEW_THROW_EX (this->inconsistent_policies_,
00231                       CORBA::PolicyList (0),
00232                       CORBA::NO_MEMORY (
00233                       CORBA::SystemException::_tao_minor_code (
00234                         0,
00235                         ENOMEM),
00236                       CORBA::COMPLETED_NO));
00237   }

ACE_INLINE CORBA::Object_ptr TAO::Profile_Transport_Resolver::object ( void   )  const

Accessor for the target in use.

Definition at line 32 of file Profile_Transport_Resolver.inl.

References obj_.

Referenced by TAO::Remote_Invocation::send_message().

00033   {
00034     return this->obj_;
00035   }

ACE_INLINE TAO_Profile * TAO::Profile_Transport_Resolver::profile ( void   )  const

Accessor for profile.

Definition at line 38 of file Profile_Transport_Resolver.inl.

References profile_.

00039   {
00040     return this->profile_;
00041   }

void TAO::Profile_Transport_Resolver::profile ( TAO_Profile *  pfile  )

Mutator for profile.

Definition at line 57 of file Profile_Transport_Resolver.cpp.

References TAO_Profile::_decr_refcnt(), TAO_Profile::_incr_refcnt(), and profile_.

Referenced by TAO::LocateRequest_Invocation::check_reply(), TAO::Synch_Twoway_Invocation::check_reply_status(), TAO::Synch_Twoway_Invocation::handle_system_exception(), TAO::Remote_Invocation::init_target_spec(), and TAO::Synch_Twoway_Invocation::wait_for_reply().

00058   {
00059     // Dont do anything if the incoming profile is null
00060     if (p)
00061       {
00062         // @note This is just a workaround for a more serious problem
00063         // with profile management. This would cover some potential
00064         // issues that Ossama is working on.  Ossama, please remove
00065         // them when you are done.
00066         TAO_Profile *tmp = this->profile_;
00067
00068         (void) p->_incr_refcnt ();
00069         this->profile_ = p;
00070
00071         if (tmp)
00072           {
00073             (void) tmp->_decr_refcnt ();
00074           }
00075       }
00076   }

void TAO::Profile_Transport_Resolver::resolve ( ACE_Time_Value *  val  )

Method where the bunch of the action takes place.

This is the entry point from the TAO::Invocation_Adapter class. This method accesses the endpoint selector factory from the ORB_Core to decide on the strategy to be used for selecting the profile.

Definition at line 80 of file Profile_Transport_Resolver.cpp.

References TAO_ORB_Core::endpoint_selector_factory(), TAO_Endpoint_Selector_Factory::get_selector(), TAO_Stub::orb_core(), profile_, TAO_Invocation_Endpoint_Selector::select_endpoint(), stub_, transport_, and TAO_Profile::version().

00081   {
00082     ACE_Countdown_Time countdown (max_time_val);
00083
00084     TAO_Invocation_Endpoint_Selector *es =
00085       this->stub_->orb_core ()->endpoint_selector_factory ()->get_selector ();
00086
00087     // Select the endpoint
00088     es->select_endpoint (this, max_time_val);
00089
00090     if (this->transport_.get () == 0)
00091       {
00092         // No useable endpoint could be found. We will not
00093         // be able to send the message. Wait to throw an exception until
00094         // after the send_request interception point has been called.
00095         return;
00096       }
00097
00098     TAO_GIOP_Message_Version const & version = this->profile_->version ();
00099
00100     // Initialize the messaging object
00101     this->transport_->messaging_init (version);
00102
00103     if (!this->transport_->is_tcs_set ())
00104       {
00105         TAO_Codeset_Manager * const tcm =
00106           this->stub_->orb_core ()->codeset_manager ();
00107         if (tcm)
00108           tcm->set_tcs (*this->profile_, *this->transport_);
00109       }
00110   }

ACE_INLINE CORBA::PolicyList * TAO::Profile_Transport_Resolver::steal_inconsistent_policies ( void   )

Definition at line 68 of file Profile_Transport_Resolver.inl.

References inconsistent_policies_.

00069   {
00070     CORBA::PolicyList *tmp = this->inconsistent_policies_;
00071     this->inconsistent_policies_ = 0;
00072     return tmp;
00073   }

ACE_INLINE TAO_Stub * TAO::Profile_Transport_Resolver::stub ( void   )  const

Accessor for TAO_Stub.

Definition at line 26 of file Profile_Transport_Resolver.inl.

References stub_.

Referenced by TAO::Remote_Invocation::init_target_spec(), TAO::Invocation_Adapter::invoke_oneway(), TAO::Invocation_Adapter::invoke_twoway(), TAO::Synch_Oneway_Invocation::remote_oneway(), TAO::Synch_Twoway_Invocation::remote_twoway(), TAO::Remote_Invocation::send_message(), and TAO::Synch_Twoway_Invocation::wait_for_reply().

00027   {
00028     return this->stub_;
00029   }

ACE_INLINE TAO_Transport * TAO::Profile_Transport_Resolver::transport ( void   )  const

Accessor for the transport reserved for this invocation.

Definition at line 44 of file Profile_Transport_Resolver.inl.

References transport_.

Referenced by TAO::LocateRequest_Invocation::check_reply(), TAO::Synch_Twoway_Invocation::check_reply_status(), TAO::LocateRequest_Invocation::invoke(), TAO::Synch_Oneway_Invocation::remote_oneway(), TAO::Synch_Twoway_Invocation::remote_twoway(), TAO::Remote_Invocation::send_message(), TAO::Synch_Twoway_Invocation::wait_for_reply(), and TAO::Remote_Invocation::write_header().

00045   {
00046     return this->transport_.get ();
00047   }

ACE_INLINE void TAO::Profile_Transport_Resolver::transport_released ( void   )  const

Signal to let the resolver know that the transport has been released back to the cache.

Definition at line 56 of file Profile_Transport_Resolver.inl.

References is_released_.

00057   {
00058     this->is_released_ = true;
00059   }

bool TAO::Profile_Transport_Resolver::try_connect ( TAO_Transport_Descriptor_Interface *  desc,
ACE_Time_Value *  val
)

This is a callback method used by the endpoint selectors to delegate the responsibility of reserving a transport from the connection cache for this invocation. When the descriptor contains more than one endpoint (as part of a linked list) and the parallel flag is true then the connector will look for a connection on any of the endpoints if it supports that behavior, otherwise an ENOTSUP errno will be set and the method will return false.

Definition at line 113 of file Profile_Transport_Resolver.cpp.

References try_connect_i().

00116   {
00117     return this->try_connect_i (desc, timeout, false);
00118   }

bool TAO::Profile_Transport_Resolver::try_connect_i ( TAO_Transport_Descriptor_Interface *  desc,
ACE_Time_Value *  val,
bool  parallel
) [private]

Definition at line 130 of file Profile_Transport_Resolver.cpp.

References CORBA::SystemException::_tao_minor_code(), ACE_ASSERT, CORBA::COMPLETED_NO, TAO_Connector::connect(), TAO_ORB_Core::connector_registry(), TAO_Transport_Descriptor_Interface::endpoint(), get_connection_timeout(), TAO_Connector_Registry::get_connector(), TAO_Stub::orb_core(), TAO_Connector::parallel_connect(), stub_, TAO_Endpoint::tag(), TAO_TIMEOUT_CONNECT_MINOR_CODE, and transport_.

Referenced by try_connect(), and try_parallel_connect().

00134   {
00135     TAO_Connector_Registry *conn_reg =
00136       this->stub_->orb_core ()->connector_registry ();
00137
00138     if (conn_reg == 0)
00139       {
00140         throw ::CORBA::INTERNAL (
00141           CORBA::SystemException::_tao_minor_code (
00142             0,
00143             EINVAL),
00144           CORBA::COMPLETED_NO);
00145       }
00146
00147     ACE_Time_Value connection_timeout;
00148     bool has_con_timeout = this->get_connection_timeout (connection_timeout);
00149
00150     if (has_con_timeout && !this->blocked_)
00151       {
00152         timeout = &connection_timeout;
00153       }
00154     else if (has_con_timeout)
00155       {
00156         if (timeout == 0 || connection_timeout < *timeout)
00157           timeout = &connection_timeout;
00158         else
00159           has_con_timeout = false;
00160       }
00161     else if (!this->blocked_)
00162       {
00163         timeout = 0;
00164       }
00165
00166     TAO_Connector *con = conn_reg->get_connector (desc->endpoint ()->tag ());
00167     ACE_ASSERT(con != 0);
00168     if (parallel)
00169       {
00170         this->transport_.set (con->parallel_connect (this, desc, timeout));
00171       }
00172     else
00173       {
00174         this->transport_.set (con->connect (this, desc, timeout));
00175       }
00176     // A timeout error occurred.
00177     // If the user has set a roundtrip timeout policy, throw a timeout
00178     // exception.  Otherwise, just fall through and return false to
00179     // look at the next endpoint.
00180     if (this->transport_.get () == 0 &&
00181         has_con_timeout == false &&
00182         errno == ETIME)
00183       {
00184         throw ::CORBA::TIMEOUT (
00185           CORBA::SystemException::_tao_minor_code (
00186             TAO_TIMEOUT_CONNECT_MINOR_CODE,
00187             errno),
00188           CORBA::COMPLETED_NO);
00189       }
00190     else if (this->transport_.get () == 0)
00191       {
00192         return false;
00193       }
00194
00195     return true;
00196   }

bool TAO::Profile_Transport_Resolver::try_parallel_connect ( TAO_Transport_Descriptor_Interface *  desc,
ACE_Time_Value *  val
)

Definition at line 121 of file Profile_Transport_Resolver.cpp.

References try_connect_i().

00124   {
00125     return this->try_connect_i (desc, timeout, true);
00126   }

bool TAO::Profile_Transport_Resolver::use_parallel_connect ( void   )  const

This method wraps a call to the orb core to see if parallel connection attempts are even desired. This is controlled by the -ORBUseParallelConnects 1|0 commandline option.

Definition at line 199 of file Profile_Transport_Resolver.cpp.

References TAO_ORB_Core::client_factory(), TAO_Client_Strategy_Factory::connect_strategy(), TAO_Stub::orb_core(), TAO_ORB_Core::orb_params(), stub_, TAO_Client_Strategy_Factory::TAO_BLOCKED_CONNECT, and TAO_ORB_Parameters::use_parallel_connects().

00200   {
00201     TAO_ORB_Core *oc = this->stub_->orb_core();
00202     return (oc->orb_params()->use_parallel_connects()
00203 #if 0       // it was decided that even with blocked connects
00204             // parallel connects could be useful, at least for cache
00205             // processing.
00206             oc->client_factory()->connect_strategy() !=
00207             TAO_Client_Strategy_Factory::TAO_BLOCKED_CONNECT
00208 #endif /* 0 */
00209             );
00210   }

Member Data Documentation

bool const TAO::Profile_Transport_Resolver::blocked_ [private]

Should we block while trying to make a connection.

Definition at line 204 of file Profile_Transport_Resolver.h.

Referenced by blocked_connect().

CORBA::PolicyList* TAO::Profile_Transport_Resolver::inconsistent_policies_ [private]

List of inconsistent policies.

If current effective policies cause the invocation to raise CORBA::INV_POLICY exception, the conflicting/problematic policies are stored in this list. This is used by

Parameters:
Object::_validate_connection method to inform clients about causes of invocation failure.
Conflicting policies are only stored in this list if
Parameters:
init_inconsistent_policies method has been called prior to the beginning of invocation. This saves extra work of conflicting policies 'logging' when it's not needed.
Note:
We don't use _var with a reason. Using _var would involve including the header file for at least Policy_ForwardC.h, and that is what we precisely want to avoid.

Definition at line 198 of file Profile_Transport_Resolver.h.

Referenced by inconsistent_policies(), steal_inconsistent_policies(), and ~Profile_Transport_Resolver().

bool TAO::Profile_Transport_Resolver::is_released_ [mutable, private]

Has the transport been idle?

Definition at line 201 of file Profile_Transport_Resolver.h.

Referenced by transport_released().

CORBA::Object* TAO::Profile_Transport_Resolver::obj_ [mutable, private]

Target object.

Definition at line 166 of file Profile_Transport_Resolver.h.

Referenced by object().

TAO_Profile* TAO::Profile_Transport_Resolver::profile_ [private]

The profile that has been selected for this invocation.

Definition at line 178 of file Profile_Transport_Resolver.h.

Referenced by find_transport(), profile(), resolve(), and ~Profile_Transport_Resolver().

TAO_Stub* TAO::Profile_Transport_Resolver::stub_ [private]

Stub object for the target object.

Definition at line 169 of file Profile_Transport_Resolver.h.

Referenced by get_connection_timeout(), resolve(), stub(), try_connect_i(), and use_parallel_connect().

TAO::Transport_Selection_Guard TAO::Profile_Transport_Resolver::transport_ [private]

The transport selected for this invocation.

Using the wrapper guard ensures it is available for use with the Transport Current interfaces.

Definition at line 175 of file Profile_Transport_Resolver.h.

Referenced by find_transport(), resolve(), transport(), try_connect_i(), and ~Profile_Transport_Resolver().

The documentation for this class was generated from the following files:
Generated on Tue Feb 2 17:39:17 2010 for TAO by  doxygen 1.4.7
