Class representing a thread lane's resources. More...

#include <Thread_Lane_Resources.h>

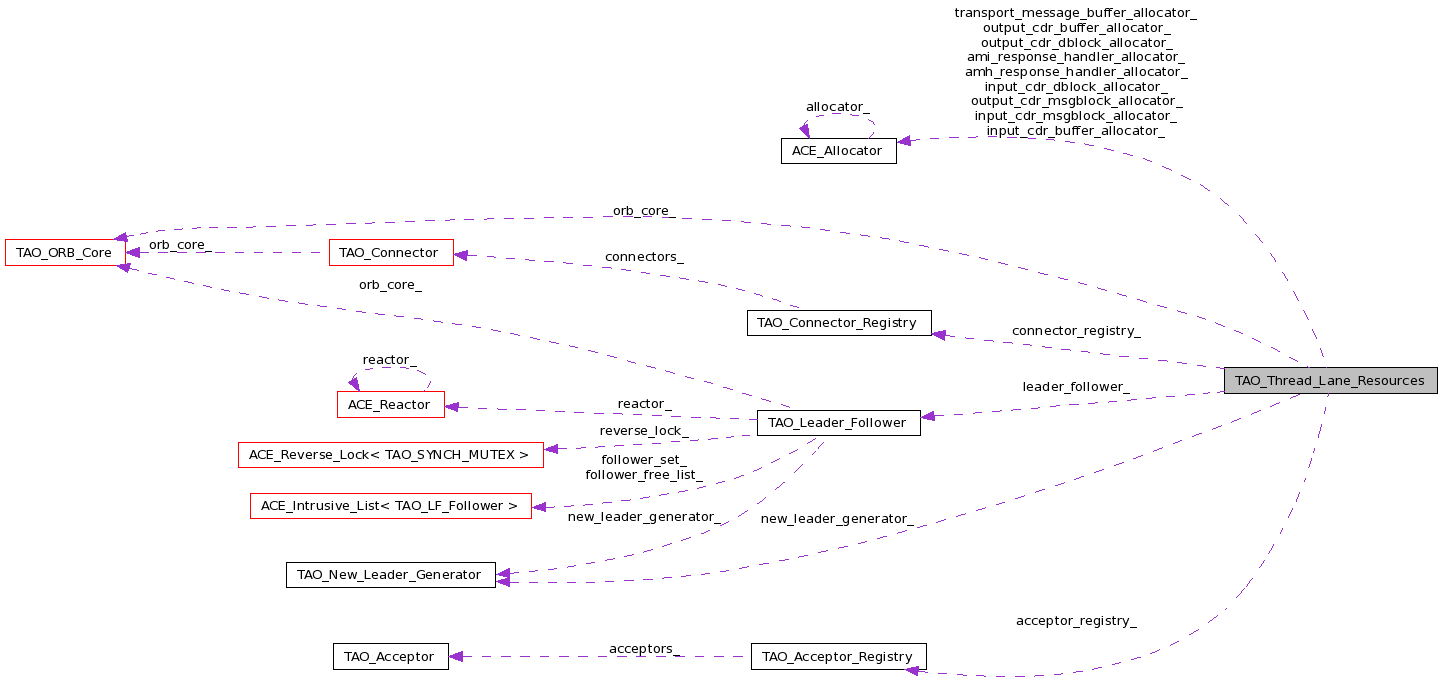

Collaboration diagram for TAO_Thread_Lane_Resources:

Public Member Functions
	TAO_Thread_Lane_Resources (TAO_ORB_Core &orb_core, TAO_New_Leader_Generator *new_leader_generator=0)
	Constructor.
	~TAO_Thread_Lane_Resources (void)
	Destructor.
int	is_collocated (const TAO_MProfile &mprofile)
int	open_acceptor_registry (const TAO_EndpointSet &endpoint_set, bool ignore_address)
	Open the acceptor registry.
void	finalize (void)
	Finalize resources.
void	shutdown_reactor (void)
	Shutdown the reactor.
void	close_all_transports (void)
Private Member Functions
int	has_acceptor_registry_been_created (void) const
	Checks if the acceptor registry has been created.
TAO_Resource_Factory *	resource_factory (void)
	Helper to get the resource factory in the ORB_Core.
Private Attributes
TAO_ORB_Core &	orb_core_
	ORB_Core related to this thread lane.
TAO_Acceptor_Registry *	acceptor_registry_
TAO_Connector_Registry *	connector_registry_
TAO::Transport_Cache_Manager *	transport_cache_
	Transport cache.
TAO_Leader_Follower *	leader_follower_
	The leader/followers management class for this lane.
TAO_SYNCH_MUTEX	lock_
	Synchronization.
TAO_New_Leader_Generator *	new_leader_generator_
	Generator of new leader threads.
The allocators for the input CDR streams.

ACE_Allocator *	input_cdr_dblock_allocator_
ACE_Allocator *	input_cdr_buffer_allocator_
ACE_Allocator *	input_cdr_msgblock_allocator_
The allocators for the buffering messages in the transport.

ACE_Allocator *	transport_message_buffer_allocator_
The allocators for the output CDR streams.

ACE_Allocator *	output_cdr_dblock_allocator_
ACE_Allocator *	output_cdr_buffer_allocator_
ACE_Allocator *	output_cdr_msgblock_allocator_
The allocators for AMH.

ACE_Allocator *	amh_response_handler_allocator_
The allocators for AMI.

ACE_Allocator *	ami_response_handler_allocator_
Accessors

TAO_Acceptor_Registry &	acceptor_registry (void)
	Get the transport cache.
TAO_Connector_Registry *	connector_registry (void)
	Get the transport cache.
TAO::Transport_Cache_Manager &	transport_cache (void)
	Get the transport cache.
TAO_Leader_Follower &	leader_follower (void)
	Get the transport cache.
ACE_Allocator *	input_cdr_dblock_allocator (void)
	Get the transport cache.
ACE_Allocator *	input_cdr_buffer_allocator (void)
	Get the transport cache.
ACE_Allocator *	input_cdr_msgblock_allocator (void)
	Get the transport cache.
ACE_Allocator *	transport_message_buffer_allocator (void)
	Get the transport cache.
ACE_Allocator *	output_cdr_dblock_allocator (void)
	Get the transport cache.
ACE_Allocator *	output_cdr_buffer_allocator (void)
	Get the transport cache.
ACE_Allocator *	output_cdr_msgblock_allocator (void)
	Get the transport cache.
ACE_Allocator *	amh_response_handler_allocator (void)
	Get the transport cache.
ACE_Allocator *	ami_response_handler_allocator (void)
	Get the transport cache.

Detailed Description

Class representing a thread lane's resources.

Definition at line 51 of file Thread_Lane_Resources.h.

Constructor & Destructor Documentation

TAO_Thread_Lane_Resources::TAO_Thread_Lane_Resources	(	TAO_ORB_Core &	orb_core,
		TAO_New_Leader_Generator *	new_leader_generator = `0`
	)

Constructor.

Definition at line 24 of file Thread_Lane_Resources.cpp.

  : orb_core_ (orb_core),
    acceptor_registry_ (0),
    connector_registry_ (0),
    transport_cache_ (0),
    leader_follower_ (0),
    new_leader_generator_ (new_leader_generator),
    input_cdr_dblock_allocator_ (0),
    input_cdr_buffer_allocator_ (0),
    input_cdr_msgblock_allocator_ (0),
    transport_message_buffer_allocator_ (0),
    output_cdr_dblock_allocator_ (0),
    output_cdr_buffer_allocator_ (0),
    output_cdr_msgblock_allocator_ (0),
    amh_response_handler_allocator_ (0),
    ami_response_handler_allocator_ (0)
{
  // Create the transport cache.
  ACE_NEW (this->transport_cache_,
           TAO::Transport_Cache_Manager (
            orb_core.resource_factory ()->purge_percentage (),
            orb_core.resource_factory ()->create_purging_strategy (),
            orb_core.resource_factory ()->cache_maximum (),
            orb_core.resource_factory ()->locked_transport_cache (),
            orb_core.orbid ()));
}

TAO_Thread_Lane_Resources::~TAO_Thread_Lane_Resources ( void )

Destructor.

Definition at line 54 of file Thread_Lane_Resources.cpp.

{
}

Member Function Documentation

TAO_Acceptor_Registry & TAO_Thread_Lane_Resources::acceptor_registry ( void )

Get the transport cache.

Definition at line 82 of file Thread_Lane_Resources.cpp.

{
  // Double check.
  if (this->acceptor_registry_ == 0)
    {
      // @todo: Wouldnt this crash big time if you happen to
      // dereference a null-pointer? Needs fixing.
      ACE_GUARD_RETURN (TAO_SYNCH_MUTEX,
                        ace_mon,
                        this->lock_,
                        *this->acceptor_registry_);

      if (this->acceptor_registry_ == 0)
        {
          // @@ Not exception safe code
          // Get the resource factory.
          TAO_Resource_Factory &resource_factory =
            *this->orb_core_.resource_factory ();

          // Ask it to create a new acceptor registry.
          this->acceptor_registry_ =
            resource_factory.get_acceptor_registry ();
        }
    }

  return *this->acceptor_registry_;
}

ACE_Allocator * TAO_Thread_Lane_Resources::amh_response_handler_allocator ( void )

Get the transport cache.

Definition at line 313 of file Thread_Lane_Resources.cpp.

{
  if (this->amh_response_handler_allocator_ == 0)
    {
      // Double checked locking
      ACE_GUARD_RETURN (TAO_SYNCH_MUTEX, ace_mon, this->lock_, 0);

      if (this->amh_response_handler_allocator_ == 0)
        {
          this->amh_response_handler_allocator_ =
            this->resource_factory ()->amh_response_handler_allocator ();
        }
    }

  return this->amh_response_handler_allocator_;
}

ACE_Allocator * TAO_Thread_Lane_Resources::ami_response_handler_allocator ( void )

Get the transport cache.

Definition at line 331 of file Thread_Lane_Resources.cpp.

{
  if (this->ami_response_handler_allocator_ == 0)
    {
      // Double checked locking
      ACE_GUARD_RETURN (TAO_SYNCH_MUTEX, ace_mon, this->lock_, 0);

      if (this->ami_response_handler_allocator_ == 0)
        {
          this->ami_response_handler_allocator_ =
            this->resource_factory ()->ami_response_handler_allocator ();
        }
    }

  return this->ami_response_handler_allocator_;
}

void TAO_Thread_Lane_Resources::close_all_transports ( void )

Certain ORB policies such as dropping replies on shutdown would need cleanup of transports to wake threads up.

Definition at line 518 of file Thread_Lane_Resources.cpp.

{
  // If we have no-drop-reply strategy or already fininalized simply return.
  if (!this->orb_core_.resource_factory ()->drop_replies_during_shutdown () ||
       this->transport_cache_ == 0)
    return;

  // Set of handlers still in the connection cache.
  TAO::Connection_Handler_Set handlers;

  // Close the transport cache and return the handlers that were still
  // registered.  The cache will decrease the #REFCOUNT# on the
  // handler when it removes the handler from cache.  However,
  // #REFCOUNT# is increased when the handler is placed in the handler
  // set.
  this->transport_cache_->close (handlers);

  // Go through the handler set, closing the connections and removing
  // the references.
  TAO_Connection_Handler **handler = 0;

  for (TAO::Connection_Handler_Set::iterator iter (handlers);
       iter.next (handler);
       iter.advance ())
    {
      // Connection is closed.  Potential removal from the Reactor.
      (*handler)->close_connection ();

      // #REFCOUNT# related to the handler set decreases.
      (*handler)->transport ()->remove_reference ();
    }
}

TAO_Connector_Registry * TAO_Thread_Lane_Resources::connector_registry ( void )

Get the transport cache.

Definition at line 111 of file Thread_Lane_Resources.cpp.

{
  // Double check.
  if (this->connector_registry_ == 0)
    {
      ACE_GUARD_RETURN (TAO_SYNCH_MUTEX,
                        ace_mon,
                        this->lock_,
                        0);

      if (this->connector_registry_ == 0)
        {
          // Ask it to create a new acceptor registry.
          TAO_Connector_Registry *connector_registry =
            this->orb_core_.resource_factory ()->get_connector_registry ();

          if (connector_registry == 0)
            {
              throw ::CORBA::INITIALIZE (
                CORBA::SystemException::_tao_minor_code (
                  TAO_CONNECTOR_REGISTRY_INIT_LOCATION_CODE,
                  0),
                CORBA::COMPLETED_NO);
            }

          if (connector_registry->open (&this->orb_core_) != 0)
            {
              throw ::CORBA::INITIALIZE (
                CORBA::SystemException::_tao_minor_code (
                  TAO_CONNECTOR_REGISTRY_INIT_LOCATION_CODE,
                  0),
                CORBA::COMPLETED_NO);
            }

          // Finally, everything is created and opened successfully:
          // now we can assign to the member.  Otherwise, the
          // assignment would be premature.
          this->connector_registry_ = connector_registry;
        }
    }

  return this->connector_registry_;
}

void TAO_Thread_Lane_Resources::finalize ( void )

Finalize resources.

Definition at line 369 of file Thread_Lane_Resources.cpp.

{
  // Close connectors before acceptors!
  // Ask the registry to close all registered connectors.
  if (this->connector_registry_ != 0)
    {
      this->connector_registry_->close_all ();
      delete this->connector_registry_;
      this->connector_registry_ = 0;
    }

  // Ask the registry to close all registered acceptors.
  if (this->acceptor_registry_ != 0)
    {
      this->acceptor_registry_->close_all ();
      delete this->acceptor_registry_;
      this->acceptor_registry_ = 0;
    }

  // Set of handlers still in the connection cache.
  TAO::Connection_Handler_Set handlers;

  // Close the transport cache and return the handlers that were still
  // registered.  The cache will decrease the #REFCOUNT# on the
  // handler when it removes the handler from cache.  However,
  // #REFCOUNT# is increased when the handler is placed in the handler
  // set.
  this->transport_cache_->close (handlers);

  // Go through the handler set, closing the connections and removing
  // the references.
  TAO_Connection_Handler **handler = 0;

  for (TAO::Connection_Handler_Set::iterator iter (handlers);
       iter.next (handler);
       iter.advance ())
    {
      // Connection is closed.  Potential removal from the Reactor.
      (*handler)->close_connection ();

      // #REFCOUNT# related to the handler set decreases.
      (*handler)->transport ()->remove_reference ();
    }

  delete this->transport_cache_;
  this->transport_cache_ = 0;

  delete this->leader_follower_;
  this->leader_follower_ = 0;

  // Delete all the allocators here.. They shouldnt be done earlier,
  // lest some of the contents in the above, say reactor or acceptor
  // may use memory from the pool..
  if (this->input_cdr_dblock_allocator_ != 0)
    {
      this->input_cdr_dblock_allocator_->remove ();
      delete this->input_cdr_dblock_allocator_;
      this->input_cdr_dblock_allocator_ = 0;
    }

  if (this->input_cdr_buffer_allocator_ != 0)
    {
      this->input_cdr_buffer_allocator_->remove ();
      delete this->input_cdr_buffer_allocator_;
      this->input_cdr_buffer_allocator_ = 0;
    }

  if (this->input_cdr_msgblock_allocator_ != 0)
    {
      this->input_cdr_msgblock_allocator_->remove ();
      delete this->input_cdr_msgblock_allocator_;
      this->input_cdr_msgblock_allocator_ = 0;
    }

  if (this->transport_message_buffer_allocator_ != 0)
    {
      this->transport_message_buffer_allocator_->remove ();
      delete this->transport_message_buffer_allocator_;
      this->transport_message_buffer_allocator_ = 0;
    }

  if (this->output_cdr_dblock_allocator_ != 0)
    {
      this->output_cdr_dblock_allocator_->remove ();
      delete this->output_cdr_dblock_allocator_;
      this->output_cdr_dblock_allocator_ = 0;
    }

  if (this->output_cdr_buffer_allocator_ != 0)
    {
      this->output_cdr_buffer_allocator_->remove ();
      delete this->output_cdr_buffer_allocator_;
      this->output_cdr_buffer_allocator_ = 0;
    }

  if (this->output_cdr_msgblock_allocator_ != 0)
    {
      this->output_cdr_msgblock_allocator_->remove ();
      delete this->output_cdr_msgblock_allocator_;
      this->output_cdr_msgblock_allocator_ = 0;
    }

  if (this->amh_response_handler_allocator_ != 0)
    {
      this->amh_response_handler_allocator_->remove ();
      delete this->amh_response_handler_allocator_;
      this->amh_response_handler_allocator_ = 0;
    }

  if (this->ami_response_handler_allocator_ != 0)
    {
      this->ami_response_handler_allocator_->remove ();
      delete this->ami_response_handler_allocator_;
      this->ami_response_handler_allocator_ = 0;
    }
}

int TAO_Thread_Lane_Resources::has_acceptor_registry_been_created ( void ) const [private]

Checks if the acceptor registry has been created.

Definition at line 65 of file Thread_Lane_Resources.cpp.

{
  return this->acceptor_registry_ != 0;
}

ACE_Allocator * TAO_Thread_Lane_Resources::input_cdr_buffer_allocator ( void )

Get the transport cache.

Definition at line 201 of file Thread_Lane_Resources.cpp.

{
  if (this->input_cdr_buffer_allocator_ == 0)
    {
      // Double checked locking
      ACE_GUARD_RETURN (TAO_SYNCH_MUTEX, ace_mon, this->lock_, 0);

      if (this->input_cdr_buffer_allocator_ == 0)
        {
          this->input_cdr_buffer_allocator_ =
            this->resource_factory ()->input_cdr_buffer_allocator ();
        }
    }

  return this->input_cdr_buffer_allocator_;
}

ACE_Allocator * TAO_Thread_Lane_Resources::input_cdr_dblock_allocator ( void )

Get the transport cache.

Definition at line 182 of file Thread_Lane_Resources.cpp.

{
  if (this->input_cdr_dblock_allocator_ == 0)
    {
      // Double checked locking
      ACE_GUARD_RETURN (TAO_SYNCH_MUTEX, ace_mon, this->lock_, 0);

      if (this->input_cdr_dblock_allocator_ == 0)
        {
          this->input_cdr_dblock_allocator_ =
            this->resource_factory ()->input_cdr_dblock_allocator ();
        }
    }

  return this->input_cdr_dblock_allocator_;
}

ACE_Allocator * TAO_Thread_Lane_Resources::input_cdr_msgblock_allocator ( void )

Get the transport cache.

Definition at line 220 of file Thread_Lane_Resources.cpp.

{
  if (this->input_cdr_msgblock_allocator_ == 0)
    {
      // Double checked locking
      ACE_GUARD_RETURN (TAO_SYNCH_MUTEX, ace_mon, this->lock_, 0);

      if (this->input_cdr_msgblock_allocator_ == 0)
        {
          this->input_cdr_msgblock_allocator_ =
            this->resource_factory ()->input_cdr_msgblock_allocator ();
        }
    }

  return this->input_cdr_msgblock_allocator_;
}

int TAO_Thread_Lane_Resources::is_collocated ( const TAO_MProfile & mprofile )

Definition at line 71 of file Thread_Lane_Resources.cpp.

{
  if (!this->has_acceptor_registry_been_created ())
    {
      return 0;
    }

  return this->acceptor_registry ().is_collocated (mprofile);
}

TAO_Leader_Follower & TAO_Thread_Lane_Resources::leader_follower ( void )

Get the transport cache.

Definition at line 157 of file Thread_Lane_Resources.cpp.

{
  // Double check.
  if (this->leader_follower_ == 0)
    {
      ACE_GUARD_RETURN (TAO_SYNCH_MUTEX,
                        ace_mon,
                        this->lock_,
                        *this->leader_follower_);

      if (this->leader_follower_ == 0)
        {
          // Create a new Leader Follower object.
          ACE_NEW_RETURN (this->leader_follower_,
                          TAO_Leader_Follower (&this->orb_core_,
                                               this->new_leader_generator_),
                          *this->leader_follower_);
        }
    }

  return *this->leader_follower_;
}

int TAO_Thread_Lane_Resources::open_acceptor_registry	(	const TAO_EndpointSet &	endpoint_set,
		bool	ignore_address
	)

Open the acceptor registry.

Definition at line 349 of file Thread_Lane_Resources.cpp.

{
  // Access the acceptor registry.
  TAO_Acceptor_Registry &ar = this->acceptor_registry ();

  // Open it.
  return ar.open (&this->orb_core_,
                  this->leader_follower ().reactor (),
                  endpoint_set,
                  ignore_address);
}

ACE_Allocator * TAO_Thread_Lane_Resources::output_cdr_buffer_allocator ( void )

Get the transport cache.

Definition at line 276 of file Thread_Lane_Resources.cpp.

{
  if (this->output_cdr_buffer_allocator_ == 0)
    {
      // Double checked locking
      ACE_GUARD_RETURN (TAO_SYNCH_MUTEX, ace_mon, this->lock_, 0);

      if (this->output_cdr_buffer_allocator_ == 0)
        {
          this->output_cdr_buffer_allocator_ =
            this->resource_factory ()->output_cdr_buffer_allocator ();
        }
    }

  return this->output_cdr_buffer_allocator_;
}

ACE_Allocator * TAO_Thread_Lane_Resources::output_cdr_dblock_allocator ( void )

Get the transport cache.

Definition at line 257 of file Thread_Lane_Resources.cpp.

{
  if (this->output_cdr_dblock_allocator_ == 0)
    {
      // Double checked locking
      ACE_GUARD_RETURN (TAO_SYNCH_MUTEX, ace_mon, this->lock_, 0);

      if (this->output_cdr_dblock_allocator_ == 0)
        {
          this->output_cdr_dblock_allocator_ =
            this->resource_factory ()->output_cdr_dblock_allocator ();
        }
    }

  return this->output_cdr_dblock_allocator_;
}

ACE_Allocator * TAO_Thread_Lane_Resources::output_cdr_msgblock_allocator ( void )

Get the transport cache.

Definition at line 295 of file Thread_Lane_Resources.cpp.

{
  if (this->output_cdr_msgblock_allocator_ == 0)
    {
      // Double checked locking
      ACE_GUARD_RETURN (TAO_SYNCH_MUTEX, ace_mon, this->lock_, 0);

      if (this->output_cdr_msgblock_allocator_ == 0)
        {
          this->output_cdr_msgblock_allocator_ =
            this->resource_factory ()->output_cdr_msgblock_allocator ();
        }
    }

  return this->output_cdr_msgblock_allocator_;
}

TAO_Resource_Factory * TAO_Thread_Lane_Resources::resource_factory ( void ) [private]

Helper to get the resource factory in the ORB_Core.

Definition at line 363 of file Thread_Lane_Resources.cpp.

{
  return this->orb_core_.resource_factory ();
}

void TAO_Thread_Lane_Resources::shutdown_reactor ( void )

Shutdown the reactor.

Definition at line 487 of file Thread_Lane_Resources.cpp.

{
  TAO_Leader_Follower &leader_follower = this->leader_follower ();

  ACE_GUARD (TAO_SYNCH_MUTEX,
             ace_mon,
             leader_follower.lock ());

  ACE_Reactor *reactor = leader_follower.reactor ();

  // Wakeup all the threads waiting blocked in the event loop, this
  // does not guarantee that they will all go away, but reduces the
  // load on the POA....

  // If there are some client threads running we have to wait until
  // they finish, when the last one does it will shutdown the reactor
  // for us.  Meanwhile no new requests will be accepted because the
  // POA will not process them.
  if (!this->orb_core_.resource_factory ()->drop_replies_during_shutdown () &&
      leader_follower.has_clients ())
    {
      reactor->wakeup_all_threads ();
      return;
    }

  // End the reactor if we want shutdown dropping replies along the
  // way.
  reactor->end_reactor_event_loop ();
}

TAO::Transport_Cache_Manager & TAO_Thread_Lane_Resources::transport_cache ( void )

Get the transport cache.

Definition at line 59 of file Thread_Lane_Resources.cpp.

{
  return *this->transport_cache_;
}

ACE_Allocator * TAO_Thread_Lane_Resources::transport_message_buffer_allocator ( void )

Get the transport cache.

Definition at line 238 of file Thread_Lane_Resources.cpp.

{
  if (this->transport_message_buffer_allocator_ == 0)
    {
      // Double checked locking
      ACE_GUARD_RETURN (TAO_SYNCH_MUTEX, ace_mon, this->lock_, 0);

      if (this->transport_message_buffer_allocator_ == 0)
        {
          this->transport_message_buffer_allocator_ =
            this->resource_factory ()->input_cdr_dblock_allocator ();
        }
    }

  return this->transport_message_buffer_allocator_;
}
