Base class for TAO_Asynch_Reply_Dispatcher and TAO_DII_Deferred_Reply_Dispatcher. More...

#include <Asynch_Reply_Dispatcher_Base.h>

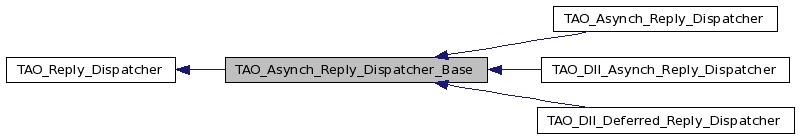

Inheritance diagram for TAO_Asynch_Reply_Dispatcher_Base:

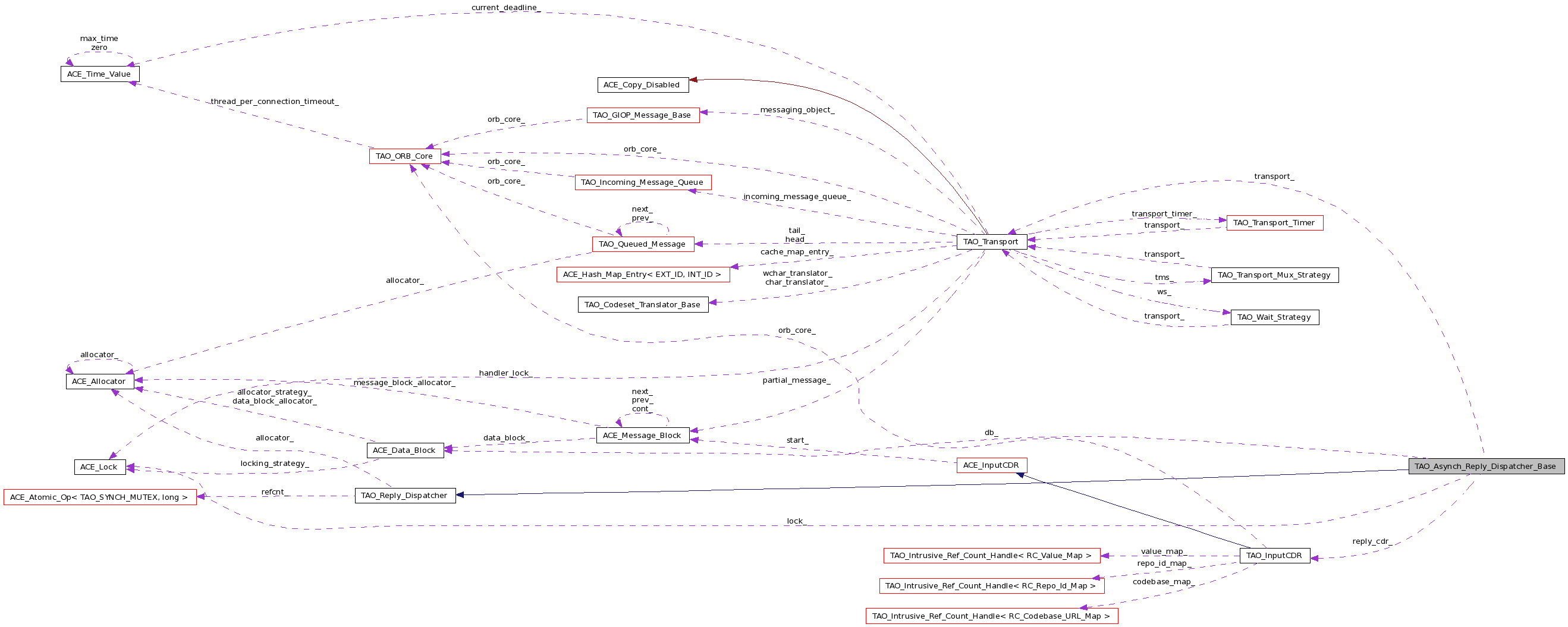

Collaboration diagram for TAO_Asynch_Reply_Dispatcher_Base:

Public Member Functions
	TAO_Asynch_Reply_Dispatcher_Base (TAO_ORB_Core orb_core, ACE_Allocator allocator=0)
	Default constructor.
void	transport (TAO_Transport *t)
	Sets the transport for this invocation.
virtual long	schedule_timer (CORBA::ULong, const ACE_Time_Value &)=0
	Install the timeout handler.
bool	try_dispatch_reply (void)
	A helper method that can be used by the subclasses.
Protected Member Functions
virtual	~TAO_Asynch_Reply_Dispatcher_Base (void)
	Destructor.
Protected Attributes
IOP::ServiceContextList	reply_service_info_
	The service context list.
char	buf_ [ACE_CDR::DEFAULT_BUFSIZE]
	The buffer that is used to initialise the data block.
ACE_Data_Block	db_
TAO_InputCDR	reply_cdr_
TAO_Transport *	transport_
	This invocation is using this transport, may change...
Private Member Functions
void	operator= (const TAO_Asynch_Reply_Dispatcher_Base &)
	TAO_Asynch_Reply_Dispatcher_Base (const TAO_Asynch_Reply_Dispatcher_Base &)
Private Attributes
ACE_Lock *	lock_
	Lock to protect `is_reply_dispatched_` flag.
bool	is_reply_dispatched_
	Has the reply been dispatched?

Detailed Description

Base class for TAO_Asynch_Reply_Dispatcher and TAO_DII_Deferred_Reply_Dispatcher.

Definition at line 45 of file Asynch_Reply_Dispatcher_Base.h.

Constructor & Destructor Documentation

TAO_Asynch_Reply_Dispatcher_Base::TAO_Asynch_Reply_Dispatcher_Base	(	TAO_ORB_Core *	orb_core,
		ACE_Allocator *	allocator = `0`
	)

Default constructor.

Definition at line 20 of file Asynch_Reply_Dispatcher_Base.cpp.

  : TAO_Reply_Dispatcher (allocator)
  , db_ (sizeof buf_,
         ACE_Message_Block::MB_DATA,
         this->buf_,
         orb_core->input_cdr_buffer_allocator (),
         orb_core->locking_strategy (),
         ACE_Message_Block::DONT_DELETE,
         orb_core->input_cdr_dblock_allocator ()),
    reply_cdr_ (&db_,
                ACE_Message_Block::MB_DATA,
                TAO_ENCAP_BYTE_ORDER,
                TAO_DEF_GIOP_MAJOR,
                TAO_DEF_GIOP_MINOR,
                orb_core)
  , transport_ (0)
  , lock_ (0)
  , is_reply_dispatched_ (false)
{
  // @@ NOTE: Need a seperate option for this..
  this->lock_ =
    orb_core->resource_factory ()->create_cached_connection_lock ();
}

TAO_Asynch_Reply_Dispatcher_Base::~TAO_Asynch_Reply_Dispatcher_Base ( void ) [protected, virtual]

Destructor.

Definition at line 47 of file Asynch_Reply_Dispatcher_Base.cpp.

{
  // Release the transport that we own
  if (this->transport_ != 0)
    this->transport_->remove_reference ();

  if (this->lock_)
    delete this->lock_;
}

TAO_Asynch_Reply_Dispatcher_Base::TAO_Asynch_Reply_Dispatcher_Base ( const TAO_Asynch_Reply_Dispatcher_Base & ) [private]

Member Function Documentation

void TAO_Asynch_Reply_Dispatcher_Base::operator= ( const TAO_Asynch_Reply_Dispatcher_Base & ) [private]

virtual long TAO_Asynch_Reply_Dispatcher_Base::schedule_timer	(	CORBA::ULong	,
		const ACE_Time_Value &
	)			`[pure virtual]`

Install the timeout handler.

Implemented in TAO_DII_Deferred_Reply_Dispatcher, and TAO_Asynch_Reply_Dispatcher.

void TAO_Asynch_Reply_Dispatcher_Base::transport ( TAO_Transport * t )

Sets the transport for this invocation.

Definition at line 58 of file Asynch_Reply_Dispatcher_Base.cpp.

{
  if (this->transport_ != 0)
    this->transport_->remove_reference ();

  this->transport_ = t;

  this->transport_->add_reference ();
}

bool TAO_Asynch_Reply_Dispatcher_Base::try_dispatch_reply ( void )

A helper method that can be used by the subclasses.

The semantics of this helper method needs careful attention. A call to this method will do the following

If the reply has already been dispatched, the return value will be false to signify not to try.

If the reply has not been dispatched, this method will set the flag to be true and return a true value to signify that the caller thread can go ahead and dispatch reply.

Why are we clumping everything in one method. Answer is we need atomicity?

Definition at line 69 of file Asynch_Reply_Dispatcher_Base.cpp.

{
  if (this->is_reply_dispatched_)
    {
      return false;
    }
  else
    {
      ACE_GUARD_RETURN (ACE_Lock,
                        mutex,
                        *this->lock_,
                        false);

      if (!this->is_reply_dispatched_)
        {
          this->is_reply_dispatched_ = true;
          return true;
        }
    }

  return false;
}

Member Data Documentation

char TAO_Asynch_Reply_Dispatcher_Base::buf_[ACE_CDR::DEFAULT_BUFSIZE] [protected]

The buffer that is used to initialise the data block.

Reimplemented in TAO_DII_Asynch_Reply_Dispatcher.

Definition at line 97 of file Asynch_Reply_Dispatcher_Base.h.

ACE_Data_Block TAO_Asynch_Reply_Dispatcher_Base::db_ [protected]

Datablock that is created on the stack to initialise the CDR stream underneath.

Reimplemented in TAO_DII_Asynch_Reply_Dispatcher.

Definition at line 101 of file Asynch_Reply_Dispatcher_Base.h.

bool TAO_Asynch_Reply_Dispatcher_Base::is_reply_dispatched_ [private]

Has the reply been dispatched?

Definition at line 115 of file Asynch_Reply_Dispatcher_Base.h.

ACE_Lock* TAO_Asynch_Reply_Dispatcher_Base::lock_ [private]

Lock to protect is_reply_dispatched_ flag.

Definition at line 112 of file Asynch_Reply_Dispatcher_Base.h.

TAO_InputCDR TAO_Asynch_Reply_Dispatcher_Base::reply_cdr_ [protected]

CDR stream which has the reply information that needs to be demarshalled by the stubs

Reimplemented in TAO_DII_Asynch_Reply_Dispatcher.

Definition at line 105 of file Asynch_Reply_Dispatcher_Base.h.

IOP::ServiceContextList TAO_Asynch_Reply_Dispatcher_Base::reply_service_info_ [protected]

The service context list.

Note, that this is not a reference as in the synchronous case. We own the reply_service_info because our TAO_Asynch_Invocation or TAO_DII_Deferred_Invocation will go out of scope before we are done.

Definition at line 94 of file Asynch_Reply_Dispatcher_Base.h.

TAO_Transport* TAO_Asynch_Reply_Dispatcher_Base::transport_ [protected]

This invocation is using this transport, may change...

Definition at line 108 of file Asynch_Reply_Dispatcher_Base.h.

The documentation for this class was generated from the following files:
