#include <Reply_Dispatcher.h>

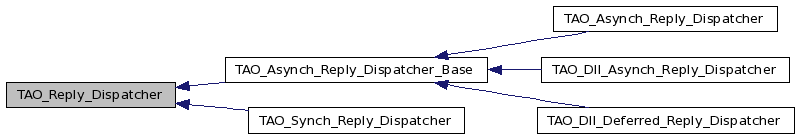

Inheritance diagram for TAO_Reply_Dispatcher:

Collaboration diagram for TAO_Reply_Dispatcher:

Public Member Functions
	TAO_Reply_Dispatcher (ACE_Allocator *allocator=0)
	Constructor.
virtual	~TAO_Reply_Dispatcher (void)
	Destructor.
virtual int	dispatch_reply (TAO_Pluggable_Reply_Params &params)=0
virtual void	reply_timed_out (void)=0
	Inform that the reply timed out.
virtual void	connection_closed (void)=0
GIOP::LocateStatusType	locate_reply_status (void) const
	Get the locate reply status.
GIOP::ReplyStatusType	reply_status (void) const
Static Public Member Functions
static void	intrusive_add_ref (TAO_Reply_Dispatcher *)
static void	intrusive_remove_ref (TAO_Reply_Dispatcher *)
Protected Attributes
GIOP::LocateStatusType	locate_reply_status_
	LocateReply status.
GIOP::ReplyStatusType	reply_status_
Private Attributes
ACE_Atomic_Op< TAO_SYNCH_MUTEX, long >	refcnt_
	Support for intrusive reference counting.
ACE_Allocator *	allocator_

Detailed Description

Different invocation modes process the Reply messages in different ways. Traditional synchronous replies simply receive the message and wake up the waiting thread (if any). Asynchronous Method Invocation (Callbacks) must process the message in the thread that receives it. Deferred Synchronous (DII) and AMI in the Poller mode save the reply for later processing in the application. The lower level components in the ORB only deal with this abstract interface, when the invocation is made the right type of Reply Dispatcher is instantiated and registered with the Transport object.

Definition at line 58 of file Reply_Dispatcher.h.

Constructor & Destructor Documentation

TAO_Reply_Dispatcher::TAO_Reply_Dispatcher ( ACE_Allocator * allocator = 0 )

Constructor.

Definition at line 16 of file Reply_Dispatcher.cpp.

  : locate_reply_status_ (GIOP::UNKNOWN_OBJECT)
  , reply_status_ (GIOP::NO_EXCEPTION)
  , refcnt_ (1)
  , allocator_(allocator)
{
}

TAO_Reply_Dispatcher::~TAO_Reply_Dispatcher ( void ) [virtual]

Destructor.

Definition at line 26 of file Reply_Dispatcher.cpp.

{
}

Member Function Documentation

virtual void TAO_Reply_Dispatcher::connection_closed ( void ) [pure virtual]

The used for the pending reply has been closed. No reply is expected.

Todo:: If the connection was closed due to a CloseConnection message then we could re-issue the request instead of raising the exception, it would a matter of simply adding a boolean argument to this function.

Implemented in TAO_DII_Deferred_Reply_Dispatcher, TAO_DII_Asynch_Reply_Dispatcher, and TAO_Asynch_Reply_Dispatcher.

virtual int TAO_Reply_Dispatcher::dispatch_reply ( TAO_Pluggable_Reply_Params & params ) [pure virtual]

Dispatch the reply. Return 1 on sucess, -1 on error.

Todo:: Pluggable Messaging: this method has too many arguments, the "Right Thing"[tm] is for the Transport Object to create a "ClientReply" that encapsulates all we need to process a reply. Naturally it is possible that different messaging protocols implement different variants of such ClientReply class.

Implemented in TAO_DII_Deferred_Reply_Dispatcher, TAO_DII_Asynch_Reply_Dispatcher, and TAO_Asynch_Reply_Dispatcher.

void TAO_Reply_Dispatcher::intrusive_add_ref ( TAO_Reply_Dispatcher * rd ) [static]

Definition at line 32 of file Reply_Dispatcher.cpp.

{
  if (rd != 0)
    {
      ++rd->refcnt_;
    }
}

void TAO_Reply_Dispatcher::intrusive_remove_ref ( TAO_Reply_Dispatcher * rd ) [static]

Definition at line 41 of file Reply_Dispatcher.cpp.

{
  if (rd != 0)
    {
      long tmp = --rd->refcnt_;
      if (tmp <= 0)
        {
          if (rd->allocator_)
            {
              ACE_DES_FREE (rd,
                            rd->allocator_->free,
                            TAO_Reply_Dispatcher);
            }
          else
            {
              delete rd;
            }
        }
    }
}

GIOP::LocateStatusType TAO_Reply_Dispatcher::locate_reply_status ( void ) const

Get the locate reply status.

Definition at line 9 of file Reply_Dispatcher.inl.

{
  return this->locate_reply_status_;
}

GIOP::ReplyStatusType TAO_Reply_Dispatcher::reply_status ( void ) const

Definition at line 15 of file Reply_Dispatcher.inl.

{
  return this->reply_status_;
}

virtual void TAO_Reply_Dispatcher::reply_timed_out ( void ) [pure virtual]

Inform that the reply timed out.

Implemented in TAO_DII_Deferred_Reply_Dispatcher, and TAO_Asynch_Reply_Dispatcher.

Member Data Documentation

ACE_Allocator* TAO_Reply_Dispatcher::allocator_ [private]

Allocator that was used to allocate this reply dispatcher. In case of zero we come from the heap.

Definition at line 113 of file Reply_Dispatcher.h.

GIOP::LocateStatusType TAO_Reply_Dispatcher::locate_reply_status_ [protected]

LocateReply status.

Definition at line 102 of file Reply_Dispatcher.h.

ACE_Atomic_Op<TAO_SYNCH_MUTEX, long> TAO_Reply_Dispatcher::refcnt_ [private]

Support for intrusive reference counting.

Definition at line 109 of file Reply_Dispatcher.h.

GIOP::ReplyStatusType TAO_Reply_Dispatcher::reply_status_ [protected]

Definition at line 105 of file Reply_Dispatcher.h.

The documentation for this class was generated from the following files:
