Proxy for dealing with remote server process managing NET_LOCAL NameBindings. More...

#include <Name_Proxy.h>

Inheritance diagram for ACE_Name_Proxy:

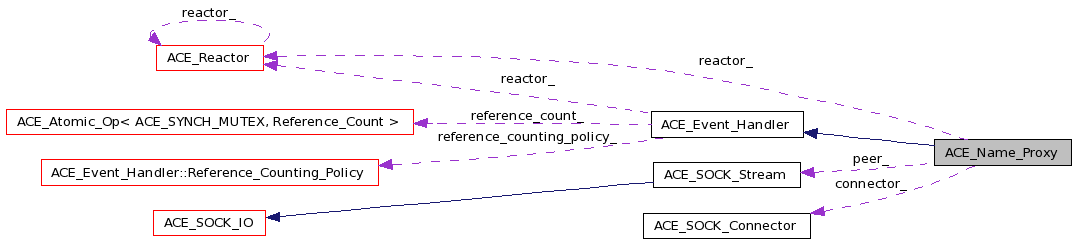

Collaboration diagram for ACE_Name_Proxy:

Public Member Functions
	ACE_Name_Proxy (void)
	Default constructor.
	ACE_Name_Proxy (const ACE_INET_Addr &remote_addr, ACE_Synch_Options &options=ACE_Synch_Options::defaults)
int	open (const ACE_INET_Addr &remote_addr, ACE_Synch_Options &options=ACE_Synch_Options::defaults)
int	request_reply (ACE_Name_Request &request)
	Perform the request and wait for the reply.
int	send_request (ACE_Name_Request &request)
	Perform the request.
int	recv_reply (ACE_Name_Request &reply)
	Receive the reply.
virtual ACE_HANDLE	get_handle (void) const
	Obtain underlying handle.
virtual	~ACE_Name_Proxy (void)
	Close down the connection to the server.
void	dump (void) const
	Dump the state of the object;.
Private Member Functions
	ACE_Name_Proxy (const ACE_Name_Proxy &)
ACE_Name_Proxy &	operator= (const ACE_Name_Proxy &)
Private Attributes
ACE_SOCK_Connector	connector_
	ACE_Connector factory used to establish connections actively.
ACE_SOCK_Stream	peer_
	Connection to ACE_Name Server peer.
ACE_Reactor *	reactor_
	Pointer to ACE_Reactor (used if we are run in "reactive-mode").

Detailed Description

Proxy for dealing with remote server process managing NET_LOCAL NameBindings.

Shields applications from details of interacting with the ACE_Name Server.

Definition at line 48 of file Name_Proxy.h.

Constructor & Destructor Documentation

ACE_Name_Proxy::ACE_Name_Proxy ( void )

Default constructor.

Definition at line 27 of file Name_Proxy.cpp.

  : reactor_ (0)
{
  ACE_TRACE ("ACE_Name_Proxy::ACE_Name_Proxy");
}

ACE_Name_Proxy::ACE_Name_Proxy	(	const ACE_INET_Addr &	remote_addr,
		ACE_Synch_Options &	options = `ACE_Synch_Options::defaults`
	)

Definition at line 53 of file Name_Proxy.cpp.

   : reactor_ (0)
{
  ACE_TRACE ("ACE_Name_Proxy::ACE_Name_Proxy");
  if (this->open (remote_addr, options) == -1
      && options[ACE_Synch_Options::USE_TIMEOUT] && errno != EWOULDBLOCK)
    ACE_ERROR ((LM_ERROR,
                ACE_TEXT ("%p\n"),
                ACE_TEXT ("ACE_Name_Proxy::ACE_Name_Proxy")));
}

ACE_Name_Proxy::~ACE_Name_Proxy ( void ) [virtual]

Close down the connection to the server.

Definition at line 203 of file Name_Proxy.cpp.

{
  ACE_TRACE ("ACE_Name_Proxy::~ACE_Name_Proxy");
  this->peer_.close ();
}

ACE_Name_Proxy::ACE_Name_Proxy ( const ACE_Name_Proxy & ) [private]

Member Function Documentation

void ACE_Name_Proxy::dump ( void ) const

Dump the state of the object;.

Definition at line 12 of file Name_Proxy.cpp.

{
#if defined (ACE_HAS_DUMP)
  ACE_TRACE ("ACE_Name_Proxy::dump");

  ACE_DEBUG ((LM_DEBUG, ACE_BEGIN_DUMP, this));
  this->connector_.dump ();
  this->peer_.dump ();
  ACE_DEBUG ((LM_DEBUG,  ACE_TEXT ("reactor_ = %x"), this->reactor_));
  ACE_DEBUG ((LM_DEBUG, ACE_END_DUMP));
#endif /* ACE_HAS_DUMP */
}

ACE_HANDLE ACE_Name_Proxy::get_handle ( void ) const [virtual]

Obtain underlying handle.

Reimplemented from ACE_Event_Handler.

Definition at line 69 of file Name_Proxy.cpp.

{
  ACE_TRACE ("ACE_Name_Proxy::get_handle");
  return this->peer_.get_handle ();
}

int ACE_Name_Proxy::open	(	const ACE_INET_Addr &	remote_addr,
		ACE_Synch_Options &	options = `ACE_Synch_Options::defaults`
	)

Definition at line 36 of file Name_Proxy.cpp.

{
  ACE_TRACE ("ACE_Name_Proxy::open");
  ACE_Time_Value *timeout = 0;

  if (options[ACE_Synch_Options::USE_TIMEOUT])
    timeout = const_cast<ACE_Time_Value *> (options.time_value ());

  // Initiate the connection.
  return this->connector_.connect (this->peer_,
                                   remote_addr,
                                   timeout);
}

ACE_Name_Proxy& ACE_Name_Proxy::operator= ( const ACE_Name_Proxy & ) [private]

int ACE_Name_Proxy::recv_reply ( ACE_Name_Request & reply )

Receive the reply.

Definition at line 141 of file Name_Proxy.cpp.

{
  ACE_TRACE ("ACE_Name_Proxy::recv_reply");
  // Read the first 4 bytes to get the length of the message This
  // implementation assumes that the first 4 bytes are the length of
  // the message.
  ssize_t n = this->peer_.recv ((void *) &reply, sizeof (ACE_UINT32));

  switch (n)
    {
    case -1:
      // FALLTHROUGH
      ACE_DEBUG ((LM_DEBUG,
                  ACE_TEXT ("****************** recv_reply returned -1\n")));
    default:
      ACE_ERROR ((LM_ERROR,
                  ACE_TEXT ("%p got %d bytes, expected %d bytes\n"),
                  ACE_TEXT ("recv failed"),
                  n,
                  sizeof (ACE_UINT32)));
      // FALLTHROUGH
    case 0:
      // We've shutdown unexpectedly
      return -1;
      // NOTREACHED
    case sizeof (ACE_UINT32):
      {
        // Transform the length into host byte order.
        ssize_t length = ACE_NTOHL (reply.length ());

        // Receive the rest of the request message.
        // @@ beware of blocking read!!!.
        n = this->peer_.recv ((void *) (((char *) &reply)
                                        + sizeof (ACE_UINT32)),
                              length - sizeof (ACE_UINT32));

        // Subtract off the size of the part we skipped over...
        if (n != ssize_t (length - sizeof (ACE_UINT32)))
          {
            ACE_ERROR ((LM_ERROR,
                        ACE_TEXT ("%p expected %d, got %d\n"),
                        ACE_TEXT ("invalid length"),
                        length,
                        n));
            return -1;
          }

        // Decode the request into host byte order.
        if (reply.decode () == -1)
          {
            ACE_ERROR ((LM_ERROR,
                        ACE_TEXT ("%p\n"),
                        ACE_TEXT ("decode failed")));
            return -1;
          }
      }
    }
  return 0;
}

int ACE_Name_Proxy::request_reply ( ACE_Name_Request & request )

Perform the request and wait for the reply.

Definition at line 76 of file Name_Proxy.cpp.

{
  ACE_TRACE ("ACE_Name_Proxy::request_reply");
  void *buffer;
  ssize_t length = request.encode (buffer);

  if (length == -1)
    ACE_ERROR_RETURN ((LM_ERROR,
                       ACE_TEXT ("%p\n"),
                       ACE_TEXT ("encode failed")),
                      -1);

  // Transmit request via a blocking send.

  if (this->peer_.send_n (buffer, length) != length)
    ACE_ERROR_RETURN ((LM_ERROR,
                       ACE_TEXT ("%p\n"),
                       ACE_TEXT ("send_n failed")),
                      -1);
  else
    {
      ACE_Name_Reply reply;

      // Receive reply via blocking read.

      if (this->peer_.recv_n (&reply,
                              sizeof reply) == -1)
        ACE_ERROR_RETURN ((LM_ERROR,
                           ACE_TEXT ("%p\n"),
                           ACE_TEXT ("recv failed")),
                          -1);
      else if (reply.decode () == -1)
        ACE_ERROR_RETURN ((LM_ERROR,
                           ACE_TEXT ("%p\n"),
                           ACE_TEXT ("decode failed")),
                          -1);
      errno = int (reply.errnum ());
      return reply.status ();
    }
}

int ACE_Name_Proxy::send_request ( ACE_Name_Request & request )

Perform the request.

Definition at line 118 of file Name_Proxy.cpp.

{
  ACE_TRACE ("ACE_Name_Proxy::send_request");
  void *buffer;
  ssize_t length = request.encode (buffer);

  if (length == -1)
    ACE_ERROR_RETURN ((LM_ERROR,
                       ACE_TEXT ("%p\n"),
                       ACE_TEXT ("encode failed")),
                      -1);

  // Transmit request via a blocking send.

  else if (this->peer_.send_n (buffer, length) != length)
    ACE_ERROR_RETURN ((LM_ERROR,
                       ACE_TEXT ("%p\n"),
                       ACE_TEXT ("send_n failed")),
                      -1);
  return 0;
}
