Provides an abstract interface for handling various types of I/O, timer, and signal events. More...

#include <Event_Handler.h>

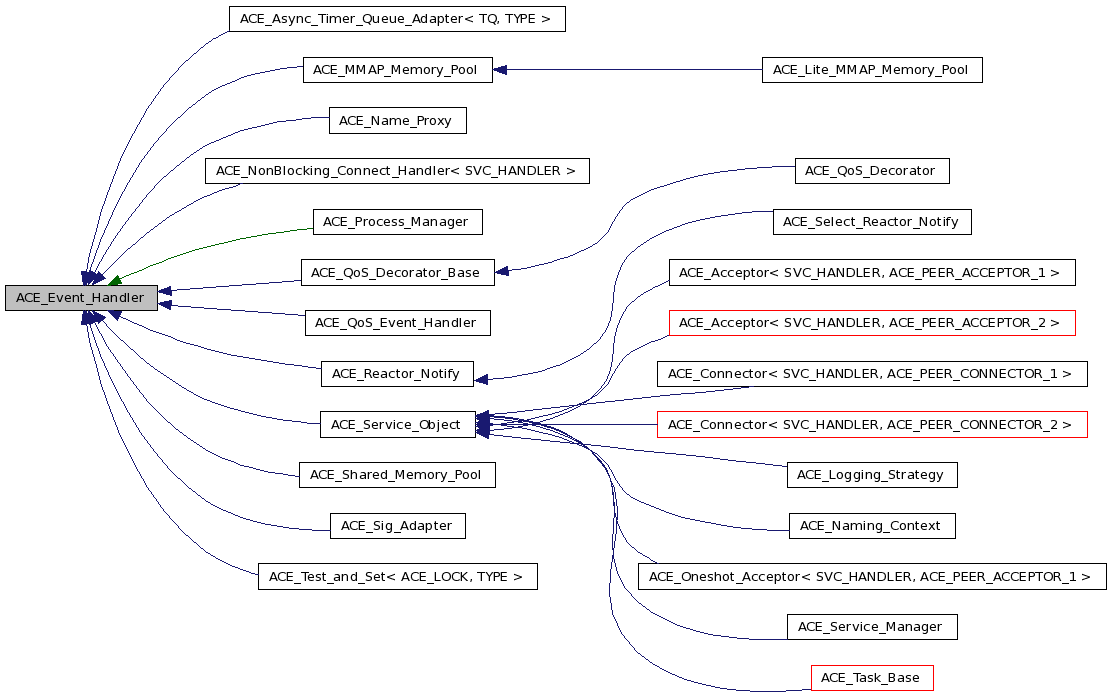

Inheritance diagram for ACE_Event_Handler:

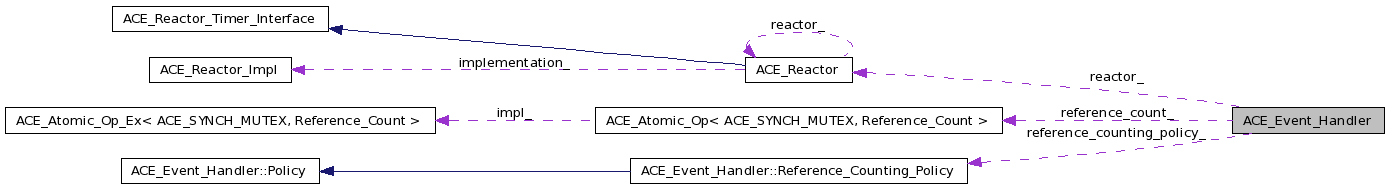

Collaboration diagram for ACE_Event_Handler:

Classes
class	Policy
	Base class for all handler policies. More...
class	Reference_Counting_Policy
	This policy dictates the reference counting requirements for the handler. More...
Public Types
enum	{ LO_PRIORITY = 0, HI_PRIORITY = 10, NULL_MASK = 0, READ_MASK = (1 << 0), WRITE_MASK = (1 << 1), EXCEPT_MASK = (1 << 2), ACCEPT_MASK = (1 << 3), CONNECT_MASK = (1 << 4), TIMER_MASK = (1 << 5), QOS_MASK = (1 << 6), GROUP_QOS_MASK = (1 << 7), SIGNAL_MASK = (1 << 8), ALL_EVENTS_MASK, RWE_MASK, DONT_CALL = (1 << 9) }
enum	{ ACE_EVENT_HANDLER_NOT_RESUMED = -1, ACE_REACTOR_RESUMES_HANDLER = 0, ACE_APPLICATION_RESUMES_HANDLER }
typedef long	Reference_Count
	Reference count type.
Public Member Functions
virtual	~ACE_Event_Handler (void)
	Destructor is virtual to enable proper cleanup.
virtual ACE_HANDLE	get_handle (void) const
	Get the I/O handle.
virtual void	set_handle (ACE_HANDLE)
	Set the I/O handle.
virtual int	priority (void) const
virtual void	priority (int priority)
	Set the priority of the Event_Handler.
virtual int	handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE)
	Called when input events occur (e.g., connection or data).
virtual int	handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int	handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)
	Called when an exceptional events occur (e.g., SIGURG).
virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)
virtual int	handle_exit (ACE_Process *)
	Called when a process exits.
virtual int	handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)
virtual int	handle_signal (int signum, siginfo_t =0, ucontext_t =0)
virtual int	resume_handler (void)
virtual int	handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual int	handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual void	reactor (ACE_Reactor *reactor)
	Set the event demultiplexors.
virtual ACE_Reactor *	reactor (void) const
	Get the event demultiplexors.
virtual ACE_Reactor_Timer_Interface *	reactor_timer_interface (void) const
	Get only the reactor's timer related interface.
virtual Reference_Count	add_reference (void)
	Increment reference count on the handler.
virtual Reference_Count	remove_reference (void)
	Decrement reference count on the handler.
Reference_Counting_Policy &	reference_counting_policy (void)
	Current Reference_Counting_Policy.
Static Public Member Functions
static ACE_THR_FUNC_RETURN	read_adapter (void *event_handler)
static int	register_stdin_handler (ACE_Event_Handler eh, ACE_Reactor reactor, ACE_Thread_Manager *thr_mgr, int flags=THR_DETACHED)
static int	remove_stdin_handler (ACE_Reactor reactor, ACE_Thread_Manager thr_mgr)
	Performs the inverse of the register_stdin_handler() method.
Protected Types
typedef ACE_Atomic_Op < ACE_SYNCH_MUTEX, Reference_Count >	Atomic_Reference_Count
	Typedef for implementation of reference counting.
Protected Member Functions
	ACE_Event_Handler (ACE_Reactor *=0, int priority=ACE_Event_Handler::LO_PRIORITY)
	Force ACE_Event_Handler to be an abstract base class.
Protected Attributes
Atomic_Reference_Count	reference_count_
	Reference count.
Private Attributes
int	priority_
	Priority of this Event_Handler.
ACE_Reactor *	reactor_
	Pointer to the various event demultiplexors.
Reference_Counting_Policy	reference_counting_policy_
	Reference counting requirements.

Detailed Description

Provides an abstract interface for handling various types of I/O, timer, and signal events.

Subclasses read/write input/output on an I/O descriptor, handle an exception raised on an I/O descriptor, handle a timer's expiration, or handle a signal.

Definition at line 49 of file Event_Handler.h.

Member Typedef Documentation

typedef ACE_Atomic_Op<ACE_SYNCH_MUTEX, Reference_Count> ACE_Event_Handler::Atomic_Reference_Count [protected]

Typedef for implementation of reference counting.

Definition at line 291 of file Event_Handler.h.

typedef long ACE_Event_Handler::Reference_Count

Reference count type.

Definition at line 202 of file Event_Handler.h.

Member Enumeration Documentation

anonymous enum

Enumerator:

LO_PRIORITY
HI_PRIORITY
NULL_MASK
READ_MASK
WRITE_MASK
EXCEPT_MASK
ACCEPT_MASK
CONNECT_MASK
TIMER_MASK
QOS_MASK
GROUP_QOS_MASK
SIGNAL_MASK
ALL_EVENTS_MASK
RWE_MASK
DONT_CALL

Definition at line 52 of file Event_Handler.h.

  {
    LO_PRIORITY = 0,
    HI_PRIORITY = 10,
    NULL_MASK = 0,
#if defined (ACE_USE_POLL)
    READ_MASK = POLLIN,
    WRITE_MASK = POLLOUT,
    EXCEPT_MASK = POLLPRI,
#else /* USE SELECT */
    READ_MASK = (1 << 0),
    WRITE_MASK = (1 << 1),
    EXCEPT_MASK = (1 << 2),
#endif /* ACE_USE_POLL */
    ACCEPT_MASK = (1 << 3),
    CONNECT_MASK = (1 << 4),
    TIMER_MASK = (1 << 5),
    QOS_MASK = (1 << 6),
    GROUP_QOS_MASK = (1 << 7),
    SIGNAL_MASK = (1 << 8),
    ALL_EVENTS_MASK = READ_MASK |
                      WRITE_MASK |
                      EXCEPT_MASK |
                      ACCEPT_MASK |
                      CONNECT_MASK |
                      TIMER_MASK |
                      QOS_MASK |
                      GROUP_QOS_MASK |
                      SIGNAL_MASK,
    RWE_MASK = READ_MASK |
               WRITE_MASK |
               EXCEPT_MASK,
    DONT_CALL = (1 << 9)
  };

anonymous enum

Enumerator:

ACE_EVENT_HANDLER_NOT_RESUMED	The handler is not resumed at all. Could lead to deadlock..
ACE_REACTOR_RESUMES_HANDLER	The reactor takes responsibility of resuming the handler and is the default
ACE_APPLICATION_RESUMES_HANDLER	The application takes responsibility of resuming the handler.

Definition at line 139 of file Event_Handler.h.

    {
      /// The handler is not resumed at all. Could lead to deadlock..
      ACE_EVENT_HANDLER_NOT_RESUMED = -1,
      /// The reactor takes responsibility of resuming the handler and
      /// is the default
      ACE_REACTOR_RESUMES_HANDLER = 0,
      /// The application takes responsibility of resuming the handler
      ACE_APPLICATION_RESUMES_HANDLER
    };

Constructor & Destructor Documentation

ACE_Event_Handler::~ACE_Event_Handler ( void ) [virtual]

Destructor is virtual to enable proper cleanup.

Definition at line 34 of file Event_Handler.cpp.

{
  // ACE_TRACE ("ACE_Event_Handler::~ACE_Event_Handler");
}

ACE_Event_Handler::ACE_Event_Handler	(	ACE_Reactor *	r = `0`,
		int	priority = `ACE_Event_Handler::LO_PRIORITY`
	)			`[protected]`

Force ACE_Event_Handler to be an abstract base class.

Definition at line 24 of file Event_Handler.cpp.

  : reference_count_ (1),
    priority_ (p),
    reactor_ (r),
    reference_counting_policy_ (Reference_Counting_Policy::DISABLED)
{
  // ACE_TRACE ("ACE_Event_Handler::ACE_Event_Handler");
}

Member Function Documentation

ACE_Event_Handler::Reference_Count ACE_Event_Handler::add_reference ( void ) [virtual]

Increment reference count on the handler.

This method is called when the handler is registered with the Reactor and when the Reactor makes an upcall on the handler. Reference count is 1 when the handler is created.

Returns:: Current reference count.

Definition at line 185 of file Event_Handler.cpp.

{
  bool const reference_counting_required =
    this->reference_counting_policy ().value () ==
    ACE_Event_Handler::Reference_Counting_Policy::ENABLED;

  if (reference_counting_required)
    return ++this->reference_count_;
  else
    return 1;
}

ACE_HANDLE ACE_Event_Handler::get_handle ( void ) const [virtual]

Get the I/O handle.

Reimplemented in ACE_Name_Proxy, ACE_QoS_Decorator_Base, ACE_QoS_Event_Handler, and ACE_QoS_Decorator.

Definition at line 42 of file Event_Handler.cpp.

{
  ACE_TRACE ("ACE_Event_Handler::get_handle");
  return ACE_INVALID_HANDLE;
}

int ACE_Event_Handler::handle_close	(	ACE_HANDLE	handle,
		ACE_Reactor_Mask	close_mask
	)			`[virtual]`

Called when a <handle_*()> method returns -1 or when the <remove_handler> method is called on an ACE_Reactor. The close_mask indicates which event has triggered the <handle_close> method callback on a particular handle.

Definition at line 78 of file Event_Handler.cpp.

{
  ACE_TRACE ("ACE_Event_Handler::handle_close");
  return -1;
}

int ACE_Event_Handler::handle_exception ( ACE_HANDLE fd = ACE_INVALID_HANDLE ) [virtual]

Called when an exceptional events occur (e.g., SIGURG).

Reimplemented in ACE_NonBlocking_Connect_Handler< SVC_HANDLER >.

Definition at line 105 of file Event_Handler.cpp.

{
  ACE_TRACE ("ACE_Event_Handler::handle_exception");
  return -1;
}

int ACE_Event_Handler::handle_exit ( ACE_Process * ) [virtual]

Called when a process exits.

Definition at line 123 of file Event_Handler.cpp.

{
  ACE_TRACE ("ACE_Event_Handler::handle_exit");
  return -1;
}

int ACE_Event_Handler::handle_group_qos ( ACE_HANDLE = ACE_INVALID_HANDLE ) [virtual]

Definition at line 157 of file Event_Handler.cpp.

{
  ACE_TRACE ("ACE_Event_Handler::handle_group_qos");
  return -1;
}

int ACE_Event_Handler::handle_input ( ACE_HANDLE fd = ACE_INVALID_HANDLE ) [virtual]

Called when input events occur (e.g., connection or data).

Reimplemented in ACE_NonBlocking_Connect_Handler< SVC_HANDLER >, ACE_Process_Manager, ACE_QoS_Decorator_Base, ACE_QoS_Event_Handler, ACE_QoS_Decorator, and ACE_Select_Reactor_Notify.

Definition at line 87 of file Event_Handler.cpp.

{
  ACE_TRACE ("ACE_Event_Handler::handle_input");
  return -1;
}

int ACE_Event_Handler::handle_output ( ACE_HANDLE fd = ACE_INVALID_HANDLE ) [virtual]

Called when output events are possible (e.g., when flow control abates or non-blocking connection completes).

Reimplemented in ACE_NonBlocking_Connect_Handler< SVC_HANDLER >.

Definition at line 96 of file Event_Handler.cpp.

{
  ACE_TRACE ("ACE_Event_Handler::handle_output");
  return -1;
}

int ACE_Event_Handler::handle_qos ( ACE_HANDLE = ACE_INVALID_HANDLE ) [virtual]

Reimplemented in ACE_QoS_Decorator_Base, and ACE_QoS_Decorator.

Definition at line 150 of file Event_Handler.cpp.

{
  ACE_TRACE ("ACE_Event_Handler::handle_qos");
  return -1;
}

int ACE_Event_Handler::handle_signal	(	int	signum,
		siginfo_t *	= `0`,
		ucontext_t *	= `0`
	)			`[virtual]`

Called when object is signaled by OS (either via UNIX signals or when a Win32 object becomes signaled).

Reimplemented in ACE_MMAP_Memory_Pool, ACE_Process_Manager, ACE_Shared_Memory_Pool, ACE_Sig_Adapter, ACE_Test_and_Set< ACE_LOCK, TYPE >, and ACE_Async_Timer_Queue_Adapter< TQ, TYPE >.

Definition at line 132 of file Event_Handler.cpp.

{
  ACE_TRACE ("ACE_Event_Handler::handle_signal");
  return -1;
}

int ACE_Event_Handler::handle_timeout	(	const ACE_Time_Value &	current_time,
		const void *	act = `0`
	)			`[virtual]`

Called when timer expires. current_time represents the current time that the Event_Handler was selected for timeout dispatching and act is the asynchronous completion token that was passed in when <schedule_timer> was invoked.

Reimplemented in ACE_NonBlocking_Connect_Handler< SVC_HANDLER >.

Definition at line 114 of file Event_Handler.cpp.

{
  ACE_TRACE ("ACE_Event_Handler::handle_timeout");
  return -1;
}

void ACE_Event_Handler::priority ( int priority ) [virtual]

Set the priority of the Event_Handler.

Definition at line 68 of file Event_Handler.cpp.

{
  ACE_TRACE ("ACE_Event_Handler::priority");
  this->priority_ = priority;
}

int ACE_Event_Handler::priority ( void ) const [virtual]

Get the priority of the Event_Handler.

Note:: Priorities run from MIN_PRIORITY (which is the "lowest priority") to MAX_PRIORITY (which is the "highest priority").

Definition at line 59 of file Event_Handler.cpp.

{
  ACE_TRACE ("ACE_Event_Handler::priority");
  return this->priority_;
}

ACE_Reactor * ACE_Event_Handler::reactor ( void ) const [virtual]

Get the event demultiplexors.

Definition at line 171 of file Event_Handler.cpp.

{
  ACE_TRACE ("ACE_Event_Handler::reactor");
  return this->reactor_;
}

void ACE_Event_Handler::reactor ( ACE_Reactor * reactor ) [virtual]

Set the event demultiplexors.

Definition at line 164 of file Event_Handler.cpp.

{
  ACE_TRACE ("ACE_Event_Handler::reactor");
  this->reactor_ = reactor;
}

ACE_Reactor_Timer_Interface * ACE_Event_Handler::reactor_timer_interface ( void ) const [virtual]

Get only the reactor's timer related interface.

Definition at line 178 of file Event_Handler.cpp.

{
  ACE_TRACE ("ACE_Event_Handler::reactor_timer_interface");
  return this->reactor_;
}

ACE_THR_FUNC_RETURN ACE_Event_Handler::read_adapter ( void * event_handler ) [static]

Used to read from non-socket ACE_HANDLEs in our own thread to work around Win32 limitations that don't allow us to <select> on non-sockets (such as ACE_STDIN). This is commonly used in situations where the Reactor is used to demultiplex read events on ACE_STDIN on UNIX. Note that event_handler must be a subclass of ACE_Event_Handler. If the get_handle() method of this event handler returns ACE_INVALID_HANDLE we default to reading from ACE_STDIN.

Definition at line 248 of file Event_Handler.cpp.

{
  ACE_Event_Handler *this_ptr = static_cast<ACE_Event_Handler *> (args);
  ACE_Reactor *r = this_ptr->reactor ();

  while (this_ptr->handle_input (ACE_STDIN) != -1)
    continue;

  this_ptr->handle_close (ACE_STDIN, ACE_Event_Handler::READ_MASK);
  // It's possible for handle_close() to "delete this" so we need to
  // cache the reactor pointer and use it here.
  r->notify ();

  return 0;
}

ACE_Event_Handler::Reference_Counting_Policy & ACE_Event_Handler::reference_counting_policy ( void )

Current Reference_Counting_Policy.

Definition at line 242 of file Event_Handler.cpp.

{
  return this->reference_counting_policy_;
}

int ACE_Event_Handler::register_stdin_handler	(	ACE_Event_Handler *	eh,
		ACE_Reactor *	reactor,
		ACE_Thread_Manager *	thr_mgr,
		int	flags = `THR_DETACHED`
	)			`[static]`

Abstracts away from the differences between Win32 and ACE with respect to reading from ACE_STDIN, which is non-<select>'able on Win32.

Definition at line 265 of file Event_Handler.cpp.

{
#if defined (ACE_WIN32)
  ACE_UNUSED_ARG (reactor);

  eh->reactor (reactor);
  return thr_mgr->spawn (&read_adapter, static_cast<void *> (eh), flags);
#else
  // Keep compilers happy.
  ACE_UNUSED_ARG (flags);
  ACE_UNUSED_ARG (thr_mgr);
  return reactor->register_handler (ACE_STDIN,
                                    eh,
                                    ACE_Event_Handler::READ_MASK);
#endif /* ACE_WIN32 */
}

ACE_Event_Handler::Reference_Count ACE_Event_Handler::remove_reference ( void ) [virtual]

Decrement reference count on the handler.

This method is called when the handler is removed from the Reactor and when an upcall made on the handler by the Reactor completes. Handler is deleted when the reference count reaches 0.

Returns:: Current reference count.

Definition at line 198 of file Event_Handler.cpp.

{
  bool const reference_counting_required =
    this->reference_counting_policy ().value () ==
    ACE_Event_Handler::Reference_Counting_Policy::ENABLED;

  if (reference_counting_required)
    {
      Reference_Count result =
        --this->reference_count_;

      if (result == 0)
        delete this;

      return result;
    }
  else
    {
      return 1;
    }
}

int ACE_Event_Handler::remove_stdin_handler	(	ACE_Reactor *	reactor,
		ACE_Thread_Manager *	thr_mgr
	)			`[static]`

Performs the inverse of the register_stdin_handler() method.

Definition at line 286 of file Event_Handler.cpp.

{
#if defined (ACE_WIN32)
  ACE_UNUSED_ARG (reactor);

  // What should we do here?
  ACE_NOTSUP_RETURN (-1);
#else
  return reactor->remove_handler (ACE_STDIN,
                                  ACE_Event_Handler::READ_MASK);
#endif /* ACE_WIN32 */
}

int ACE_Event_Handler::resume_handler ( void ) [virtual]

Called to figure out whether the handler needs to resumed by the reactor or the application can take care of it. The default value of 0 would be returned which would allow the reactor to take care of resumption of the handler. The application can return a value more than zero and decide to resume the handler themseleves.

Note:: This method has an affect only when used with the ACE_Dev_Poll_Reactor (and then, only on Linux) or the ACE_TP_Reactor.

Reimplemented in ACE_NonBlocking_Connect_Handler< SVC_HANDLER >.

Definition at line 139 of file Event_Handler.cpp.

{
  ACE_TRACE ("ACE_Event_Handler::resume_handler");

  // Return a default value and allow the reactor to take care of
  // resuming the handler
  return ACE_Event_Handler::ACE_REACTOR_RESUMES_HANDLER;
}

void ACE_Event_Handler::set_handle ( ACE_HANDLE ) [virtual]

Set the I/O handle.

Definition at line 51 of file Event_Handler.cpp.

{
  ACE_TRACE ("ACE_Event_Handler::set_handle");
}

Member Data Documentation

int ACE_Event_Handler::priority_ [private]

Priority of this Event_Handler.

Definition at line 299 of file Event_Handler.h.

ACE_Reactor* ACE_Event_Handler::reactor_ [private]

Pointer to the various event demultiplexors.

Reimplemented in ACE_Name_Proxy, and ACE_QoS_Decorator.

Definition at line 302 of file Event_Handler.h.

Atomic_Reference_Count ACE_Event_Handler::reference_count_ [protected]

Reference count.

Definition at line 294 of file Event_Handler.h.

Reference_Counting_Policy ACE_Event_Handler::reference_counting_policy_ [private]

Reference counting requirements.

Definition at line 305 of file Event_Handler.h.

The documentation for this class was generated from the following files:

ACE_Event_Handler Class Reference

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Private Attributes

Detailed Description

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
