#include "ace/config-lite.h"
#include "ace/os_include/os_limits.h"
#include "ace/os_include/os_float.h"
#include "ace/os_include/os_stdlib.h"
#include "ace/os_include/os_stddef.h"
#include "ace/os_include/sys/os_types.h"
#include "ace/ACE_export.h"
#include <stdint.h>
#include <inttypes.h>
#include "ace/Basic_Types.inl"

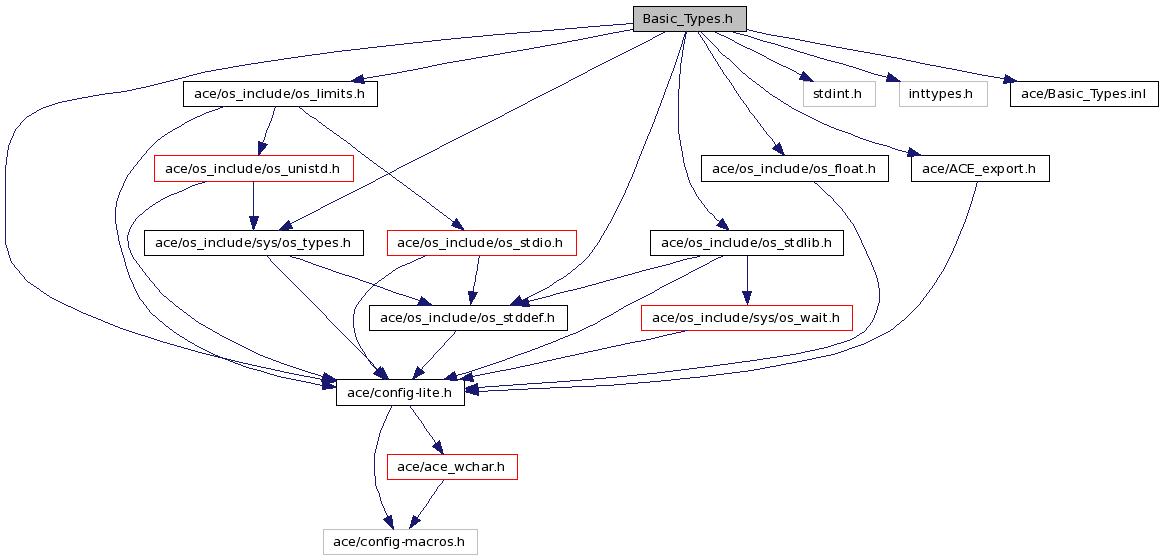

Include dependency graph for Basic_Types.h:

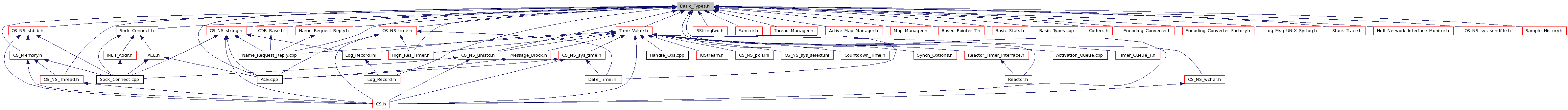

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Defines
#define	ACE_SIZEOF_CHAR 1
#define	ACE_SIZEOF_LONG_LONG 8
#define	ACE_WINT_T ACE_UINT16
#define	ACE_WCHAR_T ACE_UINT16
#define	ACE_SIZEOF_VOID_P ACE_SIZEOF_LONG
#define	ACE_BIG_ENDIAN 0x3210
#define	ACE_BYTE_ORDER ACE_BIG_ENDIAN
#define	ACE_SWAP_LONG(L)
#define	ACE_SWAP_WORD(L) ((((L) & 0x00FF) << 8) \| (((L) & 0xFF00) >> 8))
#define	ACE_HTONL(X) X
#define	ACE_NTOHL(X) X
#define	ACE_IDL_NCTOHL(X) (X << 24)
#define	ACE_IDL_NSTOHL(X) ((X) << 16)
#define	ACE_HTONS(x) x
#define	ACE_NTOHS(x) x
#define	ACE_LONGLONG_TO_PTR(PTR_TYPE, L) reinterpret_cast<PTR_TYPE> (static_cast<intptr_t> (L))
#define	ACE_UINT64_LITERAL(n) n ## ull
#define	ACE_INT64_LITERAL(n) n ## ll
#define	ACE_INT8_FORMAT_SPECIFIER_ASCII "%d"
#define	ACE_INT8_FORMAT_SPECIFIER ACE_TEXT (ACE_INT8_FORMAT_SPECIFIER_ASCII)
#define	ACE_UINT8_FORMAT_SPECIFIER_ASCII "%u"
#define	ACE_UINT8_FORMAT_SPECIFIER ACE_TEXT (ACE_UINT8_FORMAT_SPECIFIER_ASCII)
#define	ACE_INT16_FORMAT_SPECIFIER_ASCII "%d"
#define	ACE_INT16_FORMAT_SPECIFIER ACE_TEXT (ACE_INT16_FORMAT_SPECIFIER_ASCII)
#define	ACE_UINT16_FORMAT_SPECIFIER_ASCII "%u"
#define	ACE_UINT16_FORMAT_SPECIFIER ACE_TEXT (ACE_UINT16_FORMAT_SPECIFIER_ASCII)
#define	ACE_INT32_FORMAT_SPECIFIER_ASCII "%ld"
#define	ACE_INT32_FORMAT_SPECIFIER ACE_TEXT (ACE_INT32_FORMAT_SPECIFIER_ASCII)
#define	ACE_UINT32_FORMAT_SPECIFIER_ASCII "%lu"
#define	ACE_UINT32_FORMAT_SPECIFIER ACE_TEXT (ACE_UINT32_FORMAT_SPECIFIER_ASCII)
#define	ACE_INT64_FORMAT_SPECIFIER_ASCII "%lld"
#define	ACE_INT64_FORMAT_SPECIFIER ACE_TEXT (ACE_INT64_FORMAT_SPECIFIER_ASCII)
#define	ACE_UINT64_FORMAT_SPECIFIER_ASCII "%llu"
#define	ACE_UINT64_FORMAT_SPECIFIER ACE_TEXT (ACE_UINT64_FORMAT_SPECIFIER_ASCII)
#define	ACE_SSIZE_T_FORMAT_SPECIFIER_ASCII "%d"
#define	ACE_SSIZE_T_FORMAT_SPECIFIER ACE_TEXT (ACE_SSIZE_T_FORMAT_SPECIFIER_ASCII)
#define	ACE_SIZE_T_FORMAT_SPECIFIER_ASCII "%u"
#define	ACE_SIZE_T_FORMAT_SPECIFIER ACE_TEXT (ACE_SIZE_T_FORMAT_SPECIFIER_ASCII)
#define	ACE_UINT64_DBLCAST_ADAPTER(n) (n)
#define	ACE_CHAR_MAX 0x7F
#define	ACE_CHAR_MIN -(ACE_CHAR_MAX)-1
#define	ACE_OCTET_MAX 0xFF
#define	ACE_INT16_MAX 0x7FFF
#define	ACE_INT16_MIN -(ACE_INT16_MAX)-1
#define	ACE_UINT16_MAX 0xFFFF
#define	ACE_WCHAR_MAX ACE_UINT16_MAX
#define	ACE_INT32_MAX 0x7FFFFFFF
#define	ACE_INT32_MIN -(ACE_INT32_MAX)-1
#define	ACE_UINT32_MAX 0xFFFFFFFF
#define	ACE_INT64_MAX ACE_INT64_LITERAL(0x7FFFFFFFFFFFFFFF)
#define	ACE_INT64_MIN -(ACE_INT64_MAX)-1
#define	ACE_UINT64_MAX ACE_UINT64_LITERAL (0xFFFFFFFFFFFFFFFF)
#define	ACE_FLT_MAX 3.402823466e+38F
#define	ACE_FLT_MIN 1.175494351e-38F
#define	ACE_DBL_MAX 1.7976931348623158e+308
#define	ACE_DBL_MIN 2.2250738585072014e-308
Typedefs
typedef signed char	ACE_INT8
typedef unsigned char	ACE_UINT8
typedef long long	ACE_INT64
typedef unsigned long long	ACE_UINT64
typedef ACE_UINT16	ACE_USHORT16
typedef unsigned char	ACE_Byte
Functions
ACE_UINT32	ACE_U64_TO_U32 (ACE_UINT64 n)
ACE_UINT32	ACE_CU64_TO_CU32 (ACE_UINT64 n)

Detailed Description

Id:: Basic_Types.h 91161 2010-07-21 18:25:12Z schmidt

Author:: David L. Levine

defines the list of preprocessor macros below. The config.h file can pre-define any of these to short-cut the definitions. This is usually only necessary if the preprocessor does all of its math using integers.

Sizes of built-in types:

ACE_SIZEOF_CHAR
ACE_SIZEOF_WCHAR
ACE_SIZEOF_SHORT
ACE_SIZEOF_INT
ACE_SIZEOF_LONG
ACE_SIZEOF_LONG_LONG
ACE_SIZEOF_VOID_P
ACE_SIZEOF_FLOAT
ACE_SIZEOF_DOUBLE
ACE_SIZEOF_LONG_DOUBLE

Wrappers for built-in types of specific sizes:

ACE_USHORT16 (For backward compatibility. Use ACE_UINT16 instead.)
ACE_INT8
ACE_UINT8
ACE_INT16
ACE_UINT16
ACE_INT32
ACE_UINT32
ACE_UINT64 (
Note:
ACE_INT64 is partly defined, there is no ACE_LongLong for platforms that don't have a native 8-byte integer type.)
Byte-order (endian-ness) determination: ACE_BYTE_ORDER, to either ACE_BIG_ENDIAN or ACE_LITTLE_ENDIAN

Definition in file Basic_Types.h.

Define Documentation

#define ACE_BIG_ENDIAN 0x3210

Definition at line 399 of file Basic_Types.h.

#define ACE_BYTE_ORDER ACE_BIG_ENDIAN

Definition at line 400 of file Basic_Types.h.

#define ACE_CHAR_MAX 0x7F

Definition at line 925 of file Basic_Types.h.

#define ACE_CHAR_MIN -(ACE_CHAR_MAX)-1

Definition at line 926 of file Basic_Types.h.

#define ACE_DBL_MAX 1.7976931348623158e+308

Definition at line 954 of file Basic_Types.h.

#define ACE_DBL_MIN 2.2250738585072014e-308

Definition at line 955 of file Basic_Types.h.

#define ACE_FLT_MAX 3.402823466e+38F

Definition at line 952 of file Basic_Types.h.

#define ACE_FLT_MIN 1.175494351e-38F

Definition at line 953 of file Basic_Types.h.

#define ACE_HTONL ( X ) X

Definition at line 417 of file Basic_Types.h.

#define ACE_HTONS ( x ) x

Definition at line 427 of file Basic_Types.h.

#define ACE_IDL_NCTOHL ( X ) (X << 24)

Definition at line 419 of file Basic_Types.h.

#define ACE_IDL_NSTOHL ( X ) ((X) << 16)

Definition at line 420 of file Basic_Types.h.

#define ACE_INT16_FORMAT_SPECIFIER ACE_TEXT (ACE_INT16_FORMAT_SPECIFIER_ASCII)

Definition at line 747 of file Basic_Types.h.

#define ACE_INT16_FORMAT_SPECIFIER_ASCII "%d"

Definition at line 739 of file Basic_Types.h.

#define ACE_INT16_MAX 0x7FFF

Definition at line 928 of file Basic_Types.h.

#define ACE_INT16_MIN -(ACE_INT16_MAX)-1

Definition at line 929 of file Basic_Types.h.

#define ACE_INT32_FORMAT_SPECIFIER ACE_TEXT (ACE_INT32_FORMAT_SPECIFIER_ASCII)

Definition at line 781 of file Basic_Types.h.

#define ACE_INT32_FORMAT_SPECIFIER_ASCII "%ld"

Definition at line 773 of file Basic_Types.h.

#define ACE_INT32_MAX 0x7FFFFFFF

Definition at line 932 of file Basic_Types.h.

#define ACE_INT32_MIN -(ACE_INT32_MAX)-1

Definition at line 933 of file Basic_Types.h.

#define ACE_INT64_FORMAT_SPECIFIER ACE_TEXT (ACE_INT64_FORMAT_SPECIFIER_ASCII)

Definition at line 817 of file Basic_Types.h.

#define ACE_INT64_FORMAT_SPECIFIER_ASCII "%lld"

Definition at line 809 of file Basic_Types.h.

#define ACE_INT64_LITERAL ( n ) n ## ll

Definition at line 700 of file Basic_Types.h.

#define ACE_INT64_MAX ACE_INT64_LITERAL(0x7FFFFFFFFFFFFFFF)

Definition at line 935 of file Basic_Types.h.

#define ACE_INT64_MIN -(ACE_INT64_MAX)-1

Definition at line 936 of file Basic_Types.h.

#define ACE_INT8_FORMAT_SPECIFIER ACE_TEXT (ACE_INT8_FORMAT_SPECIFIER_ASCII)

Definition at line 715 of file Basic_Types.h.

#define ACE_INT8_FORMAT_SPECIFIER_ASCII "%d"

Definition at line 707 of file Basic_Types.h.

#define ACE_LONGLONG_TO_PTR	(	PTR_TYPE,
		L
	)		reinterpret_cast<PTR_TYPE> (static_cast<intptr_t> (L))

Definition at line 441 of file Basic_Types.h.

#define ACE_NTOHL ( X ) X

Definition at line 418 of file Basic_Types.h.

#define ACE_NTOHS ( x ) x

Definition at line 428 of file Basic_Types.h.

#define ACE_OCTET_MAX 0xFF

Definition at line 927 of file Basic_Types.h.

#define ACE_SIZE_T_FORMAT_SPECIFIER ACE_TEXT (ACE_SIZE_T_FORMAT_SPECIFIER_ASCII)

Definition at line 860 of file Basic_Types.h.

#define ACE_SIZE_T_FORMAT_SPECIFIER_ASCII "%u"

Definition at line 855 of file Basic_Types.h.

#define ACE_SIZEOF_CHAR 1

Definition at line 136 of file Basic_Types.h.

#define ACE_SIZEOF_LONG_LONG 8

Definition at line 219 of file Basic_Types.h.

#define ACE_SIZEOF_VOID_P ACE_SIZEOF_LONG

Definition at line 349 of file Basic_Types.h.

#define ACE_SSIZE_T_FORMAT_SPECIFIER ACE_TEXT (ACE_SSIZE_T_FORMAT_SPECIFIER_ASCII)

Definition at line 848 of file Basic_Types.h.

#define ACE_SSIZE_T_FORMAT_SPECIFIER_ASCII "%d"

Definition at line 843 of file Basic_Types.h.

#define ACE_SWAP_LONG ( L )

Value:

((ACE_SWAP_WORD ((L) & 0xFFFF) << 16) \
            | ACE_SWAP_WORD(((L) >> 16) & 0xFFFF))

Definition at line 407 of file Basic_Types.h.

#define ACE_SWAP_WORD ( L ) ((((L) & 0x00FF) << 8) | (((L) & 0xFF00) >> 8))

Definition at line 409 of file Basic_Types.h.

#define ACE_UINT16_FORMAT_SPECIFIER ACE_TEXT (ACE_UINT16_FORMAT_SPECIFIER_ASCII)

Definition at line 763 of file Basic_Types.h.

#define ACE_UINT16_FORMAT_SPECIFIER_ASCII "%u"

Definition at line 755 of file Basic_Types.h.

#define ACE_UINT16_MAX 0xFFFF

Definition at line 930 of file Basic_Types.h.

#define ACE_UINT32_FORMAT_SPECIFIER ACE_TEXT (ACE_UINT32_FORMAT_SPECIFIER_ASCII)

Definition at line 799 of file Basic_Types.h.

#define ACE_UINT32_FORMAT_SPECIFIER_ASCII "%lu"

Definition at line 791 of file Basic_Types.h.

#define ACE_UINT32_MAX 0xFFFFFFFF

Definition at line 934 of file Basic_Types.h.

#define ACE_UINT64_DBLCAST_ADAPTER ( n ) (n)

Definition at line 873 of file Basic_Types.h.

#define ACE_UINT64_FORMAT_SPECIFIER ACE_TEXT (ACE_UINT64_FORMAT_SPECIFIER_ASCII)

Definition at line 835 of file Basic_Types.h.

#define ACE_UINT64_FORMAT_SPECIFIER_ASCII "%llu"

Definition at line 827 of file Basic_Types.h.

#define ACE_UINT64_LITERAL ( n ) n ## ull

Definition at line 699 of file Basic_Types.h.

#define ACE_UINT64_MAX ACE_UINT64_LITERAL (0xFFFFFFFFFFFFFFFF)

Definition at line 948 of file Basic_Types.h.

#define ACE_UINT8_FORMAT_SPECIFIER ACE_TEXT (ACE_UINT8_FORMAT_SPECIFIER_ASCII)

Definition at line 731 of file Basic_Types.h.

#define ACE_UINT8_FORMAT_SPECIFIER_ASCII "%u"

Definition at line 723 of file Basic_Types.h.

#define ACE_WCHAR_MAX ACE_UINT16_MAX

Definition at line 931 of file Basic_Types.h.

#define ACE_WCHAR_T ACE_UINT16

Definition at line 344 of file Basic_Types.h.

#define ACE_WINT_T ACE_UINT16

Definition at line 343 of file Basic_Types.h.

Typedef Documentation

typedef unsigned char ACE_Byte

Definition at line 334 of file Basic_Types.h.

typedef long long ACE_INT64

Definition at line 308 of file Basic_Types.h.

typedef signed char ACE_INT8

Definition at line 235 of file Basic_Types.h.

typedef unsigned long long ACE_UINT64

Definition at line 326 of file Basic_Types.h.

typedef unsigned char ACE_UINT8

Definition at line 245 of file Basic_Types.h.

typedef ACE_UINT16 ACE_USHORT16

Definition at line 331 of file Basic_Types.h.

Function Documentation

ACE_UINT32 ACE_CU64_TO_CU32 ( ACE_UINT64 n ) [inline]

Definition at line 672 of file Basic_Types.h.

{
  return static_cast<ACE_UINT32> (n);
}

ACE_UINT32 ACE_U64_TO_U32 ( ACE_UINT64 n ) [inline]

Definition at line 666 of file Basic_Types.h.

{
  return static_cast<ACE_UINT32> (n);
}
