#include <IIOP_Connector.h>

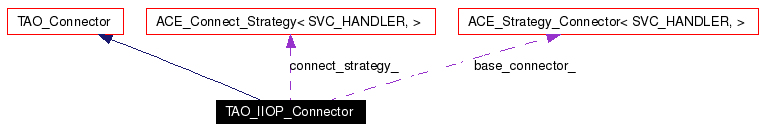

Inheritance diagram for TAO_IIOP_Connector:
Concrete instance of the TAO_Connector class. Responsible for establishing a connection with a server and is called from the Connector_Registory.
Definition at line 53 of file IIOP_Connector.h.
|
|
Definition at line 89 of file IIOP_Connector.h. |
|
|
Definition at line 78 of file IIOP_Connector.h. Referenced by open(). |
|
|
Definition at line 81 of file IIOP_Connector.h. Referenced by open(). |
|
|
Definition at line 85 of file IIOP_Connector.h. |
|
|
Constructor.
Definition at line 89 of file IIOP_Connector.cpp.
00090 : TAO_Connector (IOP::TAG_INTERNET_IOP) 00091 , connect_strategy_ () 00092 , base_connector_ () 00093 { 00094 } |
|
|
Destructor.
Definition at line 84 of file IIOP_Connector.cpp.
00085 {
00086 }
|
|
||||||||||||||||||||
|
This is the first half of making a connection. Both make_connection and make_parallel_connection will start out using begin_connection. Definition at line 317 of file IIOP_Connector.cpp. References ACE_DEBUG, ACE_TEXT, ACE_TEXT_CHAR_TO_TCHAR, base_connector_, TAO::Profile_Transport_Resolver::blocked_connect(), ACE_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_2 >::connect(), ACE_Addr::get_type(), TAO_IIOP_Endpoint::host(), INADDR_ANY, TAO_IIOP_Endpoint::is_preferred_network(), LM_DEBUG, TAO_IIOP_Endpoint::object_addr(), TAO_IIOP_Endpoint::port(), TAO_IIOP_Endpoint::preferred_network(), ACE_INET_Addr::set(), TAO_Connect_Strategy::synch_options(), and TAO_debug_level. Referenced by make_connection(), and make_parallel_connection().
00321 {
00322 const ACE_INET_Addr &remote_address =
00323 iiop_endpoint->object_addr ();
00324
00325 u_short port = 0;
00326 const ACE_UINT32 ia_any = INADDR_ANY;
00327 ACE_INET_Addr local_addr(port, ia_any);
00328
00329 if (iiop_endpoint->is_preferred_network ())
00330 local_addr.set (port,
00331 iiop_endpoint->preferred_network ());
00332 #if defined (ACE_HAS_IPV6)
00333 else if (remote_address.get_type () == AF_INET6)
00334 local_addr.set (port,
00335 ACE_IPV6_ANY);
00336 #endif /* ACE_HAS_IPV6 */
00337
00338 if (TAO_debug_level > 2)
00339 ACE_DEBUG ((LM_DEBUG,
00340 ACE_TEXT ("TAO (%P|%t) - IIOP_Connector::begin_connection, ")
00341 ACE_TEXT ("to <%s:%d> which should %s\n"),
00342 ACE_TEXT_CHAR_TO_TCHAR(iiop_endpoint->host()),
00343 iiop_endpoint->port(),
00344 r->blocked_connect () ? ACE_TEXT("block") : ACE_TEXT("nonblock")));
00345
00346 // Get the right synch options
00347 ACE_Synch_Options synch_options;
00348
00349 this->active_connect_strategy_->synch_options (timeout,
00350 synch_options);
00351
00352 // The code used to set the timeout to zero, with the intent of
00353 // polling the reactor for connection completion. However, the side-effect
00354 // was to cause the connection to timeout immediately.
00355
00356 svc_handler = 0;
00357
00358 int result =
00359 this->base_connector_.connect (svc_handler,
00360 remote_address,
00361 synch_options,
00362 local_addr);
00363
00364 // The connect() method creates the service handler and bumps the
00365 // #REFCOUNT# up one extra. There are four possibilities from
00366 // calling connect(): (a) connection succeeds immediately - in this
00367 // case, the #REFCOUNT# on the handler is two; (b) connection
00368 // completion is pending - in this case, the #REFCOUNT# on the
00369 // handler is also two; (c) connection fails immediately - in this
00370 // case, the #REFCOUNT# on the handler is one since close() gets
00371 // called on the handler; (d) the connect immediately returns when we
00372 // have specified that it shouldn't block.
00373 //
00374 // The extra reference count in
00375 // TAO_Connect_Creation_Strategy::make_svc_handler() is needed in
00376 // the case when connection completion is pending and we are going
00377 // to wait on a variable in the handler to changes, signifying
00378 // success or failure. Note, that this increment cannot be done
00379 // once the connect() returns since this might be too late if
00380 // another thread pick up the completion and potentially deletes the
00381 // handler before we get a chance to increment the reference count.
00382 return result;
00383 }
|
|
|
Cancel the passed cvs handler from the connector.
Implements TAO_Connector. Definition at line 728 of file IIOP_Connector.cpp. References TAO_IIOP_Connection_Handler::abort(), base_connector_, and ACE_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_2 >::cancel().
00730 {
00731 TAO_IIOP_Connection_Handler* handler=
00732 dynamic_cast<TAO_IIOP_Connection_Handler*>(svc_handler);
00733
00734 // Cancel from the connector
00735 if (handler)
00736 {
00737 handler->abort();
00738 return this->base_connector_.cancel (handler);
00739 }
00740
00741 return -1;
00742 }
|
|
|
Check that the prefix of the provided endpoint is valid for use with a given pluggable protocol. Implements TAO_Connector. Definition at line 677 of file IIOP_Connector.cpp. References ACE_OS::strchr(), ACE_OS::strlen(), and ACE_OS::strncasecmp().
00678 {
00679 // Check for a valid string
00680 if (!endpoint || !*endpoint)
00681 return -1; // Failure
00682
00683 static const char *protocol[] = { "iiop", "iioploc" };
00684
00685 const size_t slot = ACE_OS::strchr (endpoint, ':') - endpoint;
00686 if (slot == 0) // an empty string is valid for corbaloc.
00687 return 0;
00688
00689 const size_t len0 = ACE_OS::strlen (protocol[0]);
00690 const size_t len1 = ACE_OS::strlen (protocol[1]);
00691
00692 // Check for the proper prefix in the IOR. If the proper prefix
00693 // isn't in the IOR then it is not an IOR we can use.
00694 if (slot == len0
00695 && ACE_OS::strncasecmp (endpoint, protocol[0], len0) == 0)
00696 return 0;
00697 else if (slot == len1
00698 && ACE_OS::strncasecmp (endpoint, protocol[1], len1) == 0)
00699 return 0;
00700
00701 return -1;
00702 // Failure: not an IIOP IOR
00703 // DO NOT throw an exception here.
00704 }
|
|
|
Shutdown Connector bridge and concrete Connector.
Implements TAO_Connector. Definition at line 133 of file IIOP_Connector.cpp. References base_connector_, ACE_Strategy_Connector< SVC_HANDLER, >::close(), ACE_Strategy_Connector< SVC_HANDLER, >::concurrency_strategy(), and ACE_Strategy_Connector< SVC_HANDLER, >::creation_strategy().
00134 {
00135 delete this->base_connector_.concurrency_strategy ();
00136 delete this->base_connector_.creation_strategy ();
00137 return this->base_connector_.close ();
00138 }
|
|
||||||||||||||||||||||||||||||||||||
|
This is the second half of making a connection when several endpoints are involved. This works with modified wait strategies to wait for one of many transports, and when once completes it will cancel the rest. The winning transport is returned. Definition at line 386 of file IIOP_Connector.cpp. References ACE_DEBUG, ACE_ERROR, ACE_NEW_RETURN, ACE_TEXT, ACE_TEXT_CHAR_TO_TCHAR, TAO_Connection_Handler::cancel_pending_connection(), TAO_IIOP_Connection_Handler::close(), TAO_Transport::close_connection(), TAO_Transport::connection_handler(), TAO_Connection_Handler::connection_pending(), TAO_LF_CH_Event::error_detected(), TAO_IIOP_Endpoint::host(), TAO_Transport::id(), TAO_Transport::is_connected(), TAO_LF_Event::keep_waiting(), LM_DEBUG, LM_ERROR, ACE_OS::nanosleep(), TAO_Connector::orb_core(), TAO_IIOP_Endpoint::port(), TAO_Transport::purge_entry(), TAO_Wait_Strategy::register_handler(), TAO_Transport_Descriptor_Interface::reset_endpoint(), TAO_debug_level, TAO_Connection_Handler::transport(), TAO_Connector::wait_for_connection_completion(), and TAO_Transport::wait_strategy(). Referenced by make_connection(), and make_parallel_connection().
00394 {
00395 // Make sure that we always do a remove_reference for every member
00396 // of the list
00397 TAO_IIOP_Connection_Handler_Array_Guard svc_handler_auto_ptr (sh_list,count);
00398 TAO_Transport *transport = 0;
00399 TAO_Transport **tlist = 0;
00400 ACE_NEW_RETURN (tlist,TAO_Transport*[count],0);
00401
00402 // populate the transport list
00403 for (unsigned i = 0; i < count; i++)
00404 tlist[i] = sh_list[i]->transport();
00405
00406 if (result != -1)
00407 {
00408 // We received a compeleted connection and 0 or more pending.
00409 // the winner is the last member of the list, because the
00410 // iterator stopped on a successful connect.
00411 transport = tlist[count-1];
00412 }
00413 else
00414 {
00415 if (count == 1)
00416 {
00417 transport = tlist[0];
00418 if (!this->wait_for_connection_completion (r,
00419 transport,
00420 timeout))
00421 {
00422 if (TAO_debug_level > 2)
00423 ACE_ERROR ((LM_ERROR,
00424 ACE_TEXT ("TAO (%P|%t) - IIOP_Connector::")
00425 ACE_TEXT ("complete_connection, wait for completion ")
00426 ACE_TEXT ("failed for 1 pending connect\n")));
00427 }
00428 }
00429 else
00430 {
00431 if (!this->wait_for_connection_completion (r,
00432 transport,
00433 tlist,
00434 count,
00435 mev,
00436 timeout))
00437 {
00438 if (TAO_debug_level > 2)
00439 ACE_ERROR ((LM_ERROR,
00440 ACE_TEXT ("TAO (%P|%t) - IIOP_Connector::")
00441 ACE_TEXT ("complete_connection, wait for completion ")
00442 ACE_TEXT ("failed for %d pending connects\n"),
00443 count));
00444 }
00445 }
00446 }
00447
00448 #if defined (INDUCE_BUG_2654_A)
00449 // This is where the fatal error would occur. A pending asynch
00450 // connection would fail, the failure handled by another thread,
00451 // closing the connection. However the remainder of this method
00452 // only checked to see if the keep_waiting status was true, and bump
00453 // the refcount then. However if the status was really
00454 // error_detected, then no bump in refcount occured allowing the
00455 // connection_handler's close_handler method to effectively steal
00456 // the reference to be handed back to the caller. That would then
00457 // trigger an abort as the profile_transport_resolver (our caller)
00458 // to delete the transport while it is still cached.
00459 ACE_Time_Value udelay(0,600);
00460 struct timespec ts = udelay;
00461 ACE_OS::nanosleep (&ts);
00462 #endif // INDUCE_BUG_2654_A
00463
00464 int retval = -1;
00465
00466 // At this point, the connection has been successfully created
00467 // connected or not connected, but we have a connection.
00468 TAO_IIOP_Connection_Handler *svc_handler = 0;
00469 TAO_IIOP_Endpoint *iiop_endpoint = 0;
00470
00471 if (transport != 0)
00472 {
00473 if (count == 1)
00474 {
00475 svc_handler = sh_list[0];
00476 iiop_endpoint = ep_list[0];
00477 }
00478 else
00479 {
00480 for (unsigned i = 0; i < count; i++)
00481 {
00482 if (transport == tlist[i])
00483 {
00484 svc_handler = sh_list[i];
00485 iiop_endpoint = ep_list[i];
00486 break;
00487 }
00488 }
00489 }
00490 }
00491
00492
00493 // Done with the transport list. It was a temporary that did not
00494 // affect the reference count.
00495 delete [] tlist;
00496
00497 // In case of errors transport is zero
00498 if (transport == 0)
00499 {
00500 // Give users a clue to the problem.
00501 if (TAO_debug_level > 3)
00502 {
00503 for (unsigned i = 0; i < count; i++)
00504 {
00505 ACE_ERROR ((LM_ERROR,
00506 ACE_TEXT ("TAO (%P|%t) - IIOP_Connector::complete_connection,")
00507 ACE_TEXT (" connection to <%s:%d> failed (%p)\n"),
00508 ACE_TEXT_CHAR_TO_TCHAR (ep_list[i]->host ()),
00509 ep_list[i]->port (),
00510 ACE_TEXT("errno")));
00511 }
00512 }
00513 return 0;
00514 }
00515
00516 if (svc_handler->keep_waiting())
00517 {
00518 svc_handler->connection_pending();
00519 }
00520
00521 #if defined (INDUCE_BUG_2654_B)
00522 // It is possible for the connection failure to be processed after bumping
00523 // the reference count and before we plan to cache the connection. Prior to
00524 // fixing bug 2654, this would lead to a failed connection in the cache.
00525 // Though not a fatal condition, it was certainly wasteful of resources.
00526 ACE_Time_Value udelay(0,600);
00527 struct timespec ts = udelay;
00528 ACE_OS::nanosleep (&ts);
00529 #endif // INDUCE_BUG_2654_B
00530
00531 // Fix for bug 2654.
00532 if (transport->connection_handler()->error_detected())
00533 {
00534 if (TAO_debug_level > 0)
00535 ACE_DEBUG((LM_DEBUG,
00536 ACE_TEXT("TAO (%P|%t) - IIOP_Connector::make_connection, ")
00537 ACE_TEXT("transport in error before cache! \n")));
00538 transport->connection_handler()->cancel_pending_connection();
00539 return 0;
00540 }
00541
00542 if (TAO_debug_level > 2)
00543 {
00544 ACE_DEBUG ((LM_DEBUG,
00545 ACE_TEXT ("TAO (%P|%t) - IIOP_Connector::make_connection, ")
00546 ACE_TEXT ("new %s connection to <%s:%d> on Transport[%d]\n"),
00547 transport->is_connected() ?
00548 ACE_TEXT("connected") : ACE_TEXT("not connected"),
00549 ACE_TEXT_CHAR_TO_TCHAR (iiop_endpoint->host ()),
00550 iiop_endpoint->port (),
00551 svc_handler->peer ().get_handle ()));
00552 }
00553
00554 #if defined (INDUCE_BUG_2654_C)
00555 // This sets up the possibility that a failed connection is detected after we
00556 // checked the connection status but before we cached the connection. This
00557 // will allow a failed connection to be cached
00558 ACE_Time_Value udelay(0,600);
00559 struct timespec ts = udelay;
00560 ACE_OS::nanosleep (&ts);
00561 #endif // INDUCE_BUG_2654_C
00562
00563
00564 // Add the handler to Cache
00565 if (count == 1 || desc.reset_endpoint(iiop_endpoint))
00566 {
00567 retval = this->orb_core ()->
00568 lane_resources ().transport_cache ().cache_transport (&desc,
00569 transport);
00570 }
00571
00572 // Failure in adding to cache
00573 if (retval != 0)
00574 {
00575 // Close the handler.
00576 svc_handler->close ();
00577
00578 if (TAO_debug_level > 0)
00579 {
00580 ACE_ERROR ((LM_ERROR,
00581 ACE_TEXT ("TAO (%P|%t) IIOP_Connector::make_connection, ")
00582 ACE_TEXT ("could not add new connection to cache\n")));
00583 }
00584
00585 return 0;
00586 }
00587
00588 // Other part of fix for bug 2654.
00589 // It is possible that after checking for a connection failure but
00590 // before caching, the connection really failed, thus an invalid
00591 // connection is put into the cache. Thus we do one last status
00592 // check before handing the connection back to the caller.
00593 if (svc_handler->error_detected())
00594 {
00595 if (TAO_debug_level > 0)
00596 ACE_DEBUG((LM_DEBUG,
00597 ACE_TEXT("TAO (%P|%t) - IIOP_Connector::make_connection, ")
00598 ACE_TEXT("transport in error after cache! \n")));
00599 svc_handler->cancel_pending_connection();
00600 transport->purge_entry();
00601 return 0;
00602 }
00603
00604
00605 #if defined (INDUCE_BUG_2654_D)
00606 // at this point the connection handler's close connection will manage
00607 // purging the entry from the cache so we are fine there.
00608 ACE_Time_Value udelay(0,600);
00609 struct timespec ts = udelay;
00610 ACE_OS::nanosleep (&ts);
00611 #endif // INDUCE_BUG_2654_D
00612
00613 if (transport->is_connected () &&
00614 transport->wait_strategy ()->register_handler () != 0)
00615 {
00616 // Registration failures.
00617
00618 // Purge from the connection cache, if we are not in the cache, this
00619 // just does nothing.
00620 (void) transport->purge_entry ();
00621
00622 // Close the handler.
00623 (void) transport->close_connection ();
00624
00625 if (TAO_debug_level > 0)
00626 ACE_ERROR ((LM_ERROR,
00627 ACE_TEXT ("TAO (%P|%t) IIOP_Connector [%d]::make_connection, ")
00628 ACE_TEXT ("could not register the transport ")
00629 ACE_TEXT ("in the reactor.\n"),
00630 transport->id ()));
00631
00632 return 0;
00633 }
00634
00635 return transport;
00636 }
|
|
|
Create a profile for this protocol and initialize it based on the encapsulation in cdr Implements TAO_Connector. Definition at line 639 of file IIOP_Connector.cpp. References TAO_Profile::_decr_refcnt(), ACE_NEW_RETURN, and TAO_Profile::decode().
00640 {
00641 TAO_Profile *pfile = 0;
00642 ACE_NEW_RETURN (pfile,
00643 TAO_IIOP_Profile (this->orb_core ()),
00644 0);
00645
00646 const int r = pfile->decode (cdr);
00647 if (r == -1)
00648 {
00649 pfile->_decr_refcnt ();
00650 pfile = 0;
00651 }
00652
00653 return pfile;
00654 }
|
|
||||||||||||||||
|
Make a connection.
Implements TAO_Connector. Definition at line 184 of file IIOP_Connector.cpp. References ACE_ERROR, ACE_TEXT, ACE_TEXT_CHAR_TO_TCHAR, TAO_LF_Multi_Event::add_event(), begin_connection(), complete_connection(), TAO_Transport_Descriptor_Interface::endpoint(), EWOULDBLOCK, TAO_IIOP_Endpoint::host(), LM_ERROR, TAO_IIOP_Endpoint::port(), remote_endpoint(), and TAO_debug_level.
00187 {
00188 TAO_IIOP_Connection_Handler *svc_handler = 0;
00189 TAO_IIOP_Endpoint *iiop_endpoint =
00190 this->remote_endpoint (desc.endpoint());
00191 int result = -1;
00192 if (iiop_endpoint == 0)
00193 return 0;
00194
00195 result = this->begin_connection (svc_handler, r, iiop_endpoint, timeout);
00196
00197 if (result == -1 && errno != EWOULDBLOCK)
00198 {
00199 // connect completed unsuccessfully
00200 svc_handler->remove_reference();
00201 // Give users a clue to the problem.
00202 if (TAO_debug_level > 1)
00203 {
00204 ACE_ERROR ((LM_ERROR,
00205 ACE_TEXT ("TAO (%P|%t) IIOP_Connector::make_connection, ")
00206 ACE_TEXT("connection to <%s:%d> failed (%p)\n"),
00207 ACE_TEXT_CHAR_TO_TCHAR (iiop_endpoint->host ()),
00208 iiop_endpoint->port (),
00209 ACE_TEXT("errno")));
00210 }
00211 return 0;
00212 }
00213 TAO_IIOP_Connection_Handler **sh_ptr = &svc_handler;
00214 TAO_IIOP_Endpoint **ep_ptr = &iiop_endpoint;
00215 TAO_LF_Multi_Event mev;
00216 mev.add_event (svc_handler);
00217
00218 return this->complete_connection (result,
00219 desc,
00220 sh_ptr,
00221 ep_ptr,
00222 1U,
00223 r,
00224 &mev,
00225 timeout);
00226 }
|
|
||||||||||||||||
|
Make a connection using - not a pure virtual since not all protocols support this. Reimplemented from TAO_Connector. Definition at line 229 of file IIOP_Connector.cpp. References ACE_DEBUG, ACE_NEW_RETURN, ACE_TEXT, TAO_LF_Multi_Event::add_event(), begin_connection(), complete_connection(), TAO_Transport_Descriptor_Interface::endpoint(), EWOULDBLOCK, LM_DEBUG, ACE_OS::nanosleep(), TAO_Endpoint::next(), TAO_Endpoint::next_filtered(), TAO_Connector::orb_core(), TAO_ORB_Core::orb_params(), TAO_ORB_Parameters::parallel_connect_delay(), TAO_Connect_Strategy::poll(), remote_endpoint(), and TAO_debug_level.
00233 {
00234 TAO_Endpoint *root_ep = desc.endpoint();
00235 unsigned max_count = 1;
00236 unsigned long ns_stagger =
00237 this->orb_core ()->orb_params ()->parallel_connect_delay ();
00238 unsigned long sec_stagger = ns_stagger/1000;
00239 ns_stagger = (ns_stagger % 1000) * 1000000;
00240 for (TAO_Endpoint *ep = root_ep->next_filtered (this->orb_core(), 0);
00241 ep != 0;
00242 ep = ep->next_filtered (this->orb_core(), root_ep))
00243 ++max_count;
00244
00245 if (TAO_debug_level > 2)
00246 ACE_DEBUG ((LM_DEBUG,
00247 ACE_TEXT ("TAO (%P|%t) - IIOP_Connector::")
00248 ACE_TEXT ("make_parallel_connection, ")
00249 ACE_TEXT ("to %d endpoints\n"), max_count));
00250 TAO_IIOP_Endpoint **eplist = 0;
00251 TAO_IIOP_Connection_Handler **shlist = 0;
00252 ACE_NEW_RETURN (shlist, TAO_IIOP_Connection_Handler *[max_count], 0);
00253 ACE_NEW_RETURN (eplist, TAO_IIOP_Endpoint *[max_count], 0);
00254
00255 TAO_LF_Multi_Event mev;
00256 int result = 0;
00257 unsigned count = 0;
00258 for (TAO_Endpoint *ep = root_ep->next_filtered (this->orb_core(),0);
00259 ep != 0;
00260 ep = ep->next_filtered(this->orb_core(),root_ep))
00261 {
00262 eplist[count] = this->remote_endpoint (ep);
00263 shlist[count] = 0;
00264 result = this->begin_connection (shlist[count],
00265 r,
00266 eplist[count],
00267 timeout);
00268
00269 // The connection may fail because it is slow, or for other reasons.
00270 // If it was an incomplete non-blocking connection, add it to the list
00271 // to be waited on, otherwise remove the reference to the handler and
00272 // move on to the next endpoint.
00273 if (result == -1)
00274 {
00275 if (errno == EWOULDBLOCK)
00276 {
00277 mev.add_event(shlist[count++]);
00278 if (ep->next() != 0)
00279 {
00280 struct timespec nsleep = {sec_stagger, ns_stagger};
00281 ACE_OS::nanosleep (&nsleep);
00282 result = this->active_connect_strategy_->poll (&mev);
00283 if (result != -1)
00284 break;
00285 }
00286 }
00287 else
00288 {
00289 shlist[count]->remove_reference(); // done bump the list count
00290 }
00291 continue;
00292 }
00293
00294 if (result != -1) // we have a winner!
00295 {
00296 count++;
00297 break; // no waiting involved since a connection is completed
00298 }
00299 }
00300
00301 TAO_Transport *winner = 0;
00302 if (count > 0) // only complete if at least one pending or success
00303 winner = this->complete_connection (result,
00304 desc,
00305 shlist,
00306 eplist,
00307 count,r,
00308 &mev,
00309 timeout);
00310
00311 delete [] shlist; // reference reductions should have been done already
00312 delete [] eplist;
00313 return winner;
00314 }
|
|
|
More TAO_Connector methods, please check the documentation on Transport_Connector.h Implements TAO_Connector. Definition at line 657 of file IIOP_Connector.cpp. References ACE_NEW_THROW_EX.
00658 {
00659 // The endpoint should be of the form:
00660 // N.n@host:port/object_key
00661 // or:
00662 // host:port/object_key
00663
00664 TAO_Profile *profile = 0;
00665 ACE_NEW_THROW_EX (profile,
00666 TAO_IIOP_Profile (this->orb_core ()),
00667 CORBA::NO_MEMORY (
00668 CORBA::SystemException::_tao_minor_code (
00669 0,
00670 ENOMEM),
00671 CORBA::COMPLETED_NO));
00672
00673 return profile;
00674 }
|
|
|
Return the object key delimiter to use or expect.
Implements TAO_Connector. Definition at line 707 of file IIOP_Connector.cpp.
00708 {
00709 return TAO_IIOP_Profile::object_key_delimiter_;
00710 }
|
|
|
Our connect creation strategy Our activation strategy Implements TAO_Connector. Definition at line 97 of file IIOP_Connector.cpp. References ACE_NEW_RETURN, base_connector_, TAO_Connector::create_connect_strategy(), ACE_Strategy_Connector< SVC_HANDLER, >::open(), TAO_Connector::orb_core(), TAO_IIOP_CONNECT_CONCURRENCY_STRATEGY, TAO_IIOP_CONNECT_CREATION_STRATEGY, and TAO_ORB_Core::thr_mgr().
00098 {
00099 // @todo: The functionality of the following two statements could
00100 // be done in the constructor, but that involves changing the
00101 // interface of the pluggable transport factory.
00102
00103 // Set the ORB Core
00104 this->orb_core (orb_core);
00105
00106 // Create our connect strategy
00107 if (this->create_connect_strategy () == -1)
00108 return -1;
00109
00110 /// Our connect creation strategy
00111 TAO_IIOP_CONNECT_CREATION_STRATEGY *connect_creation_strategy = 0;
00112
00113 ACE_NEW_RETURN (connect_creation_strategy,
00114 TAO_IIOP_CONNECT_CREATION_STRATEGY
00115 (orb_core->thr_mgr (),
00116 orb_core),
00117 -1);
00118
00119 /// Our activation strategy
00120 TAO_IIOP_CONNECT_CONCURRENCY_STRATEGY *concurrency_strategy = 0;
00121
00122 ACE_NEW_RETURN (concurrency_strategy,
00123 TAO_IIOP_CONNECT_CONCURRENCY_STRATEGY (orb_core),
00124 -1);
00125
00126 return this->base_connector_.open (this->orb_core ()->reactor (),
00127 connect_creation_strategy,
00128 &this->connect_strategy_,
00129 concurrency_strategy);
00130 }
|
|
|
Return the remote endpoint, a helper function.
Definition at line 713 of file IIOP_Connector.cpp. References TAO_Endpoint::tag(). Referenced by make_connection(), make_parallel_connection(), and set_validate_endpoint().
00714 {
00715 if (endpoint->tag () != IOP::TAG_INTERNET_IOP)
00716 return 0;
00717
00718 TAO_IIOP_Endpoint *iiop_endpoint =
00719 dynamic_cast<TAO_IIOP_Endpoint *> (endpoint );
00720
00721 if (iiop_endpoint == 0)
00722 return 0;
00723
00724 return iiop_endpoint;
00725 }
|
|
|
Set and validate endpoint. We need to do this to initialize our remote *_Addr's which have not been done during IOR decode. Implements TAO_Connector. Definition at line 147 of file IIOP_Connector.cpp. References ACE_DEBUG, ACE_TEXT, AF_INET, ACE_Addr::get_type(), LM_DEBUG, TAO_IIOP_Endpoint::object_addr(), remote_endpoint(), and TAO_debug_level.
00148 {
00149 TAO_IIOP_Endpoint *iiop_endpoint =
00150 this->remote_endpoint (endpoint);
00151
00152 if (iiop_endpoint == 0)
00153 return -1;
00154
00155 const ACE_INET_Addr &remote_address =
00156 iiop_endpoint->object_addr ();
00157
00158 // Verify that the remote ACE_INET_Addr was initialized properly.
00159 // Failure can occur if hostname lookup failed when initializing the
00160 // remote ACE_INET_Addr.
00161 #if defined (ACE_HAS_IPV6)
00162 if (remote_address.get_type () != AF_INET &&
00163 remote_address.get_type () != AF_INET6)
00164 #else /* ACE_HAS_IPV6 */
00165 if (remote_address.get_type () != AF_INET)
00166 #endif /* !ACE_HAS_IPV6 */
00167 {
00168 if (TAO_debug_level > 0)
00169 {
00170 ACE_DEBUG ((LM_DEBUG,
00171 ACE_TEXT ("TAO (%P|%t) IIOP connection failed.\n")
00172 ACE_TEXT (" This is most likely ")
00173 ACE_TEXT ("due to a hostname lookup ")
00174 ACE_TEXT ("failure.\n")));
00175 }
00176
00177 return -1;
00178 }
00179
00180 return 0;
00181 }
|
|
|
A flag indicating the actual connector supports parallel connection attempts. The base implementation always returns 0. Override to return non-zero if parallel connection attempts may be tried. Reimplemented from TAO_Connector. Definition at line 141 of file IIOP_Connector.cpp.
00142 {
00143 return 1;
00144 }
|
|
|
The connector initiating connection requests for IIOP.
Definition at line 158 of file IIOP_Connector.h. Referenced by begin_connection(), cancel_svc_handler(), close(), and open(). |
|
|
Our connect strategy.
Definition at line 155 of file IIOP_Connector.h. |
1.3.6
