TAO::Profile_Transport_Resolver Class Reference

Chooses the profile and a transport for a target object on which an invocation can be made. More...

#include <Profile_Transport_Resolver.h>

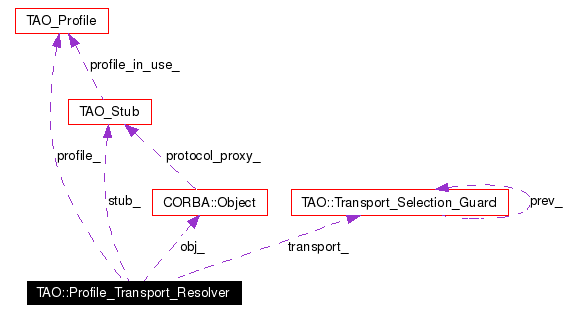

Collaboration diagram for TAO::Profile_Transport_Resolver:

[legend]List of all members.

Public Member Functions
	Profile_Transport_Resolver (CORBA::Object *p, TAO_Stub *stub, bool block=true)
	Constructor.
	~Profile_Transport_Resolver (void)
void	resolve (ACE_Time_Value *val)
	Method where the bunch of the action takes place.
void	transport_released (void) const
bool	try_connect (TAO_Transport_Descriptor_Interface *desc, ACE_Time_Value *val)
bool	try_parallel_connect (TAO_Transport_Descriptor_Interface *desc, ACE_Time_Value *val)
bool	use_parallel_connect (void) const
void	init_inconsistent_policies (void)
CORBA::PolicyList *	inconsistent_policies (void) const
CORBA::PolicyList *	steal_inconsistent_policies (void)
Accessors and mutators for this class. The following methods
are used by the clients of this class to access strategies and other internal workings.
void	profile (TAO_Profile *pfile)
	Mutator for profile.
TAO_Profile *	profile (void) const
	Accessor for profile.
TAO_Stub *	stub (void) const
	Accessor for TAO_Stub.
CORBA::Object *	object (void) const
	Accessor for the target in use.
TAO_Transport *	transport (void) const
	Accessor for the transport reserved for this invocation.
int	find_transport (TAO_Transport_Descriptor_Interface *)
bool	blocked_connect (void) const
Private Member Functions
bool	get_connection_timeout (ACE_Time_Value &max_wait_time)
bool	try_connect_i (TAO_Transport_Descriptor_Interface *desc, ACE_Time_Value *val, bool parallel)
Private Attributes
CORBA::Object *	obj_
	Target object.
TAO_Stub *	stub_
	Stub object for the target object.
TAO::Transport_Selection_Guard	transport_
	The transport selected for this invocation.
TAO_Profile *	profile_
	The profile that has been selected for this invocation.
CORBA::PolicyList *	inconsistent_policies_
	List of inconsistent policies.
bool	is_released_
	Has the transport been idle?
bool const	blocked_
	Should we block while trying to make a connection.

---

Detailed Description

Chooses the profile and a transport for a target object on which an invocation can be made.

A target object is represented by multiple profiles, which theoretically provides multiple paths to the same target object. This class helps in choosing the right profile, and pick a transport from cache (or create a new transport if needed) that represents the profile.

Definition at line 63 of file Profile_Transport_Resolver.h.

---

Constructor & Destructor Documentation

ACE_INLINE TAO::Profile_Transport_Resolver::Profile_Transport_Resolver (  CORBA::Object *  p, TAO_Stub *  stub, bool  block = true )

Constructor. With block we tell whether this resolved should always deliver a connection by blocking or unblock before the connection is completely established. Please note that this has *nothing* to do with the synchronous or asynch connect strategy used for making connections. This is a local flag used by the clients of this to dictate some local behavior. Definition at line 11 of file Profile_Transport_Resolver.inl. : obj_ (p) , stub_ (stub) , transport_ (0) , profile_ (0) , inconsistent_policies_ (0) , is_released_ (false) , blocked_ (block) { }

TAO::Profile_Transport_Resolver::~Profile_Transport_Resolver (  void   )

Definition at line 36 of file Profile_Transport_Resolver.cpp. References TAO_Profile::_decr_refcnt(), TAO::Transport_Selection_Guard::get(), inconsistent_policies_, and is_released_. { if (this->profile_) { this->profile_->_decr_refcnt (); } if (this->transport_.get ()) { if (this->is_released_ == false) { this->transport_->make_idle (); } this->transport_->remove_reference (); } delete this->inconsistent_policies_; }

---

Member Function Documentation

ACE_INLINE bool TAO::Profile_Transport_Resolver::blocked_connect (  void   )  const

Accessor to indicate whether we should block while establishing a connection. Definition at line 50 of file Profile_Transport_Resolver.inl. References blocked_. Referenced by TAO_IIOP_Connector::begin_connection(), TAO_Default_Endpoint_Selector::select_endpoint(), and TAO_Connector::wait_for_connection_completion(). { return this->blocked_; }

int TAO::Profile_Transport_Resolver::find_transport (  TAO_Transport_Descriptor_Interface *   )

See if the transport cache has an available transport and use that one rather than trying to connect via the connector. Separating this functionality enables the look up of many endpoints before trying the more time-consuming trip through the actual connector. Definition at line 245 of file Profile_Transport_Resolver.cpp. References TAO::Transport_Cache_Manager::find_transport(), TAO::Transport_Selection_Guard::get(), TAO_ORB_Core::lane_resources(), TAO_Profile::orb_core(), TAO::Transport_Selection_Guard::set(), and TAO_Thread_Lane_Resources::transport_cache(). { TAO::Transport_Cache_Manager & cache = this->profile_->orb_core()->lane_resources ().transport_cache(); // the cache increments the reference count on the transport if // the find is successful. Cache.find_transport returns 0 on success. // but we want to return a "boolean" of 0 for failure, 1 for success. TAO_Transport* tmp = this->transport_.get (); if (cache.find_transport(desc, tmp) != 0) return 0; this->transport_.set (tmp); return 1; }

bool TAO::Profile_Transport_Resolver::get_connection_timeout (  ACE_Time_Value &  max_wait_time  )  [private]

Helper method to access get the connection timeout from the ORB. Definition at line 217 of file Profile_Transport_Resolver.cpp. References TAO_ORB_Core::connection_timeout(), and TAO_Stub::orb_core(). Referenced by try_connect_i(). { bool is_conn_timeout = false; // Check for the connection timout policy in the ORB this->stub_->orb_core ()->connection_timeout (this->stub_, is_conn_timeout, max_wait_time); return is_conn_timeout; }

ACE_INLINE CORBA::PolicyList * TAO::Profile_Transport_Resolver::inconsistent_policies (  void   )  const

Definition at line 62 of file Profile_Transport_Resolver.inl. References inconsistent_policies_. { return this->inconsistent_policies_; }

void TAO::Profile_Transport_Resolver::init_inconsistent_policies (  void   )

Initialize the inconsistent policy list that this object has cached. Definition at line 232 of file Profile_Transport_Resolver.cpp. References ACE_NEW_THROW_EX, and CORBA::PolicyList. Referenced by TAO::LocateRequest_Invocation_Adapter::invoke(). { ACE_NEW_THROW_EX (this->inconsistent_policies_, CORBA::PolicyList (0), CORBA::NO_MEMORY ( CORBA::SystemException::_tao_minor_code ( 0, ENOMEM), CORBA::COMPLETED_NO)); }

ACE_INLINE CORBA::Object_ptr TAO::Profile_Transport_Resolver::object (  void   )  const

Accessor for the target in use. Definition at line 32 of file Profile_Transport_Resolver.inl. Referenced by TAO::Remote_Invocation::send_message(). { return this->obj_; }

ACE_INLINE TAO_Profile * TAO::Profile_Transport_Resolver::profile (  void   )  const

Accessor for profile. Definition at line 38 of file Profile_Transport_Resolver.inl. { return this->profile_; }

void TAO::Profile_Transport_Resolver::profile (  TAO_Profile *  pfile  )

Mutator for profile. Definition at line 57 of file Profile_Transport_Resolver.cpp. References TAO_Profile::_decr_refcnt(), and TAO_Profile::_incr_refcnt(). Referenced by TAO::LocateRequest_Invocation::check_reply(), TAO::Synch_Twoway_Invocation::check_reply_status(), TAO::Synch_Twoway_Invocation::handle_system_exception(), TAO::Remote_Invocation::init_target_spec(), TAO_Default_Endpoint_Selector::select_endpoint(), and TAO::Synch_Twoway_Invocation::wait_for_reply(). { // Dont do anything if the incoming profile is null if (p) { // @note This is just a workaround for a more serious problem // with profile management. This would cover some potential // issues that Ossama is working on. Ossama, please remove // them when you are done. TAO_Profile *tmp = this->profile_; (void) p->_incr_refcnt (); this->profile_ = p; if (tmp) { (void) tmp->_decr_refcnt (); } } }

void TAO::Profile_Transport_Resolver::resolve (  ACE_Time_Value *  val  )

Method where the bunch of the action takes place. This is the entry point from the TAO::Invocation_Adapter class. This method accesses the endpoint selector factory from the ORB_Core to decide on the strategy to be used for selecting the profile. Definition at line 80 of file Profile_Transport_Resolver.cpp. References TAO_ORB_Core::codeset_manager(), TAO_ORB_Core::endpoint_selector_factory(), TAO::Transport_Selection_Guard::get(), TAO_Endpoint_Selector_Factory::get_selector(), TAO_GIOP_Message_Version::major, TAO_GIOP_Message_Version::minor, TAO_Stub::orb_core(), TAO_Invocation_Endpoint_Selector::select_endpoint(), TAO_Codeset_Manager::set_tcs(), and TAO_Profile::version(). Referenced by TAO::LocateRequest_Invocation_Adapter::invoke(), and TAO::Invocation_Adapter::invoke_remote_i(). { ACE_Countdown_Time countdown (max_time_val); TAO_Invocation_Endpoint_Selector *es = this->stub_->orb_core ()->endpoint_selector_factory ()->get_selector (); // Select the endpoint es->select_endpoint (this, max_time_val); if (this->transport_.get () == 0) { throw ::CORBA::INTERNAL (); } TAO_GIOP_Message_Version const & version = this->profile_->version (); // Initialize the messaging object if (this->transport_->messaging_init (version.major, version.minor) == -1) { throw ::CORBA::INTERNAL ( CORBA::SystemException::_tao_minor_code ( 0, EINVAL), CORBA::COMPLETED_NO); } if (!this->transport_->is_tcs_set ()) { TAO_Codeset_Manager * const tcm = this->stub_->orb_core ()->codeset_manager (); if (tcm) tcm->set_tcs (*this->profile_, *this->transport_); } }

ACE_INLINE CORBA::PolicyList * TAO::Profile_Transport_Resolver::steal_inconsistent_policies (  void   )

Definition at line 68 of file Profile_Transport_Resolver.inl. References inconsistent_policies_, and CORBA::PolicyList. Referenced by TAO::LocateRequest_Invocation_Adapter::invoke(). { CORBA::PolicyList *tmp = this->inconsistent_policies_; this->inconsistent_policies_ = 0; return tmp; }

ACE_INLINE TAO_Stub * TAO::Profile_Transport_Resolver::stub (  void   )  const

Accessor for TAO_Stub. Definition at line 26 of file Profile_Transport_Resolver.inl. Referenced by TAO::Synch_Twoway_Invocation::handle_system_exception(), TAO::Remote_Invocation::init_target_spec(), TAO::LocateRequest_Invocation_Adapter::invoke(), TAO::Invocation_Adapter::invoke_oneway(), TAO::Invocation_Adapter::invoke_twoway(), TAO::Synch_Oneway_Invocation::remote_oneway(), TAO::Synch_Twoway_Invocation::remote_twoway(), TAO_Default_Endpoint_Selector::select_endpoint(), TAO::Remote_Invocation::send_message(), and TAO::Synch_Twoway_Invocation::wait_for_reply(). { return this->stub_; }

ACE_INLINE TAO_Transport * TAO::Profile_Transport_Resolver::transport (  void   )  const

Accessor for the transport reserved for this invocation. Definition at line 44 of file Profile_Transport_Resolver.inl. References TAO::Transport_Selection_Guard::get(). Referenced by TAO::LocateRequest_Invocation::check_reply(), TAO::Synch_Twoway_Invocation::check_reply_status(), TAO::LocateRequest_Invocation_Adapter::invoke(), TAO::LocateRequest_Invocation::invoke(), TAO::Invocation_Adapter::invoke_remote_i(), TAO::Synch_Oneway_Invocation::remote_oneway(), TAO::Synch_Twoway_Invocation::remote_twoway(), TAO::Remote_Invocation::send_message(), TAO::Synch_Twoway_Invocation::wait_for_reply(), and TAO::Remote_Invocation::write_header(). { return this->transport_.get (); }

ACE_INLINE void TAO::Profile_Transport_Resolver::transport_released (  void   )  const

Signal to let the resolver know that the transport has been released back to the cache. Definition at line 56 of file Profile_Transport_Resolver.inl. References is_released_. Referenced by TAO::LocateRequest_Invocation::invoke(), and TAO::Synch_Twoway_Invocation::remote_twoway(). { this->is_released_ = true; }

bool TAO::Profile_Transport_Resolver::try_connect (  TAO_Transport_Descriptor_Interface *  desc, ACE_Time_Value *  val )

This is a callback method used by the endpoint selectors to delegate the responsibility of reserving a transport from the connection cache for this invocation. When the descriptor contains more than one endpoint (as part of a linked list) and the parallel flag is true then the connector will look for a connection on any of the endpoints if it supports that behavior, otherwise an ENOTSUP errno will be set and the method will return false. Definition at line 117 of file Profile_Transport_Resolver.cpp. References try_connect_i(). Referenced by TAO_Default_Endpoint_Selector::select_endpoint(). { return this->try_connect_i (desc, timeout, false); }

bool TAO::Profile_Transport_Resolver::try_connect_i (  TAO_Transport_Descriptor_Interface *  desc, ACE_Time_Value *  val, bool  parallel )  [private]

Definition at line 134 of file Profile_Transport_Resolver.cpp. References ACE_ASSERT, blocked_, TAO_Connector::connect(), TAO_ORB_Core::connector_registry(), TAO_Transport_Descriptor_Interface::endpoint(), ETIME, TAO::Transport_Selection_Guard::get(), get_connection_timeout(), TAO_Connector_Registry::get_connector(), TAO_Stub::orb_core(), TAO_Connector::parallel_connect(), TAO::Transport_Selection_Guard::set(), TAO_Endpoint::tag(), and TAO_TIMEOUT_CONNECT_MINOR_CODE. Referenced by try_connect(), and try_parallel_connect(). { TAO_Connector_Registry *conn_reg = this->stub_->orb_core ()->connector_registry (); if (conn_reg == 0) { throw ::CORBA::INTERNAL ( CORBA::SystemException::_tao_minor_code ( 0, EINVAL), CORBA::COMPLETED_NO); } ACE_Time_Value connection_timeout; bool has_con_timeout = this->get_connection_timeout (connection_timeout); if (has_con_timeout && !this->blocked_) { timeout = &connection_timeout; } else if (has_con_timeout) { if (timeout == 0 || connection_timeout < *timeout) timeout = &connection_timeout; else has_con_timeout = false; } else if (!this->blocked_) { timeout = 0; } TAO_Connector *con = conn_reg->get_connector (desc->endpoint ()->tag ()); ACE_ASSERT(con != 0); if (parallel) { this->transport_.set (con->parallel_connect (this, desc, timeout)); } else { this->transport_.set (con->connect (this, desc, timeout)); } // A timeout error occurred. // If the user has set a roundtrip timeout policy, throw a timeout // exception. Otherwise, just fall through and return false to // look at the next endpoint. if (this->transport_.get () == 0 && has_con_timeout == false && errno == ETIME) { throw ::CORBA::TIMEOUT ( CORBA::SystemException::_tao_minor_code ( TAO_TIMEOUT_CONNECT_MINOR_CODE, errno), CORBA::COMPLETED_NO); } else if (this->transport_.get () == 0) { return false; } return true; }

bool TAO::Profile_Transport_Resolver::try_parallel_connect (  TAO_Transport_Descriptor_Interface *  desc, ACE_Time_Value *  val )

Definition at line 125 of file Profile_Transport_Resolver.cpp. References try_connect_i(). Referenced by TAO_Default_Endpoint_Selector::select_endpoint(). { return this->try_connect_i (desc, timeout, true); }

bool TAO::Profile_Transport_Resolver::use_parallel_connect (  void   )  const

This method wraps a call to the orb core to see if parallel connection attempts are even desired. This is controlled by the -ORBUseParallelConnects 1|0 commandline option. Definition at line 203 of file Profile_Transport_Resolver.cpp. References TAO_ORB_Core::client_factory(), TAO_Client_Strategy_Factory::connect_strategy(), TAO_Stub::orb_core(), TAO_ORB_Core::orb_params(), and TAO_ORB_Parameters::use_parallel_connects(). Referenced by TAO_Default_Endpoint_Selector::select_endpoint(). { TAO_ORB_Core *oc = this->stub_->orb_core(); return (oc->orb_params()->use_parallel_connects() #if 0 // it was decided that even with blocked connects // parallel connects could be useful, at least for cache // processing. oc->client_factory()->connect_strategy() != TAO_Client_Strategy_Factory::TAO_BLOCKED_CONNECT #endif /* 0 */ ); }

---

Member Data Documentation

bool const TAO::Profile_Transport_Resolver::blocked_ [private]

Should we block while trying to make a connection. Definition at line 204 of file Profile_Transport_Resolver.h. Referenced by blocked_connect(), and try_connect_i().

CORBA::PolicyList* TAO::Profile_Transport_Resolver::inconsistent_policies_ [private]

List of inconsistent policies. If current effective policies cause the invocation to raise CORBA::INV_POLICY exception, the conflicting/problematic policies are stored in this list. This is used by Parameters: Object::_validate_connection  method to inform clients about causes of invocation failure. Conflicting policies are only stored in this list if Parameters: init_inconsistent_policies  method has been called prior to the beginning of invocation. This saves extra work of conflicting policies 'logging' when it's not needed. Note: We don't use _var with a reason. Using _var would involve including the header file for at least Policy_ForwardC.h, and that is what we precisely want to avoid. Definition at line 198 of file Profile_Transport_Resolver.h. Referenced by inconsistent_policies(), steal_inconsistent_policies(), and ~Profile_Transport_Resolver().

bool TAO::Profile_Transport_Resolver::is_released_ [mutable, private]

Has the transport been idle? Definition at line 201 of file Profile_Transport_Resolver.h. Referenced by transport_released(), and ~Profile_Transport_Resolver().

CORBA::Object* TAO::Profile_Transport_Resolver::obj_ [mutable, private]

Target object. Definition at line 166 of file Profile_Transport_Resolver.h.

TAO_Profile* TAO::Profile_Transport_Resolver::profile_ [private]

The profile that has been selected for this invocation. Definition at line 178 of file Profile_Transport_Resolver.h.

TAO_Stub* TAO::Profile_Transport_Resolver::stub_ [private]

Stub object for the target object. Definition at line 169 of file Profile_Transport_Resolver.h.

TAO::Transport_Selection_Guard TAO::Profile_Transport_Resolver::transport_ [private]

The transport selected for this invocation. Using the wrapper guard ensures it is available for use with the Transport Current interfaces. Definition at line 175 of file Profile_Transport_Resolver.h.

---

The documentation for this class was generated from the following files:

• Profile_Transport_Resolver.h
• Profile_Transport_Resolver.cpp
• Profile_Transport_Resolver.inl

---
