TAO_Connection_Handler Class Reference

TAO_Connection_Handler. More...

#include <Connection_Handler.h>

Inheritance diagram for TAO_Connection_Handler:

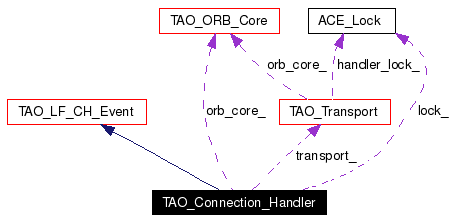

[legend]Collaboration diagram for TAO_Connection_Handler:

[legend]List of all members.

Public Member Functions
	TAO_Connection_Handler (void)
	Constructor.
	TAO_Connection_Handler (TAO_ORB_Core *orb_core)
	Constructor.
virtual	~TAO_Connection_Handler (void)
	Destructor.
TAO_Transport *	transport (void)
	Return the underlying transport object.
void	transport (TAO_Transport *transport)
	Set the underlying transport object.
bool	is_closed (void) const
	Is the handler closed or timed out?
bool	is_open (void) const
	Is the handler open?
bool	is_timeout (void) const
	Closed due to timeout?
bool	is_connecting (void) const
	Is the handler in the process of being connected?
virtual int	close_connection (void)=0
	Close the underlying connection.
virtual int	handle_input (ACE_HANDLE fd)=0
int	svc_i (void)
virtual int	open_handler (void *)=0
	A open () hook.
virtual int	close_handler (void)
void	connection_pending (void)
void	cancel_pending_connection (void)
virtual int	set_dscp_codepoint (CORBA::Boolean set_network_priority)
virtual int	set_dscp_codepoint (CORBA::Long dscp_codepoint)
virtual int	release_os_resources (void)
	Release the OS resources related to this handler.
Protected Member Functions
TAO_ORB_Core *	orb_core (void)
	Return our TAO_ORB_Core pointer.
int	shared_open (void)
int	set_socket_option (ACE_SOCK &sock, int snd_size, int rcv_size)
	Set options on the socket.
Helper methods for Event_Handler-based derived classes.
Many (actually all so far) implementations of TAO_Connection_Handler are a mixin of TAO_Connection_Handler and some form of ACE_Event_Handler. The following methods simplify such implementations by capturing the common code in a single place.
int	handle_output_eh (ACE_HANDLE h, ACE_Event_Handler *eh)
	Implement the handle_output() callback.
int	handle_input_eh (ACE_HANDLE h, ACE_Event_Handler *eh)
	Implement the handle_input() callback.
int	handle_input_internal (ACE_HANDLE h, ACE_Event_Handler *eh)
	Implement the handle_output() callback.
int	close_connection_eh (ACE_Event_Handler *eh)
virtual void	pre_io_hook (int &return_value)
virtual void	pos_io_hook (int &return_value)
Private Attributes
TAO_ORB_Core *const	orb_core_
	Pointer to the TAO_ORB_Core.
TAO_Transport *	transport_
	Transport object reference.
ACE_Lock *	lock_
bool	connection_pending_
	Stores the connection pending state.

---

Detailed Description

TAO_Connection_Handler.

This class is an abstraction for the connection handlers. The connections handler in every protocol can derive from this class as well as the ACE_Svc_Handler specialised for the right protocol. This way, most of the common code for the different protocols would be in this implementation.

Definition at line 56 of file Connection_Handler.h.

---

Constructor & Destructor Documentation

TAO_Connection_Handler::TAO_Connection_Handler (  void   )

Constructor.

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_Connection_Handler::TAO_Connection_Handler (  TAO_ORB_Core *  orb_core  )

Constructor. Definition at line 26 of file Connection_Handler.cpp. References TAO_Resource_Factory::create_cached_connection_lock(), TAO_ORB_Core::resource_factory(), and TAO_LF_Event::state_changed(). : orb_core_ (orb_core), transport_ (0), connection_pending_ (false) { // @todo: We need to have a distinct option/ method in the resource // factory for this and TAO_Transport. this->lock_ = this->orb_core_->resource_factory ()->create_cached_connection_lock (); // Put ourselves in the connection wait state as soon as we get // created this->state_changed (TAO_LF_Event::LFS_CONNECTION_WAIT, this->orb_core_->leader_follower ()); }

TAO_Connection_Handler::~TAO_Connection_Handler (  void   )  [virtual]

Destructor. Definition at line 42 of file Connection_Handler.cpp. { // @@ TODO Use auto_ptr<> delete this->lock_; //@@ CONNECTION_HANDLER_DESTRUCTOR_ADD_HOOK }

---

Member Function Documentation

ACE_INLINE void TAO_Connection_Handler::cancel_pending_connection (  void   )

A pending connection may be canceled due to an error detected while the initiating thread is still in the Connector. Definition at line 58 of file Connection_Handler.inl. References connection_pending_, TAO_Transport::remove_reference(), and transport(). Referenced by TAO_IIOP_Connector::complete_connection(), and shared_open(). { if (this->connection_pending_) { this->connection_pending_ = false; this->transport()->remove_reference(); } }

virtual int TAO_Connection_Handler::close_connection (  void   )  [pure virtual]

Close the underlying connection. Used by the ORB to actively close connections that are idle, stale or somehow are determined to be broken before the Reactor does. Returns: Return 0 if the connection was already closed, non-zero otherwise. Implemented in TAO_IIOP_Connection_Handler. Referenced by TAO_Transport::close_connection(), handle_input_eh(), and TAO_Thread_Per_Connection_Handler::~TAO_Thread_Per_Connection_Handler().

int TAO_Connection_Handler::close_connection_eh (  ACE_Event_Handler *  eh  )  [protected]

Implement close_connection() for Connection_Handlers that are also Event_Handlers. Definition at line 298 of file Connection_Handler.cpp. References ACE_ASSERT, ACE_DEBUG, ACE_Reactor::cancel_timer(), ACE_Event_Handler::get_handle(), TAO_ORB_Core::has_shutdown(), TAO_Transport::id(), TAO_Wait_Strategy::is_registered(), LM_DEBUG, TAO_Transport::orb_core(), TAO_Transport::pre_close(), TAO_ORB_Core::reactor(), ACE_Event_Handler::reactor(), ACE_Reactor::remove_handler(), TAO_Transport::send_connection_closed_notifications(), TAO_LF_Event::state_changed(), TAO_debug_level, transport(), and TAO_Transport::wait_strategy(). Referenced by TAO_IIOP_Connection_Handler::close_connection(). { // Save the ID for debugging messages ACE_HANDLE handle = eh->get_handle (); size_t const id = this->transport ()->id (); if (TAO_debug_level) { ACE_DEBUG ((LM_DEBUG, "TAO (%P|%t) - Connection_Handler[%d]::" "close_connection_eh, purging entry from cache\n", handle)); } this->transport ()->pre_close (); // @@ This seems silly, but if we have no reason to be in the // reactor, then we dont remove ourselves. if (this->transport ()->wait_strategy ()->is_registered ()) { ACE_Reactor *eh_reactor = eh->reactor (); if (this->orb_core_->has_shutdown () == 0) { // If the ORB is nil, get the reactor from orb_core which gets it // from LF. if (eh_reactor == 0) eh_reactor = this->transport()->orb_core()->reactor (); } // The Reactor must not be null, otherwise something else is // horribly broken. ACE_ASSERT (eh_reactor != 0); if (TAO_debug_level) { ACE_DEBUG ((LM_DEBUG, "TAO (%P|%t) - Connection_Handler[%d]::" "close_connection_eh, removing from the reactor\n", handle)); } // Use id instead of handle. Why? "handle" may be invalid for RW // cases when drop_reply_on_shutdown is on, and when the // orb_core is shutting down. This means that the handler will // be left behind in the reactor which would create problems // later. Just forcefully remove them. If none exists reactor // will make things safer. ACE_HANDLE tmp_handle = handle; if (this->orb_core_->has_shutdown ()) tmp_handle = (ACE_HANDLE) id; eh_reactor->remove_handler (tmp_handle, ACE_Event_Handler::ALL_EVENTS_MASK | ACE_Event_Handler::DONT_CALL); // Also cancel any timers, we may create those for time-limited // buffering if (TAO_debug_level) { ACE_DEBUG ((LM_DEBUG, "TAO (%P|%t) - Connection_Handler[%d]::" "close_connection_eh, cancel all timers\n", handle)); } eh_reactor->cancel_timer (eh); // @@ This seems silly, the reactor is a much better authority to // find out if a handle is registered... this->transport ()->wait_strategy ()->is_registered (false); } // This call should be made only after the cache and reactor are // cleaned up. This call can make upcalls to the application which // in turn can make remote calls (Bug 1551 and Bug 1482). The remote // calls from the application can try to use this handler from the // cache or from the reactor. So clean them up before this is // called. this->transport ()->send_connection_closed_notifications (); this->state_changed (TAO_LF_Event::LFS_CONNECTION_CLOSED, this->orb_core_->leader_follower ()); if (TAO_debug_level) { ACE_DEBUG ((LM_DEBUG, "TAO (%P|%t) - Connection_Handler[%d]::" "close_connection_eh\n", id)); } return 1; }

int TAO_Connection_Handler::close_handler (  void   )  [virtual]

A close() hook, called by the Transport Connector when they want to close this handler Definition at line 432 of file Connection_Handler.cpp. References TAO_Transport::purge_entry(), TAO_Transport::remove_reference(), TAO_LF_Event::state_changed(), and transport(). Referenced by TAO_Connector::check_connection_closure(), and TAO_IIOP_Connection_Handler::close(). { this->state_changed (TAO_LF_Event::LFS_CONNECTION_CLOSED, this->orb_core_->leader_follower ()); this->transport ()->purge_entry(); this->transport ()->remove_reference (); // @@ I think that if the connection_pending state is true // when close_handler is calld, we should probably release // another reference so that the connector doesn't have to // worry about it. return 0; }

ACE_INLINE void TAO_Connection_Handler::connection_pending (  void   )

When waiting for an asynchronous connection to complete an additional reference must be maintained, related to bugzilla #2417. However once the connection is successfully established, this reference must be removed. Using connection_pending allows the connection handler to know that it is opening as a result of a delayed asynch connection rather than an immediate synch connection, which has no additional reference needs. Definition at line 48 of file Connection_Handler.inl. References TAO_Transport::add_reference(), connection_pending_, and transport(). Referenced by TAO_IIOP_Connector::complete_connection(). { if (!this->connection_pending_) { this->connection_pending_ = true; this->transport()->add_reference(); } }

virtual int TAO_Connection_Handler::handle_input (  ACE_HANDLE  fd  )  [pure virtual]

The event handler calls, here so that other objects who hold a reference to this object can call the event handler methods. Implemented in TAO_IIOP_Connection_Handler.

int TAO_Connection_Handler::handle_input_eh (  ACE_HANDLE  h, ACE_Event_Handler *  eh )  [protected]

Implement the handle_input() callback. Definition at line 219 of file Connection_Handler.cpp. References ACE_DEBUG, TAO_Wait_Strategy::can_process_upcalls(), close_connection(), handle_input_internal(), LM_DEBUG, TAO_debug_level, transport(), and TAO_Transport::wait_strategy(). Referenced by TAO_IIOP_Connection_Handler::handle_input(). { // If we can't process upcalls just return if (!this->transport ()->wait_strategy ()->can_process_upcalls ()) { if (TAO_debug_level > 6) ACE_DEBUG ((LM_DEBUG, "TAO (%P|%t) - Connection_Handler[%d]::handle_input_eh, " "not going to handle_input on transport " "because upcalls temporarily suspended on this thread\n", this->transport()->id())); return 0; } int const result = this->handle_input_internal (h, eh); if (result == -1) { this->close_connection (); return 0; } return result; }

int TAO_Connection_Handler::handle_input_internal (  ACE_HANDLE  h, ACE_Event_Handler *  eh )  [protected]

Implement the handle_output() callback. Definition at line 246 of file Connection_Handler.cpp. References ACE_DEBUG, ACE_Event_Handler::get_handle(), TAO_Transport::handle_input(), TAO_Resume_Handle::handle_input_return_value_hook(), TAO_Transport::id(), LM_DEBUG, pos_io_hook(), pre_io_hook(), TAO_Resume_Handle::set_flag(), TAO_debug_level, transport(), and TAO_Transport::update_transport(). Referenced by handle_input_eh(). { // Let the transport know that it is used (void) this->transport ()->update_transport (); // Grab the transport id now and use the cached value for printing // since the transport could dissappear by the time the thread // returns. size_t const t_id = this->transport ()->id (); if (TAO_debug_level > 6) { ACE_HANDLE handle = eh->get_handle(); ACE_DEBUG ((LM_DEBUG, "TAO (%P|%t) - Connection_Handler[%d]::handle_input, " "handle = %d/%d\n", t_id, handle, h)); } TAO_Resume_Handle resume_handle (this->orb_core (), eh->get_handle ()); int return_value = 0; this->pre_io_hook (return_value); if (return_value != 0) return return_value; return_value = this->transport ()->handle_input (resume_handle); this->pos_io_hook (return_value); // Bug 1647; might need to change resume_handle's flag or // change handle_input return value. resume_handle.handle_input_return_value_hook(return_value); if (TAO_debug_level > 6) { ACE_HANDLE handle = eh->get_handle (); ACE_DEBUG ((LM_DEBUG, "TAO (%P|%t) - Connection_Handler[%d]::handle_input, " "handle = %d/%d, retval = %d\n", t_id, handle, h, return_value)); } if (return_value == -1) resume_handle.set_flag (TAO_Resume_Handle::TAO_HANDLE_LEAVE_SUSPENDED); return return_value; }

int TAO_Connection_Handler::handle_output_eh (  ACE_HANDLE  h, ACE_Event_Handler *  eh )  [protected]

Implement the handle_output() callback. Definition at line 187 of file Connection_Handler.cpp. References ACE_Event_Handler::get_handle(), TAO_Transport::handle_output(), pos_io_hook(), pre_io_hook(), TAO_Resume_Handle::set_flag(), transport(), and TAO_Transport::update_transport(). Referenced by TAO_IIOP_Connection_Handler::handle_output(). { // Let the transport that it is going to be used (void) this->transport ()->update_transport (); // Instantiate the resume handle here.. This will automatically // resume the handle once data is written.. TAO_Resume_Handle resume_handle (this->orb_core (), eh->get_handle ()); int return_value = 0; this->pre_io_hook (return_value); if (return_value != 0) { resume_handle.set_flag (TAO_Resume_Handle::TAO_HANDLE_LEAVE_SUSPENDED); return return_value; } return_value = this->transport ()->handle_output (); this->pos_io_hook (return_value); if (return_value != 0) { resume_handle.set_flag (TAO_Resume_Handle::TAO_HANDLE_LEAVE_SUSPENDED); } return return_value; }

ACE_INLINE bool TAO_Connection_Handler::is_closed (  void   )  const

Is the handler closed or timed out? Definition at line 22 of file Connection_Handler.inl. Referenced by TAO_Connector::check_connection_closure(), and TAO_Connector::wait_for_connection_completion(). { return (this->state_ == TAO_LF_Event::LFS_CONNECTION_CLOSED || this->state_ == TAO_LF_Event::LFS_TIMEOUT); }

ACE_INLINE bool TAO_Connection_Handler::is_connecting (  void   )  const

Is the handler in the process of being connected? Definition at line 41 of file Connection_Handler.inl. Referenced by TAO_Connector::check_connection_closure(). { return this->state_ == TAO_LF_Event::LFS_CONNECTION_WAIT; }

ACE_INLINE bool TAO_Connection_Handler::is_open (  void   )  const

Is the handler open? Definition at line 35 of file Connection_Handler.inl. Referenced by TAO_Connector::check_connection_closure(), and TAO_Connector::wait_for_connection_completion(). { return this->state_ == TAO_LF_Event::LFS_SUCCESS; }

ACE_INLINE bool TAO_Connection_Handler::is_timeout (  void   )  const

Closed due to timeout? Definition at line 29 of file Connection_Handler.inl. Referenced by TAO_Connector::wait_for_connection_completion(). { return (this->state_ == TAO_LF_Event::LFS_TIMEOUT); }

virtual int TAO_Connection_Handler::open_handler (  void *   )  [pure virtual]

A open () hook. See Thread_Per_Connection_Handler for a use case Implemented in TAO_IIOP_Connection_Handler. Referenced by TAO_Thread_Per_Connection_Handler::open().

TAO_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE TAO_ORB_Core * TAO_Connection_Handler::orb_core (  void   )  [protected]

Return our TAO_ORB_Core pointer. Definition at line 10 of file Connection_Handler.inl. Referenced by TAO_IIOP_Connection_Handler::add_transport_to_cache(), TAO_IIOP_Connection_Handler::close_connection(), TAO_IIOP_Connection_Handler::open(), and TAO_IIOP_Connection_Handler::set_dscp_codepoint(). { return this->orb_core_; }

void TAO_Connection_Handler::pos_io_hook (  int &  return_value  )  [protected, virtual]

See the SSLIOP protocol for an interesting use-case Definition at line 427 of file Connection_Handler.cpp. Referenced by handle_input_internal(), and handle_output_eh(). { }

void TAO_Connection_Handler::pre_io_hook (  int &  return_value  )  [protected, virtual]

See the SSLIOP protocol for an interesting use-case Definition at line 422 of file Connection_Handler.cpp. Referenced by handle_input_internal(), and handle_output_eh(). { }

int TAO_Connection_Handler::release_os_resources (  void   )  [virtual]

Release the OS resources related to this handler. Reimplemented in TAO_IIOP_Connection_Handler. Definition at line 414 of file Connection_Handler.cpp. { return 0; }

int TAO_Connection_Handler::set_dscp_codepoint (  CORBA::Long  dscp_codepoint  )  [virtual]

Reimplemented in TAO_IIOP_Connection_Handler. Definition at line 408 of file Connection_Handler.cpp. { return 0; }

int TAO_Connection_Handler::set_dscp_codepoint (  CORBA::Boolean  set_network_priority  )  [virtual]

Set the Diff-Serv codepoint on outgoing packets. Only has effect for remote protocols (e.g., IIOP); no effect for local protocols (UIOP). Default implementation is for local protocols. Remote protocols must overwrite implementation. Reimplemented in TAO_IIOP_Connection_Handler. Definition at line 402 of file Connection_Handler.cpp. Referenced by TAO::Remote_Invocation::send_message(). { return 0; }

int TAO_Connection_Handler::set_socket_option (  ACE_SOCK &  sock, int  snd_size, int  rcv_size )  [protected]

Set options on the socket. Definition at line 64 of file Connection_Handler.cpp. References ACE_CLOEXEC, ACE_IPC_SAP::enable(), ENOTSUP, ACE_SOCK::set_option(), SO_RCVBUF, SO_SNDBUF, and SOL_SOCKET. Referenced by TAO_IIOP_Connection_Handler::open(). { #if !defined (ACE_LACKS_SOCKET_BUFSIZ) if (snd_size != 0 && sock.set_option (SOL_SOCKET, SO_SNDBUF, (void *) &snd_size, sizeof (snd_size)) == -1 && errno != ENOTSUP) { return -1; } if (rcv_size != 0 && sock.set_option (SOL_SOCKET, SO_RCVBUF, (void *) &rcv_size, sizeof (int)) == -1 && errno != ENOTSUP) { return -1; } #else ACE_UNUSED_ARG (snd_size); ACE_UNUSED_ARG (rcv_size); #endif /* !ACE_LACKS_SOCKET_BUFSIZ */ // Set the close-on-exec flag for that file descriptor. If the // operation fails we are out of luck (some platforms do not support // it and return -1). (void) sock.enable (ACE_CLOEXEC); return 0; }

int TAO_Connection_Handler::shared_open (  void   )  [protected]

A common function called at the start of any protocol-specific open. Returns -1 on a failure (although no failure mode is currently defined). Definition at line 51 of file Connection_Handler.cpp. References cancel_pending_connection(). Referenced by TAO_IIOP_Connection_Handler::open(). { // This reference counting is related to asynch connections. It // should probably be managed by the ACE_Strategy_Connector, since // that's really the reference being managed here. also, whether // open ultimately succeeds or fails, the connection attempted is // ending, so the reference must be removed in any case. this->cancel_pending_connection(); return 0; }

int TAO_Connection_Handler::svc_i (  void   )

This method is invoked from the svc () method of the Svc_Handler Object. Definition at line 103 of file Connection_Handler.cpp. References ACE_DEBUG, ACE_TEXT, ETIME, TAO_Transport::handle_input(), TAO_ORB_Core::has_shutdown(), LM_DEBUG, ACE_Time_Value::msec(), TAO_debug_level, TAO_ORB_Core::thread_per_connection_timeout(), transport(), and TAO_Transport::update_transport(). Referenced by TAO_Thread_Per_Connection_Handler::svc(). { int result = 0; if (TAO_debug_level > 0) ACE_DEBUG ((LM_DEBUG, ACE_TEXT ("TAO (%P|%t) - Connection_Handler::svc_i begin\n"))); // Here we simply synthesize the "typical" event loop one might find // in a reactive handler, except that this can simply block waiting // for input. ACE_Time_Value *max_wait_time = 0; ACE_Time_Value timeout; ACE_Time_Value current_timeout; if (this->orb_core_->thread_per_connection_timeout (timeout)) { current_timeout = timeout; max_wait_time = &current_timeout; } TAO_Resume_Handle rh (this->orb_core_, ACE_INVALID_HANDLE); // We exit of the loop if // - If the ORB core is shutdown by another thread // - Or if the transport is null. This could happen if an error // occured. // - Or if during processing a return value of -1 is received. while (!this->orb_core_->has_shutdown () && result >= 0) { // Let the transport know that it is used (void) this->transport ()->update_transport (); result = this->transport ()->handle_input (rh, max_wait_time); if (result == -1 && errno == ETIME) { // Ignore timeouts, they are only used to wake up and // shutdown. result = 0; // Reset errno to make sure we don't trip over an old value // of errno in case it is not reset when the recv() call // fails if the socket has been closed. errno = 0; } else if (result == -1) { // Something went wrong with the socket. Just quit return result; } current_timeout = timeout; if (TAO_debug_level > 0) ACE_DEBUG ((LM_DEBUG, "TAO (%P|%t) - Connection_Handler::svc_i - " "loop <%d>\n", current_timeout.msec ())); } if (TAO_debug_level > 0) ACE_DEBUG ((LM_DEBUG, "TAO (%P|%t) - Connection_Handler::svc_i end\n")); return result; }

void TAO_Connection_Handler::transport (  TAO_Transport *  transport  )

Set the underlying transport object. Definition at line 176 of file Connection_Handler.cpp. References TAO_Transport::event_handler_i(), and ACE_Event_Handler::reference_counting_policy(). { this->transport_ = transport; // Enable reference counting on the event handler. this->transport_->event_handler_i ()->reference_counting_policy ().value ( ACE_Event_Handler::Reference_Counting_Policy::ENABLED ); }

ACE_INLINE TAO_Transport * TAO_Connection_Handler::transport (  void   )

Return the underlying transport object. Definition at line 16 of file Connection_Handler.inl. Referenced by TAO_LF_Multi_Event::base_transport(), cancel_pending_connection(), close_connection_eh(), close_handler(), TAO_IIOP_Connector::complete_connection(), connection_pending(), handle_input_eh(), handle_input_internal(), handle_output_eh(), TAO_IIOP_Connection_Handler::open(), TAO_IIOP_Connection_Handler::process_listen_point_list(), svc_i(), TAO_IIOP_Connection_Handler::TAO_IIOP_Connection_Handler(), TAO_Thread_Per_Connection_Handler::TAO_Thread_Per_Connection_Handler(), TAO_Connect_Strategy::wait(), TAO_Connector::wait_for_connection_completion(), TAO_IIOP_Connection_Handler::~TAO_IIOP_Connection_Handler(), and TAO_Thread_Per_Connection_Handler::~TAO_Thread_Per_Connection_Handler(). { return this->transport_; }

---

Member Data Documentation

bool TAO_Connection_Handler::connection_pending_ [private]

Stores the connection pending state. Definition at line 212 of file Connection_Handler.h. Referenced by cancel_pending_connection(), and connection_pending().

ACE_Lock* TAO_Connection_Handler::lock_ [private]

Internal state lock, needs to be separate from the reference count / pending upcalls lock because they interleave. Definition at line 209 of file Connection_Handler.h.

TAO_ORB_Core* const TAO_Connection_Handler::orb_core_ [private]

Pointer to the TAO_ORB_Core. Definition at line 202 of file Connection_Handler.h.

TAO_Transport* TAO_Connection_Handler::transport_ [private]

Transport object reference. Definition at line 205 of file Connection_Handler.h.

---

The documentation for this class was generated from the following files:

• Connection_Handler.h
• Connection_Handler.cpp
• Connection_Handler.inl

---
