TAO_IIOP_Endpoint Class Reference

TAO_IIOP_Endpoint. More...

#include <IIOP_Endpoint.h>

Inheritance diagram for TAO_IIOP_Endpoint:

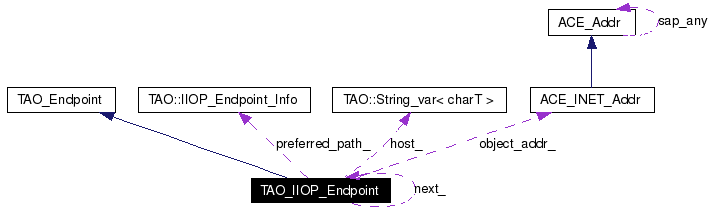

[legend]Collaboration diagram for TAO_IIOP_Endpoint:

[legend]List of all members.

Public Member Functions
	TAO_IIOP_Endpoint (void)
	Default constructor.
	TAO_IIOP_Endpoint (const char *host, CORBA::UShort port, const ACE_INET_Addr &addr, CORBA::Short priority=TAO_INVALID_PRIORITY)
	TAO_IIOP_Endpoint (const ACE_INET_Addr &addr, int use_dotted_decimal_addresses)
	Constructor.
	TAO_IIOP_Endpoint (const char *host, CORBA::UShort port, CORBA::Short priority)
	Constructor. This constructor is used when decoding endpoints.
	~TAO_IIOP_Endpoint (void)
	Destructor.
virtual TAO_Endpoint *	next (void)
	Endpoints can be linked in a list.
virtual TAO_Endpoint *	next_filtered (TAO_ORB_Core *, TAO_Endpoint *root)
virtual int	addr_to_string (char *buffer, size_t length)
	Return a string representation for the address.
virtual TAO_Endpoint *	duplicate (void)
	Makes a copy of this.
virtual CORBA::Boolean	is_equivalent (const TAO_Endpoint *other_endpoint)
virtual CORBA::ULong	hash (void)
	Return a hash value for this object.
const ACE_INET_Addr &	object_addr (void) const
	Return a reference to the .
const char *	host (void) const
const char *	host (const char *h)
CORBA::UShort	port (void) const
	Return the port number.
CORBA::UShort	port (CORBA::UShort p)
	Set the port number.
bool	is_preferred_network (void) const
	Do we have a preferred local network for the target?
const char *	preferred_network (void) const
	Return the preferred network if any.
bool	is_ipv6_decimal (void) const
	Does the host string represent an IPv6 decimal address.
TAO_IIOP_Endpoint &	operator= (const TAO_IIOP_Endpoint &other)
Private Member Functions
TAO_IIOP_Endpoint *	next_filtered_i (TAO_IIOP_Endpoint *root, bool ipv6_only, bool prefer_ipv6, bool want_ipv6)
int	set (const ACE_INET_Addr &addr, int use_dotted_decimal_addresses)
	Helper method for setting INET_Addr.
void	object_addr_i (void) const
	Helper method for object_addr () call.
CORBA::ULong	preferred_interfaces (const char *csvPreferred, bool enforce)
TAO_IIOP_Endpoint *	add_local_endpoint (TAO_IIOP_Endpoint *ep, const char *local)
	TAO_IIOP_Endpoint (const TAO_IIOP_Endpoint &)
	Canonical copy constructor.
Private Attributes
CORBA::String_var	host_
	String representing the host name.
CORBA::UShort	port_
	TCP port number.
bool	is_ipv6_decimal_
	Does the host string represent an IPv6 decimal address.
bool	is_encodable_
	Is this endpoint created encodable as part of the IOR?
bool	object_addr_set_
	Flag to indicate if the address has been resolved and set.
ACE_INET_Addr	object_addr_
TAO::IIOP_Endpoint_Info	preferred_path_
	Preferred path for this endpoint.
TAO_IIOP_Endpoint *	next_
Friends
class	TAO_IIOP_Profile
class	TAO_SSLIOP_Profile

---

Detailed Description

TAO_IIOP_Endpoint.

IIOP-specific implementation of PP Framework Endpoint interface.

Definition at line 45 of file IIOP_Endpoint.h.

---

Constructor & Destructor Documentation

TAO_IIOP_Endpoint::TAO_IIOP_Endpoint (  void   )

Default constructor. Definition at line 77 of file IIOP_Endpoint.cpp. : TAO_Endpoint (IOP::TAG_INTERNET_IOP) , host_ () , port_ (683) // default port (IANA assigned) #if defined (ACE_HAS_IPV6) , is_ipv6_decimal_ (false) #endif /* ACE_HAS_IPV6 */ , is_encodable_ (true) , object_addr_set_ (false) , object_addr_ () , preferred_path_ () , next_ (0) { }

TAO_IIOP_Endpoint::TAO_IIOP_Endpoint (  const char *  host, CORBA::UShort  port, const ACE_INET_Addr &  addr, CORBA::Short  priority = TAO_INVALID_PRIORITY )

Constructor. This is the most efficient constructor since it does not require any address resolution processing. Definition at line 58 of file IIOP_Endpoint.cpp. References host(). : TAO_Endpoint (IOP::TAG_INTERNET_IOP, priority) , host_ () , port_ (port) #if defined (ACE_HAS_IPV6) , is_ipv6_decimal_ (false) #endif /* ACE_HAS_IPV6 */ , is_encodable_ (true) , object_addr_set_ (false) , object_addr_ (addr) , preferred_path_ () , next_ (0) { this->host(host); // With IPv6 performs check for decimal address }

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_IIOP_Endpoint::TAO_IIOP_Endpoint (  const ACE_INET_Addr &  addr, int  use_dotted_decimal_addresses )

Constructor. Definition at line 41 of file IIOP_Endpoint.cpp. References set(). : TAO_Endpoint (IOP::TAG_INTERNET_IOP) , host_ () , port_ (683) // default port (IANA assigned) #if defined (ACE_HAS_IPV6) , is_ipv6_decimal_ (false) #endif /* ACE_HAS_IPV6 */ , is_encodable_ (true) , object_addr_set_ (false) , object_addr_ (addr) , preferred_path_ () , next_ (0) { this->set (addr, use_dotted_decimal_addresses); }

TAO_IIOP_Endpoint::TAO_IIOP_Endpoint (  const char *  host, CORBA::UShort  port, CORBA::Short  priority )

Constructor. This constructor is used when decoding endpoints. Definition at line 92 of file IIOP_Endpoint.cpp. References host(). : TAO_Endpoint (IOP::TAG_INTERNET_IOP, priority) , host_ () , port_ (port) #if defined (ACE_HAS_IPV6) , is_ipv6_decimal_ (false) #endif /* ACE_HAS_IPV6 */ , is_encodable_ (true) , object_addr_set_ (false) , object_addr_ () , preferred_path_ () , next_ (0) { this->host(host); // With IPv6 performs check for decimal address }

TAO_IIOP_Endpoint::~TAO_IIOP_Endpoint (  void   )

Destructor. Definition at line 128 of file IIOP_Endpoint.cpp. { }

TAO_IIOP_Endpoint::TAO_IIOP_Endpoint (  const TAO_IIOP_Endpoint &   )  [private]

Canonical copy constructor. In private section to prevent clients from invoking this accidentally. Clients should only use duplicate () to make a depp copy Definition at line 134 of file IIOP_Endpoint.cpp. : TAO_Endpoint (rhs.tag_, rhs.priority_) , host_ (rhs.host_) , port_ (rhs.port_) #if defined (ACE_HAS_IPV6) , is_ipv6_decimal_ (rhs.is_ipv6_decimal_) #endif /* ACE_HAS_IPV6 */ , is_encodable_ (rhs.is_encodable_) , object_addr_set_ (rhs.object_addr_set_) , object_addr_ (rhs.object_addr_) , preferred_path_ (rhs.preferred_path_) , next_ (0) { }

---

Member Function Documentation

TAO_IIOP_Endpoint * TAO_IIOP_Endpoint::add_local_endpoint (  TAO_IIOP_Endpoint *  ep, const char *  local )  [private]

Chain a new duplicate of ourself with the specified local preferred interface. Definition at line 412 of file IIOP_Endpoint.cpp. References duplicate(), TAO::IIOP_Endpoint_Info::host, is_encodable_, next_, preferred_path_, and CORBA::string_dup(). Referenced by preferred_interfaces(). { TAO_Endpoint* tmp = ep->duplicate(); ep->next_ = static_cast<TAO_IIOP_Endpoint*>(tmp); ep->next_->is_encodable_ = true; ep->next_->preferred_path_.host = CORBA::string_dup(local); return ep->next_; }

int TAO_IIOP_Endpoint::addr_to_string (  char *  buffer, size_t  length )  [virtual]

Return a string representation for the address. The purpose of this method is to provide a general interface to the underlying address object's addr_to_string method. This allows the protocol implementor to select the appropriate string format. Returns: -1 if buffer is too small. Implements TAO_Endpoint. Definition at line 200 of file IIOP_Endpoint.cpp. References is_ipv6_decimal_, port_, ACE_OS::sprintf(), and ACE_OS::strlen(). { size_t actual_len = ACE_OS::strlen (this->host_.in ()) // chars in host name + sizeof (':') // delimiter + ACE_OS::strlen ("65536") // max port + sizeof ('\0'); #if defined (ACE_HAS_IPV6) if (this->is_ipv6_decimal_) actual_len += 2; // '[' + ']' #endif /* ACE_HAS_IPV6 */ if (length < actual_len) return -1; #if defined (ACE_HAS_IPV6) if (this->is_ipv6_decimal_) ACE_OS::sprintf (buffer, "[%s]:%d", this->host_.in (), this->port_); else #endif /* ACE_HAS_IPV6 */ ACE_OS::sprintf (buffer, "%s:%d", this->host_.in (), this->port_); return 0; }

TAO_Endpoint * TAO_IIOP_Endpoint::duplicate (  void   )  [virtual]

Makes a copy of this. Implements TAO_Endpoint. Definition at line 316 of file IIOP_Endpoint.cpp. References ACE_NEW_RETURN. Referenced by add_local_endpoint(). { TAO_IIOP_Endpoint *endpoint = 0; // @@ NOTE: Not exception safe.. ACE_NEW_RETURN (endpoint, TAO_IIOP_Endpoint (*this), 0); return endpoint; }

CORBA::ULong TAO_IIOP_Endpoint::hash (  void   )  [virtual]

Return a hash value for this object. Implements TAO_Endpoint. Definition at line 562 of file IIOP_Endpoint.cpp. References ACE_GUARD_RETURN, ACE_INET_Addr::hash(), object_addr_, object_addr_i(), object_addr_set_, and TAO_SYNCH_MUTEX. Referenced by TAO_IIOP_Profile::hash(). { if (this->hash_val_ != 0) return this->hash_val_; { ACE_GUARD_RETURN (TAO_SYNCH_MUTEX, guard, this->addr_lookup_lock_, this->hash_val_); // .. DCL if (this->hash_val_ != 0) return this->hash_val_; // A few comments about this optimization. The call below will // deadlock if the object_addr_set is false. If you don't belive if (!this->object_addr_set_) { // Set the object_addr first (void) this->object_addr_i (); } this->hash_val_ = this->object_addr_.hash (); } return this->hash_val_; }

const char * TAO_IIOP_Endpoint::host (  const char *  h  )

Copy the string into and return the resulting pointer. This object maintains ownership of this string. Definition at line 229 of file IIOP_Endpoint.cpp. References host_, TAO::String_var< charT >::in(), is_ipv6_decimal_, and ACE_OS::strchr(). { this->host_ = h; #if defined (ACE_HAS_IPV6) if (ACE_OS::strchr (h, ':') != 0) this->is_ipv6_decimal_ = true; #endif /* ACE_HAS_IPV6 */ return this->host_.in (); }

const char* TAO_IIOP_Endpoint::host (  void   )  const

Return a pointer to the host string. This object maintains ownership of this string. Referenced by TAO_IIOP_Connector::begin_connection(), TAO_IIOP_Connector::complete_connection(), TAO_IIOP_Profile::decode_profile(), TAO_IIOP_Profile::encode_alternate_endpoints(), TAO_IIOP_Profile::encode_endpoints(), TAO_IIOP_Acceptor::is_collocated(), is_equivalent(), TAO_IIOP_Connector::make_connection(), TAO_IIOP_Endpoint(), and TAO_IIOP_Profile::to_string().

CORBA::Boolean TAO_IIOP_Endpoint::is_equivalent (  const TAO_Endpoint *  other_endpoint  )  [virtual]

Return true if this endpoint is equivalent to other_endpoint. Two endpoints are equivalent if their port and host are the same. Implements TAO_Endpoint. Definition at line 549 of file IIOP_Endpoint.cpp. References host(), port_, and ACE_OS::strcmp(). Referenced by TAO_IIOP_Profile::do_is_equivalent(). { const TAO_IIOP_Endpoint *endpoint = dynamic_cast<const TAO_IIOP_Endpoint *> (other_endpoint); if (endpoint == 0) return 0; return (this->port_ == endpoint->port_ && (ACE_OS::strcmp (this->host (), endpoint->host ()) == 0)); }

bool TAO_IIOP_Endpoint::is_ipv6_decimal (  void   )  const

Does the host string represent an IPv6 decimal address. Referenced by next_filtered_i().

bool TAO_IIOP_Endpoint::is_preferred_network (  void   )  const

Do we have a preferred local network for the target? Definition at line 592 of file IIOP_Endpoint.cpp. References TAO::IIOP_Endpoint_Info::host, and preferred_path_. Referenced by TAO_IIOP_Connector::begin_connection(). { return (this->preferred_path_.host.in () != 0 && this->preferred_path_.host.in ()[0] != 0); }

TAO_Endpoint * TAO_IIOP_Endpoint::next (  void   )  [virtual]

Endpoints can be linked in a list. Returns: The next endpoint in the list, if any. Implements TAO_Endpoint. Definition at line 241 of file IIOP_Endpoint.cpp. { return this->next_; }

TAO_Endpoint * TAO_IIOP_Endpoint::next_filtered (  TAO_ORB_Core *  , TAO_Endpoint *  root )  [virtual]

Return the next endpoint in the list, but use protocol-specific filtering to constrain the value. The orb core is needed to supply any sort of filter arguments, and the root endpoint is needed in case the algorithm needs to rewind. If the supplied root is 0, then this is assumed to be the candidate next endpoint. To use this, the caller starts off the change with root == 0. This is a bit of a violation in logic, a more correct implementation would accept this == 0 and a non-null root. To do iteration using next_filtered, do: for (TAO_Endpoint *ep = root_endpoint->next_filtered (orb_core, 0); ep != 0; ep = ep->next_filtered(orb_core, root_endpoint)) { } Reimplemented from TAO_Endpoint. Definition at line 247 of file IIOP_Endpoint.cpp. References TAO_ORB_Parameters::connect_ipv6_only(), next_filtered_i(), TAO_ORB_Core::orb_params(), and TAO_ORB_Parameters::prefer_ipv6_interfaces(). { bool want_ipv6 = false; bool ipv6_only = false; bool prefer_ipv6 = false; #if defined (ACE_HAS_IPV6) want_ipv6 = true; ipv6_only = orb_core->orb_params()->connect_ipv6_only(); prefer_ipv6 = orb_core->orb_params()->prefer_ipv6_interfaces(); #else ACE_UNUSED_ARG (orb_core); #endif /* ACE_HAS_IPV6 */ return this->next_filtered_i (static_cast<TAO_IIOP_Endpoint *>(root), ipv6_only, prefer_ipv6, want_ipv6); }

TAO_IIOP_Endpoint * TAO_IIOP_Endpoint::next_filtered_i (  TAO_IIOP_Endpoint *  root, bool  ipv6_only, bool  prefer_ipv6, bool  want_ipv6 )  [private]

Definition at line 267 of file IIOP_Endpoint.cpp. References ACE_Addr::get_type(), ACE_INET_Addr::is_ipv4_mapped_ipv6(), is_ipv6_decimal(), and object_addr(). Referenced by next_filtered(). { // the candidate is nominally the next entry in the list, but since // the list may loop back on itself, the root of the list needs to be // initialized. TAO_IIOP_Endpoint *candidate = (root == 0) ? this : next_; if (root == 0) root = this; #if defined (ACE_HAS_IPV6) if (ipv6_only) { if (candidate == 0 || candidate->is_ipv6_decimal()) return candidate; const ACE_INET_Addr &addr = candidate->object_addr (); bool allowed = addr.get_type () == AF_INET6 && !addr.is_ipv4_mapped_ipv6(); return allowed ? candidate : candidate->next_filtered_i(root, ipv6_only, prefer_ipv6, true); } if (prefer_ipv6) { if (candidate == 0) return !want_ipv6 ? candidate : root->next_filtered_i(root, ipv6_only, prefer_ipv6, false); if (want_ipv6 == candidate->is_ipv6_decimal()) return candidate; const ACE_INET_Addr &addr = candidate->object_addr (); bool really_ipv6 = addr.get_type () == AF_INET6 && !addr.is_ipv4_mapped_ipv6(); return (want_ipv6 == really_ipv6) ? candidate : candidate->next_filtered_i(root, ipv6_only, prefer_ipv6, want_ipv6); } #else ACE_UNUSED_ARG (want_ipv6); ACE_UNUSED_ARG (ipv6_only); ACE_UNUSED_ARG (prefer_ipv6); #endif return candidate; }

const ACE_INET_Addr & TAO_IIOP_Endpoint::object_addr (  void   )  const

Return a reference to the . Definition at line 327 of file IIOP_Endpoint.cpp. References ACE_GUARD_RETURN, object_addr_, object_addr_i(), object_addr_set_, and TAO_SYNCH_MUTEX. Referenced by TAO_IIOP_Connector::begin_connection(), next_filtered_i(), and TAO_IIOP_Connector::set_validate_endpoint(). { // The object_addr_ is initialized here, rather than at IOR decode // time for several reasons: // 1. A request on the object may never be invoked. // 2. The DNS setup may have changed dynamically. // ...etc.. // Double checked locking optimization. if (!this->object_addr_set_) { ACE_GUARD_RETURN (TAO_SYNCH_MUTEX, guard, this->addr_lookup_lock_, this->object_addr_); if (!this->object_addr_set_) { (void) this->object_addr_i (); } } return this->object_addr_; }

void TAO_IIOP_Endpoint::object_addr_i (  void   )  const [private]

Helper method for object_addr () call. Definition at line 353 of file IIOP_Endpoint.cpp. References AF_INET, is_ipv6_decimal_, object_addr_, object_addr_set_, ACE_INET_Addr::set(), ACE_Addr::set_type(), ACE_OS::strlen(), and ACE_OS::strspn(). Referenced by hash(), and object_addr(). { // We should have already held the lock #if defined (ACE_HAS_IPV6) bool is_ipv4_decimal_ = false; if (!this->is_ipv6_decimal_) is_ipv4_decimal_ = ACE_OS::strspn (this->host_.in (), ".0123456789") == ACE_OS::strlen (this->host_.in ()); // If this is *not* an IPv4 decimal address at first try to // resolve the address as an IPv6 address; if that fails // (or it's an IPv4 address) and the address is *not* an IPv6 // decimal address try to resolve it as an IPv4 address. if ((is_ipv4_decimal_ || this->object_addr_.set (this->port_, this->host_.in (), 1, AF_INET6) == -1) && (this->is_ipv6_decimal_ || this->object_addr_.set (this->port_, this->host_.in (), 1, AF_INET) == -1)) #else if (this->object_addr_.set (this->port_, this->host_.in ()) == -1) #endif { // If this call fails, it most likely due a hostname // lookup failure caused by a DNS misconfiguration. If // a request is made to the object at the given host and // port, then a CORBA::TRANSIENT() exception should be // thrown. // Invalidate the ACE_INET_Addr. This is used as a flag // to denote that ACE_INET_Addr initialization failed. this->object_addr_.set_type (-1); } else { this->object_addr_set_ = true; } }

TAO_IIOP_Endpoint & TAO_IIOP_Endpoint::operator= (  const TAO_IIOP_Endpoint &  other  )

Need to have an assignment operator since the IIOP_Profile class may have to reorder its list of endpoints based on filtering by the EndpointPolicy. Definition at line 113 of file IIOP_Endpoint.cpp. References host_, is_encodable_, is_ipv6_decimal_, object_addr_, object_addr_set_, port_, and preferred_path_. { this->host_ = other.host_; this->port_ = other.port_; #if defined (ACE_HAS_IPV6) this->is_ipv6_decimal_ = other.is_ipv6_decimal_; #endif /* ACE_HAS_IPV6 */ this->is_encodable_ = other.is_encodable_; this->object_addr_set_ = other.object_addr_set_; this->object_addr_ = other.object_addr_; this->preferred_path_ = other.preferred_path_; this->next_ = 0; // do not copy list membership, since we are only cloning the values return *this; }

CORBA::UShort TAO_IIOP_Endpoint::port (  CORBA::UShort  p  )

Set the port number.

CORBA::UShort TAO_IIOP_Endpoint::port (  void   )  const

Return the port number. Referenced by TAO_IIOP_Connector::begin_connection(), TAO_IIOP_Connector::complete_connection(), TAO_IIOP_Profile::decode_profile(), TAO_IIOP_Profile::encode_alternate_endpoints(), TAO_IIOP_Profile::encode_endpoints(), TAO_IIOP_Acceptor::is_collocated(), TAO_IIOP_Connector::make_connection(), and TAO_IIOP_Profile::to_string().

CORBA::ULong TAO_IIOP_Endpoint::preferred_interfaces (  const char *  csvPreferred, bool  enforce )  [private]

Generate preferred interfaces from the options passed in by the user. Definition at line 519 of file IIOP_Endpoint.cpp. References add_local_endpoint(), find_preferred_interfaces(), TAO::IIOP_Endpoint_Info::host, is_encodable_, preferred_path_, ACE_Vector< T, DEFAULT_SIZE >::size(), and CORBA::string_dup(). Referenced by TAO_IIOP_Profile::decode_profile(). { ACE_Vector<ACE_CString> preferred; find_preferred_interfaces(this->host_.in(), csv, preferred); CORBA::ULong count = preferred.size(); if (count > 0) { this->is_encodable_ = true; this->preferred_path_.host = CORBA::string_dup(preferred[0].c_str()); TAO_IIOP_Endpoint* ep = this; for (size_t i = 1; i < count; ++i) { ep = add_local_endpoint(ep, preferred[i].c_str()); } // If we're not enforcing the preferred interfaces, then we can just add // a new non-preferred endpoint to the end with a default local addr. if (! enforce) { ep = add_local_endpoint(ep, ""); } else { --count; } } return count; }

const char * TAO_IIOP_Endpoint::preferred_network (  void   )  const

Return the preferred network if any. Definition at line 599 of file IIOP_Endpoint.cpp. References TAO::IIOP_Endpoint_Info::host, and preferred_path_. Referenced by TAO_IIOP_Connector::begin_connection(). { return this->preferred_path_.host.in (); }

int TAO_IIOP_Endpoint::set (  const ACE_INET_Addr &  addr, int  use_dotted_decimal_addresses )  [private]

Helper method for setting INET_Addr. Definition at line 150 of file IIOP_Endpoint.cpp. References ACE_DEBUG, ACE_ERROR, ACE_TEXT, ACE_INET_Addr::get_host_addr(), ACE_INET_Addr::get_host_name(), ACE_INET_Addr::get_port_number(), ACE_Addr::get_type(), host_, is_ipv6_decimal_, LM_DEBUG, LM_ERROR, MAXHOSTNAMELEN, port_, CORBA::string_dup(), and TAO_debug_level. Referenced by TAO_IIOP_Endpoint(). { char tmp_host[MAXHOSTNAMELEN + 1]; #if defined (ACE_HAS_IPV6) this->is_ipv6_decimal_ = false; // Reset #endif /* ACE_HAS_IPV6 */ if (use_dotted_decimal_addresses || addr.get_host_name (tmp_host, sizeof (tmp_host)) != 0) { if (use_dotted_decimal_addresses == 0 && TAO_debug_level > 5) { ACE_DEBUG ((LM_DEBUG, ACE_TEXT ("TAO (%P|%t) - IIOP_Endpoint::set, ") ACE_TEXT ("%p\n"), ACE_TEXT ("cannot determine hostname"))); } const char *tmp = addr.get_host_addr (); if (tmp == 0) { if (TAO_debug_level > 0) { ACE_ERROR ((LM_ERROR, ACE_TEXT ("TAO (%P|%t) - IIOP_Endpoint::set, ") ACE_TEXT ("%p\n"), ACE_TEXT ("cannot determine hostname and hostaddr"))); } return -1; } else { this->host_ = tmp; #if defined (ACE_HAS_IPV6) if (addr.get_type () == PF_INET6) this->is_ipv6_decimal_ = true; #endif /* ACE_HAS_IPV6 */ } } else this->host_ = CORBA::string_dup (tmp_host); this->port_ = addr.get_port_number(); return 0; }

---

Friends And Related Function Documentation

friend class TAO_IIOP_Profile [friend]

Definition at line 52 of file IIOP_Endpoint.h.

friend class TAO_SSLIOP_Profile [friend]

Definition at line 53 of file IIOP_Endpoint.h.

---

Member Data Documentation

CORBA::String_var TAO_IIOP_Endpoint::host_ [private]

String representing the host name. Definition at line 195 of file IIOP_Endpoint.h. Referenced by host(), operator=(), TAO_IIOP_Profile::parse_string_i(), and set().

bool TAO_IIOP_Endpoint::is_encodable_ [private]

Is this endpoint created encodable as part of the IOR? Definition at line 206 of file IIOP_Endpoint.h. Referenced by add_local_endpoint(), TAO_IIOP_Profile::encode_alternate_endpoints(), TAO_IIOP_Profile::encode_endpoints(), operator=(), and preferred_interfaces().

bool TAO_IIOP_Endpoint::is_ipv6_decimal_ [private]

Does the host string represent an IPv6 decimal address. Definition at line 202 of file IIOP_Endpoint.h. Referenced by addr_to_string(), TAO_IIOP_Profile::create_profile_body(), TAO_IIOP_Profile::encode_alternate_endpoints(), TAO_IIOP_Profile::encode_endpoints(), host(), object_addr_i(), operator=(), TAO_IIOP_Profile::parse_string_i(), set(), and TAO_IIOP_Profile::to_string().

TAO_IIOP_Endpoint* TAO_IIOP_Endpoint::next_ [private]

IIOP Endpoints can be stringed into a list. Return the next endpoint in the list, if any. Definition at line 220 of file IIOP_Endpoint.h. Referenced by TAO_IIOP_Profile::add_endpoint(), add_local_endpoint(), TAO_IIOP_Profile::do_is_equivalent(), TAO_IIOP_Profile::encode_alternate_endpoints(), TAO_IIOP_Profile::encode_endpoints(), TAO_IIOP_Profile::hash(), TAO_IIOP_Profile::remove_endpoint(), and TAO_IIOP_Profile::to_string().

ACE_INET_Addr TAO_IIOP_Endpoint::object_addr_ [mutable, private]

Cached instance of ACE_INET_Addr for use in making invocations, etc. Definition at line 213 of file IIOP_Endpoint.h. Referenced by TAO_IIOP_Profile::decode_profile(), hash(), object_addr(), object_addr_i(), and operator=().

bool TAO_IIOP_Endpoint::object_addr_set_ [mutable, private]

Flag to indicate if the address has been resolved and set. Definition at line 209 of file IIOP_Endpoint.h. Referenced by hash(), object_addr(), object_addr_i(), and operator=().

CORBA::UShort TAO_IIOP_Endpoint::port_ [private]

TCP port number. Definition at line 198 of file IIOP_Endpoint.h. Referenced by addr_to_string(), is_equivalent(), operator=(), TAO_IIOP_Profile::parse_string_i(), and set().

TAO::IIOP_Endpoint_Info TAO_IIOP_Endpoint::preferred_path_ [private]

Preferred path for this endpoint. Definition at line 216 of file IIOP_Endpoint.h. Referenced by add_local_endpoint(), is_preferred_network(), operator=(), preferred_interfaces(), and preferred_network().

---

The documentation for this class was generated from the following files:

• IIOP_Endpoint.h
• IIOP_Endpoint.cpp

---
