ACE_SOCK Class Reference

An abstract class that forms the basis for more specific classes, such as ACE_SOCK_Acceptor and ACE_SOCK_Stream. Do not instantiate this class. More...

#include <SOCK.h>

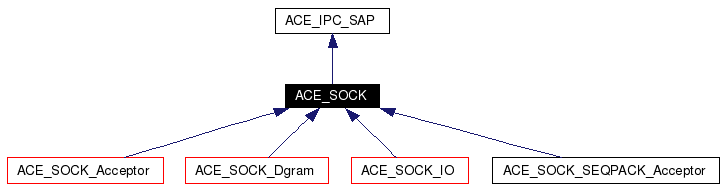

Inheritance diagram for ACE_SOCK:

Inheritance graph
[legend]
Collaboration diagram for ACE_SOCK:

Collaboration graph
[legend]
List of all members.

Public Member Functions

int set_option (int level, int option, void *optval, int optlen) const
 Wrapper around the system call.

int get_option (int level, int option, void *optval, int *optlen) const
 Wrapper around the system call.

int close (void)
int get_local_addr (ACE_Addr &) const
int get_remote_addr (ACE_Addr &) const
void dump (void) const
 Dump the state of an object.

int open (int type, int protocol_family, int protocol, int reuse_addr)
 Wrapper around the BSD-style system call (no QoS).

int open (int type, int protocol_family, int protocol, ACE_Protocol_Info *protocolinfo, ACE_SOCK_GROUP g, u_long flags, int reuse_addr)
 Wrapper around the QoS-enabled function.


Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.


Protected Member Functions

 ACE_SOCK (int type, int protocol_family, int protocol=0, int reuse_addr=0)
 ACE_SOCK (int type, int protocol_family, int protocol, ACE_Protocol_Info *protocolinfo, ACE_SOCK_GROUP g, u_long flags, int reuse_addr)
 ACE_SOCK (void)
 ~ACE_SOCK (void)
 Protected destructor.

Detailed Description

An abstract class that forms the basis for more specific classes, such as ACE_SOCK_Acceptor and ACE_SOCK_Stream. Do not instantiate this class.

This class provides functions that are common to all of the <ACE_SOCK_*> classes. provides the ability to get and set socket options, get the local and remote addresses, and open and close a socket handle.

Definition at line 41 of file SOCK.h.

Constructor & Destructor Documentation

ACE_SOCK::ACE_SOCK (  int  type,
int  protocol_family,
int  protocol = 0,
int  reuse_addr = 0
)  [protected]


Constructor with arguments to call the BSD-style system call (no QoS).

Definition at line 115 of file SOCK.cpp.

References ACE_ERROR, ACE_TEXT, LM_ERROR, and open().

00119 {
00120   // ACE_TRACE ("ACE_SOCK::ACE_SOCK");
00121   if (this->open (type,
00122                   protocol_family,
00123                   protocol,
00124                   reuse_addr) == -1)
00125     ACE_ERROR ((LM_ERROR,
00126                 ACE_TEXT ("%p\n"),
00127                 ACE_TEXT ("ACE_SOCK::ACE_SOCK")));
00128 }

ACE_SOCK::ACE_SOCK (  int  type,
int  protocol_family,
int  protocol,
ACE_Protocol_Info *  protocolinfo,
ACE_SOCK_GROUP  g,
u_long  flags,
int  reuse_addr
)  [protected]


Constructor with arguments to call the QoS-enabled function.

Definition at line 164 of file SOCK.cpp.

References ACE_ERROR, ACE_SOCK_GROUP, ACE_TEXT, LM_ERROR, and open().

00171 {
00172   // ACE_TRACE ("ACE_SOCK::ACE_SOCK");
00173   if (this->open (type,
00174                   protocol_family,
00175                   protocol,
00176                   protocolinfo,
00177                   g,
00178                   flags,
00179                   reuse_addr) == -1)
00180     ACE_ERROR ((LM_ERROR,
00181                 ACE_TEXT ("%p\n"),
00182                 ACE_TEXT ("ACE_SOCK::ACE_SOCK")));
00183 }

ACE_SOCK::ACE_SOCK (  void   )  [protected]


Default constructor is protected to prevent instances of this class from being defined.

Definition at line 24 of file SOCK.cpp.

00025 {
00026   // ACE_TRACE ("ACE_SOCK::ACE_SOCK");
00027 }

ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE ACE_SOCK::~ACE_SOCK (  void   )  [protected]


Protected destructor.

Not a virtual destructor. Protected destructor to prevent operator delete() from being called through a base class ACE_SOCK pointer/reference.

Definition at line 10 of file SOCK.inl.

00011 {
00012   // ACE_TRACE ("ACE_SOCK::~ACE_SOCK");
00013 }

Member Function Documentation

int ACE_SOCK::close (  void   )


Close the socket. This method also sets the object's handle value to ACE_INVALID_HANDLE.

Returns:
The result of closing the socket; 0 if the handle value was already ACE_INVALID_HANDLE.

Reimplemented in ACE_SOCK_Acceptor, ACE_SOCK_Dgram_Bcast, ACE_SOCK_SEQPACK_Acceptor, ACE_SOCK_SEQPACK_Association, and ACE_SOCK_Stream.

Definition at line 71 of file SOCK.cpp.

References ACE_TRACE, ACE_OS::closesocket(), ACE_IPC_SAP::get_handle(), and ACE_IPC_SAP::set_handle().

Referenced by ACE_SOCK_Stream::close(), ACE_SOCK_SEQPACK_Association::close(), ACE_SOCK_SEQPACK_Acceptor::close(), ACE_SOCK_Dgram_Bcast::close(), ACE_SOCK_Acceptor::close(), ACE_SOCK_CODgram::open(), open(), and ACE_SOCK_Dgram::shared_open().

00072 {
00073   ACE_TRACE ("ACE_SOCK::close");
00074   int result = 0;
00075
00076   if (this->get_handle () != ACE_INVALID_HANDLE)
00077     {
00078       result = ACE_OS::closesocket (this->get_handle ());
00079       this->set_handle (ACE_INVALID_HANDLE);
00080     }
00081   return result;
00082 }

ACE_BEGIN_VERSIONED_NAMESPACE_DECL void ACE_SOCK::dump (  void   )  const


Dump the state of an object.

Reimplemented from ACE_IPC_SAP.

Reimplemented in ACE_LSOCK_Acceptor, ACE_LSOCK_CODgram, ACE_LSOCK_Dgram, ACE_LSOCK_Stream, ACE_MEM_Acceptor, ACE_SOCK_Acceptor, ACE_SOCK_CODgram, ACE_SOCK_Dgram, ACE_SOCK_Dgram_Bcast, ACE_SOCK_Dgram_Mcast, ACE_SOCK_IO, ACE_SOCK_SEQPACK_Acceptor, ACE_SOCK_SEQPACK_Association, and ACE_SOCK_Stream.

Definition at line 17 of file SOCK.cpp.

References ACE_TRACE.

00018 {
00019 #if defined (ACE_HAS_DUMP)
00020   ACE_TRACE ("ACE_SOCK::dump");
00021 #endif /* ACE_HAS_DUMP */
00022 }

int ACE_SOCK::get_local_addr (  ACE_Addr &   )  const


Return the local endpoint address in the referenced . Returns 0 if successful, else -1.

Reimplemented in ACE_LSOCK_Acceptor, and ACE_LSOCK_Stream.

Definition at line 51 of file SOCK.cpp.

References ACE_TRACE, ACE_Addr::get_addr(), ACE_Addr::get_size(), ACE_OS::getsockname(), ACE_Addr::set_size(), and ACE_Addr::set_type().

Referenced by ACE_MEM_Acceptor::get_local_addr(), ACE_LSOCK_Stream::get_local_addr(), ACE_Service_Manager::info(), ACE_Pipe::open(), and ACE_SOCK_Dgram_Mcast::open_i().

00052 {
00053   ACE_TRACE ("ACE_SOCK::get_local_addr");
00054
00055   int len = sa.get_size ();
00056   sockaddr *addr = reinterpret_cast<sockaddr *> (sa.get_addr ());
00057
00058   if (ACE_OS::getsockname (this->get_handle (),
00059                            addr,
00060                            &len) == -1)
00061     return -1;
00062
00063   sa.set_type (addr->sa_family);
00064   sa.set_size (len);
00065   return 0;
00066 }

ACE_INLINE int ACE_SOCK::get_option (  int  level,
int  option,
void *  optval,
int *  optlen
)  const


Wrapper around the system call.

Definition at line 29 of file SOCK.inl.

References ACE_TRACE, and ACE_OS::getsockopt().

00033 {
00034   ACE_TRACE ("ACE_SOCK::get_option");
00035   return ACE_OS::getsockopt (this->get_handle (), level,
00036                              option, (char *) optval, optlen);
00037 }

int ACE_SOCK::get_remote_addr (  ACE_Addr &   )  const


Return the address of the remotely connected peer (if there is one), in the referenced . Returns 0 if successful, else -1.

Reimplemented in ACE_LSOCK_Stream, ACE_SOCK_Acceptor, ACE_SOCK_Dgram, ACE_SOCK_Dgram_Bcast, and ACE_SOCK_SEQPACK_Acceptor.

Definition at line 33 of file SOCK.cpp.

References ACE_TRACE, ACE_Addr::get_addr(), ACE_Addr::get_size(), ACE_OS::getpeername(), ACE_Addr::set_size(), and ACE_Addr::set_type().

Referenced by ACE_Service_Manager::handle_input().

00034 {
00035   ACE_TRACE ("ACE_SOCK::get_remote_addr");
00036
00037   int len = sa.get_size ();
00038   sockaddr *addr = reinterpret_cast<sockaddr *> (sa.get_addr ());
00039
00040   if (ACE_OS::getpeername (this->get_handle (),
00041                            addr,
00042                            &len) == -1)
00043     return -1;
00044
00045   sa.set_size (len);
00046   sa.set_type (addr->sa_family);
00047   return 0;
00048 }

int ACE_SOCK::open (  int  type,
int  protocol_family,
int  protocol,
ACE_Protocol_Info *  protocolinfo,
ACE_SOCK_GROUP  g,
u_long  flags,
int  reuse_addr
)


Wrapper around the QoS-enabled function.

Definition at line 131 of file SOCK.cpp.

References ACE_SOCK_GROUP, ACE_TRACE, close(), ACE_IPC_SAP::get_handle(), ACE_IPC_SAP::set_handle(), set_option(), SO_REUSEADDR, and SOL_SOCKET.

00138 {
00139   ACE_TRACE ("ACE_SOCK::open");
00140
00141   this->set_handle (ACE_OS::socket (protocol_family,
00142                                     type,
00143                                     protocol,
00144                                     protocolinfo,
00145                                     g,
00146                                     flags));
00147   int one = 1;
00148
00149   if (this->get_handle () == ACE_INVALID_HANDLE)
00150     return -1;
00151   else if (reuse_addr
00152            && this->set_option (SOL_SOCKET,
00153                                 SO_REUSEADDR,
00154                                 &one,
00155                                 sizeof one) == -1)
00156     {
00157       this->close ();
00158       return -1;
00159     }
00160   else
00161     return 0;
00162 }

int ACE_SOCK::open (  int  type,
int  protocol_family,
int  protocol,
int  reuse_addr
)


Wrapper around the BSD-style system call (no QoS).

Definition at line 85 of file SOCK.cpp.

References ACE_TRACE, close(), ACE_IPC_SAP::get_handle(), PF_UNIX, ACE_IPC_SAP::set_handle(), set_option(), SO_REUSEADDR, and SOL_SOCKET.

Referenced by ACE_SOCK(), ACE_SOCK_SEQPACK_Acceptor::open(), ACE_SOCK_Dgram_Mcast::open(), ACE_SOCK_Dgram::open(), ACE_SOCK_CODgram::open(), ACE_SOCK_Acceptor::open(), ACE_SOCK_SEQPACK_Connector::shared_open(), and ACE_SOCK_Connector::shared_open().

00089 {
00090   ACE_TRACE ("ACE_SOCK::open");
00091   int one = 1;
00092
00093   this->set_handle (ACE_OS::socket (protocol_family,
00094                                     type,
00095                                     protocol));
00096
00097   if (this->get_handle () == ACE_INVALID_HANDLE)
00098     return -1;
00099   else if (protocol_family != PF_UNIX
00100            && reuse_addr
00101            && this->set_option (SOL_SOCKET,
00102                                 SO_REUSEADDR,
00103                                 &one,
00104                                 sizeof one) == -1)
00105     {
00106       this->close ();
00107       return -1;
00108     }
00109   return 0;
00110 }

ACE_INLINE int ACE_SOCK::set_option (  int  level,
int  option,
void *  optval,
int  optlen
)  const


Wrapper around the system call.

Definition at line 16 of file SOCK.inl.

References ACE_TRACE, and ACE_OS::setsockopt().

Referenced by open(), ACE_Pipe::open(), ACE_SOCK_Dgram_Mcast::open_i(), ACE_SOCK_Dgram::set_nic(), ACE_SOCK_Dgram_Mcast::set_option(), ACE_SOCK_Dgram_Mcast::subscribe_i(), and ACE_SOCK_Dgram_Mcast::unsubscribe_i().

00020 {
00021   ACE_TRACE ("ACE_SOCK::set_option");
00022   return ACE_OS::setsockopt (this->get_handle (), level,
00023                              option, (char *) optval, optlen);
00024 }

Member Data Documentation

ACE_SOCK::ACE_ALLOC_HOOK_DECLARE


Declare the dynamic allocation hooks.

Reimplemented from ACE_IPC_SAP.

Reimplemented in ACE_LSOCK_Acceptor, ACE_LSOCK_CODgram, ACE_LSOCK_Dgram, ACE_LSOCK_Stream, ACE_MEM_Acceptor, ACE_SOCK_Acceptor, ACE_SOCK_CODgram, ACE_SOCK_Dgram, ACE_SOCK_Dgram_Bcast, ACE_SOCK_Dgram_Mcast, ACE_SOCK_IO, ACE_SOCK_SEQPACK_Acceptor, ACE_SOCK_SEQPACK_Association, and ACE_SOCK_Stream.

Definition at line 81 of file SOCK.h.

The documentation for this class was generated from the following files:
