ACE_SOCK_Stream Class Reference

Defines the methods in the ACE_SOCK_Stream abstraction. More...

#include <SOCK_Stream.h>

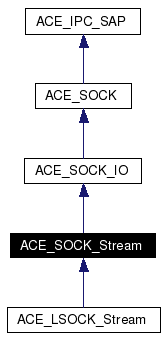

Inheritance diagram for ACE_SOCK_Stream:

Inheritance graph

[legend]Collaboration diagram for ACE_SOCK_Stream:

Collaboration graph

[legend]List of all members.

Public Types

typedef ACE_INET_Addr PEER_ADDR

Public Member Functions

ACE_SOCK_Stream (void)

Constructor.

ACE_SOCK_Stream (ACE_HANDLE h)

Constructor (sets the underlying ACE_HANDLE with h).

~ACE_SOCK_Stream (void)

Destructor.

ssize_t send_urg (const void *ptr, size_t len=sizeof(char), const ACE_Time_Value *timeout=0) const

ssize_t recv_urg (void *ptr, size_t len=sizeof(char), const ACE_Time_Value *timeout=0) const

int close_reader (void)

Close down the reader.

int close_writer (void)

Close down the writer.

int close (void)

void dump (void) const

Dump the state of an object.

Counted send/receive methods

The counted send/receive methods attempt to transfer a specified number of bytes even if they must block and retry the operation in order to transfer the entire amount. The time spent blocking for the entire transfer can be limited by a specified ACE_Time_Value object which is a relative time (i.e., a fixed amount of time, not an absolute time of day). These methods return the count of transferred bytes, or -1 if an error occurs or the operation times out before the entire requested amount of data has been transferred. In error or timeout situations it's possible that some data was transferred before the error or timeout. The bytes_transferred parameter is used to obtain the count of bytes transferred before the error or timeout occurred. If the total specified number of bytes is transferred without error, the method return value should equal the value of bytes_transferred.

Parameters:

buf	The buffer to write from or receive into.
iov	An I/O vector containing a specified number of count/pointer pairs directing the data to be transferred.
iovcnt	The number of I/O vectors to be used from iov.
len	The number of bytes to transfer.
flags	Flags that will be passed through to the `recv()` system call.
timeout	Indicates how long to blocking trying to transfer data. If no timeout is supplied (timeout == 0) the method will wait indefinitely or until an error occurs for the specified number of bytes to be transferred. To avoid any waiting, specify a timeout value with 0 seconds.
bytes_transferred	If non-0, points to a location which receives the total number of bytes transferred before the method returns, even if it's less than the number requested.

Return values:

len,the	complete number of bytes transferred.
0	EOF, i.e., the peer closed the connection.
-1	an error occurred before the entire amount was transferred. Check `errno` for more information. If the timeout period is reached, errno is ETIME.

On partial transfers, i.e., if any data is transferred before timeout/error/EOF, *bytes_transferred will contain the number of bytes transferred.

ssize_t recv_n (void *buf, size_t len, int flags, const ACE_Time_Value *timeout=0, size_t *bytes_transferred=0) const

Try to recv exactly len bytes into buf from the connected socket.

ssize_t recv_n (void *buf, size_t len, const ACE_Time_Value *timeout=0, size_t *bytes_transferred=0) const

Try to recv exactly len bytes into buf from the connected socket.

ssize_t recvv_n (iovec iov[], int iovcnt, const ACE_Time_Value *timeout=0, size_t *bytes_transferred=0) const

Receive an iovec of size iovcnt from the connected socket.

ssize_t send_n (const void *buf, size_t len, int flags, const ACE_Time_Value *timeout=0, size_t *bytes_transferred=0) const

Try to send exactly len bytes from buf to the connection socket.

ssize_t send_n (const void *buf, size_t len, const ACE_Time_Value *timeout=0, size_t *bytes_transferred=0) const

Try to send exactly len bytes from buf to the connected socket.

ssize_t send_n (const ACE_Message_Block *message_block, const ACE_Time_Value *timeout=0, size_t *bytes_transferred=0) const

ssize_t sendv_n (const iovec iov[], int iovcnt, const ACE_Time_Value *timeout=0, size_t *bytes_transferred=0) const

Send an iovec of size iovcnt to the connected socket.

Public Attributes

ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

Detailed Description

Defines the methods in the ACE_SOCK_Stream abstraction.

This adds additional wrapper methods atop the ACE_SOCK_IO class.

See also:: ACE_SOCK_IO

Definition at line 40 of file SOCK_Stream.h.

Member Typedef Documentation

typedef ACE_INET_Addr ACE_SOCK_Stream::PEER_ADDR

Reimplemented in ACE_LSOCK_Stream.
Definition at line 168 of file SOCK_Stream.h.

Constructor & Destructor Documentation

ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE ACE_SOCK_Stream::ACE_SOCK_Stream ( void )

Constructor.

Definition at line 11 of file SOCK_Stream.inl.

00012 { 00013 // ACE_TRACE ("ACE_SOCK_Stream::ACE_SOCK_Stream"); 00014 }

ACE_INLINE ACE_SOCK_Stream::ACE_SOCK_Stream ( ACE_HANDLE h )

Constructor (sets the underlying ACE_HANDLE with h).

Definition at line 17 of file SOCK_Stream.inl.
References ACE_IPC_SAP::set_handle().

00018 { 00019 // ACE_TRACE ("ACE_SOCK_Stream::ACE_SOCK_Stream"); 00020 this->set_handle (h); 00021 }

ACE_INLINE ACE_SOCK_Stream::~ACE_SOCK_Stream ( void )

Destructor.

Definition at line 24 of file SOCK_Stream.inl.

00025 { 00026 // ACE_TRACE ("ACE_SOCK_Stream::~ACE_SOCK_Stream"); 00027 }

Member Function Documentation

int ACE_SOCK_Stream::close ( void )

Close down the socket (we need this to make things work correctly on Win32, which requires use to do a close_writer() before doing the close to avoid losing data).
Reimplemented from ACE_SOCK.
Definition at line 24 of file SOCK_Stream.cpp.
References ACE_SOCK::close(), and close_writer().
Referenced by ACE_SOCK_Connector::complete(), ACE_Service_Manager::handle_input(), ACE_Pipe::open(), ACE_SOCK_Connector::shared_connect_finish(), ACE_SOCK_Connector::shared_connect_start(), and ACE_Name_Proxy::~ACE_Name_Proxy().

00025 { 00026 #if defined (ACE_WIN32) 00027 // We need the following call to make things work correctly on 00028 // Win32, which requires us to do a close_writer() before doing the 00029 // close() in order to avoid losing data. Note that we don't need 00030 // to do this on UNIX since it doesn't have this "feature". 00031 // Moreover, this will cause subtle problems on UNIX due to the way 00032 // that fork() works. 00033 (void) this->close_writer (); 00034 #endif /* ACE_WIN32 */ 00035 00036 // Close down the socket. 00037 return ACE_SOCK::close (); 00038 }

ACE_INLINE int ACE_SOCK_Stream::close_reader ( void )

Close down the reader.

Definition at line 30 of file SOCK_Stream.inl.
References ACE_SHUTDOWN_READ, ACE_TRACE, ACE_IPC_SAP::get_handle(), and ACE_OS::shutdown().

00031 { 00032 ACE_TRACE ("ACE_SOCK_Stream::close_reader"); 00033 if (this->get_handle () != ACE_INVALID_HANDLE) 00034 return ACE_OS::shutdown (this->get_handle (), ACE_SHUTDOWN_READ); 00035 else 00036 return 0; 00037 }

ACE_INLINE int ACE_SOCK_Stream::close_writer ( void )

Close down the writer.

Definition at line 42 of file SOCK_Stream.inl.
References ACE_SHUTDOWN_WRITE, ACE_TRACE, ACE_IPC_SAP::get_handle(), and ACE_OS::shutdown().
Referenced by close().

00043 { 00044 ACE_TRACE ("ACE_SOCK_Stream::close_writer"); 00045 if (this->get_handle () != ACE_INVALID_HANDLE) 00046 return ACE_OS::shutdown (this->get_handle (), ACE_SHUTDOWN_WRITE); 00047 else 00048 return 0; 00049 }

ACE_BEGIN_VERSIONED_NAMESPACE_DECL void ACE_SOCK_Stream::dump ( void ) const

Dump the state of an object.

Reimplemented from ACE_SOCK_IO.
Reimplemented in ACE_LSOCK_Stream.
Definition at line 16 of file SOCK_Stream.cpp.
References ACE_TRACE.
Referenced by ACE_Name_Proxy::dump(), and ACE_LSOCK_Stream::dump().

00017 { 00018 #if defined (ACE_HAS_DUMP) 00019 ACE_TRACE ("ACE_SOCK_Stream::dump"); 00020 #endif /* ACE_HAS_DUMP */ 00021 }

ACE_INLINE ssize_t ACE_SOCK_Stream::recv_n ( void * buf,

size_t len,

const ACE_Time_Value * timeout = 0,

size_t * bytes_transferred = 0

) const

Try to recv exactly len bytes into buf from the connected socket.

Definition at line 68 of file SOCK_Stream.inl.
References ACE_TRACE, and ACE::recv_n().

00072 { 00073 ACE_TRACE ("ACE_SOCK_Stream::recv_n"); 00074 return ACE::recv_n (this->get_handle (), 00075 buf, 00076 len, 00077 timeout, 00078 bytes_transferred); 00079 }

ACE_INLINE ssize_t ACE_SOCK_Stream::recv_n ( void * buf,

size_t len,

int flags,

const ACE_Time_Value * timeout = 0,

size_t * bytes_transferred = 0

) const

Try to recv exactly len bytes into buf from the connected socket.

Definition at line 52 of file SOCK_Stream.inl.
References ACE_TRACE, and ACE::recv_n().
Referenced by ACE_Name_Proxy::request_reply().

00057 { 00058 ACE_TRACE ("ACE_SOCK_Stream::recv_n"); 00059 return ACE::recv_n (this->get_handle (), 00060 buf, 00061 len, 00062 flags, 00063 timeout, 00064 bytes_transferred); 00065 }

ACE_INLINE ssize_t ACE_SOCK_Stream::recv_urg ( void * ptr,

size_t len = sizeof(char),

const ACE_Time_Value * timeout = 0

) const

Definition at line 165 of file SOCK_Stream.inl.
References ACE_TRACE, MSG_OOB, and ACE::recv().

00168 { 00169 ACE_TRACE ("ACE_SOCK_Stream::recv_urg"); 00170 return ACE::recv (this->get_handle (), 00171 ptr, 00172 len, 00173 MSG_OOB, 00174 timeout); 00175 }

ACE_INLINE ssize_t ACE_SOCK_Stream::recvv_n ( iovec iov[],

int iovcnt,

const ACE_Time_Value * timeout = 0,

size_t * bytes_transferred = 0

) const

Receive an iovec of size iovcnt from the connected socket.

Definition at line 82 of file SOCK_Stream.inl.
References ACE_TRACE, and ACE::recvv_n().

00086 { 00087 ACE_TRACE ("ACE_SOCK_Stream::recvv_n"); 00088 return ACE::recvv_n (this->get_handle (), 00089 iov, 00090 n, 00091 timeout, 00092 bytes_transferred); 00093 }

ACE_INLINE ssize_t ACE_SOCK_Stream::send_n ( const ACE_Message_Block * message_block,

const ACE_Time_Value * timeout = 0,

size_t * bytes_transferred = 0

) const

Send all the message blocks chained through their next and cont pointers. This call uses the underlying OS gather-write operation to reduce the domain-crossing penalty.
Definition at line 140 of file SOCK_Stream.inl.
References ACE_TRACE, and ACE::send_n().

00143 { 00144 ACE_TRACE ("ACE_SOCK_Stream::send_n"); 00145 return ACE::send_n (this->get_handle (), 00146 message_block, 00147 timeout, 00148 bytes_transferred); 00149 }

ACE_INLINE ssize_t ACE_SOCK_Stream::send_n ( const void * buf,

size_t len,

const ACE_Time_Value * timeout = 0,

size_t * bytes_transferred = 0

) const

Try to send exactly len bytes from buf to the connected socket.

Definition at line 112 of file SOCK_Stream.inl.
References ACE_TRACE, and ACE::send_n().

00116 { 00117 ACE_TRACE ("ACE_SOCK_Stream::send_n"); 00118 return ACE::send_n (this->get_handle (), 00119 buf, 00120 len, 00121 timeout, 00122 bytes_transferred); 00123 }

ACE_INLINE ssize_t ACE_SOCK_Stream::send_n ( const void * buf,

size_t len,

int flags,

const ACE_Time_Value * timeout = 0,

size_t * bytes_transferred = 0

) const

Try to send exactly len bytes from buf to the connection socket.

Definition at line 96 of file SOCK_Stream.inl.
References ACE_TRACE, and ACE::send_n().
Referenced by ACE_Service_Manager::list_services(), ACE_Service_Manager::reconfigure_services(), ACE_Remote_Token_Proxy::request_reply(), ACE_Name_Proxy::request_reply(), and ACE_Name_Proxy::send_request().

00101 { 00102 ACE_TRACE ("ACE_SOCK_Stream::send_n"); 00103 return ACE::send_n (this->get_handle (), 00104 buf, 00105 len, 00106 flags, 00107 timeout, 00108 bytes_transferred); 00109 }

ACE_INLINE ssize_t ACE_SOCK_Stream::send_urg ( const void * ptr,

size_t len = sizeof(char),

const ACE_Time_Value * timeout = 0

) const

Definition at line 152 of file SOCK_Stream.inl.
References ACE_TRACE, MSG_OOB, and ACE::send().

00155 { 00156 ACE_TRACE ("ACE_SOCK_Stream::send_urg"); 00157 return ACE::send (this->get_handle (), 00158 ptr, 00159 len, 00160 MSG_OOB, 00161 timeout); 00162 }

ACE_INLINE ssize_t ACE_SOCK_Stream::sendv_n ( const iovec iov[],

int iovcnt,

const ACE_Time_Value * timeout = 0,

size_t * bytes_transferred = 0

) const

Send an iovec of size iovcnt to the connected socket.

Definition at line 126 of file SOCK_Stream.inl.
References ACE_TRACE, and ACE::sendv_n().

00130 { 00131 ACE_TRACE ("ACE_SOCK_Stream::sendv_n"); 00132 return ACE::sendv_n (this->get_handle (), 00133 iov, 00134 n, 00135 timeout, 00136 bytes_transferred); 00137 }

Member Data Documentation

ACE_SOCK_Stream::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

Reimplemented from ACE_SOCK_IO.
Reimplemented in ACE_LSOCK_Stream.
Definition at line 174 of file SOCK_Stream.h.

The documentation for this class was generated from the following files:
