ACE_SOCK_Dgram_Bcast Class Reference

Defines the member functions for the ACE_SOCK datagram abstraction. More...

#include <SOCK_Dgram_Bcast.h>

Inheritance diagram for ACE_SOCK_Dgram_Bcast:

Inheritance graph
[legend]

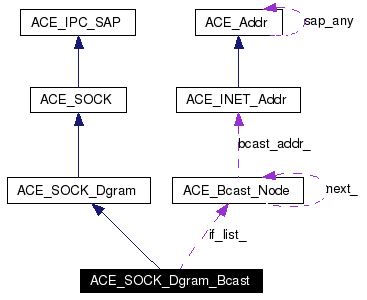

Collaboration diagram for ACE_SOCK_Dgram_Bcast:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 ACE_SOCK_Dgram_Bcast (void)
 Default constructor.

 ACE_SOCK_Dgram_Bcast (const ACE_Addr &local, int protocol_family=PF_INET, int protocol=0, int reuse_addr=0, const ACE_TCHAR *host_name=0)
 ~ACE_SOCK_Dgram_Bcast (void)
 Default dtor.

int open (const ACE_Addr &local, int protocol_family=PF_INET, int protocol=0, int reuse_addr=0, const ACE_TCHAR *host_name=0)
 Initiate a connectionless datagram broadcast endpoint.

int close (void)
 Close up and release dynamically allocated resources.

ssize_t send (const void *buf, size_t n, u_short portnum, int flags=0) const
ssize_t send (const iovec iov[], int n, u_short portnum, int flags=0) const
ssize_t send (const void *buf, size_t n, const ACE_Addr &addr, int flags=0) const
ssize_t send (const iovec iov[], int n, const ACE_Addr &addr, int flags=0) const
void dump (void) const
 Dump the state of an object.


Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.


Private Member Functions

int mk_broadcast (const ACE_TCHAR *host_name)
 Make broadcast available for Datagram socket.

int get_remote_addr (ACE_Addr &) const
 Do not allow this function to percolate up to this interface...


Private Attributes

ACE_Bcast_Node * if_list_
 Points to the head of the list of broadcast interfaces.

Detailed Description

Defines the member functions for the ACE_SOCK datagram abstraction.

Definition at line 57 of file SOCK_Dgram_Bcast.h.

Constructor & Destructor Documentation

ACE_SOCK_Dgram_Bcast::ACE_SOCK_Dgram_Bcast (  void   )


Default constructor.

Definition at line 63 of file SOCK_Dgram_Bcast.cpp.

References ACE_TRACE.

00064   : if_list_ (0)
00065 {
00066   ACE_TRACE ("ACE_SOCK_Dgram_Bcast::ACE_SOCK_Dgram_Bcast");
00067 }

ACE_SOCK_Dgram_Bcast::ACE_SOCK_Dgram_Bcast (  const ACE_Addr &  local,
int  protocol_family = PF_INET,
int  protocol = 0,
int  reuse_addr = 0,
const ACE_TCHAR *  host_name = 0
)


Definition at line 72 of file SOCK_Dgram_Bcast.cpp.

References ACE_ERROR, ACE_TCHAR, ACE_TEXT, ACE_TRACE, LM_ERROR, and mk_broadcast().

00077   : ACE_SOCK_Dgram (local, protocol_family, protocol, reuse_addr),
00078     if_list_ (0)
00079 {
00080   ACE_TRACE ("ACE_SOCK_Dgram_Bcast::ACE_SOCK_Dgram_Bcast");
00081
00082   if (this->mk_broadcast (host_name) == -1)
00083     ACE_ERROR ((LM_ERROR,
00084                 ACE_TEXT ("%p\n"),
00085                 ACE_TEXT ("ACE_SOCK_Dgram_Bcast")));
00086 }

ACE_INLINE ACE_SOCK_Dgram_Bcast::~ACE_SOCK_Dgram_Bcast (  void   )


Default dtor.

Definition at line 15 of file SOCK_Dgram_Bcast.inl.

References ACE_TRACE.

00016 {
00017   ACE_TRACE ("ACE_SOCK_Dgram_Bcast::~ACE_SOCK_Dgram_Bcast");
00018 }

Member Function Documentation

int ACE_SOCK_Dgram_Bcast::close (  void   )


Close up and release dynamically allocated resources.

Reimplemented from ACE_SOCK.

Definition at line 41 of file SOCK_Dgram_Bcast.cpp.

References ACE_TRACE, ACE_SOCK::close(), if_list_, and ACE_Bcast_Node::next_.

00042 {
00043   ACE_TRACE ("ACE_SOCK_Dgram_Bcast::close");
00044
00045   ACE_Bcast_Node *temp = this->if_list_;
00046   this->if_list_ = 0;
00047
00048   // Release the dynamically allocated memory.
00049
00050   while (temp != 0)
00051     {
00052       ACE_Bcast_Node *hold = temp->next_;
00053       delete temp;
00054       temp = hold;
00055     }
00056
00057   // Shut down the descriptor.
00058   return ACE_SOCK::close ();
00059 }

void ACE_SOCK_Dgram_Bcast::dump (  void   )  const


Dump the state of an object.

Reimplemented from ACE_SOCK_Dgram.

Definition at line 31 of file SOCK_Dgram_Bcast.cpp.

References ACE_TRACE.

00032 {
00033 #if defined (ACE_HAS_DUMP)
00034   ACE_TRACE ("ACE_SOCK_Dgram_Bcast::dump");
00035 #endif /* ACE_HAS_DUMP */
00036 }

int ACE_SOCK_Dgram_Bcast::get_remote_addr (  ACE_Addr &   )  const [private]


Do not allow this function to percolate up to this interface...

Reimplemented from ACE_SOCK_Dgram.

int ACE_SOCK_Dgram_Bcast::mk_broadcast (  const ACE_TCHAR *  host_name  )  [private]


Make broadcast available for Datagram socket.

Definition at line 109 of file SOCK_Dgram_Bcast.cpp.

References ACE_BIT_ENABLED, ACE_DEBUG, ACE_ERROR, ACE_ERROR_RETURN, ACE_NEW_RETURN, ACE_TCHAR, ACE_TEXT_ALWAYS_CHAR, ACE_TRACE, ACE_UINT64, AF_INET, caddr_t, ACE::debug(), ENXIO, ACE_IPC_SAP::get_handle(), ACE_OS::gethostbyname(), if_list_, IFF_BROADCAST, IFF_LOOPBACK, IFF_UP, ACE_OS::ioctl(), LM_DEBUG, LM_ERROR, ACE_OS::memcpy(), ACE_OS::setsockopt(), SIOCGIFBRDADDR, SO_BROADCAST, and SOL_SOCKET.

Referenced by ACE_SOCK_Dgram_Bcast(), and open().

00110 {
00111   ACE_TRACE ("ACE_SOCK_Dgram_Bcast::mk_broadcast");
00112
00113   int one = 1;
00114
00115   if (ACE_OS::setsockopt (this->get_handle (),
00116                           SOL_SOCKET,
00117                           SO_BROADCAST,
00118                           (char *) &one,
00119                           sizeof one) == -1)
00120     ACE_ERROR_RETURN ((LM_ERROR, "%p\n",
00121                       "ACE_SOCK_Dgram_Bcast::mk_broadcast: setsockopt failed"),
00122                       -1);
00123
00124 #if !defined (ACE_WIN32) && !defined(__INTERIX)
00125   ACE_HANDLE s = this->get_handle ();
00126
00127   char buf[BUFSIZ];
00128   struct ifconf ifc;
00129
00130   ifc.ifc_len = sizeof buf;
00131   ifc.ifc_buf = buf;
00132
00133   // Get interface structure and initialize the addresses using UNIX
00134   // techniques.
00135   if (ACE_OS::ioctl (s,
00136                      SIOCGIFCONF,
00137                      (char *) &ifc) == -1)
00138     ACE_ERROR_RETURN ((LM_ERROR, "%p\n",
00139                       "ACE_SOCK_Dgram_Bcast::mk_broadcast: ioctl (get interface configuration)"),
00140                       ACE_INVALID_HANDLE);
00141
00142   struct ifreq *ifr = ifc.ifc_req;
00143
00144   struct sockaddr_in host_addr;
00145
00146   // Get host ip address
00147   if (host_name)
00148     {
00149       hostent *hp = ACE_OS::gethostbyname (ACE_TEXT_ALWAYS_CHAR (host_name));
00150
00151       if (hp == 0)
00152         return -1;
00153       else
00154 #if defined(_UNICOS)
00155         {
00156           ACE_UINT64 haddr;  // a place to put the address
00157           char * haddrp = (char *) &haddr;  // convert to char pointer
00158           ACE_OS::memcpy(haddrp,(char *) hp->h_addr,hp->h_length);
00159           host_addr.sin_addr.s_addr = haddr;
00160         }
00161 #else /* ! _UNICOS */
00162         ACE_OS::memcpy ((char *) &host_addr.sin_addr.s_addr,
00163                         (char *) hp->h_addr,
00164                         hp->h_length);
00165 #endif /* ! _UNICOS */
00166     }
00167
00168
00169 #if !defined(AIX) && !defined (__QNX__) && !defined (__FreeBSD__) && !defined(__NetBSD__) && !defined (ACE_VXWORKS) && !defined(__APPLE__)
00170   for (int n = ifc.ifc_len / sizeof (struct ifreq) ; n > 0;
00171        n--, ifr++)
00172 #else
00173   /*
00174      There are addresses longer than sizeof (struct sockaddr) eg. IPv6
00175      or QNX::links. In this case address does not fit into struct ifreq.
00176      The code below could be applied everywhere, but not every system
00177          provides sockaddr.sa_len field.
00178    */
00179   for (int nbytes = ifc.ifc_len; nbytes >= (int) sizeof (struct ifreq) &&
00180         ((ifr->ifr_addr.sa_len > sizeof (struct sockaddr)) ?
00181           (nbytes >= (int) sizeof (ifr->ifr_name) + ifr->ifr_addr.sa_len) : 1);
00182         ((ifr->ifr_addr.sa_len > sizeof (struct sockaddr)) ?
00183           (nbytes -= sizeof (ifr->ifr_name) + ifr->ifr_addr.sa_len,
00184             ifr = (struct ifreq *)
00185               ((caddr_t) &ifr->ifr_addr + ifr->ifr_addr.sa_len)) :
00186           (nbytes -= sizeof (struct ifreq), ifr++)))
00187 #endif /* !defined(AIX) && !defined (__QNX__) && !defined (__FreeBSD__) && !defined(__NetBSD__) && !defined (ACE_VXWORKS) && !defined(__APPLE__) */
00188     {
00189 #if defined (__QNX__) || defined (ACE_VXWORKS)
00190       // Silently skip link interfaces
00191       if (ifr->ifr_addr.sa_family == AF_LINK)
00192         continue;
00193 #endif /* __QNX__ */
00194       // Compare host ip address with interface ip address.
00195       if (host_name)
00196         {
00197           struct sockaddr_in if_addr;
00198
00199           ACE_OS::memcpy (&if_addr,
00200                           &ifr->ifr_addr,
00201                           sizeof if_addr);
00202
00203           if (host_addr.sin_addr.s_addr != if_addr.sin_addr.s_addr)
00204             continue;
00205         }
00206
00207       if (ifr->ifr_addr.sa_family != AF_INET)
00208         {
00209           // Note that some systems seem to generate 0 (AF_UNDEF) for
00210           // the sa_family, even when there are no errors!  Thus, we
00211           // only print an error if this is not the case, or if we're
00212           // in "debugging" mode.
00213           if (ifr->ifr_addr.sa_family != 0
00214               || ACE::debug ())
00215           ACE_DEBUG ((LM_DEBUG,
00216                       "warning %p: sa_family: %d\n",
00217                       "ACE_SOCK_Dgram_Bcast::mk_broadcast: Not AF_INET",
00218                       ifr->ifr_addr.sa_family));
00219           continue;
00220         }
00221
00222       struct ifreq flags = *ifr;
00223       struct ifreq if_req = *ifr;
00224
00225       if (ACE_OS::ioctl (s,
00226                          SIOCGIFFLAGS,
00227                          (char *) &flags) == -1)
00228         {
00229           ACE_ERROR ((LM_ERROR, "%p [%s]\n",
00230                                                  "ACE_SOCK_Dgram_Bcast::mk_broadcast: ioctl (get interface flags)",
00231                                                  flags.ifr_name));
00232           continue;
00233         }
00234
00235       if (ACE_BIT_ENABLED (flags.ifr_flags,
00236                            IFF_UP) == 0)
00237         {
00238           ACE_ERROR ((LM_ERROR, "%p [%s]\n",
00239                      "ACE_SOCK_Dgram_Bcast::mk_broadcast: Network interface is not up",
00240                      flags.ifr_name));
00241           continue;
00242         }
00243
00244       if (ACE_BIT_ENABLED (flags.ifr_flags,
00245                            IFF_LOOPBACK))
00246         continue;
00247
00248       if (ACE_BIT_ENABLED (flags.ifr_flags,
00249                            IFF_BROADCAST))
00250         {
00251           if (ACE_OS::ioctl (s,
00252                              SIOCGIFBRDADDR,
00253                              (char *) &if_req) == -1)
00254             ACE_ERROR ((LM_ERROR, "%p [%s]\n",
00255                        "ACE_SOCK_Dgram_Bcast::mk_broadcast: ioctl (get broadaddr)",
00256                        flags.ifr_name));
00257           else
00258             {
00259               ACE_INET_Addr addr (reinterpret_cast <sockaddr_in *>
00260                                                    (&if_req.ifr_broadaddr),
00261                                   sizeof if_req.ifr_broadaddr);
00262               ACE_NEW_RETURN (this->if_list_,
00263                               ACE_Bcast_Node (addr,
00264                                               this->if_list_),
00265                               -1);
00266             }
00267         }
00268       else
00269         {
00270           if (host_name != 0)
00271             ACE_ERROR ((LM_ERROR, "%p [%s]\n",
00272                         "ACE_SOCK_Dgram_Bcast::mk_broadcast: Broadcast is not enable for this interface.",
00273                         flags.ifr_name));
00274         }
00275     }
00276 #else
00277   ACE_UNUSED_ARG (host_name);
00278
00279   ACE_INET_Addr addr (u_short (0),
00280                       ACE_UINT32 (INADDR_BROADCAST));
00281   ACE_NEW_RETURN (this->if_list_,
00282                   ACE_Bcast_Node (addr,
00283                                   this->if_list_),
00284                   -1);
00285 #endif /* !ACE_WIN32 && !__INTERIX */
00286   if (this->if_list_ == 0)
00287     {
00288       errno = ENXIO;
00289       return -1;
00290     }
00291   else
00292     return 0;
00293 }

int ACE_SOCK_Dgram_Bcast::open (  const ACE_Addr &  local,
int  protocol_family = PF_INET,
int  protocol = 0,
int  reuse_addr = 0,
const ACE_TCHAR *  host_name = 0
)


Initiate a connectionless datagram broadcast endpoint.

Definition at line 91 of file SOCK_Dgram_Bcast.cpp.

References ACE_TCHAR, ACE_TRACE, mk_broadcast(), and ACE_SOCK_Dgram::open().

00096 {
00097   ACE_TRACE ("ACE_SOCK_Dgram_Bcast::open");
00098
00099   if (this->ACE_SOCK_Dgram::open (local, protocol_family,
00100                                   protocol, reuse_addr) == -1)
00101     return -1;
00102
00103   return this->mk_broadcast (host_name);
00104 }

ssize_t ACE_SOCK_Dgram_Bcast::send (  const iovec  iov[],
int  n,
const ACE_Addr &  addr,
int  flags = 0
)  const


Broadcast an iovec of size n to addr as a datagram (note that addr must be preassigned to the broadcast address of the subnet...)

Reimplemented from ACE_SOCK_Dgram.

ACE_INLINE ssize_t ACE_SOCK_Dgram_Bcast::send (  const void *  buf,
size_t  n,
const ACE_Addr &  addr,
int  flags = 0
)  const


Broadcast an N byte datagram to ADDR (note that addr must be preassigned to the broadcast address of the subnet...).

Reimplemented from ACE_SOCK_Dgram.

Definition at line 24 of file SOCK_Dgram_Bcast.inl.

References ACE_TRACE, ACE_Addr::get_addr(), ACE_Addr::get_size(), and ACE_OS::sendto().

00028 {
00029   ACE_TRACE ("ACE_SOCK_Dgram_Bcast::send");
00030
00031   sockaddr *saddr = (sockaddr *) addr.get_addr ();
00032   int len = addr.get_size ();
00033   return ACE_OS::sendto (this->get_handle (), (const char *) buf, n, flags,
00034                          (struct sockaddr *) saddr, len);
00035 }

ssize_t ACE_SOCK_Dgram_Bcast::send (  const iovec  iov[],
int  n,
u_short  portnum,
int  flags = 0
)  const


Broadcast the iov datagrams to every interface. Returns the average number of bytes sent.

ssize_t ACE_SOCK_Dgram_Bcast::send (  const void *  buf,
size_t  n,
u_short  portnum,
int  flags = 0
)  const


Broadcast the datagram to every interface. Returns the average number of bytes sent.

Definition at line 299 of file SOCK_Dgram_Bcast.cpp.

References ACE_TRACE, ACE_Bcast_Node::bcast_addr_, if_list_, ACE_Bcast_Node::next_, ACE_SOCK_Dgram::send(), ACE_INET_Addr::set_port_number(), and ssize_t.

00303 {
00304   ACE_TRACE ("ACE_SOCK_Dgram_Bcast::send");
00305   ssize_t iterations = 0;
00306   ssize_t total_bytes = 0;
00307
00308   if (this->if_list_ == 0)
00309     return -1;
00310
00311   for (ACE_Bcast_Node *temp = this->if_list_;
00312        temp != 0;
00313        temp = temp->next_)
00314     {
00315       temp->bcast_addr_.set_port_number (port_number);
00316
00317       ssize_t bytes_sent = ACE_SOCK_Dgram::send (buf,
00318                                                  n,
00319                                                  temp->bcast_addr_,
00320                                                  flags);
00321
00322       if (bytes_sent == -1)
00323         return -1;
00324       else
00325         total_bytes += bytes_sent;
00326
00327       iterations++;
00328     }
00329
00330   return iterations == 0 ? 0 : total_bytes / iterations;
00331 }

Member Data Documentation

ACE_SOCK_Dgram_Bcast::ACE_ALLOC_HOOK_DECLARE


Declare the dynamic allocation hooks.

Reimplemented from ACE_SOCK_Dgram.

Definition at line 120 of file SOCK_Dgram_Bcast.h.

ACE_Bcast_Node* ACE_SOCK_Dgram_Bcast::if_list_ [private]


Points to the head of the list of broadcast interfaces.

Definition at line 127 of file SOCK_Dgram_Bcast.h.

Referenced by close(), mk_broadcast(), and send().

The documentation for this class was generated from the following files:
Generated on Sun Jan 27 12:57:45 2008 for ACE by doxygen 1.3.6
