ACE_SOCK_Acceptor Class Reference

Defines a factory that creates new ACE_Streams passively. More...

#include <SOCK_Acceptor.h>

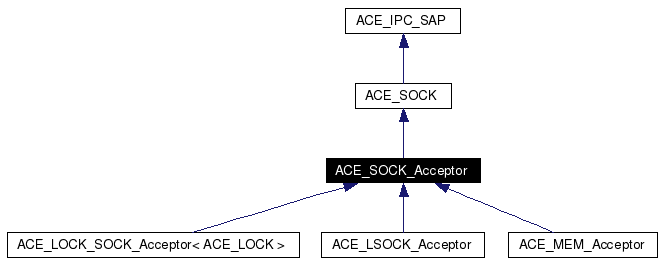

Inheritance diagram for ACE_SOCK_Acceptor:

Inheritance graph
[legend]
Collaboration diagram for ACE_SOCK_Acceptor:

Collaboration graph
[legend]
List of all members.

Public Types

typedef ACE_INET_Addr PEER_ADDR
typedef ACE_SOCK_Stream PEER_STREAM

Public Member Functions

 ACE_SOCK_Acceptor (void)
 Default constructor.

 ACE_SOCK_Acceptor (const ACE_Addr &local_sap, int reuse_addr=0, int protocol_family=PF_UNSPEC, int backlog=ACE_DEFAULT_BACKLOG, int protocol=0)
 ACE_SOCK_Acceptor (const ACE_Addr &local_sap, ACE_Protocol_Info *protocolinfo, ACE_SOCK_GROUP g, u_long flags, int reuse_addr, int protocol_family=PF_UNSPEC, int backlog=ACE_DEFAULT_BACKLOG, int protocol=0)
int open (const ACE_Addr &local_sap, int reuse_addr=0, int protocol_family=PF_UNSPEC, int backlog=ACE_DEFAULT_BACKLOG, int protocol=0)
int open (const ACE_Addr &local_sap, ACE_Protocol_Info *protocolinfo, ACE_SOCK_GROUP g, u_long flags, int reuse_addr, int protocol_family=PF_UNSPEC, int backlog=ACE_DEFAULT_BACKLOG, int protocol=0)
int close (void)
 Close the socket. Returns 0 on success and -1 on failure.

 ~ACE_SOCK_Acceptor (void)
 Default dtor.

int accept (ACE_SOCK_Stream &new_stream, ACE_Addr *remote_addr=0, ACE_Time_Value *timeout=0, int restart=1, int reset_new_handle=0) const
int accept (ACE_SOCK_Stream &new_stream, ACE_Accept_QoS_Params qos_params, ACE_Addr *remote_addr=0, ACE_Time_Value *timeout=0, int restart=1, int reset_new_handle=0) const
void dump (void) const
 Dump the state of an object.


Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.


Protected Member Functions

int shared_accept_start (ACE_Time_Value *timeout, int restart, int &in_blocking_mode) const
int shared_accept_finish (ACE_SOCK_Stream new_stream, int in_blocking_mode, int reset_new_handle) const
int shared_open (const ACE_Addr &local_sap, int protocol_family, int backlog)

Private Member Functions

int get_remote_addr (ACE_Addr &) const
 Do not allow this function to percolate up to this interface...

Detailed Description

Defines a factory that creates new ACE_Streams passively.

The ACE_SOCK_Acceptor has its own "passive-mode" socket. This serves as a factory to create so-called "data-mode" sockets, which are what the ACE_SOCK_Stream encapsulates. Therefore, by inheriting from ACE_SOCK, ACE_SOCK_Acceptor gets its very own socket.

Definition at line 39 of file SOCK_Acceptor.h.

Member Typedef Documentation

typedef ACE_INET_Addr ACE_SOCK_Acceptor::PEER_ADDR


Reimplemented in ACE_LSOCK_Acceptor, and ACE_MEM_Acceptor.

Definition at line 135 of file SOCK_Acceptor.h.

typedef ACE_SOCK_Stream ACE_SOCK_Acceptor::PEER_STREAM


Reimplemented in ACE_LSOCK_Acceptor, and ACE_MEM_Acceptor.

Definition at line 136 of file SOCK_Acceptor.h.

Constructor & Destructor Documentation

ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_SOCK_Acceptor::ACE_SOCK_Acceptor (  void   )


Default constructor.

Definition at line 27 of file SOCK_Acceptor.cpp.

References ACE_TRACE.

00028 {
00029   ACE_TRACE ("ACE_SOCK_Acceptor::ACE_SOCK_Acceptor");
00030 }

ACE_SOCK_Acceptor::ACE_SOCK_Acceptor (  const ACE_Addr &  local_sap,
int  reuse_addr = 0,
int  protocol_family = PF_UNSPEC,
int  backlog = ACE_DEFAULT_BACKLOG,
int  protocol = 0
)


Initialize a passive-mode BSD-style acceptor socket (no QoS). local_sap is the address that we're going to listen for connections on. If reuse_addr is 1 then we'll use the SO_REUSEADDR to reuse this address.

Definition at line 383 of file SOCK_Acceptor.cpp.

References ACE_ERROR, ACE_TEXT, ACE_TRACE, LM_ERROR, and open().

00388 {
00389   ACE_TRACE ("ACE_SOCK_Acceptor::ACE_SOCK_Acceptor");
00390   if (this->open (local_sap,
00391                   reuse_addr,
00392                   protocol_family,
00393                   backlog,
00394                   protocol) == -1)
00395     ACE_ERROR ((LM_ERROR,
00396                 ACE_TEXT ("%p\n"),
00397                 ACE_TEXT ("ACE_SOCK_Acceptor")));
00398 }

ACE_SOCK_Acceptor::ACE_SOCK_Acceptor (  const ACE_Addr &  local_sap,
ACE_Protocol_Info *  protocolinfo,
ACE_SOCK_GROUP  g,
u_long  flags,
int  reuse_addr,
int  protocol_family = PF_UNSPEC,
int  backlog = ACE_DEFAULT_BACKLOG,
int  protocol = 0
)


Initialize a passive-mode QoS-enabled acceptor socket. Returns 0 on success and -1 on failure.

Definition at line 325 of file SOCK_Acceptor.cpp.

References ACE_ERROR, ACE_SOCK_GROUP, ACE_TEXT, ACE_TRACE, LM_ERROR, and open().

00333 {
00334   ACE_TRACE ("ACE_SOCK_Acceptor::ACE_SOCK_Acceptor");
00335   if (this->open (local_sap,
00336                   protocolinfo,
00337                   g,
00338                   flags,
00339                   reuse_addr,
00340                   protocol_family,
00341                   backlog,
00342                   protocol) == -1)
00343     ACE_ERROR ((LM_ERROR,
00344                 ACE_TEXT ("%p\n"),
00345                 ACE_TEXT ("ACE_SOCK_Acceptor")));
00346 }

ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE ACE_SOCK_Acceptor::~ACE_SOCK_Acceptor (  void   )


Default dtor.

Definition at line 8 of file SOCK_Acceptor.inl.

References ACE_TRACE.

00009 {
00010   ACE_TRACE ("ACE_SOCK_Acceptor::~ACE_SOCK_Acceptor");
00011 }

Member Function Documentation

int ACE_SOCK_Acceptor::accept (  ACE_SOCK_Stream &  new_stream,
ACE_Accept_QoS_Params  qos_params,
ACE_Addr *  remote_addr = 0,
ACE_Time_Value *  timeout = 0,
int  restart = 1,
int  reset_new_handle = 0
)  const


Accept a new ACE_SOCK_Stream connection using the QoS information in . A timeout of 0 means block forever, a timeout of {0, 0} means poll. == 1 means "restart if interrupted," i.e., if errno == EINTR. Note that inherits the "blocking mode" of this ACE_SOCK_Acceptor, i.e., if this acceptor factory is in non-blocking mode, the will be in non-blocking mode and vice versa.

Reimplemented in ACE_MEM_Acceptor.

Definition at line 160 of file SOCK_Acceptor.cpp.

References ACE_TRACE, ACE_Addr::get_addr(), ACE_IPC_SAP::get_handle(), ACE_Addr::get_size(), ACE_IPC_SAP::set_handle(), ACE_Addr::set_size(), shared_accept_finish(), and shared_accept_start().

00166 {
00167   ACE_TRACE ("ACE_SOCK_Acceptor::accept");
00168
00169   int in_blocking_mode = 0;
00170   if (this->shared_accept_start (timeout,
00171                                  restart,
00172                                  in_blocking_mode) == -1)
00173     return -1;
00174   else
00175     {
00176       // On Win32 the third parameter to <accept> must be a NULL
00177       // pointer if we want to ignore the client's address.
00178       int *len_ptr = 0;
00179       int len = 0;
00180       sockaddr *addr = 0;
00181
00182       if (remote_addr != 0)
00183         {
00184           len = remote_addr->get_size ();
00185           len_ptr = &len;
00186           addr = (sockaddr *) remote_addr->get_addr ();
00187         }
00188
00189       do
00190         new_stream.set_handle (ACE_OS::accept (this->get_handle (),
00191                                                addr,
00192                                                len_ptr,
00193                                                qos_params));
00194       while (new_stream.get_handle () == ACE_INVALID_HANDLE
00195              && restart != 0
00196              && errno == EINTR
00197              && timeout == 0);
00198
00199       // Reset the size of the addr, which is only necessary for UNIX
00200       // domain sockets.
00201       if (new_stream.get_handle () != ACE_INVALID_HANDLE
00202           && remote_addr != 0)
00203         remote_addr->set_size (len);
00204     }
00205
00206   return this->shared_accept_finish (new_stream,
00207                                      in_blocking_mode,
00208                                      reset_new_handle);
00209 }

int ACE_SOCK_Acceptor::accept (  ACE_SOCK_Stream &  new_stream,
ACE_Addr *  remote_addr = 0,
ACE_Time_Value *  timeout = 0,
int  restart = 1,
int  reset_new_handle = 0
)  const


Accept a new ACE_SOCK_Stream connection. A timeout of 0 means block forever, a timeout of {0, 0} means poll. == 1 means "restart if interrupted," i.e., if errno == EINTR. Note that inherits the "blocking mode" of this ACE_SOCK_Acceptor, i.e., if this acceptor factory is in non-blocking mode, the will be in non-blocking mode and vice versa.

Reimplemented in ACE_LOCK_SOCK_Acceptor< ACE_LOCK >, and ACE_MEM_Acceptor.

Definition at line 105 of file SOCK_Acceptor.cpp.

References ACE_TRACE, ACE_Addr::get_addr(), ACE_IPC_SAP::get_handle(), ACE_Addr::get_size(), ACE_IPC_SAP::set_handle(), ACE_Addr::set_size(), ACE_Addr::set_type(), shared_accept_finish(), and shared_accept_start().

Referenced by ACE_LOCK_SOCK_Acceptor< ACE_LOCK >::accept(), ACE_Service_Manager::handle_input(), and ACE_Pipe::open().

00110 {
00111   ACE_TRACE ("ACE_SOCK_Acceptor::accept");
00112
00113   int in_blocking_mode = 0;
00114   if (this->shared_accept_start (timeout,
00115                                  restart,
00116                                  in_blocking_mode) == -1)
00117     return -1;
00118   else
00119     {
00120       // On Win32 the third parameter to <accept> must be a NULL
00121       // pointer if we want to ignore the client's address.
00122       int *len_ptr = 0;
00123       sockaddr *addr = 0;
00124       int len = 0;
00125
00126       if (remote_addr != 0)
00127         {
00128           len = remote_addr->get_size ();
00129           len_ptr = &len;
00130           addr = (sockaddr *) remote_addr->get_addr ();
00131         }
00132
00133       do
00134         new_stream.set_handle (ACE_OS::accept (this->get_handle (),
00135                                                addr,
00136                                                len_ptr));
00137       while (new_stream.get_handle () == ACE_INVALID_HANDLE
00138              && restart != 0
00139              && errno == EINTR
00140              && timeout == 0);
00141
00142       // Reset the size of the addr, so the proper UNIX/IPv4/IPv6 family
00143       // is known.
00144       if (new_stream.get_handle () != ACE_INVALID_HANDLE
00145           && remote_addr != 0)
00146         {
00147           remote_addr->set_size (len);
00148           if (addr)
00149             remote_addr->set_type (addr->sa_family);
00150         }
00151     }
00152
00153   return this->shared_accept_finish (new_stream,
00154                                      in_blocking_mode,
00155                                      reset_new_handle);
00156 }

int ACE_SOCK_Acceptor::close (  void   )


Close the socket. Returns 0 on success and -1 on failure.

Reimplemented from ACE_SOCK.

Definition at line 401 of file SOCK_Acceptor.cpp.

References ACE_SOCK::close().

Referenced by ACE_Service_Manager::handle_close(), ACE_Pipe::open(), ACE_LSOCK_Acceptor::remove(), and shared_open().

00402 {
00403   return ACE_SOCK::close ();
00404 }

void ACE_SOCK_Acceptor::dump (  void   )  const


Dump the state of an object.

Reimplemented from ACE_SOCK.

Reimplemented in ACE_LSOCK_Acceptor, and ACE_MEM_Acceptor.

Definition at line 213 of file SOCK_Acceptor.cpp.

References ACE_TRACE.

00214 {
00215 #if defined (ACE_HAS_DUMP)
00216   ACE_TRACE ("ACE_SOCK_Acceptor::dump");
00217 #endif /* ACE_HAS_DUMP */
00218 }

int ACE_SOCK_Acceptor::get_remote_addr (  ACE_Addr &   )  const [private]


Do not allow this function to percolate up to this interface...

Reimplemented from ACE_SOCK.

int ACE_SOCK_Acceptor::open (  const ACE_Addr &  local_sap,
ACE_Protocol_Info *  protocolinfo,
ACE_SOCK_GROUP  g,
u_long  flags,
int  reuse_addr,
int  protocol_family = PF_UNSPEC,
int  backlog = ACE_DEFAULT_BACKLOG,
int  protocol = 0
)


Initialize a passive-mode QoS-enabled acceptor socket. Returns 0 on success and -1 on failure.

Reimplemented in ACE_MEM_Acceptor.

Definition at line 297 of file SOCK_Acceptor.cpp.

References ACE_SOCK_GROUP, ACE_TRACE, ACE_Addr::get_type(), ACE_SOCK::open(), PF_UNSPEC, shared_open(), and SOCK_STREAM.

00305 {
00306   ACE_TRACE ("ACE_SOCK_Acceptor::open");
00307
00308   if (protocol_family == PF_UNSPEC)
00309     protocol_family = local_sap.get_type ();
00310
00311   if (ACE_SOCK::open (SOCK_STREAM,
00312                       protocol_family,
00313                       protocol,
00314                       protocolinfo,
00315                       g,
00316                       flags,
00317                       reuse_addr) == -1)
00318     return -1;
00319   else
00320     return this->shared_open (local_sap,
00321                               protocol_family,
00322                               backlog);
00323 }

int ACE_SOCK_Acceptor::open (  const ACE_Addr &  local_sap,
int  reuse_addr = 0,
int  protocol_family = PF_UNSPEC,
int  backlog = ACE_DEFAULT_BACKLOG,
int  protocol = 0
)


Initialize a passive-mode BSD-style acceptor socket (no QoS). is the address that we're going to listen for connections on. If is 1 then we'll use the to reuse this address. Returns 0 on success and -1 on failure.

Reimplemented in ACE_LSOCK_Acceptor, and ACE_MEM_Acceptor.

Definition at line 351 of file SOCK_Acceptor.cpp.

References ACE_TRACE, ACE_Addr::get_type(), ACE::ipv6_enabled(), ACE_SOCK::open(), PF_INET, PF_UNSPEC, shared_open(), and SOCK_STREAM.

Referenced by ACE_SOCK_Acceptor(), ACE_Service_Manager::open(), ACE_Pipe::open(), ACE_MEM_Acceptor::open(), and ACE_LSOCK_Acceptor::open().

00356 {
00357   ACE_TRACE ("ACE_SOCK_Acceptor::open");
00358
00359   if (local_sap != ACE_Addr::sap_any)
00360     protocol_family = local_sap.get_type ();
00361   else if (protocol_family == PF_UNSPEC)
00362     {
00363 #if defined (ACE_HAS_IPV6)
00364       protocol_family = ACE::ipv6_enabled () ? PF_INET6 : PF_INET;
00365 #else
00366       protocol_family = PF_INET;
00367 #endif /* ACE_HAS_IPV6 */
00368     }
00369
00370   if (ACE_SOCK::open (SOCK_STREAM,
00371                       protocol_family,
00372                       protocol,
00373                       reuse_addr) == -1)
00374     return -1;
00375   else
00376     return this->shared_open (local_sap,
00377                               protocol_family,
00378                               backlog);
00379 }

int ACE_SOCK_Acceptor::shared_accept_finish (  ACE_SOCK_Stream  new_stream,
int  in_blocking_mode,
int  reset_new_handle
)  const [protected]


Perform operations that must occur after <ACE_OS::accept> is called.

Definition at line 67 of file SOCK_Acceptor.cpp.

References ACE_NONBLOCK, ACE_TRACE, ACE::clr_flags(), and ACE_IPC_SAP::get_handle().

Referenced by accept(), and ACE_LSOCK_Acceptor::accept().

00070 {
00071   ACE_TRACE ("ACE_SOCK_Acceptor::shared_accept_finish ()");
00072
00073   ACE_HANDLE new_handle = new_stream.get_handle ();
00074
00075   // Check to see if we were originally in blocking mode, and if so,
00076   // set the <new_stream>'s handle and <this> handle to be in blocking
00077   // mode.
00078   if (in_blocking_mode)
00079     {
00080       // Save/restore errno.
00081       ACE_Errno_Guard error (errno);
00082
00083       // Only disable ACE_NONBLOCK if we weren't in non-blocking mode
00084       // originally.
00085       ACE::clr_flags (this->get_handle (),
00086                       ACE_NONBLOCK);
00087       ACE::clr_flags (new_handle,
00088                       ACE_NONBLOCK);
00089     }
00090
00091 #if defined (ACE_HAS_WINSOCK2) && (ACE_HAS_WINSOCK2 != 0)
00092   if (reset_new_handle)
00093     // Reset the event association inherited by the new handle.
00094     ::WSAEventSelect ((SOCKET) new_handle, 0, 0);
00095 #else
00096   ACE_UNUSED_ARG (reset_new_handle);
00097 #endif /* ACE_WIN32 */
00098
00099   return new_handle == ACE_INVALID_HANDLE ? -1 : 0;
00100 }

int ACE_SOCK_Acceptor::shared_accept_start (  ACE_Time_Value *  timeout,
int  restart,
int &  in_blocking_mode
)  const [protected]


Perform operations that must occur before <ACE_OS::accept> is called.

Definition at line 35 of file SOCK_Acceptor.cpp.

References ACE_BIT_DISABLED, ACE_NONBLOCK, ACE_TRACE, ACE_IPC_SAP::get_handle(), ACE::handle_timed_accept(), and ACE::set_flags().

Referenced by accept(), ACE_MEM_Acceptor::accept(), and ACE_LSOCK_Acceptor::accept().

00038 {
00039   ACE_TRACE ("ACE_SOCK_Acceptor::shared_accept_start");
00040
00041   ACE_HANDLE handle = this->get_handle ();
00042
00043   // Handle the case where we're doing a timed <accept>.
00044   if (timeout != 0)
00045     {
00046       if (ACE::handle_timed_accept (handle,
00047                                     timeout,
00048                                     restart) == -1)
00049         return -1;
00050       else
00051         {
00052           in_blocking_mode = ACE_BIT_DISABLED (ACE::get_flags (handle),
00053                                                ACE_NONBLOCK);
00054           // Set the handle into non-blocking mode if it's not already
00055           // in it.
00056           if (in_blocking_mode
00057               && ACE::set_flags (handle,
00058                                  ACE_NONBLOCK) == -1)
00059             return -1;
00060         }
00061     }
00062
00063   return 0;
00064 }

int ACE_SOCK_Acceptor::shared_open (  const ACE_Addr &  local_sap,
int  protocol_family,
int  backlog
)  [protected]


This method factors out the common code and is called by both the QoS-enabled method and the BSD-style method.

Definition at line 221 of file SOCK_Acceptor.cpp.

References ACE_NTOHL, ACE_TRACE, ACE_OS::bind(), ACE::bind_port(), close(), ACE_Addr::get_addr(), ACE_Addr::get_size(), ACE_OS::listen(), ACE_OS::memset(), and PF_INET.

Referenced by open().

00224 {
00225   ACE_TRACE ("ACE_SOCK_Acceptor::shared_open");
00226   int error = 0;
00227
00228 #if defined (ACE_HAS_IPV6)
00229   if (protocol_family == PF_INET6)
00230     {
00231       sockaddr_in6 local_inet6_addr;
00232       ACE_OS::memset (reinterpret_cast<void *> (&local_inet6_addr),
00233                       0,
00234                       sizeof local_inet6_addr);
00235
00236       if (local_sap == ACE_Addr::sap_any)
00237         {
00238           local_inet6_addr.sin6_family = AF_INET6;
00239           local_inet6_addr.sin6_port = 0;
00240           local_inet6_addr.sin6_addr = in6addr_any;
00241         }
00242       else
00243         local_inet6_addr = *reinterpret_cast<sockaddr_in6 *> (local_sap.get_addr ());
00244
00245       // We probably don't need a bind_port written here.
00246       // There are currently no supported OS's that define
00247       // ACE_LACKS_WILDCARD_BIND.
00248       if (ACE_OS::bind (this->get_handle (),
00249                         reinterpret_cast<sockaddr *> (&local_inet6_addr),
00250                         sizeof local_inet6_addr) == -1)
00251         error = 1;
00252     }
00253   else
00254 #endif
00255   if (protocol_family == PF_INET)
00256     {
00257       sockaddr_in local_inet_addr;
00258       ACE_OS::memset (reinterpret_cast<void *> (&local_inet_addr),
00259                       0,
00260                       sizeof local_inet_addr);
00261
00262       if (local_sap == ACE_Addr::sap_any)
00263         {
00264           local_inet_addr.sin_port = 0;
00265         }
00266       else
00267         local_inet_addr = *reinterpret_cast<sockaddr_in *> (local_sap.get_addr ());
00268       if (local_inet_addr.sin_port == 0)
00269         {
00270           if (ACE::bind_port (this->get_handle (),
00271                               ACE_NTOHL (ACE_UINT32 (local_inet_addr.sin_addr.s_addr))) == -1)
00272             error = 1;
00273         }
00274       else if (ACE_OS::bind (this->get_handle (),
00275                              reinterpret_cast<sockaddr *> (&local_inet_addr),
00276                              sizeof local_inet_addr) == -1)
00277         error = 1;
00278     }
00279   else if (ACE_OS::bind (this->get_handle (),
00280                          (sockaddr *) local_sap.get_addr (),
00281                          local_sap.get_size ()) == -1)
00282     error = 1;
00283
00284   if (error != 0
00285       || ACE_OS::listen (this->get_handle (),
00286                          backlog) == -1)
00287     {
00288       ACE_Errno_Guard g (errno);    // Preserve across close() below.
00289       error = 1;
00290       this->close ();
00291     }
00292
00293   return error ? -1 : 0;
00294 }

Member Data Documentation

ACE_SOCK_Acceptor::ACE_ALLOC_HOOK_DECLARE


Declare the dynamic allocation hooks.

Reimplemented from ACE_SOCK.

Reimplemented in ACE_LSOCK_Acceptor, and ACE_MEM_Acceptor.

Definition at line 142 of file SOCK_Acceptor.h.

The documentation for this class was generated from the following files:
Generated on Sun Jan 27 12:57:41 2008 for ACE by doxygen 1.3.6
