ACE_Reactor_Notify Class Reference

Abstract class for unblocking an ACE_Reactor_Impl from its event loop. More...

#include <Reactor_Impl.h>

Inheritance diagram for ACE_Reactor_Notify:

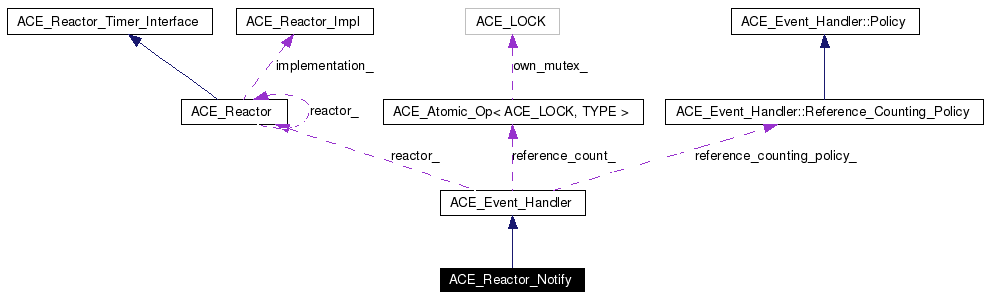

[legend]Collaboration diagram for ACE_Reactor_Notify:

[legend]List of all members.

Public Member Functions
virtual int	open (ACE_Reactor_Impl *, ACE_Timer_Queue *timer_queue=0, int disable_notify=0)=0
virtual int	close (void)=0
virtual int	notify (ACE_Event_Handler *eh=0, ACE_Reactor_Mask mask=ACE_Event_Handler::EXCEPT_MASK, ACE_Time_Value *timeout=0)=0
virtual int	dispatch_notifications (int &number_of_active_handles, ACE_Handle_Set &rd_mask)=0
virtual ACE_HANDLE	notify_handle (void)=0
virtual int	is_dispatchable (ACE_Notification_Buffer &buffer)=0
	Verify whether the buffer has dispatchable info or not.
virtual int	dispatch_notify (ACE_Notification_Buffer &buffer)=0
virtual int	read_notify_pipe (ACE_HANDLE handle, ACE_Notification_Buffer &buffer)=0
virtual void	max_notify_iterations (int)=0
virtual int	max_notify_iterations (void)=0
virtual int	purge_pending_notifications (ACE_Event_Handler *=0, ACE_Reactor_Mask=ACE_Event_Handler::ALL_EVENTS_MASK)=0
virtual void	dump (void) const=0
	Dump the state of an object.

---

Detailed Description

Abstract class for unblocking an ACE_Reactor_Impl from its event loop.

For internal use only.

This class is for ACE internal use only.

Definition at line 47 of file Reactor_Impl.h.

---

Member Function Documentation

virtual int ACE_Reactor_Notify::close (  void   )  [pure virtual]

Implemented in ACE_Select_Reactor_Notify. Referenced by ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >::close().

virtual int ACE_Reactor_Notify::dispatch_notifications (  int &  number_of_active_handles, ACE_Handle_Set &  rd_mask )  [pure virtual]

Handles pending threads (if any) that are waiting to unblock the . Implemented in ACE_Select_Reactor_Notify.

virtual int ACE_Reactor_Notify::dispatch_notify (  ACE_Notification_Buffer &  buffer  )  [pure virtual]

Handle one of the notify call on the . This could be because of a thread trying to unblock the Implemented in ACE_Select_Reactor_Notify. Referenced by ACE_TP_Reactor::handle_notify_events().

virtual void ACE_Reactor_Notify::dump (  void   )  const [pure virtual]

Dump the state of an object. Implemented in ACE_Select_Reactor_Notify. Referenced by ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >::dump().

virtual int ACE_Reactor_Notify::is_dispatchable (  ACE_Notification_Buffer &  buffer  )  [pure virtual]

Verify whether the buffer has dispatchable info or not. Implemented in ACE_Select_Reactor_Notify. Referenced by ACE_TP_Reactor::handle_notify_events().

virtual int ACE_Reactor_Notify::max_notify_iterations (  void   )  [pure virtual]

Get the maximum number of times that the method will iterate and dispatch the that are passed in via the notify queue before breaking out of its event loop. Implemented in ACE_Select_Reactor_Notify.

virtual void ACE_Reactor_Notify::max_notify_iterations (  int   )  [pure virtual]

Set the maximum number of times that the method will iterate and dispatch the that are passed in via the notify queue before breaking out of the event loop. By default, this is set to -1, which means "iterate until the queue is empty." Setting this to a value like "1 or 2" will increase "fairness" (and thus prevent starvation) at the expense of slightly higher dispatching overhead. Implemented in ACE_Select_Reactor_Notify. Referenced by ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >::max_notify_iterations().

virtual int ACE_Reactor_Notify::notify (  ACE_Event_Handler *  eh = 0, ACE_Reactor_Mask  mask = ACE_Event_Handler::EXCEPT_MASK, ACE_Time_Value *  timeout = 0 )  [pure virtual]

Called by a thread when it wants to unblock the . This wakeups the if currently blocked. Pass over both the *and* the to allow the caller to dictate which method the will invoke. The ACE_Time_Value indicates how long to blocking trying to notify the . If timeout == 0, the caller will block until action is possible, else will wait until the relative time specified in *timeout elapses). Implemented in ACE_Select_Reactor_Notify. Referenced by ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >::notify().

virtual ACE_HANDLE ACE_Reactor_Notify::notify_handle (  void   )  [pure virtual]

Returns the ACE_HANDLE of the notify pipe on which the reactor is listening for notifications so that other threads can unblock the Implemented in ACE_Select_Reactor_Notify. Referenced by ACE_TP_Reactor::get_notify_handle().

virtual int ACE_Reactor_Notify::open (  ACE_Reactor_Impl *  , ACE_Timer_Queue *  timer_queue = 0, int  disable_notify = 0 )  [pure virtual]

Implemented in ACE_Select_Reactor_Notify.

virtual int ACE_Reactor_Notify::purge_pending_notifications (  ACE_Event_Handler *  = 0, ACE_Reactor_Mask  = ACE_Event_Handler::ALL_EVENTS_MASK )  [pure virtual]

Purge any notifications pending in this reactor for the specified ACE_Event_Handler object. Returns the number of notifications purged. Returns -1 on error. Implemented in ACE_Select_Reactor_Notify. Referenced by ACE_Select_Reactor_Impl::purge_pending_notifications().

virtual int ACE_Reactor_Notify::read_notify_pipe (  ACE_HANDLE  handle, ACE_Notification_Buffer &  buffer )  [pure virtual]

Read one of the notify call on the into the . This could be because of a thread trying to unblock the Implemented in ACE_Select_Reactor_Notify. Referenced by ACE_TP_Reactor::handle_notify_events().

---

The documentation for this class was generated from the following file:

• Reactor_Impl.h

---
