ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK > Class Template Reference

Provides an interface to timers. More...

#include <Timer_Queue_T.h>

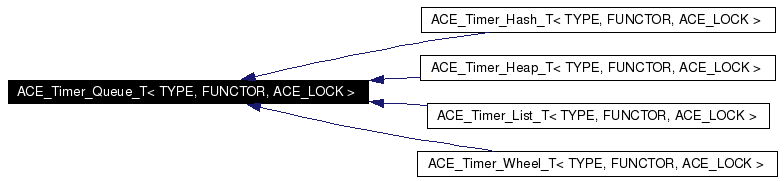

Inheritance diagram for ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >:

Inheritance graph
[legend]

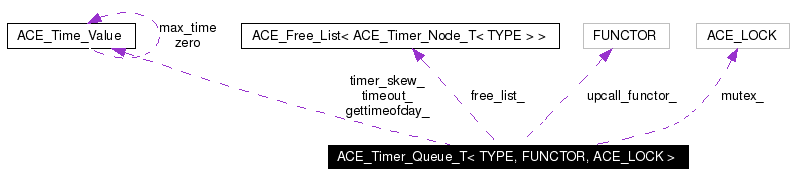

Collaboration diagram for ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >:

Collaboration graph
[legend]
List of all members.

Public Types

typedef ACE_Timer_Queue_Iterator_T<
TYPE, FUNCTOR, ACE_LOCK > 		ITERATOR
 Type of Iterator.


Public Member Functions

 ACE_Timer_Queue_T (FUNCTOR *upcall_functor=0, ACE_Free_List< ACE_Timer_Node_T< TYPE > > *freelist=0)
virtual ~ACE_Timer_Queue_T (void)
virtual int is_empty (void) const=0
 True if queue is empty, else false.

virtual const ACE_Time_Value & earliest_time (void) const=0
virtual long schedule (const TYPE &type, const void *act, const ACE_Time_Value &future_time, const ACE_Time_Value &interval=ACE_Time_Value::zero)
virtual int reset_interval (long timer_id, const ACE_Time_Value &interval)=0
virtual int cancel (const TYPE &type, int dont_call_handle_close=1)=0
virtual int cancel (long timer_id, const void **act=0, int dont_call_handle_close=1)=0
virtual int expire (const ACE_Time_Value &current_time)
virtual int dispatch_info (const ACE_Time_Value &current_time, ACE_Timer_Node_Dispatch_Info_T< TYPE > &info)
int expire (void)
ACE_Time_Value gettimeofday (void)
void gettimeofday (ACE_Time_Value(*gettimeofday)(void))
virtual ACE_Time_Value * calculate_timeout (ACE_Time_Value *max)
virtual ACE_Time_Value * calculate_timeout (ACE_Time_Value *max, ACE_Time_Value *the_timeout)
void timer_skew (const ACE_Time_Value &skew)
 Set the timer skew for the Timer_Queue.

const ACE_Time_Value & timer_skew (void) const
 Get the timer skew for the Timer_Queue.

ACE_LOCK & mutex (void)
 Synchronization variable used by the queue.

FUNCTOR & upcall_functor (void)
 Accessor to the upcall functor.

virtual ITERATOR & iter (void)=0
 Returns a pointer to this ACE_Timer_Queue's iterator.

virtual ACE_Timer_Node_T<
TYPE > * 		remove_first (void)=0
 Removes the earliest node from the queue and returns it.

virtual void dump (void) const
 Dump the state of a object.

virtual ACE_Timer_Node_T<
TYPE > * 		get_first (void)=0
 Reads the earliest node from the queue and returns it.

virtual void return_node (ACE_Timer_Node_T< TYPE > *)
void preinvoke (ACE_Timer_Node_Dispatch_Info_T< TYPE > &info, const ACE_Time_Value &cur_time, const void *&upcall_act)
 This method will call the preinvoke() on .

void upcall (ACE_Timer_Node_Dispatch_Info_T< TYPE > &info, const ACE_Time_Value &cur_time)
 This method will call the timeout() on .

void postinvoke (ACE_Timer_Node_Dispatch_Info_T< TYPE > &info, const ACE_Time_Value &cur_time, const void *upcall_act)
 This method will call the postinvoke() on .


Protected Member Functions

virtual long schedule_i (const TYPE &type, const void *act, const ACE_Time_Value &future_time, const ACE_Time_Value &interval)=0
 Schedule a timer.

virtual void reschedule (ACE_Timer_Node_T< TYPE > *)=0
 Reschedule an "interval" ACE_Timer_Node.

virtual ACE_Timer_Node_T<
TYPE > * 		alloc_node (void)
 Factory method that allocates a new node.

virtual void free_node (ACE_Timer_Node_T< TYPE > *)
 Factory method that frees a previously allocated node.

virtual int dispatch_info_i (const ACE_Time_Value &current_time, ACE_Timer_Node_Dispatch_Info_T< TYPE > &info)
 Non-locking version of dispatch_info ().


Protected Attributes

ACE_LOCK mutex_
ACE_Free_List< ACE_Timer_Node_T<
TYPE > > * 		free_list_
 Class that implements a free list.

ACE_Time_Value(* gettimeofday_ )(void)
 Pointer to function that returns the current time of day.

FUNCTOR * upcall_functor_
 Upcall functor.

int delete_upcall_functor_
 To delete or not to delete is the question?

int delete_free_list_
 Flag to delete only if the class created the .


Private Member Functions

 ACE_Timer_Queue_T (const ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK > &)
void operator= (const ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK > &)

Private Attributes

ACE_Time_Value timeout_
 Returned by .

ACE_Time_Value timer_skew_
 Adjusts for timer skew in various clocks.

Detailed Description

template<class TYPE, class FUNCTOR, class ACE_LOCK>
class ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >

Provides an interface to timers.

This is an abstract base class that provides hook for implementing specialized policies such as ACE_Timer_List and ACE_Timer_Heap.

Definition at line 207 of file Timer_Queue_T.h.

Member Typedef Documentation

template<class TYPE, class FUNCTOR, class ACE_LOCK>
typedef ACE_Timer_Queue_Iterator_T<TYPE, FUNCTOR, ACE_LOCK> ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::ITERATOR


Type of Iterator.

Definition at line 211 of file Timer_Queue_T.h.

Constructor & Destructor Documentation

template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::ACE_Timer_Queue_T (  FUNCTOR *  upcall_functor = 0,
ACE_Free_List< ACE_Timer_Node_T< TYPE > > *  freelist = 0
)


Default constructor. is the instance of the FUNCTOR to be used by the queue. If is 0, Timer Queue will create a default FUNCTOR. the freelist of timer nodes. If 0, then a default freelist will be created.

Definition at line 168 of file Timer_Queue_T.cpp.

References ACE_NEW, ACE_TIMER_SKEW, ACE_TRACE, and ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::upcall_functor_.

00170   : gettimeofday_ (ACE_OS::gettimeofday),
00171     delete_upcall_functor_ (upcall_functor == 0),
00172     delete_free_list_ (freelist == 0),
00173     timer_skew_ (0, ACE_TIMER_SKEW)
00174 {
00175   ACE_TRACE ("ACE_Timer_Queue_T::ACE_Timer_Queue_T");
00176
00177   if (!freelist)
00178     ACE_NEW (free_list_,
00179              (ACE_Locked_Free_List<ACE_Timer_Node_T<TYPE>,ACE_Null_Mutex>));
00180   else
00181     free_list_ = freelist;
00182
00183   if (!upcall_functor)
00184     ACE_NEW (upcall_functor_,
00185              FUNCTOR);
00186   else
00187     upcall_functor_ = upcall_functor;
00188 }

template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::~ACE_Timer_Queue_T (  void   )  [virtual]


Destructor - make virtual for proper destruction of inherited classes.

Definition at line 191 of file Timer_Queue_T.cpp.

References ACE_TRACE, ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::delete_free_list_, ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::delete_upcall_functor_, and ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::upcall_functor_.

00192 {
00193   ACE_TRACE ("ACE_Timer_Queue_T::~ACE_Timer_Queue_T");
00194
00195   // Cleanup the functor and free_list on the way out
00196   if (this->delete_upcall_functor_)
00197     delete this->upcall_functor_;
00198
00199   if (this->delete_free_list_)
00200     delete this->free_list_;
00201 }

template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::ACE_Timer_Queue_T (  const ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK > &   )  [private]


Member Function Documentation

template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_Timer_Node_T< TYPE > * ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::alloc_node (  void   )  [protected, virtual]


Factory method that allocates a new node.

Reimplemented in ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK >.

Definition at line 204 of file Timer_Queue_T.cpp.

References ACE_Free_List< ACE_Timer_Node_T< TYPE > >::remove().

Referenced by ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::schedule_i(), and ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >::schedule_i().

00205 {
00206   return this->free_list_->remove ();
00207 }

template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_Time_Value * ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::calculate_timeout (  ACE_Time_Value *  max,
ACE_Time_Value *  the_timeout
)  [virtual]


Determine the next event to timeout. Returns max if there are no pending timers or if all pending timers are longer than max. should be a pointer to storage for the timeout value, and this value is also returned. This method does not acquire a lock internally since it doesn't modify internal state. If you need to call this method when the queue is being modified concurrently, however, you should make sure to acquire the <mutex()> externally before making the call.

Definition at line 113 of file Timer_Queue_T.cpp.

References ACE_TRACE, ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::earliest_time(), ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::gettimeofday(), and ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::is_empty().

00115 {
00116   ACE_TRACE ("ACE_Timer_Queue_T::calculate_timeout");
00117
00118   if (the_timeout == 0)
00119     return 0;
00120
00121   if (this->is_empty ())
00122     {
00123       // Nothing on the Timer_Queue, so use whatever the caller gave us.
00124       if (max_wait_time)
00125         *the_timeout = *max_wait_time;
00126       else
00127         return 0;
00128     }
00129   else
00130     {
00131       ACE_Time_Value cur_time = this->gettimeofday ();
00132
00133       if (this->earliest_time () > cur_time)
00134         {
00135           // The earliest item on the Timer_Queue is still in the
00136           // future.  Therefore, use the smaller of (1) caller's wait
00137           // time or (2) the delta time between now and the earliest
00138           // time on the Timer_Queue.
00139
00140           *the_timeout = this->earliest_time () - cur_time;
00141           if (!(max_wait_time == 0 || *max_wait_time > *the_timeout))
00142             *the_timeout = *max_wait_time;
00143         }
00144       else
00145         {
00146           // The earliest item on the Timer_Queue is now in the past.
00147           // Therefore, we've got to "poll" the Reactor, i.e., it must
00148           // just check the descriptors and then dispatch timers, etc.
00149           *the_timeout = ACE_Time_Value::zero;
00150         }
00151     }
00152   return the_timeout;
00153 }

template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_Time_Value * ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::calculate_timeout (  ACE_Time_Value *  max  )  [virtual]


Determine the next event to timeout. Returns max if there are no pending timers or if all pending timers are longer than max. This method acquires a lock internally since it modifies internal state.

Definition at line 76 of file Timer_Queue_T.cpp.

References ACE_GUARD_RETURN, ACE_TRACE, ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::earliest_time(), ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::gettimeofday(), and ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::is_empty().

00077 {
00078   ACE_TRACE ("ACE_Timer_Queue_T::calculate_timeout");
00079   ACE_MT (ACE_GUARD_RETURN (ACE_LOCK, ace_mon, this->mutex_, max_wait_time));
00080
00081   if (this->is_empty ())
00082     // Nothing on the Timer_Queue, so use whatever the caller gave us.
00083     return max_wait_time;
00084   else
00085     {
00086       ACE_Time_Value const cur_time = this->gettimeofday ();
00087
00088       if (this->earliest_time () > cur_time)
00089         {
00090           // The earliest item on the Timer_Queue is still in the
00091           // future.  Therefore, use the smaller of (1) caller's wait
00092           // time or (2) the delta time between now and the earliest
00093           // time on the Timer_Queue.
00094
00095           this->timeout_ = this->earliest_time () - cur_time;
00096           if (max_wait_time == 0 || *max_wait_time > timeout_)
00097             return &this->timeout_;
00098           else
00099             return max_wait_time;
00100         }
00101       else
00102         {
00103           // The earliest item on the Timer_Queue is now in the past.
00104           // Therefore, we've got to "poll" the Reactor, i.e., it must
00105           // just check the descriptors and then dispatch timers, etc.
00106           this->timeout_ = ACE_Time_Value::zero;
00107           return &this->timeout_;
00108         }
00109     }
00110 }

template<class TYPE, class FUNCTOR, class ACE_LOCK>
virtual int ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::cancel (  long  timer_id,
const void **  act = 0,
int  dont_call_handle_close = 1
)  [pure virtual]


Cancel the single timer that matches the value (which was returned from the method). If act is non-NULL then it will be set to point to the ``magic cookie'' argument passed in when the timer was registered. This makes it possible to free up the memory and avoid memory leaks. If is 0 then the will be invoked, which typically calls the hook. Returns 1 if cancellation succeeded and 0 if the wasn't found.

Implemented in ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >, ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK >, ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >, and ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
virtual int ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::cancel (  const TYPE &  type,
int  dont_call_handle_close = 1
)  [pure virtual]


Cancel all timer associated with . If is 0 then the will be invoked, which typically invokes the hook. Returns number of timers cancelled.

Implemented in ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >, ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK >, ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >, and ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >.

Referenced by ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >::cancel_timer().

template<class TYPE, class FUNCTOR, class ACE_LOCK>
int ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::dispatch_info (  const ACE_Time_Value &  current_time,
ACE_Timer_Node_Dispatch_Info_T< TYPE > &  info
)  [virtual]


Get the dispatch information for a timer whose value is <= . This does not account for . Returns 1 if there is a node whose value <= else returns a 0.

Definition at line 157 of file Timer_Queue_T.inl.

References ACE_GUARD_RETURN, ACE_TRACE, and ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::dispatch_info_i().

Referenced by ACE_TP_Reactor::handle_timer_events().

00159 {
00160   ACE_TRACE ("ACE_Timer_Queue_T::dispatch_info");
00161   ACE_MT (ACE_GUARD_RETURN (ACE_LOCK, ace_mon, this->mutex_, 0));
00162
00163   return this->dispatch_info_i (cur_time, info);
00164 }

template<class TYPE, class FUNCTOR, class ACE_LOCK>
int ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::dispatch_info_i (  const ACE_Time_Value &  current_time,
ACE_Timer_Node_Dispatch_Info_T< TYPE > &  info
)  [protected, virtual]


Non-locking version of dispatch_info ().

Reimplemented in ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >.

Definition at line 288 of file Timer_Queue_T.cpp.

References ACE_TRACE, ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::earliest_time(), ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::free_node(), ACE_Timer_Node_T< TYPE >::get_dispatch_info(), ACE_Timer_Node_T< TYPE >::get_interval(), ACE_Timer_Node_T< TYPE >::get_timer_value(), ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::is_empty(), ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::remove_first(), ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::reschedule(), and ACE_Timer_Node_T< TYPE >::set_timer_value().

Referenced by ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::dispatch_info(), ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::dispatch_info_i(), and ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::expire().

00290 {
00291   ACE_TRACE ("ACE_Timer_Queue_T::dispatch_info_i");
00292
00293   if (this->is_empty ())
00294     return 0;
00295
00296   ACE_Timer_Node_T<TYPE> *expired = 0;
00297
00298   if (this->earliest_time () <= cur_time)
00299     {
00300       expired = this->remove_first ();
00301
00302       // Get the dispatch info
00303       expired->get_dispatch_info (info);
00304
00305       // Check if this is an interval timer.
00306       if (expired->get_interval () > ACE_Time_Value::zero)
00307         {
00308           // Make sure that we skip past values that have already
00309           // "expired".
00310           do
00311             expired->set_timer_value (expired->get_timer_value () +
00312                                       expired->get_interval ());
00313           while (expired->get_timer_value () <= cur_time);
00314
00315           // Since this is an interval timer, we need to reschedule
00316           // it.
00317           this->reschedule (expired);
00318         }
00319       else
00320         {
00321           // Call the factory method to free up the node.
00322           this->free_node (expired);
00323         }
00324
00325       return 1;
00326     }
00327
00328   return 0;
00329 }

template<class TYPE, class FUNCTOR, class ACE_LOCK>
void ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::dump (  void   )  const [virtual]


Dump the state of a object.

Reimplemented in ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >, ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK >, ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >, and ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >.

Definition at line 156 of file Timer_Queue_T.cpp.

References ACE_BEGIN_DUMP, ACE_DEBUG, ACE_END_DUMP, ACE_TRACE, ACE_Time_Value::dump(), LM_DEBUG, and ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::timer_skew_.

Referenced by ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >::dump().

00157 {
00158 #if defined (ACE_HAS_DUMP)
00159   ACE_TRACE ("ACE_Timer_Queue_T::dump");
00160   ACE_DEBUG ((LM_DEBUG, ACE_BEGIN_DUMP, this));
00161   this->timeout_.dump ();
00162   this->timer_skew_.dump ();
00163   ACE_DEBUG ((LM_DEBUG, ACE_END_DUMP));
00164 #endif /* ACE_HAS_DUMP */
00165 }

template<class TYPE, class FUNCTOR, class ACE_LOCK>
virtual const ACE_Time_Value& ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::earliest_time (  void   )  const [pure virtual]


Returns the time of the earlier node in the Timer_Queue. Must be called on a non-empty queue.

Implemented in ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >, ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK >, ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >, and ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >.

Referenced by ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::calculate_timeout(), and ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::dispatch_info_i().

template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_INLINE int ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::expire (  void   )


Run the for all timers whose values are <= <ACE_OS::gettimeofday>. Also accounts for .

Depending on the resolution of the underlying OS the system calls like select()/poll() might return at time different than that is specified in the timeout. Suppose the OS guarantees a resolution of t ms. The timeline will look like

A B | | V V |-------------|-------------|-------------|-------------| t t t t t

If you specify a timeout value of A, then the timeout will not occur at A but at the next interval of the timer, which is later than that is expected. Similarly, if your timeout value is equal to B, then the timeout will occur at interval after B. Now depending upon the resolution of your timeouts and the accuracy of the timeouts needed for your application, you should set the value of . In the above case, if you want the timeout A to fire no later than A, then you should specify your to be A t.

The timeout value should be specified via the macro ACE_TIMER_SKEW in your config.h file. The default value is zero.

Things get interesting if the t before the timeout value B is zero i.e your timeout is less than the interval. In that case, you are almost sure of not getting the desired timeout behaviour. Maybe you should look for a better OS :-)

Returns the number of timers canceled.

Reimplemented in ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >, and ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >.

Definition at line 148 of file Timer_Queue_T.inl.

References ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::is_empty(), and ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::timer_skew_.

Referenced by ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::expire(), and ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::expire().

00149 {
00150   if (!this->is_empty ())
00151     return this->expire (this->gettimeofday () + timer_skew_);
00152   else
00153     return 0;
00154 }

template<class TYPE, class FUNCTOR, class ACE_LOCK>
int ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::expire (  const ACE_Time_Value &  current_time  )  [virtual]


Run the for all timers whose values are <= . This does not account for . Returns the number of timers canceled.

Reimplemented in ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >, and ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >.

Definition at line 252 of file Timer_Queue_T.cpp.

References ACE_GUARD_RETURN, ACE_TRACE, ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::dispatch_info_i(), ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::is_empty(), ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::postinvoke(), ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::preinvoke(), and ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::upcall().

00253 {
00254   ACE_TRACE ("ACE_Timer_Queue_T::expire");
00255   ACE_MT (ACE_GUARD_RETURN (ACE_LOCK, ace_mon, this->mutex_, -1));
00256
00257   // Keep looping while there are timers remaining and the earliest
00258   // timer is <= the <cur_time> passed in to the method.
00259
00260   if (this->is_empty ())
00261     return 0;
00262
00263   int number_of_timers_expired = 0;
00264   int result = 0;
00265
00266   ACE_Timer_Node_Dispatch_Info_T<TYPE> info;
00267
00268   while ((result = this->dispatch_info_i (cur_time,
00269                                           info)) != 0)
00270     {
00271       const void *upcall_act = 0;
00272
00273       this->preinvoke (info, cur_time, upcall_act);
00274
00275       this->upcall (info, cur_time);
00276
00277       this->postinvoke (info, cur_time, upcall_act);
00278
00279       ++number_of_timers_expired;
00280
00281     }
00282
00283   ACE_UNUSED_ARG (result);
00284   return number_of_timers_expired;
00285 }

template<class TYPE, class FUNCTOR, class ACE_LOCK>
void ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::free_node (  ACE_Timer_Node_T< TYPE > *   )  [protected, virtual]


Factory method that frees a previously allocated node.

Reimplemented in ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK >.

Definition at line 210 of file Timer_Queue_T.cpp.

References ACE_Free_List< ACE_Timer_Node_T< TYPE > >::add().

Referenced by ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::cancel_i(), ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >::cancel_i(), ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::dispatch_info_i(), ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::expire(), ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::return_node(), ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >::~ACE_Timer_List_T(), and ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::~ACE_Timer_Wheel_T().

00211 {
00212   this->free_list_->add (node);
00213 }

template<class TYPE, class FUNCTOR, class ACE_LOCK>
virtual ACE_Timer_Node_T<TYPE>* ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::get_first (  void   )  [pure virtual]


Reads the earliest node from the queue and returns it.

Implemented in ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >, ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK >, ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >, and ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_INLINE void ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::gettimeofday (  ACE_Time_Value(*  gettimeofday)(void)  )


Allows applications to control how the timer queue gets the time of day.

Definition at line 211 of file Timer_Queue_T.inl.

References ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::gettimeofday_.

00212 {
00213   this->gettimeofday_ = gettimeofday;
00214 }

template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_INLINE ACE_Time_Value ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::gettimeofday (  void   )


Returns the current time of day. This method allows different implementations of the timer queue to use special high resolution timers.

Definition at line 204 of file Timer_Queue_T.inl.

References ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::gettimeofday_.

Referenced by ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::ACE_Timer_Hash_T(), and ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::calculate_timeout().

00205 {
00206   // Invoke gettimeofday via pointer to function.
00207   return this->gettimeofday_ ();
00208 }

template<class TYPE, class FUNCTOR, class ACE_LOCK>
virtual int ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::is_empty (  void   )  const [pure virtual]


True if queue is empty, else false.

Implemented in ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >, ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK >, ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >, and ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >.

Referenced by ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::calculate_timeout(), ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::dispatch_info_i(), ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::expire(), and ACE_TP_Reactor::handle_timer_events().

template<class TYPE, class FUNCTOR, class ACE_LOCK>
virtual ITERATOR& ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::iter (  void   )  [pure virtual]


Returns a pointer to this ACE_Timer_Queue's iterator.

Implemented in ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >, ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK >, ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >, and ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_LOCK & ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::mutex (  void   )


Synchronization variable used by the queue.

Definition at line 216 of file Timer_Queue_T.cpp.

00217 {
00218   return this->mutex_;
00219 }

template<class TYPE, class FUNCTOR, class ACE_LOCK>
void ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::operator= (  const ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK > &   )  [private]


template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_INLINE void ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::postinvoke (  ACE_Timer_Node_Dispatch_Info_T< TYPE > &  info,
const ACE_Time_Value &  cur_time,
const void *  upcall_act
)


This method will call the postinvoke() on .

Definition at line 191 of file Timer_Queue_T.inl.

References ACE_Timer_Node_Dispatch_Info_T< TYPE >::act_, ACE_Timer_Node_Dispatch_Info_T< TYPE >::recurring_timer_, ACE_Timer_Node_Dispatch_Info_T< TYPE >::type_, and ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::upcall_functor().

Referenced by ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::expire(), ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::expire(), ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::expire(), and ACE_TP_Reactor::handle_timer_events().

00194 {
00195   this->upcall_functor ().postinvoke (*this,
00196                                       info.type_,
00197                                       info.act_,
00198                                       info.recurring_timer_,
00199                                       cur_time,
00200                                       upcall_act);
00201 }

template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_INLINE void ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::preinvoke (  ACE_Timer_Node_Dispatch_Info_T< TYPE > &  info,
const ACE_Time_Value &  cur_time,
const void *&  upcall_act
)


This method will call the preinvoke() on .

Definition at line 178 of file Timer_Queue_T.inl.

References ACE_Timer_Node_Dispatch_Info_T< TYPE >::act_, ACE_Timer_Node_Dispatch_Info_T< TYPE >::recurring_timer_, ACE_Timer_Node_Dispatch_Info_T< TYPE >::type_, and ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::upcall_functor().

Referenced by ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::expire(), ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::expire(), ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::expire(), and ACE_TP_Reactor::handle_timer_events().

00181 {
00182   this->upcall_functor ().preinvoke (*this,
00183                                      info.type_,
00184                                      info.act_,
00185                                      info.recurring_timer_,
00186                                      cur_time,
00187                                      upcall_act);
00188 }

template<class TYPE, class FUNCTOR, class ACE_LOCK>
virtual ACE_Timer_Node_T<TYPE>* ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::remove_first (  void   )  [pure virtual]


Removes the earliest node from the queue and returns it.

Implemented in ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >, ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK >, ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >, and ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >.

Referenced by ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::dispatch_info_i().

template<class TYPE, class FUNCTOR, class ACE_LOCK>
virtual void ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::reschedule (  ACE_Timer_Node_T< TYPE > *   )  [protected, pure virtual]


Reschedule an "interval" ACE_Timer_Node.

Implemented in ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >, ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK >, ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >, and ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >.

Referenced by ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::dispatch_info_i().

template<class TYPE, class FUNCTOR, class ACE_LOCK>
virtual int ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::reset_interval (  long  timer_id,
const ACE_Time_Value &  interval
)  [pure virtual]


Resets the interval of the timer represented by to , which is specified in relative time to the current . If is equal to <ACE_Time_Value::zero>, the timer will become a non-rescheduling timer. Returns 0 if successful, -1 if not.

Implemented in ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >, ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK >, ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >, and ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
void ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::return_node (  ACE_Timer_Node_T< TYPE > *   )  [virtual]


Method used to return a timer node to the queue's ownership after it is returned by a method like .

Definition at line 332 of file Timer_Queue_T.cpp.

References ACE_GUARD, and ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::free_node().

00333 {
00334   ACE_MT (ACE_GUARD (ACE_LOCK, ace_mon, this->mutex_));
00335   this->free_node (node);
00336 }

template<class TYPE, class FUNCTOR, class ACE_LOCK>
long ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::schedule (  const TYPE &  type,
const void *  act,
const ACE_Time_Value &  future_time,
const ACE_Time_Value &  interval = ACE_Time_Value::zero
)  [virtual]


Schedule that will expire at , which is specified in absolute time. If it expires then is passed in as the value to the . If is != to <ACE_Time_Value::zero> then it is used to reschedule the automatically, using relative time to the current . This method returns a that uniquely identifies the the entry in an internal list. This can be used to cancel the timer before it expires. The cancellation ensures that are unique up to values of greater than 2 billion timers. As long as timers don't stay around longer than this there should be no problems with accidentally deleting the wrong timer. Returns -1 on failure (which is guaranteed never to be a valid ).

Definition at line 222 of file Timer_Queue_T.cpp.

References ACE_GUARD_RETURN, ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::schedule_i(), and ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::upcall_functor().

00226 {
00227   ACE_MT (ACE_GUARD_RETURN (ACE_LOCK, ace_mon, this->mutex_, -1));
00228
00229   // Schedule the timer.
00230   long const result =
00231     this->schedule_i (type,
00232                       act,
00233                       future_time,
00234                       interval);
00235
00236   // Return on failure.
00237   if (result == -1)
00238     return result;
00239
00240   // Inform upcall functor of successful registration.
00241   this->upcall_functor ().registration (*this,
00242                                         type,
00243                                         act);
00244
00245   // Return result;
00246   return result;
00247 }

template<class TYPE, class FUNCTOR, class ACE_LOCK>
virtual long ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::schedule_i (  const TYPE &  type,
const void *  act,
const ACE_Time_Value &  future_time,
const ACE_Time_Value &  interval
)  [protected, pure virtual]


Schedule a timer.

Implemented in ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >, ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK >, ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >, and ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >.

Referenced by ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::schedule().

template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_INLINE const ACE_Time_Value & ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::timer_skew (  void   )  const


Get the timer skew for the Timer_Queue.

Definition at line 142 of file Timer_Queue_T.inl.

References ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::timer_skew_.

00143 {
00144   return timer_skew_;
00145 }

template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_INLINE void ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::timer_skew (  const ACE_Time_Value &  skew  )


Set the timer skew for the Timer_Queue.

Definition at line 136 of file Timer_Queue_T.inl.

References ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::timer_skew_.

Referenced by ACE_TP_Reactor::handle_timer_events().

00137 {
00138   timer_skew_ = skew;
00139 }

template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_INLINE void ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::upcall (  ACE_Timer_Node_Dispatch_Info_T< TYPE > &  info,
const ACE_Time_Value &  cur_time
)


This method will call the timeout() on .

Definition at line 167 of file Timer_Queue_T.inl.

References ACE_Timer_Node_Dispatch_Info_T< TYPE >::act_, ACE_Timer_Node_Dispatch_Info_T< TYPE >::recurring_timer_, ACE_Timer_Node_Dispatch_Info_T< TYPE >::type_, and ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::upcall_functor().

Referenced by ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::expire(), ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::expire(), ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::expire(), and ACE_TP_Reactor::handle_timer_events().

00169 {
00170   this->upcall_functor ().timeout (*this,
00171                                    info.type_,
00172                                    info.act_,
00173                                    info.recurring_timer_,
00174                                    cur_time);
00175 }

template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_INLINE FUNCTOR & ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::upcall_functor (  void   )


Accessor to the upcall functor.

Definition at line 217 of file Timer_Queue_T.inl.

References ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::upcall_functor_.

Referenced by ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::cancel(), ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >::cancel(), ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK >::cancel(), ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::cancel(), ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::postinvoke(), ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::preinvoke(), ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::schedule(), ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::upcall(), ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK >::~ACE_Timer_Heap_T(), ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >::~ACE_Timer_List_T(), and ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >::~ACE_Timer_Wheel_T().

00218 {
00219   return *this->upcall_functor_;
00220 }

Member Data Documentation

template<class TYPE, class FUNCTOR, class ACE_LOCK>
int ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::delete_free_list_ [protected]


Flag to delete only if the class created the .

Definition at line 451 of file Timer_Queue_T.h.

Referenced by ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::~ACE_Timer_Queue_T().

template<class TYPE, class FUNCTOR, class ACE_LOCK>
int ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::delete_upcall_functor_ [protected]


To delete or not to delete is the question?

Definition at line 448 of file Timer_Queue_T.h.

Referenced by ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::~ACE_Timer_Queue_T().

template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_Free_List<ACE_Timer_Node_T<TYPE> >* ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::free_list_ [protected]


Class that implements a free list.

Definition at line 439 of file Timer_Queue_T.h.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_Time_Value(* ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::gettimeofday_)(void) [protected]


Pointer to function that returns the current time of day.

Referenced by ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::gettimeofday().

template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_LOCK ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::mutex_ [protected]


Synchronization variable for ACE_Timer_Queue.

Note:
The right name would be lock_, but HP/C++ will choke on that!

Definition at line 436 of file Timer_Queue_T.h.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_Time_Value ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::timeout_ [private]


Returned by .

Definition at line 456 of file Timer_Queue_T.h.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_Time_Value ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::timer_skew_ [private]


Adjusts for timer skew in various clocks.

Definition at line 459 of file Timer_Queue_T.h.

Referenced by ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::dump(), ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::expire(), and ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::timer_skew().

template<class TYPE, class FUNCTOR, class ACE_LOCK>
FUNCTOR* ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::upcall_functor_ [protected]


Upcall functor.

Definition at line 445 of file Timer_Queue_T.h.

Referenced by ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::ACE_Timer_Queue_T(), ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::upcall_functor(), and ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::~ACE_Timer_Queue_T().

The documentation for this class was generated from the following files:
Generated on Sun Jan 27 12:58:58 2008 for ACE by doxygen 1.3.6
