TAO_EC_Factory Class Reference

Abstract base class for the Event Channel components. More...

#include <EC_Factory.h>

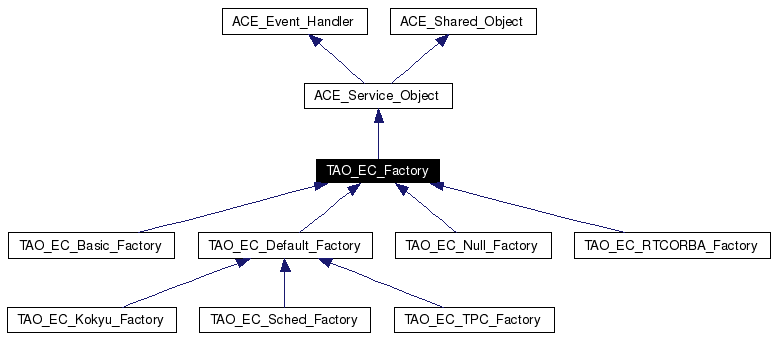

Inheritance diagram for TAO_EC_Factory:

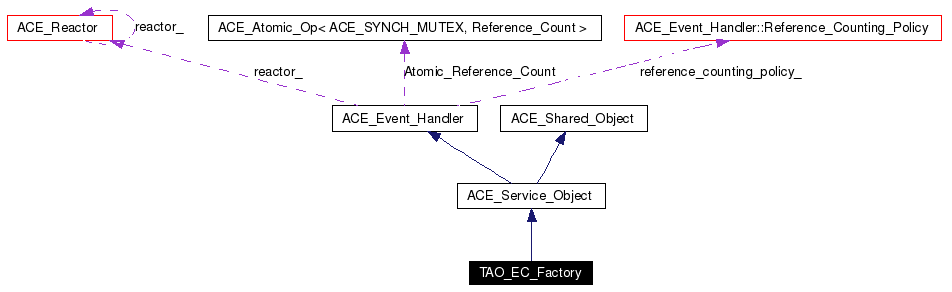

[legend]Collaboration diagram for TAO_EC_Factory:

[legend]List of all members.

Public Member Functions
virtual	~TAO_EC_Factory (void)
	destructor...
virtual TAO_EC_Dispatching *	create_dispatching (TAO_EC_Event_Channel_Base *)=0
	Create and destroy the dispatching module.
virtual void	destroy_dispatching (TAO_EC_Dispatching *)=0
virtual TAO_EC_Filter_Builder *	create_filter_builder (TAO_EC_Event_Channel_Base *)=0
	Create and destroy the filter builder.
virtual void	destroy_filter_builder (TAO_EC_Filter_Builder *)=0
virtual TAO_EC_Supplier_Filter_Builder *	create_supplier_filter_builder (TAO_EC_Event_Channel_Base *)=0
	Create and destroy the filter builder.
virtual void	destroy_supplier_filter_builder (TAO_EC_Supplier_Filter_Builder *)=0
virtual TAO_EC_ConsumerAdmin *	create_consumer_admin (TAO_EC_Event_Channel_Base *)=0
	Create and destroy the consumer admin implementation.
virtual void	destroy_consumer_admin (TAO_EC_ConsumerAdmin *)=0
virtual TAO_EC_SupplierAdmin *	create_supplier_admin (TAO_EC_Event_Channel_Base *)=0
	Create and destroy the supplier admin implementation.
virtual void	destroy_supplier_admin (TAO_EC_SupplierAdmin *)=0
virtual TAO_EC_ProxyPushSupplier *	create_proxy_push_supplier (TAO_EC_Event_Channel_Base *)=0
	Create and destroy a ProxyPushSupplier.
virtual void	destroy_proxy_push_supplier (TAO_EC_ProxyPushSupplier *)=0
virtual TAO_EC_ProxyPushConsumer *	create_proxy_push_consumer (TAO_EC_Event_Channel_Base *)=0
	Create and destroy a ProxyPushConsumer.
virtual void	destroy_proxy_push_consumer (TAO_EC_ProxyPushConsumer *)=0
virtual TAO_EC_Timeout_Generator *	create_timeout_generator (TAO_EC_Event_Channel_Base *)=0
	Create and destroy the timer module.
virtual void	destroy_timeout_generator (TAO_EC_Timeout_Generator *)=0
virtual TAO_EC_ObserverStrategy *	create_observer_strategy (TAO_EC_Event_Channel_Base *)=0
	Create and destroy the observer strategy.
virtual void	destroy_observer_strategy (TAO_EC_ObserverStrategy *)=0
virtual TAO_EC_Scheduling_Strategy *	create_scheduling_strategy (TAO_EC_Event_Channel_Base *)=0
	Create and destroy the observer strategy.
virtual void	destroy_scheduling_strategy (TAO_EC_Scheduling_Strategy *)=0
virtual TAO_EC_ProxyPushConsumer_Collection *	create_proxy_push_consumer_collection (TAO_EC_Event_Channel_Base *)=0
	Create and destroy a collection of TAO_EC_ProxyPushConsumers.
virtual void	destroy_proxy_push_consumer_collection (TAO_EC_ProxyPushConsumer_Collection *)=0
virtual TAO_EC_ProxyPushSupplier_Collection *	create_proxy_push_supplier_collection (TAO_EC_Event_Channel_Base *)=0
	Create and destroy a collection of TAO_EC_ProxyPushSuppliers.
virtual void	destroy_proxy_push_supplier_collection (TAO_EC_ProxyPushSupplier_Collection *)=0
virtual ACE_Lock *	create_consumer_lock (void)=0
virtual void	destroy_consumer_lock (ACE_Lock *)=0
virtual ACE_Lock *	create_supplier_lock (void)=0
virtual void	destroy_supplier_lock (ACE_Lock *)=0
virtual TAO_EC_ConsumerControl *	create_consumer_control (TAO_EC_Event_Channel_Base *)=0
virtual void	destroy_consumer_control (TAO_EC_ConsumerControl *)=0
virtual TAO_EC_SupplierControl *	create_supplier_control (TAO_EC_Event_Channel_Base *)=0
virtual void	destroy_supplier_control (TAO_EC_SupplierControl *)=0

---

Detailed Description

Abstract base class for the Event Channel components.

Defines the EC_Factory interface.

Memory Management

The objects it creates are owned by this class, the client must invoke the corresponding destroy() method to release them. Some implementations may require a different instance for the EC_Factory for each instance of Event_Channel.

Definition at line 68 of file EC_Factory.h.

---

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_EC_Factory::~TAO_EC_Factory (  void   )  [virtual]

destructor... Definition at line 10 of file EC_Factory.cpp. { }

---

Member Function Documentation

virtual TAO_EC_ConsumerAdmin* TAO_EC_Factory::create_consumer_admin (  TAO_EC_Event_Channel_Base *   )  [pure virtual]

Create and destroy the consumer admin implementation. Implemented in TAO_EC_Basic_Factory, TAO_EC_Default_Factory, TAO_EC_Null_Factory, and TAO_EC_RTCORBA_Factory. Referenced by TAO_EC_RTCORBA_Factory::create_consumer_admin(), and TAO_EC_Event_Channel_Base::create_strategies().

virtual TAO_EC_ConsumerControl* TAO_EC_Factory::create_consumer_control (  TAO_EC_Event_Channel_Base *   )  [pure virtual]

The ConsumerControl and SupplierControl strategies are used to discard non-existent consumers and suppliers Implemented in TAO_EC_Basic_Factory, TAO_EC_Default_Factory, TAO_EC_Null_Factory, and TAO_EC_RTCORBA_Factory. Referenced by TAO_EC_RTCORBA_Factory::create_consumer_control(), and TAO_EC_Event_Channel_Base::create_strategies().

virtual ACE_Lock* TAO_EC_Factory::create_consumer_lock (  void   )  [pure virtual]

Create and destroy the locking strategies for both ProxyPushConsumers and ProxyPushSuppliers Implemented in TAO_EC_Basic_Factory, TAO_EC_Default_Factory, TAO_EC_Null_Factory, and TAO_EC_RTCORBA_Factory. Referenced by TAO_EC_RTCORBA_Factory::create_consumer_lock(), and TAO_EC_Event_Channel_Base::create_consumer_lock().

virtual TAO_EC_Dispatching* TAO_EC_Factory::create_dispatching (  TAO_EC_Event_Channel_Base *   )  [pure virtual]

Create and destroy the dispatching module. Implemented in TAO_EC_Basic_Factory, TAO_EC_Default_Factory, TAO_EC_Kokyu_Factory, TAO_EC_Null_Factory, TAO_EC_RTCORBA_Factory, TAO_EC_Sched_Factory, and TAO_EC_TPC_Factory. Referenced by TAO_EC_Event_Channel_Base::create_strategies().

virtual TAO_EC_Filter_Builder* TAO_EC_Factory::create_filter_builder (  TAO_EC_Event_Channel_Base *   )  [pure virtual]

Create and destroy the filter builder. Implemented in TAO_EC_Basic_Factory, TAO_EC_Default_Factory, TAO_EC_Kokyu_Factory, TAO_EC_Null_Factory, TAO_EC_RTCORBA_Factory, and TAO_EC_Sched_Factory. Referenced by TAO_EC_RTCORBA_Factory::create_filter_builder(), and TAO_EC_Event_Channel_Base::create_strategies().

virtual TAO_EC_ObserverStrategy* TAO_EC_Factory::create_observer_strategy (  TAO_EC_Event_Channel_Base *   )  [pure virtual]

Create and destroy the observer strategy. Implemented in TAO_EC_Basic_Factory, TAO_EC_Default_Factory, TAO_EC_Null_Factory, and TAO_EC_RTCORBA_Factory. Referenced by TAO_EC_RTCORBA_Factory::create_observer_strategy(), and TAO_EC_Event_Channel_Base::create_strategies().

virtual TAO_EC_ProxyPushConsumer* TAO_EC_Factory::create_proxy_push_consumer (  TAO_EC_Event_Channel_Base *   )  [pure virtual]

Create and destroy a ProxyPushConsumer. Implemented in TAO_EC_Basic_Factory, TAO_EC_Default_Factory, TAO_EC_Null_Factory, TAO_EC_RTCORBA_Factory, and TAO_EC_TPC_Factory. Referenced by TAO_EC_Event_Channel_Base::create_proxy(), and TAO_EC_RTCORBA_Factory::create_proxy_push_consumer().

virtual TAO_EC_ProxyPushConsumer_Collection* TAO_EC_Factory::create_proxy_push_consumer_collection (  TAO_EC_Event_Channel_Base *   )  [pure virtual]

Create and destroy a collection of TAO_EC_ProxyPushConsumers. Implemented in TAO_EC_Basic_Factory, TAO_EC_Default_Factory, TAO_EC_Null_Factory, and TAO_EC_RTCORBA_Factory. Referenced by TAO_EC_Event_Channel_Base::create_proxy_collection(), and TAO_EC_RTCORBA_Factory::create_proxy_push_consumer_collection().

virtual TAO_EC_ProxyPushSupplier* TAO_EC_Factory::create_proxy_push_supplier (  TAO_EC_Event_Channel_Base *   )  [pure virtual]

Create and destroy a ProxyPushSupplier. Implemented in TAO_EC_Basic_Factory, TAO_EC_Default_Factory, TAO_EC_Null_Factory, TAO_EC_RTCORBA_Factory, and TAO_EC_TPC_Factory. Referenced by TAO_EC_Event_Channel_Base::create_proxy(), and TAO_EC_RTCORBA_Factory::create_proxy_push_supplier().

virtual TAO_EC_ProxyPushSupplier_Collection* TAO_EC_Factory::create_proxy_push_supplier_collection (  TAO_EC_Event_Channel_Base *   )  [pure virtual]

Create and destroy a collection of TAO_EC_ProxyPushSuppliers. Implemented in TAO_EC_Basic_Factory, TAO_EC_Default_Factory, TAO_EC_Null_Factory, and TAO_EC_RTCORBA_Factory. Referenced by TAO_EC_Event_Channel_Base::create_proxy_collection(), and TAO_EC_RTCORBA_Factory::create_proxy_push_supplier_collection().

virtual TAO_EC_Scheduling_Strategy* TAO_EC_Factory::create_scheduling_strategy (  TAO_EC_Event_Channel_Base *   )  [pure virtual]

Create and destroy the observer strategy. Implemented in TAO_EC_Basic_Factory, TAO_EC_Default_Factory, TAO_EC_Kokyu_Factory, TAO_EC_Null_Factory, TAO_EC_RTCORBA_Factory, and TAO_EC_Sched_Factory. Referenced by TAO_EC_RTCORBA_Factory::create_scheduling_strategy(), and TAO_EC_Event_Channel_Base::create_strategies().

virtual TAO_EC_SupplierAdmin* TAO_EC_Factory::create_supplier_admin (  TAO_EC_Event_Channel_Base *   )  [pure virtual]

Create and destroy the supplier admin implementation. Implemented in TAO_EC_Basic_Factory, TAO_EC_Default_Factory, TAO_EC_Null_Factory, and TAO_EC_RTCORBA_Factory. Referenced by TAO_EC_Event_Channel_Base::create_strategies(), and TAO_EC_RTCORBA_Factory::create_supplier_admin().

virtual TAO_EC_SupplierControl* TAO_EC_Factory::create_supplier_control (  TAO_EC_Event_Channel_Base *   )  [pure virtual]

Implemented in TAO_EC_Basic_Factory, TAO_EC_Default_Factory, TAO_EC_Null_Factory, and TAO_EC_RTCORBA_Factory. Referenced by TAO_EC_Event_Channel_Base::create_strategies(), and TAO_EC_RTCORBA_Factory::create_supplier_control().

virtual TAO_EC_Supplier_Filter_Builder* TAO_EC_Factory::create_supplier_filter_builder (  TAO_EC_Event_Channel_Base *   )  [pure virtual]

Create and destroy the filter builder. Implemented in TAO_EC_Basic_Factory, TAO_EC_Default_Factory, TAO_EC_Null_Factory, and TAO_EC_RTCORBA_Factory. Referenced by TAO_EC_Event_Channel_Base::create_strategies(), and TAO_EC_RTCORBA_Factory::create_supplier_filter_builder().

virtual ACE_Lock* TAO_EC_Factory::create_supplier_lock (  void   )  [pure virtual]

Implemented in TAO_EC_Basic_Factory, TAO_EC_Default_Factory, TAO_EC_Null_Factory, and TAO_EC_RTCORBA_Factory. Referenced by TAO_EC_RTCORBA_Factory::create_supplier_lock(), and TAO_EC_Event_Channel_Base::create_supplier_lock().

virtual TAO_EC_Timeout_Generator* TAO_EC_Factory::create_timeout_generator (  TAO_EC_Event_Channel_Base *   )  [pure virtual]

Create and destroy the timer module. Implemented in TAO_EC_Basic_Factory, TAO_EC_Default_Factory, TAO_EC_Kokyu_Factory, TAO_EC_Null_Factory, TAO_EC_RTCORBA_Factory, and TAO_EC_Sched_Factory. Referenced by TAO_EC_Event_Channel_Base::create_strategies(), and TAO_EC_RTCORBA_Factory::create_timeout_generator().

virtual void TAO_EC_Factory::destroy_consumer_admin (  TAO_EC_ConsumerAdmin *   )  [pure virtual]

Implemented in TAO_EC_Basic_Factory, TAO_EC_Default_Factory, TAO_EC_Null_Factory, and TAO_EC_RTCORBA_Factory. Referenced by TAO_EC_RTCORBA_Factory::destroy_consumer_admin(), and TAO_EC_Event_Channel_Base::~TAO_EC_Event_Channel_Base().

virtual void TAO_EC_Factory::destroy_consumer_control (  TAO_EC_ConsumerControl *   )  [pure virtual]

Implemented in TAO_EC_Basic_Factory, TAO_EC_Default_Factory, TAO_EC_Null_Factory, and TAO_EC_RTCORBA_Factory. Referenced by TAO_EC_RTCORBA_Factory::destroy_consumer_control(), and TAO_EC_Event_Channel_Base::~TAO_EC_Event_Channel_Base().

virtual void TAO_EC_Factory::destroy_consumer_lock (  ACE_Lock *   )  [pure virtual]

Implemented in TAO_EC_Basic_Factory, TAO_EC_Default_Factory, TAO_EC_Null_Factory, and TAO_EC_RTCORBA_Factory. Referenced by TAO_EC_RTCORBA_Factory::destroy_consumer_lock(), and TAO_EC_Event_Channel_Base::destroy_consumer_lock().

virtual void TAO_EC_Factory::destroy_dispatching (  TAO_EC_Dispatching *   )  [pure virtual]

Implemented in TAO_EC_Basic_Factory, TAO_EC_Default_Factory, TAO_EC_Null_Factory, and TAO_EC_RTCORBA_Factory. Referenced by TAO_EC_RTCORBA_Factory::destroy_dispatching(), and TAO_EC_Event_Channel_Base::~TAO_EC_Event_Channel_Base().

virtual void TAO_EC_Factory::destroy_filter_builder (  TAO_EC_Filter_Builder *   )  [pure virtual]

Implemented in TAO_EC_Basic_Factory, TAO_EC_Default_Factory, TAO_EC_Null_Factory, and TAO_EC_RTCORBA_Factory. Referenced by TAO_EC_RTCORBA_Factory::destroy_filter_builder(), and TAO_EC_Event_Channel_Base::~TAO_EC_Event_Channel_Base().

virtual void TAO_EC_Factory::destroy_observer_strategy (  TAO_EC_ObserverStrategy *   )  [pure virtual]

Implemented in TAO_EC_Basic_Factory, TAO_EC_Default_Factory, TAO_EC_Null_Factory, and TAO_EC_RTCORBA_Factory. Referenced by TAO_EC_RTCORBA_Factory::destroy_observer_strategy(), and TAO_EC_Event_Channel_Base::~TAO_EC_Event_Channel_Base().

virtual void TAO_EC_Factory::destroy_proxy_push_consumer (  TAO_EC_ProxyPushConsumer *   )  [pure virtual]

Implemented in TAO_EC_Basic_Factory, TAO_EC_Default_Factory, TAO_EC_Null_Factory, and TAO_EC_RTCORBA_Factory. Referenced by TAO_EC_Event_Channel_Base::destroy_proxy(), and TAO_EC_RTCORBA_Factory::destroy_proxy_push_consumer().

virtual void TAO_EC_Factory::destroy_proxy_push_consumer_collection (  TAO_EC_ProxyPushConsumer_Collection *   )  [pure virtual]

Implemented in TAO_EC_Basic_Factory, TAO_EC_Default_Factory, TAO_EC_Null_Factory, and TAO_EC_RTCORBA_Factory. Referenced by TAO_EC_Event_Channel_Base::destroy_proxy_collection(), and TAO_EC_RTCORBA_Factory::destroy_proxy_push_consumer_collection().

virtual void TAO_EC_Factory::destroy_proxy_push_supplier (  TAO_EC_ProxyPushSupplier *   )  [pure virtual]

Implemented in TAO_EC_Basic_Factory, TAO_EC_Default_Factory, TAO_EC_Null_Factory, and TAO_EC_RTCORBA_Factory. Referenced by TAO_EC_Event_Channel_Base::destroy_proxy(), and TAO_EC_RTCORBA_Factory::destroy_proxy_push_supplier().

virtual void TAO_EC_Factory::destroy_proxy_push_supplier_collection (  TAO_EC_ProxyPushSupplier_Collection *   )  [pure virtual]

Implemented in TAO_EC_Basic_Factory, TAO_EC_Default_Factory, TAO_EC_Null_Factory, and TAO_EC_RTCORBA_Factory. Referenced by TAO_EC_Event_Channel_Base::destroy_proxy_collection(), and TAO_EC_RTCORBA_Factory::destroy_proxy_push_supplier_collection().

virtual void TAO_EC_Factory::destroy_scheduling_strategy (  TAO_EC_Scheduling_Strategy *   )  [pure virtual]

Implemented in TAO_EC_Basic_Factory, TAO_EC_Default_Factory, TAO_EC_Null_Factory, and TAO_EC_RTCORBA_Factory. Referenced by TAO_EC_RTCORBA_Factory::destroy_scheduling_strategy(), and TAO_EC_Event_Channel_Base::~TAO_EC_Event_Channel_Base().

virtual void TAO_EC_Factory::destroy_supplier_admin (  TAO_EC_SupplierAdmin *   )  [pure virtual]

Implemented in TAO_EC_Basic_Factory, TAO_EC_Default_Factory, TAO_EC_Null_Factory, and TAO_EC_RTCORBA_Factory. Referenced by TAO_EC_RTCORBA_Factory::destroy_supplier_admin(), and TAO_EC_Event_Channel_Base::~TAO_EC_Event_Channel_Base().

virtual void TAO_EC_Factory::destroy_supplier_control (  TAO_EC_SupplierControl *   )  [pure virtual]

Implemented in TAO_EC_Basic_Factory, TAO_EC_Default_Factory, TAO_EC_Null_Factory, and TAO_EC_RTCORBA_Factory. Referenced by TAO_EC_RTCORBA_Factory::destroy_supplier_control(), and TAO_EC_Event_Channel_Base::~TAO_EC_Event_Channel_Base().

virtual void TAO_EC_Factory::destroy_supplier_filter_builder (  TAO_EC_Supplier_Filter_Builder *   )  [pure virtual]

Implemented in TAO_EC_Basic_Factory, TAO_EC_Default_Factory, TAO_EC_Null_Factory, and TAO_EC_RTCORBA_Factory. Referenced by TAO_EC_RTCORBA_Factory::destroy_supplier_filter_builder(), and TAO_EC_Event_Channel_Base::~TAO_EC_Event_Channel_Base().

virtual void TAO_EC_Factory::destroy_supplier_lock (  ACE_Lock *   )  [pure virtual]

Implemented in TAO_EC_Basic_Factory, TAO_EC_Default_Factory, TAO_EC_Null_Factory, and TAO_EC_RTCORBA_Factory. Referenced by TAO_EC_RTCORBA_Factory::destroy_supplier_lock(), and TAO_EC_Event_Channel_Base::destroy_supplier_lock().

virtual void TAO_EC_Factory::destroy_timeout_generator (  TAO_EC_Timeout_Generator *   )  [pure virtual]

Implemented in TAO_EC_Basic_Factory, TAO_EC_Default_Factory, TAO_EC_Null_Factory, and TAO_EC_RTCORBA_Factory. Referenced by TAO_EC_RTCORBA_Factory::destroy_timeout_generator(), and TAO_EC_Event_Channel_Base::~TAO_EC_Event_Channel_Base().

---

The documentation for this class was generated from the following files:

• EC_Factory.h
• EC_Factory.cpp

---
