TAO_EC_RTCORBA_Factory Class Reference

Decorate an EC_Factory to use the EC_RTCORBA_Dispatching module. More...

#include <EC_RTCORBA_Factory.h>

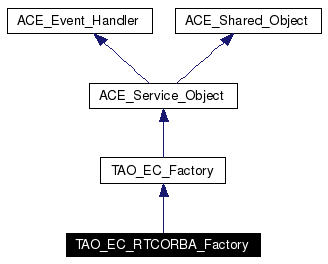

Inheritance diagram for TAO_EC_RTCORBA_Factory:

Inheritance graph
[legend]

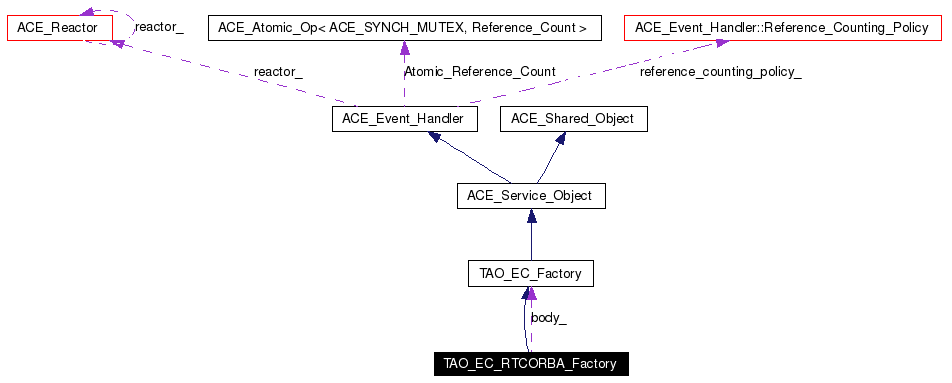

Collaboration diagram for TAO_EC_RTCORBA_Factory:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 TAO_EC_RTCORBA_Factory (TAO_EC_Factory *body, const RTCORBA::ThreadpoolLanes &lanes)
 Constructor.

virtual ~TAO_EC_RTCORBA_Factory (void)
 destructor...

virtual int init (int argc, char *argv[])
virtual int fini (void)
virtual TAO_EC_Dispatching * create_dispatching (TAO_EC_Event_Channel_Base *)
 Create and destroy the dispatching module.

virtual void destroy_dispatching (TAO_EC_Dispatching *)
virtual TAO_EC_Filter_Builder * create_filter_builder (TAO_EC_Event_Channel_Base *)
 Create and destroy the filter builder.

virtual void destroy_filter_builder (TAO_EC_Filter_Builder *)
virtual TAO_EC_Supplier_Filter_Builder * create_supplier_filter_builder (TAO_EC_Event_Channel_Base *)
 Create and destroy the filter builder.

virtual void destroy_supplier_filter_builder (TAO_EC_Supplier_Filter_Builder *)
virtual TAO_EC_ConsumerAdmin * create_consumer_admin (TAO_EC_Event_Channel_Base *)
 Create and destroy the consumer admin implementation.

virtual void destroy_consumer_admin (TAO_EC_ConsumerAdmin *)
virtual TAO_EC_SupplierAdmin * create_supplier_admin (TAO_EC_Event_Channel_Base *)
 Create and destroy the supplier admin implementation.

virtual void destroy_supplier_admin (TAO_EC_SupplierAdmin *)
virtual TAO_EC_ProxyPushSupplier * create_proxy_push_supplier (TAO_EC_Event_Channel_Base *)
 Create and destroy a ProxyPushSupplier.

virtual void destroy_proxy_push_supplier (TAO_EC_ProxyPushSupplier *)
virtual TAO_EC_ProxyPushConsumer * create_proxy_push_consumer (TAO_EC_Event_Channel_Base *)
 Create and destroy a ProxyPushConsumer.

virtual void destroy_proxy_push_consumer (TAO_EC_ProxyPushConsumer *)
virtual TAO_EC_Timeout_Generator * create_timeout_generator (TAO_EC_Event_Channel_Base *)
 Create and destroy the timer module.

virtual void destroy_timeout_generator (TAO_EC_Timeout_Generator *)
virtual TAO_EC_ObserverStrategy * create_observer_strategy (TAO_EC_Event_Channel_Base *)
 Create and destroy the observer strategy.

virtual void destroy_observer_strategy (TAO_EC_ObserverStrategy *)
virtual TAO_EC_Scheduling_Strategy * create_scheduling_strategy (TAO_EC_Event_Channel_Base *)
 Create and destroy the observer strategy.

virtual void destroy_scheduling_strategy (TAO_EC_Scheduling_Strategy *)
virtual TAO_EC_ProxyPushConsumer_Collection * create_proxy_push_consumer_collection (TAO_EC_Event_Channel_Base *)
 Create and destroy a collection of TAO_EC_ProxyPushConsumers.

virtual void destroy_proxy_push_consumer_collection (TAO_EC_ProxyPushConsumer_Collection *)
virtual TAO_EC_ProxyPushSupplier_Collection * create_proxy_push_supplier_collection (TAO_EC_Event_Channel_Base *)
 Create and destroy a collection of TAO_EC_ProxyPushSuppliers.

virtual void destroy_proxy_push_supplier_collection (TAO_EC_ProxyPushSupplier_Collection *)
virtual ACE_Lock * create_consumer_lock (void)
virtual void destroy_consumer_lock (ACE_Lock *)
virtual ACE_Lock * create_supplier_lock (void)
virtual void destroy_supplier_lock (ACE_Lock *)
virtual TAO_EC_ConsumerControl * create_consumer_control (TAO_EC_Event_Channel_Base *)
virtual void destroy_consumer_control (TAO_EC_ConsumerControl *)
virtual TAO_EC_SupplierControl * create_supplier_control (TAO_EC_Event_Channel_Base *)
virtual void destroy_supplier_control (TAO_EC_SupplierControl *)

Protected Attributes

TAO_EC_Factory * body_
 The decorated factory.

RTCORBA::ThreadpoolLanes lanes_
 Configure the thread pool lanes.

Detailed Description

Decorate an EC_Factory to use the EC_RTCORBA_Dispatching module.

Definition at line 35 of file EC_RTCORBA_Factory.h.

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_EC_RTCORBA_Factory::TAO_EC_RTCORBA_Factory (  TAO_EC_Factory *  body,
const RTCORBA::ThreadpoolLanes &  lanes
)


Constructor.

Parameters:
body The decorated factory.

Definition at line 13 of file EC_RTCORBA_Factory.cpp.

00015   : body_ (body)
00016   , lanes_ (lanes)
00017 {
00018 }

TAO_EC_RTCORBA_Factory::~TAO_EC_RTCORBA_Factory (  void   )  [virtual]


destructor...

Definition at line 20 of file EC_RTCORBA_Factory.cpp.

00021 {
00022 }

Member Function Documentation

TAO_EC_ConsumerAdmin * TAO_EC_RTCORBA_Factory::create_consumer_admin (  TAO_EC_Event_Channel_Base *   )  [virtual]


Create and destroy the consumer admin implementation.

Implements TAO_EC_Factory.

Definition at line 121 of file EC_RTCORBA_Factory.cpp.

References TAO_EC_Factory::create_consumer_admin().

00122 {
00123   return this->body_->create_consumer_admin (ec);
00124 }

TAO_EC_ConsumerControl * TAO_EC_RTCORBA_Factory::create_consumer_control (  TAO_EC_Event_Channel_Base *   )  [virtual]


The ConsumerControl and SupplierControl strategies are used to discard non-existent consumers and suppliers

Implements TAO_EC_Factory.

Definition at line 253 of file EC_RTCORBA_Factory.cpp.

References TAO_EC_Factory::create_consumer_control().

00254 {
00255   return this->body_->create_consumer_control (ec);
00256 }

ACE_Lock * TAO_EC_RTCORBA_Factory::create_consumer_lock (  void   )  [virtual]


Create and destroy the locking strategies for both ProxyPushConsumers and ProxyPushSuppliers

Implements TAO_EC_Factory.

Definition at line 229 of file EC_RTCORBA_Factory.cpp.

References TAO_EC_Factory::create_consumer_lock().

00230 {
00231   return this->body_->create_consumer_lock ();
00232 }

TAO_EC_Dispatching * TAO_EC_RTCORBA_Factory::create_dispatching (  TAO_EC_Event_Channel_Base *   )  [virtual]


Create and destroy the dispatching module.

Implements TAO_EC_Factory.

Definition at line 40 of file EC_RTCORBA_Factory.cpp.

References ACE_CATCHANY, ACE_DECLARE_NEW_CORBA_ENV, ACE_ENDTRY, ACE_ENV_ARG_PARAMETER, ACE_NEW_RETURN, ACE_TRY, ACE_TRY_CHECK, and CORBA::ORB_init().

00041 {
00042   TAO_EC_Dispatching *dispatching = 0;
00043   ACE_DECLARE_NEW_CORBA_ENV;
00044   ACE_TRY
00045     {
00046       // @@ The ORBId could be important!!!
00047       int argc = 0;
00048       CORBA::ORB_var orb =
00049         CORBA::ORB_init (argc, 0, ""
00050                          ACE_ENV_ARG_PARAMETER);
00051       ACE_TRY_CHECK;
00052
00053       CORBA::Object_var obj =
00054         orb->resolve_initial_references ("PriorityMappingManager"
00055                                          ACE_ENV_ARG_PARAMETER);
00056       ACE_TRY_CHECK;
00057
00058       RTCORBA::PriorityMappingManager_var priority_mapping_manager =
00059         RTCORBA::PriorityMappingManager::_narrow (obj.in ()
00060                                                   ACE_ENV_ARG_PARAMETER);
00061       ACE_TRY_CHECK;
00062
00063       RTCORBA::PriorityMapping *priority_mapping =
00064         priority_mapping_manager->mapping ();
00065
00066       obj =
00067         orb->resolve_initial_references ("RTCurrent"
00068                                          ACE_ENV_ARG_PARAMETER);
00069       ACE_TRY_CHECK;
00070
00071       RTCORBA::Current_var current =
00072         RTCORBA::Current::_narrow (obj.in ()
00073                                    ACE_ENV_ARG_PARAMETER);
00074       ACE_TRY_CHECK;
00075
00076       ACE_NEW_RETURN (dispatching,
00077                       TAO_EC_RTCORBA_Dispatching (this->lanes_,
00078                                                   priority_mapping,
00079                                                   current.in ()),
00080                       0);
00081     }
00082   ACE_CATCHANY
00083     {
00084     }
00085   ACE_ENDTRY;
00086
00087   return dispatching;
00088 }

TAO_EC_Filter_Builder * TAO_EC_RTCORBA_Factory::create_filter_builder (  TAO_EC_Event_Channel_Base *   )  [virtual]


Create and destroy the filter builder.

Implements TAO_EC_Factory.

Definition at line 97 of file EC_RTCORBA_Factory.cpp.

References TAO_EC_Factory::create_filter_builder().

00098 {
00099   return this->body_->create_filter_builder (ec);
00100 }

TAO_EC_ObserverStrategy * TAO_EC_RTCORBA_Factory::create_observer_strategy (  TAO_EC_Event_Channel_Base *   )  [virtual]


Create and destroy the observer strategy.

Implements TAO_EC_Factory.

Definition at line 181 of file EC_RTCORBA_Factory.cpp.

References TAO_EC_Factory::create_observer_strategy().

00182 {
00183   return this->body_->create_observer_strategy (ec);
00184 }

TAO_EC_ProxyPushConsumer * TAO_EC_RTCORBA_Factory::create_proxy_push_consumer (  TAO_EC_Event_Channel_Base *   )  [virtual]


Create and destroy a ProxyPushConsumer.

Implements TAO_EC_Factory.

Definition at line 157 of file EC_RTCORBA_Factory.cpp.

References TAO_EC_Factory::create_proxy_push_consumer().

00158 {
00159   return this->body_->create_proxy_push_consumer (ec);
00160 }

TAO_EC_ProxyPushConsumer_Collection * TAO_EC_RTCORBA_Factory::create_proxy_push_consumer_collection (  TAO_EC_Event_Channel_Base *   )  [virtual]


Create and destroy a collection of TAO_EC_ProxyPushConsumers.

Implements TAO_EC_Factory.

Definition at line 205 of file EC_RTCORBA_Factory.cpp.

References TAO_EC_Factory::create_proxy_push_consumer_collection().

00206 {
00207   return this->body_->create_proxy_push_consumer_collection (ec);
00208 }

TAO_EC_ProxyPushSupplier * TAO_EC_RTCORBA_Factory::create_proxy_push_supplier (  TAO_EC_Event_Channel_Base *   )  [virtual]


Create and destroy a ProxyPushSupplier.

Implements TAO_EC_Factory.

Definition at line 145 of file EC_RTCORBA_Factory.cpp.

References TAO_EC_Factory::create_proxy_push_supplier().

00146 {
00147   return this->body_->create_proxy_push_supplier (ec);
00148 }

TAO_EC_ProxyPushSupplier_Collection * TAO_EC_RTCORBA_Factory::create_proxy_push_supplier_collection (  TAO_EC_Event_Channel_Base *   )  [virtual]


Create and destroy a collection of TAO_EC_ProxyPushSuppliers.

Implements TAO_EC_Factory.

Definition at line 217 of file EC_RTCORBA_Factory.cpp.

References TAO_EC_Factory::create_proxy_push_supplier_collection().

00218 {
00219   return this->body_->create_proxy_push_supplier_collection (ec);
00220 }

TAO_EC_Scheduling_Strategy * TAO_EC_RTCORBA_Factory::create_scheduling_strategy (  TAO_EC_Event_Channel_Base *   )  [virtual]


Create and destroy the observer strategy.

Implements TAO_EC_Factory.

Definition at line 193 of file EC_RTCORBA_Factory.cpp.

References TAO_EC_Factory::create_scheduling_strategy().

00194 {
00195   return this->body_->create_scheduling_strategy (ec);
00196 }

TAO_EC_SupplierAdmin * TAO_EC_RTCORBA_Factory::create_supplier_admin (  TAO_EC_Event_Channel_Base *   )  [virtual]


Create and destroy the supplier admin implementation.

Implements TAO_EC_Factory.

Definition at line 133 of file EC_RTCORBA_Factory.cpp.

References TAO_EC_Factory::create_supplier_admin().

00134 {
00135   return this->body_->create_supplier_admin (ec);
00136 }

TAO_EC_SupplierControl * TAO_EC_RTCORBA_Factory::create_supplier_control (  TAO_EC_Event_Channel_Base *   )  [virtual]


Implements TAO_EC_Factory.

Definition at line 265 of file EC_RTCORBA_Factory.cpp.

References TAO_EC_Factory::create_supplier_control().

00266 {
00267   return this->body_->create_supplier_control (ec);
00268 }

TAO_EC_Supplier_Filter_Builder * TAO_EC_RTCORBA_Factory::create_supplier_filter_builder (  TAO_EC_Event_Channel_Base *   )  [virtual]


Create and destroy the filter builder.

Implements TAO_EC_Factory.

Definition at line 109 of file EC_RTCORBA_Factory.cpp.

References TAO_EC_Factory::create_supplier_filter_builder().

00110 {
00111   return this->body_->create_supplier_filter_builder (ec);
00112 }

ACE_Lock * TAO_EC_RTCORBA_Factory::create_supplier_lock (  void   )  [virtual]


Implements TAO_EC_Factory.

Definition at line 241 of file EC_RTCORBA_Factory.cpp.

References TAO_EC_Factory::create_supplier_lock().

00242 {
00243   return this->body_->create_supplier_lock ();
00244 }

TAO_EC_Timeout_Generator * TAO_EC_RTCORBA_Factory::create_timeout_generator (  TAO_EC_Event_Channel_Base *   )  [virtual]


Create and destroy the timer module.

Implements TAO_EC_Factory.

Definition at line 169 of file EC_RTCORBA_Factory.cpp.

References TAO_EC_Factory::create_timeout_generator().

00170 {
00171   return this->body_->create_timeout_generator (ec);
00172 }

void TAO_EC_RTCORBA_Factory::destroy_consumer_admin (  TAO_EC_ConsumerAdmin *   )  [virtual]


Implements TAO_EC_Factory.

Definition at line 127 of file EC_RTCORBA_Factory.cpp.

References TAO_EC_Factory::destroy_consumer_admin().

00128 {
00129   this->body_->destroy_consumer_admin (x);
00130 }

void TAO_EC_RTCORBA_Factory::destroy_consumer_control (  TAO_EC_ConsumerControl *   )  [virtual]


Implements TAO_EC_Factory.

Definition at line 259 of file EC_RTCORBA_Factory.cpp.

References TAO_EC_Factory::destroy_consumer_control().

00260 {
00261   this->body_->destroy_consumer_control (x);
00262 }

void TAO_EC_RTCORBA_Factory::destroy_consumer_lock (  ACE_Lock *   )  [virtual]


Implements TAO_EC_Factory.

Definition at line 235 of file EC_RTCORBA_Factory.cpp.

References TAO_EC_Factory::destroy_consumer_lock().

00236 {
00237   this->body_->destroy_consumer_lock (x);
00238 }

void TAO_EC_RTCORBA_Factory::destroy_dispatching (  TAO_EC_Dispatching *   )  [virtual]


Implements TAO_EC_Factory.

Definition at line 91 of file EC_RTCORBA_Factory.cpp.

References TAO_EC_Factory::destroy_dispatching().

00092 {
00093   this->body_->destroy_dispatching (x);
00094 }

void TAO_EC_RTCORBA_Factory::destroy_filter_builder (  TAO_EC_Filter_Builder *   )  [virtual]


Implements TAO_EC_Factory.

Definition at line 103 of file EC_RTCORBA_Factory.cpp.

References TAO_EC_Factory::destroy_filter_builder().

00104 {
00105   this->body_->destroy_filter_builder (x);
00106 }

void TAO_EC_RTCORBA_Factory::destroy_observer_strategy (  TAO_EC_ObserverStrategy *   )  [virtual]


Implements TAO_EC_Factory.

Definition at line 187 of file EC_RTCORBA_Factory.cpp.

References TAO_EC_Factory::destroy_observer_strategy().

00188 {
00189   this->body_->destroy_observer_strategy (x);
00190 }

void TAO_EC_RTCORBA_Factory::destroy_proxy_push_consumer (  TAO_EC_ProxyPushConsumer *   )  [virtual]


Implements TAO_EC_Factory.

Definition at line 163 of file EC_RTCORBA_Factory.cpp.

References TAO_EC_Factory::destroy_proxy_push_consumer().

00164 {
00165   this->body_->destroy_proxy_push_consumer (x);
00166 }

void TAO_EC_RTCORBA_Factory::destroy_proxy_push_consumer_collection (  TAO_EC_ProxyPushConsumer_Collection *   )  [virtual]


Implements TAO_EC_Factory.

Definition at line 211 of file EC_RTCORBA_Factory.cpp.

References TAO_EC_Factory::destroy_proxy_push_consumer_collection(), and TAO_EC_ProxyPushConsumer_Collection.

00212 {
00213   this->body_->destroy_proxy_push_consumer_collection (x);
00214 }

void TAO_EC_RTCORBA_Factory::destroy_proxy_push_supplier (  TAO_EC_ProxyPushSupplier *   )  [virtual]


Implements TAO_EC_Factory.

Definition at line 151 of file EC_RTCORBA_Factory.cpp.

References TAO_EC_Factory::destroy_proxy_push_supplier().

00152 {
00153   this->body_->destroy_proxy_push_supplier (x);
00154 }

void TAO_EC_RTCORBA_Factory::destroy_proxy_push_supplier_collection (  TAO_EC_ProxyPushSupplier_Collection *   )  [virtual]


Implements TAO_EC_Factory.

Definition at line 223 of file EC_RTCORBA_Factory.cpp.

References TAO_EC_Factory::destroy_proxy_push_supplier_collection(), and TAO_EC_ProxyPushSupplier_Collection.

00224 {
00225   this->body_->destroy_proxy_push_supplier_collection (x);
00226 }

void TAO_EC_RTCORBA_Factory::destroy_scheduling_strategy (  TAO_EC_Scheduling_Strategy *   )  [virtual]


Implements TAO_EC_Factory.

Definition at line 199 of file EC_RTCORBA_Factory.cpp.

References TAO_EC_Factory::destroy_scheduling_strategy().

00200 {
00201   this->body_->destroy_scheduling_strategy (x);
00202 }

void TAO_EC_RTCORBA_Factory::destroy_supplier_admin (  TAO_EC_SupplierAdmin *   )  [virtual]


Implements TAO_EC_Factory.

Definition at line 139 of file EC_RTCORBA_Factory.cpp.

References TAO_EC_Factory::destroy_supplier_admin().

00140 {
00141   this->body_->destroy_supplier_admin (x);
00142 }

void TAO_EC_RTCORBA_Factory::destroy_supplier_control (  TAO_EC_SupplierControl *   )  [virtual]


Implements TAO_EC_Factory.

Definition at line 271 of file EC_RTCORBA_Factory.cpp.

References TAO_EC_Factory::destroy_supplier_control().

00272 {
00273   this->body_->destroy_supplier_control (x);
00274 }

void TAO_EC_RTCORBA_Factory::destroy_supplier_filter_builder (  TAO_EC_Supplier_Filter_Builder *   )  [virtual]


Implements TAO_EC_Factory.

Definition at line 115 of file EC_RTCORBA_Factory.cpp.

References TAO_EC_Factory::destroy_supplier_filter_builder().

00116 {
00117   this->body_->destroy_supplier_filter_builder (x);
00118 }

void TAO_EC_RTCORBA_Factory::destroy_supplier_lock (  ACE_Lock *   )  [virtual]


Implements TAO_EC_Factory.

Definition at line 247 of file EC_RTCORBA_Factory.cpp.

References TAO_EC_Factory::destroy_supplier_lock().

00248 {
00249   this->body_->destroy_supplier_lock (x);
00250 }

void TAO_EC_RTCORBA_Factory::destroy_timeout_generator (  TAO_EC_Timeout_Generator *   )  [virtual]


Implements TAO_EC_Factory.

Definition at line 175 of file EC_RTCORBA_Factory.cpp.

References TAO_EC_Factory::destroy_timeout_generator().

00176 {
00177   this->body_->destroy_timeout_generator (x);
00178 }

int TAO_EC_RTCORBA_Factory::fini (  void   )  [virtual]


Reimplemented from ACE_Shared_Object.

Definition at line 32 of file EC_RTCORBA_Factory.cpp.

References ACE_Shared_Object::fini().

00033 {
00034   return this->body_->fini ();
00035 }

int TAO_EC_RTCORBA_Factory::init (  int  argc,
char *  argv[]
)  [virtual]


Definition at line 26 of file EC_RTCORBA_Factory.cpp.

References ACE_Shared_Object::init().

00027 {
00028   return this->body_->init (argc, argv);
00029 }

Member Data Documentation

TAO_EC_Factory* TAO_EC_RTCORBA_Factory::body_ [protected]


The decorated factory.

Definition at line 114 of file EC_RTCORBA_Factory.h.

RTCORBA::ThreadpoolLanes TAO_EC_RTCORBA_Factory::lanes_ [protected]


Configure the thread pool lanes.

Definition at line 117 of file EC_RTCORBA_Factory.h.

The documentation for this class was generated from the following files:
Generated on Thu Nov 9 13:15:36 2006 for TAO_RTEvent by doxygen 1.3.6
