TAO_EC_Sched_Factory Class Reference

Extend the default factory to support scheduling. More...

#include <EC_Sched_Factory.h>

Inheritance diagram for TAO_EC_Sched_Factory:

Inheritance graph
[legend]

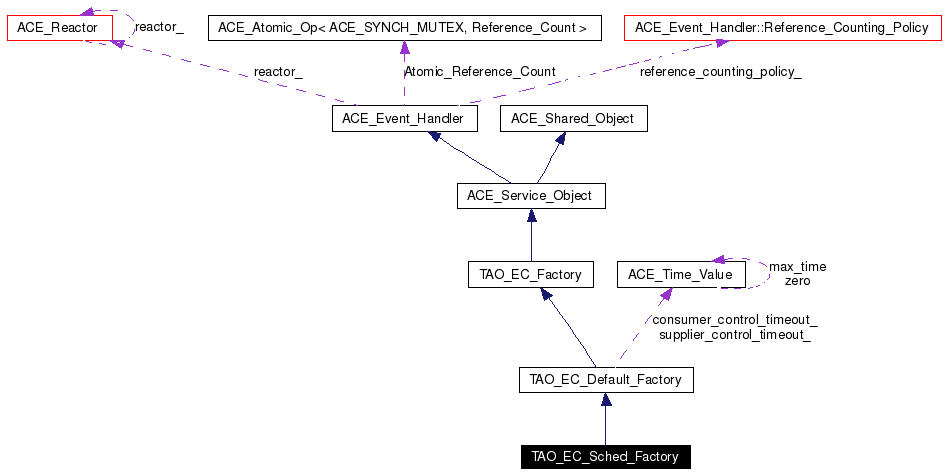

Collaboration diagram for TAO_EC_Sched_Factory:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 TAO_EC_Sched_Factory (void)
 Constructor.

virtual ~TAO_EC_Sched_Factory (void)
 destructor...

virtual int init (int argc, ACE_TCHAR *argv[])
virtual int fini (void)
virtual TAO_EC_Dispatching * create_dispatching (TAO_EC_Event_Channel_Base *)
 Create and destroy the dispatching module.

virtual TAO_EC_Filter_Builder * create_filter_builder (TAO_EC_Event_Channel_Base *)
 Create and destroy the filter builder.

virtual TAO_EC_Timeout_Generator * create_timeout_generator (TAO_EC_Event_Channel_Base *)
 Create and destroy the timer module.

virtual TAO_EC_Scheduling_Strategy * create_scheduling_strategy (TAO_EC_Event_Channel_Base *)
 Create and destroy the observer strategy.

Detailed Description

Extend the default factory to support scheduling.

Definition at line 35 of file EC_Sched_Factory.h.

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE TAO_EC_Sched_Factory::TAO_EC_Sched_Factory (  void   )


Constructor.

Definition at line 8 of file EC_Sched_Factory.i.

00009   :  TAO_EC_Default_Factory ()
00010 {
00011 }

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_EC_Sched_Factory::~TAO_EC_Sched_Factory (  void   )  [virtual]


destructor...

Definition at line 22 of file EC_Sched_Factory.cpp.

00023 {
00024 }

Member Function Documentation

TAO_EC_Dispatching * TAO_EC_Sched_Factory::create_dispatching (  TAO_EC_Event_Channel_Base *   )  [virtual]


Create and destroy the dispatching module.

Reimplemented from TAO_EC_Default_Factory.

Definition at line 174 of file EC_Sched_Factory.cpp.

References TAO_EC_Default_Factory::create_dispatching().

00175 {
00176   if (this->dispatching_ == 2)
00177     return new TAO_EC_Priority_Dispatching (ec);
00178   return this->TAO_EC_Default_Factory::create_dispatching (ec);
00179 }

TAO_EC_Filter_Builder * TAO_EC_Sched_Factory::create_filter_builder (  TAO_EC_Event_Channel_Base *   )  [virtual]


Create and destroy the filter builder.

Reimplemented from TAO_EC_Default_Factory.

Definition at line 182 of file EC_Sched_Factory.cpp.

References TAO_EC_Default_Factory::create_filter_builder().

00183 {
00184   if (this->filtering_ == 3)
00185     return new TAO_EC_Sched_Filter_Builder (ec);
00186
00187   return this->TAO_EC_Default_Factory::create_filter_builder (ec);
00188 }

TAO_EC_Scheduling_Strategy * TAO_EC_Sched_Factory::create_scheduling_strategy (  TAO_EC_Event_Channel_Base *   )  [virtual]


Create and destroy the observer strategy.

Reimplemented from TAO_EC_Default_Factory.

Definition at line 203 of file EC_Sched_Factory.cpp.

References TAO_EC_Event_Channel_Base::scheduler().

00204 {
00205   if (this->scheduling_ == 2)
00206     {
00207       CORBA::Object_var tmp = ec->scheduler ();
00208       RtecScheduler::Scheduler_var scheduler =
00209         RtecScheduler::Scheduler::_narrow (tmp.in ());
00210       return new TAO_EC_Priority_Scheduling (scheduler.in ());
00211     }
00212   return this->TAO_EC_Sched_Factory::create_scheduling_strategy (ec);
00213 }

TAO_EC_Timeout_Generator * TAO_EC_Sched_Factory::create_timeout_generator (  TAO_EC_Event_Channel_Base *   )  [virtual]


Create and destroy the timer module.

Reimplemented from TAO_EC_Default_Factory.

Definition at line 192 of file EC_Sched_Factory.cpp.

References TAO_EC_Default_Factory::create_timeout_generator().

00193 {
00194 #if 0
00195   if (this->timeout_ == 1)
00196     {
00197     }
00198 #endif
00199   return this->TAO_EC_Default_Factory::create_timeout_generator (ec);
00200 }

int TAO_EC_Sched_Factory::fini (  void   )  [virtual]


Reimplemented from TAO_EC_Default_Factory.

Definition at line 166 of file EC_Sched_Factory.cpp.

00167 {
00168   return 0;
00169 }

int TAO_EC_Sched_Factory::init (  int  argc,
ACE_TCHAR *  argv[]
)  [virtual]


Reimplemented from TAO_EC_Default_Factory.

Definition at line 27 of file EC_Sched_Factory.cpp.

References ACE_Arg_Shifter, ACE_ERROR, ACE_TCHAR, ACE_TEXT, TAO_EC_Default_Factory::init(), LM_ERROR, and ACE_OS::strcasecmp().

00028 {
00029   ACE_Arg_Shifter arg_shifter (argc, argv);
00030
00031   while (arg_shifter.is_anything_left ())
00032     {
00033       const ACE_TCHAR* arg = arg_shifter.get_current ();
00034
00035       if (ACE_OS::strcasecmp (arg, ACE_TEXT("-ECDispatching")) == 0)
00036         {
00037           arg_shifter.consume_arg ();
00038
00039           if (arg_shifter.is_parameter_next ())
00040             {
00041               const ACE_TCHAR* opt = arg_shifter.get_current ();
00042               if (ACE_OS::strcasecmp (opt, ACE_TEXT("reactive")) == 0)
00043                 {
00044                   this->dispatching_ = 0;
00045                 }
00046               else if (ACE_OS::strcasecmp (opt, ACE_TEXT("mt")) == 0)
00047                 {
00048                   this->dispatching_ = 1;
00049                 }
00050               else if (ACE_OS::strcasecmp (opt, ACE_TEXT("priority")) == 0)
00051                 {
00052                   this->dispatching_ = 2;
00053                 }
00054               else
00055                 {
00056                   ACE_ERROR ((LM_ERROR,
00057                               ACE_TEXT("EC_Sched_Factory - ")
00058                               ACE_TEXT("unsupported dispatching <%s>\n"),
00059                               opt));
00060                 }
00061               arg_shifter.consume_arg ();
00062             }
00063         }
00064
00065       else if (ACE_OS::strcasecmp (arg, ACE_TEXT("-ECFiltering")) == 0)
00066         {
00067           arg_shifter.consume_arg ();
00068
00069           if (arg_shifter.is_parameter_next ())
00070             {
00071               const ACE_TCHAR* opt = arg_shifter.get_current ();
00072               if (ACE_OS::strcasecmp (opt, ACE_TEXT("null")) == 0)
00073                 {
00074                   this->filtering_ = 0;
00075                 }
00076               else if (ACE_OS::strcasecmp (opt, ACE_TEXT("basic")) == 0)
00077                 {
00078                   this->filtering_ = 1;
00079                 }
00080               else if (ACE_OS::strcasecmp (opt, ACE_TEXT("prefix")) == 0)
00081                 {
00082                   this->filtering_ = 2;
00083                 }
00084               else if (ACE_OS::strcasecmp (opt, ACE_TEXT("priority")) == 0)
00085                 {
00086                   this->filtering_ = 3;
00087                 }
00088               else
00089                 {
00090                   ACE_ERROR ((LM_ERROR,
00091                               ACE_TEXT("EC_Sched_Factory - ")
00092                               ACE_TEXT("unsupported filtering <%s>\n"),
00093                               opt));
00094                 }
00095               arg_shifter.consume_arg ();
00096             }
00097         }
00098
00099       else if (ACE_OS::strcasecmp (arg, ACE_TEXT("-ECTimeout")) == 0)
00100         {
00101           arg_shifter.consume_arg ();
00102
00103           if (arg_shifter.is_parameter_next ())
00104             {
00105               const ACE_TCHAR* opt = arg_shifter.get_current ();
00106               if (ACE_OS::strcasecmp (opt, ACE_TEXT("reactive")) == 0)
00107                 {
00108                   this->timeout_ = 0;
00109                 }
00110 #if 0
00111               else if (ACE_OS::strcasecmp (opt, ACE_TEXT("priority")) == 0)
00112                 {
00113                   this->timeout_ = 1;
00114                 }
00115 #endif /* 0 */
00116               else
00117                 {
00118                   ACE_ERROR ((LM_ERROR,
00119                               ACE_TEXT("EC_Sched_Factory - ")
00120                               ACE_TEXT("unsupported timeout <%s>\n"),
00121                               opt));
00122                 }
00123               arg_shifter.consume_arg ();
00124             }
00125         }
00126
00127       else if (ACE_OS::strcasecmp (arg, ACE_TEXT("-ECScheduling")) == 0)
00128         {
00129           arg_shifter.consume_arg ();
00130
00131           if (arg_shifter.is_parameter_next ())
00132             {
00133               const ACE_TCHAR* opt = arg_shifter.get_current ();
00134               if (ACE_OS::strcasecmp (opt, ACE_TEXT("null")) == 0)
00135                 {
00136                   this->scheduling_ = 0;
00137                 }
00138               else if (ACE_OS::strcasecmp (opt, ACE_TEXT("group")) == 0)
00139                 {
00140                   this->scheduling_ = 1;
00141                 }
00142               else if (ACE_OS::strcasecmp (opt, ACE_TEXT("priority")) == 0)
00143                 {
00144                   this->scheduling_ = 2;
00145                 }
00146               else
00147                 {
00148                   ACE_ERROR ((LM_ERROR,
00149                               ACE_TEXT("EC_Sched_Factory - ")
00150                               ACE_TEXT("unsupported scheduling <%s>\n"),
00151                               opt));
00152                 }
00153               arg_shifter.consume_arg ();
00154             }
00155         }
00156
00157       else
00158         {
00159           arg_shifter.ignore_arg ();
00160         }
00161     }
00162   return this->TAO_EC_Default_Factory::init (argc, argv);
00163 }

The documentation for this class was generated from the following files:
