TAO_EC_Scheduling_Strategy Class Reference

Define the interface for the scheduling strategy. More...

#include <EC_Scheduling_Strategy.h>

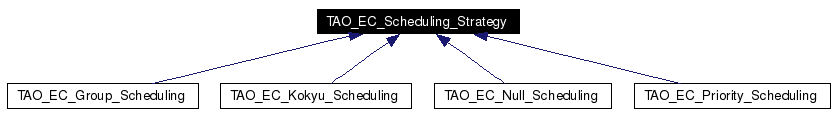

Inheritance diagram for TAO_EC_Scheduling_Strategy:

[legend]List of all members.

Public Member Functions
virtual	~TAO_EC_Scheduling_Strategy (void)
	Destructor.
virtual void	add_proxy_supplier_dependencies (TAO_EC_ProxyPushSupplier *supplier, TAO_EC_ProxyPushConsumer *consumer ACE_ENV_ARG_DECL)=0
	Add all the dependencies between supplier and consumer.
virtual void	schedule_event (const RtecEventComm::EventSet &event, TAO_EC_ProxyPushConsumer *consumer, TAO_EC_Supplier_Filter *filter ACE_ENV_ARG_DECL)=0

---

Detailed Description

Define the interface for the scheduling strategy.

The scheduling strategy controls the actions that the event channel must take to update the dependency information in the scheduler and to query the scheduler for the priority of each event pushed by a supplier. The base

Definition at line 48 of file EC_Scheduling_Strategy.h.

---

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_EC_Scheduling_Strategy::~TAO_EC_Scheduling_Strategy (  void   )  [virtual]

Destructor. Definition at line 10 of file EC_Scheduling_Strategy.cpp. { }

---

Member Function Documentation

virtual void TAO_EC_Scheduling_Strategy::add_proxy_supplier_dependencies (  TAO_EC_ProxyPushSupplier *  supplier, TAO_EC_ProxyPushConsumer *consumer  ACE_ENV_ARG_DECL )  [pure virtual]

Add all the dependencies between supplier and consumer. Implemented in TAO_EC_Group_Scheduling, TAO_EC_Kokyu_Scheduling, TAO_EC_Null_Scheduling, and TAO_EC_Priority_Scheduling.

virtual void TAO_EC_Scheduling_Strategy::schedule_event (  const RtecEventComm::EventSet &  event, TAO_EC_ProxyPushConsumer *  consumer, TAO_EC_Supplier_Filter *filter  ACE_ENV_ARG_DECL )  [pure virtual]

Schedule an event set and deliver them to the filter in the desired order and grouping. Implemented in TAO_EC_Group_Scheduling, TAO_EC_Kokyu_Scheduling, TAO_EC_Null_Scheduling, and TAO_EC_Priority_Scheduling. Referenced by TAO_EC_Trivial_Supplier_Filter::push(), and TAO_EC_Per_Supplier_Filter::push().

---

The documentation for this class was generated from the following files:

• EC_Scheduling_Strategy.h
• EC_Scheduling_Strategy.cpp

---
