ACE_WIN32_Asynch_Read_Dgram Class Reference

This class is a factory for starting off asynchronous reads on a UDP socket. More...

#include <WIN32_Asynch_IO.h>

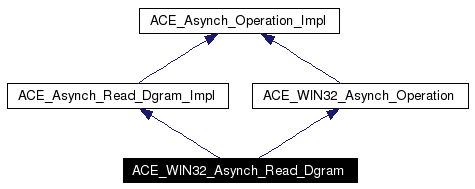

Inheritance diagram for ACE_WIN32_Asynch_Read_Dgram:

Inheritance graph
[legend]
Collaboration diagram for ACE_WIN32_Asynch_Read_Dgram:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 ACE_WIN32_Asynch_Read_Dgram (ACE_WIN32_Proactor *win32_proactor)
 Constructor.

virtual ~ACE_WIN32_Asynch_Read_Dgram (void)
 Destructor.

virtual ssize_t recv (ACE_Message_Block *message_block, size_t &number_of_bytes_recvd, int flags, int protocol_family, const void *act, int priority, int signal_number)
int open (const ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE handle, const void *completion_key, ACE_Proactor *proactor)
int cancel (void)
ACE_Proactor * proactor (void) const
 Return the underlying proactor.


Protected Member Functions

 ACE_WIN32_Asynch_Read_Dgram (void)
 Do-nothing constructor.

Detailed Description

This class is a factory for starting off asynchronous reads on a UDP socket.

Once is called, multiple asynchronous s can be started using this class. An ACE_Asynch_Read_Dgram::Result will be passed back to the when the asynchronous reads completes through the <ACE_Handler::handle_read_stream> callback.

Definition at line 1682 of file WIN32_Asynch_IO.h.

Constructor & Destructor Documentation

ACE_WIN32_Asynch_Read_Dgram::ACE_WIN32_Asynch_Read_Dgram (  ACE_WIN32_Proactor *  win32_proactor  )


Constructor.

Definition at line 3417 of file WIN32_Asynch_IO.cpp.

03418   : ACE_Asynch_Operation_Impl (),
03419     ACE_Asynch_Read_Dgram_Impl (),
03420     ACE_WIN32_Asynch_Operation (win32_proactor)
03421 {
03422 }

ACE_WIN32_Asynch_Read_Dgram::~ACE_WIN32_Asynch_Read_Dgram (  void   )  [virtual]


Destructor.

Definition at line 3258 of file WIN32_Asynch_IO.cpp.

03259 {
03260 }

ACE_WIN32_Asynch_Read_Dgram::ACE_WIN32_Asynch_Read_Dgram (  void   )  [protected]


Do-nothing constructor.

Member Function Documentation

int ACE_WIN32_Asynch_Read_Dgram::cancel (  void   )  [virtual]


This cancels all pending accepts operations that were issued by the calling thread. The function does not cancel asynchronous operations issued by other threads.

Reimplemented from ACE_WIN32_Asynch_Operation.

Definition at line 3406 of file WIN32_Asynch_IO.cpp.

References ACE_WIN32_Asynch_Operation::cancel().

03407 {
03408   return ACE_WIN32_Asynch_Operation::cancel ();
03409 }

int ACE_WIN32_Asynch_Read_Dgram::open (  const ACE_Handler::Proxy_Ptr &  handler_proxy,
ACE_HANDLE  handle,
const void *  completion_key,
ACE_Proactor *  proactor
)  [virtual]


Initializes the factory with information which will be used with each asynchronous call. If ( == ACE_INVALID_HANDLE), <ACE_Handler::handle> will be called on the to get the correct handle.

Reimplemented from ACE_WIN32_Asynch_Operation.

Definition at line 3394 of file WIN32_Asynch_IO.cpp.

References ACE_WIN32_Asynch_Operation::open(), and ACE_Handler::Proxy_Ptr.

03398 {
03399   return ACE_WIN32_Asynch_Operation::open (handler_proxy,
03400                                            handle,
03401                                            completion_key,
03402                                            proactor);
03403 }

ACE_Proactor * ACE_WIN32_Asynch_Read_Dgram::proactor (  void   )  const [virtual]


Return the underlying proactor.

Reimplemented from ACE_WIN32_Asynch_Operation.

Definition at line 3412 of file WIN32_Asynch_IO.cpp.

References ACE_WIN32_Asynch_Operation::proactor().

03413 {
03414   return ACE_WIN32_Asynch_Operation::proactor ();
03415 }

ssize_t ACE_WIN32_Asynch_Read_Dgram::recv (  ACE_Message_Block *  message_block,
size_t &  number_of_bytes_recvd,
int  flags,
int  protocol_family,
const void *  act,
int  priority,
int  signal_number
)  [virtual]


This starts off an asynchronous read. Upto <message_block->total_size()> will be read and stored in the . 's will be updated to reflect the added bytes if the read operation is successfully completed. Return code of 1 means immediate success and will contain number of bytes read. The <ACE_Handler::handle_read_dgram> method will still be called. Return code of 0 means the IO will complete proactively. Return code of -1 means there was an error, use errno to get the error code.

Scatter/gather is supported on WIN32 by using the <message_block->cont()> method. Up to ACE_IOV_MAX 's are supported. Upto <message_block->size()> bytes will be read into each for a total of <message_block->total_size()> bytes. All 's 's will be updated to reflect the added bytes for each

Implements ACE_Asynch_Read_Dgram_Impl.

Definition at line 3263 of file WIN32_Asynch_IO.cpp.

References ACE_DEBUG, ACE_ERROR_RETURN, ACE_IOV_MAX, ACE_LIB_TEXT, ACE_NEW_RETURN, ACE_WIN32_Asynch_Read_Dgram_Result::addr_len_, ACE_Message_Block::cont(), ACE::debug(), ACE_WIN32_Asynch_Read_Dgram_Result::flags_, ACE_WIN32_Asynch_Read_Dgram_Result::handle(), iovec::iov_base, iovec::iov_len, LM_ERROR, ACE_OS::recvfrom(), ACE_WIN32_Asynch_Read_Dgram_Result::saddr(), ACE_OS::set_errno_to_last_error(), ACE_Message_Block::space(), ssize_t, and ACE_Message_Block::wr_ptr().

03270 {
03271   number_of_bytes_recvd = 0;
03272
03273   size_t bytes_to_read = 0;
03274
03275   iovec  iov[ACE_IOV_MAX];
03276   int    iovcnt = 0;
03277
03278   for (const ACE_Message_Block* msg = message_block;
03279        msg != 0 && iovcnt < ACE_IOV_MAX;
03280        msg = msg->cont () , ++iovcnt )
03281   {
03282     size_t msg_space = msg->space ();
03283
03284     // OS should correctly process zero length buffers
03285     // if ( msg_space == 0 )
03286     //   ACE_ERROR_RETURN ((LM_ERROR,
03287     //                      ACE_LIB_TEXT ("ACE_WIN32_Asynch_Read_Dgram::recv:")
03288     //                      ACE_LIB_TEXT ("No space in the message block\n")),
03289     //                     -1);
03290
03291     bytes_to_read += msg_space;
03292
03293     // Make as many iovec as needed to fit all of msg_len.
03294     size_t wr_ptr_offset = 0;
03295     while (msg_space > 0 && iovcnt < ACE_IOV_MAX)
03296       {
03297         u_long this_chunk_length;
03298         if (msg_space > ULONG_MAX)
03299           this_chunk_length = ULONG_MAX;
03300         else
03301           this_chunk_length = static_cast<u_long> (msg_space);
03302         // Collect the data in the iovec.
03303         iov[iovcnt].iov_base = msg->wr_ptr () + wr_ptr_offset;
03304         iov[iovcnt].iov_len  = this_chunk_length;
03305         msg_space -= this_chunk_length;
03306         wr_ptr_offset += this_chunk_length;
03307
03308         // Increment iovec counter if there's more to do.
03309         if (msg_space > 0)
03310           iovcnt++;
03311       }
03312     if (msg_space > 0)       // Ran out of iovecs before msg_space exhausted
03313       {
03314         errno = ERANGE;
03315         return -1;
03316       }
03317   }
03318
03319   if (bytes_to_read == 0)
03320       ACE_ERROR_RETURN ((LM_ERROR,
03321                          ACE_LIB_TEXT ("ACE_WIN32_Asynch_Read_Dgram::recv:")
03322                          ACE_LIB_TEXT ("Attempt to read 0 bytes\n")),
03323                         -1);
03324
03325   // Create the Asynch_Result.
03326   ACE_WIN32_Asynch_Read_Dgram_Result *result = 0;
03327   ACE_NEW_RETURN (result,
03328                   ACE_WIN32_Asynch_Read_Dgram_Result (this->handler_proxy_,
03329                                                       this->handle_,
03330                                                       message_block,
03331                                                       bytes_to_read,
03332                                                       flags,
03333                                                       protocol_family,
03334                                                       act,
03335                                                       this->win32_proactor_->get_handle (),
03336                                                       priority,
03337                                                       signal_number),
03338                   -1);
03339
03340   // do the scatter/gather recv
03341   ssize_t initiate_result = ACE_OS::recvfrom (result->handle (),
03342                                               iov,
03343                                               iovcnt,
03344                                               number_of_bytes_recvd,
03345                                               result->flags_,
03346                                               result->saddr (),
03347                                               &(result->addr_len_),
03348                                               result,
03349                                               0);
03350   if (initiate_result == SOCKET_ERROR)
03351   {
03352     // If initiate failed, check for a bad error.
03353     ACE_OS::set_errno_to_last_error ();
03354     switch (errno)
03355     {
03356       case ERROR_IO_PENDING:
03357         // The IO will complete proactively: the OVERLAPPED will still
03358         // get queued.
03359         initiate_result = 0;
03360         break;
03361
03362       default:
03363         // Something else went wrong: the OVERLAPPED will not get
03364         // queued.
03365
03366         if (ACE::debug ())
03367         {
03368           ACE_DEBUG ((LM_ERROR,
03369                       ACE_LIB_TEXT ("%p\n"),
03370                       ACE_LIB_TEXT ("WSARecvFrom")));
03371         }
03372
03373         delete result;
03374         initiate_result = -1;
03375         break;
03376     }
03377
03378   }
03379   else
03380   {
03381     // Immediate success: the OVERLAPPED will still get queued.
03382     // number_of_bytes_recvd contains the number of bytes recvd
03383     // addr contains the peer address
03384     // flags was updated
03385
03386     // number_of_bytes_recvd = bytes_recvd;
03387     initiate_result = 1;
03388   }
03389
03390   return initiate_result;
03391 }

The documentation for this class was generated from the following files:
