ACE_WIN32_Asynch_Connect Class Reference

#include <WIN32_Asynch_IO.h>

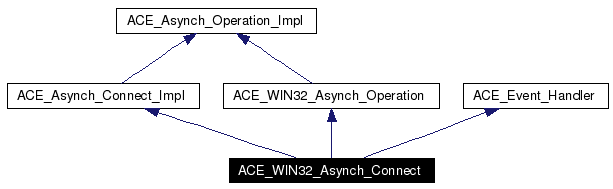

Inheritance diagram for ACE_WIN32_Asynch_Connect:

Inheritance graph
[legend]
Collaboration diagram for ACE_WIN32_Asynch_Connect:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 ACE_WIN32_Asynch_Connect (ACE_WIN32_Proactor *win32_proactor)
 Constructor.

virtual ~ACE_WIN32_Asynch_Connect (void)
 Destructor.

int open (const ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE handle, const void *completion_key, ACE_Proactor *proactor=0)
int connect (ACE_HANDLE connect_handle, const ACE_Addr &remote_sap, const ACE_Addr &local_sap, int reuse_addr, const void *act, int priority, int signal_number=0)
int cancel (void)
int close (void)
ACE_HANDLE get_handle (void) const
 Virtual from ACE_Event_Handler.

void set_handle (ACE_HANDLE handle)
 Virtual from ACE_Event_Handler.

int handle_input (ACE_HANDLE handle)
 Virtual from ACE_Event_Handler.

int handle_output (ACE_HANDLE handle)
int handle_exception (ACE_HANDLE handle)
 Called when an exceptional events occur (e.g., SIGURG).

int handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)
 Virtual from ACE_Event_Handler.

ACE_Proactor * proactor (void) const
 Return the underlying proactor.


Private Types

typedef ACE_Map_Manager< ACE_HANDLE,
ACE_WIN32_Asynch_Connect_Result *,
ACE_SYNCH_NULL_MUTEX > 		MAP_MANAGER

Private Member Functions

int connect_i (ACE_WIN32_Asynch_Connect_Result *result, const ACE_Addr &remote_sap, const ACE_Addr &local_sap, int reuse_addr)
int post_result (ACE_WIN32_Asynch_Connect_Result *result, bool flg_post)
int cancel_uncompleted (bool flg_notify, ACE_Handle_Set &set)
 Cancel uncompleted connect operations.


Private Attributes

bool flg_open_
MAP_MANAGER result_map_
ACE_SYNCH_MUTEX lock_

Member Typedef Documentation

typedef ACE_Map_Manager<ACE_HANDLE, ACE_WIN32_Asynch_Connect_Result *, ACE_SYNCH_NULL_MUTEX> ACE_WIN32_Asynch_Connect::MAP_MANAGER [private]


Definition at line 1335 of file WIN32_Asynch_IO.h.

Constructor & Destructor Documentation

ACE_WIN32_Asynch_Connect::ACE_WIN32_Asynch_Connect (  ACE_WIN32_Proactor *  win32_proactor  )


Constructor.

Definition at line 2318 of file WIN32_Asynch_IO.cpp.

02319   : ACE_Asynch_Operation_Impl (),
02320     ACE_Asynch_Connect_Impl (),
02321     ACE_WIN32_Asynch_Operation (win32_proactor),
02322     flg_open_ (false)
02323 {
02324 }

ACE_WIN32_Asynch_Connect::~ACE_WIN32_Asynch_Connect (  void   )  [virtual]


Destructor.

Definition at line 2326 of file WIN32_Asynch_IO.cpp.

References close(), and ACE_Event_Handler::reactor().

02327 {
02328   this->close ();
02329   this->reactor (0); // to avoid purge_pending_notifications
02330 }

Member Function Documentation

int ACE_WIN32_Asynch_Connect::cancel (  void   )  [virtual]


Cancel all pending pseudo-asynchronus requests Behavior as usual AIO request

Reimplemented from ACE_WIN32_Asynch_Operation.

Definition at line 2628 of file WIN32_Asynch_IO.cpp.

References ACE_GUARD_RETURN, ACE_SYNCH_MUTEX, ACE_TRACE, cancel_uncompleted(), ACE_WIN32_Proactor::get_asynch_pseudo_task(), and ACE_Asynch_Pseudo_Task::remove_io_handler().

02629 {
02630   ACE_TRACE ("ACE_WIN32_Asynch_Connect::cancel");
02631
02632   int rc = -1 ;  // ERRORS
02633
02634   ACE_Handle_Set set;
02635   int num_cancelled = 0;
02636   {
02637     ACE_MT (ACE_GUARD_RETURN (ACE_SYNCH_MUTEX, ace_mon, this->lock_, -1));
02638
02639     num_cancelled = cancel_uncompleted (flg_open_, set);
02640   }
02641   if (num_cancelled == 0)
02642     rc = 1;        // AIO_ALLDONE
02643   else if (num_cancelled > 0)
02644     rc = 0;        // AIO_CANCELED
02645
02646   if (!this->flg_open_)
02647     return rc;
02648
02649   ACE_Asynch_Pseudo_Task & task =
02650     this->win32_proactor_->get_asynch_pseudo_task ();
02651
02652   task.remove_io_handler (set);
02653   return rc;
02654 }

int ACE_WIN32_Asynch_Connect::cancel_uncompleted (  bool  flg_notify,
ACE_Handle_Set &  set
)  [private]


Cancel uncompleted connect operations.

Parameters:
flg_notify Indicates whether or not to send notification about canceled connect operations. If false, don't send notifications. If true, notify user about canceled connects. According WIN32 standards we should receive notifications on canceled AIO requests.
set Receives the set of I/O handles on which asynchronous connect requests were canceled as a result of this method. The contents of set are completely replaced.

Definition at line 2598 of file WIN32_Asynch_IO.cpp.

References ACE_TRACE, post_result(), ACE_Handle_Set::reset(), ACE_Handle_Set::set_bit(), ACE_WIN32_Asynch_Result::set_bytes_transferred(), and ACE_WIN32_Asynch_Result::set_error().

Referenced by cancel(), and close().

02600 {
02601   ACE_TRACE ("ACE_WIN32_Asynch_Connect::cancel_uncompleted");
02602
02603   int retval = 0;
02604
02605   MAP_MANAGER::ITERATOR iter (result_map_);
02606   MAP_MANAGER::ENTRY *   me = 0;
02607
02608   set.reset ();
02609
02610   for (; iter.next (me) != 0; retval++, iter.advance ())
02611     {
02612        ACE_HANDLE handle = me->ext_id_;
02613        ACE_WIN32_Asynch_Connect_Result* result = me->int_id_ ;
02614
02615        set.set_bit (handle);
02616
02617        result->set_bytes_transferred (0);
02618        result->set_error (ERROR_OPERATION_ABORTED);
02619        this->post_result (result, flg_notify);
02620     }
02621
02622   result_map_.unbind_all ();
02623
02624   return retval;
02625 }

int ACE_WIN32_Asynch_Connect::close (  void   )


Close performs cancellation of all pending requests and close the connect handle

Definition at line 2657 of file WIN32_Asynch_IO.cpp.

References ACE_GUARD_RETURN, ACE_SYNCH_MUTEX, ACE_TRACE, cancel_uncompleted(), ACE_WIN32_Proactor::get_asynch_pseudo_task(), and ACE_Asynch_Pseudo_Task::remove_io_handler().

Referenced by ~ACE_WIN32_Asynch_Connect().

02658 {
02659   ACE_TRACE ("ACE_WIN32_Asynch_Connect::close");
02660
02661   ACE_Handle_Set set;
02662   int num_cancelled = 0;
02663   {
02664     ACE_MT (ACE_GUARD_RETURN (ACE_SYNCH_MUTEX, ace_mon, this->lock_, -1));
02665
02666     num_cancelled = cancel_uncompleted (flg_open_, set);
02667   }
02668   if (num_cancelled == 0 || this->flg_open_ == 0)
02669     {
02670       this->flg_open_ = false;
02671       return 0;
02672     }
02673
02674   ACE_Asynch_Pseudo_Task & task =
02675     this->win32_proactor_->get_asynch_pseudo_task ();
02676
02677   task.remove_io_handler (set);
02678   return 0;
02679 }

int ACE_WIN32_Asynch_Connect::connect (  ACE_HANDLE  connect_handle,
const ACE_Addr &  remote_sap,
const ACE_Addr &  local_sap,
int  reuse_addr,
const void *  act,
int  priority,
int  signal_number = 0
)  [virtual]


Start an asynchronous connect.

Parameters:
connect_handle Handle to use for the connect. If the value ACE_INVALID_HANDLE, a new handle will be created.
Return values:
0 Success
-1 Error

Implements ACE_Asynch_Connect_Impl.

Definition at line 2384 of file WIN32_Asynch_IO.cpp.

References ACE_ERROR, ACE_ERROR_RETURN, ACE_GUARD_RETURN, ACE_LIB_TEXT, ACE_NEW_RETURN, ACE_SYNCH_MUTEX, ACE_TRACE, ACE_WIN32_Asynch_Connect_Result::connect_handle(), connect_i(), ACE_WIN32_Proactor::get_asynch_pseudo_task(), LM_ERROR, post_result(), ACE_Asynch_Pseudo_Task::register_io_handler(), and ACE_WIN32_Asynch_Result::set_error().

02391 {
02392   ACE_TRACE ("ACE_WIN32_Asynch_Connect::connect");
02393
02394   if (!this->flg_open_)
02395     ACE_ERROR_RETURN ((LM_ERROR,
02396                        ACE_LIB_TEXT ("%N:%l:ACE_WIN32_Asynch_Connect::connect")
02397                        ACE_LIB_TEXT ("connector was not opened before\n")),
02398                       -1);
02399
02400   // Common code for both WIN and WIN32.
02401   // Create future Asynch_Connect_Result
02402   ACE_WIN32_Asynch_Connect_Result *result = 0;
02403   ACE_NEW_RETURN (result,
02404                   ACE_WIN32_Asynch_Connect_Result (this->handler_proxy_,
02405                                                    connect_handle,
02406                                                    act,
02407                                                    this->win32_proactor_->get_handle (),
02408                                                    priority,
02409                                                    signal_number),
02410                   -1);
02411
02412   int rc = connect_i (result,
02413                       remote_sap,
02414                       local_sap,
02415                       reuse_addr);
02416
02417   // update handle
02418   connect_handle = result->connect_handle ();
02419
02420   if (rc != 0)
02421     return post_result (result, true);
02422
02423   //  Enqueue result we will wait for completion
02424   {
02425     ACE_MT (ACE_GUARD_RETURN (ACE_SYNCH_MUTEX, ace_mon, this->lock_, -1));
02426
02427     if (this->result_map_.bind (connect_handle, result) == -1)
02428       {
02429         ACE_ERROR ((LM_ERROR,
02430                     ACE_LIB_TEXT ("ACE_WIN32_Asynch_Connect::connect: %p\n"),
02431                     ACE_LIB_TEXT ("bind")));
02432         result->set_error (EFAULT);
02433         return post_result (result, true);
02434       }
02435   }
02436
02437   ACE_Asynch_Pseudo_Task & task =
02438     this->win32_proactor_->get_asynch_pseudo_task ();
02439
02440   if (-1 == task.register_io_handler (connect_handle,
02441                                       this,
02442                                       ACE_Event_Handler::CONNECT_MASK,
02443                                       0))  // not to suspend after register
02444     {
02445       result = 0;
02446       {
02447         ACE_MT (ACE_GUARD_RETURN (ACE_SYNCH_MUTEX, ace_mon, this->lock_, -1));
02448         this->result_map_.unbind (connect_handle, result);
02449       }
02450       if (result != 0)
02451         {
02452           result->set_error (EFAULT);
02453           this->post_result (result, true);
02454         }
02455     }
02456
02457   return 0;
02458 }

int ACE_WIN32_Asynch_Connect::connect_i (  ACE_WIN32_Asynch_Connect_Result *  result,
const ACE_Addr &  remote_sap,
const ACE_Addr &  local_sap,
int  reuse_addr
)  [private]


Definition at line 2491 of file WIN32_Asynch_IO.cpp.

References ACE_ERROR_RETURN, ACE_LIB_TEXT, ACE_NONBLOCK, ACE_OS::bind(), ACE_WIN32_Asynch_Connect_Result::connect_handle(), EINPROGRESS, EWOULDBLOCK, ACE_Addr::get_addr(), ACE_Addr::get_size(), ACE_Addr::get_type(), LM_ERROR, ACE_WIN32_Asynch_Result::set_bytes_transferred(), ACE_WIN32_Asynch_Result::set_error(), ACE::set_flags(), ACE_OS::setsockopt(), and ACE_OS::socket().

Referenced by connect().

02495 {
02496   result->set_bytes_transferred (0);
02497
02498   ACE_HANDLE handle = result->connect_handle ();
02499   if (handle == ACE_INVALID_HANDLE)
02500     {
02501       int protocol_family = remote_sap.get_type ();
02502       handle = ACE_OS::socket (protocol_family,
02503                                SOCK_STREAM,
02504                                0);
02505
02506       // save it
02507       result->connect_handle (handle);
02508       if (handle == ACE_INVALID_HANDLE)
02509         {
02510           result->set_error (errno);
02511           ACE_ERROR_RETURN
02512             ((LM_ERROR,
02513               ACE_LIB_TEXT ("ACE_WIN32_Asynch_Connect::connect_i: %p\n"),
02514               ACE_LIB_TEXT ("socket")),
02515              -1);
02516         }
02517
02518       // Reuse the address
02519       int one = 1;
02520       if (protocol_family != PF_UNIX  &&
02521           reuse_addr != 0 &&
02522           ACE_OS::setsockopt (handle,
02523                               SOL_SOCKET,
02524                               SO_REUSEADDR,
02525                               (const char*) &one,
02526                               sizeof one) == -1)
02527         {
02528           result->set_error (errno);
02529           ACE_ERROR_RETURN
02530             ((LM_ERROR,
02531               ACE_LIB_TEXT ("ACE_WIN32_Asynch_Connect::connect_i: %p\n"),
02532               ACE_LIB_TEXT ("setsockopt")),
02533              -1);
02534         }
02535     }
02536
02537   if (local_sap != ACE_Addr::sap_any)
02538     {
02539       sockaddr * laddr = reinterpret_cast<sockaddr *> (local_sap.get_addr ());
02540       int size = local_sap.get_size ();
02541       if (ACE_OS::bind (handle, laddr, size) == -1)
02542         {
02543            result->set_error (errno);
02544            ACE_ERROR_RETURN
02545              ((LM_ERROR,
02546                ACE_LIB_TEXT ("ACE_WIN32_Asynch_Connect::connect_i: %p\n"),
02547                ACE_LIB_TEXT ("bind")),
02548               -1);
02549         }
02550     }
02551
02552   // set non blocking mode
02553   if (ACE::set_flags (handle, ACE_NONBLOCK) != 0)
02554     {
02555       result->set_error (errno);
02556       ACE_ERROR_RETURN
02557         ((LM_ERROR,
02558           ACE_LIB_TEXT ("ACE_WIN32_Asynch_Connect::connect_i: %p\n"),
02559           ACE_LIB_TEXT ("set_flags")),
02560          -1);
02561     }
02562
02563   for (;;)
02564     {
02565       int rc = ACE_OS::connect
02566         (handle,
02567          reinterpret_cast<sockaddr *> (remote_sap.get_addr ()),
02568          remote_sap.get_size ());
02569
02570       if (rc < 0)  // failure
02571         {
02572           if (errno == EWOULDBLOCK || errno == EINPROGRESS)
02573             return 0; // connect started
02574
02575           if (errno == EINTR)
02576              continue;
02577
02578           result->set_error (errno);
02579         }
02580       return 1 ;  // connect finished
02581     }
02582 }

ACE_HANDLE ACE_WIN32_Asynch_Connect::get_handle (  void   )  const [virtual]


Virtual from ACE_Event_Handler.

Reimplemented from ACE_Event_Handler.

Definition at line 2339 of file WIN32_Asynch_IO.cpp.

References ACE_ASSERT.

02340 {
02341
02342   ACE_ASSERT (0);
02343   return ACE_INVALID_HANDLE;
02344 }

int ACE_WIN32_Asynch_Connect::handle_close (  ACE_HANDLE  handle,
ACE_Reactor_Mask  close_mask
)  [virtual]


Virtual from ACE_Event_Handler.

Reimplemented from ACE_Event_Handler.

Definition at line 2732 of file WIN32_Asynch_IO.cpp.

References ACE_GUARD_RETURN, ACE_Reactor_Mask, ACE_SYNCH_MUTEX, ACE_TRACE, ACE_WIN32_Proactor::get_asynch_pseudo_task(), post_result(), ACE_Asynch_Pseudo_Task::remove_io_handler(), ACE_WIN32_Asynch_Result::set_bytes_transferred(), and ACE_WIN32_Asynch_Result::set_error().

02733 {
02734   ACE_TRACE ("ACE_WIN32_Asynch_Connect::handle_close");
02735
02736   ACE_Asynch_Pseudo_Task & task =
02737          this->win32_proactor_->get_asynch_pseudo_task ();
02738   task.remove_io_handler (fd);
02739
02740   ACE_WIN32_Asynch_Connect_Result* result = 0;
02741
02742   {
02743     ACE_MT (ACE_GUARD_RETURN (ACE_SYNCH_MUTEX, ace_mon, this->lock_, 0));
02744     if (this->result_map_.unbind (fd, result) != 0) // not found
02745       return -1;
02746   }
02747
02748   result->set_bytes_transferred (0);
02749   result->set_error (ERROR_OPERATION_ABORTED);
02750   this->post_result (result, this->flg_open_);
02751
02752   return 0;
02753 }

int ACE_WIN32_Asynch_Connect::handle_exception (  ACE_HANDLE  handle  )  [virtual]


Called when an exceptional events occur (e.g., SIGURG).

Reimplemented from ACE_Event_Handler.

Definition at line 2682 of file WIN32_Asynch_IO.cpp.

References ACE_TRACE, and handle_output().

02683 {
02684   ACE_TRACE ("ACE_WIN32_Asynch_Connect::handle_exception");
02685   return handle_output (fd);
02686 }

int ACE_WIN32_Asynch_Connect::handle_input (  ACE_HANDLE  handle  )  [virtual]


Virtual from ACE_Event_Handler.

Reimplemented from ACE_Event_Handler.

Definition at line 2689 of file WIN32_Asynch_IO.cpp.

References ACE_TRACE, and handle_output().

02690 {
02691   ACE_TRACE ("ACE_WIN32_Asynch_Connect::handle_input");
02692   return handle_output (fd);
02693 }

int ACE_WIN32_Asynch_Connect::handle_output (  ACE_HANDLE  handle  )  [virtual]


Called when output events are possible (e.g., when flow control abates or non-blocking connection completes).

Reimplemented from ACE_Event_Handler.

Definition at line 2696 of file WIN32_Asynch_IO.cpp.

References ACE_GUARD_RETURN, ACE_SYNCH_MUTEX, ACE_TRACE, ACE_WIN32_Proactor::get_asynch_pseudo_task(), ACE_OS::getsockopt(), post_result(), ACE_Asynch_Pseudo_Task::remove_io_handler(), ACE_WIN32_Asynch_Result::set_bytes_transferred(), and ACE_WIN32_Asynch_Result::set_error().

Referenced by handle_exception(), and handle_input().

02697 {
02698   ACE_TRACE ("ACE_WIN32_Asynch_Connect::handle_output");
02699
02700   ACE_WIN32_Asynch_Connect_Result* result = 0;
02701
02702   {
02703     ACE_MT (ACE_GUARD_RETURN (ACE_SYNCH_MUTEX, ace_mon, this->lock_, 0));
02704     if (this->result_map_.unbind (fd, result) != 0) // not found
02705       return -1;
02706   }
02707
02708   int sockerror  = 0 ;
02709   int lsockerror = sizeof sockerror;
02710
02711   ACE_OS::getsockopt (fd,
02712                       SOL_SOCKET,
02713                       SO_ERROR,
02714                       (char*) & sockerror,
02715                       & lsockerror);
02716
02717   // This previously just did a "return -1" and let handle_close() clean
02718   // things up. However, this entire object may be gone as a result of
02719   // the application's completion handler, so don't count on 'this' being
02720   // legitimate on return from post_result().
02721   // remove_io_handler() contains flag DONT_CALL
02722   this->win32_proactor_->get_asynch_pseudo_task().remove_io_handler (fd);
02723
02724   result->set_bytes_transferred (0);
02725   result->set_error (sockerror);
02726   this->post_result (result, this->flg_open_);
02727   return 0;
02728 }

int ACE_WIN32_Asynch_Connect::open (  const ACE_Handler::Proxy_Ptr &  handler_proxy,
ACE_HANDLE  handle,
const void *  completion_key,
ACE_Proactor *  proactor = 0
)  [virtual]


This open belongs to ACE_WIN32_Asynch_Operation. We forward this call to that method. We have put this here to avoid the compiler warnings.

Reimplemented from ACE_WIN32_Asynch_Operation.

Definition at line 2353 of file WIN32_Asynch_IO.cpp.

References ACE_ERROR_RETURN, ACE_LIB_TEXT, ACE_TRACE, LM_ERROR, ACE_WIN32_Asynch_Operation::open(), and ACE_Handler::Proxy_Ptr.

02357 {
02358   ACE_TRACE ("ACE_WIN32_Asynch_Connect::open");
02359
02360   // if we are already opened,
02361   // we could not create a new handler without closing the previous
02362   if (this->flg_open_)
02363     ACE_ERROR_RETURN ((LM_ERROR,
02364                        ACE_LIB_TEXT ("%N:%l:ACE_WIN32_Asynch_Connect::open:")
02365                        ACE_LIB_TEXT ("connector already open \n")),
02366                       -1);
02367
02368   //int result =
02369   ACE_WIN32_Asynch_Operation::open (handler_proxy,
02370                                     ACE_INVALID_HANDLE,
02371                                     completion_key,
02372                                     proactor);
02373
02374   // Ignore result as we pass ACE_INVALID_HANDLE
02375   //if (result == -1)
02376   //  return result;
02377
02378   this->flg_open_ = true;
02379
02380   return 0;
02381 }

int ACE_WIN32_Asynch_Connect::post_result (  ACE_WIN32_Asynch_Connect_Result *  result,
bool  flg_post
)  [private]


Definition at line 2460 of file WIN32_Asynch_IO.cpp.

References ACE_ERROR, ACE_LIB_TEXT, ACE_OS::closesocket(), ACE_WIN32_Asynch_Connect_Result::connect_handle(), LM_ERROR, and ACE_WIN32_Proactor::post_completion().

Referenced by cancel_uncompleted(), connect(), handle_close(), and handle_output().

02462 {
02463   if (this->flg_open_ && post_enable)
02464     {
02465       if (this->win32_proactor_ ->post_completion (result) == 0)
02466         return 0;
02467
02468       ACE_ERROR ((LM_ERROR,
02469                   ACE_LIB_TEXT ("Error:(%P | %t):%p\n"),
02470                   ACE_LIB_TEXT ("ACE_WIN32_Asynch_Connect::post_result: ")
02471                   ACE_LIB_TEXT (" <post_completion> failed")));
02472     }
02473
02474    ACE_HANDLE handle = result->connect_handle ();
02475
02476    if (handle != ACE_INVALID_HANDLE)
02477      ACE_OS::closesocket (handle);
02478
02479    delete result;
02480
02481    return -1;
02482 }

ACE_Proactor * ACE_WIN32_Asynch_Connect::proactor (  void   )  const [virtual]


Return the underlying proactor.

Reimplemented from ACE_WIN32_Asynch_Operation.

Definition at line 2333 of file WIN32_Asynch_IO.cpp.

References ACE_WIN32_Asynch_Operation::proactor().

02334 {
02335   return ACE_WIN32_Asynch_Operation::proactor ();
02336 }

void ACE_WIN32_Asynch_Connect::set_handle (  ACE_HANDLE  handle  )  [virtual]


Virtual from ACE_Event_Handler.

Reimplemented from ACE_Event_Handler.

Definition at line 2347 of file WIN32_Asynch_IO.cpp.

References ACE_ASSERT.

02348 {
02349   ACE_ASSERT (0) ;
02350 }

Member Data Documentation

bool ACE_WIN32_Asynch_Connect::flg_open_ [private]


true - Connect is registered in ACE_Asynch_Pseudo_Task false - Accept is deregisted in ACE_Asynch_Pseudo_Task

Definition at line 1332 of file WIN32_Asynch_IO.h.

ACE_SYNCH_MUTEX ACE_WIN32_Asynch_Connect::lock_ [private]


The lock to protect the result map which is shared. The queue is updated by main thread in the register function call and through the auxillary thread in the asynch pseudo task.

Definition at line 1344 of file WIN32_Asynch_IO.h.

MAP_MANAGER ACE_WIN32_Asynch_Connect::result_map_ [private]


Map of Result pointers that correspond to all the 's pending.

Definition at line 1339 of file WIN32_Asynch_IO.h.

The documentation for this class was generated from the following files:
Generated on Thu Nov 9 11:32:47 2006 for ACE by doxygen 1.3.6
