#include <TkReactor.h>

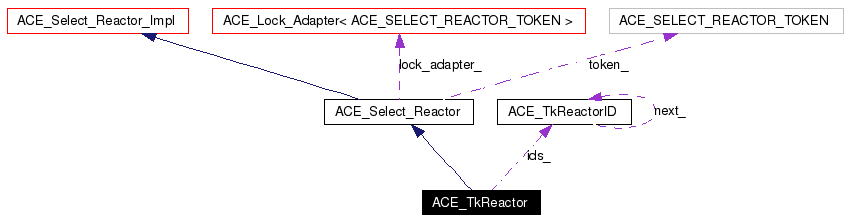

Inheritance diagram for ACE_TkReactor:
Public Member Functions | |
ACE_TkReactor (size_t size=DEFAULT_SIZE, int restart=0, ACE_Sig_Handler *=0) | |
virtual | ~ACE_TkReactor (void) |
virtual long | schedule_timer (ACE_Event_Handler *event_handler, const void *arg, const ACE_Time_Value &delay, const ACE_Time_Value &interval) |
virtual int | reset_timer_interval (long timer_id, const ACE_Time_Value &interval) |
virtual int | cancel_timer (ACE_Event_Handler *handler, int dont_call_handle_close=1) |
virtual int | cancel_timer (long timer_id, const void **arg=0, int dont_call_handle_close=1) |
Protected Member Functions | |
virtual int | register_handler_i (ACE_HANDLE handle, ACE_Event_Handler *handler, ACE_Reactor_Mask mask) |
Register a single . | |
virtual int | register_handler_i (const ACE_Handle_Set &handles, ACE_Event_Handler *handler, ACE_Reactor_Mask mask) |
Register a set of . | |
virtual int | remove_handler_i (ACE_HANDLE handle, ACE_Reactor_Mask mask) |
Remove the associated with this . | |
virtual int | remove_handler_i (const ACE_Handle_Set &handles, ACE_Reactor_Mask) |
Remove a set of . | |
virtual void | remove_TkFileHandler (ACE_HANDLE handle) |
Removes an Tk FileHandler. | |
virtual int | wait_for_multiple_events (ACE_Select_Reactor_Handle_Set &, ACE_Time_Value *) |
Wait for events to occur. | |
virtual int | TkWaitForMultipleEvents (int, ACE_Select_Reactor_Handle_Set &, ACE_Time_Value *) |
Wait for Tk events to occur. | |
Protected Attributes | |
ACE_TkReactorID * | ids_ |
Tk_TimerToken | timeout_ |
Private Member Functions | |
void | reset_timeout (void) |
ACE_TkReactor (const ACE_TkReactor &) | |
Deny access since member-wise won't work... | |
ACE_TkReactor & | operator= (const ACE_TkReactor &) |
Static Private Member Functions | |
void | TimerCallbackProc (ClientData cd) |
void | InputCallbackProc (ClientData cd, int mask) |
Definition at line 61 of file TkReactor.h.
|
Definition at line 13 of file TkReactor.cpp. References ACE_Select_Reactor, ACE_Reactor_Notify::close(), and ACE_Reactor_Notify::open().
00016 : ACE_Select_Reactor (size, restart, h), 00017 ids_ (0), 00018 timeout_ (0) 00019 { 00020 // When the ACE_Select_Reactor is constructed it creates the notify 00021 // pipe and registers it with the register_handler_i() method. The 00022 // TkReactor overloads this method BUT because the 00023 // register_handler_i occurs when constructing the base class 00024 // ACE_Select_Reactor, the ACE_Select_Reactor register_handler_i() 00025 // is called not the TkReactor register_handler_i(). This means 00026 // that the notify pipe is registered with the ACE_Select_Reactor 00027 // event handling code not the TkReactor and so notfications don't 00028 // work. To get around this we simply close and re-opened the 00029 // notification handler in the constructor of the TkReactor. 00030 00031 #if defined (ACE_MT_SAFE) && (ACE_MT_SAFE != 0) 00032 this->notify_handler_->close (); 00033 this->notify_handler_->open (this, 0); 00034 #endif /* ACE_MT_SAFE */ 00035 } |
|
Definition at line 37 of file TkReactor.cpp. References ids_, and ACE_TkReactorID::next_.
|
|
Deny access since member-wise won't work...
|
|
Cancel the single ACE_Event_Handler that matches the value (which was returned from the method). If arg is non-NULL then it will be set to point to the ``magic cookie'' argument passed in when the was registered. This makes it possible to free up the memory and avoid memory leaks. If is 0 then the method of will be invoked. Returns 1 if cancellation succeeded and 0 if the wasn't found. Reimplemented from ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >. Definition at line 422 of file TkReactor.cpp. References ACE_TRACE, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >::cancel_timer(), and reset_timeout().
00425 { 00426 ACE_TRACE ("ACE_TkReactor::cancel_timer"); 00427 00428 if (ACE_Select_Reactor::cancel_timer (timer_id, 00429 arg, 00430 dont_call_handle_close) == -1) 00431 return -1; 00432 else 00433 { 00434 this->reset_timeout (); 00435 return 0; 00436 } 00437 } |
|
Cancel all that match the address of . If is 0 then the method of will be invoked. Returns number of handler's cancelled. Reimplemented from ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >. Definition at line 406 of file TkReactor.cpp. References ACE_TRACE, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >::cancel_timer(), and reset_timeout().
00408 { 00409 ACE_TRACE ("ACE_TkReactor::cancel_timer"); 00410 00411 if (ACE_Select_Reactor::cancel_timer (handler, 00412 dont_call_handle_close) == -1) 00413 return -1; 00414 else 00415 { 00416 this->reset_timeout (); 00417 return 0; 00418 } 00419 } |
|
Definition at line 105 of file TkReactor.cpp. References ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >::dispatch(), ACE_Select_Reactor_Handle_Set::ex_mask_, ACE_TkReactor_Input_Callback::handle_, ACE_Handle_Set::is_set(), ACE_Select_Reactor_Handle_Set::rd_mask_, ACE_TkReactor_Input_Callback::reactor_, ACE_OS::select(), ACE_Handle_Set::set_bit(), ACE_Select_Reactor_Impl::wait_set_, and ACE_Select_Reactor_Handle_Set::wr_mask_. Referenced by register_handler_i().
00107 { 00108 ACE_TkReactor_Input_Callback *callback = (ACE_TkReactor_Input_Callback *) cd; 00109 ACE_TkReactor *self = callback->reactor_; 00110 ACE_HANDLE handle = callback->handle_; 00111 00112 // my copy isn't const. 00113 ACE_Time_Value zero = ACE_Time_Value::zero; 00114 00115 ACE_Select_Reactor_Handle_Set wait_set; 00116 00117 // Deal with one file event. 00118 00119 // - read which kind of event 00120 if (self->wait_set_.rd_mask_.is_set (handle)) 00121 wait_set.rd_mask_.set_bit (handle); 00122 if (self->wait_set_.wr_mask_.is_set (handle)) 00123 wait_set.wr_mask_.set_bit (handle); 00124 if (self->wait_set_.ex_mask_.is_set (handle)) 00125 wait_set.ex_mask_.set_bit (handle); 00126 00127 int result = ACE_OS::select (handle + 1, 00128 wait_set.rd_mask_, 00129 wait_set.wr_mask_, 00130 wait_set.ex_mask_, &zero); 00131 00132 ACE_Select_Reactor_Handle_Set dispatch_set; 00133 00134 // - Use only that one file event (removes events for other files). 00135 if (result > 0) 00136 { 00137 if (wait_set.rd_mask_.is_set (handle)) 00138 dispatch_set.rd_mask_.set_bit (handle); 00139 if (wait_set.wr_mask_.is_set (handle)) 00140 dispatch_set.wr_mask_.set_bit (handle); 00141 if (wait_set.ex_mask_.is_set (handle)) 00142 dispatch_set.ex_mask_.set_bit (handle); 00143 00144 self->dispatch (1, dispatch_set); 00145 } 00146 } |
|
|
|
Register a set of .
Reimplemented from ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >. Definition at line 271 of file TkReactor.cpp. References ACE_Reactor_Mask, and ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >::register_handler_i().
00274 { 00275 return ACE_Select_Reactor::register_handler_i (handles, 00276 handler, 00277 mask); 00278 } |
|
Register a single .
Reimplemented from ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >. Definition at line 182 of file TkReactor.cpp. References ACE_BIT_ENABLED, ACE_NEW_RETURN, ACE_NOTSUP_RETURN, ACE_Reactor_Mask, ACE_SET_BITS, ACE_TRACE, ACE_TkReactor_Input_Callback::handle_, ACE_TkReactorID::handle_, ids_, InputCallbackProc(), ACE_TkReactorID::next_, ACE_TkReactor_Input_Callback::reactor_, and ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >::register_handler_i().
00185 { 00186 ACE_TRACE ("ACE_TkReactor::register_handler_i"); 00187 00188 int result = ACE_Select_Reactor::register_handler_i (handle, 00189 handler, mask); 00190 if (result == -1) 00191 return -1; 00192 00193 int condition = 0; 00194 00195 #if !defined ACE_WIN32 00196 if (ACE_BIT_ENABLED (mask, ACE_Event_Handler::READ_MASK)) 00197 ACE_SET_BITS (condition, TK_READABLE); 00198 if (ACE_BIT_ENABLED (mask, ACE_Event_Handler::WRITE_MASK)) 00199 ACE_SET_BITS (condition, TK_WRITABLE); 00200 if (ACE_BIT_ENABLED (mask, ACE_Event_Handler::EXCEPT_MASK)) 00201 ACE_SET_BITS (condition, TK_EXCEPTION); 00202 if (ACE_BIT_ENABLED (mask, ACE_Event_Handler::ACCEPT_MASK)) 00203 ACE_SET_BITS (condition, TK_READABLE); 00204 if (ACE_BIT_ENABLED (mask, ACE_Event_Handler::CONNECT_MASK)){ 00205 ACE_SET_BITS (condition, TK_READABLE); // connected, you may write 00206 ACE_SET_BITS (condition, TK_WRITABLE); // connected, you have data/err 00207 } 00208 #else 00209 if (ACE_BIT_ENABLED (mask, ACE_Event_Handler::READ_MASK)) 00210 ACE_SET_BITS (condition, TK_READABLE); 00211 if (ACE_BIT_ENABLED (mask, ACE_Event_Handler::WRITE_MASK)) 00212 ACE_SET_BITS (condition, TK_WRITABLE); 00213 if (ACE_BIT_ENABLED (mask, ACE_Event_Handler::EXCEPT_MASK)) 00214 ACE_NOTSUP_RETURN(-1); 00215 if (ACE_BIT_ENABLED (mask, ACE_Event_Handler::ACCEPT_MASK)) 00216 ACE_SET_BITS (condition, TK_READABLE); 00217 if (ACE_BIT_ENABLED (mask, ACE_Event_Handler::CONNECT_MASK)){ 00218 ACE_SET_BITS (condition, TK_READABLE); // connected, you may write 00219 ACE_SET_BITS (condition, TK_WRITABLE); // connected, you have data/err 00220 } 00221 #endif /* !ACE_WIN32 */ 00222 00223 if (condition != 0) 00224 { 00225 ACE_TkReactorID *TkID = this->ids_; 00226 00227 while(TkID) 00228 { 00229 if (TkID->handle_ == handle) 00230 { 00231 ::Tk_DeleteFileHandler (TkID->handle_); 00232 00233 ACE_TkReactor_Input_Callback *callback; 00234 ACE_NEW_RETURN (callback, 00235 ACE_TkReactor_Input_Callback, 00236 -1); 00237 callback->reactor_ = this; 00238 callback->handle_ = handle; 00239 ::Tk_CreateFileHandler ((int) handle, 00240 condition, 00241 InputCallbackProc, 00242 (ClientData) callback); 00243 return 0; 00244 } 00245 else 00246 TkID = TkID->next_; 00247 } 00248 00249 ACE_NEW_RETURN (TkID, 00250 ACE_TkReactorID, 00251 -1); 00252 TkID->next_ = this->ids_; 00253 TkID->handle_ = handle; 00254 ACE_TkReactor_Input_Callback *callback; 00255 ACE_NEW_RETURN (callback, 00256 ACE_TkReactor_Input_Callback, 00257 -1); 00258 callback->reactor_ = this; 00259 callback->handle_ = handle; 00260 00261 ::Tk_CreateFileHandler ((int) handle, 00262 condition, 00263 InputCallbackProc, 00264 (ClientData) callback); 00265 this->ids_ = TkID; 00266 } 00267 return 0; 00268 } |
|
Remove a set of .
Reimplemented from ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >. Definition at line 336 of file TkReactor.cpp. References ACE_Reactor_Mask, and ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >::remove_handler_i().
00338 { 00339 return ACE_Select_Reactor::remove_handler_i (handles, 00340 mask); 00341 } |
|
Remove the associated with this .
Reimplemented from ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >. Definition at line 281 of file TkReactor.cpp. References ACE_Reactor_Mask, ACE_TRACE, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >::remove_handler_i(), and remove_TkFileHandler().
00283 { 00284 ACE_TRACE ("ACE_TkReactor::remove_handler_i"); 00285 00286 // In the registration phase we registered first with 00287 // ACE_Select_Reactor and then with X. Now we are now doing things 00288 // in reverse order. 00289 00290 // First clean up the corresponding X11Input. 00291 this->remove_TkFileHandler (handle); 00292 00293 // Now let the reactor do its work. 00294 return ACE_Select_Reactor::remove_handler_i (handle, 00295 mask); 00296 } |
|
Removes an Tk FileHandler.
Definition at line 299 of file TkReactor.cpp. References ACE_TRACE, ACE_TkReactorID::handle_, ids_, and ACE_TkReactorID::next_. Referenced by remove_handler_i().
00300 { 00301 ACE_TRACE ("ACE_TkReactor::remove_TkFileHandler"); 00302 00303 ACE_TkReactorID *TkID = this->ids_; 00304 00305 if (TkID) 00306 { 00307 if (TkID->handle_ == handle) 00308 { 00309 ::Tk_DeleteFileHandler (TkID->handle_); 00310 this->ids_ = TkID->next_; 00311 delete TkID; 00312 return; 00313 } 00314 00315 ACE_TkReactorID *NextID = TkID->next_; 00316 00317 while (NextID) 00318 { 00319 if (NextID->handle_ == handle) 00320 { 00321 ::Tk_DeleteFileHandler (NextID->handle_); 00322 TkID->next_ = NextID->next_; 00323 delete NextID; 00324 return; 00325 } 00326 else 00327 { 00328 TkID = NextID; 00329 NextID = NextID->next_; 00330 } 00331 } 00332 } 00333 } |
|
This method ensures there's a Tk timeout for the first timeout in the Reactor's Timer_Queue. Definition at line 347 of file TkReactor.cpp. References ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::calculate_timeout(), ACE_Time_Value::msec(), and TimerCallbackProc(). Referenced by cancel_timer(), schedule_timer(), and TimerCallbackProc().
00348 { 00349 if (this->timeout_) 00350 ::Tk_DeleteTimerHandler (this->timeout_); 00351 timeout_ = 0; 00352 00353 ACE_Time_Value *max_wait_time = 00354 this->timer_queue_->calculate_timeout (0); 00355 00356 if (max_wait_time) 00357 timeout_ = ::Tk_CreateTimerHandler (max_wait_time->msec (), 00358 TimerCallbackProc, 00359 (ClientData) this); 00360 } |
|
Resets the interval of the timer represented by to , which is specified in relative time to the current . If is equal to <ACE_Time_Value::zero>, the timer will become a non-rescheduling timer. Returns 0 if successful, -1 if not. Reimplemented from ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >. Definition at line 364 of file TkReactor.cpp. References ACE_GUARD_RETURN, ACE_Select_Reactor_Token, and ACE_TRACE.
00366 { 00367 ACE_TRACE ("ACE_TkReactor::reset_timer_interval"); 00368 ACE_MT (ACE_GUARD_RETURN (ACE_Select_Reactor_Token, ace_mon, this->token_, -1)); 00369 00370 int result = ACE_Select_Reactor::timer_queue_->reset_interval 00371 (timer_id, 00372 interval); 00373 00374 if (result == -1) 00375 return -1; 00376 else 00377 { 00378 this->reset_timeout (); 00379 return result; 00380 } 00381 } |
|
Schedule an ACE_Event_Handler that will expire after an amount of time. The return value of this method, a timer_id value, uniquely identifies the event_handler in the ACE_Reactor's internal list of timers. This timer_id value can be used to cancel the timer with the cancel_timer() call.
Reimplemented from ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >. Definition at line 384 of file TkReactor.cpp. References ACE_GUARD_RETURN, ACE_Select_Reactor_Token, ACE_TRACE, reset_timeout(), and ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >::schedule_timer().
00388 { 00389 ACE_TRACE ("ACE_TkReactor::schedule_timer"); 00390 ACE_MT (ACE_GUARD_RETURN (ACE_Select_Reactor_Token, ace_mon, this->token_, -1)); 00391 00392 long result = ACE_Select_Reactor::schedule_timer (event_handler, 00393 arg, 00394 delay, 00395 interval); 00396 if (result == -1) 00397 return -1; 00398 else 00399 { 00400 this->reset_timeout (); 00401 return result; 00402 } 00403 } |
|
Definition at line 85 of file TkReactor.cpp. References ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >::dispatch(), reset_timeout(), and timeout_. Referenced by reset_timeout().
00086 { 00087 ACE_TkReactor *self = (ACE_TkReactor *) cd; 00088 self->timeout_ = 0; 00089 00090 // Deal with any timer events 00091 ACE_Select_Reactor_Handle_Set handle_set; 00092 self->dispatch (0, handle_set); 00093 self->reset_timeout (); 00094 } |
|
Wait for Tk events to occur.
Definition at line 149 of file TkReactor.cpp. References ACE_Select_Reactor_Handle_Set::ex_mask_, ACE_Select_Reactor_Handler_Repository::max_handlep1(), ACE_Select_Reactor_Handle_Set::rd_mask_, ACE_OS::select(), and ACE_Select_Reactor_Handle_Set::wr_mask_. Referenced by wait_for_multiple_events().
00152 { 00153 // Check to make sure our handle's are all usable. 00154 ACE_Select_Reactor_Handle_Set temp_set = wait_set; 00155 00156 if (ACE_OS::select (width, 00157 temp_set.rd_mask_, 00158 temp_set.wr_mask_, 00159 temp_set.ex_mask_, 00160 (ACE_Time_Value *) &ACE_Time_Value::zero) == -1) 00161 return -1; // Bad file arguments... 00162 00163 // Instead of waiting using <select>, just use the Tk mechanism to 00164 // wait for a single event. 00165 00166 // Wait for something to happen. 00167 ::Tcl_DoOneEvent (0); 00168 00169 // Reset the width, in case it changed during the upcalls. 00170 width = this->handler_rep_.max_handlep1 (); 00171 00172 // Now actually read the result needed by the <Select_Reactor> using 00173 // <select>. 00174 return ACE_OS::select (width, 00175 wait_set.rd_mask_, 00176 wait_set.wr_mask_, 00177 wait_set.ex_mask_, 00178 (ACE_Time_Value *) &ACE_Time_Value::zero); 00179 } |
|
Wait for events to occur.
Reimplemented from ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >. Definition at line 53 of file TkReactor.cpp. References ACE_TRACE, ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::calculate_timeout(), ACE_Select_Reactor_Handle_Set::ex_mask_, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >::handle_error(), ACE_Select_Reactor_Handler_Repository::max_handlep1(), ACE_Select_Reactor_Handle_Set::rd_mask_, ACE_Handle_Set::sync(), TkWaitForMultipleEvents(), and ACE_Select_Reactor_Handle_Set::wr_mask_.
00055 { 00056 ACE_TRACE ("ACE_TkReactor::wait_for_multiple_events"); 00057 int nfound; 00058 00059 do 00060 { 00061 max_wait_time = this->timer_queue_->calculate_timeout (max_wait_time); 00062 00063 size_t width = this->handler_rep_.max_handlep1 (); 00064 handle_set.rd_mask_ = this->wait_set_.rd_mask_; 00065 handle_set.wr_mask_ = this->wait_set_.wr_mask_; 00066 handle_set.ex_mask_ = this->wait_set_.ex_mask_; 00067 nfound = TkWaitForMultipleEvents (width, 00068 handle_set, 00069 max_wait_time); 00070 00071 } while (nfound == -1 && this->handle_error () > 0); 00072 00073 if (nfound > 0) 00074 { 00075 #if !defined (ACE_WIN32) 00076 handle_set.rd_mask_.sync (this->handler_rep_.max_handlep1 ()); 00077 handle_set.wr_mask_.sync (this->handler_rep_.max_handlep1 ()); 00078 handle_set.ex_mask_.sync (this->handler_rep_.max_handlep1 ()); 00079 #endif /* ACE_WIN32 */ 00080 } 00081 return nfound; // Timed out or input available 00082 } |
|
Definition at line 116 of file TkReactor.h. Referenced by register_handler_i(), remove_TkFileHandler(), and ~ACE_TkReactor(). |
|
Definition at line 117 of file TkReactor.h. Referenced by TimerCallbackProc(). |
