ACE_Select_Reactor_Impl Class Reference

This class simply defines how Select_Reactor's basic interface functions should look like and provides a common base class for using various locking mechanism. More...

#include <Select_Reactor_Base.h>

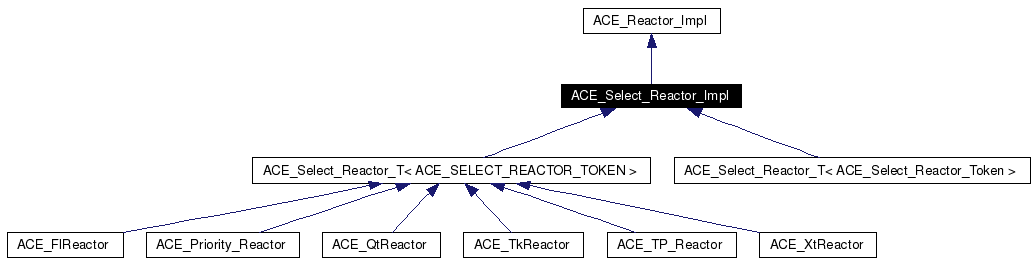

Inheritance diagram for ACE_Select_Reactor_Impl:

[legend]Collaboration diagram for ACE_Select_Reactor_Impl:

[legend]List of all members.

Public Types
enum	{ DEFAULT_SIZE = ACE_DEFAULT_SELECT_REACTOR_SIZE }
Public Member Functions
	ACE_Select_Reactor_Impl (bool mask_signals=true)
	Constructor.
virtual int	purge_pending_notifications (ACE_Event_Handler *=0, ACE_Reactor_Mask=ACE_Event_Handler::ALL_EVENTS_MASK)
virtual int	resumable_handler (void)
Protected Member Functions
virtual int	bit_ops (ACE_HANDLE handle, ACE_Reactor_Mask mask, ACE_Select_Reactor_Handle_Set &handle_set, int ops)
	Allow manipulation of the mask and mask.
virtual void	renew (void)=0
virtual int	is_suspended_i (ACE_HANDLE handle)=0
virtual void	clear_dispatch_mask (ACE_HANDLE handle, ACE_Reactor_Mask mask)
int	supress_notify_renew (void)
void	supress_notify_renew (int sr)
Protected Attributes
ACE_Select_Reactor_Handler_Repository	handler_rep_
	Table that maps to <ACE_Event_Handler *>'s.
ACE_Select_Reactor_Handle_Set	dispatch_set_
	Tracks handles that are ready for dispatch from .
ACE_Select_Reactor_Handle_Set	wait_set_
	Tracks handles that are waited for by .
ACE_Select_Reactor_Handle_Set	suspend_set_
	Tracks handles that are currently suspended.
ACE_Select_Reactor_Handle_Set	ready_set_
ACE_Timer_Queue *	timer_queue_
	Defined as a pointer to allow overriding by derived classes...
ACE_Sig_Handler *	signal_handler_
	Handle signals without requiring global/static variables.
ACE_Reactor_Notify *	notify_handler_
bool	delete_timer_queue_
bool	delete_signal_handler_
bool	delete_notify_handler_
bool	initialized_
	True if we've been initialized yet...
int	restart_
int	requeue_position_
ACE_thread_t	owner_
	The original thread that created this Select_Reactor.
bool	state_changed_
bool	mask_signals_
Private Member Functions
	ACE_Select_Reactor_Impl (const ACE_Select_Reactor_Impl &)
	Deny access since member-wise won't work...
ACE_Select_Reactor_Impl &	operator= (const ACE_Select_Reactor_Impl &)
Private Attributes
int	supress_renew_
Friends
class	ACE_Select_Reactor_Notify
class	ACE_Select_Reactor_Handler_Repository

---

Detailed Description

This class simply defines how Select_Reactor's basic interface functions should look like and provides a common base class for using various locking mechanism.

Definition at line 427 of file Select_Reactor_Base.h.

---

Member Enumeration Documentation

anonymous enum

Enumeration values: DEFAULT_SIZE  Default size of the Select_Reactor's handle table. Definition at line 430 of file Select_Reactor_Base.h. { /// Default size of the Select_Reactor's handle table. DEFAULT_SIZE = ACE_DEFAULT_SELECT_REACTOR_SIZE };

---

Constructor & Destructor Documentation

ACE_INLINE ACE_Select_Reactor_Impl::ACE_Select_Reactor_Impl (  bool  mask_signals = true  )

Constructor. Definition at line 58 of file Select_Reactor_Base.inl. : handler_rep_ (*this) , timer_queue_ (0) , signal_handler_ (0) , notify_handler_ (0) , delete_timer_queue_ (false) , delete_signal_handler_ (false) , delete_notify_handler_ (false) , initialized_ (false) , restart_ (0) , requeue_position_ (-1) // Requeue at end of waiters by default. , state_changed_ (0) , mask_signals_ (ms) , supress_renew_ (0) { }

ACE_Select_Reactor_Impl::ACE_Select_Reactor_Impl (  const ACE_Select_Reactor_Impl &   )  [private]

Deny access since member-wise won't work...

---

Member Function Documentation

int ACE_Select_Reactor_Impl::bit_ops (  ACE_HANDLE  handle, ACE_Reactor_Mask  mask, ACE_Select_Reactor_Handle_Set &  handle_set, int  ops )  [protected, virtual]

Allow manipulation of the mask and mask. Reimplemented in ACE_QtReactor. Definition at line 1113 of file Select_Reactor_Base.cpp. References ACE_BIT_ENABLED, ACE_FDS_PTMF, ACE_Reactor_Mask, ACE_SET_BITS, ACE_TRACE, clear_dispatch_mask(), ACE_Handle_Set::clr_bit(), ACE_Select_Reactor_Handle_Set::ex_mask_, ACE_Select_Reactor_Handler_Repository::handle_in_range(), ACE_Handle_Set::is_set(), ACE_Select_Reactor_Handle_Set::rd_mask_, and ACE_Select_Reactor_Handle_Set::wr_mask_. Referenced by ACE_Select_Reactor_Handler_Repository::bind(), ACE_QtReactor::bit_ops(), and ACE_Select_Reactor_Handler_Repository::unbind(). { ACE_TRACE ("ACE_Select_Reactor_Impl::bit_ops"); if (this->handler_rep_.handle_in_range (handle) == 0) return -1; #if !defined (ACE_WIN32) ACE_Sig_Guard sb (0, this->mask_signals_); // Block out all signals until method returns. #endif /* ACE_WIN32 */ ACE_FDS_PTMF ptmf = &ACE_Handle_Set::set_bit; u_long omask = ACE_Event_Handler::NULL_MASK; // Find the old reactor masks. This automatically does the work of // the GET_MASK operation. if (handle_set.rd_mask_.is_set (handle)) ACE_SET_BITS (omask, ACE_Event_Handler::READ_MASK); if (handle_set.wr_mask_.is_set (handle)) ACE_SET_BITS (omask, ACE_Event_Handler::WRITE_MASK); if (handle_set.ex_mask_.is_set (handle)) ACE_SET_BITS (omask, ACE_Event_Handler::EXCEPT_MASK); switch (ops) { case ACE_Reactor::GET_MASK: // The work for this operation is done in all cases at the // begining of the function. break; case ACE_Reactor::CLR_MASK: ptmf = &ACE_Handle_Set::clr_bit; // State was changed. we need to reflect that change in the // dispatch_mask I assume that only ACE_Reactor::CLR_MASK should // be treated here which means we need to clear the handle|mask // from the current dispatch handler this->clear_dispatch_mask (handle, mask); /* FALLTHRU */ case ACE_Reactor::SET_MASK: /* FALLTHRU */ case ACE_Reactor::ADD_MASK: // The following code is rather subtle... Note that if we are // doing a ACE_Reactor::SET_MASK then if the bit is not enabled // in the mask we need to clear the bit from the ACE_Handle_Set. // On the other hand, if we are doing a ACE_Reactor::CLR_MASK or // a ACE_Reactor::ADD_MASK we just carry out the operations // specified by the mask. // READ, ACCEPT, and CONNECT flag will place the handle in the // read set. if (ACE_BIT_ENABLED (mask, ACE_Event_Handler::READ_MASK) || ACE_BIT_ENABLED (mask, ACE_Event_Handler::ACCEPT_MASK) || ACE_BIT_ENABLED (mask, ACE_Event_Handler::CONNECT_MASK)) { (handle_set.rd_mask_.*ptmf) (handle); } else if (ops == ACE_Reactor::SET_MASK) handle_set.rd_mask_.clr_bit (handle); // WRITE and CONNECT flag will place the handle in the write set if (ACE_BIT_ENABLED (mask, ACE_Event_Handler::WRITE_MASK) || ACE_BIT_ENABLED (mask, ACE_Event_Handler::CONNECT_MASK)) { (handle_set.wr_mask_.*ptmf) (handle); } else if (ops == ACE_Reactor::SET_MASK) handle_set.wr_mask_.clr_bit (handle); // EXCEPT (and CONNECT on Win32) flag will place the handle in // the except set. if (ACE_BIT_ENABLED (mask, ACE_Event_Handler::EXCEPT_MASK) #if defined (ACE_WIN32) || ACE_BIT_ENABLED (mask, ACE_Event_Handler::CONNECT_MASK) #endif /* ACE_WIN32 */ ) { (handle_set.ex_mask_.*ptmf) (handle); } else if (ops == ACE_Reactor::SET_MASK) handle_set.ex_mask_.clr_bit (handle); break; default: return -1; } return omask; }

void ACE_Select_Reactor_Impl::clear_dispatch_mask (  ACE_HANDLE  handle, ACE_Reactor_Mask  mask )  [protected, virtual]

When register/unregister occur, then we need to re-eval our wait/suspend/dispatch set. Reimplemented in ACE_TP_Reactor. Definition at line 1206 of file Select_Reactor_Base.cpp. References ACE_BIT_ENABLED, ACE_Reactor_Mask, ACE_TRACE, ACE_Handle_Set::clr_bit(), dispatch_set_, ACE_Select_Reactor_Handle_Set::ex_mask_, ACE_Select_Reactor_Handle_Set::rd_mask_, state_changed_, and ACE_Select_Reactor_Handle_Set::wr_mask_. Referenced by bit_ops(), ACE_Priority_Reactor::dispatch_io_set(), and ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >::suspend_i(). { ACE_TRACE ("ACE_Select_Reactor_Impl::clear_dispatch_mask"); // Use handle and mask in order to modify the sets // (wait/suspend/ready/dispatch), that way, the dispatch_io_set loop // will not be interrupt, and there will no reason to rescan the // wait_set and re-calling select function, which is *very* // expensive. It seems that wait/suspend/ready sets are getting // updated in register/remove bind/unbind etc functions. The only // thing need to be updated is the dispatch_set (also can be found // in that file code as dispatch_mask). Because of that, we need // that dispatch_set to be member of the ACE_Select_Reactor_impl in // Select_Reactor_Base.h file That way we will have access to that // member in that function. // We kind of invalidate the iterator in dispatch_io_set because its // an array and index built from the original dispatch-set. Take a // look at dispatch_io_set for more details. // We only need to clr_bit, because we are interested in clearing the // handles that was removed, so no dispatching to these handles will // occur. if (ACE_BIT_ENABLED (mask, ACE_Event_Handler::READ_MASK) || ACE_BIT_ENABLED (mask, ACE_Event_Handler::ACCEPT_MASK)) { this->dispatch_set_.rd_mask_.clr_bit (handle); } if (ACE_BIT_ENABLED (mask, ACE_Event_Handler::WRITE_MASK)) { this->dispatch_set_.wr_mask_.clr_bit (handle); } if (ACE_BIT_ENABLED (mask, ACE_Event_Handler::EXCEPT_MASK)) { this->dispatch_set_.ex_mask_.clr_bit (handle); } // That will make the dispatch_io_set iterator re-start and rescan // the dispatch set. this->state_changed_ = true; }

virtual int ACE_Select_Reactor_Impl::is_suspended_i (  ACE_HANDLE  handle  )  [protected, pure virtual]

Check to see if the associated with handle is suspended. Returns 0 if not, 1 if so. Implemented in ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >. Referenced by ACE_Select_Reactor_Handler_Repository::bind().

ACE_Select_Reactor_Impl& ACE_Select_Reactor_Impl::operator= (  const ACE_Select_Reactor_Impl &   )  [private]

int ACE_Select_Reactor_Impl::purge_pending_notifications (  ACE_Event_Handler *  = 0, ACE_Reactor_Mask  = ACE_Event_Handler::ALL_EVENTS_MASK )  [virtual]

Purge any notifications pending in this reactor for the specified ACE_Event_Handler object. Returns the number of notifications purged. Returns -1 on error. Implements ACE_Reactor_Impl. Definition at line 1092 of file Select_Reactor_Base.cpp. References ACE_Reactor_Mask, and ACE_Reactor_Notify::purge_pending_notifications(). { if (this->notify_handler_ == 0) return 0; else return this->notify_handler_->purge_pending_notifications (eh, mask); }

virtual void ACE_Select_Reactor_Impl::renew (  void   )  [protected, pure virtual]

Enqueue ourselves into the list of waiting threads at the appropriate point specified by . Implemented in ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >, and ACE_Select_Reactor_T< ACE_Select_Reactor_Token >. Referenced by ACE_Select_Reactor_Notify::handle_input().

int ACE_Select_Reactor_Impl::resumable_handler (  void   )  [virtual]

Does the reactor allow the application to resume the handle on its own ie. can it pass on the control of handle resumption to the application. The select reactor has no handlers that can be resumed by the application. So return 0; Implements ACE_Reactor_Impl. Reimplemented in ACE_TP_Reactor. Definition at line 1251 of file Select_Reactor_Base.cpp. { // The select reactor has no handlers that can be resumed by the // application. So return 0; return 0; }

ACE_INLINE void ACE_Select_Reactor_Impl::supress_notify_renew (  int  sr  )  [protected]

Definition at line 82 of file Select_Reactor_Base.inl. References supress_renew_. { this->supress_renew_ = sr; }

ACE_INLINE int ACE_Select_Reactor_Impl::supress_notify_renew (  void   )  [protected]

Controls/access whether the notify handler should renew the Select_Reactor's token or not. Definition at line 76 of file Select_Reactor_Base.inl. References supress_renew_. Referenced by ACE_TP_Reactor::ACE_TP_Reactor(), and ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >::renew(). { return this->supress_renew_; }

---

Friends And Related Function Documentation

friend class ACE_Select_Reactor_Handler_Repository [friend]

Definition at line 440 of file Select_Reactor_Base.h.

friend class ACE_Select_Reactor_Notify [friend]

Definition at line 439 of file Select_Reactor_Base.h.

---

Member Data Documentation

bool ACE_Select_Reactor_Impl::delete_notify_handler_ [protected]

Keeps track of whether we need to delete the notify handler (if we didn't create it, then we don't delete it). Definition at line 519 of file Select_Reactor_Base.h.

bool ACE_Select_Reactor_Impl::delete_signal_handler_ [protected]

Keeps track of whether we should delete the signal handler (if we didn't create it, then we don't delete it). Definition at line 515 of file Select_Reactor_Base.h.

bool ACE_Select_Reactor_Impl::delete_timer_queue_ [protected]

Keeps track of whether we should delete the timer queue (if we didn't create it, then we don't delete it). Definition at line 511 of file Select_Reactor_Base.h.

ACE_Select_Reactor_Handle_Set ACE_Select_Reactor_Impl::dispatch_set_ [protected]

Tracks handles that are ready for dispatch from . Definition at line 487 of file Select_Reactor_Base.h. Referenced by clear_dispatch_mask().

ACE_Select_Reactor_Handler_Repository ACE_Select_Reactor_Impl::handler_rep_ [protected]

Table that maps to <ACE_Event_Handler *>'s. Definition at line 484 of file Select_Reactor_Base.h.

bool ACE_Select_Reactor_Impl::initialized_ [protected]

True if we've been initialized yet... Definition at line 522 of file Select_Reactor_Base.h.

bool ACE_Select_Reactor_Impl::mask_signals_ [protected]

If 0 then the Reactor will not mask the signals during the event dispatching. This is useful for applications that do not register any signal handlers and want to reduce the overhead introduce by the kernel level locks required to change the mask. Definition at line 554 of file Select_Reactor_Base.h.

ACE_Reactor_Notify* ACE_Select_Reactor_Impl::notify_handler_ [protected]

Callback object that unblocks the ACE_Select_Reactor if it's sleeping. Definition at line 507 of file Select_Reactor_Base.h.

ACE_thread_t ACE_Select_Reactor_Impl::owner_ [protected]

The original thread that created this Select_Reactor. Definition at line 538 of file Select_Reactor_Base.h.

ACE_Select_Reactor_Handle_Set ACE_Select_Reactor_Impl::ready_set_ [protected]

Track HANDLES we are interested in for various events that must be dispatched *without* going through . Definition at line 497 of file Select_Reactor_Base.h.

int ACE_Select_Reactor_Impl::requeue_position_ [protected]

Position that the main ACE_Select_Reactor thread is requeued in the list of waiters during a callback. If this value == -1 we are requeued at the end of the list. Else if it's 0 then we are requeued at the front of the list. Else if it's > 1 then that indicates the number of waiters to skip over. Definition at line 535 of file Select_Reactor_Base.h.

int ACE_Select_Reactor_Impl::restart_ [protected]

Restart the event-loop method automatically when is interrupted via . Definition at line 526 of file Select_Reactor_Base.h.

ACE_Sig_Handler* ACE_Select_Reactor_Impl::signal_handler_ [protected]

Handle signals without requiring global/static variables. Definition at line 503 of file Select_Reactor_Base.h.

bool ACE_Select_Reactor_Impl::state_changed_ [protected]

True if state has changed during dispatching of , else false. This is used to determine whether we need to make another trip through the 's loop. Definition at line 546 of file Select_Reactor_Base.h. Referenced by clear_dispatch_mask().

int ACE_Select_Reactor_Impl::supress_renew_ [private]

Determine whether we should renew Select_Reactor's token after handling the notification message. Definition at line 566 of file Select_Reactor_Base.h. Referenced by supress_notify_renew().

ACE_Select_Reactor_Handle_Set ACE_Select_Reactor_Impl::suspend_set_ [protected]

Tracks handles that are currently suspended. Definition at line 493 of file Select_Reactor_Base.h. Referenced by ACE_Select_Reactor_Handler_Repository::unbind().

ACE_Timer_Queue* ACE_Select_Reactor_Impl::timer_queue_ [protected]

Defined as a pointer to allow overriding by derived classes... Definition at line 500 of file Select_Reactor_Base.h.

ACE_Select_Reactor_Handle_Set ACE_Select_Reactor_Impl::wait_set_ [protected]

Tracks handles that are waited for by . Definition at line 490 of file Select_Reactor_Base.h. Referenced by ACE_FlReactor::fl_io_proc(), ACE_XtReactor::InputCallbackProc(), ACE_TkReactor::InputCallbackProc(), and ACE_Select_Reactor_Handler_Repository::unbind().

---

The documentation for this class was generated from the following files:

• Select_Reactor_Base.h
• Select_Reactor_Base.cpp
• Select_Reactor_Base.inl

---
