ACE_Priority_Reactor Class Reference

Implements priority based dispatching. More...

#include <Priority_Reactor.h>

Inheritance diagram for ACE_Priority_Reactor:

Inheritance graph
[legend]

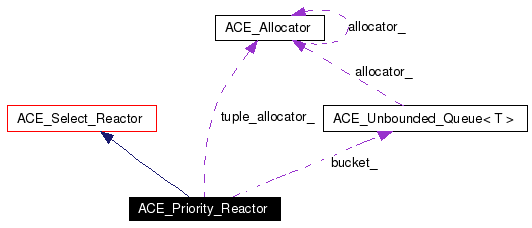

Collaboration diagram for ACE_Priority_Reactor:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 ACE_Priority_Reactor (ACE_Sig_Handler *=0, ACE_Timer_Queue *=0)
 Initialize with the default size.

 ACE_Priority_Reactor (size_t size, int restart=0, ACE_Sig_Handler *=0, ACE_Timer_Queue *=0)
 Initialize with size .

virtual ~ACE_Priority_Reactor (void)
 Close down the select_reactor and release all of its resources.

void dump (void) const
 Dump the state of an object.


Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.


Protected Member Functions

virtual int dispatch_io_set (int number_of_active_handles, int &number_dispatched, int mask, ACE_Handle_Set &dispatch_mask, ACE_Handle_Set &ready_mask, ACE_EH_PTMF callback)

Private Types

typedef ACE_Unbounded_Queue<
ACE_Event_Tuple > 		QUEUE

Private Member Functions

void init_bucket (void)
 A small helper to initialize the bucket.

void build_bucket (ACE_Handle_Set &dispatch_mask, int &min_priority, int &max_priority)
 Build the bucket from the given dispatch_mask.

 ACE_Priority_Reactor (const ACE_Priority_Reactor &)
 Deny access since member-wise won't work...

ACE_Priority_Reactor & operator= (const ACE_Priority_Reactor &)

Private Attributes

QUEUE ** bucket_
ACE_Allocator * tuple_allocator_

Detailed Description

Implements priority based dispatching.

This class refines the dispatching mechanism for the Select_Reactor by taking advantage of the priority method on ACE_Event_Handler.

Definition at line 37 of file Priority_Reactor.h.

Member Typedef Documentation

typedef ACE_Unbounded_Queue<ACE_Event_Tuple> ACE_Priority_Reactor::QUEUE [private]


There is a queue per-priority, which simply holds the Event_Handlers until we know who goes first.

Definition at line 84 of file Priority_Reactor.h.

Referenced by init_bucket().

Constructor & Destructor Documentation

ACE_Priority_Reactor::ACE_Priority_Reactor (  ACE_Sig_Handler *  = 0,
ACE_Timer_Queue *  = 0
)


Initialize with the default size.

Definition at line 43 of file Priority_Reactor.cpp.

References ACE_Select_Reactor, ACE_Timer_Queue, ACE_TRACE, and init_bucket().

00045   : ACE_Select_Reactor(sh, tq),
00046     bucket_ (0),
00047     tuple_allocator_ (0)
00048 {
00049   ACE_TRACE ("ACE_Priority_Reactor::ACE_Priority_Reactor");
00050   this->init_bucket ();
00051 }

ACE_Priority_Reactor::ACE_Priority_Reactor (  size_t  size,
int  restart = 0,
ACE_Sig_Handler *  = 0,
ACE_Timer_Queue *  = 0
)


Initialize with size .

Definition at line 53 of file Priority_Reactor.cpp.

References ACE_Select_Reactor, ACE_Timer_Queue, ACE_TRACE, and init_bucket().

00057   : ACE_Select_Reactor (size, rs, sh, tq),
00058     bucket_ (0),
00059     tuple_allocator_ (0)
00060 {
00061   ACE_TRACE ("ACE_Priority_Reactor::ACE_Priority_Reactor");
00062   this->init_bucket ();
00063 }

ACE_Priority_Reactor::~ACE_Priority_Reactor (  void   )  [virtual]


Close down the select_reactor and release all of its resources.

Definition at line 65 of file Priority_Reactor.cpp.

References ACE_TRACE, bucket_, npriorities, and tuple_allocator_.

00066 {
00067   ACE_TRACE ("ACE_Priority_Reactor::~ACE_Priority_Reactor");
00068
00069   for (int i = 0; i < npriorities; ++i)
00070     delete this->bucket_[i];
00071
00072   delete[] this->bucket_;
00073   delete tuple_allocator_;
00074 }

ACE_Priority_Reactor::ACE_Priority_Reactor (  const ACE_Priority_Reactor &   )  [private]


Deny access since member-wise won't work...

Member Function Documentation

void ACE_Priority_Reactor::build_bucket (  ACE_Handle_Set &  dispatch_mask,
int &  min_priority,
int &  max_priority
)  [private]


Build the bucket from the given dispatch_mask.

Definition at line 77 of file Priority_Reactor.cpp.

References bucket_, ACE_Unbounded_Queue< T >::enqueue_tail(), ACE_Event_Tuple::event_handler_, and ACE_Event_Handler::priority().

Referenced by dispatch_io_set().

00080 {
00081   ACE_Handle_Set_Iterator handle_iter (dispatch_mask);
00082
00083   for (ACE_HANDLE handle;
00084        (handle = handle_iter ()) != ACE_INVALID_HANDLE;
00085        )
00086     {
00087       ACE_Event_Tuple et (this->handler_rep_.find (handle),
00088                           handle);
00089       int prio = et.event_handler_->priority ();
00090
00091       // If the priority is out of range assign the minimum priority.
00092       if (prio < ACE_Event_Handler::LO_PRIORITY
00093           || prio > ACE_Event_Handler::HI_PRIORITY)
00094         prio = ACE_Event_Handler::LO_PRIORITY;
00095
00096       bucket_[prio]->enqueue_tail (et);
00097
00098       // Update the priority ranges....
00099       if (min_priority > prio)
00100         min_priority = prio;
00101       if (max_priority < prio)
00102         max_priority = prio;
00103     }
00104
00105 }

int ACE_Priority_Reactor::dispatch_io_set (  int  number_of_active_handles,
int &  number_dispatched,
int  mask,
ACE_Handle_Set &  dispatch_mask,
ACE_Handle_Set &  ready_mask,
ACE_EH_PTMF  callback
)  [protected, virtual]


We simply override this function to implement the priority dispatching.

Reimplemented from ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >.

Definition at line 108 of file Priority_Reactor.cpp.

References ACE_EH_PTMF, ACE_TRACE, bucket_, build_bucket(), ACE_Select_Reactor_Impl::clear_dispatch_mask(), ACE_Unbounded_Queue< T >::dequeue_head(), ACE_Event_Tuple::event_handler_, ACE_Event_Tuple::handle_, ACE_Unbounded_Queue< T >::is_empty(), ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >::notify_handle(), and ACE_Unbounded_Queue< T >::reset().

00114 {
00115   ACE_TRACE ("ACE_Priority_Reactor::dispatch_io_set");
00116
00117   if (number_of_active_handles == 0)
00118     return 0;
00119
00120   // The range for which there exists any Event_Tuple is computed on
00121   // the ordering loop, minimizing iterations on the dispatching loop.
00122   int min_priority =
00123     ACE_Event_Handler::HI_PRIORITY;
00124   int max_priority =
00125     ACE_Event_Handler::LO_PRIORITY;
00126
00127   (void) this->build_bucket (dispatch_mask,
00128                              min_priority,
00129                              max_priority);
00130
00131   for (int i = max_priority; i >= min_priority; --i)
00132     {
00133       while (!bucket_[i]->is_empty ()
00134              && number_dispatched < number_of_active_handles)
00135         {
00136
00137           ACE_Event_Tuple et;
00138
00139           bucket_[i]->dequeue_head (et);
00140
00141           this->notify_handle (et.handle_,
00142                                mask,
00143                                ready_mask,
00144                                et.event_handler_,
00145                                callback);
00146           number_dispatched++;
00147
00148           // clear the bit from that dispatch mask,
00149           // so when we need to restart the iteration (rebuilding the iterator...)
00150           // we will not dispatch the already dipatched handlers
00151           this->clear_dispatch_mask (et.handle_,
00152                                      mask);
00153
00154           if (this->state_changed_)
00155             {
00156               this->state_changed_ = false; // so it will not rebuild it ...
00157             }
00158         }
00159
00160       // Even if we are aborting the loop due to this->state_changed
00161       // or another error we still want to cleanup the buckets.
00162       bucket_[i]->reset ();
00163     }
00164
00165   return 0;
00166 }

void ACE_Priority_Reactor::dump (  void   )  const [virtual]


Dump the state of an object.

Reimplemented from ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >.

Definition at line 169 of file Priority_Reactor.cpp.

References ACE_BEGIN_DUMP, ACE_DEBUG, ACE_END_DUMP, ACE_TRACE, ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >::dump(), and LM_DEBUG.

00170 {
00171 #if defined (ACE_HAS_DUMP)
00172   ACE_TRACE ("ACE_Priority_Reactor::dump");
00173
00174   ACE_DEBUG ((LM_DEBUG, ACE_BEGIN_DUMP, this));
00175
00176   ACE_Select_Reactor::dump ();
00177
00178   ACE_DEBUG ((LM_DEBUG, ACE_END_DUMP));
00179 #endif /* ACE_HAS_DUMP */
00180 }

void ACE_Priority_Reactor::init_bucket (  void   )  [private]


A small helper to initialize the bucket.

Definition at line 25 of file Priority_Reactor.cpp.

References ACE_NEW, npriorities, QUEUE, and TUPLE_ALLOCATOR.

Referenced by ACE_Priority_Reactor().

00026 {
00027   // Allocate enough space for all the handles.
00028   // TODO: This can be wrong, maybe we should use other kind of
00029   // allocator here?
00030   ACE_NEW (this->tuple_allocator_,
00031            TUPLE_ALLOCATOR (ACE_Select_Reactor::DEFAULT_SIZE));
00032
00033   // The event handlers are assigned to a new As the Event
00034   ACE_NEW (this->bucket_,
00035            QUEUE *[npriorities]);
00036
00037   // This loops "ensures" exception safety.
00038   for (int i = 0; i < npriorities; ++i)
00039     ACE_NEW (this->bucket_[i],
00040              QUEUE (this->tuple_allocator_));
00041 }

ACE_Priority_Reactor& ACE_Priority_Reactor::operator= (  const ACE_Priority_Reactor &   )  [private]


Member Data Documentation

ACE_Priority_Reactor::ACE_ALLOC_HOOK_DECLARE


Declare the dynamic allocation hooks.

Reimplemented from ACE_Select_Reactor_T< ACE_SELECT_REACTOR_TOKEN >.

Definition at line 59 of file Priority_Reactor.h.

QUEUE** ACE_Priority_Reactor::bucket_ [private]


Definition at line 85 of file Priority_Reactor.h.

Referenced by build_bucket(), dispatch_io_set(), and ~ACE_Priority_Reactor().

ACE_Allocator* ACE_Priority_Reactor::tuple_allocator_ [private]


The queues themselves use this allocator to minimize dynamic memory usage.

Definition at line 89 of file Priority_Reactor.h.

Referenced by ~ACE_Priority_Reactor().

The documentation for this class was generated from the following files:
