TAO_IIOP_Connection_Handler Class Reference

Handles requests on a single connection. More...

#include <IIOP_Connection_Handler.h>

Inheritance diagram for TAO_IIOP_Connection_Handler:

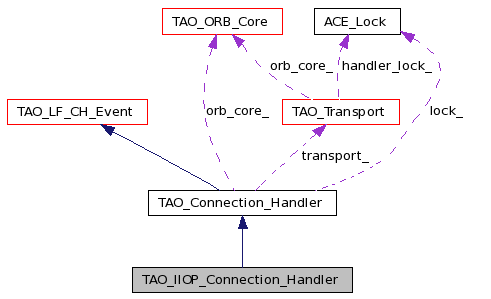

[legend]Collaboration diagram for TAO_IIOP_Connection_Handler:

[legend]List of all members.

Public Member Functions
	TAO_IIOP_Connection_Handler (ACE_Thread_Manager *=0)
	TAO_IIOP_Connection_Handler (TAO_ORB_Core *orb_core)
	Constructor.
	~TAO_IIOP_Connection_Handler (void)
	Destructor.
virtual int	open (void *)
int	close (u_long=0)
int	add_transport_to_cache (void)
	Add ourselves to Cache.
int	process_listen_point_list (IIOP::ListenPointList &listen_list)
	Process the listen_list.
int	enable_network_priority (void)
	Check if network priority needs to be enabled.
int	set_dscp_codepoint (CORBA::Boolean set_network_priority)
	Set Diff-Serv codepoint on outgoing packets.
int	set_dscp_codepoint (CORBA::Long dscp_codepoint)
virtual int	open_handler (void *)
	A open () hook.
void	abort (void)
Event Handler overloads
virtual int	resume_handler (void)
virtual int	close_connection (void)
	Close the underlying connection.
virtual int	handle_input (ACE_HANDLE)
virtual int	handle_output (ACE_HANDLE)
virtual int	handle_close (ACE_HANDLE, ACE_Reactor_Mask)
virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)
Protected Member Functions
int	set_tos (int tos)
TAO_Connection Handler overloads
virtual int	release_os_resources (void)
	Release the OS resources related to this handler.
Private Attributes
int	dscp_codepoint_
	Stores the type of service value.

---

Detailed Description

Handles requests on a single connection.

The Connection handler which is common for the Acceptor and the Connector

Definition at line 58 of file IIOP_Connection_Handler.h.

---

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_IIOP_Connection_Handler::TAO_IIOP_Connection_Handler

(

ACE_Thread_Manager *

= 0

)

Definition at line 24 of file IIOP_Connection_Handler.cpp.

References ACE_ASSERT.

  : TAO_IIOP_SVC_HANDLER (t, 0 , 0),
    TAO_Connection_Handler (0),
    dscp_codepoint_ (IPDSFIELD_DSCP_DEFAULT << 2)
{
  // This constructor should *never* get called, it is just here to
  // make the compiler happy: the default implementation of the
  // Creation_Strategy requires a constructor with that signature, we
  // don't use that implementation, but some (most?) compilers
  // instantiate it anyway.
  ACE_ASSERT (0);
}

TAO_IIOP_Connection_Handler::TAO_IIOP_Connection_Handler

(

TAO_ORB_Core *

orb_core

)

Constructor.

Definition at line 38 of file IIOP_Connection_Handler.cpp.

References ACE_NEW, TAO_Connection_Handler::orb_core(), and TAO_Connection_Handler::transport().

  : TAO_IIOP_SVC_HANDLER (orb_core->thr_mgr (), 0, 0),
    TAO_Connection_Handler (orb_core),
    dscp_codepoint_ (IPDSFIELD_DSCP_DEFAULT << 2)
{
  TAO_IIOP_Transport* specific_transport = 0;
  ACE_NEW (specific_transport,
           TAO_IIOP_Transport (this, orb_core));

  // store this pointer (indirectly increment ref count)
  this->transport (specific_transport);
}

TAO_IIOP_Connection_Handler::~TAO_IIOP_Connection_Handler

(

void

)

Destructor.

Definition at line 52 of file IIOP_Connection_Handler.cpp.

References ACE_ERROR, ACE_TEXT, LM_ERROR, release_os_resources(), TAO_debug_level, and TAO_Connection_Handler::transport().

{
  delete this->transport ();
  int const result =
    this->release_os_resources ();

  if (result == -1 && TAO_debug_level)
    {
      ACE_ERROR ((LM_ERROR,
                  ACE_TEXT("TAO (%P|%t) - IIOP_Connection_Handler::")
                  ACE_TEXT("~IIOP_Connection_Handler, ")
                  ACE_TEXT("release_os_resources() failed %m\n")));
    }
}

---

Member Function Documentation

void TAO_IIOP_Connection_Handler::abort

(

void

)

This is used during a canceled connection attempt. Force the SO_LINGER timeout to 0 so that when the peer is closed, it won't hang around.

Definition at line 525 of file IIOP_Connection_Handler.cpp.

References ACE_DEBUG, ACE_TEXT, LM_DEBUG, SO_LINGER, SOL_SOCKET, and TAO_debug_level.

Referenced by TAO_IIOP_Connector::cancel_svc_handler().

{
  struct linger lval;
  lval.l_onoff = 1;
  lval.l_linger = 0;

  if (this->peer ().set_option(SOL_SOCKET,
                               SO_LINGER,
                               (void*) &lval,
                               sizeof (lval)) == -1)
    {
      if (TAO_debug_level)
        {
          ACE_DEBUG ((LM_DEBUG,
                      ACE_TEXT ("TAO (%P|%t) Unable to set ")
                      ACE_TEXT ("SO_LINGER on %d\n"),
                      this->peer ().get_handle ()));
        }
    }
}

int TAO_IIOP_Connection_Handler::add_transport_to_cache

(

void

)

Add ourselves to Cache.

Definition at line 357 of file IIOP_Connection_Handler.cpp.

References TAO_ORB_Core::lane_resources(), TAO_Connection_Handler::orb_core(), and TAO_Thread_Lane_Resources::transport_cache().

{
  ACE_INET_Addr addr;

  // Get the peername.
  if (this->peer ().get_remote_addr (addr) == -1)
    return -1;

  // Construct an  IIOP_Endpoint object
  TAO_IIOP_Endpoint endpoint (
      addr,
      this->orb_core()->orb_params()->cache_incoming_by_dotted_decimal_address ());

  // Construct a property object
  TAO_Base_Transport_Property prop (&endpoint);

  TAO::Transport_Cache_Manager &cache =
    this->orb_core ()->lane_resources ().transport_cache ();

  // Idle the transport..
  return cache.cache_idle_transport (&prop, this->transport ());
}

int TAO_IIOP_Connection_Handler::close

(

u_long

= 0

)

Close called by the Acceptor or Connector when connection establishment fails.

Definition at line 345 of file IIOP_Connection_Handler.cpp.

References TAO_Connection_Handler::close_handler().

Referenced by TAO_IIOP_Connector::complete_connection(), and handle_timeout().

{
  return this->close_handler ();
}

int TAO_IIOP_Connection_Handler::close_connection

(

void

)

[virtual]

Close the underlying connection.

Used by the ORB to actively close connections that are idle, stale or somehow are determined to be broken before the Reactor does.

Returns:

Return 0 if the connection was already closed, non-zero otherwise.

Implements TAO_Connection_Handler.

Definition at line 263 of file IIOP_Connection_Handler.cpp.

References ACE_DEBUG, ACE_TEXT, TAO_Connection_Handler::close_connection_eh(), TAO_ORB_Parameters::linger(), LM_DEBUG, TAO_Connection_Handler::orb_core(), TAO_ORB_Core::orb_params(), SO_LINGER, SOL_SOCKET, and TAO_debug_level.

Referenced by handle_output().

{
  // To maintain maximum compatibility, we only set this socket option
  // if the user has provided a linger timeout.
  int const linger = this->orb_core()->orb_params()->linger ();
  if (linger != -1)
    {
      struct linger lval;
      lval.l_onoff = 1;
      lval.l_linger = (u_short)linger;
      if (this->peer ().set_option(SOL_SOCKET,
                                   SO_LINGER,
                                   (void*) &lval,
                                   sizeof (lval)) == -1)
        {
          if (TAO_debug_level)
            {
              ACE_DEBUG ((LM_DEBUG,
                          ACE_TEXT ("TAO (%P|%t) Unable to set ")
                          ACE_TEXT ("SO_LINGER on %d\n"),
                          this->peer ().get_handle ()));
            }
        }
    }

  return this->close_connection_eh (this);
}

int TAO_IIOP_Connection_Handler::enable_network_priority

(

void

)

Check if network priority needs to be enabled.

int TAO_IIOP_Connection_Handler::handle_close	(	ACE_HANDLE	,
		ACE_Reactor_Mask
	)			[virtual]

Definition at line 338 of file IIOP_Connection_Handler.cpp.

References ACE_ASSERT.

{
  ACE_ASSERT (0);
  return 0;
}

int TAO_IIOP_Connection_Handler::handle_input

(

ACE_HANDLE

)

[virtual]

The event handler calls, here so that other objects who hold a reference to this object can call the event handler methods.

Implements TAO_Connection_Handler.

Definition at line 292 of file IIOP_Connection_Handler.cpp.

References TAO_Connection_Handler::handle_input_eh().

{
  return this->handle_input_eh (h, this);
}

int TAO_IIOP_Connection_Handler::handle_output

(

ACE_HANDLE

)

[virtual]

Definition at line 298 of file IIOP_Connection_Handler.cpp.

References close_connection(), and TAO_Connection_Handler::handle_output_eh().

{
  int const result = this->handle_output_eh (handle, this);

  if (result == -1)
    {
      this->close_connection ();
      return 0;
    }

  return result;
}

int TAO_IIOP_Connection_Handler::handle_timeout	(	const ACE_Time_Value &	current_time,
		const void *	act = 0
	)			[virtual]

Definition at line 313 of file IIOP_Connection_Handler.cpp.

References close(), TAO_LF_Event::LFS_TIMEOUT, and TAO_LF_Event::reset_state().

{
  // Using this to ensure this instance will be deleted (if necessary)
  // only after reset_state(). Without this, when this refcount==1 -
  // the call to close() will cause a call to remove_reference() which
  // will delete this. At that point this->reset_state() is in no
  // man's territory and that causes SEGV on some platforms (Windows!)

  TAO_Auto_Reference<TAO_IIOP_Connection_Handler> safeguard (*this);

  // NOTE: Perhaps not the best solution, as it feels like the upper
  // layers should be responsible for this?

  // We don't use this upcall for I/O.  This is only used by the
  // Connector to indicate that the connection timedout.  Therefore,
  // we should call close()

  int const ret = this->close ();
  this->reset_state (TAO_LF_Event::LFS_TIMEOUT);

  return ret;
}

int TAO_IIOP_Connection_Handler::open

(

void *

)

[virtual]

Called by the Strategy_Acceptor when the handler is completely connected. Argument is unused.

Definition at line 81 of file IIOP_Connection_Handler.cpp.

References ACE_DEBUG, ACE_ERROR, ACE_IPPROTO_TCP, ACE_NONBLOCK, ACE_TEXT, ACE_INET_Addr::addr_to_string(), TAO_Protocols_Hooks::client_protocol_properties_at_orb_level(), TAO_IIOP_Protocol_Properties::dont_route_, ENOTSUP, ACE_INET_Addr::get_host_addr(), ACE_INET_Addr::get_port_number(), TAO_ORB_Core::get_protocols_hooks(), TAO_IIOP_Protocol_Properties::keep_alive_, TAO_LF_Event::LFS_SUCCESS, LM_DEBUG, LM_ERROR, MAXHOSTNAMELEN, TAO_IIOP_Protocol_Properties::no_delay_, TAO_ORB_Parameters::nodelay(), TAO_Transport::opened_as(), TAO_Connection_Handler::orb_core(), TAO_ORB_Core::orb_params(), TAO_IIOP_Protocol_Properties::recv_buffer_size_, TAO_IIOP_Protocol_Properties::send_buffer_size_, TAO_Protocols_Hooks::server_protocol_properties_at_orb_level(), TAO_ORB_Parameters::sock_dontroute(), TAO_ORB_Parameters::sock_keepalive(), TAO_ORB_Parameters::sock_rcvbuf_size(), TAO_ORB_Parameters::sock_sndbuf_size(), SOL_SOCKET, TAO_LF_Event::state_changed(), TAO::TAO_CLIENT_ROLE, TAO_debug_level, TAO::TAO_SERVER_ROLE, TCP_NODELAY, and TAO_Connection_Handler::transport().

Referenced by open_handler().

{
  if (this->shared_open() == -1)
    return -1;

  TAO_IIOP_Protocol_Properties protocol_properties;

  // Initialize values from ORB params.
  protocol_properties.send_buffer_size_ =
    this->orb_core ()->orb_params ()->sock_sndbuf_size ();
  protocol_properties.recv_buffer_size_ =
    this->orb_core ()->orb_params ()->sock_rcvbuf_size ();
  protocol_properties.no_delay_ =
    this->orb_core ()->orb_params ()->nodelay ();
  protocol_properties.keep_alive_ =
    this->orb_core ()->orb_params ()->sock_keepalive ();
  protocol_properties.dont_route_ =
   this->orb_core ()->orb_params ()->sock_dontroute ();

  TAO_Protocols_Hooks *tph = this->orb_core ()->get_protocols_hooks ();

  if (tph != 0)
    {
      try
        {
          if (this->transport ()->opened_as () == TAO::TAO_CLIENT_ROLE)
            {
              tph->client_protocol_properties_at_orb_level (protocol_properties);
            }
          else
            {
              tph->server_protocol_properties_at_orb_level (protocol_properties);
            }
        }
      catch (const ::CORBA::Exception&)
        {
          return -1;
        }
    }

  if (this->set_socket_option (this->peer (),
                               protocol_properties.send_buffer_size_,
                               protocol_properties.recv_buffer_size_) == -1)
    {
      return -1;
    }

#if !defined (ACE_LACKS_TCP_NODELAY)
  if (this->peer ().set_option (ACE_IPPROTO_TCP,
                                TCP_NODELAY,
                                (void *) &protocol_properties.no_delay_,
                                sizeof (protocol_properties.no_delay_)) == -1)
    return -1;
#endif /* ! ACE_LACKS_TCP_NODELAY */

  if (protocol_properties.keep_alive_)
    {
      if (this->peer ().
          set_option (SOL_SOCKET,
                      SO_KEEPALIVE,
                      (void *) &protocol_properties.keep_alive_,
                      sizeof (protocol_properties.keep_alive_)) == -1
          && errno != ENOTSUP)
        {
          return -1;
        }
    }

#if !defined (ACE_LACKS_SO_DONTROUTE)
  if (protocol_properties.dont_route_)
    {
      if (this->peer ().
          set_option (SOL_SOCKET,
                      SO_DONTROUTE,
                      (void *) &protocol_properties.dont_route_,
                      sizeof (protocol_properties.dont_route_)) == -1
          && errno != ENOTSUP)
        {
          return -1;
        }
    }
#endif /* ! ACE_LACKS_SO_DONTROUTE */

  if (this->transport ()->wait_strategy ()->non_blocking ()
      || this->transport ()->opened_as () == TAO::TAO_SERVER_ROLE)
    {
      if (this->peer ().enable (ACE_NONBLOCK) == -1)
        return -1;
    }

  // Called by the <Strategy_Acceptor> when the handler is
  // completely connected.

  ACE_INET_Addr remote_addr;
  if (this->peer ().get_remote_addr (remote_addr) == -1)
    return -1;

  ACE_INET_Addr local_addr;
  if (this->peer ().get_local_addr (local_addr) == -1)
    return -1;

  if (TAO_debug_level > 2)
    ACE_DEBUG ((LM_DEBUG,
                ACE_TEXT("TAO (%P|%t) - IIOP_Connection_Handler::open, ")
                ACE_TEXT("The local addr is <%C:%d> \n"),
                local_addr.get_host_addr (),
                local_addr.get_port_number()));

  if (local_addr == remote_addr)
    {
      if (TAO_debug_level > 0)
        {
          ACE_TCHAR remote_as_string[MAXHOSTNAMELEN + 16];
          ACE_TCHAR local_as_string[MAXHOSTNAMELEN + 16];

          (void) remote_addr.addr_to_string (remote_as_string,
                                             sizeof(remote_as_string));
          (void) local_addr.addr_to_string (local_as_string,
                                            sizeof(local_as_string));
          ACE_ERROR ((LM_ERROR,
                      ACE_TEXT("TAO(%P|%t) - IIOP_Connection_Handler::open, ")
                      ACE_TEXT("Holy Cow! The remote addr and ")
                      ACE_TEXT("local addr are identical (%s == %s)\n"),
                      remote_as_string, local_as_string));
        }
      return -1;
    }

#if defined (ACE_HAS_IPV6) && !defined (ACE_HAS_IPV6_V6ONLY)
  // Check if we need to invalidate accepted connections
  // from IPv4 mapped IPv6 addresses
  if (this->orb_core ()->orb_params ()->connect_ipv6_only () &&
      remote_addr.is_ipv4_mapped_ipv6 ())
    {
      if (TAO_debug_level > 0)
        {
          ACE_TCHAR remote_as_string[MAXHOSTNAMELEN + 16];

          (void) remote_addr.addr_to_string (remote_as_string,
                                             sizeof(remote_as_string));

          ACE_ERROR ((LM_ERROR,
                      ACE_TEXT("TAO (%P|%t) - IIOP_Connection_Handler::open, ")
                      ACE_TEXT("invalid connection from IPv4 mapped IPv6 interface <%s>!\n"),
                      remote_as_string));
        }
      return -1;
    }
#endif /* ACE_HAS_IPV6 && ACE_HAS_IPV6_V6ONLY */

  if (TAO_debug_level > 0)
    {
      ACE_TCHAR client_addr[MAXHOSTNAMELEN + 16];

      // Verify that we can resolve the peer hostname.
      if (remote_addr.addr_to_string (client_addr, sizeof (client_addr)) == -1)
        return -1;

      ACE_DEBUG ((LM_DEBUG,
                  ACE_TEXT ("TAO (%P|%t) - IIOP_Connection_Handler::open, IIOP ")
                  ACE_TEXT ("connection to peer <%s> on %d\n"),
                  client_addr, this->peer ().get_handle ()));
    }

  // Set that the transport is now connected, if fails we return -1
  // Use C-style cast b/c otherwise we get warnings on lots of
  // compilers
  if (!this->transport ()->post_open ((size_t) this->get_handle ()))
    return -1;
  this->state_changed (TAO_LF_Event::LFS_SUCCESS,
                       this->orb_core ()->leader_follower ());

  return 0;
}

int TAO_IIOP_Connection_Handler::open_handler

(

void *

)

[virtual]

A open () hook.

See Thread_Per_Connection_Handler for a use case

Implements TAO_Connection_Handler.

Definition at line 75 of file IIOP_Connection_Handler.cpp.

References open().

{
  return this->open (v);
}

int TAO_IIOP_Connection_Handler::process_listen_point_list

(

IIOP::ListenPointList &

listen_list

)

Process the listen_list.

Definition at line 381 of file IIOP_Connection_Handler.cpp.

References ACE_DEBUG, ACE_ERROR, ACE_TEXT, LM_DEBUG, LM_ERROR, TAO_Transport::make_idle(), TAO_debug_level, and TAO_Connection_Handler::transport().

Referenced by TAO_IIOP_Transport::tear_listen_point_list().

{
  // Get the size of the list
  CORBA::ULong const len = listen_list.length ();

  if (TAO_debug_level > 0 && len == 0)
    {
      ACE_ERROR ((LM_ERROR,
                  ACE_TEXT("TAO (%P|%t) - IIOP_Connection_Handler::")
                  ACE_TEXT("process_listen_point_list, ")
                  ACE_TEXT("Received list of size 0, check client config.\n")));
    }

  for (CORBA::ULong i = 0; i < len; ++i)
    {
      IIOP::ListenPoint listen_point = listen_list[i];
      ACE_INET_Addr addr (listen_point.port,
                          listen_point.host.in ());

      if (TAO_debug_level > 0)
        {
          ACE_DEBUG ((LM_DEBUG,
                      ACE_TEXT("TAO (%P|%t) - IIOP_Connection_Handler::")
                      ACE_TEXT("process_listen_point_list, ")
                      ACE_TEXT("Listening port [%d] on [%C]\n"),
                      listen_point.port,
                      listen_point.host.in ()));
        }

      // Construct an  IIOP_Endpoint object using the host as provided
      // in the listen point list.  We must use host in that form because
      // that's also how the ORB on the other side will advertise the host
      // in an IOR.
      TAO_IIOP_Endpoint endpoint (listen_point.host.in (),
                                  listen_point.port, addr);

      // Construct a property object
      TAO_Base_Transport_Property prop (&endpoint);

      // Mark the connection as bidirectional
      prop.set_bidir_flag (1);

      // The property for this handler has changed. Recache the
      // handler with this property
      if (this->transport ()->recache_transport (&prop) == -1)
        return -1;

      // Make the handler idle and ready for use
      this->transport ()->make_idle ();
    }

  return 0;
}

int TAO_IIOP_Connection_Handler::release_os_resources

(

void

)

[protected, virtual]

Release the OS resources related to this handler.

Reimplemented from TAO_Connection_Handler.

Definition at line 351 of file IIOP_Connection_Handler.cpp.

Referenced by ~TAO_IIOP_Connection_Handler().

{
  return this->peer ().close ();
}

int TAO_IIOP_Connection_Handler::resume_handler

(

void

)

[virtual]

Definition at line 257 of file IIOP_Connection_Handler.cpp.

References ACE_Event_Handler::ACE_APPLICATION_RESUMES_HANDLER.

{
  return ACE_Event_Handler::ACE_APPLICATION_RESUMES_HANDLER;
}

int TAO_IIOP_Connection_Handler::set_dscp_codepoint

(

CORBA::Long

dscp_codepoint

)

[virtual]

Reimplemented from TAO_Connection_Handler.

Definition at line 490 of file IIOP_Connection_Handler.cpp.

References IPDSFIELD_DSCP_DEFAULT, and set_tos().

{
  int tos = IPDSFIELD_DSCP_DEFAULT << 2;

  CORBA::Long codepoint = dscp_codepoint;

  tos = static_cast<int> (codepoint) << 2;

  this->set_tos (tos);

  return 0;
}

int TAO_IIOP_Connection_Handler::set_dscp_codepoint

(

CORBA::Boolean

set_network_priority

)

[virtual]

Set Diff-Serv codepoint on outgoing packets.

Reimplemented from TAO_Connection_Handler.

Definition at line 504 of file IIOP_Connection_Handler.cpp.

References TAO_Protocols_Hooks::get_dscp_codepoint(), TAO_ORB_Core::get_protocols_hooks(), IPDSFIELD_DSCP_DEFAULT, TAO_Connection_Handler::orb_core(), and set_tos().

{
  int tos = IPDSFIELD_DSCP_DEFAULT << 2;

  if (set_network_priority)
    {
      TAO_Protocols_Hooks *tph = this->orb_core ()->get_protocols_hooks ();

      if (tph != 0)
        {
          CORBA::Long codepoint = tph->get_dscp_codepoint ();

          tos = static_cast<int> (codepoint) << 2;
          this->set_tos (tos);
        }
    }

  return 0;
}

int TAO_IIOP_Connection_Handler::set_tos

(

int

tos

)

[protected]

Definition at line 437 of file IIOP_Connection_Handler.cpp.

References ACE_DEBUG, dscp_codepoint_, ACE_Addr::get_type(), IPPROTO_IP, LM_DEBUG, and TAO_debug_level.

Referenced by set_dscp_codepoint().

{
  if (tos != this->dscp_codepoint_)
    {
      int result = 0;
#if defined (ACE_HAS_IPV6)
      ACE_INET_Addr local_addr;
      if (this->peer ().get_local_addr (local_addr) == -1)
        return -1;
      else if (local_addr.get_type () == AF_INET6)
# if !defined (IPV6_TCLASS)
      // IPv6 defines option IPV6_TCLASS for specifying traffic class/priority
      // but not many implementations yet (very new;-).
        {
          if (TAO_debug_level)
            {
              ACE_DEBUG ((LM_DEBUG,
                          "TAO (%P|%t) - IIOP_Connection_Handler::"
                          "set_dscp_codepoint -> IPV6_TCLASS not supported yet\n"));
            }
          return 0;
        }
# else /* !IPV6_TCLASS */
        result = this->peer ().set_option (IPPROTO_IPV6,
                                           IPV6_TCLASS,
                                           (int *) &tos ,
                                           (int) sizeof (tos));
      else
# endif /* IPV6_TCLASS */
#endif /* ACE_HAS_IPV6 */
      result = this->peer ().set_option (IPPROTO_IP,
                                         IP_TOS,
                                         (int *) &tos ,
                                         (int) sizeof (tos));

      if (TAO_debug_level)
        {
          ACE_DEBUG ((LM_DEBUG,
                      "TAO (%P|%t) - IIOP_Connection_Handler::"
                      "set_dscp_codepoint -> dscp: %x; result: %d; %s\n",
                      tos,
                      result,
                      result == -1 ? "try running as superuser" : ""));
        }

      // On successful setting of TOS field.
      if (result == 0)
        this->dscp_codepoint_ = tos;
    }
  return 0;
}

---

Member Data Documentation

int TAO_IIOP_Connection_Handler::dscp_codepoint_ [private]

Stores the type of service value.

Definition at line 128 of file IIOP_Connection_Handler.h.

Referenced by set_tos().

---

The documentation for this class was generated from the following files:

• IIOP_Connection_Handler.h
• IIOP_Connection_Handler.cpp

---
