TAO_Resource_Factory Class Reference

Factory which manufacturers resources for use by the ORB Core. More...

#include <Resource_Factory.h>

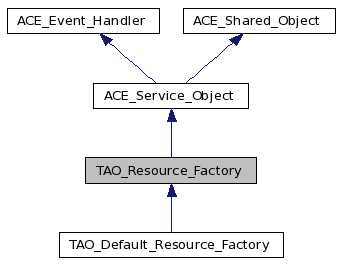

Inheritance diagram for TAO_Resource_Factory:

Inheritance graph
[legend]

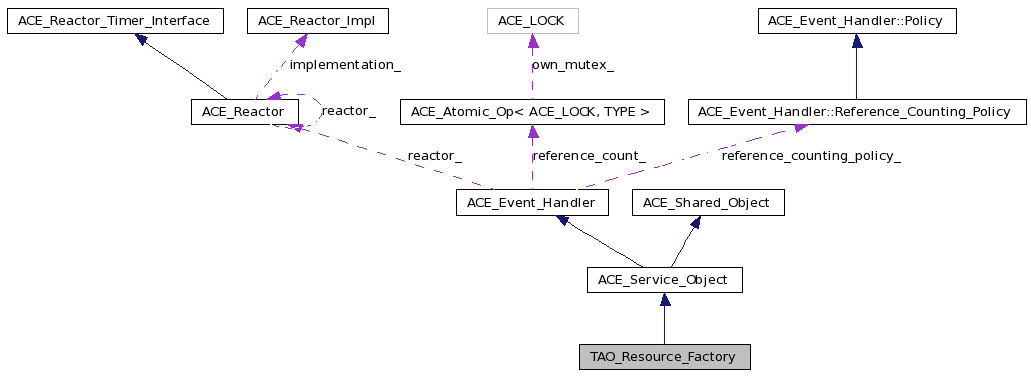

Collaboration diagram for TAO_Resource_Factory:

Collaboration graph
[legend]
List of all members.

Public Types

 LRU
 Least Recently Used.
 LFU
 Least Frequently Used.
 FIFO
 First In First Out.
 NOOP
 Dont use any strategy.
 TAO_EAGER
 Use resources in an eager fashion.
 TAO_LAZY
 Use resources in a lazy manner.
enum  Purging_Strategy { LRU, LFU, FIFO, NOOP }
enum  Resource_Usage { TAO_EAGER, TAO_LAZY }

Public Member Functions

 TAO_Resource_Factory (void)
virtual ~TAO_Resource_Factory (void)
virtual int use_locked_data_blocks (void) const
virtual ACE_Reactor * get_reactor (void)
 Return an ACE_Reactor to be utilized.
virtual void reclaim_reactor (ACE_Reactor *reactor)
 Reclaim reactor resources (e.g. deallocate, etc).
virtual TAO_Acceptor_Registry * get_acceptor_registry (void)
 Return a reference to the acceptor registry.
virtual TAO_Connector_Registry * get_connector_registry (void)
 Return a connector to be utilized.
virtual void use_local_memory_pool (bool)
 Return the Allocator's memory pool type.
virtual int input_cdr_allocator_type_locked (void)
virtual ACE_Allocator * amh_response_handler_allocator (void)
 Access the AMH response handler allocator.
virtual ACE_Allocator * ami_response_handler_allocator (void)
 Access the AMI response handler allocator.
virtual TAO_ProtocolFactorySet * get_protocol_factories (void)
virtual int init_protocol_factories (void)
virtual TAO_Codeset_Manager * codeset_manager (void)
 Gets the codeset manager.
virtual int cache_maximum (void) const
 This denotes the maximum number of connections that can be cached.
virtual int purge_percentage (void) const
virtual int max_muxed_connections (void) const
virtual int get_parser_names (char **&names, int &number_of_names)
virtual ACE_Lock * create_cached_connection_lock (void)
virtual int locked_transport_cache (void)
virtual ACE_Lock * create_object_key_table_lock (void)
 Creates a lock needed for the table that stores the object keys.
virtual ACE_Lock * create_corba_object_lock (void)
 Creates the lock for the CORBA Object.
virtual TAO_Configurable_Refcount create_corba_object_refcount (void)
 Creates the configurable refcount for the CORBA Object.
virtual TAO_Flushing_Strategy * create_flushing_strategy (void)=0
virtual TAO_Connection_Purging_Strategy * create_purging_strategy (void)=0
 Creates the connection purging strategy.
virtual TAO_LF_Strategy * create_lf_strategy (void)=0
virtual auto_ptr< TAO_GIOP_Fragmentation_Strategy > create_fragmentation_strategy (TAO_Transport *transport, CORBA::ULong max_message_size) const =0
 Outgoing fragment creation strategy.
virtual void disable_factory (void)=0
virtual TAO_Resource_Factory::Resource_Usage resource_usage_strategy (void) const =0
 Return the resource usage strategy.
virtual bool drop_replies_during_shutdown () const =0
Access the input CDR allocators.
virtual ACE_Allocator * input_cdr_dblock_allocator (void)
virtual ACE_Allocator * input_cdr_buffer_allocator (void)
virtual ACE_Allocator * input_cdr_msgblock_allocator (void)
Access the output CDR allocators.
virtual ACE_Allocator * output_cdr_dblock_allocator (void)
virtual ACE_Allocator * output_cdr_buffer_allocator (void)
virtual ACE_Allocator * output_cdr_msgblock_allocator (void)

Protected Member Functions

virtual int load_default_protocols (void)

Detailed Description

Factory which manufacturers resources for use by the ORB Core.

This class is a factory/repository for critical ORB Core resources.

Definition at line 110 of file Resource_Factory.h.

Member Enumeration Documentation

enum TAO_Resource_Factory::Purging_Strategy

Enumerator:
LRU  Least Recently Used.
LFU  Least Frequently Used.
FIFO  First In First Out.
NOOP  Dont use any strategy.

Definition at line 114 of file Resource_Factory.h.

00115   {
00116     /// Least Recently Used
00117     LRU,
00118
00119     /// Least Frequently Used
00120     LFU,
00121
00122     /// First In First Out
00123     FIFO,
00124
00125     /// Dont use any strategy.
00126     NOOP
00127   };

enum TAO_Resource_Factory::Resource_Usage

Enumerator:
TAO_EAGER  Use resources in an eager fashion.
TAO_LAZY  Use resources in a lazy manner.

Definition at line 129 of file Resource_Factory.h.

00130     {
00131       /// Use resources in an eager fashion
00132       TAO_EAGER,
00133
00134       /// Use resources in a lazy manner
00135       TAO_LAZY
00136     };

Constructor & Destructor Documentation

TAO_Resource_Factory::TAO_Resource_Factory ( void   )

Definition at line 55 of file Resource_Factory.cpp.

00056 {
00057 }

TAO_Resource_Factory::~TAO_Resource_Factory ( void   )  [virtual]

Definition at line 59 of file Resource_Factory.cpp.

00060 {
00061 }

Member Function Documentation

ACE_Allocator * TAO_Resource_Factory::amh_response_handler_allocator ( void   )  [virtual]

Access the AMH response handler allocator.

Reimplemented in TAO_Default_Resource_Factory.

Definition at line 141 of file Resource_Factory.cpp.

Referenced by TAO_Thread_Lane_Resources::amh_response_handler_allocator().

00142 {
00143   return 0;
00144 }

ACE_Allocator * TAO_Resource_Factory::ami_response_handler_allocator ( void   )  [virtual]

Access the AMI response handler allocator.

Reimplemented in TAO_Default_Resource_Factory.

Definition at line 147 of file Resource_Factory.cpp.

Referenced by TAO_Thread_Lane_Resources::ami_response_handler_allocator().

00148 {
00149   return 0;
00150 }

int TAO_Resource_Factory::cache_maximum ( void   )  const [virtual]

This denotes the maximum number of connections that can be cached.

Reimplemented in TAO_Default_Resource_Factory.

Definition at line 171 of file Resource_Factory.cpp.

References TAO_CONNECTION_CACHE_MAXIMUM.

00172 {
00173   return TAO_CONNECTION_CACHE_MAXIMUM;
00174 }

TAO_Codeset_Manager * TAO_Resource_Factory::codeset_manager ( void   )  [virtual]

Gets the codeset manager.

Reimplemented in TAO_Default_Resource_Factory.

Definition at line 165 of file Resource_Factory.cpp.

Referenced by TAO_ORB_Core::codeset_manager().

00166 {
00167   return 0;
00168 }

ACE_Lock * TAO_Resource_Factory::create_cached_connection_lock ( void   )  [virtual]

Creates the lock for the lock needed in the Cache Map

Deprecated:

Reimplemented in TAO_Default_Resource_Factory.

Definition at line 196 of file Resource_Factory.cpp.

00197 {
00198   return 0;
00199 }

ACE_Lock * TAO_Resource_Factory::create_corba_object_lock ( void   )  [virtual]

Creates the lock for the CORBA Object.

Reimplemented in TAO_Default_Resource_Factory.

Definition at line 214 of file Resource_Factory.cpp.

Referenced by CORBA::Object::Object().

00215 {
00216   return 0;
00217 }

TAO_Configurable_Refcount TAO_Resource_Factory::create_corba_object_refcount ( void   )  [virtual]

Creates the configurable refcount for the CORBA Object.

Reimplemented in TAO_Default_Resource_Factory.

Definition at line 220 of file Resource_Factory.cpp.

References TAO_Configurable_Refcount::TAO_NULL_LOCK.

Referenced by CORBA::Object::Object().

00221 {
00222   return TAO_Configurable_Refcount (
00223                     TAO_Configurable_Refcount::TAO_NULL_LOCK);
00224 }

virtual TAO_Flushing_Strategy* TAO_Resource_Factory::create_flushing_strategy ( void   )  [pure virtual]

Creates the flushing strategy. The new instance is owned by the caller.

Implemented in TAO_Default_Resource_Factory.

Referenced by TAO_ORB_Core::init().

virtual auto_ptr<TAO_GIOP_Fragmentation_Strategy> TAO_Resource_Factory::create_fragmentation_strategy ( TAO_Transport *  transport,
CORBA::ULong  max_message_size
) const [pure virtual]

Outgoing fragment creation strategy.

Implemented in TAO_Default_Resource_Factory.

Referenced by TAO_ORB_Core::fragmentation_strategy().

virtual TAO_LF_Strategy* TAO_Resource_Factory::create_lf_strategy ( void   )  [pure virtual]

Creates the leader followers strategy. The new instance is owned by the caller.

Implemented in TAO_Default_Resource_Factory.

ACE_Lock * TAO_Resource_Factory::create_object_key_table_lock ( void   )  [virtual]

Creates a lock needed for the table that stores the object keys.

Reimplemented in TAO_Default_Resource_Factory.

Definition at line 208 of file Resource_Factory.cpp.

Referenced by TAO::ObjectKey_Table::init().

00209 {
00210   return 0;
00211 }

virtual TAO_Connection_Purging_Strategy* TAO_Resource_Factory::create_purging_strategy ( void   )  [pure virtual]

Creates the connection purging strategy.

Implemented in TAO_Default_Resource_Factory.

virtual void TAO_Resource_Factory::disable_factory ( void   )  [pure virtual]

Disables the factory. When a new factory is installed and used, this function should be called on the previously used (default) factory. This should result in proper error reporting if the user attempts to set options on an unused factory.

Implemented in TAO_Default_Resource_Factory.

virtual bool TAO_Resource_Factory::drop_replies_during_shutdown (  )  const [pure virtual]

Return the value of the strategy that indicates whether the ORB should wait for the replies during shutdown or drop replies during shutdown.

Implemented in TAO_Default_Resource_Factory.

Referenced by TAO_Leader_Follower::set_client_thread().

TAO_Acceptor_Registry * TAO_Resource_Factory::get_acceptor_registry ( void   )  [virtual]

Return a reference to the acceptor registry.

Reimplemented in TAO_Default_Resource_Factory.

Definition at line 88 of file Resource_Factory.cpp.

Referenced by TAO_Thread_Lane_Resources::acceptor_registry().

00089 {
00090   return 0;
00091 }

TAO_Connector_Registry * TAO_Resource_Factory::get_connector_registry ( void   )  [virtual]

Return a connector to be utilized.

Reimplemented in TAO_Default_Resource_Factory.

Definition at line 82 of file Resource_Factory.cpp.

Referenced by TAO_Thread_Lane_Resources::connector_registry().

00083 {
00084   return 0;
00085 }

int TAO_Resource_Factory::get_parser_names ( char **&  names,
int &  number_of_names
) [virtual]

Reimplemented in TAO_Default_Resource_Factory.

Definition at line 190 of file Resource_Factory.cpp.

Referenced by TAO_Parser_Registry::open().

00191 {
00192   return 0;
00193 }

TAO_ProtocolFactorySet * TAO_Resource_Factory::get_protocol_factories ( void   )  [virtual]

The protocol factory list is implemented in this class since a) it will be a global resource and b) it is initialized at start up and then not altered. Returns a container holding the list of loaded protocols.

Reimplemented in TAO_Default_Resource_Factory.

Definition at line 153 of file Resource_Factory.cpp.

Referenced by TAO_ORB_Core::init().

00154 {
00155   return 0;
00156 }

ACE_Reactor * TAO_Resource_Factory::get_reactor ( void   )  [virtual]

Return an ACE_Reactor to be utilized.

Reimplemented in TAO_Default_Resource_Factory.

Definition at line 70 of file Resource_Factory.cpp.

Referenced by TAO_Leader_Follower::reactor().

00071 {
00072   return 0;
00073 }

int TAO_Resource_Factory::init_protocol_factories ( void   )  [virtual]

This method will loop through the protocol list and using the protocol name field this method will retrieve a pointer to the associated protocol factory from the service configurator. It is assumed that only one thread will call this method at ORB initialization. NON-THREAD-SAFE

Reimplemented in TAO_Default_Resource_Factory.

Definition at line 159 of file Resource_Factory.cpp.

Referenced by TAO_ORB_Core::init().

00160 {
00161   return -1;
00162 }

int TAO_Resource_Factory::input_cdr_allocator_type_locked ( void   )  [virtual]

Reimplemented in TAO_Default_Resource_Factory.

Definition at line 117 of file Resource_Factory.cpp.

00118 {
00119   return -1;
00120 }

ACE_Allocator * TAO_Resource_Factory::input_cdr_buffer_allocator ( void   )  [virtual]

Reimplemented in TAO_Default_Resource_Factory.

Definition at line 105 of file Resource_Factory.cpp.

Referenced by TAO_Thread_Lane_Resources::input_cdr_buffer_allocator().

00106 {
00107   return 0;
00108 }

ACE_Allocator * TAO_Resource_Factory::input_cdr_dblock_allocator ( void   )  [virtual]

Reimplemented in TAO_Default_Resource_Factory.

Definition at line 99 of file Resource_Factory.cpp.

Referenced by TAO_Thread_Lane_Resources::input_cdr_dblock_allocator(), and TAO_Thread_Lane_Resources::transport_message_buffer_allocator().

00100 {
00101   return 0;
00102 }

ACE_Allocator * TAO_Resource_Factory::input_cdr_msgblock_allocator ( void   )  [virtual]

Reimplemented in TAO_Default_Resource_Factory.

Definition at line 111 of file Resource_Factory.cpp.

Referenced by TAO_Thread_Lane_Resources::input_cdr_msgblock_allocator().

00112 {
00113   return 0;
00114 }

int TAO_Resource_Factory::load_default_protocols ( void   )  [protected, virtual]

Loads the default protocols. This method is used so that the advanced_resource.cpp can call the one in default_resource.cpp without calling unnecessary functions.

Reimplemented in TAO_Default_Resource_Factory.

Definition at line 227 of file Resource_Factory.cpp.

00228 {
00229   return 0;
00230 }

int TAO_Resource_Factory::locked_transport_cache ( void   )  [virtual]

Should the transport cache have a lock or not? Return 1 if the transport cache needs to be locked else return 0

Reimplemented in TAO_Default_Resource_Factory.

Definition at line 202 of file Resource_Factory.cpp.

Referenced by TAO::Transport_Cache_Manager::Transport_Cache_Manager().

00203 {
00204   return 0;
00205 }

int TAO_Resource_Factory::max_muxed_connections ( void   )  const [virtual]

Return the number of muxed connections that are allowed for a remote endpoint

Reimplemented in TAO_Default_Resource_Factory.

Definition at line 183 of file Resource_Factory.cpp.

00184 {
00185   return 0;
00186 }

ACE_Allocator * TAO_Resource_Factory::output_cdr_buffer_allocator ( void   )  [virtual]

Reimplemented in TAO_Default_Resource_Factory.

Definition at line 129 of file Resource_Factory.cpp.

Referenced by TAO_Thread_Lane_Resources::output_cdr_buffer_allocator().

00130 {
00131   return 0;
00132 }

ACE_Allocator * TAO_Resource_Factory::output_cdr_dblock_allocator ( void   )  [virtual]

Reimplemented in TAO_Default_Resource_Factory.

Definition at line 123 of file Resource_Factory.cpp.

Referenced by TAO_Thread_Lane_Resources::output_cdr_dblock_allocator().

00124 {
00125   return 0;
00126 }

ACE_Allocator * TAO_Resource_Factory::output_cdr_msgblock_allocator ( void   )  [virtual]

Reimplemented in TAO_Default_Resource_Factory.

Definition at line 135 of file Resource_Factory.cpp.

Referenced by TAO_Thread_Lane_Resources::output_cdr_msgblock_allocator().

00136 {
00137   return 0;
00138 }

int TAO_Resource_Factory::purge_percentage ( void   )  const [virtual]

This denotes the amount of entries to remove from the connection cache.

Reimplemented in TAO_Default_Resource_Factory.

Definition at line 177 of file Resource_Factory.cpp.

00178 {
00179   return 0;
00180 }

void TAO_Resource_Factory::reclaim_reactor ( ACE_Reactor *  reactor  )  [virtual]

Reclaim reactor resources (e.g. deallocate, etc).

Reimplemented in TAO_Default_Resource_Factory.

Definition at line 76 of file Resource_Factory.cpp.

00077 {
00078   return;
00079 }

virtual TAO_Resource_Factory::Resource_Usage TAO_Resource_Factory::resource_usage_strategy ( void   )  const [pure virtual]

Return the resource usage strategy.

Implemented in TAO_Default_Resource_Factory.

Referenced by operator>>().

void TAO_Resource_Factory::use_local_memory_pool ( bool   )  [virtual]

Return the Allocator's memory pool type.

Reimplemented in TAO_Default_Resource_Factory.

Definition at line 94 of file Resource_Factory.cpp.

Referenced by TAO_ORB_Core::init().

00095 {
00096 }

int TAO_Resource_Factory::use_locked_data_blocks ( void   )  const [virtual]

@ Backwards compatibility, return 1 if the ORB core should use Locked_Data_Blocks

Reimplemented in TAO_Default_Resource_Factory.

Definition at line 64 of file Resource_Factory.cpp.

00065 {
00066   return 0;
00067 }

The documentation for this class was generated from the following files:
Generated on Tue Feb 2 17:39:44 2010 for TAO by  doxygen 1.4.7
