    Guide to the file VLA Archive Image download/browse system


    Purpose

    Here you can browse the files in the archive, in case you're not looking for images but for uvdata (e.g. if you want to combine multiple calibrated data sets), or want to see the logs for a particular pipelined experiment. Have fun!

    The files come in two categories

    • Project files are related to a (multi-source) observing run
    • Position files are related to a (single-source) sky location
      And the position files come with additional (source visibility) plots

    Project Files

    These multi-source files are archived under a project name directory and contain all files related to the project, regardless of anything else than the project name (eg observed on different dates, frequencies and/or different array configurations, different sources or observers). Their name always starts with the project name. Some projects have run for many observing runs so their directory content can be large.

    Files typically in the project directory are the raw VLA data with calibration tables attached (*.uvfits), or the calibration tables only (*.clfits, a.k.a. the TASAV files), both as FITS files. Furthermore there are ASCII files as the data and pipeline logs regarding to the archive download (*.data.log, *.?.*.run and *.?.*.log). Every file contains the project name and observing date, whereas the UV (*.uvfits and *.clfits) FITS files also indicate the observing frequency, observed Stokes parameters, and approximate array configuration, i.e.,

    FITS: [PROJECT-DIR]/[PROJECT-NAME]_YYYYMMMDD_A_FFFFPNNSL.EXT
    ASCII:[PROJECT-DIR]/[PROJECT-NAME]_YYYYMMMDD_A.description

    wherePROJECT-DIR equals PROJECT-NAME, and where
    YYYYMMMDDis the observing date format (UT)
    Ais the VLA subarray setting (1-5, 0 for unknown)
    FFFF is the observing frequency in GHz
    Pis the observed polarization (Full, Half=RR+LL, L, R, X, Y, S for unknown)
    NNis the number of antennas used in the subarray
    Sis the shortest arm configuration (D=1km, C=3km, B=11km, A=36km)
    Lis the longest arm configuration (D, C, B, A, P for Pie Town=75km)
    EXTis either uvfits for the full UV file or clfits for (calibration) tables only
    description

    is either data.log for general pipelining info, *.run for c-shell generated
    AIPS run files or *.log for AIPS *.run output (same string for *.)

    Position Files

    These single-source files are archived under a truncated J2000 sky location directory and contain all files related to the source, regardless of anything else than the sky location (eg observed on different dates, frequencies and/or different array configurations, different projects or observers). Their name always starts with the observed sky frequency. Some positions have been observed for many observing runs so their directory content can be large.

    Files typically in the J2000 directory are the calibrated VLA UV-data with the resulting images, both as FITS files. Furthermore there are JPEG files solely in aid of the web-representation of the images (quick look or browse). Every file contains the observing frequency and Stokes parameter, a representation of the angular resolution, the project name and observing date, whereas the image (NOT the *.uvfits !) files also indicate the RMS noise and angular radius, i.e.,

    UV FITS:[J2000-COORDINATE]/FFFFPNNSL_[PROJECT-NAME]_YYYYMMMDD_A.uvfits
    Image FITS: [J2000-COORDINATE]/FFFFPBBBB_[PROJECT-NAME]_YYYYMMMDD_A_RRRRJSSSSD.imfits
    JPEG Images: [J2000-COORDINATE]/FFFFPBBBB_[PROJECT-NAME]_YYYYMMMDD_A_RRRRJSSSSD.[jpg|JPG]

    whereJ2000-COORDINATE equals JHHMMSS.S[+|-]DD ' ' " " (16 characters), and where
    FFFFis the observing frequency in GHz
    Pis the observed polarization (Full, Half=RR+LL, I, Q, U, V, L, R, X, Y, S)
    NNis the number of antennas used in the subarray
    Sis the shortest arm configuration (D=1km, C=3km, B=11km, A=36km)
    Lis the longest arm configuration (D, C, B, A, P for Pie Town=75km)
    BBBBis the approximate sysnthesized beam in arcseconds
    YYYYMMMDDis the observing date format (UT)
    Ais the VLA subarray setting (1-5, 0 for unknown)
    RRRRis the approximate RMS noise in units of (see next)
    Jis the unit of noise (J=Jansky, M=milliJy, U=microJy, N=nanoJy)
    SSSSis the approximate field-of-view radius in units of (see next)
    Dis the unit of field-of-view (D=degrees, M=arcmin('), S=arcsec("))

    The image extention "jpg" is a full scale representation; "JPG" is its thumbnail. These JPEG images have a square root transfer function to emphasize the lower levels in the image, and therefore are for reference only. For your scientific comparisons use the FITS images provided. Also, up front the image gray scale is an indicator of the dynamic range in the image. The lighter the image, the smaller the difference between the peak flux density and the rms noise. Typically, non-detections are almost white circles. In reverse, an almost black image tells you that there is a very strong source in the image (usually in the center), where the difference between the peak flux density and the rms noise is large. Note that the J2000 coordinate is the (IAU convention) truncated sky location of the observed field/phase center of the image. That is why all images include a field-of-view parameter to accomodate cone searches.

    Single source UV and visibility plots

    The images come, when available in the "Links" column of the position/search table, with some additional information. The first link, and last two links will point you to the multi-source handling of the archive file. The other (three) links described below will pop-up gif-images of the UV-coverage, the calibrated Real versus Imaginary visibility components of the data, and the baseline length in wavelengths versus visibility Amplitude. It is important to look at these plots as they will point out source structure and calibration problems. For example, a hypothetical flat spectrum extended source will show the similar structure whether observed at 5 GHz in A-array or at 15 GHz in B-array, as the sampling of the baseline lengths in wavelength numbers is similar. Or, an extended source at a fixed frequency in different arrays (or in a fixed array at different frequencies) will show more extended structure in the array with the shorter baselines (or at the lower frequency, i.e., less wavelenghts per baseline). For each of these images, the denser the data points, the better the image quality. That is, dense can either be more data points (e.g., longer integration, more antennas contributing to more baselines), or the data points are more confined to the same value (i.e., less noisy, less bad data points). Below are some examples; click on the plots to see the full scale version. Note that all these plots are self-scaling, so what might look as a scatter diagram may actually be a very compact distribution spread out over the full display! What you are looking for is:
    • UV-coverage: the part of the fourier plane that is measured in the observation. The better filled this plane is, the more information about the spatial structure of the source is measured. For example, snapshots will show the typical snowflake pattern for the VLA, whereas full 8-hour tracks, e.g., will show full ellipticals for northern declination sources (and horizontally extended ellipses around the central part of an hourglass shape for southern declination sources). Snapshots may lack displaying the detailed spatial structure of the source. Large holes around (u,v)=(0,0), whether snapshots or full 8-hour tracks, will not image the diffuse extended emission; the array is insensitive to this extended emission and thus acts, as one says, as a spatial filter for extended emission. The latter is typical for the longest A-, and B-array baselines, which can be complemented by the shorter C-, or D-array configurations or with single-dish observations.
      Remarks UV-coverage Plot

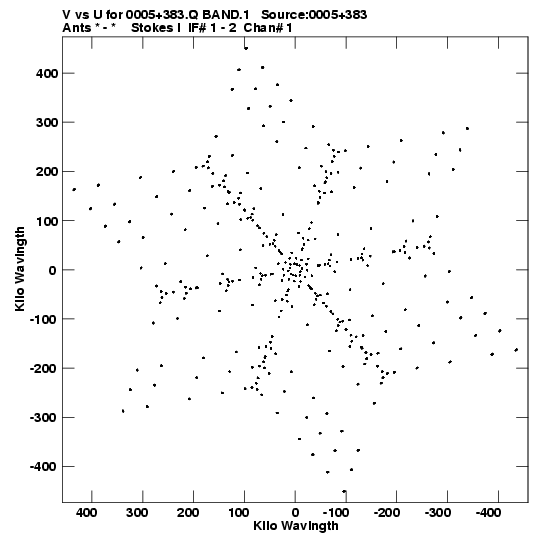

      Typical snapshot UV-coverage. Note the very low density of points, and the zero-spacing gap at (u,v)=(0,0) which all have.

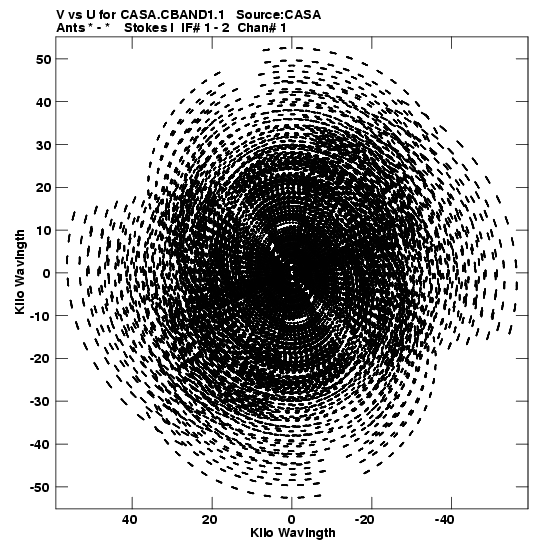

      Long track on a northern declination source (north of about 34 degrees, the VLA latitude).

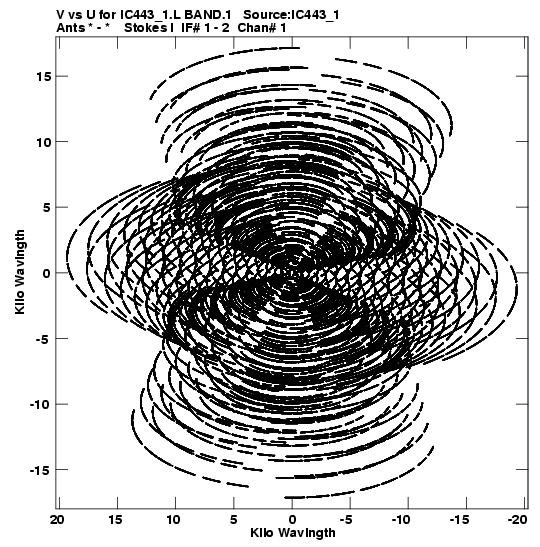

      Long track on a low declination source (positive, but below about 34 degrees).

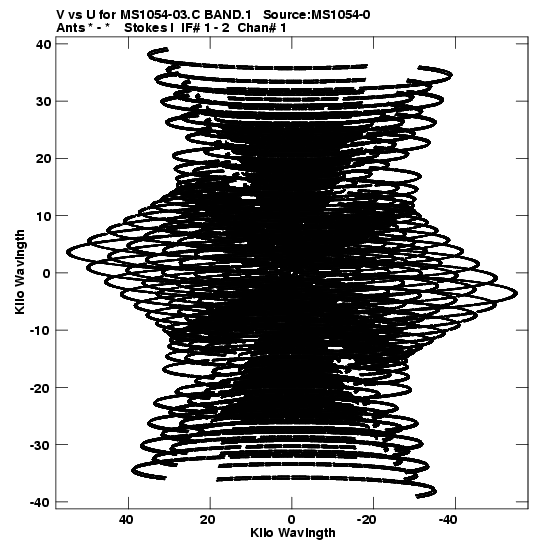

      Long track on an equatorial declination source. Note how the tracks are near-horizontal.

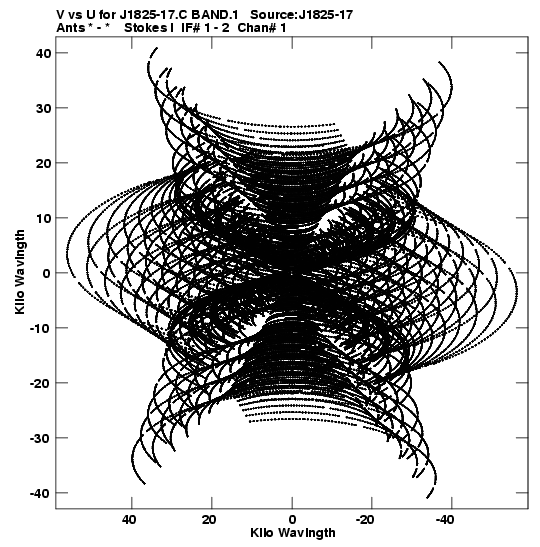

      Long track on a southern declination source. Note how the top and bottom tracks turned concave.

    • Re-Im Plot: the calibrated data should yield, in a simple case of a point source in the center of the field, a physical source visibility Amplitude (the source flux density) and zero Phase. So for properly calibrated data, this complex visibility translates in the Re-Im Plot to data points around the flux density of the source on the horizontal (Re) axis as the phase is zero. If the data are poorly calibrated in amplitude, if there is a high noise contribution, the scatter in radial direction will be large. Unfortunately, complex sources that are well calibrated will also show this scatter. If the data are poorly calibrated in phase, the scatter will be in phase. The latter shows up as a curvature of the data points (vertical and toward the origin), filling a larger segment at the flux density on the horizontal axis of an arc around (0,0) when phase errors get larger. The more restricted the data points are in area, the better the calibration. The avarage value of the data points on the Re (horizontal) axis is the total flux density of the sources in the image, so non-detections will show up as scatter around (0,0). Be aware of self-scaling, watch those (horizontal) axes!
      Remarks Re-Im Plot

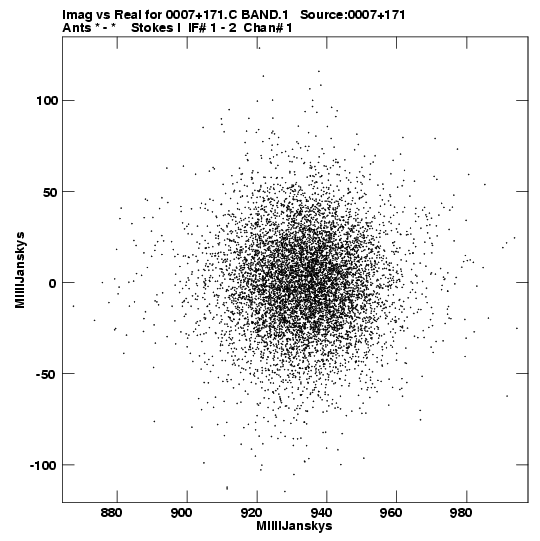

      Good, well calibrated data; "dense" and "confined" (Note the horizontal scale)!

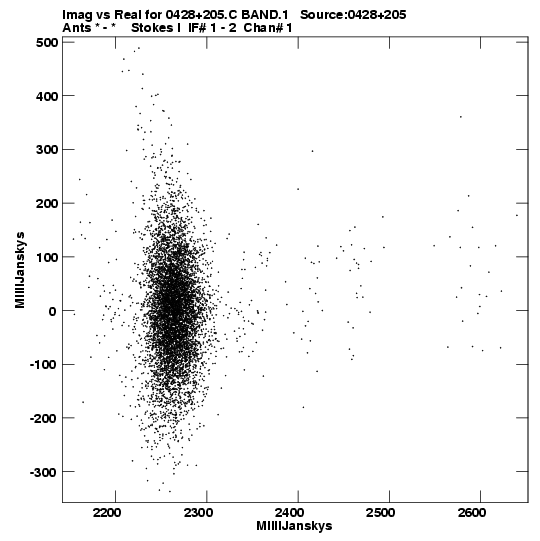

      Reasonably well calibrated data, can benefit from extra self-calibration. Phase self-calibration will confine the vertical leftward-curved arc to the horizontal Im=0 axis. Amplitude self-calibration will confine the radial spread to the Re="flux density" (2.25 Jy) value.

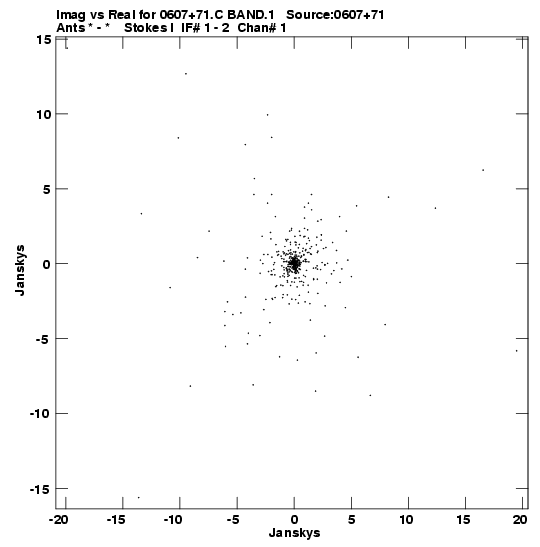

      If you ever see one of these (or when in doubt) Contact us A.S.A.P.!

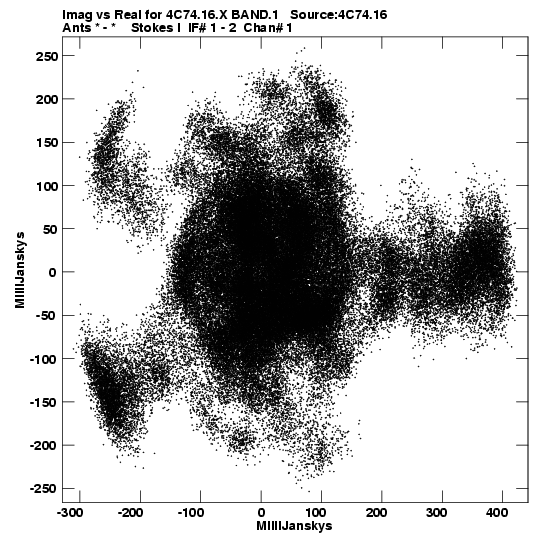

      Of course there are some complex structures which are real and not due to bad data; the image will show an extended source or a combined response to many sources.

    • Visibility Plot: the visibility amplitude versus baseline length (in wavelengths) is a measure of the structure of the source. A point source, which has no structure, will show up as a horizontal distribition of the visibilities. The total flux density of the sources in the image is where the data points would intersect the amplitude (vertical) axis. Remember that interferometers never actually measure this zero-spacing visibility, where (u,v)=(0,0). Extended sources will have less response on the longer baselines, i.e., the visibility amplitude decreases with baseline length, whereas equal double point sources will have both the total flux density and null amplitude responses. Non-detections, but also faint detections, will show up as visibilities just above zero amplitude where no information on structure can be deduced because it will be burried in the visibility noise. Besides source structure, these plots make it easy to recognize bad data points. Be aware of self-scaling, watch those (vertical) axes!
      Remarks Visibility Plot

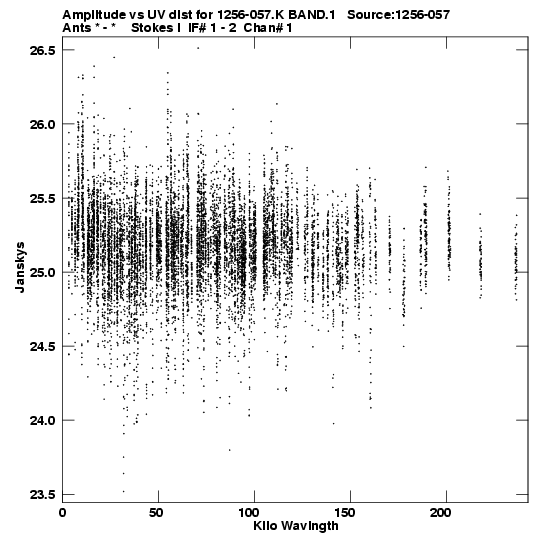

      Good, well calibrated data; "dense" and "confined" (Note the vertical scale)!

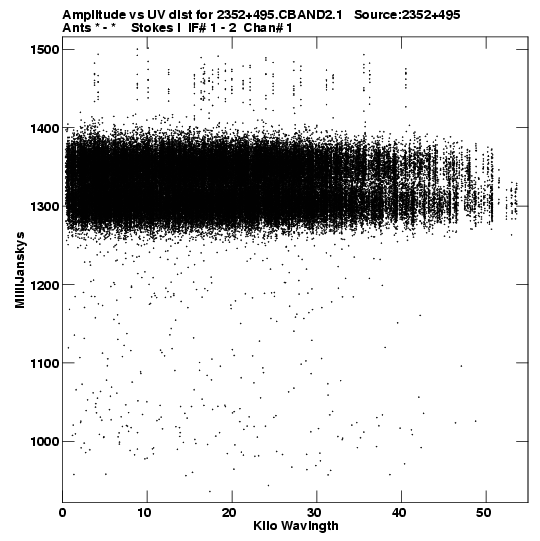

      Reasonably well calibrated data, can benefit from extra flagging of bad data. Bad data is on either (upper and lower) side of the two horizontal dense distributions. When the source flux density in the two VLA IFs (observed continuum bandwidths) is more equal, the double distribution will merge into a single horizontal distribution.

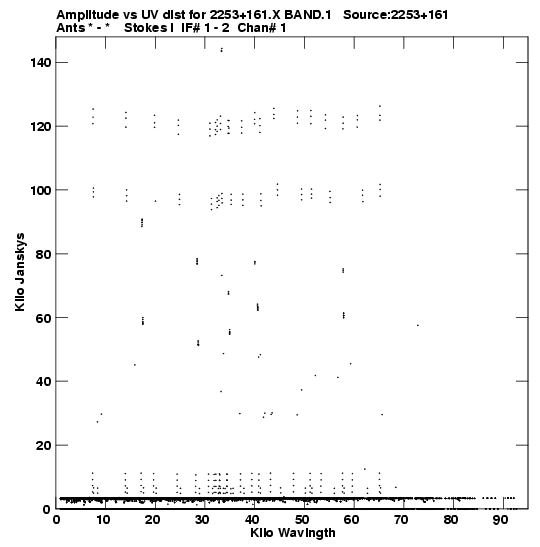

      If you ever see one of these (or when in doubt) Contact us A.S.A.P.!

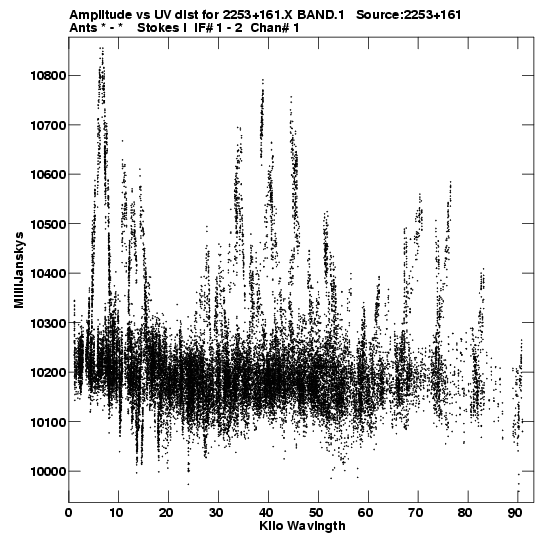

      Of course there are some complex structures which are real and not due to bad data; the image will show an extended source or combination of many sources.

    NVAS Contact

    Contact Lorant Sjouwerman for any remarks, suggestions and/or reasonable complaints. Compliments and encouragements should go to the division head (C. Chandler). Thanks for using this service!
