casa::WedgeDD Class Reference

A DisplayData to draw color wedges. More...

#include <WedgeDD.h>

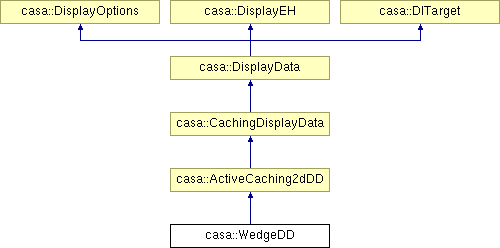

Inheritance diagram for casa::WedgeDD:
casa::ActiveCaching2dDD casa::CachingDisplayData casa::DisplayData casa::DisplayOptions casa::DisplayEH casa::DlTarget

List of all members.

Public Member Functions

 WedgeDD (DisplayData *image)
virtual ~WedgeDD ()
 Destructor.
virtual void setup ()
 Constructor help function, creates coordinatesystem and fills data Matrix.
virtual void updateCsys ()
 The coordinate sydtem needs to be update when the data range changes.
virtual Bool labelAxes (const WCRefreshEvent &ev)
 Axis labeller, 5th step in the WCHolder refresh cycle.
virtual Bool canLabelAxes () const
bool isDisplayable () const
virtual const Unit dataUnit () const
 Return the data unit.
const IPosition dataShape () const
uInt dataDim () const
std::vector< int > displayAxes () const
virtual String showValue (const Vector< Double > &world)
 Format the wedge value at the given world position.
virtual void setDefaultOptions ()
 Install the default options for this DisplayData.
virtual Bool setOptions (Record &rec, Record &recOut)
 Apply options stored in rec to the DisplayData.
virtual Record getOptions (bool scrub=false) const
 Retrieve the current and default options and parameter types.
virtual Display::DisplayDataType classType ()
 Return the type of this DisplayData.
String dataType () const
 Pure virtual function from DisplayData.
virtual CachingDisplayMethodnewDisplayMethod (WorldCanvas *worldCanvas, AttributeBuffer *wchAttributes, AttributeBuffer *ddAttributes, CachingDisplayData *dd)
 Create a new AxesDisplayMethod for drawing on the given WorldCanvas when the AttributeBuffers are suitably matched to the current state of this DisplayData and of the WorldCanvas/Holder.
virtual AttributeBuffer optionsAsAttributes ()
 Return the current options of this DisplayData as an AttributeBuffer.
virtual void notifyUnregister (WorldCanvasHolder &wcHolder, Bool ignoreRefresh=False)
 Take actions on removal from WC[H] (notably, deletion of drawlists).
std::string errorMessage () const

Static Public Attributes

static const String WEDGE_PREFIX

Private Member Functions

 WedgeDD (const WedgeDD &other)
 (Required) copy constructor.
void operator= (const WedgeDD &other)
 (Required) copy assignment.

Private Attributes

Float itsMin
 Data minimum and maximum to set up the coordinate system.
Float itsMax
uInt itsLength
 the length of the Vector
String itsDataUnit
 the unit of the input data
Float itsPowerCycles
 the power law adjustment for for the scle handler
WCPowerScaleHandleritsPowerScaleHandler
String itsOptionsMode
WCCSNLAxisLabeller itsAxisLabeller
 the axis labeller
Matrix< Float > itsColorbar
 The actual colorbar data.
DisplayCoordinateSystem itsCoordinateSystem
 the local coordinate system - gets exported to the parent DD
DlHandle< DisplayDataihandle_

Friends

class WedgeDM

Detailed Description

A DisplayData to draw color wedges.

Intended use:

Public interface

Review Status

Date Reviewed:
yyyy/mm/dd

Prerequisite

Etymology

Synopsis

This DisplayData can be created by itself. It's main task though is to set up a coordinate system form the data range and units of another DisplayData. The user can control this through options in this DisplayData: "datamin", "datamax, "dataunit" and "powercycles.

Example

Motivation

Users want wedges

Definition at line 81 of file WedgeDD.h.


Constructor & Destructor Documentation

casa::WedgeDD::WedgeDD ( DisplayData image  )
virtual casa::WedgeDD::~WedgeDD (  )  [virtual]

Destructor.

casa::WedgeDD::WedgeDD ( const WedgeDD other  )  [private]

(Required) copy constructor.


Member Function Documentation

virtual Bool casa::WedgeDD::canLabelAxes (  )  const [virtual]

Reimplemented from casa::DisplayData.

virtual Display::DisplayDataType casa::WedgeDD::classType (  )  [inline, virtual]

Return the type of this DisplayData.

Implements casa::DisplayData.

Definition at line 129 of file WedgeDD.h.

References casa::Display::Raster.

uInt casa::WedgeDD::dataDim (  )  const [inline, virtual]

Implements casa::DisplayData.

Definition at line 106 of file WedgeDD.h.

const IPosition casa::WedgeDD::dataShape (  )  const [inline, virtual]

Implements casa::DisplayData.

Definition at line 103 of file WedgeDD.h.

String casa::WedgeDD::dataType (  )  const [inline, virtual]

Pure virtual function from DisplayData.

.\.

Implements casa::DisplayData.

Definition at line 133 of file WedgeDD.h.

virtual const Unit casa::WedgeDD::dataUnit (  )  const [virtual]

Return the data unit.

Implements casa::DisplayData.

std::vector<int> casa::WedgeDD::displayAxes (  )  const [inline, virtual]

Implements casa::DisplayData.

Definition at line 109 of file WedgeDD.h.

std::string casa::WedgeDD::errorMessage (  )  const [inline, virtual]

Implements casa::DisplayData.

Definition at line 157 of file WedgeDD.h.

virtual Record casa::WedgeDD::getOptions ( bool  scrub = false  )  const [virtual]

Retrieve the current and default options and parameter types.

Reimplemented from casa::ActiveCaching2dDD.

bool casa::WedgeDD::isDisplayable (  )  const [virtual]

Reimplemented from casa::DisplayData.

virtual Bool casa::WedgeDD::labelAxes ( const WCRefreshEvent ev  )  [virtual]

Axis labeller, 5th step in the WCHolder refresh cycle.

Reimplemented from casa::DisplayData.

virtual CachingDisplayMethod* casa::WedgeDD::newDisplayMethod ( WorldCanvas worldCanvas,
AttributeBuffer wchAttributes,
AttributeBuffer ddAttributes,
CachingDisplayData dd
) [virtual]

Create a new AxesDisplayMethod for drawing on the given WorldCanvas when the AttributeBuffers are suitably matched to the current state of this DisplayData and of the WorldCanvas/Holder.

The tag is a unique number used to identify the age of the newly constructed CachingDisplayMethod.

virtual void casa::WedgeDD::notifyUnregister ( WorldCanvasHolder wcHolder,
Bool  ignoreRefresh = False
) [virtual]

Take actions on removal from WC[H] (notably, deletion of drawlists).

Reimplemented from casa::CachingDisplayData.

void casa::WedgeDD::operator= ( const WedgeDD other  )  [private]

(Required) copy assignment.

Reimplemented from casa::ActiveCaching2dDD.

virtual AttributeBuffer casa::WedgeDD::optionsAsAttributes (  )  [virtual]

Return the current options of this DisplayData as an AttributeBuffer.

Reimplemented from casa::ActiveCaching2dDD.

virtual void casa::WedgeDD::setDefaultOptions (  )  [virtual]

Install the default options for this DisplayData.

Reimplemented from casa::ActiveCaching2dDD.

virtual Bool casa::WedgeDD::setOptions ( Record &  rec,
Record &  recOut
) [virtual]

Apply options stored in rec to the DisplayData.

A return value of True means a refresh is needed. recOut contains any fields which were implicitly changed as a result of the call to this function.

Reimplemented from casa::ActiveCaching2dDD.

virtual void casa::WedgeDD::setup (  )  [virtual]

Constructor help function, creates coordinatesystem and fills data Matrix.

virtual String casa::WedgeDD::showValue ( const Vector< Double > &  world  )  [virtual]

Format the wedge value at the given world position.

Implements casa::DisplayData.

virtual void casa::WedgeDD::updateCsys (  )  [virtual]

The coordinate sydtem needs to be update when the data range changes.


Friends And Related Function Documentation

friend class WedgeDM [friend]

Definition at line 169 of file WedgeDD.h.


Member Data Documentation

Definition at line 190 of file WedgeDD.h.

the axis labeller

Definition at line 184 of file WedgeDD.h.

Matrix<Float> casa::WedgeDD::itsColorbar [private]

The actual colorbar data.

Definition at line 186 of file WedgeDD.h.

the local coordinate system - gets exported to the parent DD

Reimplemented from casa::ActiveCaching2dDD.

Definition at line 188 of file WedgeDD.h.

String casa::WedgeDD::itsDataUnit [private]

the unit of the input data

Definition at line 175 of file WedgeDD.h.

uInt casa::WedgeDD::itsLength [private]

the length of the Vector

Definition at line 173 of file WedgeDD.h.

Float casa::WedgeDD::itsMax [private]

Definition at line 171 of file WedgeDD.h.

Float casa::WedgeDD::itsMin [private]

Data minimum and maximum to set up the coordinate system.

Definition at line 171 of file WedgeDD.h.

Definition at line 181 of file WedgeDD.h.

the power law adjustment for for the scle handler

Definition at line 178 of file WedgeDD.h.

Definition at line 179 of file WedgeDD.h.

const String casa::WedgeDD::WEDGE_PREFIX [static]

Definition at line 155 of file WedgeDD.h.


The documentation for this class was generated from the following file:
