casa::WorldCanvasHolder Class Reference

A holder to interface between DisplayDatas and a WorldCanvas. More...

#include <WorldCanvasHolder.h>

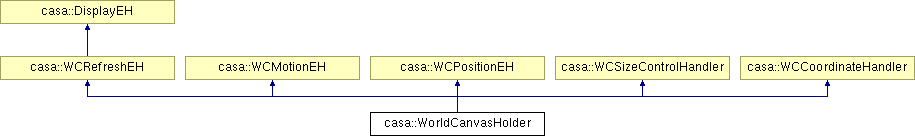

Inheritance diagram for casa::WorldCanvasHolder:

Public Member Functions
	WorldCanvasHolder (WorldCanvas *canvas)
	Constructor.
virtual	~WorldCanvasHolder ()
	Destructor.
virtual WorldCanvas *	worldCanvas () const
	Return the WorldCanvas which is held by this WorldCanvasHolder.
virtual void	addDisplayData (DisplayData *dData, int position)
	Add a DisplayData object to the list of DisplayDatas registered on the held WorldCanvas by this WorldCanvasHolder.
virtual void	removeDisplayData (DisplayData &dData, Bool ignoreRefresh=False)
	Remove a DisplayData from the list of DisplayDatas which are registered by this WorldCanvasHolder for display on the held WorldCanvas.
virtual uInt	nDisplayDatas () const
	How many DisplayDatas are registered?
void	setRestriction (const Attribute &restriction)
	Install a single restriction, or a buffer of restrictions, on the WorldCanvasHolder which DisplayData must match in order that they be allowed to draw themselves.
void	setRestrictions (const AttributeBuffer &resBuff)
Bool	existRestriction (const String &name) const
	Check if a named restriction exists.
void	setBlinkMode (bool mode)
	Set whether or not the viewer is in blink mode.
void	removeRestriction (const String &restrictionName)
	Remove the named restriction, or all restrictions, from the WorldCanvasHolder.
void	removeRestrictions ()
Bool	matchesRestriction (const Attribute &restriction) const
	Determine whether the restrictions installed on the WorldCanvasHolder match the given restriction or buffer of restrictions.
Bool	matchesRestrictions (const AttributeBuffer &buffer) const
const AttributeBuffer *	restrictionBuffer () const
	Return the buffer of restrictions installed on this WorldCanvasHolder.
virtual void	refresh (const Display::RefreshReason &reason=Display::UserCommand, const Bool &explicitrequest=True)
	Invoke a refresh on the WorldCanvas, ie.
virtual Bool	executeSizeControl (WorldCanvas *wCanvas)
	Handle size control requests originating from the WorldCanvas.
virtual void	operator() (const WCPositionEvent &ev)
	Distribute a WCPositionEvent originating from the held WorldCanvas over the DisplayDatas.
virtual void	operator() (const WCRefreshEvent &ev)
	Distribute a WCRefreshEvent originating from the held WorldCanvas over the DisplayDatas.
virtual void	operator() (const WCMotionEvent &ev)
	Distribute a WCMotionEvent originating from the held WorldCanvas over the DisplayDatas.
virtual void	handleEvent (DisplayEvent &ev)
	Handle other, generic types of events.
virtual Bool	linToWorld (Vector< Double > &world, const Vector< Double > &lin)
	Coordinate conversion routines, handled for the WorldCanvas.
virtual Bool	worldToLin (Vector< Double > &lin, const Vector< Double > &world)
	transform the world point (N-dimensional) into a lin coordinate (2-dimensional), returning False if the coordinate could not be transformed.
virtual Bool	linToWorld (Matrix< Double > &world, Vector< Bool > &failures, const Matrix< Double > &lin)
	Batch transformation where each row of lin is a coordinate that is transformed into each row of world.
virtual Bool	worldToLin (Matrix< Double > &lin, Vector< Bool > &failures, const Matrix< Double > &world)
	Batch transformation where each row of world is a coordinate that is transformed into each row of lin.
virtual uInt	nWorldAxes () const
	Return the number of world axes, which is hard-wired to 2.
virtual uInt	nelements ()
	Maximum number of animation frames of all registered DDs which are valid for the WC's current CS state.
virtual void	cleanup ()
	Force a cleanup of all the DisplayDatas which are registered with this WorldCanvasHolder.
const DisplayData *	csMaster () const
	The DD in charge of setting WC coordinate state (0 if none).
Bool	isCSmaster (const DisplayData *dd) const
	Is the specified DisplayData the one in charge of WC state? (During DD::sizeControl() execution, it means instead that the DD has permission to become CSmaster, if it can).
void	clearCSMasterSettings (WorldCanvas *wCanvas, bool clearZoom=true)
Bool	wasCSmaster (DisplayData *dd=0) const
	Was the passed DD the last CS master (or, if no DD passed, was there any CS master)? For convenience of the DDs during the next sizeControl execution, in determining whether a CS master change is occurring, and whether anyone was master before.
virtual Bool	syncCSmaster (const WorldCanvasHolder *wch)
	used by PanelDisplay on new WCHs to keep a consistent CS master on all its main display WC[H]s.
bool	setCSMaster (DisplayData *dd)
const std::list< DisplayData * > &	displaylist () const
Float	getDrawUnit () const
	Returns the current pgp draw unit, which depends on the x-range of the data currently being displayed.
std::string	errorMessage () const
Static Public Attributes
static const String	BLINK_MODE
Private Member Functions
String	getTitleDDName (const Vector< Bool > &conforms) const
DisplayData *	getTitleDDBlink (const Vector< Bool > &conforms) const
DisplayData *	getTitleDDNormal (const Vector< Bool > &conforms) const
String	getTitle (DisplayData *dd) const
void	labelAxes (const Vector< Bool > &conforms, const WCRefreshEvent &ev)
void	labelAxesBlink (const Vector< Bool > &conforms, const WCRefreshEvent &ev)
void	labelAxesNormal (const Vector< Bool > &conforms, const WCRefreshEvent &ev)
void	setControllingTitle (const Vector< Bool > &conforms)
void	clearSubstituteTitles ()
Vector< Bool >	getConformance () const
Private Attributes
bool	blinkMode
	True if the viewer is in blink mode.
WorldCanvas *	itsWorldCanvas
	The WorldCanvas that is held by this WorldCanvasHolder.
std::list< DisplayData * >	itsDisplayList
	A list containing the DisplayDatas that are registered on this WorldCanvasHolder.
DisplayData *	controllingDD
void *	itsLastCSmaster
	The CS master in effect after executeSizeControl was last run (0 if none).
Float	drawUnit
std::string	error_string

Detailed Description

A holder to interface between DisplayDatas and a WorldCanvas.

Intended use:

Public interface

Review Status

Date Reviewed:: yyyy/mm/dd

Prerequisite

Etymology

The WorldCanvasHolder "holds" a WorldCanvas and some number of DisplayDatas which are "registered" on the WorldCanvas. It actually registers itself to handle the WC events, and passes the events on to the DDs.

Synopsis

Example

Motivation

Definition at line 79 of file WorldCanvasHolder.h.

Constructor & Destructor Documentation

casa::WorldCanvasHolder::WorldCanvasHolder ( WorldCanvas * canvas )

Constructor.

A WorldCanvas must be provided for the constructed WorldCanvasHolder to "hold".

virtual casa::WorldCanvasHolder::~WorldCanvasHolder ( ) [virtual]

Destructor.

Member Function Documentation

virtual void casa::WorldCanvasHolder::addDisplayData	(	DisplayData *	dData,
		int	position
	)			`[virtual]`

Add a DisplayData object to the list of DisplayDatas registered on the held WorldCanvas by this WorldCanvasHolder.

virtual void casa::WorldCanvasHolder::cleanup ( ) [virtual]

Force a cleanup of all the DisplayDatas which are registered with this WorldCanvasHolder.

void casa::WorldCanvasHolder::clearCSMasterSettings	(	WorldCanvas *	wCanvas,
		bool	clearZoom = `true`
	)

void casa::WorldCanvasHolder::clearSubstituteTitles ( ) [private]

const DisplayData* casa::WorldCanvasHolder::csMaster ( ) const [inline]

The DD in charge of setting WC coordinate state (0 if none).

Definition at line 227 of file WorldCanvasHolder.h.

References casa::WorldCanvas::csMaster(), and itsWorldCanvas.

const std::list<DisplayData*>& casa::WorldCanvasHolder::displaylist ( ) const [inline]

Definition at line 255 of file WorldCanvasHolder.h.

References itsDisplayList.

std::string casa::WorldCanvasHolder::errorMessage ( ) const [inline, virtual]

Implements casa::WCCoordinateHandler.

Definition at line 267 of file WorldCanvasHolder.h.

References error_string.

virtual Bool casa::WorldCanvasHolder::executeSizeControl ( WorldCanvas * wCanvas ) [virtual]

Handle size control requests originating from the WorldCanvas.

Implements casa::WCSizeControlHandler.

Bool casa::WorldCanvasHolder::existRestriction ( const String & name ) const [inline]

Check if a named restriction exists.

Definition at line 128 of file WorldCanvasHolder.h.

References casa::WorldCanvas::existRestriction(), and itsWorldCanvas.

Vector<Bool> casa::WorldCanvasHolder::getConformance ( ) const [private]

Float casa::WorldCanvasHolder::getDrawUnit ( ) const

Returns the current pgp draw unit, which depends on the x-range of the data currently being displayed.

String casa::WorldCanvasHolder::getTitle ( DisplayData * dd ) const [private]

DisplayData* casa::WorldCanvasHolder::getTitleDDBlink ( const Vector< Bool > & conforms ) const [private]

String casa::WorldCanvasHolder::getTitleDDName ( const Vector< Bool > & conforms ) const [private]

DisplayData* casa::WorldCanvasHolder::getTitleDDNormal ( const Vector< Bool > & conforms ) const [private]

virtual void casa::WorldCanvasHolder::handleEvent ( DisplayEvent & ev ) [virtual]

Handle other, generic types of events.

As with the handlers above, WCH handles these new events by simply passing them on to the DisplayDatas registered on it. WorldCanvasHolder inherits this new-style event handling interface from DisplayEH, via WCRefreshEH.

Reimplemented from casa::DisplayEH.

Bool casa::WorldCanvasHolder::isCSmaster ( const DisplayData * dd ) const [inline]

Is the specified DisplayData the one in charge of WC state? (During DD::sizeControl() execution, it means instead that the DD has permission to become CSmaster, if it can).

Definition at line 234 of file WorldCanvasHolder.h.

References casa::WorldCanvas::isCSmaster(), and itsWorldCanvas.

void casa::WorldCanvasHolder::labelAxes	(	const Vector< Bool > &	conforms,
		const WCRefreshEvent &	ev
	)			`[private]`

void casa::WorldCanvasHolder::labelAxesBlink	(	const Vector< Bool > &	conforms,
		const WCRefreshEvent &	ev
	)			`[private]`

void casa::WorldCanvasHolder::labelAxesNormal	(	const Vector< Bool > &	conforms,
		const WCRefreshEvent &	ev
	)			`[private]`

virtual Bool casa::WorldCanvasHolder::linToWorld	(	Matrix< Double > &	world,
		Vector< Bool > &	failures,
		const Matrix< Double > &	lin
	)			`[inline, virtual]`

Batch transformation where each row of lin is a coordinate that is transformed into each row of world.

On input, if the i'th position in the failures vector is true, the i'th transformation is not attempted. If the j'th transformation fails, the j'th position in the failures vector will be set. The return value is True only when the failures vector has no position set to True; This function is implemented in this base class by making repeated calls to the Vector<Double> version of linToWorld.

Reimplemented from casa::WCCoordinateHandler.

Definition at line 202 of file WorldCanvasHolder.h.

References linToWorld().

virtual Bool casa::WorldCanvasHolder::linToWorld	(	Vector< Double > &	world,
		const Vector< Double > &	lin
	)			`[virtual]`

Coordinate conversion routines, handled for the WorldCanvas.

In future, they should be handled on the WC itself, via its own CS. At present, these requests are forwarded to the CSmaster DD, which should be equivalent in most cases.

Implements casa::WCCoordinateHandler.

Referenced by linToWorld().

Bool casa::WorldCanvasHolder::matchesRestriction ( const Attribute & restriction ) const [inline]

Determine whether the restrictions installed on the WorldCanvasHolder match the given restriction or buffer of restrictions.

Definition at line 152 of file WorldCanvasHolder.h.

References itsWorldCanvas, and casa::WorldCanvas::matchesRestriction().

Bool casa::WorldCanvasHolder::matchesRestrictions ( const AttributeBuffer & buffer ) const [inline]

Definition at line 155 of file WorldCanvasHolder.h.

References itsWorldCanvas, and casa::WorldCanvas::matchesRestrictions().

virtual uInt casa::WorldCanvasHolder::nDisplayDatas ( ) const [virtual]

How many DisplayDatas are registered?

virtual uInt casa::WorldCanvasHolder::nelements ( ) [virtual]

Maximum number of animation frames of all registered DDs which are valid for the WC's current CS state.

virtual uInt casa::WorldCanvasHolder::nWorldAxes ( ) const [inline, virtual]

Return the number of world axes, which is hard-wired to 2.

Implements casa::WCCoordinateHandler.

Definition at line 214 of file WorldCanvasHolder.h.

virtual void casa::WorldCanvasHolder::operator() ( const WCMotionEvent & ev ) [virtual]

Distribute a WCMotionEvent originating from the held WorldCanvas over the DisplayDatas.

Implements casa::WCMotionEH.

virtual void casa::WorldCanvasHolder::operator() ( const WCRefreshEvent & ev ) [virtual]

Distribute a WCRefreshEvent originating from the held WorldCanvas over the DisplayDatas.

Implements casa::WCRefreshEH.

virtual void casa::WorldCanvasHolder::operator() ( const WCPositionEvent & ev ) [virtual]

Distribute a WCPositionEvent originating from the held WorldCanvas over the DisplayDatas.

Implements casa::WCPositionEH.

virtual void casa::WorldCanvasHolder::refresh	(	const Display::RefreshReason &	reason = `Display::UserCommand`,
		const Bool &	explicitrequest = `True`
	)			`[virtual]`

Invoke a refresh on the WorldCanvas, ie.

this is a shorthand for WorldCanvasHolder->worldCanvas()->refresh(reason);.

virtual void casa::WorldCanvasHolder::removeDisplayData	(	DisplayData &	dData,
		Bool	ignoreRefresh = `False`
	)			`[virtual]`

Remove a DisplayData from the list of DisplayDatas which are registered by this WorldCanvasHolder for display on the held WorldCanvas.

ignoreRefresh tells the DD not to refresh just to clean up DMs

void casa::WorldCanvasHolder::removeRestriction ( const String & restrictionName ) [inline]

Remove the named restriction, or all restrictions, from the WorldCanvasHolder.

Definition at line 140 of file WorldCanvasHolder.h.

References itsWorldCanvas, and casa::WorldCanvas::removeRestriction().

void casa::WorldCanvasHolder::removeRestrictions ( ) [inline]

Definition at line 143 of file WorldCanvasHolder.h.

References itsWorldCanvas, and casa::WorldCanvas::removeRestrictions().

const AttributeBuffer* casa::WorldCanvasHolder::restrictionBuffer ( ) const [inline]

Return the buffer of restrictions installed on this WorldCanvasHolder.

Definition at line 162 of file WorldCanvasHolder.h.

References itsWorldCanvas, and casa::WorldCanvas::restrictionBuffer().

void casa::WorldCanvasHolder::setBlinkMode ( bool mode ) [inline]

Set whether or not the viewer is in blink mode.

Definition at line 133 of file WorldCanvasHolder.h.

References blinkMode.

void casa::WorldCanvasHolder::setControllingTitle ( const Vector< Bool > & conforms ) [private]

bool casa::WorldCanvasHolder::setCSMaster ( DisplayData * dd )

void casa::WorldCanvasHolder::setRestriction ( const Attribute & restriction ) [inline]

Install a single restriction, or a buffer of restrictions, on the WorldCanvasHolder which DisplayData must match in order that they be allowed to draw themselves.

Definition at line 117 of file WorldCanvasHolder.h.

References casa::Attribute::getName(), casa::Attribute::getType(), itsWorldCanvas, and casa::WorldCanvas::setRestriction().

void casa::WorldCanvasHolder::setRestrictions ( const AttributeBuffer & resBuff ) [inline]

Definition at line 122 of file WorldCanvasHolder.h.

References itsWorldCanvas, and casa::WorldCanvas::setRestrictions().

virtual Bool casa::WorldCanvasHolder::syncCSmaster ( const WorldCanvasHolder * wch ) [virtual]

used by PanelDisplay on new WCHs to keep a consistent CS master on all its main display WC[H]s.

Sets [default] CS master dd to that of passed wch (if that dd is registered here), and gets it to reset WC coordinate state.

Bool casa::WorldCanvasHolder::wasCSmaster ( DisplayData * dd = 0 ) const [inline]

Was the passed DD the last CS master (or, if no DD passed, was there any CS master)? For convenience of the DDs during the next sizeControl execution, in determining whether a CS master change is occurring, and whether anyone was master before.

This affects whether any old zoom window is retained or completely reset.

Definition at line 244 of file WorldCanvasHolder.h.

References itsLastCSmaster.

virtual WorldCanvas* casa::WorldCanvasHolder::worldCanvas ( ) const [inline, virtual]

Return the WorldCanvas which is held by this WorldCanvasHolder.

Definition at line 95 of file WorldCanvasHolder.h.

References itsWorldCanvas.

Referenced by casa::RSUtils::hasDirectionCoordinate(), and casa::RSUtils::worldSystem().

virtual Bool casa::WorldCanvasHolder::worldToLin	(	Matrix< Double > &	lin,
		Vector< Bool > &	failures,
		const Matrix< Double > &	world
	)			`[inline, virtual]`

Batch transformation where each row of world is a coordinate that is transformed into each row of lin.

On input, if the i'th position in the failures vector is true, the i'th transformation is not attempted. If the j'th transformation fails, the j'th position in the failures vector will be set. The return value is True only when the failures vector has no position set to True; This function is implemented in this base class by making repeated calls to the Vector<Double> version of worldToLin.

Reimplemented from casa::WCCoordinateHandler.

Definition at line 207 of file WorldCanvasHolder.h.

References worldToLin().

virtual Bool casa::WorldCanvasHolder::worldToLin	(	Vector< Double > &	lin,
		const Vector< Double > &	world
	)			`[virtual]`

transform the world point (N-dimensional) into a lin coordinate (2-dimensional), returning False if the coordinate could not be transformed.

Derived classes should override.

Implements casa::WCCoordinateHandler.

Referenced by worldToLin().

Member Data Documentation

const String casa::WorldCanvasHolder::BLINK_MODE [static]

Definition at line 265 of file WorldCanvasHolder.h.

bool casa::WorldCanvasHolder::blinkMode [private]

True if the viewer is in blink mode.

Definition at line 271 of file WorldCanvasHolder.h.

Referenced by setBlinkMode().

DisplayData* casa::WorldCanvasHolder::controllingDD [private]

Definition at line 279 of file WorldCanvasHolder.h.

Float casa::WorldCanvasHolder::drawUnit [private]

Definition at line 289 of file WorldCanvasHolder.h.

std::string casa::WorldCanvasHolder::error_string [private]

Definition at line 301 of file WorldCanvasHolder.h.

Referenced by errorMessage().

std::list<DisplayData*> casa::WorldCanvasHolder::itsDisplayList [private]

A list containing the DisplayDatas that are registered on this WorldCanvasHolder.

Definition at line 278 of file WorldCanvasHolder.h.

Referenced by displaylist().

void* casa::WorldCanvasHolder::itsLastCSmaster [private]

The CS master in effect after executeSizeControl was last run (0 if none).

For determining (via wasCSmaster(), above) whether a CS master change is occurring, and whether anyone was master before. This affects whether the old zoom window is retained or completely reset. (Note void*, rather than DD*, type: it is not intended to be dereferenced, just compared for equality. The original DD may not even exist by the time it is used).

Definition at line 288 of file WorldCanvasHolder.h.

Referenced by wasCSmaster().

WorldCanvas* casa::WorldCanvasHolder::itsWorldCanvas [private]

The WorldCanvas that is held by this WorldCanvasHolder.

Definition at line 274 of file WorldCanvasHolder.h.

Referenced by csMaster(), existRestriction(), isCSmaster(), matchesRestriction(), matchesRestrictions(), removeRestriction(), removeRestrictions(), restrictionBuffer(), setRestriction(), setRestrictions(), and worldCanvas().
