casa::TblAsXYDD Class Reference

Class for displaying data within a table as a xy image. More...

#include <TblAsXYDD.h>

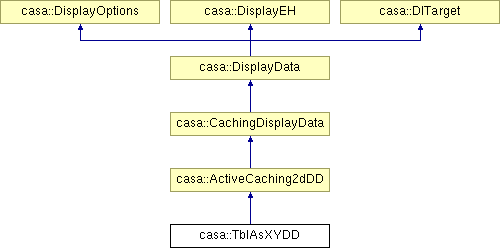

Inheritance diagram for casa::TblAsXYDD:
casa::ActiveCaching2dDD casa::CachingDisplayData casa::DisplayData casa::DisplayOptions casa::DisplayEH casa::DlTarget

List of all members.

Public Member Functions

 TblAsXYDD (Table *table)
 constructors given an already constructed table
 TblAsXYDD (const String tablename)
 given a string which gives the full pathname and filename of a table on disk
virtual ~TblAsXYDD ()
 Destructor.
virtual String showValue (const Vector< Double > &world)
 format the table value at the give world position
virtual const Unit dataUnit (const String column)
 get the data unit
virtual const Unit dataUnit ()
virtual void setDefaultOptions ()
 install the default options for this DisplayData
virtual Bool setOptions (Record &rec, Record &recOut)
 Apply options stored in rec to the DisplayData.
virtual Record getOptions (bool scrub=false) const
 Retrieve the current and default options and parameter types.
virtual Display::DisplayDataType classType ()
 Return the type of this DisplayData.
virtual CachingDisplayMethodnewDisplayMethod (WorldCanvas *worldCanvas, AttributeBuffer *wchAttributes, AttributeBuffer *ddAttributes, CachingDisplayData *dd)
 Create a new TblAsXyDM for drawing on the given WorldCanvas when the AttributeBuffers are suitably matched to the current state of this DisplayData and of the WorldCanvas/Holder.
virtual AttributeBuffer optionsAsAttributes ()
 Return the current options of this DisplayData as an AttributeBuffer.
Table * table ()
 provide read-only access to the table
virtual void cleanup ()
 Clean up (ie.

Protected Member Functions

 TblAsXYDD ()
 (Required) default constructor.
 TblAsXYDD (const TblAsXYDD &other)
 (Required) copy constructor.
void operator= (const TblAsXYDD &other)
 (Required) copy assignment.
template<class T >
Bool getTableKeyword (T &value, const String keyword) const
 Get the value of the named keyword, or the first keyword matching regex, and return it in value.
template<class T >
Bool getTableKeyword (T &value, const Regex &regex) const
template<class T >
Bool getColumnKeyword (T &value, const String column, const String keyword) const
 Get the value of the named keyword, or the first keyword matching regex for the named column, and return it in value.
template<class T >
Bool getColumnKeyword (T &value, const String column, const Regex &regex) const

Private Member Functions

void installDefaultOptions ()
 set the default options for this display data
Bool arrangeQueryTable ()
 Arrange the query table (called after changing an option).
void getCoordinateSystem ()
 update/set the coordinate system
void setCoordinateSystem ()
void getTableColumnNames ()
 get all of the table columnNames
Vector< double > columnStatistics (const String &columnName)
 get the table column world coordinate range
Vector< String > getColumnNamesOfType ()
 get all of the table columnNames with a certain data type
void constructParameters ()
 Construct and destruct the parameter set.
void destructParameters ()

Private Attributes

Table * itsTable
 The table to be displayed.
Table * itsQueryTable
 The result from a table query.
Vector< String > itsColumnNames
 store all the table column names
DParameterChoiceitsXColumnName
 what columns are we displaying and do we have a movie axis available
DParameterChoiceitsYColumnName
DParameterChoiceitsMColumnName
DParameterChoiceitsMColumnSet
String itsOptQueryString
 options - what is the query string and is it unset?
Bool itsOptQueryStringUnset
DisplayCoordinateSystem itsCoord
 holder for the current coordinate system
Vector< Double > itsLinblc
Vector< Double > itsLintrc

Friends

class TblAsXYDM

Detailed Description

Class for displaying data within a table as a xy image.

Intended use:

Internal or

Intended use:

Internal

Prerequisite

Etymology

"TblAsXYDD" is a implementation of a ActiveCaching2dDD which provides for the display of data held within a table to be displayed as a xy image in an environment where individual depictions of the data are automatically cached.

Synopsis

This class adds to the interface defined in DisplayData . It adds the capability to display data from a Table column as a xy image. It is assumed that the Y axis is defined to be either the row number of the table column being displayed or the scalar value from the same row number in a different table column (e.g. plotting intensity as a function of frequency against row number or time determined from a different column of the table). The X axis is assumed to be the data in a scalar table column.

Example

A TblAsXYDD object could be construed and used as follows:

 TblAsXYDD *tardd1 = 0;
 tardd1 = new TblAsXYDD("tablename");
 Colormap cmap1("Hot Metal 2");
 tardd1->setColormap(&cmap1, 1.0);
 wcHolder->addDisplayData((DisplayData *)tardd1);

Motivation

To allow the display of data from a table as a xy image.

Template Type Argument Requirements (T)

To Do

Definition at line 115 of file TblAsXYDD.h.


Constructor & Destructor Documentation

casa::TblAsXYDD::TblAsXYDD ( Table *  table  )

constructors given an already constructed table

casa::TblAsXYDD::TblAsXYDD ( const String  tablename  )

given a string which gives the full pathname and filename of a table on disk

virtual casa::TblAsXYDD::~TblAsXYDD (  )  [virtual]

Destructor.

casa::TblAsXYDD::TblAsXYDD (  )  [protected]

(Required) default constructor.

casa::TblAsXYDD::TblAsXYDD ( const TblAsXYDD other  )  [protected]

(Required) copy constructor.


Member Function Documentation

Bool casa::TblAsXYDD::arrangeQueryTable (  )  [private]

Arrange the query table (called after changing an option).

virtual Display::DisplayDataType casa::TblAsXYDD::classType (  )  [inline, virtual]

Return the type of this DisplayData.

Implements casa::DisplayData.

Definition at line 150 of file TblAsXYDD.h.

References casa::Display::Vector.

virtual void casa::TblAsXYDD::cleanup (  )  [virtual]

Clean up (ie.

delete any existing cached display list).

Reimplemented from casa::ActiveCaching2dDD.

Vector<double> casa::TblAsXYDD::columnStatistics ( const String &  columnName  )  [private]

get the table column world coordinate range

void casa::TblAsXYDD::constructParameters (  )  [private]

Construct and destruct the parameter set.

virtual const Unit casa::TblAsXYDD::dataUnit (  )  [virtual]
virtual const Unit casa::TblAsXYDD::dataUnit ( const String  column  )  [virtual]

get the data unit

void casa::TblAsXYDD::destructParameters (  )  [private]
template<class T >
Bool casa::TblAsXYDD::getColumnKeyword ( T &  value,
const String  column,
const Regex &  regex
) const [inline, protected]
template<class T >
Bool casa::TblAsXYDD::getColumnKeyword ( T &  value,
const String  column,
const String  keyword
) const [inline, protected]

Get the value of the named keyword, or the first keyword matching regex for the named column, and return it in value.

The return value is True for success, and False for failure, which is the result if // the wrong type T is requested, or if the keyword doesn't exist.

Vector<String> casa::TblAsXYDD::getColumnNamesOfType (  )  [private]

get all of the table columnNames with a certain data type

void casa::TblAsXYDD::getCoordinateSystem (  )  [private]

update/set the coordinate system

virtual Record casa::TblAsXYDD::getOptions ( bool  scrub = false  )  const [virtual]

Retrieve the current and default options and parameter types.

Reimplemented from casa::ActiveCaching2dDD.

void casa::TblAsXYDD::getTableColumnNames (  )  [private]

get all of the table columnNames

template<class T >
Bool casa::TblAsXYDD::getTableKeyword ( T &  value,
const Regex &  regex
) const [inline, protected]
template<class T >
Bool casa::TblAsXYDD::getTableKeyword ( T &  value,
const String  keyword
) const [inline, protected]

Get the value of the named keyword, or the first keyword matching regex, and return it in value.

The return value is True for success, and False for failure, which is the result if the wrong type T is requested.

void casa::TblAsXYDD::installDefaultOptions (  )  [private]

set the default options for this display data

Reimplemented from casa::CachingDisplayData.

virtual CachingDisplayMethod* casa::TblAsXYDD::newDisplayMethod ( WorldCanvas worldCanvas,
AttributeBuffer wchAttributes,
AttributeBuffer ddAttributes,
CachingDisplayData dd
) [virtual]

Create a new TblAsXyDM for drawing on the given WorldCanvas when the AttributeBuffers are suitably matched to the current state of this DisplayData and of the WorldCanvas/Holder.

The tag is a unique number used to identify the age of the newly constructed CachingDisplayMethod.

void casa::TblAsXYDD::operator= ( const TblAsXYDD other  )  [protected]

(Required) copy assignment.

Reimplemented from casa::ActiveCaching2dDD.

virtual AttributeBuffer casa::TblAsXYDD::optionsAsAttributes (  )  [virtual]

Return the current options of this DisplayData as an AttributeBuffer.

Reimplemented from casa::ActiveCaching2dDD.

void casa::TblAsXYDD::setCoordinateSystem (  )  [private]
virtual void casa::TblAsXYDD::setDefaultOptions (  )  [virtual]

install the default options for this DisplayData

Reimplemented from casa::ActiveCaching2dDD.

virtual Bool casa::TblAsXYDD::setOptions ( Record &  rec,
Record &  recOut
) [virtual]

Apply options stored in rec to the DisplayData.

A return value of True means a refresh is needed. recOut contains any fields which were implicitly changed as a result of the call to this function.

Reimplemented from casa::ActiveCaching2dDD.

virtual String casa::TblAsXYDD::showValue ( const Vector< Double > &  world  )  [virtual]

format the table value at the give world position

Implements casa::DisplayData.

Table* casa::TblAsXYDD::table (  )

provide read-only access to the table


Friends And Related Function Documentation

friend class TblAsXYDM [friend]

Definition at line 209 of file TblAsXYDD.h.


Member Data Documentation

Vector<String> casa::TblAsXYDD::itsColumnNames [private]

store all the table column names

Definition at line 218 of file TblAsXYDD.h.

holder for the current coordinate system

Definition at line 237 of file TblAsXYDD.h.

Vector<Double> casa::TblAsXYDD::itsLinblc [private]

Definition at line 238 of file TblAsXYDD.h.

Vector<Double> casa::TblAsXYDD::itsLintrc [private]

Definition at line 238 of file TblAsXYDD.h.

Definition at line 223 of file TblAsXYDD.h.

Definition at line 224 of file TblAsXYDD.h.

options - what is the query string and is it unset?

Definition at line 227 of file TblAsXYDD.h.

Definition at line 228 of file TblAsXYDD.h.

The result from a table query.

Definition at line 215 of file TblAsXYDD.h.

Table* casa::TblAsXYDD::itsTable [private]

The table to be displayed.

Definition at line 212 of file TblAsXYDD.h.

what columns are we displaying and do we have a movie axis available

Definition at line 221 of file TblAsXYDD.h.

Definition at line 222 of file TblAsXYDD.h.
