casa::DParameterChoice Class Reference

Implementation of DisplayParameter to store choice parameters. More...

#include <DParameterChoice.h>

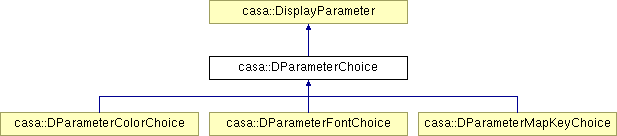

Inheritance diagram for casa::DParameterChoice:

Public Member Functions
	DParameterChoice (const String name, const String description, const String help, const Vector< String > &options, const String defaultvalue, const String value, const String context="", const Bool editable=False)
	Constructor taking the name of the parameter, a short description, some help text, a list of allowed options, a default value, an initial value, the context of the parameter, and a flag indicating whether the parameter is editable.
	DParameterChoice (const String name, const String description, const String help, const ColormapDefinition::colormapnamemap &options, const String defaultvalue, const String value, const String context="", const Bool editable=False)
	DParameterChoice (const DParameterChoice &other)
	(Required) copy constructor.
virtual	~DParameterChoice ()
	Destructor.
DParameterChoice &	operator= (const DParameterChoice &other)
	(Required) copy assignment.
virtual Bool	fromRecord (const RecordInterface &record)
	Parse `record`, and update this parameter if a field exists whose name matches that of this parameter.
virtual void	toRecord (RecordInterface &record, const Bool fullrecord=True, const Bool overwrite=False)
	Place a record describing this parameter in a sub-field of `record` with name matching that of this parameter.
Vector< String >	options () const
	Return the list of allowed options for this parameter.
String	defaultValue ()
	Return the default for this parameter.
String	value ()
	Return the current value of this parameter.
void	setEditable (const Bool editable)
	Set or change if this parameter is editable (determines wether choice or userchoice is returned in the record.
void	setOptions (const Vector< String > &options)
	Set or change the list of allowed options for this parameter.
void	setDefaultValue (const String defaultvalue)
	Set or change the default value for this parameter.
void	setValue (const String value)
	Set or change the current value.
const String &	operator= (const String &value)
	Convenient syntax to set (only) the value.
Bool	existsOption (const String value)
	Determine whether this value exists in the list of options.
Protected Member Functions
	DParameterChoice ()
	(Required) default constructor.
Private Attributes
Bool	itsEditable
	Store for whether this parameter is editable.
Vector< String >	itsOptions
	Store for the allowed options for this parameter.
String	itsDefaultValue
	Store for the default of this parameter.
String	itsValue
	Store for the value of this parameter.

Detailed Description

Implementation of DisplayParameter to store choice parameters.

Intended use:

Public interface

Prerequisite

DisplayParameter

Etymology

DParameterChoice is an implementation of a DisplayParameter providing a choice parameter type.

Synopsis

This class is derived from DisplayParameter and provides a choice-type parameter. Choice parameters simply have a vector of possible String selections, and a default selection. They cannot be unset.

Example

A DParameterChoice can easily be used to store and update any parameter which can be expressed as a selection from two or more options. In the following example, a DParameterChoice is constructed to provide the name of the font to use in axis labelling:

 Vector<String> fonts(4);
 fonts(0) = "roman";
 // ..\.
 DParameterChoice pchoice("font", "Label font",
 "Select the font to use for axis labelling",
 fonts, fonts(0), fonts(0));

 // ..\.

 // update the parameter from some Record
 pchoice.fromRecord(rec);

 // examine the value of the parameter
 if (pchoice.value() == "italic") {
 // ..\.
 }

Motivation

Many parameters are naturally choices, or can be expressed as choices, hence this class.

Thrown Exceptions

None.

To Do

Nothing known.

Definition at line 104 of file DParameterChoice.h.

Constructor & Destructor Documentation

casa::DParameterChoice::DParameterChoice	(	const String	name,
		const String	description,
		const String	help,
		const Vector< String > &	options,
		const String	defaultvalue,
		const String	value,
		const String	context = `""`,
		const Bool	editable = `False`
	)

Constructor taking the name of the parameter, a short description, some help text, a list of allowed options, a default value, an initial value, the context of the parameter, and a flag indicating whether the parameter is editable.

Obviously the defaultvalue and value parameters must exist in the list of allowed options, otherwise an exception is thrown.

casa::DParameterChoice::DParameterChoice	(	const String	name,
		const String	description,
		const String	help,
		const ColormapDefinition::colormapnamemap &	options,
		const String	defaultvalue,
		const String	value,
		const String	context = `""`,
		const Bool	editable = `False`
	)

casa::DParameterChoice::DParameterChoice ( const DParameterChoice & other )

(Required) copy constructor.

virtual casa::DParameterChoice::~DParameterChoice ( ) [virtual]

Destructor.

casa::DParameterChoice::DParameterChoice ( ) [protected]

(Required) default constructor.

Member Function Documentation

String casa::DParameterChoice::defaultValue ( ) [inline]

Return the default for this parameter.

Definition at line 155 of file DParameterChoice.h.

References itsDefaultValue.

Bool casa::DParameterChoice::existsOption ( const String value )

Determine whether this value exists in the list of options.

virtual Bool casa::DParameterChoice::fromRecord ( const RecordInterface & record ) [virtual]

Parse record, and update this parameter if a field exists whose name matches that of this parameter.

Return True if the parameter is changed, otherwise return False.

Implements casa::DisplayParameter.

const String& casa::DParameterChoice::operator= ( const String & value ) [inline]

Convenient syntax to set (only) the value.

Definition at line 186 of file DParameterChoice.h.

References itsValue.

DParameterChoice& casa::DParameterChoice::operator= ( const DParameterChoice & other )

(Required) copy assignment.

Reimplemented from casa::DisplayParameter.

Reimplemented in casa::DParameterColorChoice, casa::DParameterFontChoice, and casa::DParameterMapKeyChoice.

Vector<String> casa::DParameterChoice::options ( ) const [inline]

Return the list of allowed options for this parameter.

Definition at line 150 of file DParameterChoice.h.

References itsOptions.

void casa::DParameterChoice::setDefaultValue ( const String defaultvalue ) [inline]

Set or change the default value for this parameter.

Definition at line 176 of file DParameterChoice.h.

References itsDefaultValue.

void casa::DParameterChoice::setEditable ( const Bool editable ) [inline]

Set or change if this parameter is editable (determines wether choice or userchoice is returned in the record.

Reimplemented from casa::DisplayParameter.

Definition at line 166 of file DParameterChoice.h.

References itsEditable.

void casa::DParameterChoice::setOptions ( const Vector< String > & options ) [inline]

Set or change the list of allowed options for this parameter.

Reimplemented in casa::DParameterMapKeyChoice.

Definition at line 171 of file DParameterChoice.h.

References itsOptions.

void casa::DParameterChoice::setValue ( const String value ) [inline]

Set or change the current value.

Definition at line 181 of file DParameterChoice.h.

References itsValue.

virtual void casa::DParameterChoice::toRecord	(	RecordInterface &	record,
		const Bool	fullrecord = `True`,
		const Bool	overwrite = `False`
	)			`[virtual]`

Place a record describing this parameter in a sub-field of record with name matching that of this parameter.

If overwrite is True, then any existing field with matching name will be overwritten. If fullrecord is True, then a complete description of the parameter is given, otherwise just its current value is stored in record. Presently fullrecord is ignored.

Implements casa::DisplayParameter.

String casa::DParameterChoice::value ( void ) [inline]

Return the current value of this parameter.

Definition at line 160 of file DParameterChoice.h.

References itsValue.

Referenced by casa::SkyCatOverlayDD::charColor(), casa::AxesDisplayData::charFont(), casa::SkyCatOverlayDD::charFont(), casa::SkyCatOverlayDD::mapColumn(), casa::SkyCatOverlayDD::markerColor(), casa::SkyCatOverlayDD::nameColumn(), casa::AxesDisplayData::outlineColor(), casa::Profile2dDD::profileColor(), casa::WorldAxesDD::spectralUnit(), casa::AxesDisplayData::titleTextColor(), casa::WorldAxesDD::velocityType(), casa::QtDisplayData::wouldDisplayColorBar(), casa::AxesDisplayData::xAxisColor(), casa::AxesDisplayData::xGridType(), casa::AxesDisplayData::yAxisColor(), and casa::AxesDisplayData::yGridType().
