casa::SolvableVisMueller Class Reference

********************************************************** SolvableVisMueller More...

#include <SolvableVisCal.h>

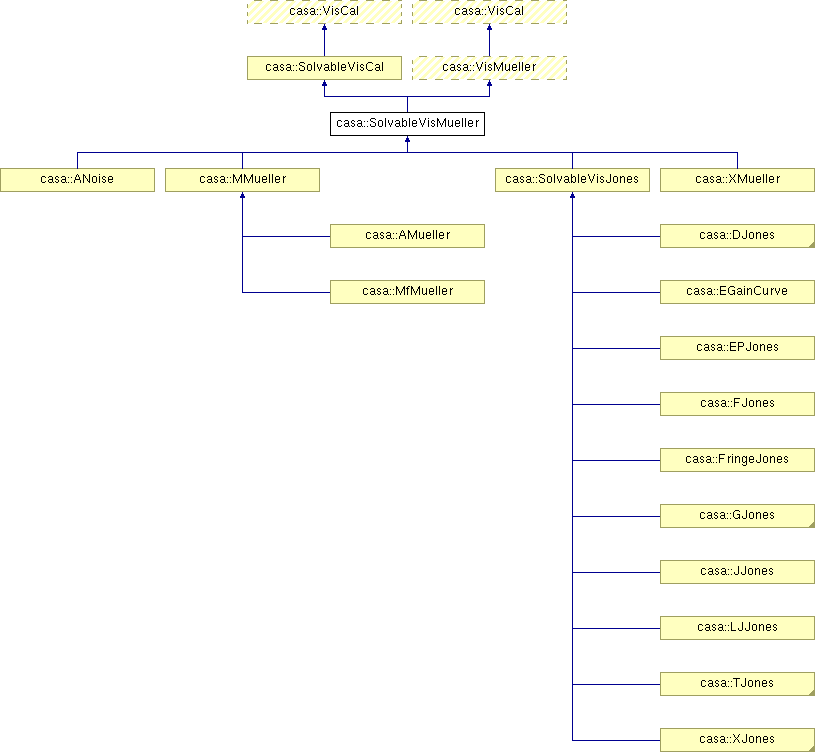

Inheritance diagram for casa::SolvableVisMueller:

List of all members.

Public Member Functions
	SolvableVisMueller (VisSet &vs)
	SolvableVisMueller (String msname, Int MSnAnt, Int MSnSpw)
	SolvableVisMueller (const MSMetaInfoForCal &msmc)
	SolvableVisMueller (const Int &nAnt)
virtual	~SolvableVisMueller ()
virtual Int	nTotalPar ()
	Total number of (complex) parameters per solve Mueller version: just return number of per-Bln parameters.
virtual Bool	normalizable ()
	Does normalization by MODEL_DATA commute with this VisCal?
virtual void	guessPar (VisBuffer &)
	Hazard a guess at the parameters (solvePar) given the data.
virtual void	differentiate (CalVisBuffer &)
	Differentiate VB model w.r.t.
virtual void	differentiate (SolveDataBuffer &)
virtual void	differentiate (VisBuffer &, Cube< Complex > &, Array< Complex > &, Matrix< Bool > &)
virtual void	diffSrc (VisBuffer &, Array< Complex > &)
	Differentiate VB model w.r.t.
virtual void	reReference ()
	Apply refant (no-op for Muellers).
virtual void	accumulate (SolvableVisCal *, const Vector< Int > &)
	Accumulate another VisCal onto this one.
virtual void	fluxscale (const String &, const Vector< Int > &, const Vector< Int > &, const Vector< Int > &, const Vector< String > &, const Float &, const String &, const String &, const String &, SolvableVisCal::fluxScaleStruct &, const String &, const Bool &, const Int &, const Bool &)
	Scale solutions.
virtual void	keepNCT ()
	SVM-specific write to caltable.
virtual void	state ()
	Report state:.
virtual void	listCal (const Vector< Int >, const Vector< Int >, const Matrix< Int >, const String &, const Int &)
	List calibration solutions in tabular form.
Protected Member Functions
virtual Int	nCalMat ()
	Number of Cal Matrices to form on baseline axis (Mueller, solve context: 1).
virtual Bool	trivialDM ()
	Are differentiated M matrices constant in chan & bln?
virtual void	initSolvePar ()
	Initialize solve parameter shape Mueller version: (nPar(),1,1) (one chan, one baseline).
Mueller &	dM ()
	Access to matrix rendering of dM (per par).
Array< Complex > &	diffMElem ()
	Access to differentiated Mueller elements.
virtual void	invalidateDiffCalMat ()
	Invalidate diff cal matrices generically (at this level, just M, dM).
void	invalidateDM ()
	Validation of diffMueller matrices.
void	validateDM ()
Bool	DMValid ()
virtual void	syncDiffMat ()
	Synchronize the differentiated calibration (specialization for Mueller);.
virtual void	syncDiffMueller ()
	Synchronize the Muellers AND diffMuellers.
virtual void	calcAllDiffMueller ()
	Calculate the ensemble of diff'd Mueller Elements.
virtual void	calcOneDiffMueller (Matrix< Complex > &mat, const Vector< Complex > &par)
	Calculate one diffMElem.
void	createDiffMueller ()
	Create matrix renderers for dMs.
void	setMatByOk ()
	Override VM::setMatByOk in solve context.
virtual void	initTrivDM ()
	Initialize trivial diff'd Muellers.
virtual void	stateSVM (const Bool &doVC)
	SVM-specific state.
virtual Float	calcPowerNorm (Array< Float > &amp, const Array< Bool > &ok)
	atomic power normalization calculation Mueller version assumes amp in power units
Private Member Functions
	SolvableVisMueller ()
	Default ctor is private.
Private Attributes
Mueller *	dM_
	Mueller wrapper for diffMElem_;.
Array< Complex >	diffMElem_
	Differentiated Mueller matrix elements.
Bool	DMValid_
	diffMueller validation

---

Detailed Description

********************************************************** SolvableVisMueller

Definition at line 621 of file SolvableVisCal.h.

---

Constructor & Destructor Documentation

casa::SolvableVisMueller::SolvableVisMueller

(

VisSet &

vs

)

casa::SolvableVisMueller::SolvableVisMueller	(	String	msname,
		Int	MSnAnt,
		Int	MSnSpw
	)

casa::SolvableVisMueller::SolvableVisMueller

(

const MSMetaInfoForCal &

msmc

)

casa::SolvableVisMueller::SolvableVisMueller

(

const Int &

nAnt

)

virtual casa::SolvableVisMueller::~SolvableVisMueller

(

)

[virtual]

casa::SolvableVisMueller::SolvableVisMueller

(

)

[private]

Default ctor is private.

---

Member Function Documentation

virtual void casa::SolvableVisMueller::accumulate	(	SolvableVisCal *	,
		const Vector< Int > &
	)			[inline, virtual]

Accumulate another VisCal onto this one.

Reimplemented in casa::SolvableVisJones.

Definition at line 663 of file SolvableVisCal.h.

virtual void casa::SolvableVisMueller::calcAllDiffMueller

(

)

[protected, virtual]

Calculate the ensemble of diff'd Mueller Elements.

virtual void casa::SolvableVisMueller::calcOneDiffMueller	(	Matrix< Complex > &	mat,
		const Vector< Complex > &	par
	)			[protected, virtual]

Calculate one diffMElem.

virtual Float casa::SolvableVisMueller::calcPowerNorm	(	Array< Float > &	amp,
		const Array< Bool > &	ok
	)			[protected, virtual]

atomic power normalization calculation Mueller version assumes amp in power units

Implements casa::SolvableVisCal.

Reimplemented in casa::SolvableVisJones.

void casa::SolvableVisMueller::createDiffMueller

(

)

[protected]

Create matrix renderers for dMs.

virtual void casa::SolvableVisMueller::differentiate	(	VisBuffer &	,
		Cube< Complex > &	,
		Array< Complex > &	,
		Matrix< Bool > &
	)			[inline, virtual]

Implements casa::SolvableVisCal.

Reimplemented in casa::EPJones, casa::LJJones, and casa::SolvableVisJones.

Definition at line 649 of file SolvableVisCal.h.

virtual void casa::SolvableVisMueller::differentiate

(

SolveDataBuffer &

)

[inline, virtual]

Reimplemented from casa::SolvableVisCal.

Reimplemented in casa::SolvableVisJones.

Definition at line 648 of file SolvableVisCal.h.

virtual void casa::SolvableVisMueller::differentiate

(

CalVisBuffer &

)

[inline, virtual]

Differentiate VB model w.r.t.

Mueller parameters (no 2nd derivative yet)

Implements casa::SolvableVisCal.

Reimplemented in casa::SolvableVisJones.

Definition at line 647 of file SolvableVisCal.h.

Array<Complex>& casa::SolvableVisMueller::diffMElem

(

)

[inline, protected]

Access to differentiated Mueller elements.

Definition at line 714 of file SolvableVisCal.h.

References diffMElem_.

virtual void casa::SolvableVisMueller::diffSrc	(	VisBuffer &	,
		Array< Complex > &
	)			[inline, virtual]

Differentiate VB model w.r.t.

Source parameters

Implements casa::SolvableVisCal.

Reimplemented in casa::SolvableVisJones.

Definition at line 656 of file SolvableVisCal.h.

Mueller& casa::SolvableVisMueller::dM

(

)

[inline, protected]

Access to matrix rendering of dM (per par).

Definition at line 711 of file SolvableVisCal.h.

References dM_.

Bool casa::SolvableVisMueller::DMValid

(

)

[inline, protected]

Definition at line 722 of file SolvableVisCal.h.

References DMValid_.

virtual void casa::SolvableVisMueller::fluxscale	(	const String &	,
		const Vector< Int > &	,
		const Vector< Int > &	,
		const Vector< Int > &	,
		const Vector< String > &	,
		const Float &	,
		const String &	,
		const String &	,
		const String &	,
		SolvableVisCal::fluxScaleStruct &	,
		const String &	,
		const Bool &	,
		const Int &	,
		const Bool &
	)			[inline, virtual]

Scale solutions.

Implements casa::SolvableVisCal.

Reimplemented in casa::SolvableVisJones.

Definition at line 667 of file SolvableVisCal.h.

virtual void casa::SolvableVisMueller::guessPar

(

VisBuffer &

)

[inline, virtual]

Hazard a guess at the parameters (solvePar) given the data.

Implements casa::SolvableVisCal.

Reimplemented in casa::DJones, casa::EGainCurve, casa::EPJones, casa::FringeJones, casa::KJones, casa::LJJones, casa::TJones, casa::GJones, and casa::JJones.

Definition at line 644 of file SolvableVisCal.h.

virtual void casa::SolvableVisMueller::initSolvePar

(

)

[protected, virtual]

Initialize solve parameter shape Mueller version: (nPar(),1,1) (one chan, one baseline).

Implements casa::SolvableVisCal.

Reimplemented in casa::XfJones, casa::EPJones, casa::LJJones, and casa::SolvableVisJones.

virtual void casa::SolvableVisMueller::initTrivDM

(

)

[protected, virtual]

Initialize trivial diff'd Muellers.

virtual void casa::SolvableVisMueller::invalidateDiffCalMat

(

)

[inline, protected, virtual]

Invalidate diff cal matrices generically (at this level, just M, dM).

Implements casa::SolvableVisCal.

Reimplemented in casa::SolvableVisJones.

Definition at line 717 of file SolvableVisCal.h.

References invalidateDM(), and casa::VisMueller::invalidateM().

void casa::SolvableVisMueller::invalidateDM

(

)

[inline, protected]

Validation of diffMueller matrices.

Definition at line 720 of file SolvableVisCal.h.

References DMValid_, and casacore::False.

Referenced by invalidateDiffCalMat().

virtual void casa::SolvableVisMueller::keepNCT

(

)

[virtual]

SVM-specific write to caltable.

Reimplemented from casa::SolvableVisCal.

Reimplemented in casa::SolvableVisJones.

virtual void casa::SolvableVisMueller::listCal	(	const Vector< Int >	,
		const Vector< Int >	,
		const Matrix< Int >	,
		const String &	,
		const Int &
	)			[inline, virtual]

List calibration solutions in tabular form.

Implements casa::SolvableVisCal.

Reimplemented in casa::SolvableVisJones.

Definition at line 690 of file SolvableVisCal.h.

References String, and casa::VisCal::typeName().

virtual Int casa::SolvableVisMueller::nCalMat

(

)

[inline, protected, virtual]

Number of Cal Matrices to form on baseline axis (Mueller, solve context: 1).

Reimplemented from casa::VisMueller.

Reimplemented in casa::SolvableVisJones.

Definition at line 701 of file SolvableVisCal.h.

References casa::SolvableVisCal::isSolved(), and casa::VisCal::nBln().

virtual Bool casa::SolvableVisMueller::normalizable

(

)

[inline, virtual]

Does normalization by MODEL_DATA commute with this VisCal?

Implements casa::SolvableVisCal.

Reimplemented in casa::AMueller, casa::XMueller, casa::XJones, casa::EPJones, casa::LJJones, and casa::SolvableVisJones.

Definition at line 641 of file SolvableVisCal.h.

References casa::Mueller::General, and casa::VisMueller::muellerType().

virtual Int casa::SolvableVisMueller::nTotalPar

(

)

[inline, virtual]

Total number of (complex) parameters per solve Mueller version: just return number of per-Bln parameters.

Implements casa::SolvableVisCal.

Reimplemented in casa::SolvableVisJones.

Definition at line 638 of file SolvableVisCal.h.

References casa::VisCal::nPar().

virtual void casa::SolvableVisMueller::reReference

(

)

[inline, virtual]

Apply refant (no-op for Muellers).

Implements casa::SolvableVisCal.

Reimplemented in casa::DJones, casa::SolvableVisJones, and casa::JJones.

Definition at line 660 of file SolvableVisCal.h.

void casa::SolvableVisMueller::setMatByOk

(

)

[inline, protected, virtual]

Override VM::setMatByOk in solve context.

Reimplemented from casa::VisMueller.

Reimplemented in casa::SolvableVisJones.

Definition at line 740 of file SolvableVisCal.h.

References casa::SolvableVisCal::isSolved().

virtual void casa::SolvableVisMueller::state

(

)

[inline, virtual]

Report state:.

Reimplemented from casa::SolvableVisCal.

Reimplemented in casa::SolvableVisJones.

Definition at line 687 of file SolvableVisCal.h.

References stateSVM(), and casacore::True.

virtual void casa::SolvableVisMueller::stateSVM

(

const Bool &

doVC

)

[protected, virtual]

SVM-specific state.

Referenced by state().

virtual void casa::SolvableVisMueller::syncDiffMat

(

)

[protected, virtual]

Synchronize the differentiated calibration (specialization for Mueller);.

Implements casa::SolvableVisCal.

Reimplemented in casa::SolvableVisJones.

virtual void casa::SolvableVisMueller::syncDiffMueller

(

)

[protected, virtual]

Synchronize the Muellers AND diffMuellers.

virtual Bool casa::SolvableVisMueller::trivialDM

(

)

[inline, protected, virtual]

Are differentiated M matrices constant in chan & bln?

Reimplemented in casa::SolvableVisJones.

Definition at line 704 of file SolvableVisCal.h.

References casacore::False.

void casa::SolvableVisMueller::validateDM

(

)

[inline, protected]

Definition at line 721 of file SolvableVisCal.h.

References DMValid_, and casacore::True.

---

Member Data Documentation

Array<Complex> casa::SolvableVisMueller::diffMElem_ [private]

Differentiated Mueller matrix elements.

Definition at line 761 of file SolvableVisCal.h.

Referenced by diffMElem().

Mueller* casa::SolvableVisMueller::dM_ [private]

Mueller wrapper for diffMElem_;.

Definition at line 758 of file SolvableVisCal.h.

Referenced by dM().

Bool casa::SolvableVisMueller::DMValid_ [private]

diffMueller validation

Definition at line 764 of file SolvableVisCal.h.

Referenced by DMValid(), invalidateDM(), and validateDM().

---

The documentation for this class was generated from the following file:

• code/synthesis/MeasurementComponents/SolvableVisCal.h
