casa::Mueller Class Reference

#include <Mueller.h>

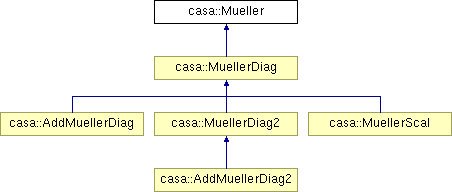

Inheritance diagram for casa::Mueller:

Public Types
enum	MuellerType { AddDiag2, AddDiag, General, Diagonal, Diag2, Scalar }
Public Member Functions
	Mueller ()
	Construct.
virtual	~Mueller ()
	Dtor.
virtual MuellerType	type () const
	Return type id.
virtual uInt	typesize () const
void	setScalarData (Bool scalardata) const
	Set scalardata_ TBD: Handle this better; for now, we need to set this from an external call so we handle single-corr data properly when setting non-corr-dep flags.
void	sync (Complex &mat)
	Synchronize with leading element in external array.
void	sync (Complex &mat, Bool &ok)
void	origin ()
	Reset to origin.
void	operator++ ()
	Increment to next vector (according to len).
void	operator++ (int)
void	advance (const Int &step)
	Advance step matrices forward (according to len).
virtual void	fromJones (const Jones &jones1, const Jones &jones2)
	Formation from Jones matrix outer product: General version.
virtual void	invert ()
	In-place invert.
virtual void	setMatByOk ()
	Set matrix elements according to ok flag (so we don't have to check ok flags atomically in apply).
virtual void	apply (VisVector &v)
	In-place multiply onto a VisVector: General version.
virtual void	apply (VisVector &v, Bool &vflag)
virtual void	applyFlag (Bool &vflag)
	Apply only flags according to cal flags.
virtual void	flag (VisVector &v)
virtual void	apply (VisVector &out, const VisVector &in)
	Multiply onto a vis VisVector, preserving input (copy then in-place apply).
Protected Member Functions
	Mueller (const Mueller &mat)
	Copy ctor protected.
Protected Attributes
Complex *	m0_
	Pointer to origin.
Bool *	ok0_
Complex *	m_
	Moving pointer.
Complex *	mi_
Bool *	ok_
Bool *	oki_
const Complex	cOne_
	Complex unity, zero (for use in invert and similar methods).
const Complex	cZero_
Bool	scalardata_
Private Member Functions
virtual void	zero ()
	Zero the whole Mueller.
Private Attributes
VisVector	vtmp_
	VisVector temporary (only relevant for Mueller::General).
Friends
ostream &	operator<< (ostream &os, const Mueller &mat)
	print it out

Detailed Description

Definition at line 40 of file Mueller.h.

Member Enumeration Documentation

enum casa::Mueller::MuellerType

Enumerator:

AddDiag2
AddDiag
General
Diagonal
Diag2
Scalar

Definition at line 44 of file Mueller.h.

Constructor & Destructor Documentation

casa::Mueller::Mueller ( )

Construct.

virtual casa::Mueller::~Mueller ( ) [inline, virtual]

Dtor.

Definition at line 50 of file Mueller.h.

casa::Mueller::Mueller ( const Mueller & mat ) [protected]

Copy ctor protected.

Member Function Documentation

void casa::Mueller::advance ( const Int & step ) [inline]

Advance step matrices forward (according to len).

Definition at line 74 of file Mueller.h.

References m_, ok_, and typesize().

virtual void casa::Mueller::apply	(	VisVector &	out,
		const VisVector &	in
	)			`[virtual]`

Multiply onto a vis VisVector, preserving input (copy then in-place apply).

virtual void casa::Mueller::apply	(	VisVector &	v,
		Bool &	vflag
	)			`[virtual]`

Reimplemented in casa::MuellerDiag, casa::MuellerDiag2, and casa::MuellerScal.

virtual void casa::Mueller::apply ( VisVector & v ) [virtual]

In-place multiply onto a VisVector: General version.

Reimplemented in casa::MuellerDiag, casa::MuellerDiag2, casa::MuellerScal, casa::AddMuellerDiag2, and casa::AddMuellerDiag.

virtual void casa::Mueller::applyFlag ( Bool & vflag ) [virtual]

Apply only flags according to cal flags.

Reimplemented in casa::MuellerDiag, casa::MuellerDiag2, and casa::MuellerScal.

virtual void casa::Mueller::flag ( VisVector & v ) [virtual]

Reimplemented in casa::MuellerDiag, casa::MuellerDiag2, and casa::MuellerScal.

virtual void casa::Mueller::fromJones	(	const Jones &	jones1,
		const Jones &	jones2
	)			`[virtual]`

Formation from Jones matrix outer product: General version.

Reimplemented in casa::MuellerDiag, casa::MuellerDiag2, and casa::MuellerScal.

virtual void casa::Mueller::invert ( ) [virtual]

In-place invert.

Reimplemented in casa::MuellerDiag, casa::MuellerDiag2, casa::MuellerScal, casa::AddMuellerDiag2, and casa::AddMuellerDiag.

void casa::Mueller::operator++ ( int ) [inline]

Definition at line 71 of file Mueller.h.

References m_, ok_, and typesize().

void casa::Mueller::operator++ ( ) [inline]

Increment to next vector (according to len).

Definition at line 70 of file Mueller.h.

References m_, ok_, and typesize().

void casa::Mueller::origin ( ) [inline]

Reset to origin.

Definition at line 67 of file Mueller.h.

References m0_, m_, ok0_, and ok_.

Referenced by sync().

virtual void casa::Mueller::setMatByOk ( ) [virtual]

Set matrix elements according to ok flag (so we don't have to check ok flags atomically in apply).

Reimplemented in casa::MuellerDiag, casa::MuellerDiag2, casa::MuellerScal, casa::AddMuellerDiag2, and casa::AddMuellerDiag.

void casa::Mueller::setScalarData ( Bool scalardata ) const [inline]

Set scalardata_ TBD: Handle this better; for now, we need to set this from an external call so we handle single-corr data properly when setting non-corr-dep flags.

Definition at line 60 of file Mueller.h.

References scalardata_.

void casa::Mueller::sync	(	Complex &	mat,
		Bool &	ok
	)			`[inline]`

Definition at line 64 of file Mueller.h.

References m0_, ok0_, and origin().

void casa::Mueller::sync ( Complex & mat ) [inline]

Synchronize with leading element in external array.

Definition at line 63 of file Mueller.h.

References m0_, and origin().

virtual MuellerType casa::Mueller::type ( ) const [inline, virtual]

Return type id.

Reimplemented in casa::MuellerDiag, casa::MuellerDiag2, casa::MuellerScal, casa::AddMuellerDiag2, and casa::AddMuellerDiag.

Definition at line 53 of file Mueller.h.

References General.

virtual uInt casa::Mueller::typesize ( ) const [inline, virtual]

Reimplemented in casa::MuellerDiag, casa::MuellerDiag2, and casa::MuellerScal.

Definition at line 54 of file Mueller.h.

Referenced by advance(), and operator++().

virtual void casa::Mueller::zero ( ) [private, virtual]

Zero the whole Mueller.

Reimplemented in casa::MuellerDiag, casa::MuellerDiag2, and casa::MuellerScal.

Friends And Related Function Documentation

ostream& operator<<	(	ostream &	os,
		const Mueller &	mat
	)			`[friend]`

print it out

Member Data Documentation

const Complex casa::Mueller::cOne_ [protected]

Complex unity, zero (for use in invert and similar methods).

Definition at line 114 of file Mueller.h.

const Complex casa::Mueller::cZero_ [protected]

Definition at line 114 of file Mueller.h.

Complex* casa::Mueller::m0_ [protected]

Pointer to origin.

Definition at line 106 of file Mueller.h.

Referenced by origin(), and sync().

Complex* casa::Mueller::m_ [protected]

Moving pointer.

Definition at line 110 of file Mueller.h.

Referenced by advance(), operator++(), and origin().

Complex * casa::Mueller::mi_ [protected]

Definition at line 110 of file Mueller.h.

Bool* casa::Mueller::ok0_ [protected]

Definition at line 107 of file Mueller.h.

Referenced by origin(), and sync().

Bool* casa::Mueller::ok_ [protected]

Definition at line 111 of file Mueller.h.

Referenced by advance(), operator++(), and origin().

Bool * casa::Mueller::oki_ [protected]

Definition at line 111 of file Mueller.h.

Bool casa::Mueller::scalardata_ [mutable, protected]

Definition at line 116 of file Mueller.h.

Referenced by setScalarData().

VisVector casa::Mueller::vtmp_ [private]

VisVector temporary (only relevant for Mueller::General).

Definition at line 124 of file Mueller.h.

The documentation for this class was generated from the following file:

code/synthesis/MeasurementComponents/Mueller.h
