casa::GJones Class Reference

********************************************************** GJones More...

#include <StandardVisCal.h>

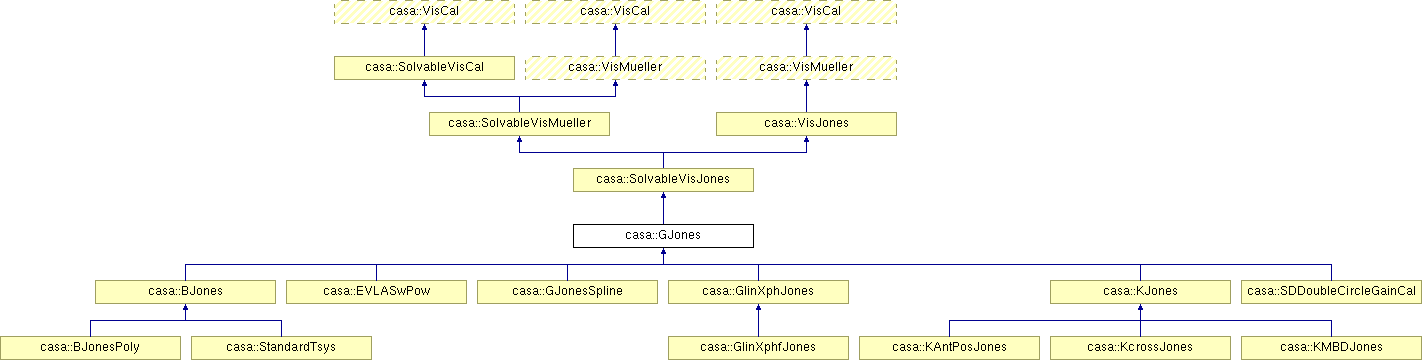

Inheritance diagram for casa::GJones:

List of all members.

Public Member Functions
	GJones (VisSet &vs)
	Constructor.
	GJones (String msname, Int MSnAnt, Int MSnSpw)
	GJones (const MSMetaInfoForCal &msmc)
	GJones (const Int &nAnt)
virtual	~GJones ()
virtual Type	type ()
	Return the type enum.
virtual String	typeName ()
	Return type name as string.
virtual String	longTypeName ()
virtual Jones::JonesType	jonesType ()
	Type of Jones matrix according to nPar().
virtual Bool	accumulatable ()
	This type is accumulatable.
virtual Bool	smoothable ()
	This type is smoothable.
virtual Bool	phandonly ()
	Nominally, we will only use parallel hands for now.
virtual void	guessPar (VisBuffer &vb)
	Hazard a guess at parameters.
virtual void	guessPar (SDBList &sdbs)
virtual void	createCorruptor (const VisIter &vi, const Record &simpar, const Int nSim)
Protected Member Functions
virtual Int	nPar ()
	G has two trivial Complex parameters.
virtual Bool	trivialJonesElem ()
	Jones matrix elements are trivial.
virtual Bool	trivialDJ ()
	dG/dp are trivial
virtual void	initTrivDJ ()
	Initialize trivial dJs.
Private Attributes
GJonesCorruptor *	gcorruptor_p

---

Detailed Description

********************************************************** GJones

Definition at line 222 of file StandardVisCal.h.

---

Constructor & Destructor Documentation

casa::GJones::GJones

(

VisSet &

vs

)

Constructor.

casa::GJones::GJones	(	String	msname,
		Int	MSnAnt,
		Int	MSnSpw
	)

casa::GJones::GJones

(

const MSMetaInfoForCal &

msmc

)

casa::GJones::GJones

(

const Int &

nAnt

)

virtual casa::GJones::~GJones

(

)

[virtual]

---

Member Function Documentation

virtual Bool casa::GJones::accumulatable

(

)

[inline, virtual]

This type is accumulatable.

Reimplemented from casa::SolvableVisCal.

Reimplemented in casa::KJones.

Definition at line 244 of file StandardVisCal.h.

References casacore::True.

virtual void casa::GJones::createCorruptor	(	const VisIter &	vi,
		const Record &	simpar,
		const Int	nSim
	)			[virtual]

virtual void casa::GJones::guessPar

(

SDBList &

sdbs

)

[virtual]

Reimplemented from casa::SolvableVisCal.

virtual void casa::GJones::guessPar

(

VisBuffer &

vb

)

[virtual]

Hazard a guess at parameters.

Reimplemented from casa::SolvableVisMueller.

Reimplemented in casa::KJones.

virtual void casa::GJones::initTrivDJ

(

)

[protected, virtual]

Initialize trivial dJs.

Reimplemented from casa::SolvableVisJones.

Reimplemented in casa::KJones, and casa::KAntPosJones.

virtual Jones::JonesType casa::GJones::jonesType

(

)

[inline, virtual]

Type of Jones matrix according to nPar().

Implements casa::VisJones.

Reimplemented in casa::BJonesPoly, casa::GJonesSpline, casa::KJones, and casa::KAntPosJones.

Definition at line 241 of file StandardVisCal.h.

References casa::Jones::Diagonal.

virtual String casa::GJones::longTypeName

(

)

[inline, virtual]

Reimplemented from casa::VisCal.

Reimplemented in casa::BJonesPoly, casa::GlinXphJones, casa::GlinXphfJones, casa::EVLASwPow, casa::GJonesSpline, casa::KJones, casa::KcrossJones, casa::KMBDJones, casa::KAntPosJones, casa::BJones, and casa::StandardTsys.

Definition at line 238 of file StandardVisCal.h.

virtual Int casa::GJones::nPar

(

)

[inline, protected, virtual]

G has two trivial Complex parameters.

Implements casa::VisCal.

Reimplemented in casa::BJonesPoly, casa::EVLASwPow, casa::GJonesSpline, casa::KJones, and casa::KAntPosJones.

Definition at line 261 of file StandardVisCal.h.

virtual Bool casa::GJones::phandonly

(

)

[inline, virtual]

Nominally, we will only use parallel hands for now.

Reimplemented from casa::SolvableVisCal.

Reimplemented in casa::GlinXphJones, and casa::KcrossJones.

Definition at line 250 of file StandardVisCal.h.

References casacore::True.

virtual Bool casa::GJones::smoothable

(

)

[inline, virtual]

This type is smoothable.

Reimplemented from casa::SolvableVisCal.

Reimplemented in casa::KJones, and casa::KAntPosJones.

Definition at line 247 of file StandardVisCal.h.

References casacore::True.

virtual Bool casa::GJones::trivialDJ

(

)

[inline, protected, virtual]

dG/dp are trivial

Reimplemented from casa::SolvableVisJones.

Reimplemented in casa::KJones, and casa::KAntPosJones.

Definition at line 267 of file StandardVisCal.h.

References casacore::True.

virtual Bool casa::GJones::trivialJonesElem

(

)

[inline, protected, virtual]

Jones matrix elements are trivial.

Implements casa::VisJones.

Reimplemented in casa::EVLASwPow, casa::KJones, casa::KAntPosJones, and casa::StandardTsys.

Definition at line 264 of file StandardVisCal.h.

References casacore::True.

virtual Type casa::GJones::type

(

)

[inline, virtual]

Return the type enum.

Implements casa::VisCal.

Reimplemented in casa::BJonesPoly, casa::GlinXphJones, casa::EVLASwPow, casa::GJonesSpline, casa::KJones, casa::KMBDJones, casa::KAntPosJones, casa::BJones, and casa::StandardTsys.

Definition at line 234 of file StandardVisCal.h.

References casa::VisCal::G.

virtual String casa::GJones::typeName

(

)

[inline, virtual]

Return type name as string.

Reimplemented from casa::VisCal.

Reimplemented in casa::BJonesPoly, casa::GlinXphJones, casa::GlinXphfJones, casa::EVLASwPow, casa::GJonesSpline, casa::KJones, casa::KcrossJones, casa::KMBDJones, casa::KAntPosJones, casa::BJones, and casa::StandardTsys.

Definition at line 237 of file StandardVisCal.h.

---

Member Data Documentation

GJonesCorruptor* casa::GJones::gcorruptor_p [private]

Definition at line 274 of file StandardVisCal.h.

---

The documentation for this class was generated from the following file:

• code/synthesis/MeasurementComponents/StandardVisCal.h
